  1. Introduction to building Estimating in South Australia

  2. Architectural Floor plan

  3. Architectural plan building details

  4. Architectural elevations

  5. Truss Layout via Pryda software

  6. Truss Report via Pryda software

  7. Conventional manual layout with trusses

  8. Truss “T4” • Production Truss plan • used for manufacture • Critical measurements shown • Council Truss plans • Loads and engineering shown

  9. Truss “T10”

  10. How the plans look on site

  11. Truss T 4 Truss to conventional hip end

  12. Truss “T4” Truss to conventional hip end (close up)

  13. Truss to conventional hip end (Halfway point) Truss “T10”

  14. Truss T10 Truss to conventional hip end (side view truss “T10”

  15. Hip end & Steel Facia Steel Facia

  16. Valley boards

  17. Pryda software wall layout Panel “N”

  18. Pryda software Engineering- Based on wind speed and loading Wall frame panel “N” Engineering for the lintel, for the size

  19. Wind speed is indicated on the architectural drawings Residential categories are: 28 Km/h (N1) 33 Km/h (N2) 41 Km/h (N3) The wind speed determines both bracing and beam loading for the building OS panel bracing Strip bracing

  20. OS Bracing Lintel

  21. Timber take-off list Computer Manual

  22. The Building process on site

  23. Strip bracing Top plate bracing Truss tie down Bottom plate

  24. Finished valley , Facia and gutters Underside of eaves, facia and gutter Brick work Tied to frame

  25. Fully trussed roof Non-load bearing internal wall

  26. Typical multi dwelling • Multi storey site • Scaffolding

  27. 2 Storey Bracing & Tie downs Floor trusses Plumbing to be taken into consideration with floor trusses

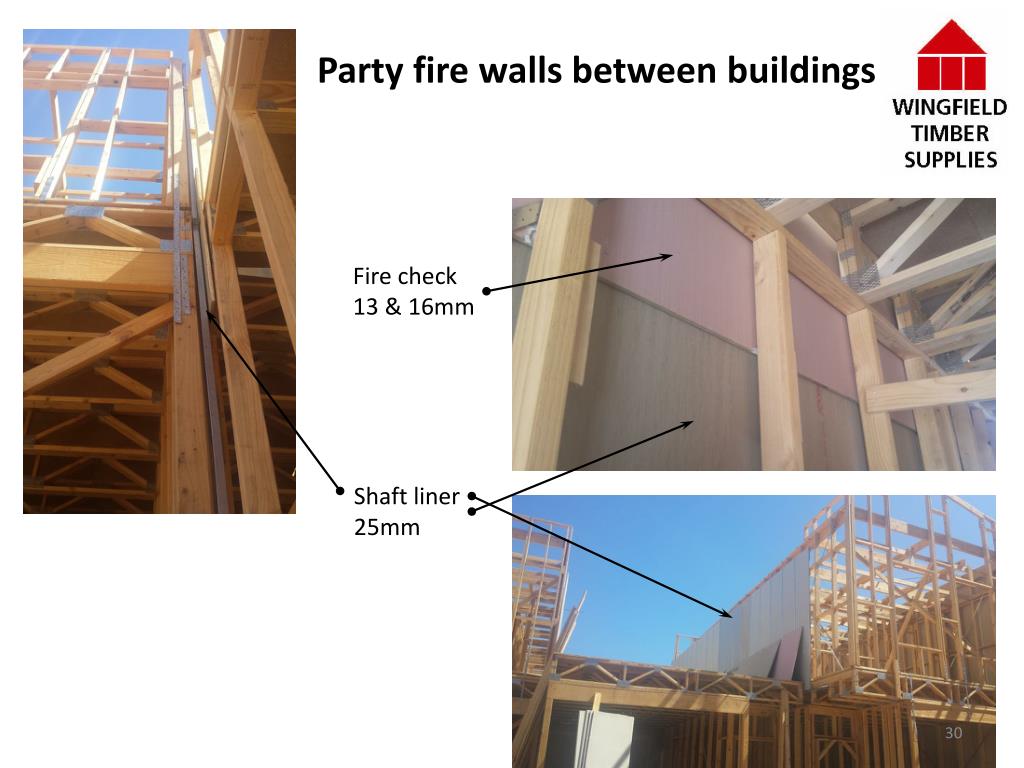

  28. Party fire walls between buildings Fire check 13 & 16mm Shaft liner 25mm
