  1. Comparisons of FEC and Codec Robustness on VoIP Quality and Bandwidth Efficiency Wenyu Jiang Henning Schulzrinne Columbia University ICN 2002, Atlanta, GA Aug 29, 2002

  2. Introduction to VoIP • The Internet is still best-effort • Subject to packet loss and delay jitter • Options for repairing packet loss • Forward error correction (FEC) • Low complexity; bit-exact recovery • Packet loss concealment (PLC) • Receiver-only; no extra BW overhead • More robust (error resilient) codec  better PLC quality, and higher bit-rate • Question: use FEC or a more robust codec?

  3. Metric of VoIP Quality • Mean Opinion Score (MOS) [ITU P.830] • Obtained via human-based listening tests • Listening (MOS) vs. conversational (MOSc)

  4. FEC and IP Header Overhead • An (n,k) FEC code has (n-k)/k overhead • Typical IP/UDP/RTP header is 40 bytes

  5. Predicting MOS in VoIP • The E-model: an alternative to human-based MOS estimation • Do need a first-time calibration from an existing human MOS-loss curve • In VoIP, the E-model simplifies to two main factors: loss (Ie) and delay (Id) • A gross score R is computed and translated to MOS. • Loss-to-Ie mapping is codec-dependent and calibrated

  6. Predicting MOS in VoIP, contd • Example mappings • From loss and delay to their impairment scores and to MOS

  7. Predicting MOS under FEC • Compute final loss probability pf after FEC [Frossard 2001] • Bursty loss reduces FEC performance • Increasing the packet interval T makes FEC more efficient under bursty loss [Jiang 2002] • Plug pf into the calibrated loss-to-Ie mapping • FEC delay is n*T for an (n,k) code • Compute R value and translate to MOS

  8. Quality Evaluation of FEC vs. Codec Robustness • Codecs under evaluation • iLBC: a recent loss-robust codec proposed at IETF; frame-independent coding • G.729: a near toll quality ITU codec • G.723.1: an ITU codec with even lower bit-rate, but also slightly lower quality. • Utilize MOS curves from IETF presentations for FEC MOS estimation • Assume some loss burstiness (conditional loss probability of 30%) • Default packet interval T = 30ms

  9. G.729+(5,3) FEC vs. iLBC • Ignoring delay effect, a larger T improves FEC efficiency and its quality • When considering delay, however, using a 60ms interval is overkill, due to higher FEC delay (5*60 = 300ms)

  10. G.729+(5,2) vs. iLBC+(3,2) • When iLBC also uses FEC, and still keeping similar gross bit-rate • G.729 still prevails, except for low loss conditions when considering delay

  11. G.729+(7,2) vs. iLBC+(4,2) • Too much FEC redundancy (e.g., for G.729)  very long FEC block and delay  not always a good idea • iLBC wins in this case, when considering delay

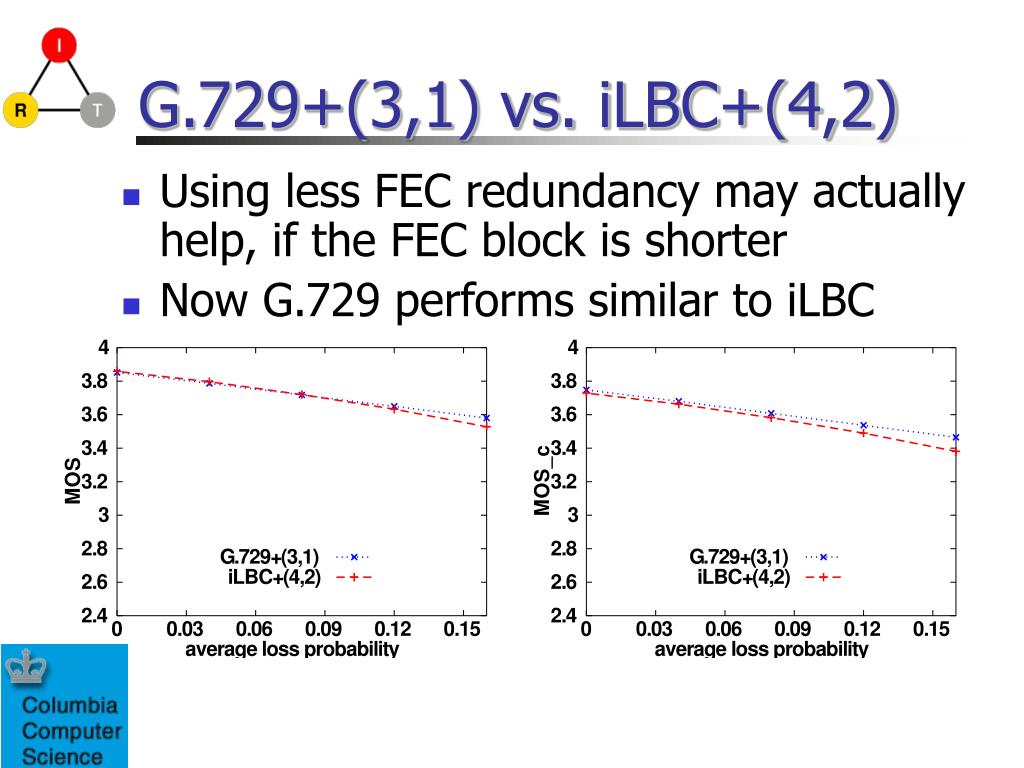

  12. G.729+(3,1) vs. iLBC+(4,2) • Using less FEC redundancy may actually help, if the FEC block is shorter • Now G.729 performs similar to iLBC

  13. Comparison with G.723.1 • MOS(G.723.1) < MOS(iLBC) at zero loss  iLBC dominates more low loss areas compared with G.729, whether delay is considered or not

  14. G.723.1+(3,1) vs. iLBC+(3,2) • iLBC is still better for low loss • G.723.1 wins for higher loss

  15. G.723.1+(4,1) vs. iLBC+(4,2) • iLBC dominates in this case whether delay is considered or not, • (4,2) code already suffices for iLBC • (4,1) code’s performance essentially “saturates”

  16. The Best of Both Worlds • Observations, when considering delay: • iLBC is usually preferred in low loss conditions • G.729 or G.723.1 + FEC better for high loss • Example: max bandwidth 14 kb/s • Consider delay impairment (use MOSc)

  17. Max Bandwidth: 21-28 kb/s

  18. Effect of Max Bandwidth on Achievable Quality • 14 to 21 kb/s: significant improvement in MOSc • From 21 to 28 kb/s: marginal change due to increasing delay impairment by FEC

  19. Conclusions • Compared listening and conversational MOS achieved by conventional vs. robust codecs, with same BW constraint • iLBC is better under low loss conditions • Conventional codec + FEC is better under high loss, but • Usefulness of FEC redundancy saturates beyond a certain point considering delay • At roughly a max BW of 21 kb/s • Reveals max achievable quality with current FEC mechanism

  20. Future Work • Implement the MOS prediction and optimization procedure in software • Investigate the effect of jitter on conventional vs. robust codecs • FEC cannot reduce jitter unless there are many out-of-order packets • PLC in a robust codec like iLBC incurs a much lower delay, thus may be preferable to FEC

  21. References • W. Jiang and H. Schulzrinne, Comparison and optimization of packet loss repair methods on VoIP perceived quality under bursty loss, NOSSDAV 2002 • P. Frossard, FEC performance in multimedia streaming, IEEE Comm Letter 3/2001 • ITU-T, Subjective performance assessment of telephone-band and wideband digital codecs, Recommendation P.830 2/1996
