assessment of the modis lai and fpar algorithm retrieval quality theoretical basis and validation

Ph. D. dissertation Defense

Assessment of the MODIS LAI and FPAR Algorithm: Retrieval Quality, Theoretical Basis and Validation

Yujie Wang

Geography Department, Boston University

Dissertation committee

Ranga B. Myneni

Yuri Knyazikhin

Mark A. Friedl

Curtis E. Woodcock

Jeffrey L. Privette

1 of 51

summary of presentation
Summary of Presentation
  • Motivation
  • Investigation of Retrieval Quality as a function of Input and Model Uncertainty
  • Parameterization of the Algorithm in Light of the Law of Energy Conservation
  • Validation of the MODIS LAI Product in Coniferous Forests of Ruokolahti, Finland
  • Concluding Remarks
  • Future Directions

2 of 51

other works
Other Works
  • Dowty, D., Frost, P., Lesolle, P., Midgley, G., Mukelabai, M., Otter, L., Privette, J., Ringrose, S., Scholes, B., Wang, Y., (2000), Summary of the SAFARI 2000 wet season field campaign along the Kalahari transect. The Earth Observer. 12:29-34.
  • Shabanov, N. V., Wang, Y., Buermann, W., Dong, J., Hoffman, S., Tian, Y. Knyazikhin, Y Gower, S. T. and Myneni, R. B., (2001),Validation of the radiative transfer principles of the MODIS LAI/FPAR algorithm with data from the Harvard forest, Remote Sens. Environ. (in review).
  • Myneni, R. B., Hoffman, S., Knyazikhin, Y. , Privette, J. L., Glassy, J., Tian, Y., Wang, Y., Song, X., Zhang, Y., Smith, G. R., Lotsch, A., Friedl, M., Morisette, J. T., Votava, P., Nemani, R. R. and Running, S. W., (2001),Global products of vegetation leaf area and fraction absorbed PAR from year one of MODIS data, Remote Sens. Environ. (in press).
  • Tian, Y., Wang, Y., Zhang, Y., Knyazikhin, Y., Bogaert, J., and Myneni, R. B., (2001), Radiative Transfer Based Scaling of LAI/FPAR Retrievals From Reflectance Data of Different Resolutions, Remote Sens. Environ. (in press).

3 of 51

other works cont
Other Works (cont.)
  • Privette, J.L., Myneni, R. B., Knyazikhin, Y., Mukufute, M., Robert, G., Tian, Y., Wang, Y. and Leblanc, S.G., (2001), Early Spatial and Temporal Validation of MODIS LAI Product in Africa, (in press).
  • Buermann, W, Wang, Y., Dong, J., Zhou, L., Zeng, X., Dickinson, R. E., Potter, C. S. and Myneni, R. B., (2001), Analysis of a multi-year global vegetation leaf area index data set, J. Geophys. Res. (in press).
  • Tian, Y., Woodcock, C. E., Wang, Y., Privette, J. L., Shabanov, N. V., Zhou, L., Buermann, W., Dong, J., Veikkanen, B., Hame, T., Ozdogan M., Knyazikhin Y., and Myneni, R. B., (2001), Multiscale Analysis and Validation of the MODIS LAI Product over Maun, Botswana, I. Uncertainty assessment. Remote Sens. Environ. (Accepted Jan. 2002).
  • Tian, Y., Woodcock, C. E., Wang, Y., Privette, J. L., Shabanov, N. V., Zhou, L., Buermann, W., Dong, J., Veikkanen, B., Hame, T., Ozdogan M., Knyazikhin Y., and Myneni, R. B., (2001), Multiscale Analysis and Validation of the MODIS LAI Product over Maun, Botswana, II. Sampling strategy. Remote Sens. Environ. (Accepted Jan. 2002).

4 of 51

motivation
LAI and FPAR are two key variables for climate and most model studies. They are operationally derived from measurements of the MODIS instrument aboard TERRA .

How do uncertainties in input and model influence the performance of the MODIS LAI/FPAR algorithm?

Is the parameterization of the law of energy conservation valid in the design of the algorithm?

What is the uncertainty of the MODIS LAI product?

Motivation

5 of 51

summary of presentation1
Summary of Presentation
  • Motivation
  • Investigation of Retrieval Quality as a Function of Input and Model Uncertainty
  • Parameterization of the Algorithm in Light of the Law of Energy Conservation
  • Validation of the MODIS LAI Product in Coniferous Forests of Ruokolahti, Finland
  • Concluding Remarks
  • Future Directions

Wang et. al. (2001), Investigation of product accuracy as a function of input and model uncertainties: Case study with SeaWiFS and MODIS LAI/FPAR algorithm, Remote Sens. Environ., 78:296-311.

6 of 51

slide7
Data
  • Atmospherically corrected and monthly composited multispectral Sea-Viewing Wide Field-of-View Sensor (SeaWiFS) surface reflectance data.
      • Spatial resolution: 8-km.
      • Spectral bands: Blue (443 nm), green (555 nm), red (670 nm) and NIR (865 nm).
  • Global biome classification map derived from AVHRR Pathfinder data (Myneni et. al., 1997).
      • 6 biome types: Grasses and cereal crops, shrubs, broadleaf crops, savannas, broadleaf forests and needle forests.

7 of 51

two types of uncertainties
Two Types of Uncertainties
  • Model Uncertainty
    • Determined by the range of natural variation in biophysical parameters not accounted by the model.
  • Uncertainty in the land surface reflectance
    • Determined by the in-orbit data errors and data processing to correct for atmospheric and other environmental effects.

8 of 51

inverse problem
Inverse Problem

|| Model(LAItrue)-Observation || = 

  • Ideal Condition: if uncertainties  are known, true LAI can be solved accurately.

|| Model(LAItrue)-Observation ||  

  • In the algorithm, the uncertainty information is not available. Therefore, the above inequality is solved.

9 of 51

modis lai fpar algorithm formulation
MODIS LAI/FPAR Algorithm Formulation

Input

The algorithm retrieves distribution functions of all possible solutions that satisfy the above inequality. The mean values and their dispersions are taken as final solution.

Output

LAI=0.1

LAI=1

LAI=2

LAI=3

LAI=5

10 of 51

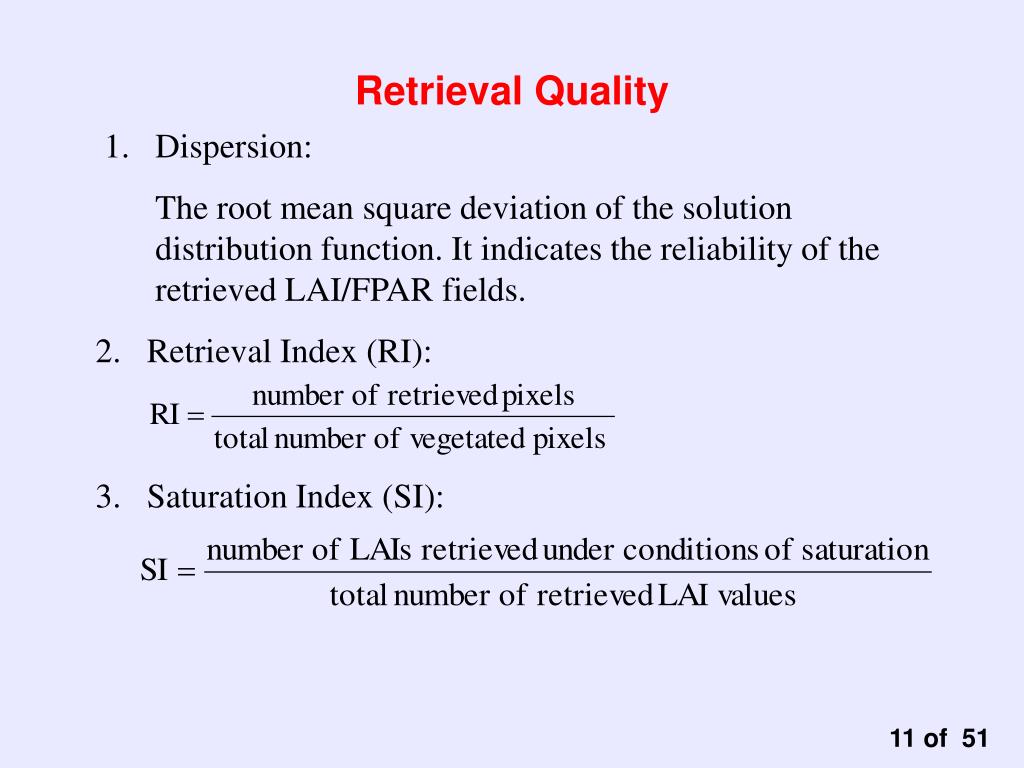

retrieval quality

Retrieval Index (RI):

3. Saturation Index (SI):

Retrieval Quality
  • Dispersion:
  • The root mean square deviation of the solution distribution function. It indicates the reliability of the retrieved LAI/FPAR fields.

11 of 51

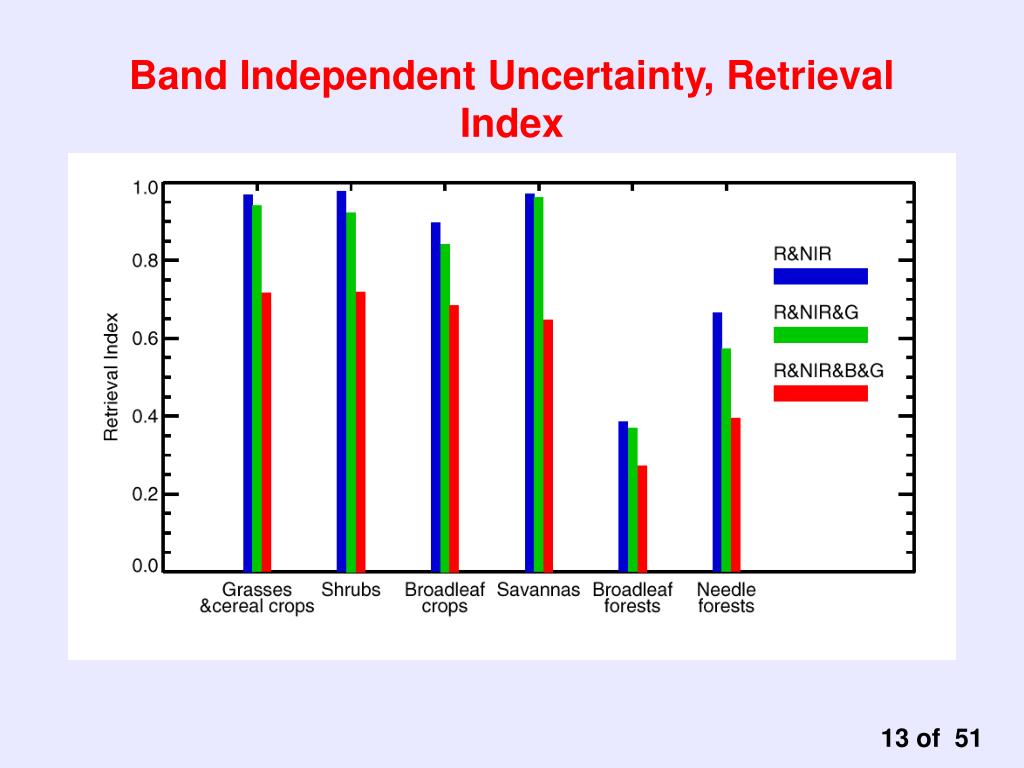

band dependent uncertainty and overall uncertainty
Band Dependent Uncertainty and Overall Uncertainty

Theoretical estimation of relative uncertainties in atmospherically corrected surface reflectances (Vermote, 2000)

An overall uncertainty is defined as:

15 of 51

conclusions
Conclusions
  • Uncertainties in land surface reflectances and models used in the algorithm determine the quality of retrieved LAI and FPAR fields.
  • Accurate information about uncertainty in surface reflectance and model can improve the retrieval quality.
  • The more the measured information and the more accurate this information, the more reliable and accurate is the algorithm output.

21 of 51

summary of presentation2
Summary of Presentation
  • Motivation
  • Investigation of Retrieval Quality as a function of Input and Model Uncertainty
  • Parameterization of the Algorithm in Light of the Law of Energy Conservation
  • Validation of the MODIS LAI Product in Coniferous Forests of Ruokolahti, Finland
  • Concluding Remarks
  • Future Directions

Wang et. al. (2002), Hyperspectral remote sensing of vegetation canopy leaf area index and foliage optical properties, Remote Sens. Environ., (submitted).

22 of 51

radiative transfer equation decomposition

rbs+tbs+abs=1

Black Soil Problem

S Problem

rs+ts+as=1

Radiative Transfer Equation Decomposition

23 of 51

*credit: Chandrasekhar, 1950.

canopy structure parameters
Canopy Structure Parameters

r()

Wavelength, nm

()

Wavelength, nm

t()

Wavelength, nm

i() : interception

24 of 51

spectral invariance of p t and p i

25

25

20

20

15

15

10

10

5

5

0

0

0

0.2

0.4

0.6

0.8

1

1.2

1.4

1.6

1.8

2

0

0.2

0.4

0.6

0.8

1

1.2

1.4

Spectral Invariance of pt and pi

Pi

Pt

f(p)=dF(p)/dp

f(p)=dF(p)/dp

pi

pt

p_values depend on canopy structure and illumination geometry

*credit: Panferov et. al. 2001

25 of 51

uncollided and collided radiation
Uncollided and Collided Radiation
  • Canopy transmittance is the sum of collided and uncollided radiation arriving at the canopy bottom.
  • Uncollided radiation qt is radiation arriving at the canopy bottom without experiencing any collisions. It equals canopy transmittance t () when single scattering albedo is zero.
  • Collided radiation is the radiation which experienced at least one collision (t() – qt).
  • ()pt is the collided portion of canopy transmittance.
  • ()pi is the multi-collided portion of canopy interception.

*Credit: Shabanov et. Al, 2002.

26 of 51

information content of hyperspectral data
Information Content of Hyperspectral Data

*Parameters used in MODIS LAI/FPAR algorithm

27 of 51

slide28
Data
  • The hyperspectral canopy transmittance and reflectance data measured in a 100x150m needle leaf forest plot in Ruokolahti, Finland will be used.

28 of 51

biophysical parameters related to q t
Biophysical Parameters related to qt
  • Fraction of beam radiation (fdir).
  • Leaf area index.
    • Retrieved LAI = 2.02
    • Measured LAI =1.95
  • Ground cover.

30 of 51

retrieval of single scattering albedo
Retrieval of Single Scattering Albedo

Bivariate distribution function of solution of single scattering albedo

Regression curve of the bivariate distribution function

31 of 51

conclusions1
Conclusions
  • A small set of independent variables seem to suffice to describe their spectral response to incident solar radiation.
    • The spectra of soil reflectance and single scattering albedo, canopy transmittance and absorptance normalized by single scattering albedo, the portion of uncollided and collided canopy transmittance and normalized interception.
  • These variables satisfy a simple system of equations and constitute a set that fully describes the law of energy conservation in vegetation canopy at any wavelength of the solar spectrum.
  • The equation system is a closed system, which means once information on some of the variables is available, the rest can be retrieved through this system.

34 of 51

summary of presentation3
Summary of Presentation
  • Motivation
  • Investigation of Retrieval Quality as a function of Input and Model Uncertainty
  • Parameterization of the Algorithm in Light of the Law of Energy Conservation
  • Validation of the MODIS LAI Product in Coniferous Forests of Ruokolahti, Finland
  • Concluding Remarks
  • Future Directions

Wang et. al. (2002), Validation of the MODIS LAI Product in Coniferous Forest of Ruokolahti, Finland, Remote Sens. Environ., (in preparation).

35 of 51

strategy
Strategy

Field Measurements

Compare with MODIS LAI product

Fine resolution LAI map

Fine resolution satellite image

36 of 51

slide37
Data
  • Field measured LAI data
    • Ruokolahti, Finland needle leaf forest site
  • Air-borne and Satellite image
    • 2 m resolution air-borne CCD image
    • ETM+ data
    • MODIS LAI product

37 of 51

ruokolahti campaign sampling strategy

50X50m

25*25m grid

100*150m

25*25m grid

150*100m

Dense

Young

1000m

Regular

25*25m grid

200*200m

1000m

Ruokolahti Campaign Sampling Strategy

39 of 51

pixel by pixel vs patch by patch comparison
Pixel-by-pixel vs. Patch-by patch comparison
  • Pixel-by-pixel comparison
  • High geolocation error
  • Non-representative sampling
  • Patch-by-patch comparison
  • Reduced geolocation error
  • Small amount of sampling is sufficient to characterize mean

Credit: Tian et. Al., 2002

40 of 51

image segmentation
Image Segmentation

ETM+ image over campaign site

Segmentation result

41 of 51

patch level correlation between field measured lai and reduced simple ratio rsr
Patch Level Correlation between Field-measured LAI and Reduced Simple Ratio (RSR)
  • RSR includes Shortwave Infrared (SWIR) band.
  • RSR can suppress background influence and the difference between land cover types. (Brown et. al., 2000).
  • There is better correlation between field-measured LAI and RSR.

43 of 51

fine resolution lai map
Fine Resolution LAI Map

10 km area

1 km campaign site

44 of 51

modis lai and fpar algorithm at 30 m resolution

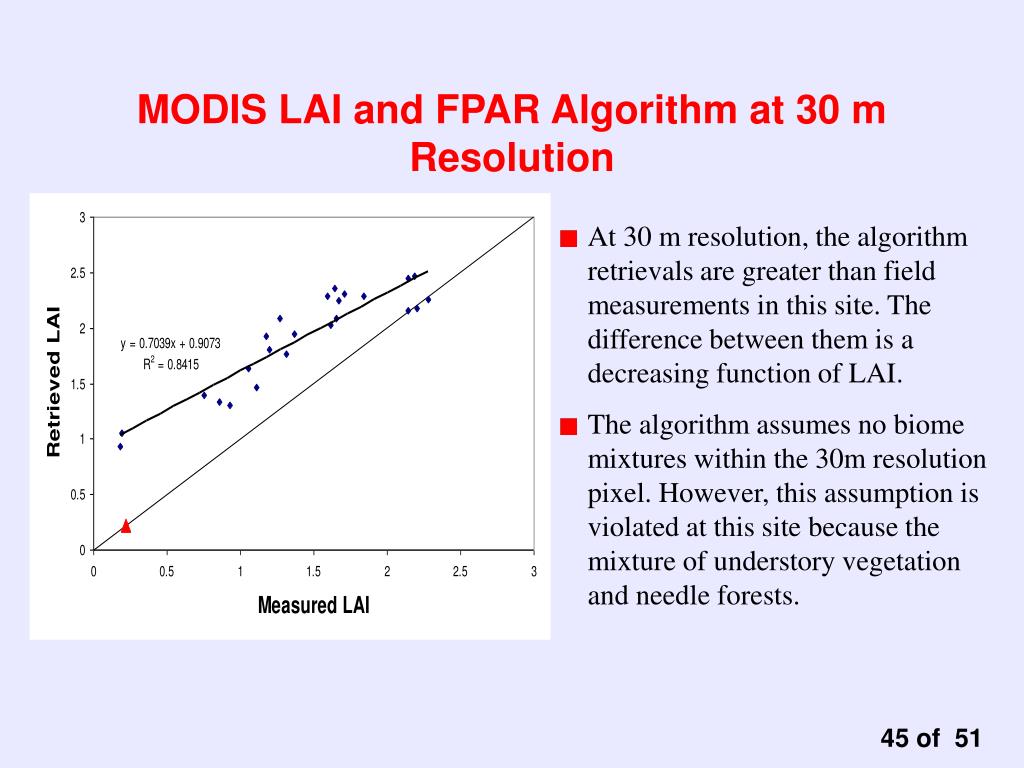

MODIS LAI and FPAR Algorithm at 30 m Resolution
  • At 30 m resolution, the algorithm retrievals are greater than field measurements in this site. The difference between them is a decreasing function of LAI.
  • The algorithm assumes no biome mixtures within the 30m resolution pixel. However, this assumption is violated at this site because the mixture of understory vegetation and needle forests.

45 of 51

modis qa
MODIS QA

MODIS QA map in the 10x10 km area (day 177, 2000). Green: LAI value produced by the main algorithm; Red: LAI is produced by the backup algorithm; Blue: cloud contaminated pixel; Black: water or barren.

46 of 51

validation of modis lai product
Validation of MODIS LAI Product

Contour plot of LAI aggregated from the fine resolution ETM+ LAI map

Patch scale correlation between the MODIS and aggregated LAI map

47 of 51

conclusions2
Conclusions
  • Patch scale comparison is more reliable than pixel scale comparison.
  • Improved correlation between field measurements and the reduced simple ratio suggests that shortwave infrared band may provide valuable information for needle leaf forests.
  • MODIS LAI algorithm can only works well for relatively pure pixels at 30 m resolution for needleleaf forests, improvements are needed.
  • Comparison of MODIS LAI product with aggregated fine resolution LAI map indicates satisfactory performance of the algorithm at coarse resolution.

48 of 51

concluding remarks

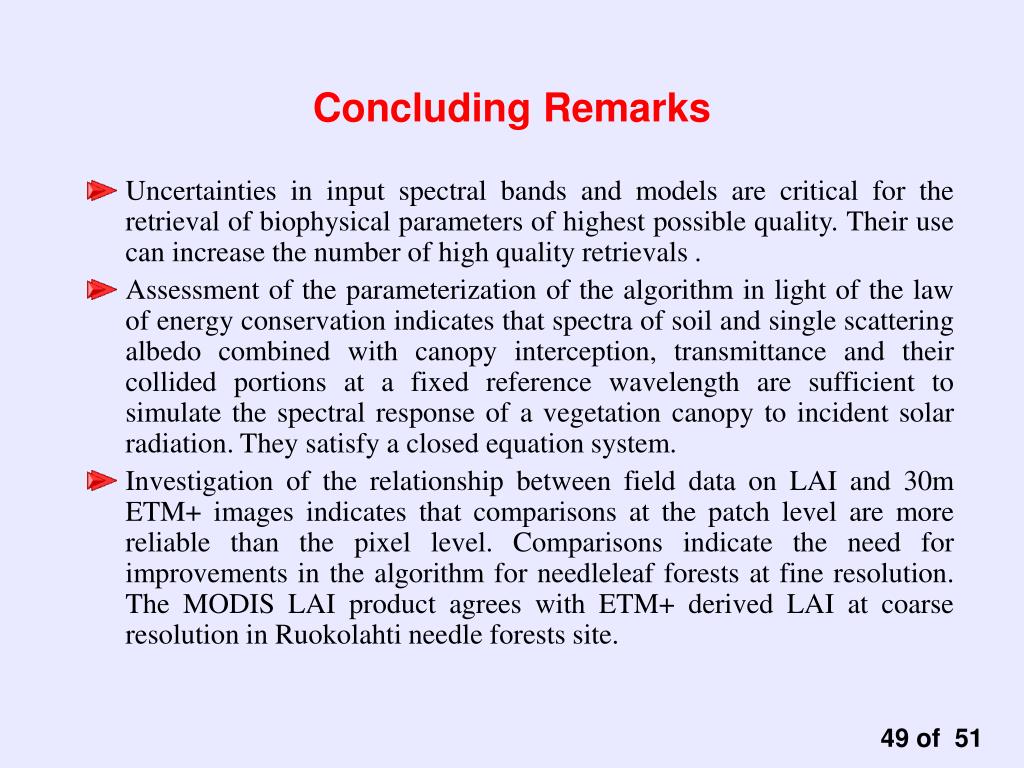

Concluding Remarks
  • Uncertainties in input spectral bands and models are critical for the retrieval of biophysical parameters of highest possible quality. Their use can increase the number of high quality retrievals .
  • Assessment of the parameterization of the algorithm in light of the law of energy conservation indicates that spectra of soil and single scattering albedo combined with canopy interception, transmittance and their collided portions at a fixed reference wavelength are sufficient to simulate the spectral response of a vegetation canopy to incident solar radiation. They satisfy a closed equation system.
  • Investigation of the relationship between field data on LAI and 30m ETM+ images indicates that comparisons at the patch level are more reliable than the pixel level. Comparisons indicate the need for improvements in the algorithm for needleleaf forests at fine resolution. The MODIS LAI product agrees with ETM+ derived LAI at coarse resolution in Ruokolahti needle forests site.

49 of 51

future directions
Future Directions
  • It is possible to include soil reflectance in the system of equations I derived. This may result in more accurate solutions and also the possibility of retrieving spectral soil reflectance using hyperspectral data.
  • Shortwave infrared data should perhaps be included in LAI and FPAR retrievals over boreal forests, as there is now considerable evidence to this effect.
  • More field LAI data should be collected at different locations and periods, representative of the major vegetation types and their phenology, to comprehensively validate both the algorithm and the products.

50 of 51

the end

The end.

51 of 51

fraction of forest over 10 km area
Fraction of Forest over 10 km area

More than 70% of pixels are forest dominant
