Graph Mining Applications to Machine Learning Problems

1. Graph Mining Applications to Machine Learning Problems Max Planck Institute for Biological Cybernetics Koji Tsuda

2. Graphs…

3. A C G C UA CG CG U U U U Graph Structures in Biology • Compounds • DNA Sequence • RNA • Texts in literature H C C C H H O C C H C H H Amitriptyline inhibits adenosine uptake

4. Substructure Representation • 0/1 vector of pattern indicators • Huge dimensionality! • Need Graph Mining for selecting features • Better than paths (Marginalized graph kernels) patterns

5. Overview • Quick Review on Graph Mining • EM-based Clustering algorithm • Mixture model with L1 feature selection • Graph Boosting • Supervised Regression for QSAR Analysis • Linear programming meets graph mining

6. Quick Review of Graph Mining

7. Graph Mining • Analysis of Graph Databases • Find all patterns satisfying predetermined conditions • Frequent Substructure Mining • Combinatorial, Exhaustive • Recently developed • AGM (Inokuchi et al., 2000), gspan (Yan et al., 2002), Gaston (2004)

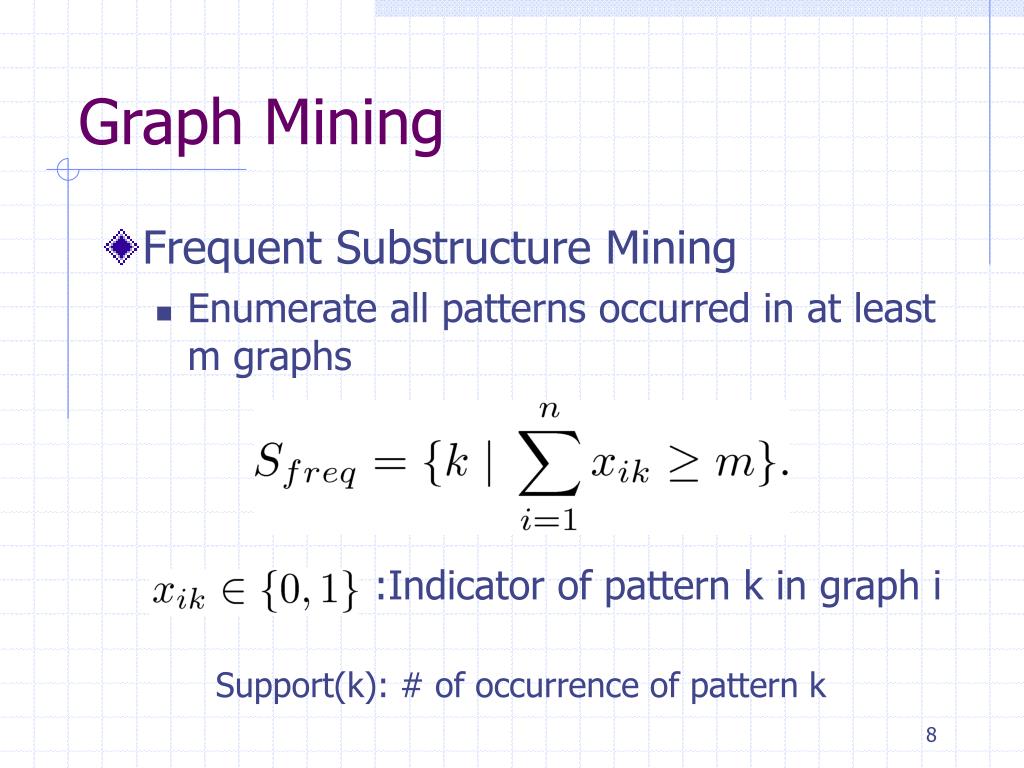

8. Graph Mining • Frequent Substructure Mining • Enumerate all patterns occurred in at least m graphs • :Indicator of pattern k in graph i Support(k): # of occurrence of pattern k

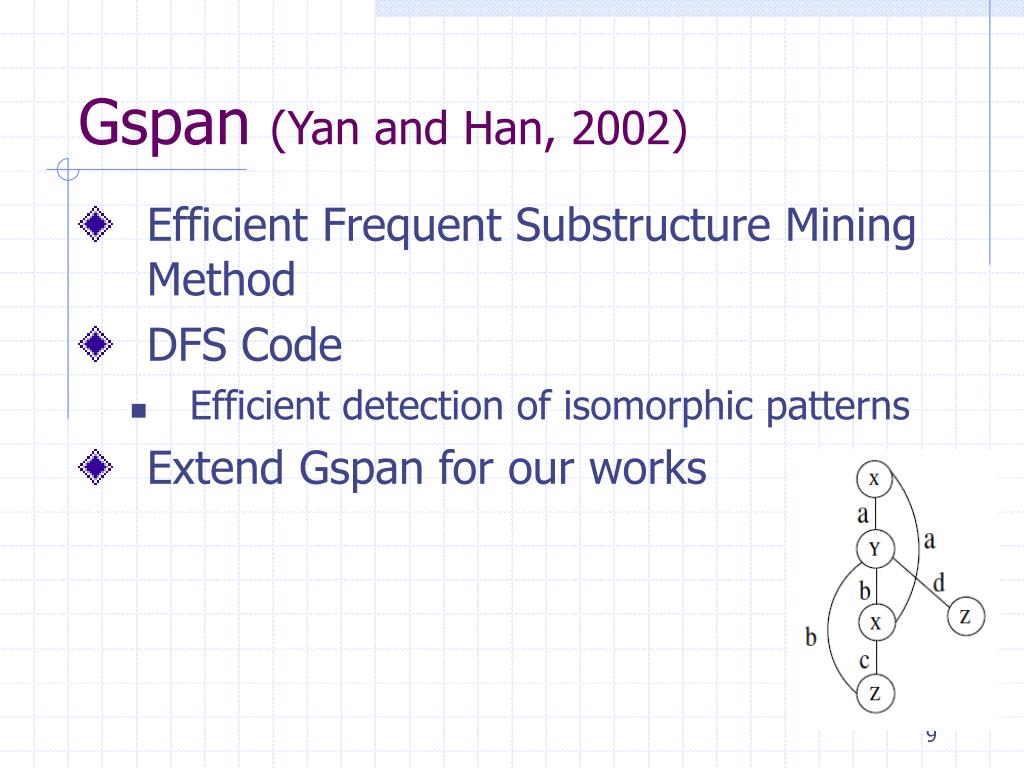

9. Gspan (Yan and Han, 2002) • Efficient Frequent Substructure Mining Method • DFS Code • Efficient detection of isomorphic patterns • Extend Gspan for our works

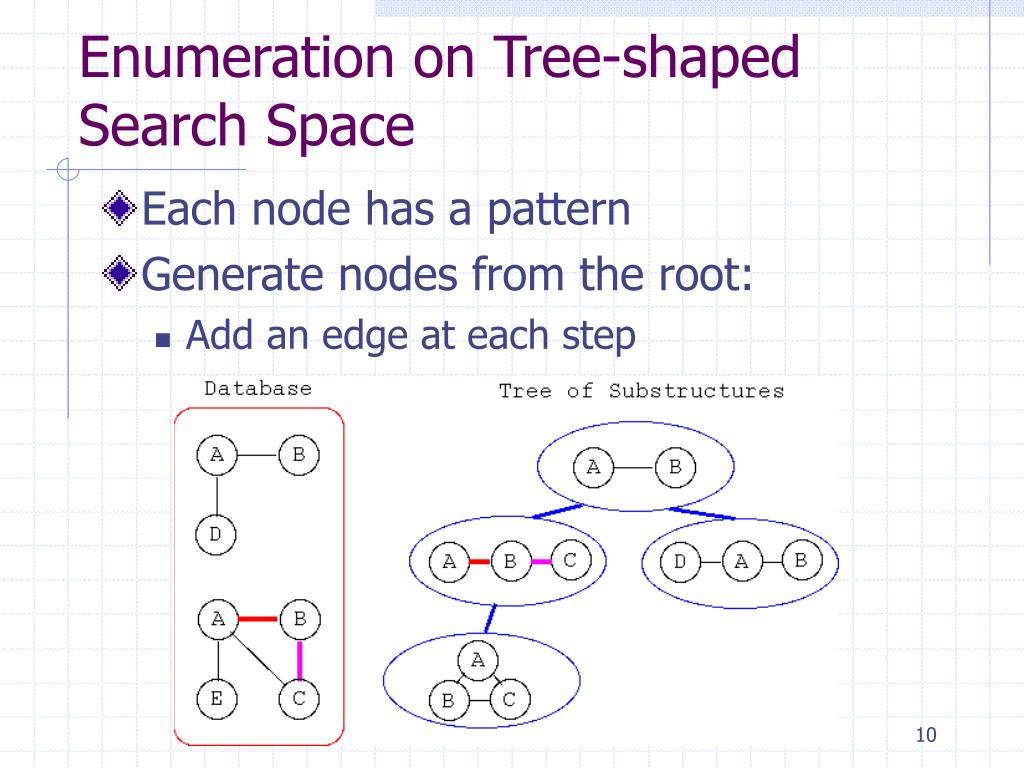

10. Enumeration on Tree-shaped Search Space • Each node has a pattern • Generate nodes from the root: • Add an edge at each step

11. Support(g): # of occurrence of pattern g Tree Pruning • Anti-monotonicity: • If support(g) < m, stop exploring! Not generated

12. Discriminative patterns:Weighted Substructure Mining • w_i > 0: positive class • w_i < 0: negative class • Weighted Substructure Mining • Patterns with large frequency difference • Not Anti-Monotonic: Use a bound

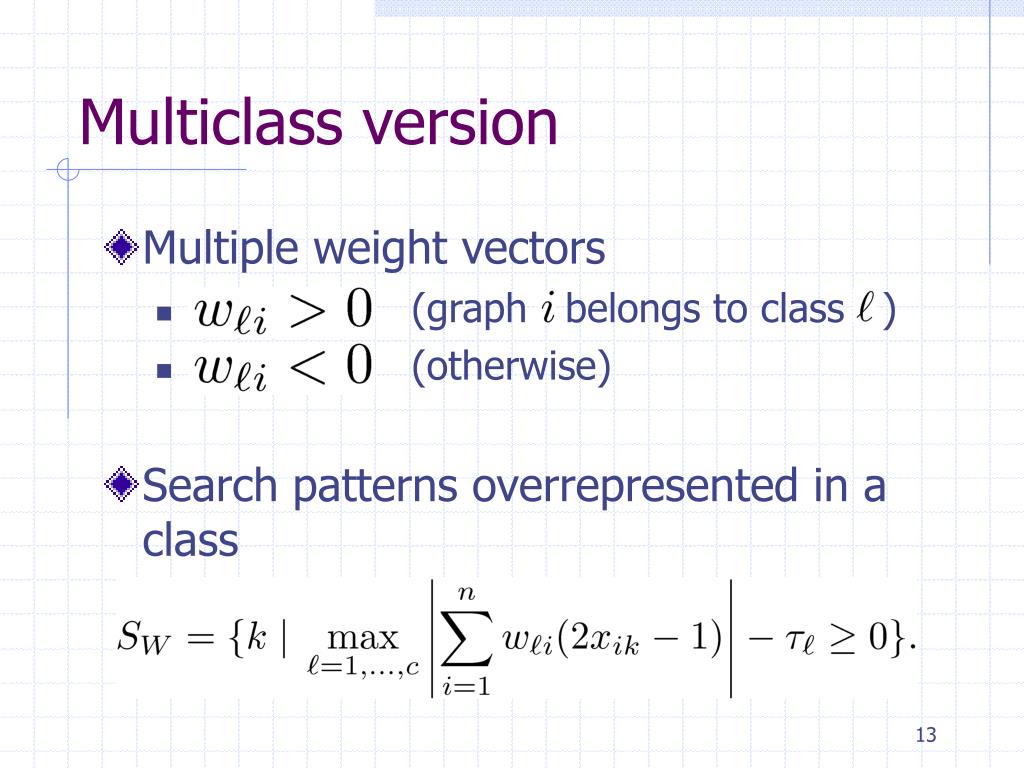

13. Multiclass version • Multiple weight vectors • (graph belongs to class ) • (otherwise) • Search patterns overrepresented in a class

14. EM-based clustering of graphs Tsuda, K. and T. Kudo: Clustering Graphs by Weighted Substructure Mining. ICML 2006, 953-960, 2006

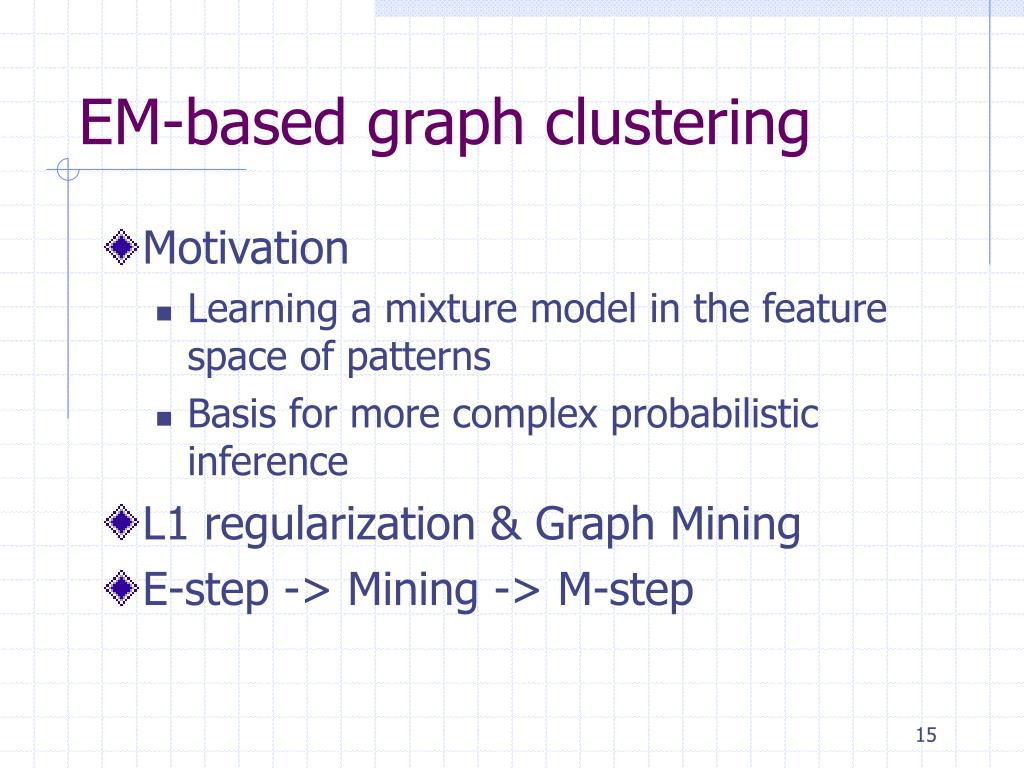

15. EM-based graph clustering • Motivation • Learning a mixture model in the feature space of patterns • Basis for more complex probabilistic inference • L1 regularization & Graph Mining • E-step -> Mining -> M-step

16. :Feature vector of a graph (0 or 1) Probabilistic Model • Binomial Mixture • Each Component :Mixing weight for cluster :Parameter vector for cluster

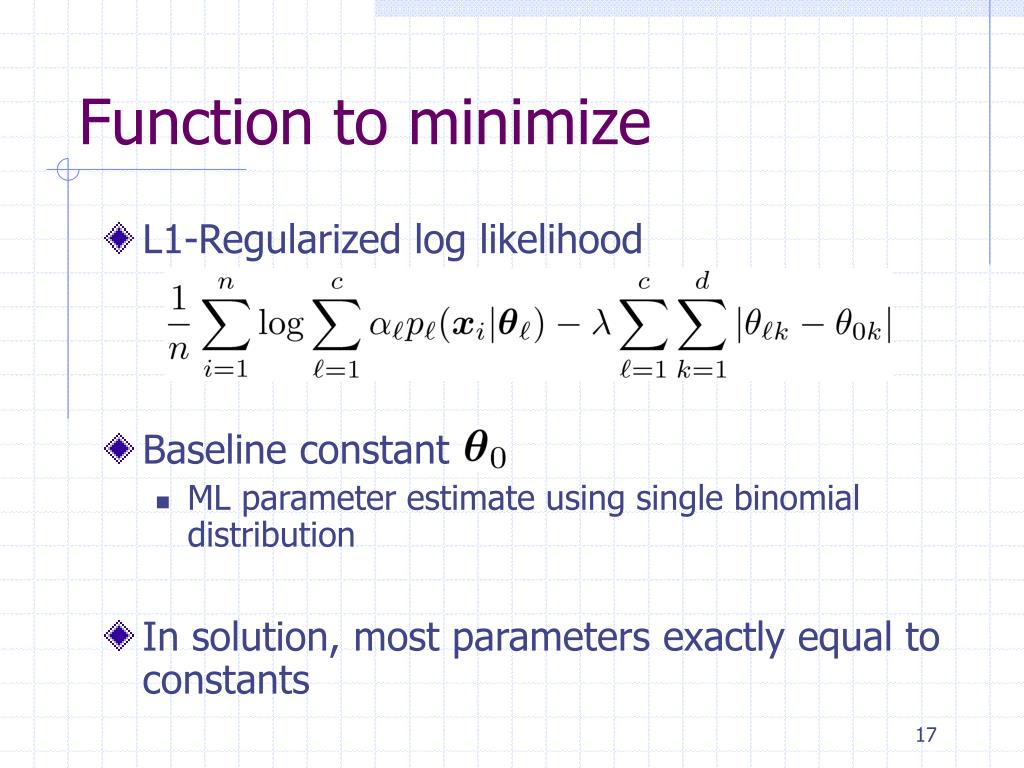

17. Function to minimize • L1-Regularized log likelihood • Baseline constant • ML parameter estimate using single binomial distribution • In solution, most parameters exactly equal to constants

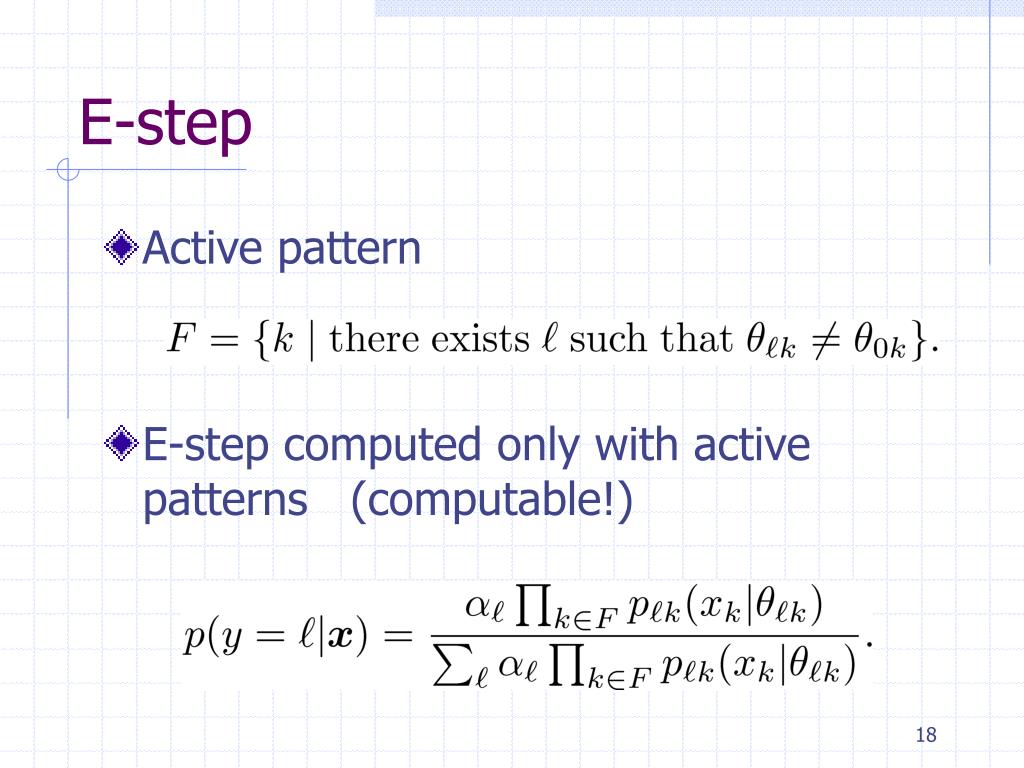

18. E-step • Active pattern • E-step computed only with active patterns (computable!)

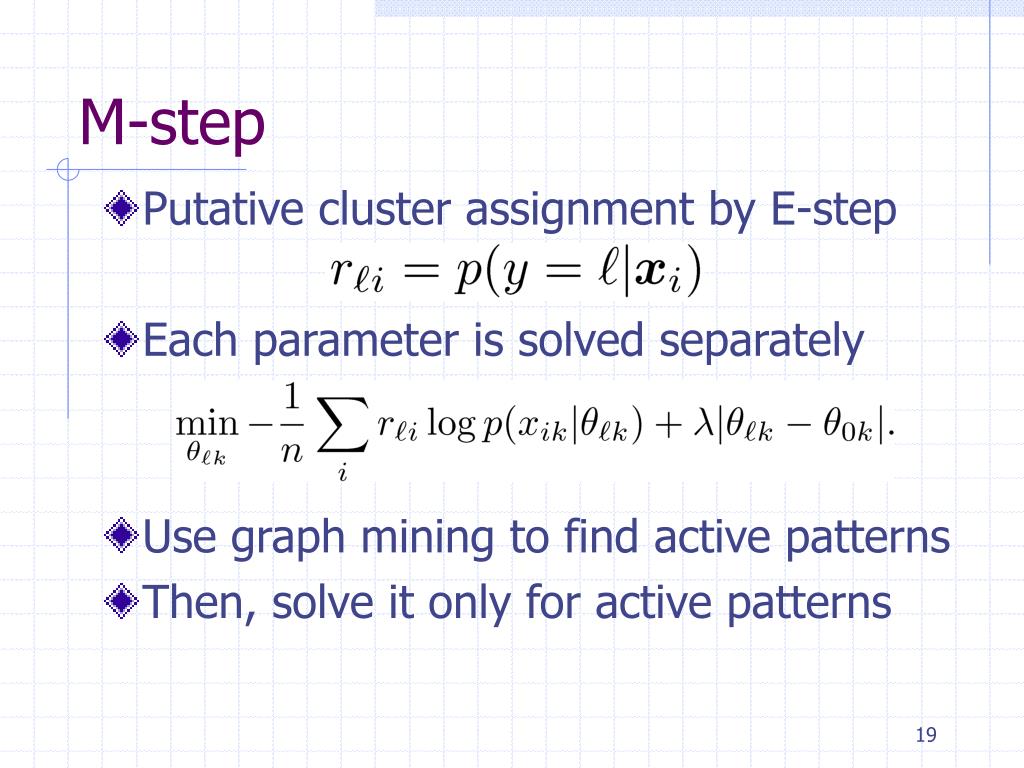

19. M-step • Putative cluster assignment by E-step • Each parameter is solved separately • Use graph mining to find active patterns • Then, solve it only for active patterns

20. Solution • Occurrence probability in a cluster • Overall occurrence probability

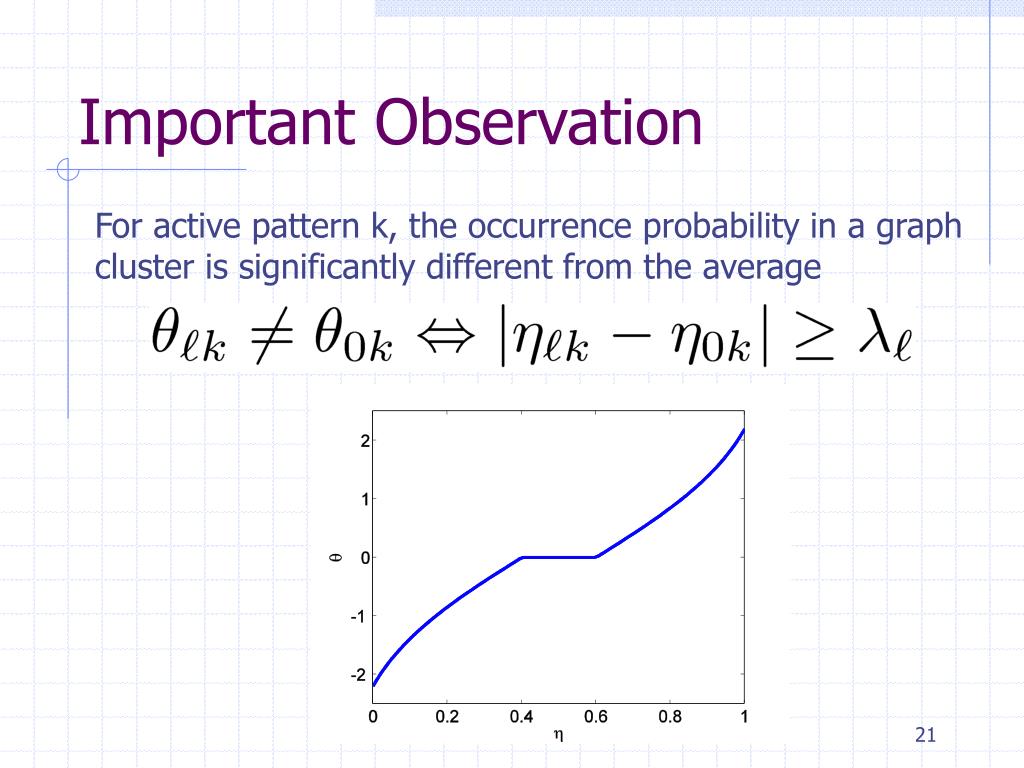

21. Important Observation For active pattern k, the occurrence probability in a graph cluster is significantly different from the average

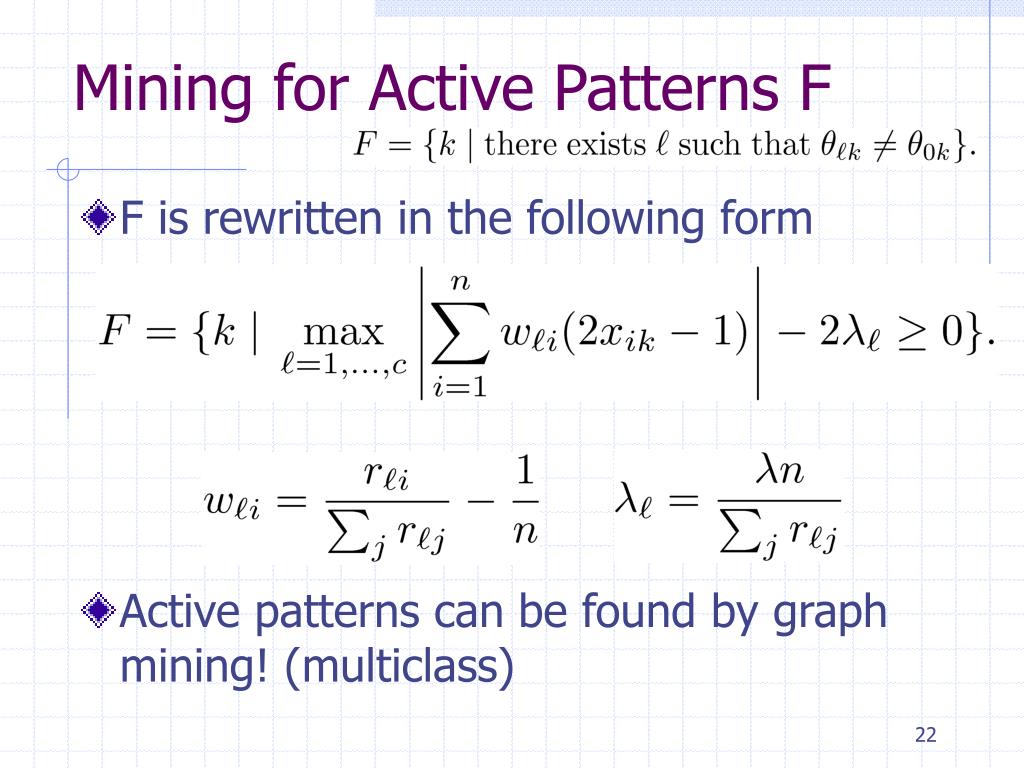

22. Mining for Active Patterns F • F is rewritten in the following form • Active patterns can be found by graph mining! (multiclass)

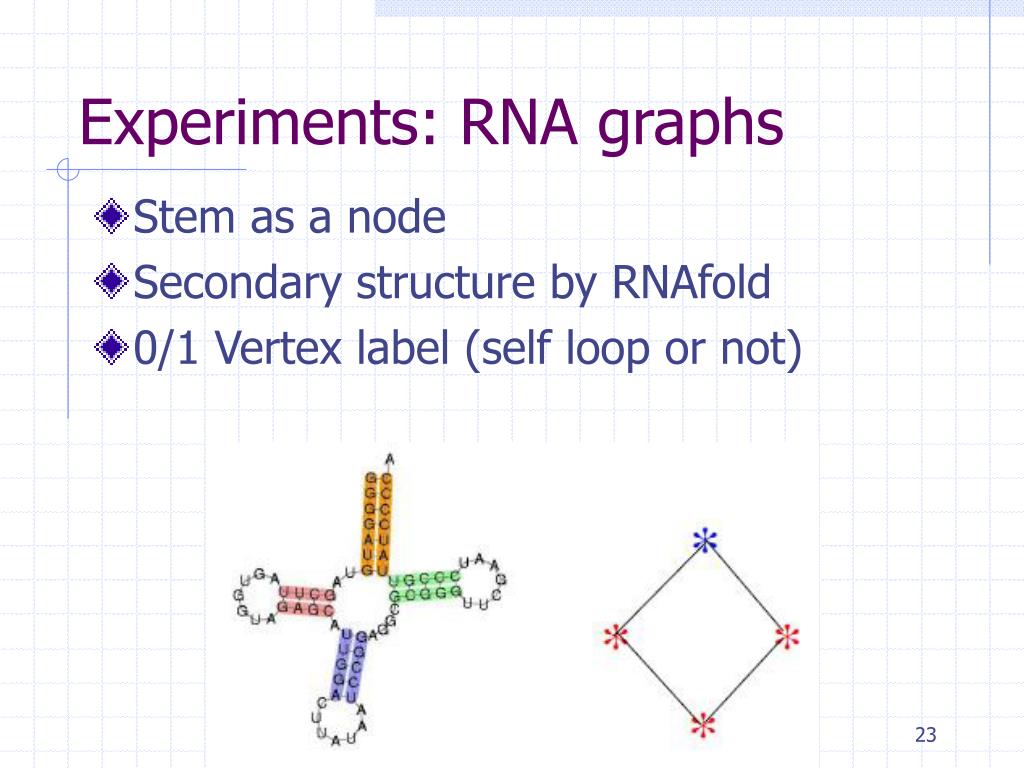

23. Experiments: RNA graphs • Stem as a node • Secondary structure by RNAfold • 0/1 Vertex label (self loop or not)

24. Clustering RNA graphs • Three Rfam families • Intron GP I (Int, 30 graphs) • SSU rRNA 5 (SSU, 50 graphs) • RNase bact a (RNase, 50 graphs) • Three bipartition problems • Results evaluated by ROC scores (Area under the ROC curve)

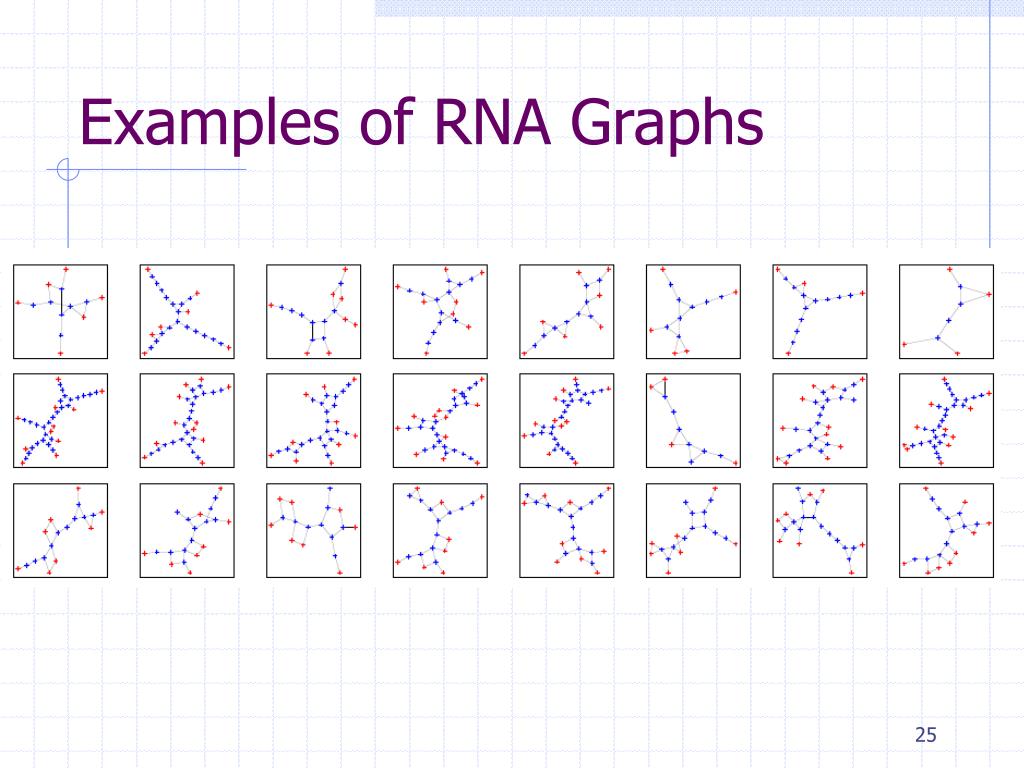

25. Examples of RNA Graphs

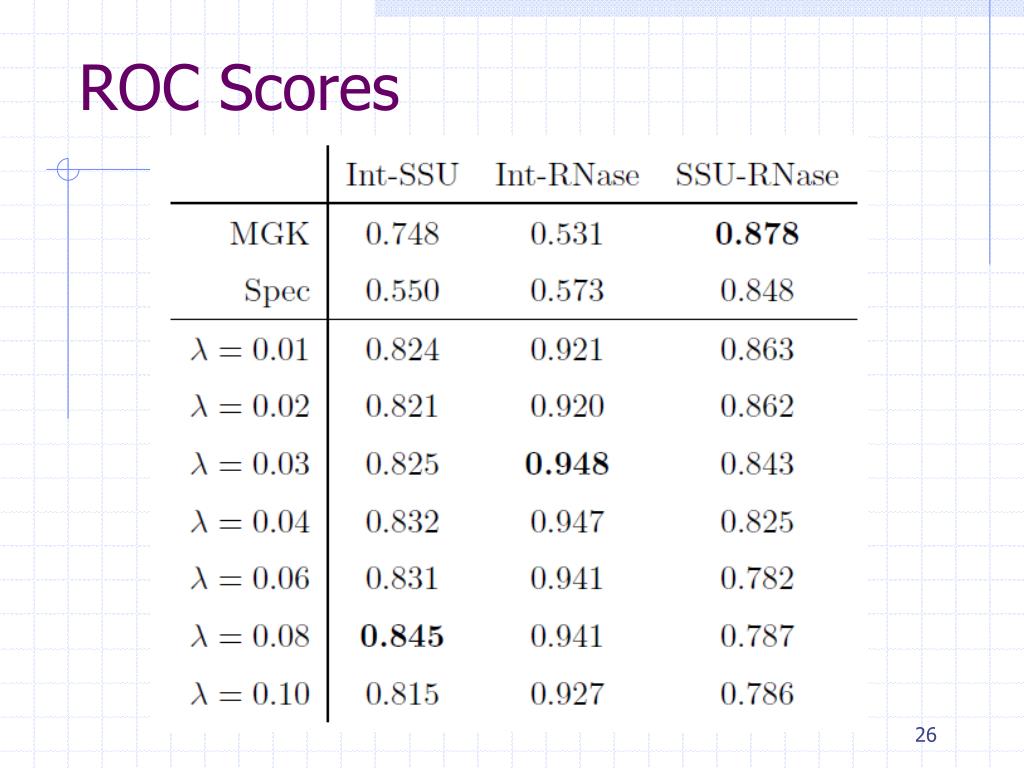

26. ROC Scores

27. No of Patterns & Time

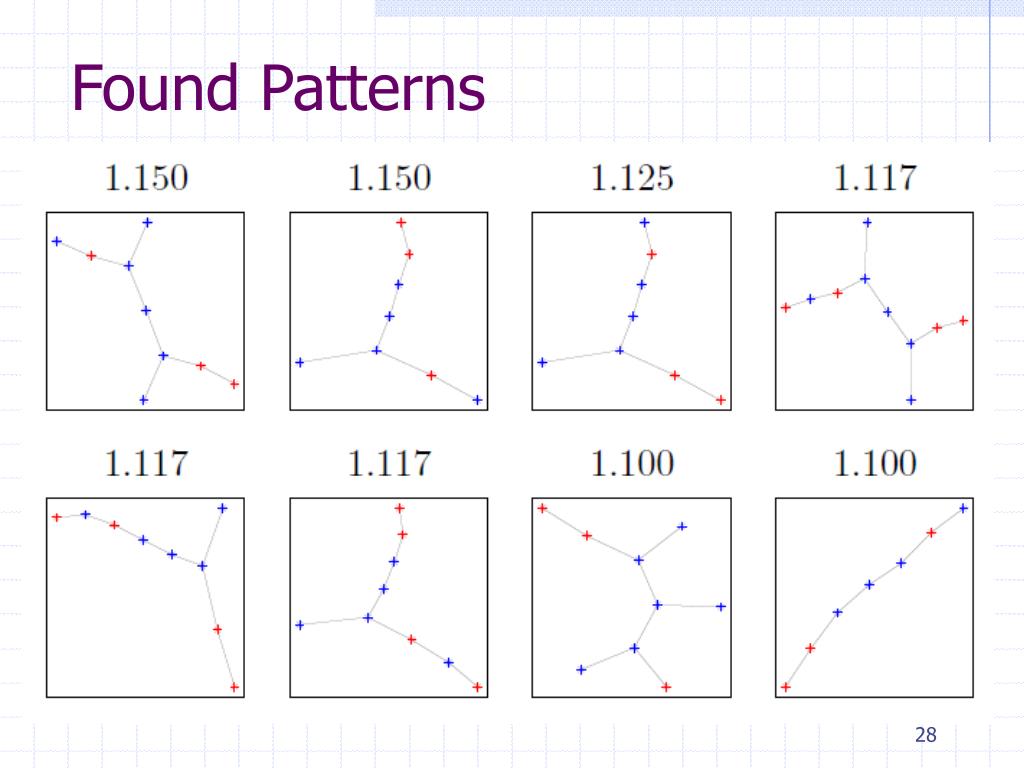

28. Found Patterns

29. Summary (EM) • Probabilistic clustering based on substructure representation • Inference helped by graph mining • Many possible extensions • Naïve Bayes • Graph PCA, LFD, CCA • Semi-supervised learning • Applications in Biology?

30. Graph Boosting Saigo, H., T. Kadowaki and K. Tsuda: A Linear Programming Approach for Molecular QSAR analysis. International Workshop on Mining and Learning with Graphs, 85-96, 2006

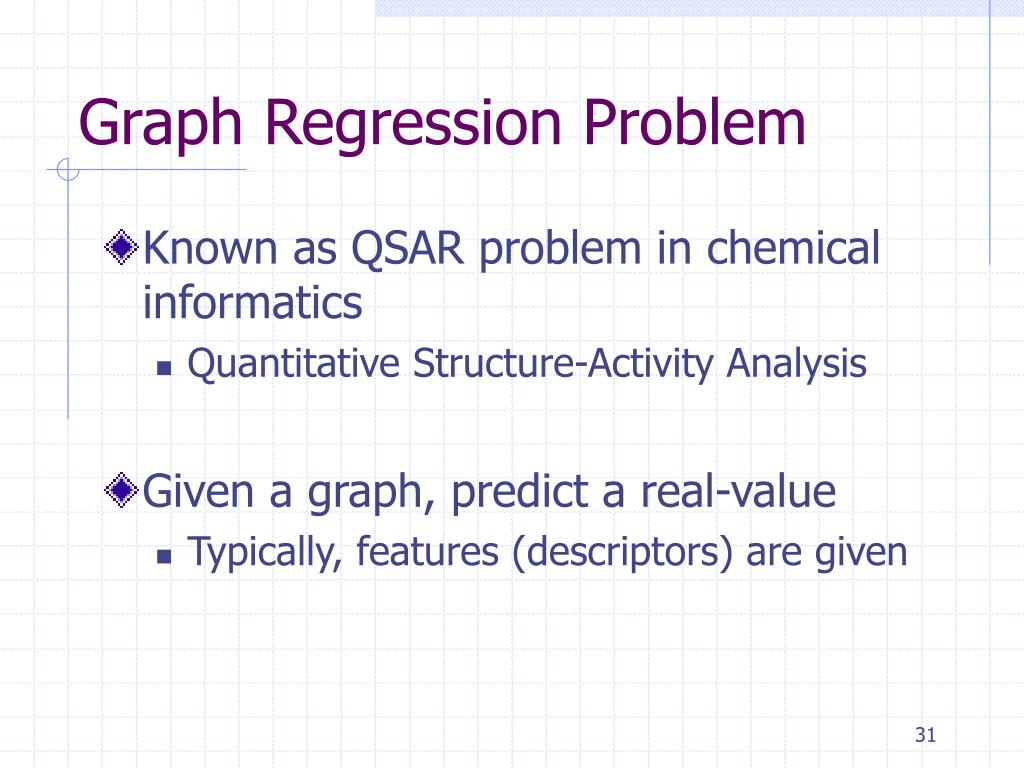

31. Graph Regression Problem • Known as QSAR problem in chemical informatics • Quantitative Structure-Activity Analysis • Given a graph, predict a real-value • Typically, features (descriptors) are given

32. QSAR with conventional descriptors

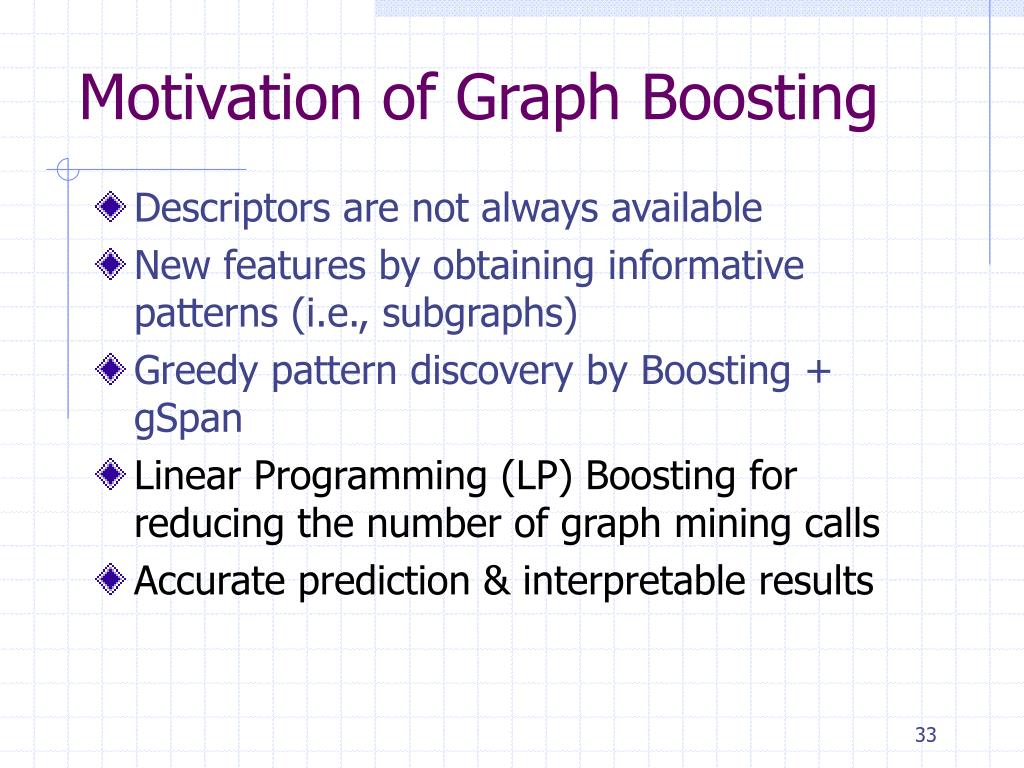

33. Motivation of Graph Boosting • Descriptors are not always available • New features by obtaining informative patterns (i.e., subgraphs) • Greedy pattern discovery by Boosting + gSpan • Linear Programming (LP) Boosting for reducing the number of graph mining calls • Accurate prediction & interpretable results

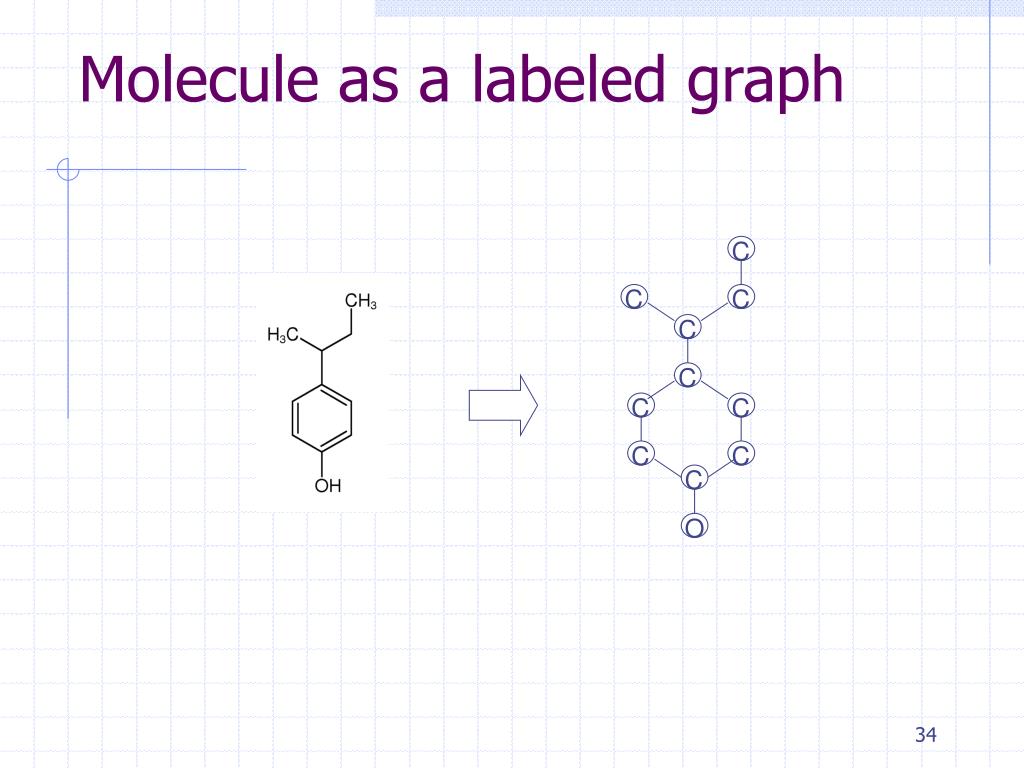

34. C C C C C C C C C C O Molecule as a labeled graph

35. C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C Cl Cl C C C C O O QSAR with patterns

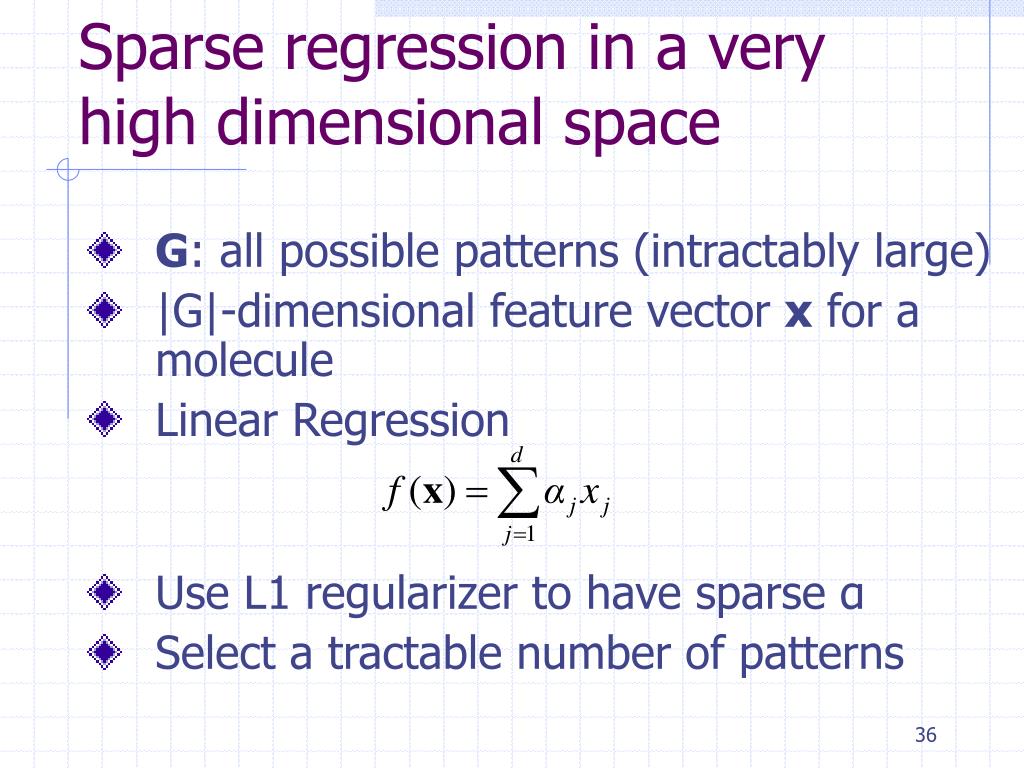

36. Sparse regression in a very high dimensional space • G: all possible patterns (intractably large) • |G|-dimensional feature vector x for a molecule • Linear Regression • Use L1 regularizer to have sparse α • Select a tractable number of patterns

37. Problem formulation We introduce ε-insensitive loss and L1 regularizer m: # of training graphs d = |G| ξ+, ξ- : slack variables ε: parameter

38. Dual LP • Primal: Huge number of weight variables • Dual: Huge number of constraints LP1-Dual

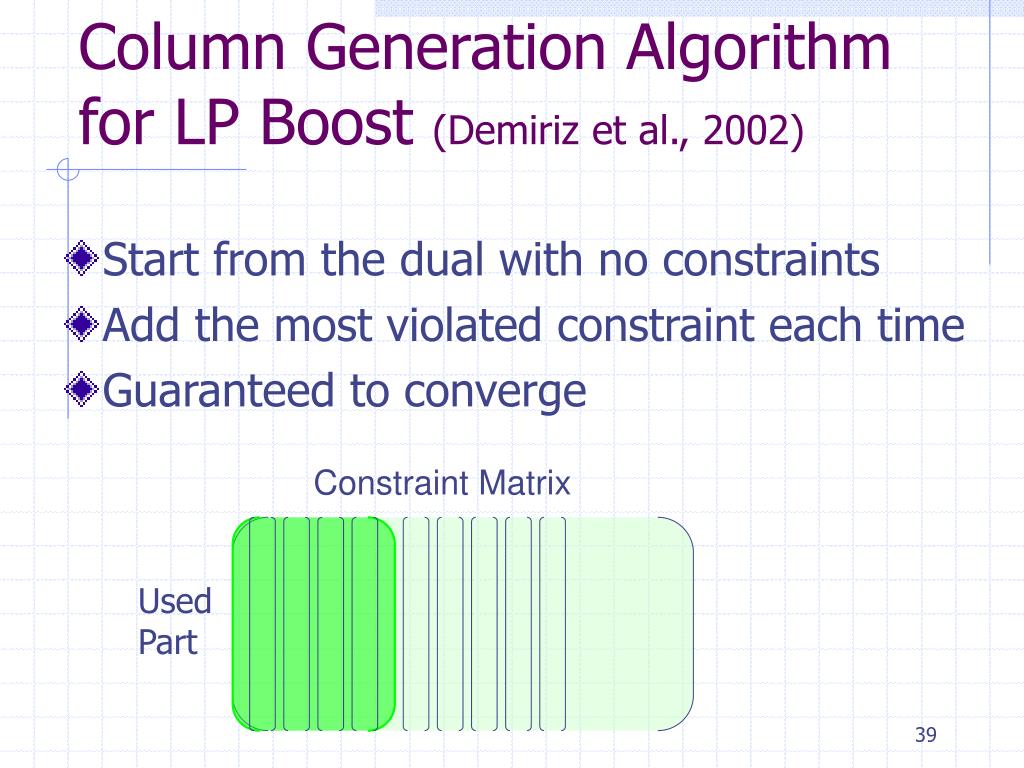

39. Column Generation Algorithm for LP Boost (Demiriz et al., 2002) • Start from the dual with no constraints • Add the most violated constraint each time • Guaranteed to converge Constraint Matrix Used Part

40. Finding the most violated constraint • Constraint for a pattern (shown again) • Finding the most violated one • Searched by weighted substructure mining

41. Algorithm Overview • Iteration • Find a new pattern by graph mining with weight u • If all constraints are satisfied, break • Add a new constraint • Update u byLP1-Dual • Return • Convert dual solution to obtain primal solution α

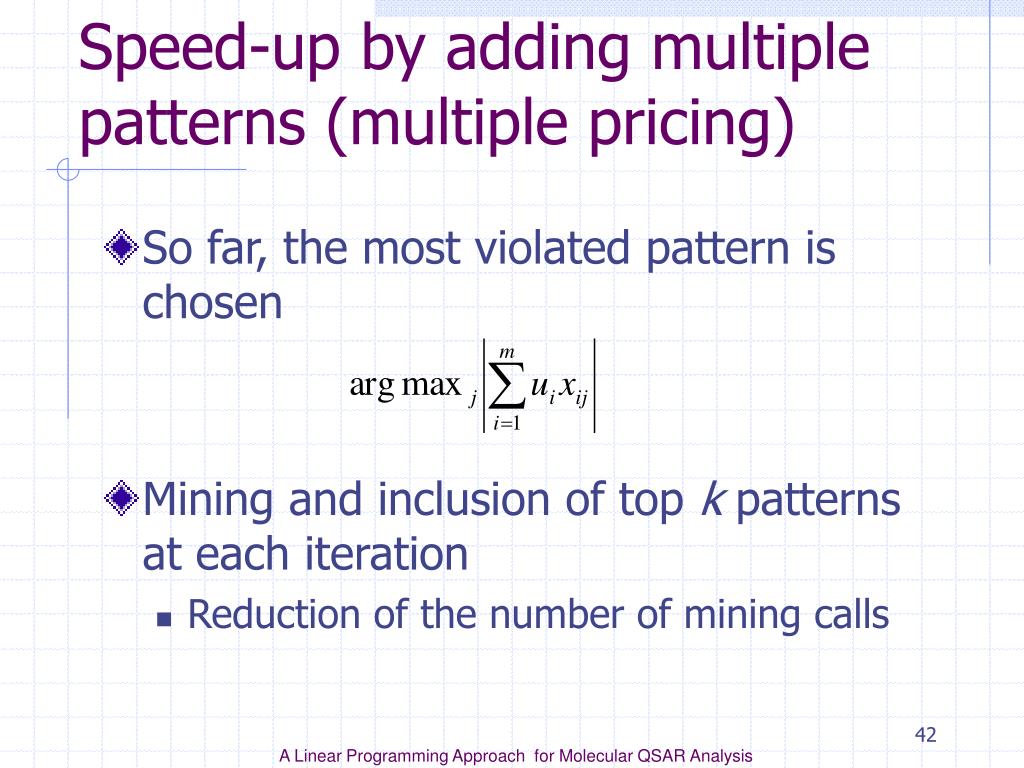

42. Speed-up by adding multiple patterns (multiple pricing) • So far, the most violated pattern is chosen • Mining and inclusion of top k patterns at each iteration • Reduction of the number of mining calls A Linear Programming Approach for Molecular QSAR Analysis

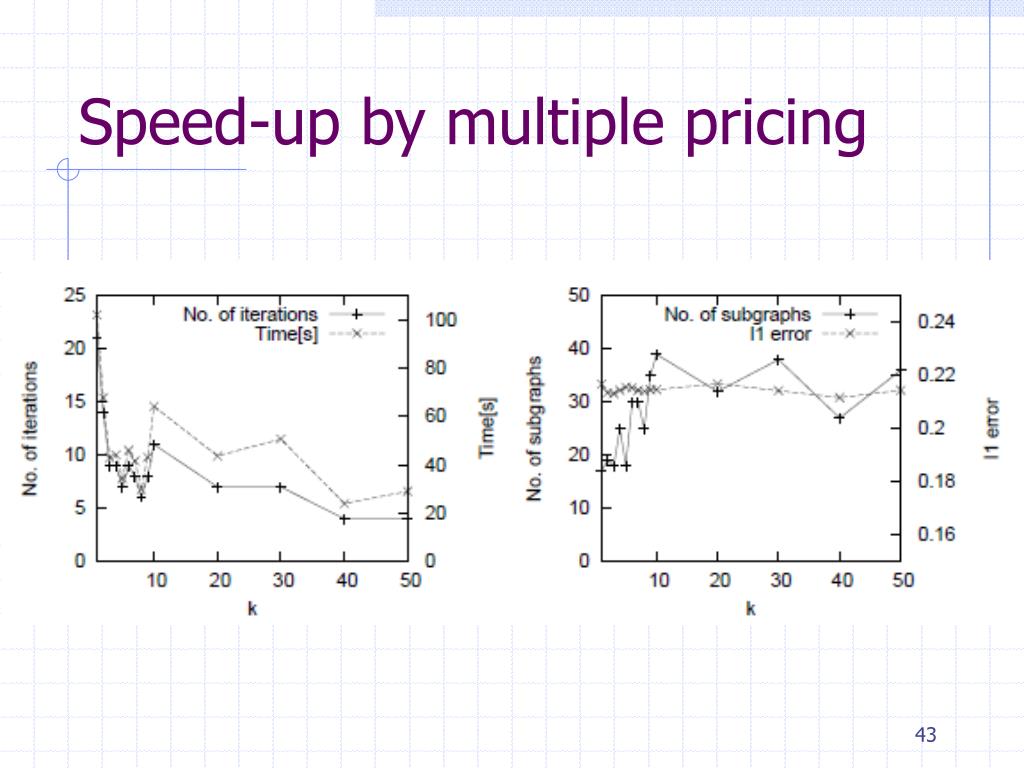

43. Speed-up by multiple pricing

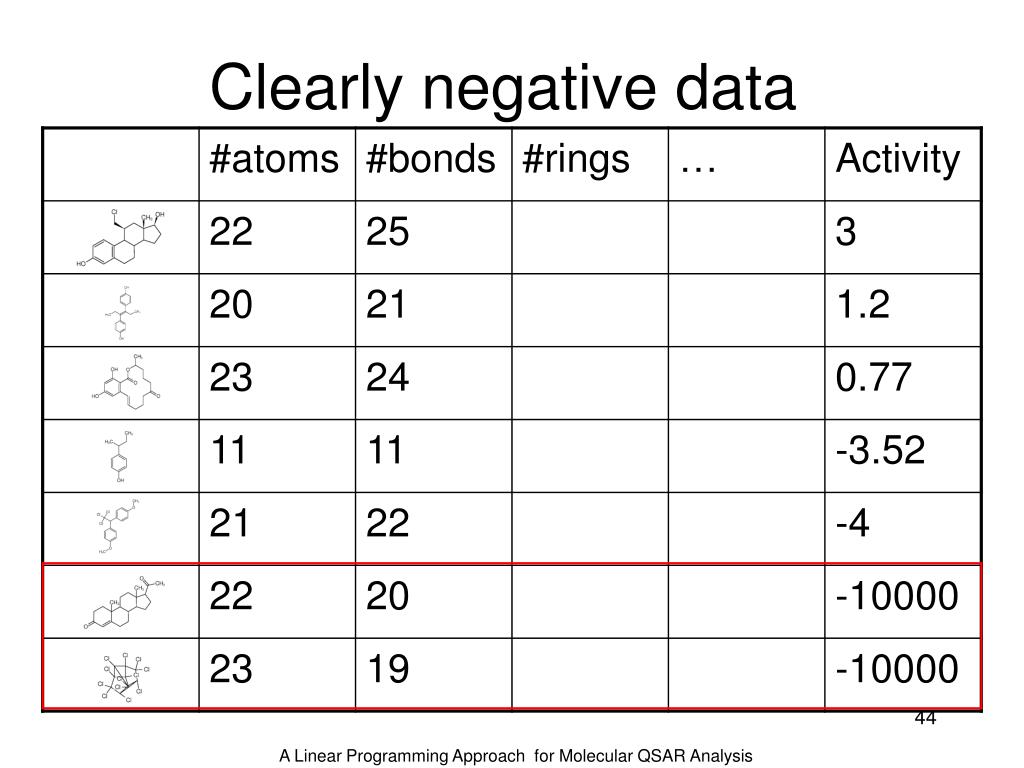

44. Clearly negative data A Linear Programming Approach for Molecular QSAR Analysis

45. Inclusion of clearly negative data LP2-Primal l: # of clearly negative data z: predetermined upperbound ξ’ : slack variable

46. Experiments • Data from Endocrine Disruptors Knowledge Base • 59 compounds labeled by real number and 61 compounds labeled by a large negative number • Label (target) is a log translated relative proliferative potency (log(RPP)) normalized between –1 and 1 • Comparison with • Marginalized Graph Kernel + ridge regression • Marginalized Graph Kernel + kNN regression

47. Results with or without clearly negative data LP2 LP1

48. Extracted patterns Interpretable compared with implicitly expressed features by Marginalized Graph Kernel

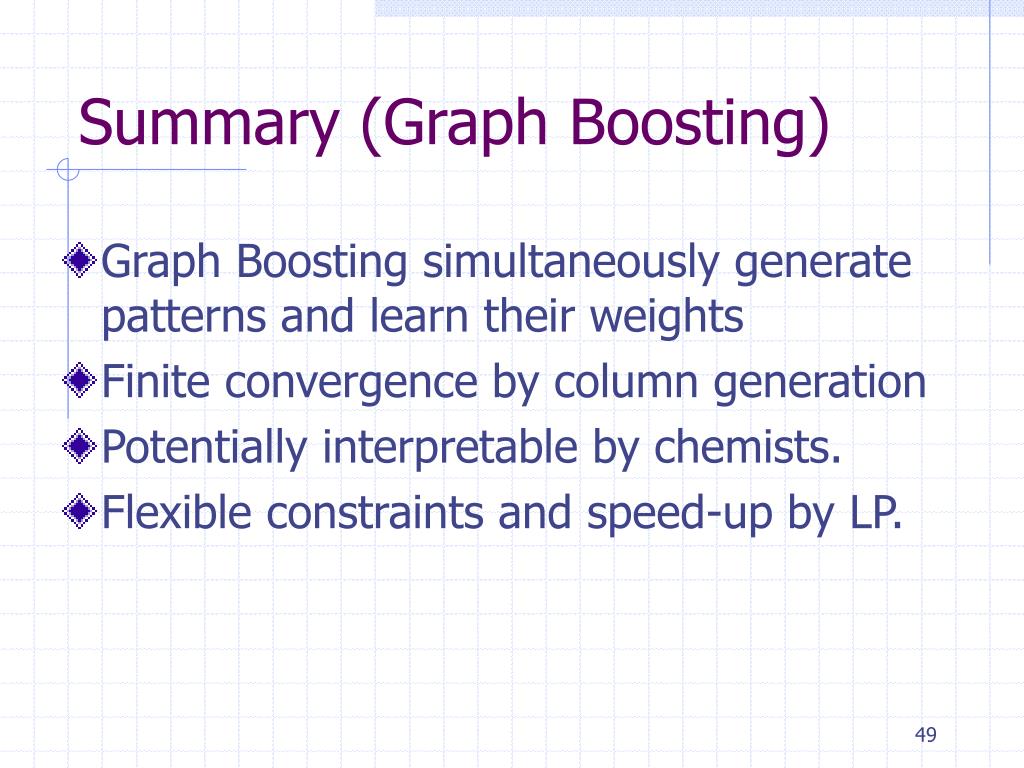

49. Summary (Graph Boosting) • Graph Boosting simultaneously generate patterns and learn their weights • Finite convergence by column generation • Potentially interpretable by chemists. • Flexible constraints and speed-up by LP.

50. Concluding Remarks • Using graph mining as a part of machine learning algorithms • Weights are essential • Please include weights when you implement your item-set/tree/graph mining algorithms • Make it available on the web! • Then ML researchers can use it
