Improving Chromaticity Correction Models for LHC Ramp and Cycle Reproducibility

This analysis presents the current model for induced chromaticity correction during LHC ramp cycles, emphasizing discrepancies between modeled and observed chromaticity. It discusses the necessity of additional trims for effective LHC cycle setups and the empirical improvements needed for reproducibility. The study evaluates chromaticity trims over various LHC cycles, revealing the model's limitations and proposing enhancements based on data. The goal is to refine the trim settings and improve predictive accuracy, laying the groundwork for future adjustments and empirical validations.

dyanne
Download Presentation

Improving Chromaticity Correction Models for LHC Ramp and Cycle Reproducibility

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

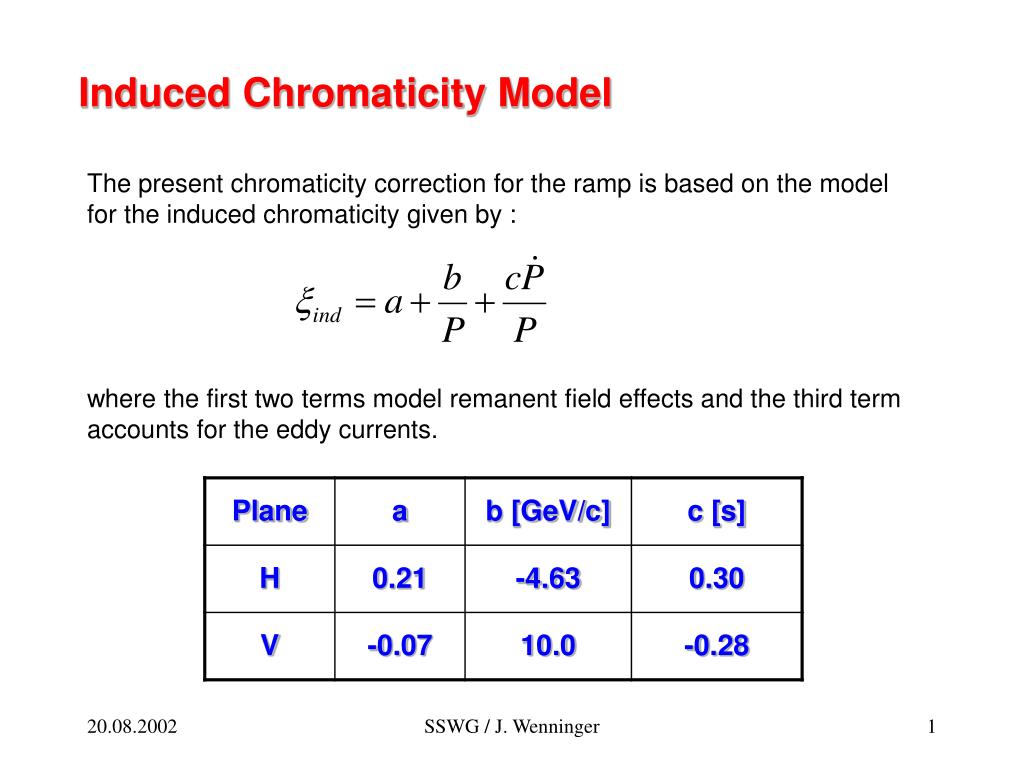

  1. Induced Chromaticity Model The present chromaticity correction for the ramp is based on the model for the induced chromaticity given by : where the first two terms model remanent field effects and the third term accounts for the eddy currents. SSWG / J. Wenninger

  2. Chromaticity trims in the ramp • The model does not fully account for the observed chromaticity : •  important trims are required in addition. •  less efficient cycle setups. •  trims are copied from one cycle to the next (and not always in the best way..). Goal of this analysis : • Recover the trims under known conditions (i.e. with complete chromaticity measurements [multiQ]) : • 2 nominal LHC cycles (537,540) to 540 GeV. • one special LHC cycle (542) to 80 GeV. • Check the reproducibility. • Establish a better model. • … SSWG / J. Wenninger

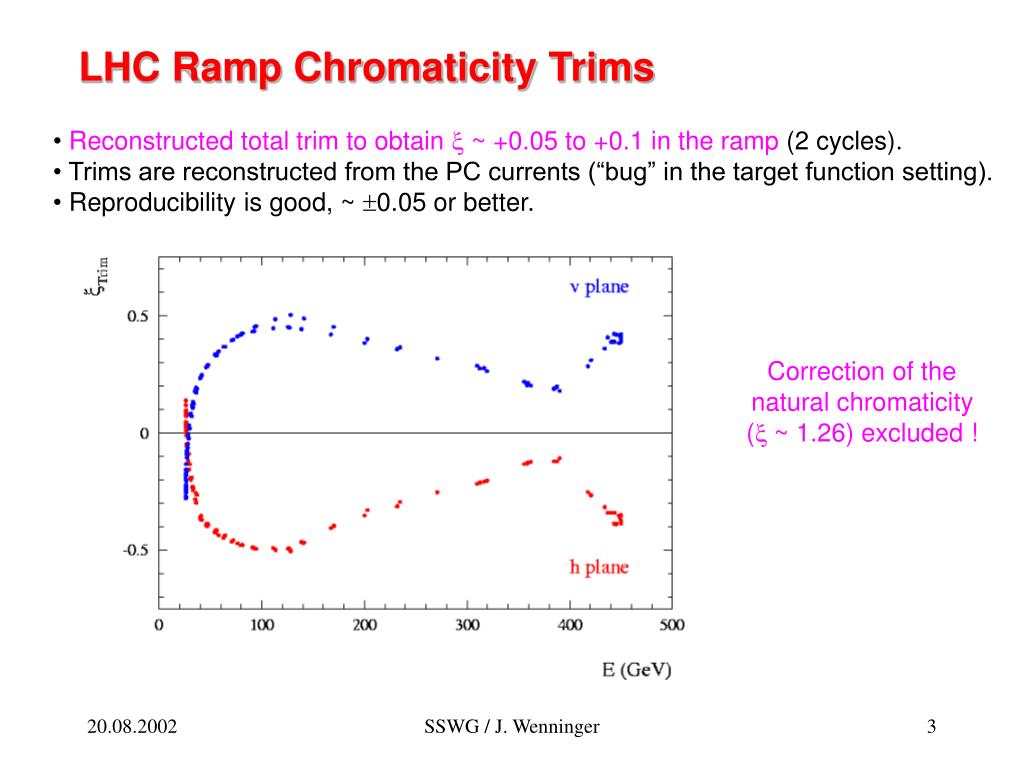

  3. LHC Ramp Chromaticity Trims • Reconstructed total trim to obtain x ~ +0.05 to +0.1 in the ramp (2 cycles). • Trims are reconstructed from the PC currents (“bug” in the target function setting). • Reproducibility is good, ~ 0.05 or better. Correction of the natural chromaticity (x ~ 1.26) excluded ! SSWG / J. Wenninger

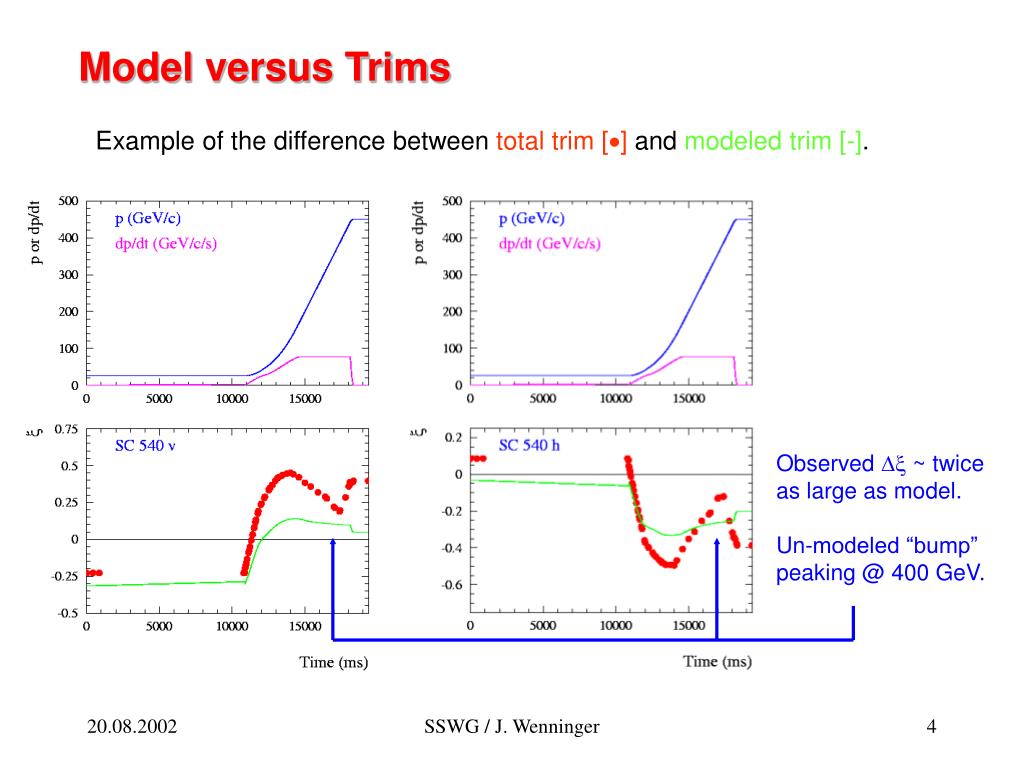

  4. Model versus Trims Example of the difference between total trim[] and modeled trim [-]. Observed Dx ~ twice as large as model. Un-modeled “bump” peaking @ 400 GeV. SSWG / J. Wenninger

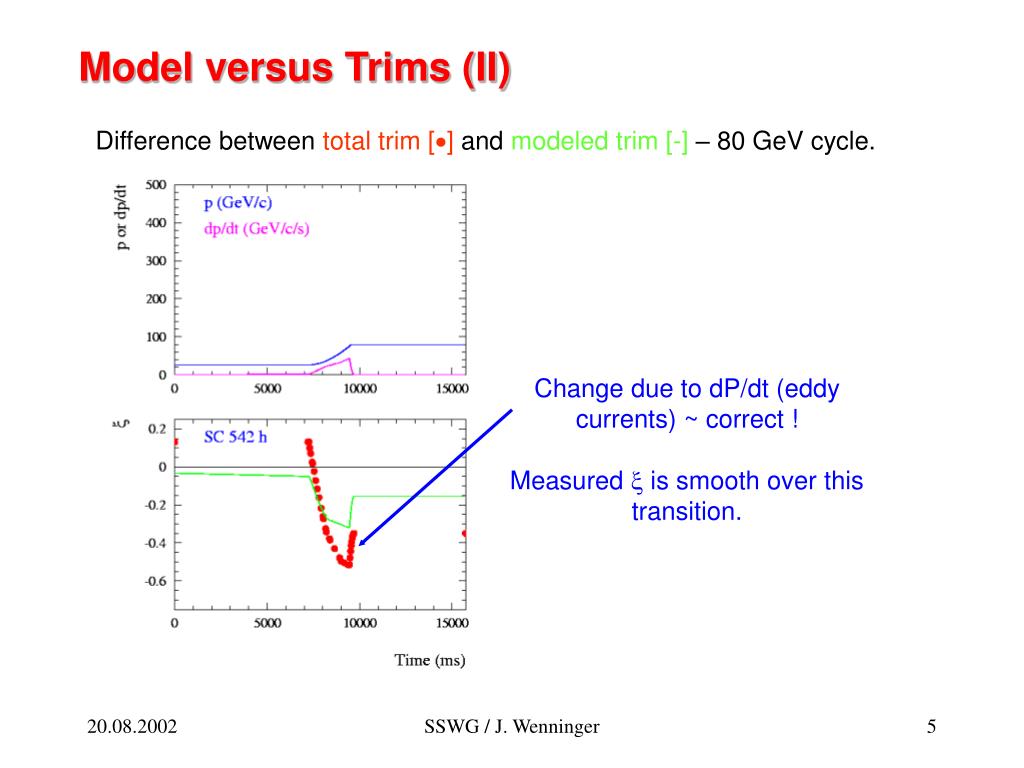

  5. Model versus Trims (II) Difference between total trim[] and modeled trim [-] – 80 GeV cycle. Change due to dP/dt (eddy currents) ~ correct ! Measured x is smooth over this transition. SSWG / J. Wenninger

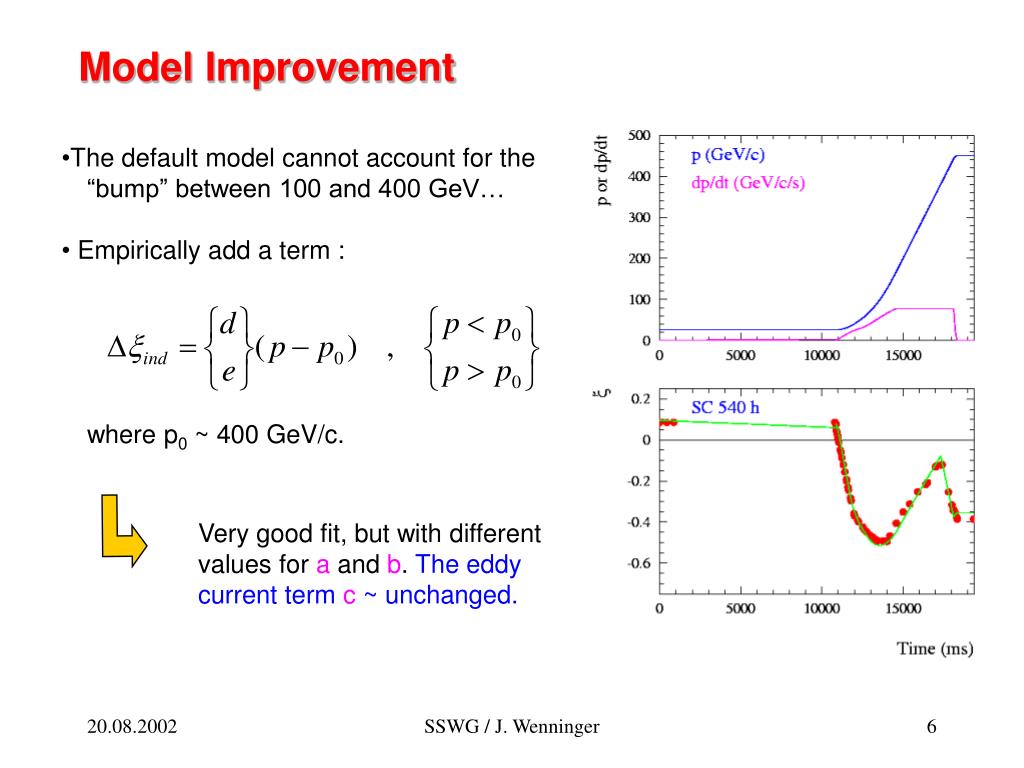

  6. Model Improvement • The default model cannot account for the “bump” between 100 and 400 GeV… • Empirically add a term : • where p0 ~ 400 GeV/c. Very good fit, but with different values for a and b. The eddy current term c ~ unchanged. SSWG / J. Wenninger

  7. b3 Components in Dipoles With Angeles Faus-Golfe’s SPS model including field errors (b3, b4, b5), one can convert the chromaticity trims into b3 field components for the MBA and MBB dipoles. The relation between chromaticity and b3 components is : (b3 in 10-3 m-2), Q’ is the “usual” chromaticity…. SSWG / J. Wenninger

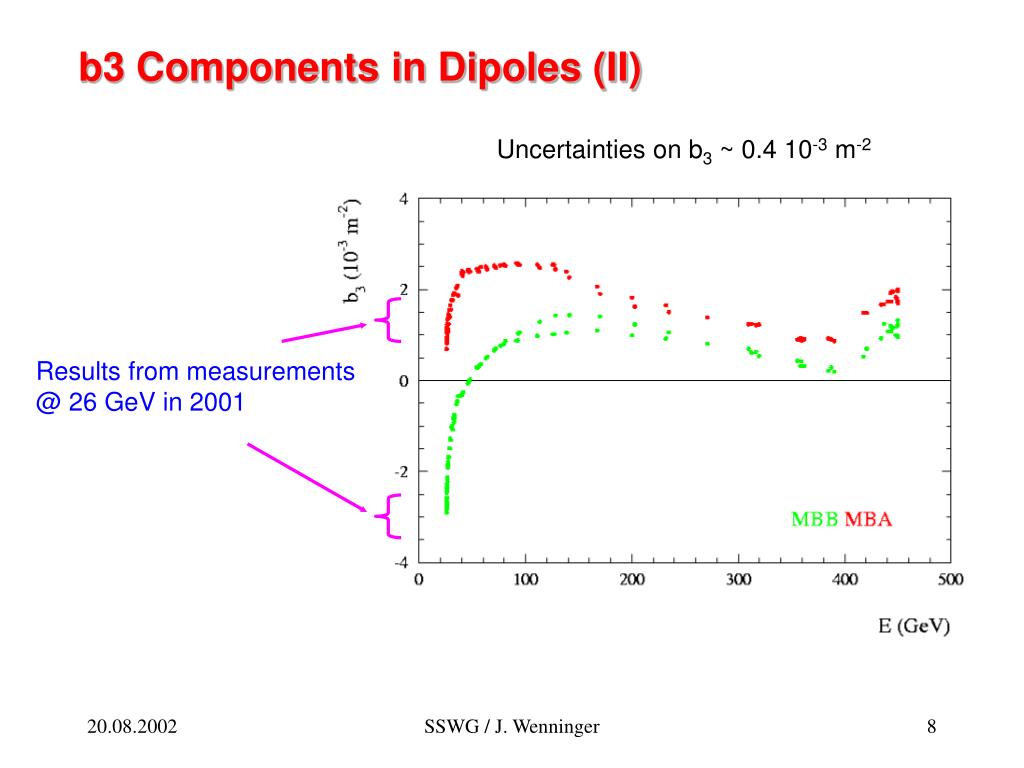

  8. b3 Components in Dipoles (II) Uncertainties on b3 ~ 0.4 10-3 m-2 Results from measurements @ 26 GeV in 2001 SSWG / J. Wenninger

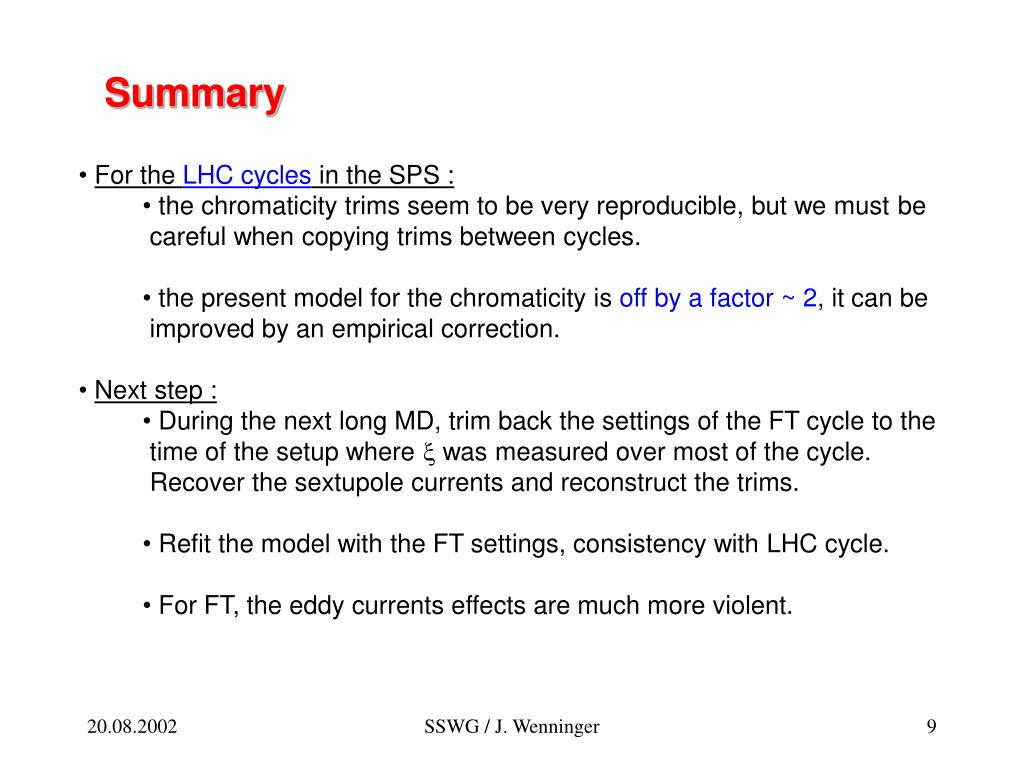

  9. Summary • For the LHC cycles in the SPS : • the chromaticity trims seem to be very reproducible, but we must be careful when copying trims between cycles. • the present model for the chromaticity is off by a factor ~ 2, it can be improved by an empirical correction. • Next step : • During the next long MD, trim back the settings of the FT cycle to the time of the setup where x was measured over most of the cycle. Recover the sextupole currents and reconstruct the trims. • Refit the model with the FT settings, consistency with LHC cycle. • For FT, the eddy currents effects are much more violent. SSWG / J. Wenninger
