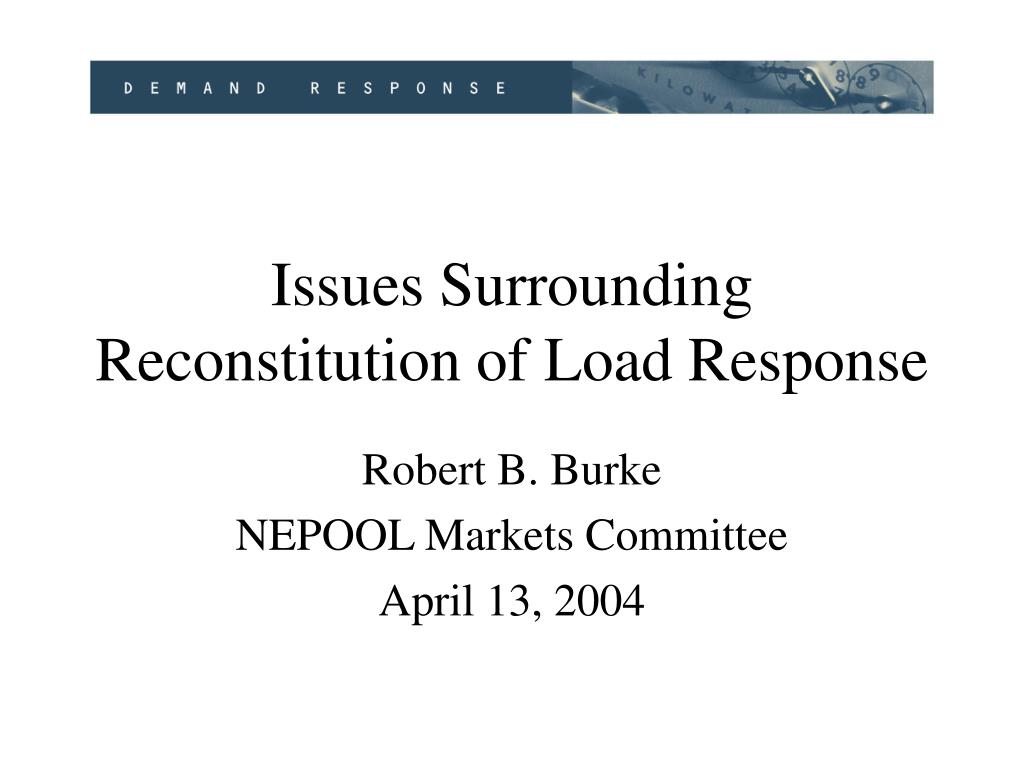

  1. Issues Surrounding Reconstitution of Load Response Robert B. Burke NEPOOL Markets Committee April 13, 2004

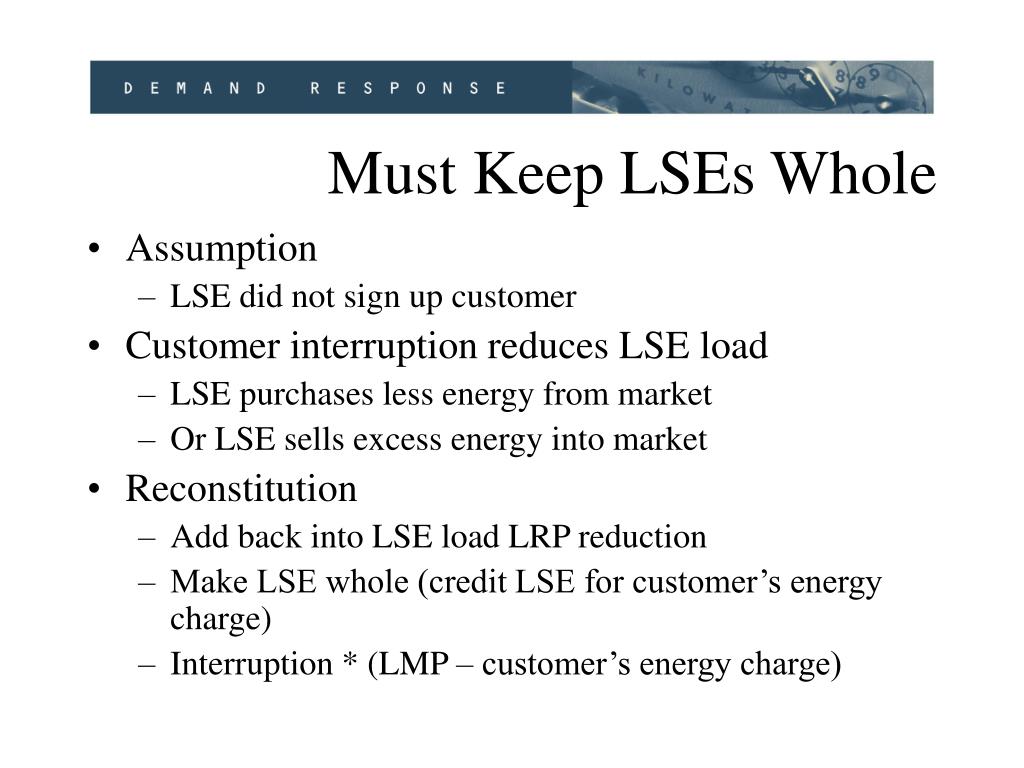

  2. Must Keep LSEs Whole • Assumption • LSE did not sign up customer • Customer interruption reduces LSE load • LSE purchases less energy from market • Or LSE sells excess energy into market • Reconstitution • Add back into LSE load LRP reduction • Make LSE whole (credit LSE for customer’s energy charge) • Interruption * (LMP – customer’s energy charge)

  3. Metering Domain & Load Assets • 3 Load Assets in metering domain • Different group of suppliers serve customers in each load asset • Generation + Imports - Exports Total Load in metering domain Total Load = LA 1 + LA 2 + LA 3 Tie Lines LA 1 LA 2 LA 3

  4. Load Response in Load Asset 1 • Load Response in LA 1: 10 MW • Load Response is part of profiled commercial • Not a load meter read every night as part of load calculations (not in the 250 MW read) • Total Load in Metering Domain is 10 MW less • Initial settlement: • All load assets in Metering Domain share part of 10 MW reduction

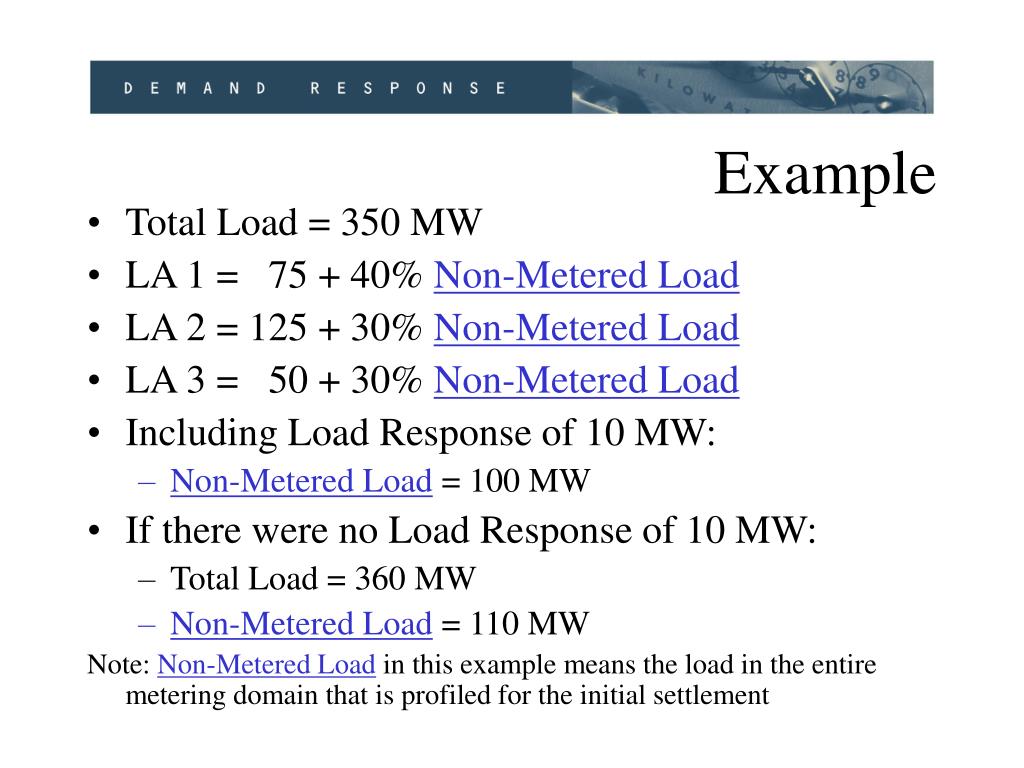

  5. Example • Total Load = 350 MW • LA 1 = 75 + 40% Non-Metered Load • LA 2 = 125 + 30% Non-Metered Load • LA 3 = 50 + 30% Non-Metered Load • Including Load Response of 10 MW: • Non-Metered Load = 100 MW • If there were no Load Response of 10 MW: • Total Load = 360 MW • Non-Metered Load = 110 MW Note: Non-Metered Load in this example means the load in the entire metering domain that is profiled for the initial settlement

  6. Initial Settlement Loads

  7. Settlement Implications • Initial Settlement • Total Load = 350 MW = 115 + 155 + 80 • 10 MW of Load Response located in LA 1 • Effect of load response shared by all Load Assets • 90-day Resettlement • 10 MW of Load Response should be associated with correct Load Asset (LA 1) • Total Load = 350 MW = 109 + 158 + 83 • Require Meter Reader to check at least monthly if a load response asset changes Load Asset • Require Meter Reader to provide customer energy rate

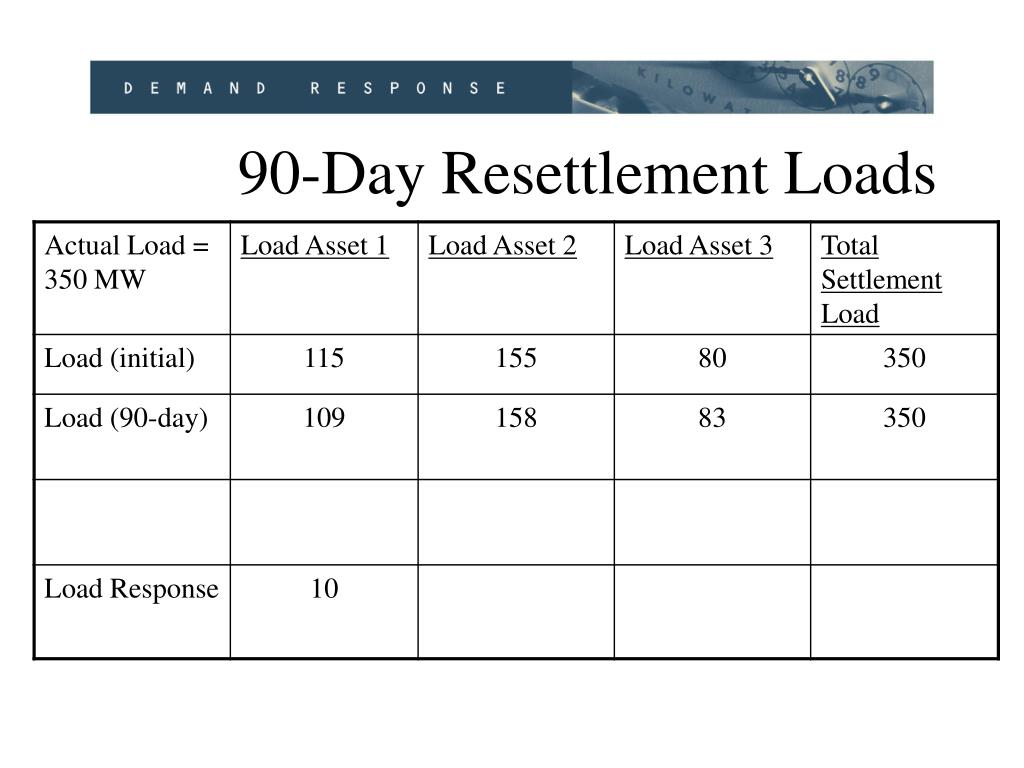

  8. 90-Day Resettlement Loads

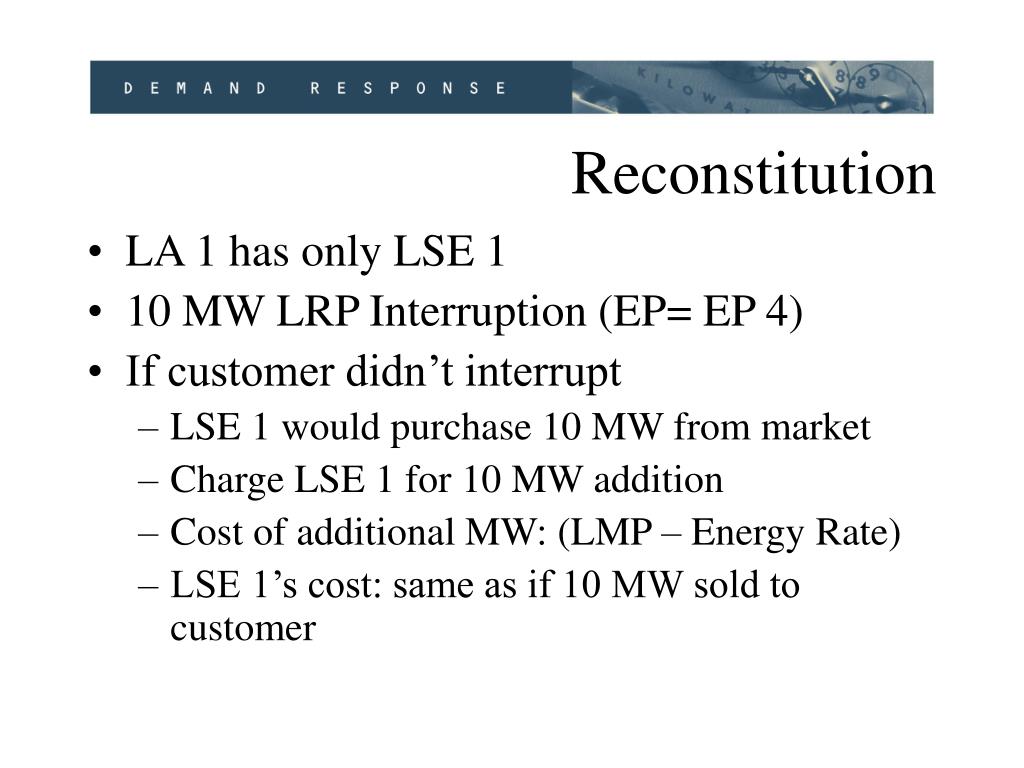

  9. Reconstitution • LA 1 has only LSE 1 • 10 MW LRP Interruption (EP= EP 4) • If customer didn’t interrupt • LSE 1 would purchase 10 MW from market • Charge LSE 1 for 10 MW addition • Cost of additional MW: (LMP – Energy Rate) • LSE 1’s cost: same as if 10 MW sold to customer

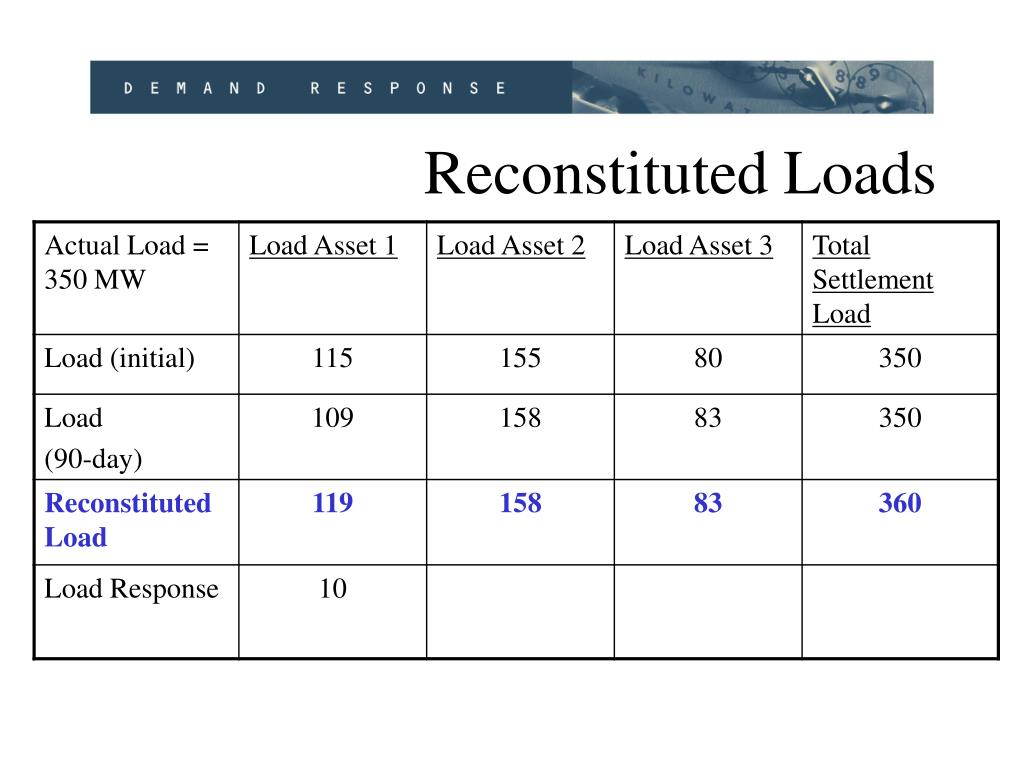

  10. Reconstituted Loads

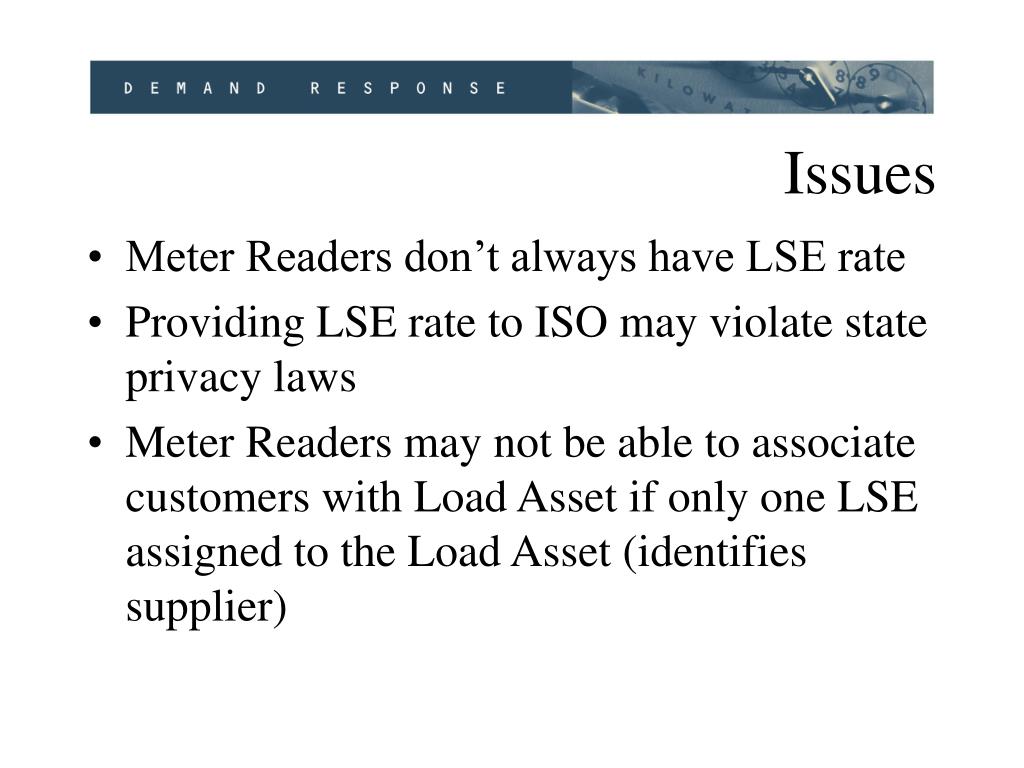

  11. Issues • Meter Readers don’t always have LSE rate • Providing LSE rate to ISO may violate state privacy laws • Meter Readers may not be able to associate customers with Load Asset if only one LSE assigned to the Load Asset (identifies supplier)
