Digestate handling. Logistics of biomass for biogas. Co-substrates. P Surplus. Surplus of P in Danish agriculture. P Surplus. Plant Cattle Pig Mixed. What is this?. Typical composition of digestate. Birkmose et al. (2013). Biomasse til biogasanlæg i Danmark.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Digestate handling' - dwight


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
surplus of p in danish agriculture

P Surplus

Surplus of P in Danish agriculture

P Surplus

Plant Cattle Pig Mixed

typical composition of digestate
Typical composition of digestate

Birkmose et al. (2013). Biomasse til biogasanlæg i

Danmark

logistics of biomass for biogas1
Logistics of biomass for biogas

Solid

Co-substrates

Solid fraction

value of digestate
Value of digestate

True value is lower because of: 1. Difficulties and costs during storage, 2. Uncertain availability of nutrients, 3. Administrative and legistrative problems, 4. Increased demand for catch crops, 5. Odour, 6. Supply and demand

Birkmose et al. (2013). Biomasse til biogasanlæg i

Danmark

the goal
The goal

Soil

Precipitation

Oxygen

Feedstock (chemical composition)

Retention time

Temperature

NH3

N2O

CO2

main environmental impacts associated with digestate handling
Main environmental impacts associated with digestate handling
  • NH3 emissions during storage and land application
  • Formation of the greenhouse gas N2O ad CO2 after land application
  • Nitrate leaching
  • Phosphorus loss
nh 3 volatilization
NH3 volatilization
  • High pH of digestate leads to high risk of ammonia volitilization
  • Covered storage
  • Low dry matter content leads to fast infiltration and therefore low ammonia volatilization

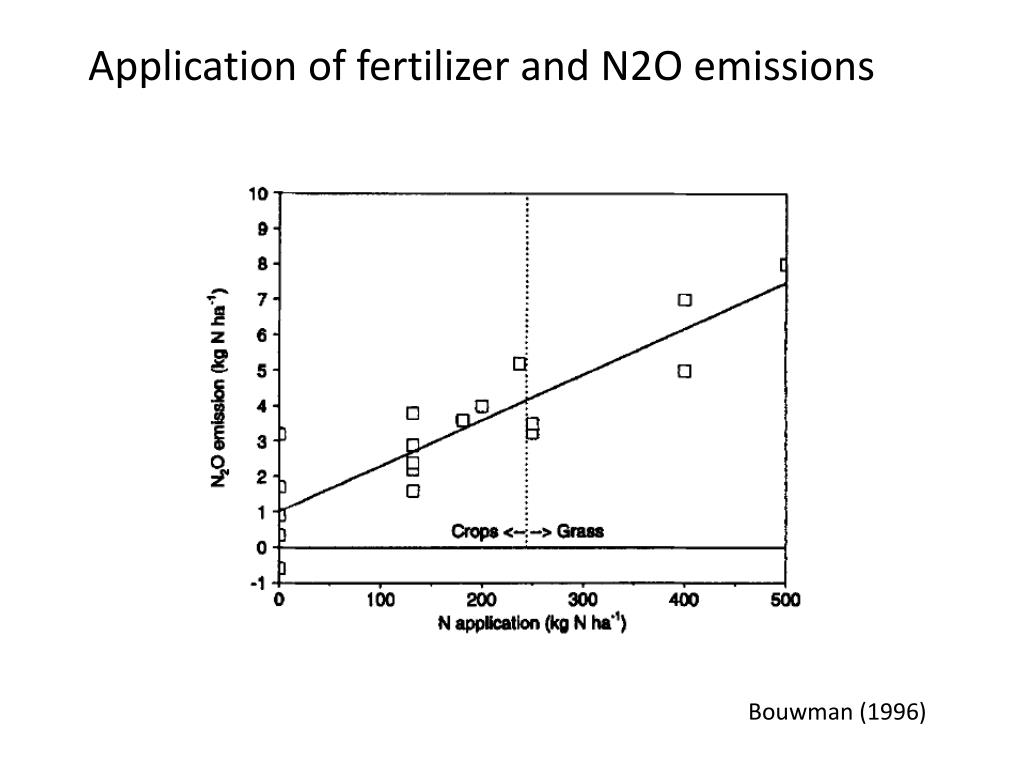

n 2 o emission
N2O emission
  • N2O is formed in two processes, nitrification and denitrification
  • Nitrification requires ammonia and oxygen
  • Defitrification require nitrate, organic matter and absense of oxygen
