  1. WDK Build Environment Refactoring

  2. Outline • Header Reorganization • Hierarchical Headers • Header Versioning • IFS Kit Content (headers, libs, docs) • General review of INC dir structure • Documentation redesign • Integrated DDK + Test (aka HCT) + IFS • New Table of Contents • Index Improvements • Build Environment Changes and Tips • WDF Side-by-Side Install • DbgPrint changes in Longhorn • Deprecated function checking • Changes to Driver Verifier • Call Usage Verifier

  3. WDK Header Reorganization • Overall Goal: • Support drivers for Windows 2000 and forward with one set of headers • Initiatives: • Create a “header hierarchy” • WDM.H  NTDDK.H  NTIFS.H • Add version support to the DDK and IFS kit headers • Enable creation of binaries for multiple platformsusing single set of headers

  4. WDK Header Hierarchy • Core headers utilize a superset/subset model • Higher level headers #include lower headers • Result: • Definitions moved to lowest common header • Higher headers only havedefinitions specific to them • Enables versioning NTIFS.H #include NTDDK.H #include WDM.H

  5. WDK Header Versioning • ONE set of headers can produce binaries for multiple O/S versions • Applies to both Kernel and User mode headers • Human readable collection of version constants created • #if statements in headers compare target with version constants • This feature is planned for Windows codenamed “Longhorn” Beta 1

  6. Using WDK Header Versioning • New Rtl functions to check O/S versions at run time RtlIsNtDdiVersionAvailable RtlIsServicePackVersionInstalled • These functions have been ported to all down-level environments • Target O/S determined by WDK build environment • Function prototypes for target version are exposed • All versions of structures are exposed

  7. Structure Example // // Windows 2000 IRP structure // typedef struct _IRP_WIN2K { PVOID irpstuff; } IRP_WIN2K; // // Windows XP IRP structure // typedef struct_IRP_WINXP { PVOID irpstuff; PVOID newstuff; } IRP_WINXP; // // Choose the default IRP // structure // #if (NTDDI_VERSION >= NTDDI_WINXP) typedef IRP_WINXP IRP; #elif (NTDDI_VERSION >= NTDDI_WIN2K) typedef IRP_WIN2K IRP; #endif typedef IRP *PIRP; // // Windows 2000 IRP structure // typedef struct _IRP { PVOID irpstuff; } IRP; // // Windows XP IRP structure // typedef struct_IRP { PVOID irpstuff; PVOID newstuff; } IRP;

  8. Function Example // // Windows XP version // #if (NTDDI_VERSION >= NTDDI_WINXP) NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar // New type and name ); // // Windows 2000 version // #elif (NTDDI_VERSION >= NTDDI_WIN2K) NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PVOID Reserved ); #endif // // Windows 2000 version // NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PVOID Reserved ); // // Windows XP version // NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar // New type and name );

  9. DeprecatedFunction Example // Windows Server 2003 version // #if (NTDDI_VERSION >= NTDDI_WS03) NTKERNELAPI DECLSPEC_DEPRECATED_DDK_WS03NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar ); // // Windows XP version // #elif (NTDDI_VERSION >= NTDDI_WINXP) NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar // New type and name ); // // Windows 2000 version // #elif (NTDDI_VERSION >= NTDDI_WIN2K) NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PVOID Reserved ); #endif // // Windows 2000 version // NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PVOID Reserved ); // // Windows Server 2003 version // NTKERNELAPI DECLSPEC_DEPRECATED_DDK_WS03NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar ); // // Windows XP version // NTKERNELAPI NTSTATUS IoQueueFoo( IN PFOO_QUEUE FooQueue, IN PFOO Foo, IN PBAR Bar // New type and name );

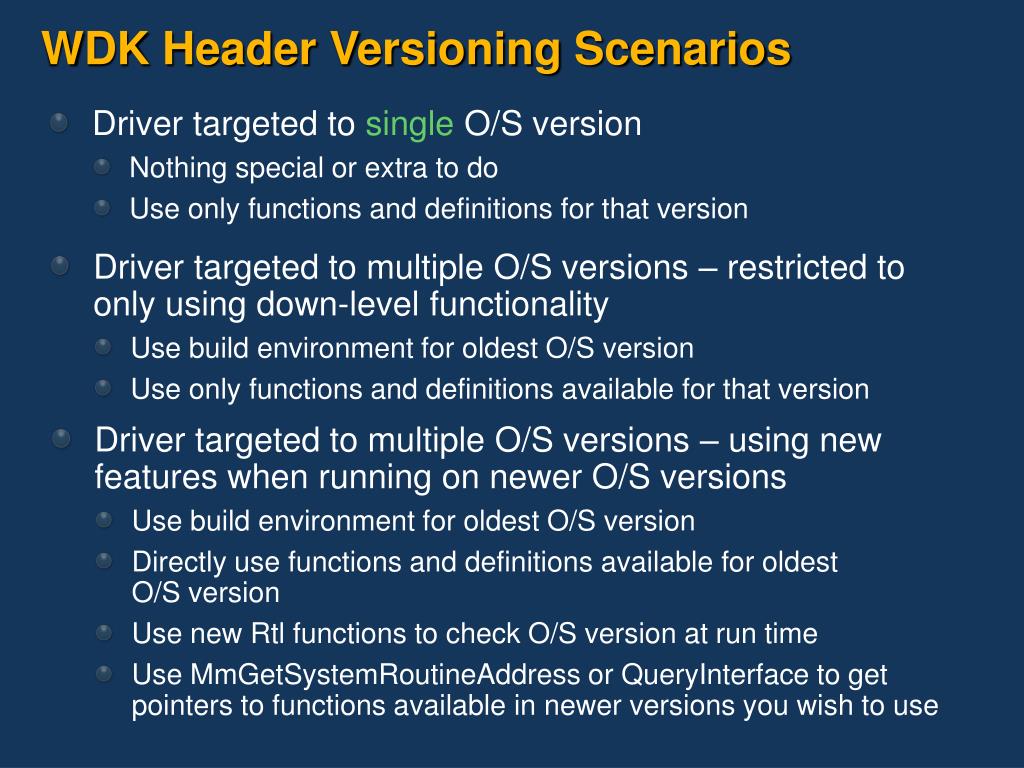

  10. WDK Header Versioning Scenarios • Driver targeted to single O/S version • Nothing special or extra to do • Use only functions and definitions for that version • Driver targeted to multiple O/S versions – restricted to only using down-level functionality • Use build environment for oldest O/S version • Use only functions and definitions available for that version • Driver targeted to multiple O/S versions – using new features when running on newer O/S versions • Use build environment for oldest O/S version • Directly use functions and definitions available for oldest O/S version • Use new Rtl functions to check O/S version at run time • Use MmGetSystemRoutineAddress or QueryInterface to get pointers to functions available in newer versions you wish to use

  11. Example: Function Definition in WDM.H • Function defined as available in Windows XP and later: #if (NTDDI_VERSION >= NTDDI_WINXP)_DECL_HAL_KE_IMPORTVOIDFASTCALLKeAcquireInStackQueuedSpinLock ( IN PKSPIN_LOCK SpinLock, IN PKLOCK_QUEUE_HANDLE LockHandle); #endif • Drivers built to run only on Windows XP or later call this function directly • Drivers built to run on Windows 2000 that want to use this function when available… see next slide.

  12. Example: Driver Runs on Windows 2000 or LaterUses New Function When Available AcquireInStackQueued = NULL; if ( RtlIsNtDdIVersionAvailable(NTDDI_WINXP) ) { // We’re running on XP or later RtlInitUnicodeString(&funcName, L"KeAcquireInStackQueuedSpinLock"); AcquireInStackQueued = (PACQUIREINSTACKQUEUED) MmGetSystemRoutineAddress(&funcName); } if ( NULL != AcquireInStackqueued ) { (AcquireInStackQueued)(&Spinlock, &lockHandle); } else { KeAcquireSpinLock(&SpinLock, &oldIrql); }

  13. IFS Kit Merge • The Installable File System is planned to be distributed as part of WDK starting at Beta 1 • This includes: • Libraries • Headers • Samples • Documentation

  14. The New INC Directory Structure C:\WINDDK\37905018\inc ├───atl21 ├───atl30 ├───atl70 ├───crt │ ├───gl │ └───sys ├───ddk <- 14 subdirs under “ddk” and “ifs” flattened to one ├───inc16 │ └───sys ├───mfc42 ├───mfc70 └───user <- 4 subdirs “wxp” “wnet” “wlh” “w2k” flattened to one

  15. WDK Documentation Improvements

  16. What You Asked For Conducted documentation survey in Summer 2004 Results: Make it easier to find Content: • Improve Table of Contents • Improve Index • Improve Search and Navigation

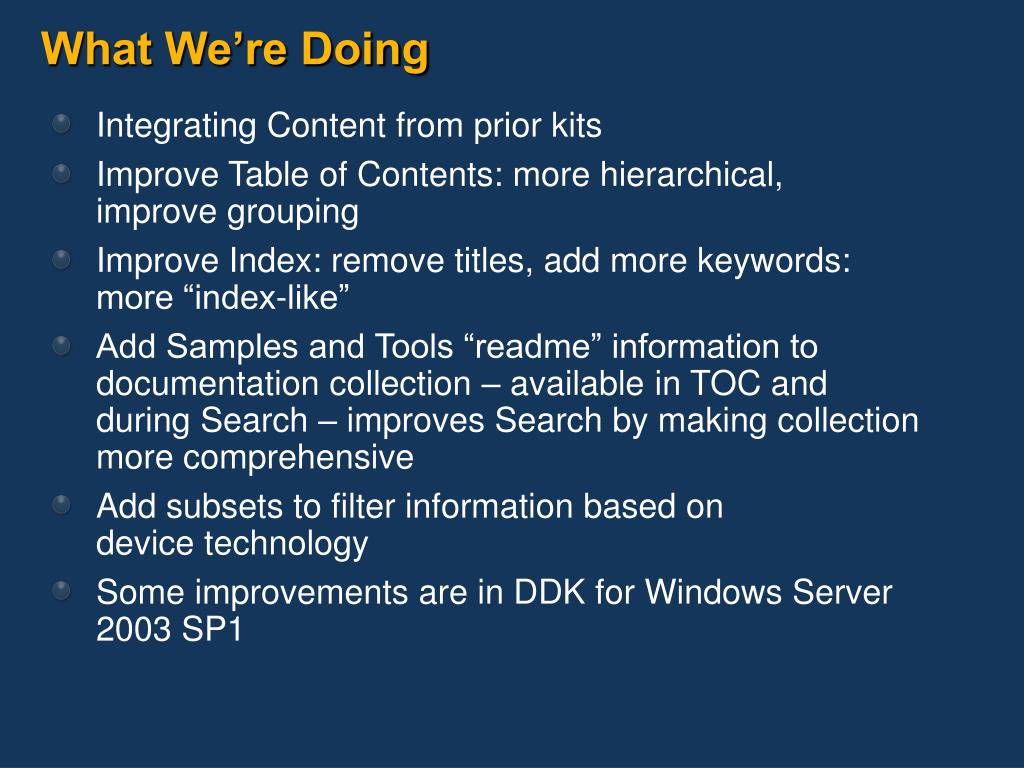

  17. What We’re Doing • Integrating Content from prior kits • Improve Table of Contents: more hierarchical, improve grouping • Improve Index: remove titles, add more keywords: more “index-like” • Add Samples and Tools “readme” information to documentation collection – available in TOC and during Search – improves Search by making collection more comprehensive • Add subsets to filter information based on device technology • Some improvements are in DDK for Windows Server 2003 SP1

  18. Integrated Content • WDK Documentation collection will integrate all the kit information • DDK docs: Design Guides and DDI Ref Pages • IFS Kit docs • Driver Test Manager and WDK logo tests • DCT tests • All Device specific information will be together • Design • Reference • Samples • Tests

  19. Improved Table of Contents • Old TOC: • Top Level too flat • Little grouping of related content • Order of material not intuitive • New TOC: • Simplified Top Level: easier to understand, put general information at top, created tier for device specific information, including samples and tests • Driving standardized Device categories • Alphabetize Device categories • Eliminated “catch-all” Appendix – moved information appropriate location

  20. Improve TOC Old TOC:

  21. Improve TOC New TOC:

  22. Redesign Index • Added keywords • Retained DDI names • Removed titles

  23. Add Sample Readmes • Old: • Information about Samples was not available in the documentation collection • Search did not return information about Samples • New: • Sample information discoverable by Search

  24. Add Sample Readmes

  25. Build Environment Changes and Tips

  26. Using and Installing WDF • WDF will be added-to existing DDK installations • Building WDF Drivers • Open a DDK build environment Window • Set WDF_ROOT to base WDF install directory • Build as usual!

  27. WDF Build Procedure • Example of using the Windows Server 2003 DDK and Build Environment with WDF:

  28. Driver Debug Output in Longhorn • Use of Ordinary DbgPrint Discouraged • Too much spew!! • Slow • Shouldn’t be in free version of driver • WPP Tracing Encouraged • Use standard levels • Integrates well with WDF-based tracing • TraceView V2.1 now available

  29. If You Must DbgPrint in Longhorn • DbgPrints Automatically Become DbgPrintEx • DPFLTR_DEFAULT_ID Component • DPFLTR_INFO_LEVEL Level • All xxx_INFO_LEVEL Output Is Disabled By Default • Problem? On Longhorn by default your DbgPrint output will not be visible! • To See Your Output, either: • Use DbgPrintEx with DPFLTR_ERROR_LEVEL in your code or • Enable DPFLTR_INFO_LEVEL output for DPFLTR_DEFAULT_ID (see next slide)

  30. Enabling DbgPrint Output in Longhorn • From WinDbg or KD • Set the appropriate mask in Kd_DPFLTR_MASK • Using the Registry • Create a value named “DPFLTR” under \HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\ • Debug Print Filter • Set value equal to appropriate mask • What Mask Value Is “Appropriate”? From NTDDK.H: #define DPFLTR_ERROR_LEVEL 0 #define DPFLTR_WARNING_LEVEL 1 #define DPFLTR_TRACE_LEVEL 2 #define DPFLTR_INFO_LEVEL 3 • To Enable All Output, Use Mask Value of 0xF

  31. Deprecated Function Checking • What Is It? • Flags calls to obsolete functions and macros • Suggests replacements • Enabled By Default In Longhorn Checked Build Environment • To Enable In Other Build Environments Define Environment Variable:DEPRECATE_DDK_FUNCTIONS • Errors Flagged at Compile Time: \test\mydriver.c(1785) : error C4996: 'RtlExtendedIntegerMultiply‘ was declared deprecated \winddk\5053\inc\ddk\lh\ntddk.h(3106) : error see declaration of 'RtlExtendedntegerMultiply

  32. DDI Changes in Longhorn • More functions are being deprecated in Longhorn • Some functions will be unnecessary when running on Longhorn and later • PoCallDriver(…) • PoStartNextPowerIrp(…)

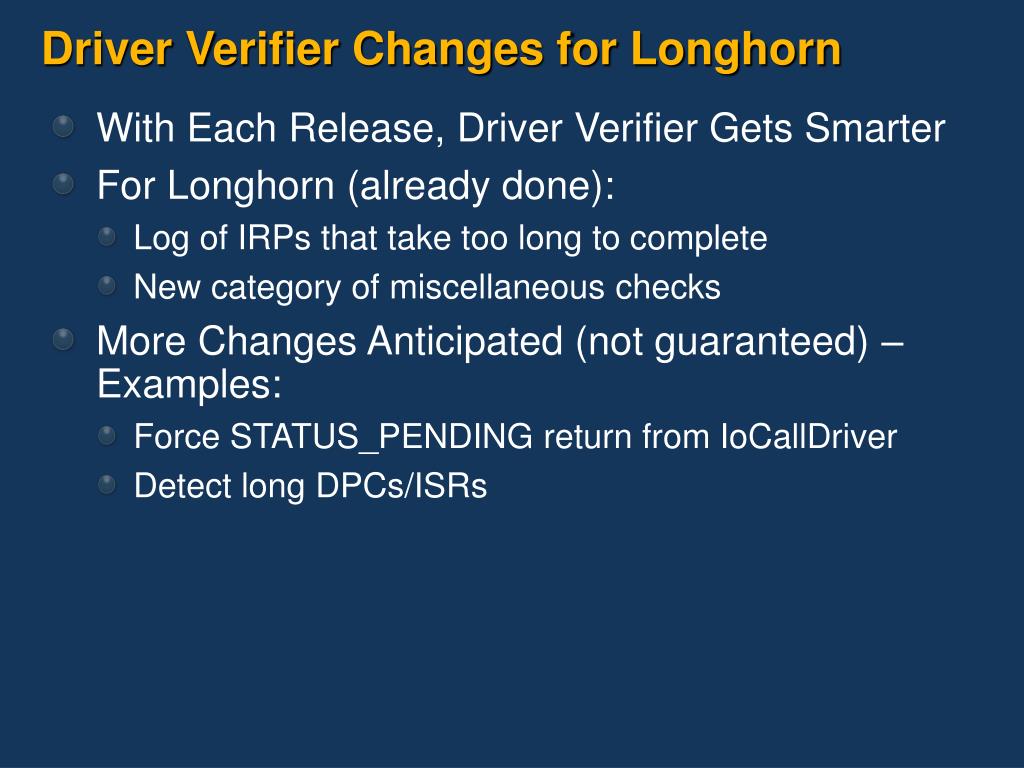

  33. Driver Verifier Changes for Longhorn • With Each Release, Driver Verifier Gets Smarter • For Longhorn (already done): • Log of IRPs that take too long to complete • New category of miscellaneous checks • More Changes Anticipated (not guaranteed) – Examples: • Force STATUS_PENDING return from IoCallDriver • Detect long DPCs/ISRs

  34. Call Usage Verifier (CUV) • Run-time analysis tool • Tracks driver use of data structures in DDI calls • Ensures use is correct and consistent over time • Best Used With Driver Verifier • Driver Verifier provides required points • CUV provides recommendations, some items are speculative

  35. Classes of Errors CUV Finds • Initialization Errors (spin locks, lists, etc) • No initialization prior to use • Multiple initializations • IRP Stack Errors • No next stack location • No current stack location • Consistency Errors • Spin Locks • NO KeAcquireSpinLock for the ISR spin lock • NO KeAcquireSpinLock for in-stack queued spinlock • Interlocked lists • Same spin lock used with list every time • Once a listhead is used with an “interlocked” function it must always be

  36. How to Use CUV With Your Driver • Define VERIFIER_DDK_EXTENSIONS Your Build Environment (Server 2003 or Later) • Build Your Driver Using “Build” • This automatically: • Includes DDK_EXT.H • Links With DDK_EXT.LIB

  37. How CUV Reports Errors • Run Driver with Debugger Enabled • If Error Detected, Output to Debugger is Similar to Driver Verifier: CUV Driver Error: Calling InitializeSpinLock(...) at File c:\projects\linklist.c, Line 225 The Spin lock specified as parameter 1 [0x811abe78]has been previously initialized and used as aListhead for Interlocked operations by this driver. Break, Ignore, Zap, Remove, Disable all (bizrd)?

  38. Changes to CUV For Longhorn • Already Done: • Significantly Less Prone to “False Positives” • Better Performance • Displays Errors Using: • DPFLTR_VERIFIER_ID • DPFLTR_ERROR_LEVEL • More Changes Anticipated (but not guaranteed) – Examples: • More driver types supported • Better integration with Driver Verifier

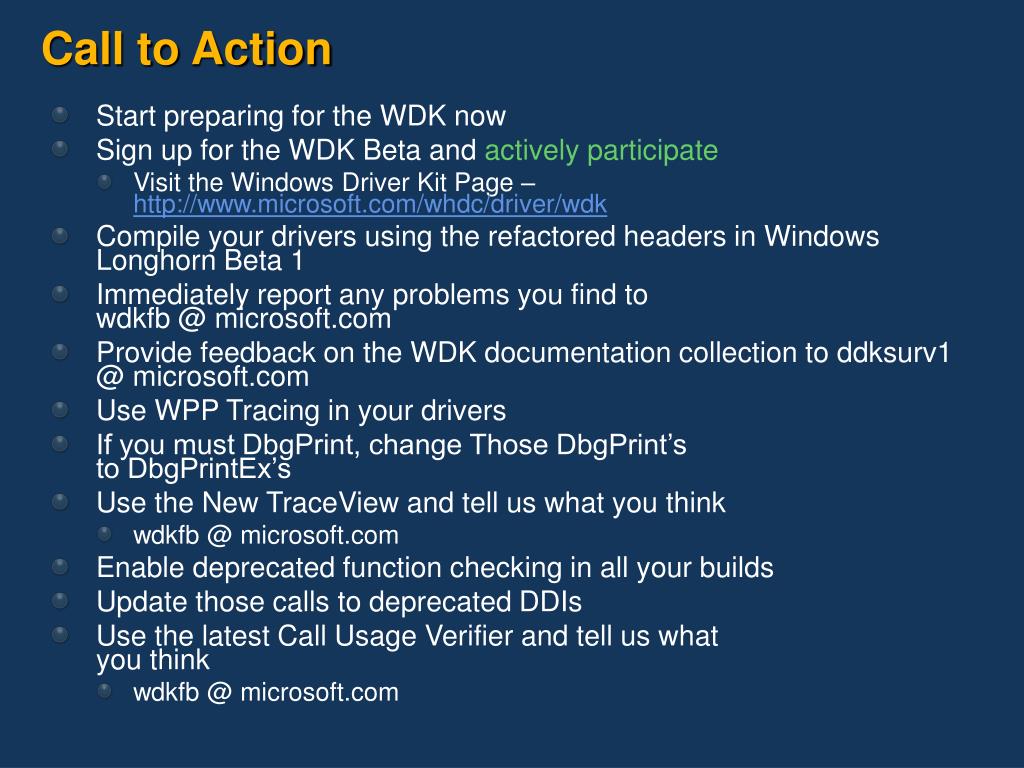

  39. Call to Action • Start preparing for the WDK now • Sign up for the WDK Beta and actively participate • Visit the Windows Driver Kit Page – http://www.microsoft.com/whdc/driver/wdk • Compile your drivers using the refactored headers in Windows Longhorn Beta 1 • Immediately report any problems you find to wdkfb @ microsoft.com • Provide feedback on the WDK documentation collection to ddksurv1 @ microsoft.com • Use WPP Tracing in your drivers • If you must DbgPrint, change Those DbgPrint’s to DbgPrintEx’s • Use the New TraceView and tell us what you think • wdkfb @ microsoft.com • Enable deprecated function checking in all your builds • Update those calls to deprecated DDIs • Use the latest Call Usage Verifier and tell us what you think • wdkfb @ microsoft.com

  40. Additional Resources • Web Resources: • Windows Driver and Hardware Central – http://www.microsoft.com/whdc • Windows Driver Kit Page – http://www.microsoft.com/whdc/driver/wdk • Email wdkfb @ microsoft.com for feedback and questions on the WDK • OSR Online (http:/www.osronline.com) • Articles, information • Peer help: NTDEV newsgroup

  41. © 2004 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
