Presentation Transcript
Spondyloarthropathies john imboden md l.jpg

SpondyloarthropathiesJohn Imboden MD

23 y o woman with low back pain l.jpg

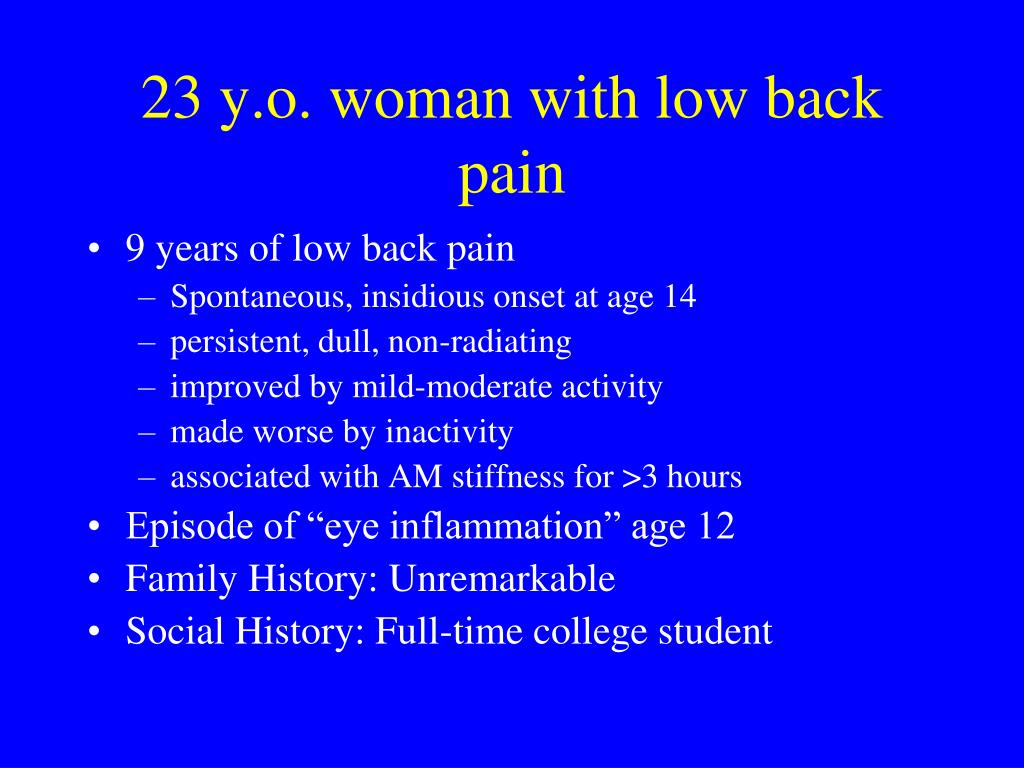

23 y.o. woman with low back pain

  • 9 years of low back pain

    • Spontaneous, insidious onset at age 14

    • persistent, dull, non-radiating

    • improved by mild-moderate activity

    • made worse by inactivity

    • associated with AM stiffness for >3 hours

  • Episode of “eye inflammation” age 12

  • Family History: Unremarkable

  • Social History: Full-time college student

23 y o woman with low back pain3 l.jpg
23 y.o. woman with low back pain

  • On examination: decreased range of motion of her lumbar spine and decreased chest expansion

  • She has had some relief with NSAIDs but now her back pain is so severe she has had to cut back on her course load and is uncertain whether she can continue college.

  • She has seen multiple physicians in the past 9 years but none has been able to make a diagnosis.

  • What is the likely cause of the back pain?

Spondyloarthropathies l.jpg

  • Ankylosing spondylitis

  • Reactive arthritis

  • Arthritis associated with inflammatory bowel disease (Crohn’s disease and ulcerative colitis)

  • Arthritis associated with psoriasis

  • Undifferentiated spondyloarthropathy

Spondyloarthropathies common features l.jpg
Spondyloarthropathies: common features

  • Involvement of the axial skeleton

  • Asymmetric oligoarthritis of peripheral joints

  • Enthesitis & dactylitis

  • Seronegative

    • negative tests for rheumatoid factor and ANA

  • Association with HLA-B27

Involvement of axial skeleton sacroiliac joints and all components of spine l.jpg
Involvement of axial skeleton:sacroiliac joints and all components of spine

Sacroiliitis occurs in 100% cases of ankylosing spondylitis

Slide7 l.jpg
Peripheral arthritis: asymmetric oligoarthritis with predilection for large joints of lower extremities

Peripheral arthritis occurs in the great majority of patients with reactive

arthritis or psoriatic arthritis but in <25% with ankylosing spondylitis

Enthesitis inflammation where tendon ligament or joint capsule attach to bone l.jpg
Enthesitis: inflammation where tendon, ligament, or joint capsule attach to bone


- Enthesitis

- Synovitis

T cell and macrophage


Local cytokine production:




Enthesitis inflammation at insertion of achilles tendon l.jpg
Enthesitis:inflammation at insertion of Achilles tendon

Enthesitis l.jpg

inflammation where plantar fascia inserts onto the calcaneus

Hla b27 and spondyloarthropathies l.jpg

HLA-B27 in Caucasian populations in US

normal controls 8%

ankylosing spondylitis 90%

reactive arthritis with spondylitis 60-80%

psoriatic with spondylitis 50%

IBD with spondylitis 50%

HLA-B27 and spondyloarthropathies

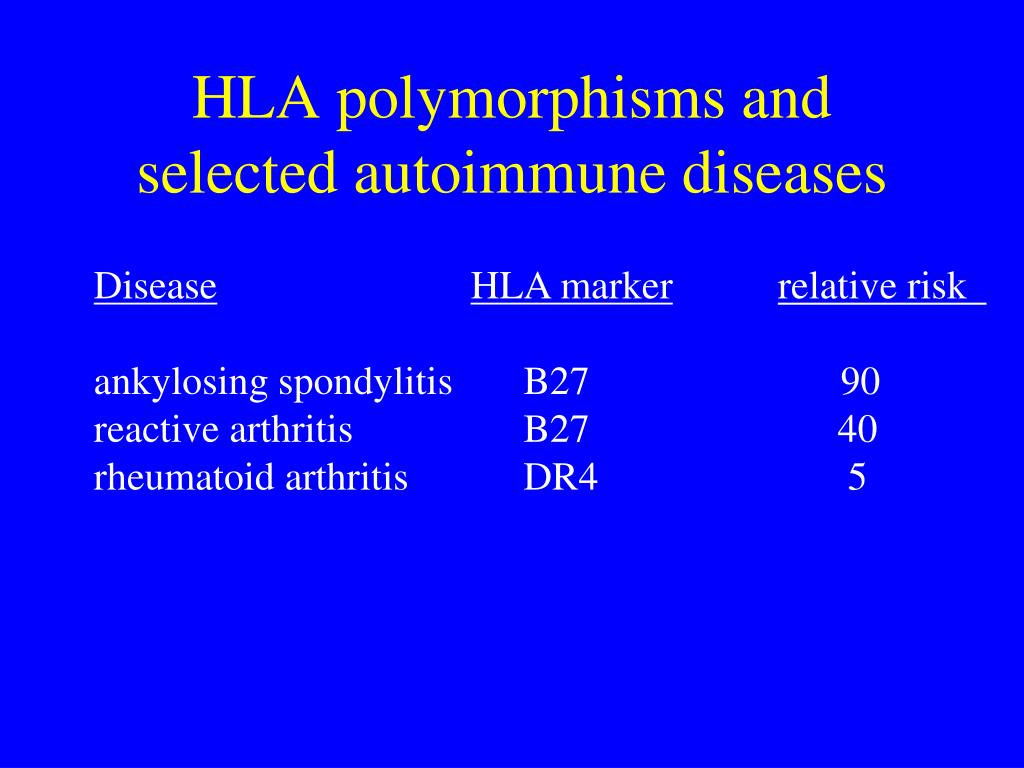

Hla polymorphisms and selected autoimmune diseases l.jpg
HLA polymorphisms and selected autoimmune diseases

DiseaseHLA markerrelative risk

ankylosing spondylitis B27 90

reactive arthritis B27 40

rheumatoid arthritis DR4 5

Hla b27 and risk of spondyloarthropathy l.jpg

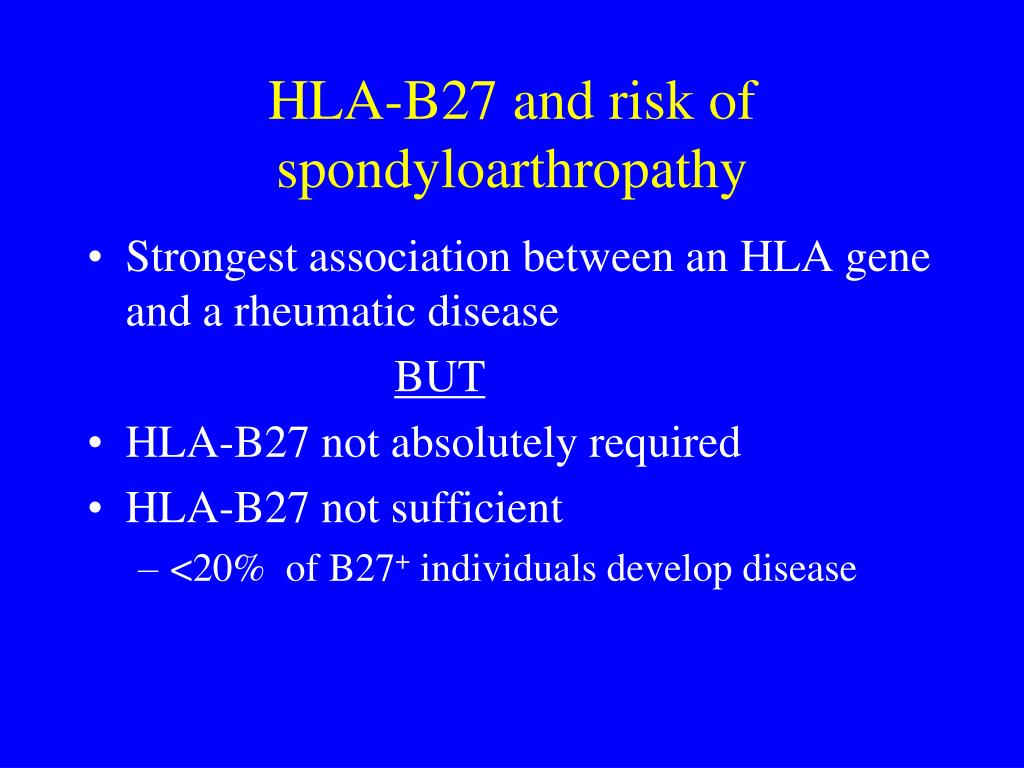

HLA-B27 and risk of spondyloarthropathy

  • Strongest association between an HLA gene and a rheumatic disease


  • HLA-B27 not absolutely required

  • HLA-B27 not sufficient

    • <20% of B27+ individuals develop disease

Hla b27 and risk of spondyloarthropathy15 l.jpg
HLA-B27 and risk of spondyloarthropathy

Environmental triggers

mucosal inflammation (infection, IBD)



+ Spondyloarthropathy

Genetic background


other genes

Ankylosing spondylitis17 l.jpg
Ankylosing Spondylitis

  • An inflammatory arthritis with predilection for the axial skeleton

  • Sacroiliac joints

    • always involved

    • bilateral

    • early in the course of the disease

  • Spine (cervical, thoracic, lumbar)

    • variable in severity and extent

Ankylosing spondylitis a genetically determined disease l.jpg
Ankylosing spondylitis: a genetically determined disease

  • Family and twin studies: largely a genetic disease

  • Multiple genes involved: HLA-B27 confers a relative risk of 90 but constitutes only 15-50% of the overall genetic risk

  • Environmental trigger is essential but ubiquitous

Ankylosing spondylitis19 l.jpg

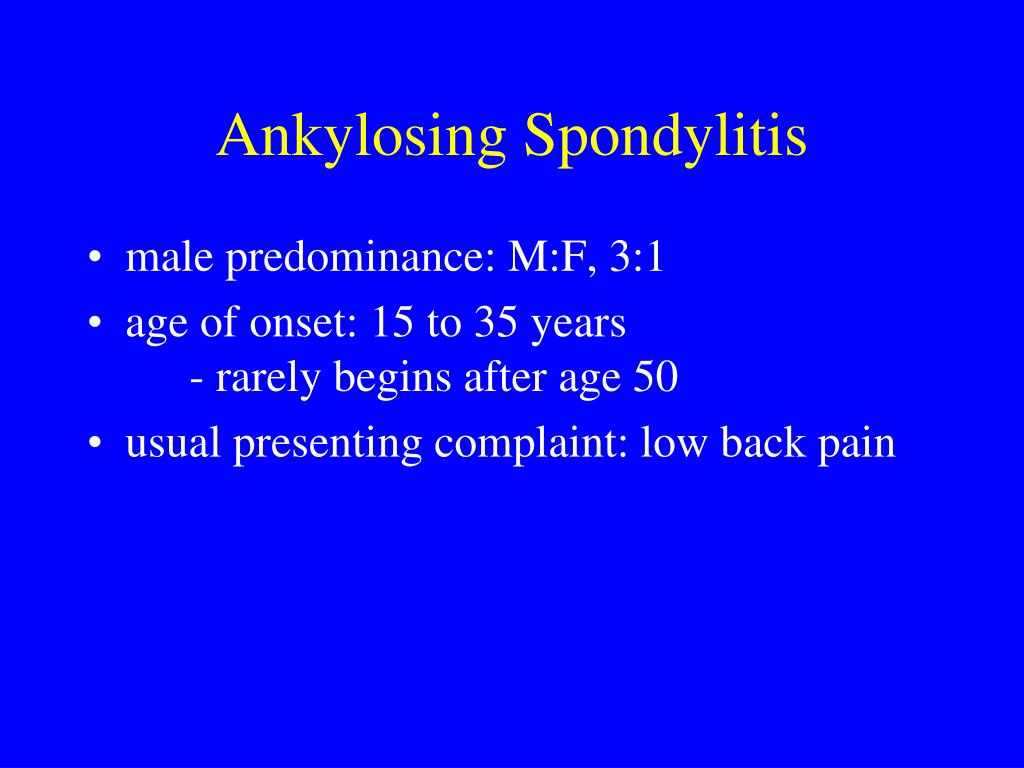

Ankylosing Spondylitis

  • male predominance: M:F, 3:1

  • age of onset: 15 to 35 years - rarely begins after age 50

  • usual presenting complaint: low back pain

Age of onset of symptoms in as feldkeller et al rheumatol int 23 61 2003 l.jpg
Age of onset of symptoms in AS(Feldkeller et al. Rheumatol Int 23: 61, 2003

Ankylosing spondylitis inflammatory back pain l.jpg
Ankylosing spondylitis: “inflammatory” back pain

  • insidious in onset

  • persistent

  • dull in quality

  • associated with stiffness

  • worse in AM or after prolonged inactivity

  • eased by mild activity

Physical examination in ankylosing spondylitis l.jpg

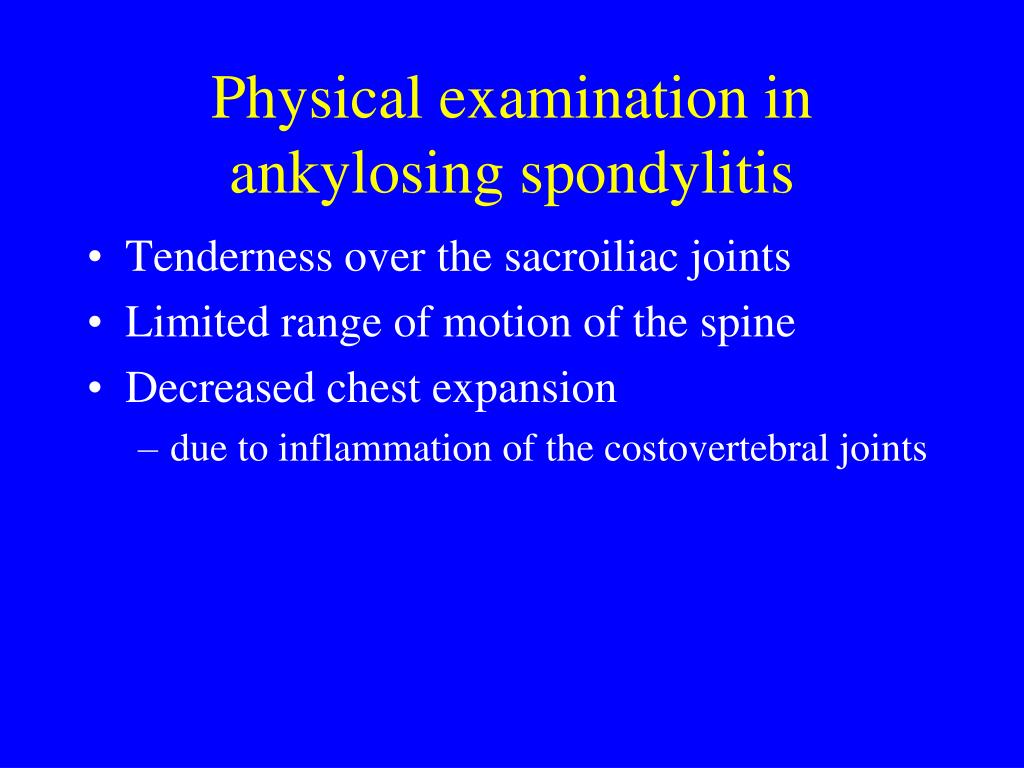

Physical examination in ankylosing spondylitis

  • Tenderness over the sacroiliac joints

  • Limited range of motion of the spine

  • Decreased chest expansion

    • due to inflammation of the costovertebral joints

Slide23 l.jpg

Ankylosing spondylitis

Involvement of cervical spine:

Inability to touch occiput to wall

Involvement of lumbar spine:

Failure to reverse lumbar lordosis during flexion

Sacroiliac joints ankylosing spondyltitis l.jpg
Sacroiliac joints:ankylosing spondyltitis

Slide27 l.jpg

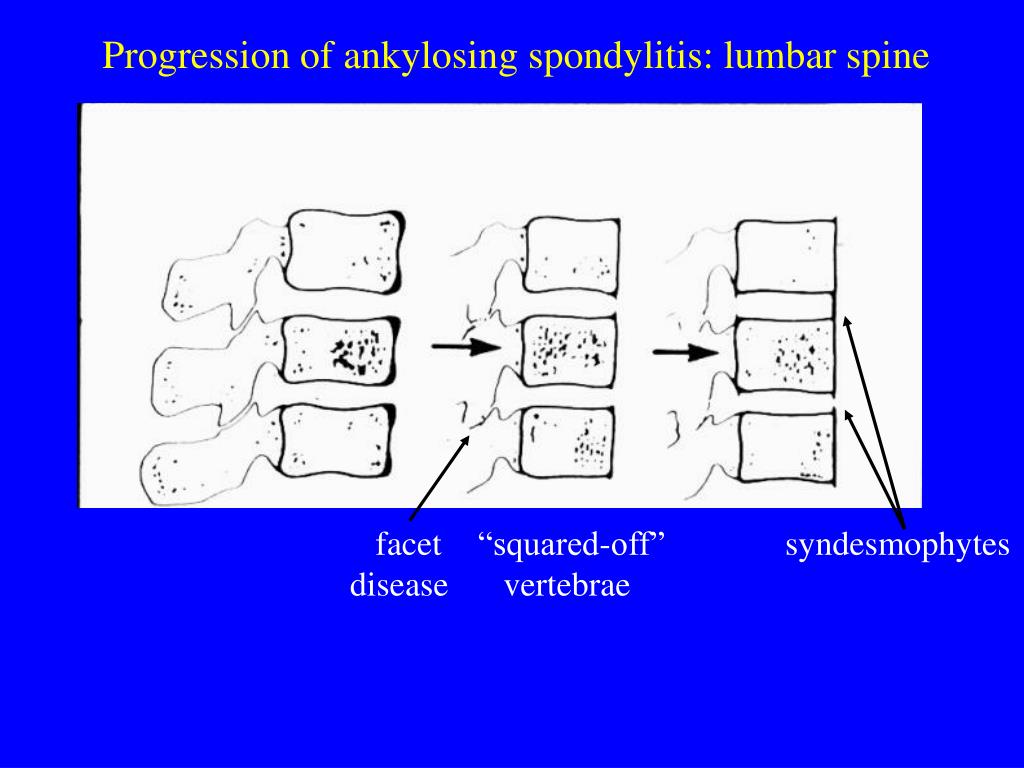

Progression of ankylosing spondylitis: lumbar spine

facet “squared-off” syndesmophytes

disease vertebrae

Ankylosing spondylitis syndesmophytes and fusion of lumbar spine l.jpg
Ankylosing spondylitis:syndesmophytes and fusion of lumbar spine

  • Spinal complications of AS:

  • loss of motion

  • osteopenia

  • increased risk of fracture

  • - C1-C2 subluxation

Ankylosing spondylitis29 l.jpg
Ankylosing spondylitis

spine fused in flexion

Ankylosing spondylitis extraarticular manifestations l.jpg
Ankylosing spondylitis: extraarticular manifestations

  • common: - anterior uveitis (20-40%)

    • Associated with HLA-B27

      - GI inflammation (subclinical)

  • uncommon/rare: - aortitis (3% after 15 years)

    - apical fibrosis of the lung

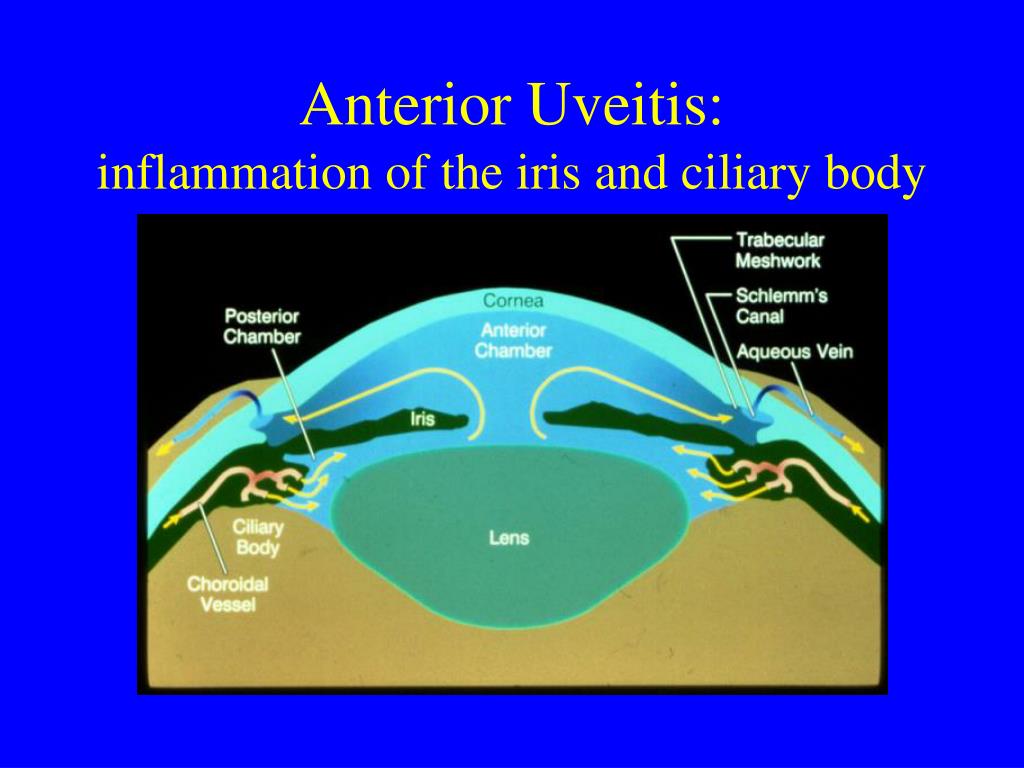

  • Anterior uveitis inflammation of the iris and ciliary body l.jpg
    Anterior Uveitis: inflammation of the iris and ciliary body

    Anterior uveitis ocular pain photophobia red eye l.jpg
    Anterior uveitisocular pain, photophobia, red eye

    Ankylosing spondylitis diagnosis l.jpg

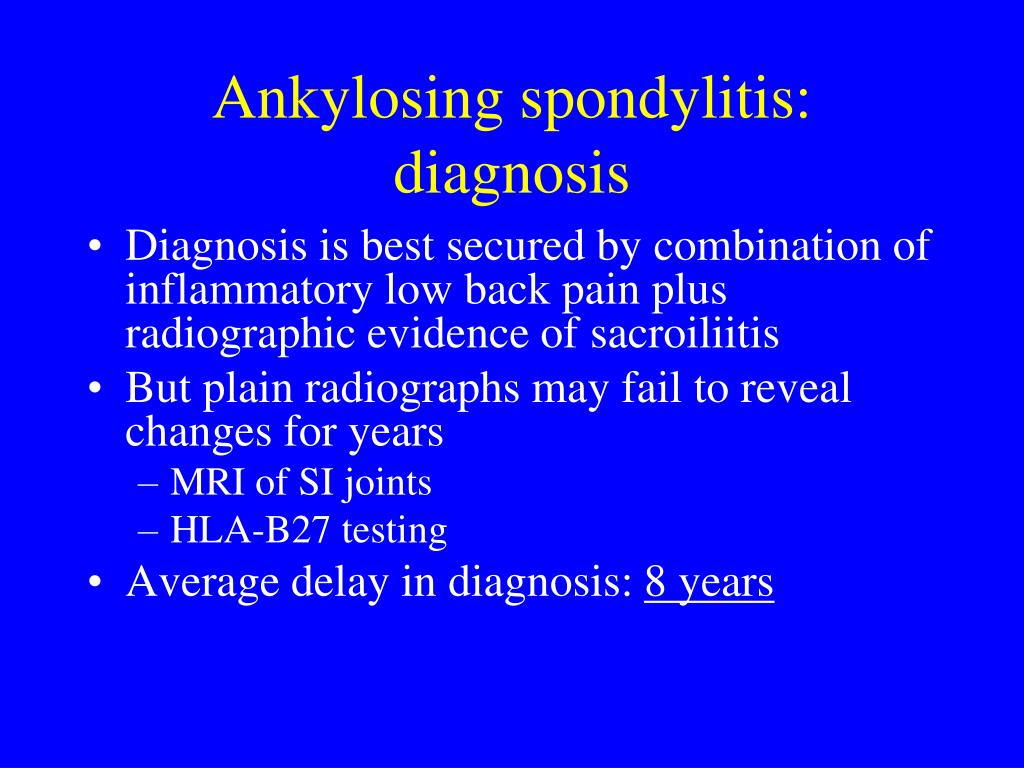

    Ankylosing spondylitis: diagnosis

    • Diagnosis is best secured by combination of inflammatory low back pain plus radiographic evidence of sacroiliitis

    • But plain radiographs may fail to reveal changes for years

      • MRI of SI joints

      • HLA-B27 testing

    • Average delay in diagnosis: 8 years

    23 y o woman with low back pain34 l.jpg
    23 y.o. woman with low back pain

    Key features:

    • Age of onset: 14

    • Quality of the back pain: inflammatory

    • Past history of ocular inflammation

    • Decreased L spine motion and chest expansion

    23 y o woman with low back pain35 l.jpg
    23 y.o. woman with low back pain

    • Radiograph: bilateral sacroiliitis

    • Diagnosis: ankylosing spondylitis

    • Started on anti-TNF therapy

      • AM stiffness 180 min 0 min

      • Chest expansion 2 cm 4.5 cm

      • Returned to college full time

    Ankylosing spondylitis therapy l.jpg
    Ankylosing spondylitis: therapy

    • physical therapy to maintain erect posture

    • NSAIDs for symptomatic relief

    • avoid use of systemic corticosteroids

    • Anti-tumor necrosis factor therapy

      • Symptomatic improvement in axial skeleton disease

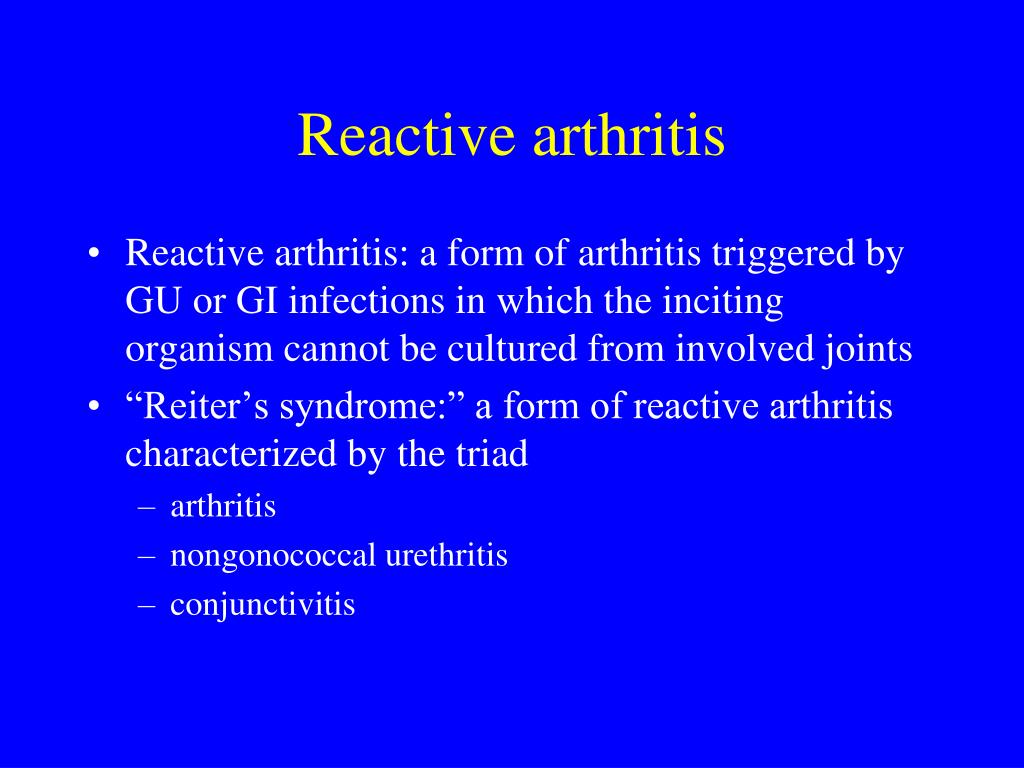

    Reactive arthritis l.jpg
    Reactive arthritis

    • Reactive arthritis: a form of arthritis triggered by GU or GI infections in which the inciting organism cannot be cultured from involved joints

    • “Reiter’s syndrome:” a form of reactive arthritis characterized by the triad

      • arthritis

      • nongonococcal urethritis

      • conjunctivitis

    Reactive arthritis inciting infections l.jpg
    Reactive arthritis:inciting infections

    • genitourinary infections: - Chlamydia trachomatis

    • enteric infections: - Shigella - Salmonella - Yersinia - Campylobacter

    Reactive arthritis39 l.jpg
    Reactive Arthritis



    GI/GU 1 -4 wks reactive

    infection arthritis (1-4%)


    can be “idiopathic” resolution

    Reactive arthritis40 l.jpg
    Reactive Arthritis

    • Cultures of synovial fluid and synovial tissue are sterile

    • Bacterial antigens can be detected in synovial tissue, even years after the onset of arthritis

      • No evidence of viable organisms

    • Antibiotics:

      • No proven benefit

    Reactive arthritis general features l.jpg
    Reactive arthritis: general features

    • M:F, 5:1

    • often, at onset,constitutional symptoms with prominent weight loss, fatigue, & malaise

    • peripheral arthritis > axial arthritis

      • asymmetric oligoarthritis

      • lower extremity predominance

      • enthesitis (heel pain is common)

    • extraarticular disease

    Reactive arthritis extraarticular manifestations l.jpg
    Reactive arthritis: extraarticular manifestations

    • eye:

      • conjunctivitis: usually mild

      • anterior uveitis

    • mucous membranes and skin:

      • urethritis

      • oral ulcers (painless)

      • keratoderma blenorrhagica

      • circinate balanitis

      • nail changes

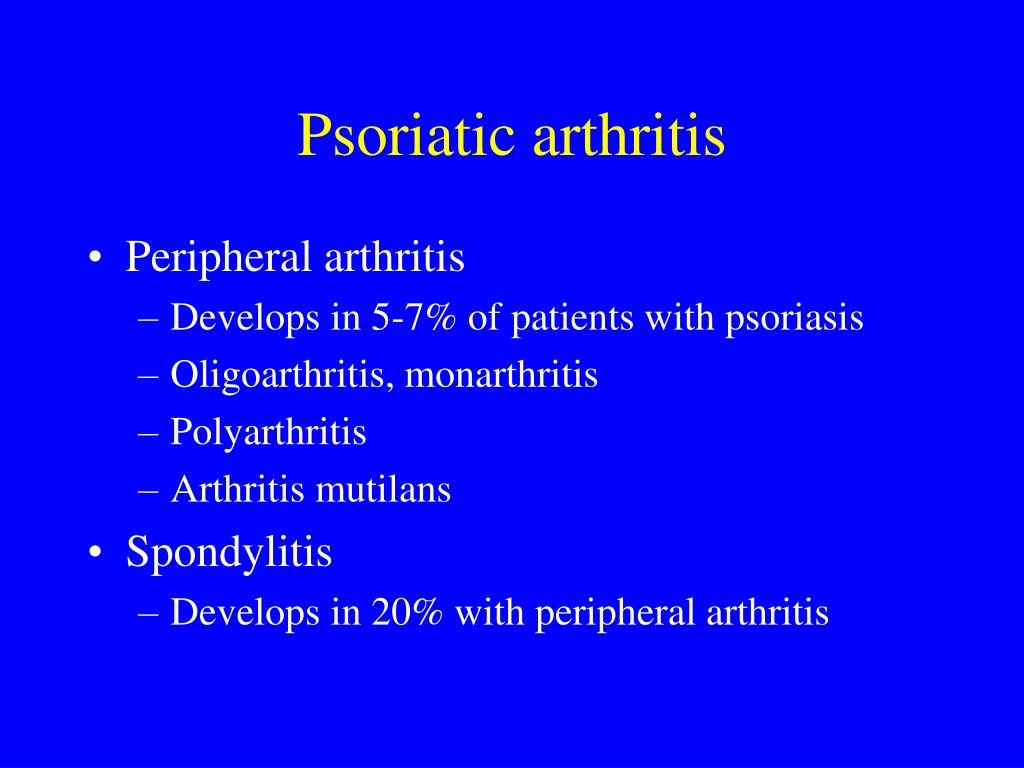

    Psoriatic arthritis l.jpg
    Psoriatic arthritis

    • Peripheral arthritis

      • Develops in 5-7% of patients with psoriasis

      • Oligoarthritis, monarthritis

      • Polyarthritis

      • Arthritis mutilans

    • Spondylitis

      • Develops in 20% with peripheral arthritis

    Psoriatic arthritis dip involvement l.jpg
    Psoriatic arthritis: DIP involvement

    Inflammation of DIP


    Nail pitting

    Spondyloarthropathies key points l.jpg
    Spondyloarthropathies: key points

    • Shared features

      • Why we group the spondyloarthropathies

      • How the spondyloarthropathies differ from RA

    • Major clinical manifestations of ankylosing spondylitis and reactive arthritis

      • Recognize clinical presentations of these diseases

    • Importance of HLA-B27 as a risk factor
