flip flop and finite state machine

Flip-flop and Finite State Machine


Radha Iyer

Prof: Dr. Sin-Min Lee

CS147 Computer Organization and Architecture

what is sequential circuits
What is Sequential Circuits?
  • A Sequential Circuit can be defined as circuit

having sequential logic. Sequential logic is a type

of a logic circuit whose output depends not only on

current inputs but also on previous inputs.

what are flip flops

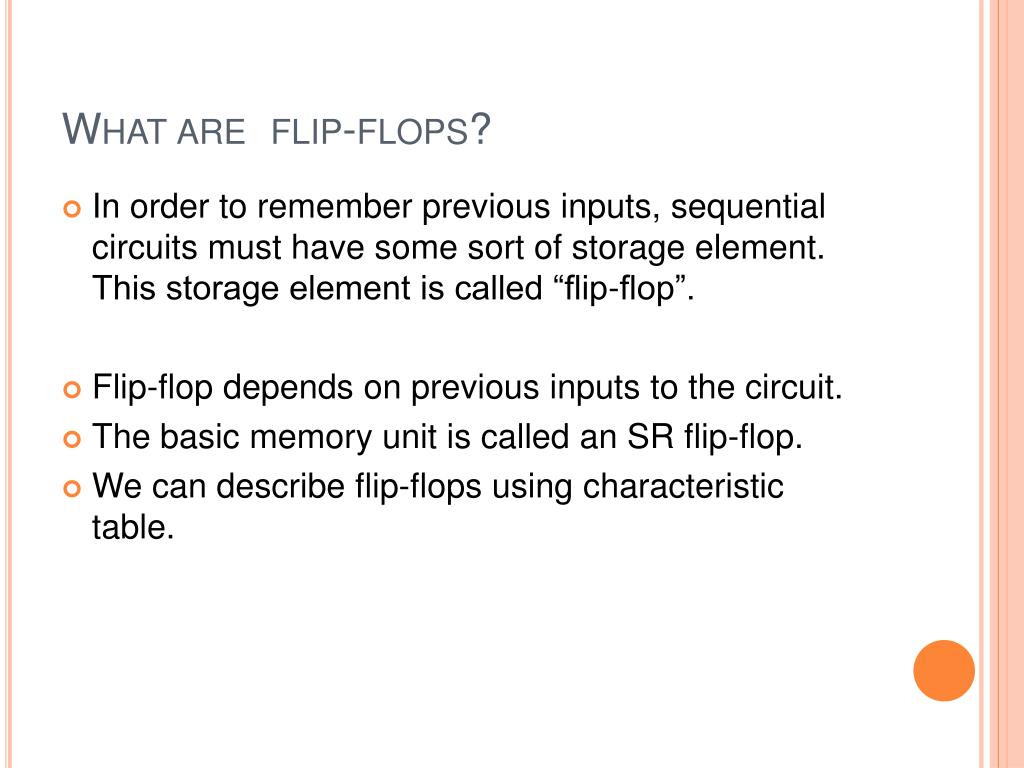

What are flip-flops?
  • In order to remember previous inputs, sequential circuits must have some sort of storage element. This storage element is called “flip-flop”.
  • Flip-flop depends on previous inputs to the circuit.
  • The basic memory unit is called an SR flip-flop.
  • We can describe flip-flops using characteristic table.
unstable circuit
Unstable Circuit
  • S-stands for set
  • R- stands for re-set
  • If both S and R are set to1 in the SR flip-flop at the same time then it resulted in an unstable circuit, so this combination is not allowed.
  • To take care of this problem JK flip-flops were developed.
what is jk flip flop

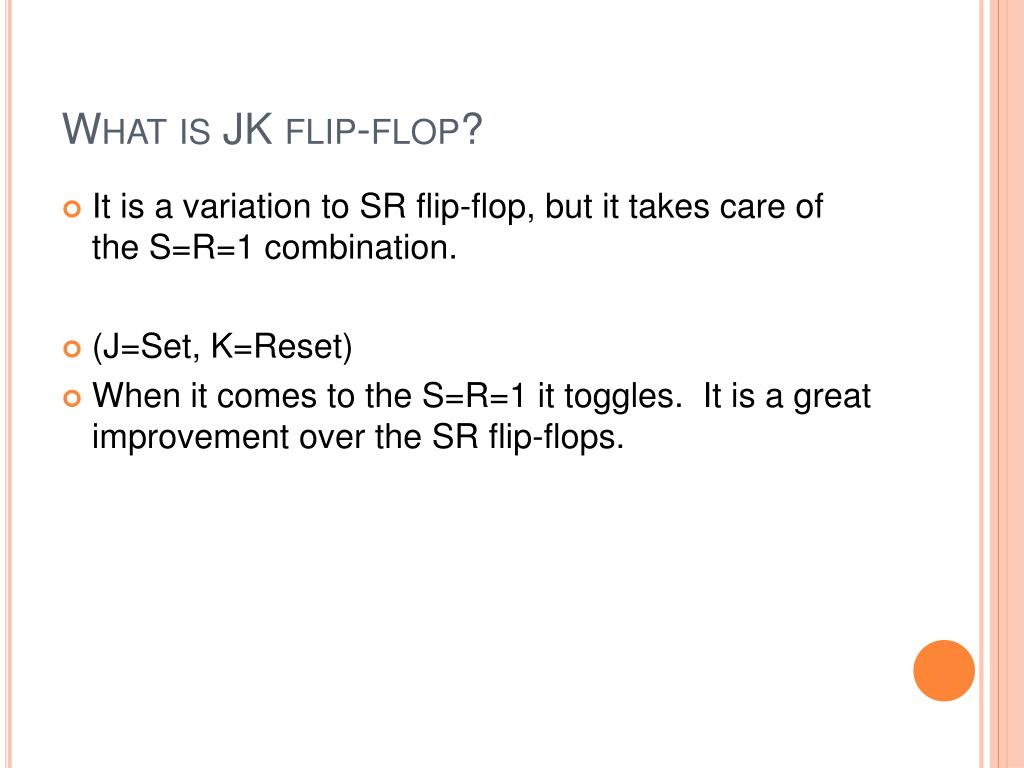

What is JK flip-flop?
  • It is a variation to SR flip-flop, but it takes care of the S=R=1 combination.
  • (J=Set, K=Reset)
  • When it comes to the S=R=1 it toggles. It is a great improvement over the SR flip-flops.
what are d flip flops

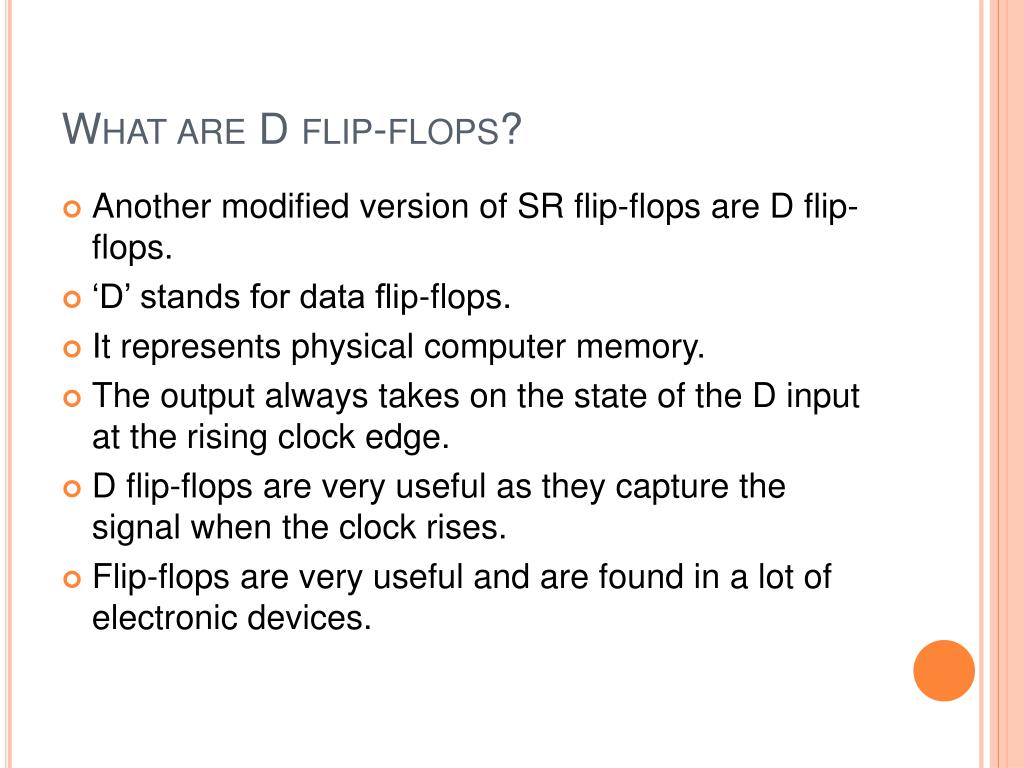

What are D flip-flops?
  • Another modified version of SR flip-flops are D flip-flops.
  • ‘D’ stands for data flip-flops.
  • It represents physical computer memory.
  • The output always takes on the state of the D input at the rising clock edge.
  • D flip-flops are very useful as they capture the signal when the clock rises.
  • Flip-flops are very useful and are found in a lot of electronic devices.
finite state machine
Finite State Machine
  • It is a model of behavior composed of a finite number of states, transitions between those states, and actions, (wikipedia,2000).
  • A finite state machine is an abstract model of a machine with a primitive internal memory.
  • It depicts the graphical part of the flip-flops.
moore mealy machine s

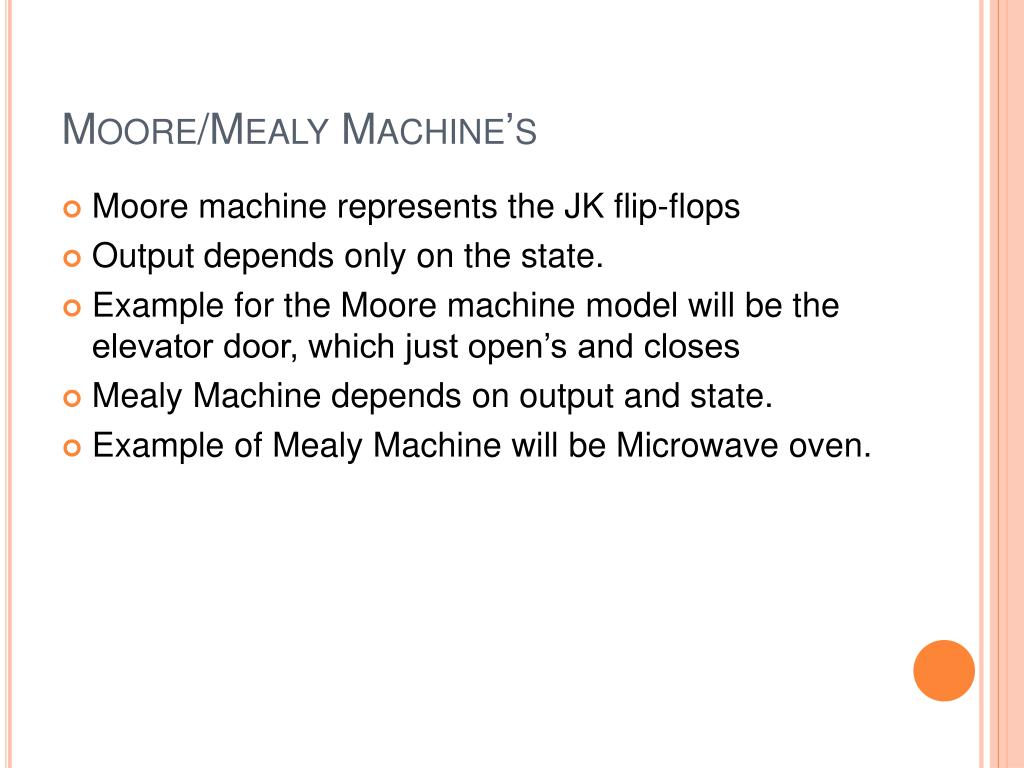

Moore/Mealy Machine’s
  • Moore machine represents the JK flip-flops
  • Output depends only on the state.
  • Example for the Moore machine model will be the elevator door, which just open’s and closes
  • Mealy Machine depends on output and state.
  • Example of Mealy Machine will be Microwave oven.

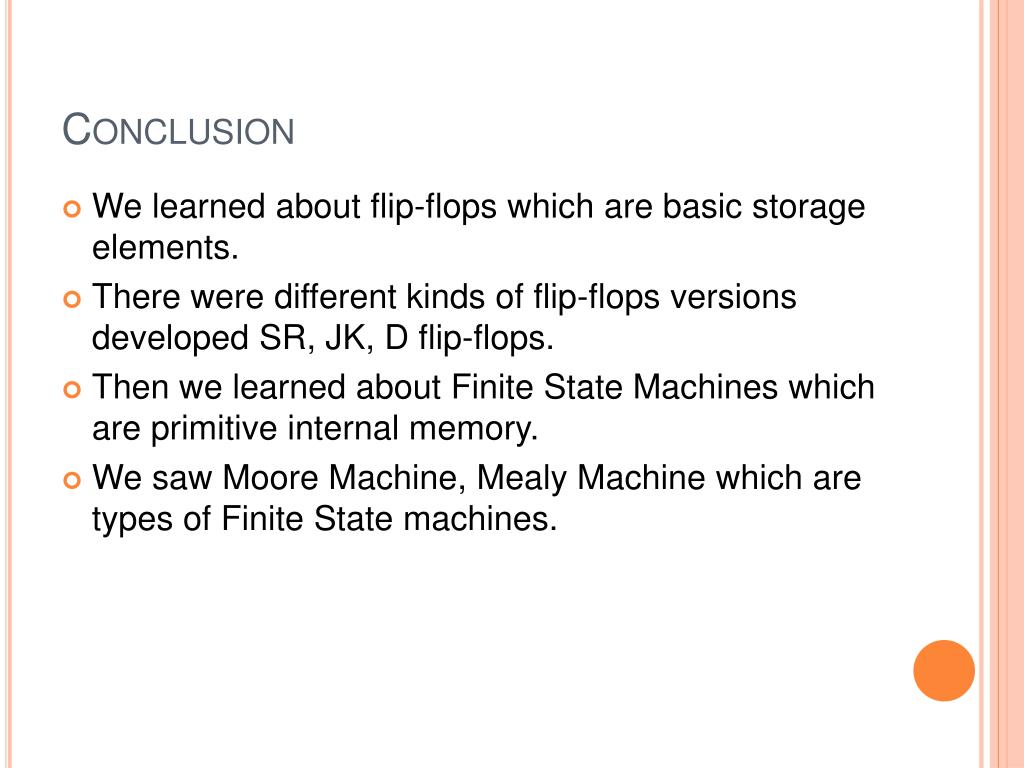

  • We learned about flip-flops which are basic storage elements.
  • There were different kinds of flip-flops versions developed SR, JK, D flip-flops.
  • Then we learned about Finite State Machines which are primitive internal memory.
  • We saw Moore Machine, Mealy Machine which are types of Finite State machines.

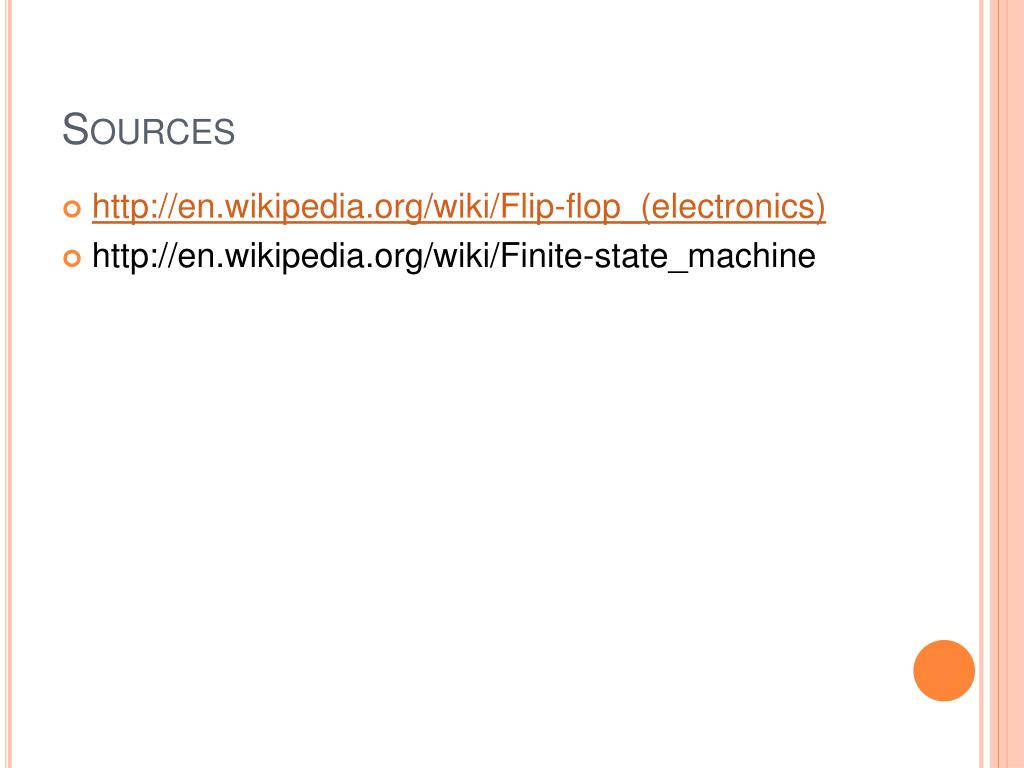

  • http://en.wikipedia.org/wiki/Flip-flop_(electronics)
  • http://en.wikipedia.org/wiki/Finite-state_machine
