  1. Vehicle Sync Monty Markowski

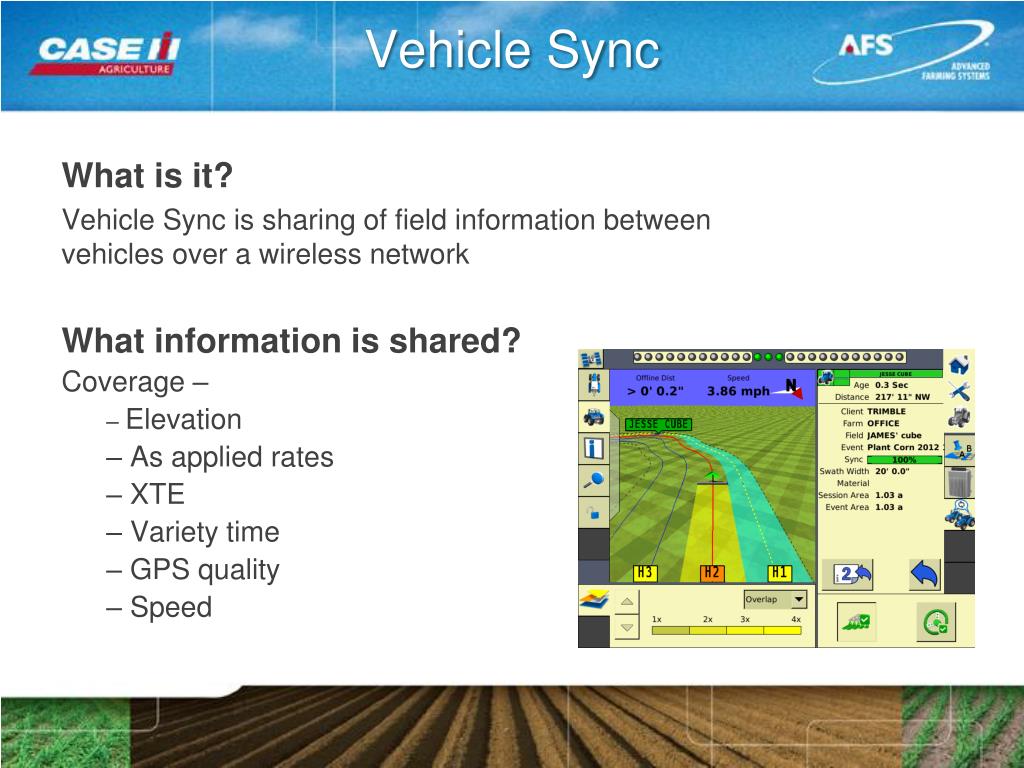

  2. Vehicle Sync What is it? Vehicle Sync is sharing of field information betweenvehicles over a wireless network What information is shared? Coverage – • Elevation • As applied rates • XTE • Variety time • GPS quality • Speed

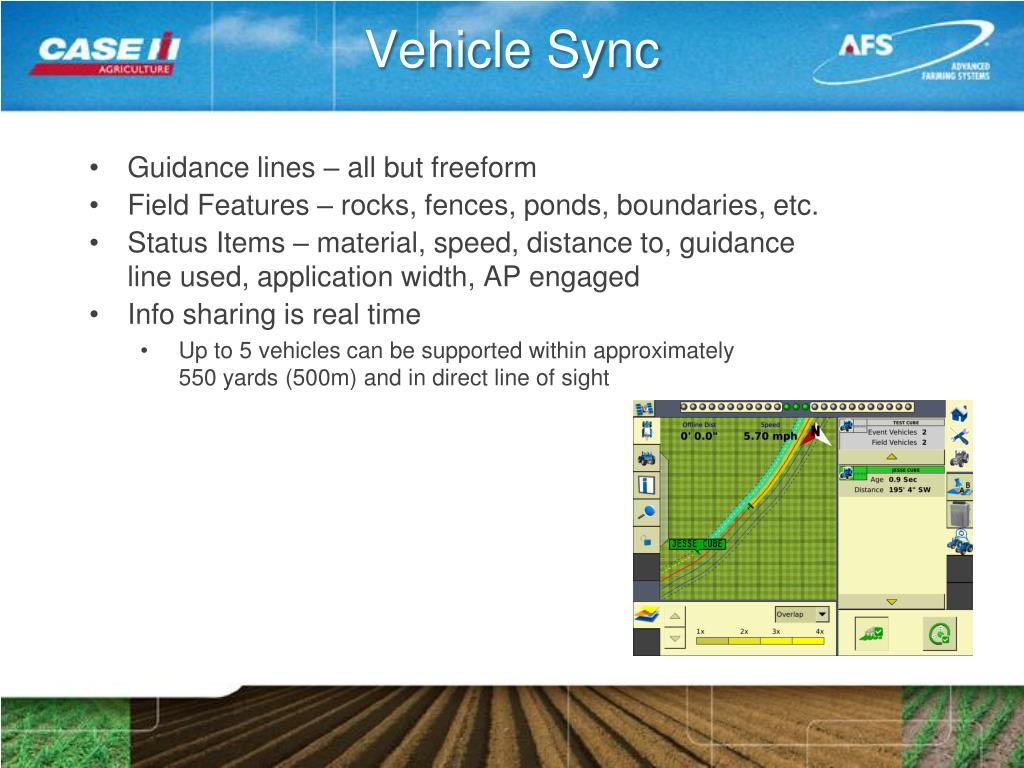

  3. Vehicle Sync • Guidance lines – all but freeform • Field Features – rocks, fences, ponds, boundaries, etc. • Status Items – material, speed, distance to, guidanceline used, application width, AP engaged • Info sharing is real time • Up to 5 vehicles can be supported within approximately550 yards (500m) and in direct line of sight

  4. Applications • Manure management • Custom sprayer / fertilizer applicators • Multiple unit users • Corporate farms • Fleet • Custom harvesters

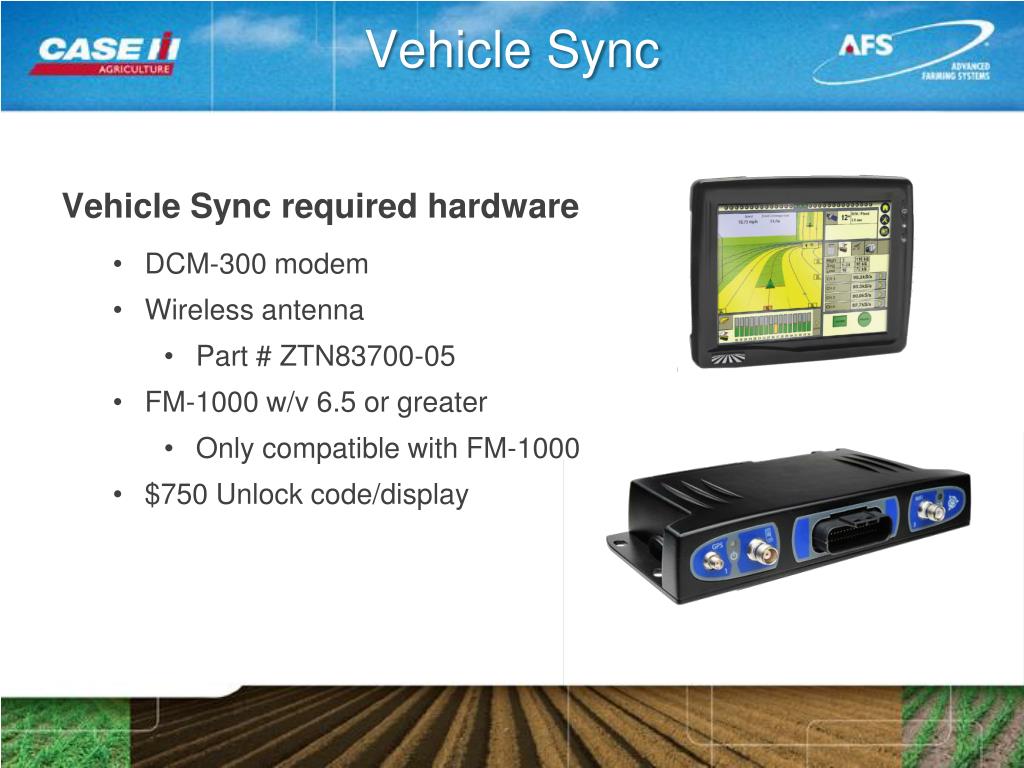

  5. Vehicle Sync Vehicle Sync required hardware • DCM-300 modem • Wireless antenna • Part # ZTN83700-05 • FM-1000 w/v 6.5 or greater • Only compatible with FM-1000 • $750 Unlock code/display

  6. Vehicle Sync • Once both vehicles enter the same CFFE,all guidance lines, event coverageand field features synchronize (no coverage with only CFF) • Coverage from your vehicle is yellowCoverage from any other vehicle isteal • If another vehicle is using the guidance line andswath width – the guidance line on which theother vehicle is engaged will show up as a dotted line

  7. Vehicle Sync Field Operation IF vehicle swath widths are different, only the guidance lines from your vehicle are highlighted IF the Vehicle Sync Plugin tab is selected, the other vehicles will be labeled on the screen

  8. Vehicle Sync Pricing ( FM-1000 ) DCM-300 Kit with High-Gain Antenna $1,095 Unlock code $750 Total$1,845

  9. Vehicle Sync Adaptable I. Can be installed in many vehicles Innovative I. Real time data exchange wirelessly between vehicles
