7 1 stress in earth s crust

7.1 Stress in Earth’s crust

The Way Tectonic Plates Move

learning targets
Learning Targets
  • Describe the anatomy of an earthquake and relate plate tectonics (different types of plate boundaries) to earthquakes.
  • Describe how stress builds up earthquakes
stress
Stress
  • Plate movement is never smooth
    • Plates made of solid, rough rock
  • Stress builds up at plate boundaries
    • Fold- Rocks bend
    • Fracture- Rocks break
  • Earthquake = removal of stress
stress1
Stress
  • Mantle convectioncellsputs a lot of stress on the rocks of the lithosphere.
types of stress
Types of Stress
  • Confining: pressure from all directions
    • No deformation
  • Compression: pushed together
    • Fractures or folds
  • Tension: pulled apart (extension)
    • Stretch or break
  • Shear: parallel but opposite (scissors)
    • Break and slide past one another
types of stress1
Types of Stress
  • What type of plate boundary
    • Confining - Results from being buried
    • Compression - Convergent
    • Tension -Divergent
    • Shear - Transform
elastic vs plastic
Elastic vs. Plastic
  • Rocks under stress will deform
    • Elastically: bend then return to original shape
  • Rocks under more stress will deform
    • Plastically: bend without the ability to return to the original shape
geologic structures
Geologic Structures
  • Folds
  • Joints
  • Faults
geologic structures folds
Geologic Structures - Folds
  • Folds: bends in rock due to compression
    • Monocline: non-horizontal layering
    • Anticline: Upward bulge
    • Syncline: Downward bulge
geologic structures joints
Geologic Structures - Joints
  • Joints: breaks where rocks do not move
geologic structures faults
Geologic Structures - Faults
  • Faults: breaks where rocks have moved
fault
Fault

Fracture – If the stress continues, the rock will break

geologic structures summary

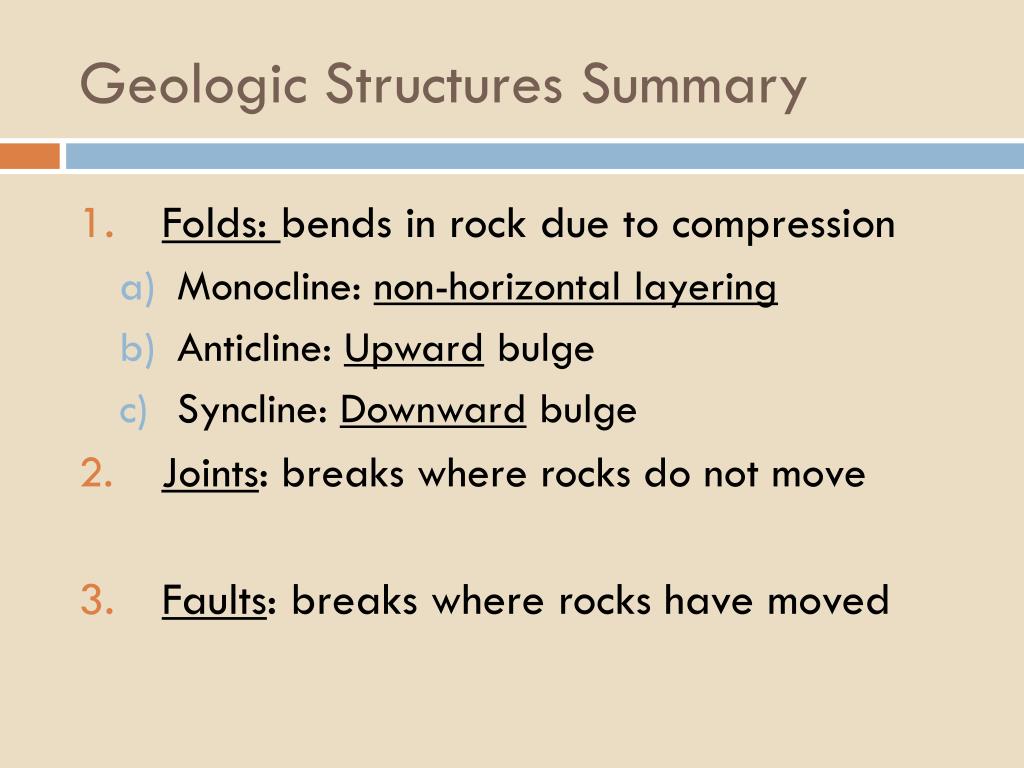

Geologic Structures Summary
  • Folds: bends in rock due to compression
    • Monocline: non-horizontal layering
    • Anticline: Upward bulge
    • Syncline: Downward bulge
  • Joints: breaks where rocks do not move
  • Faults: breaks where rocks have moved
