Data replication strategies
Data Replication Strategies

The Bane of Business Disruption

Stop production!

It’s backup

time


Executive summary
Executive Summary

Do not risk conducting business without a Business Continuation Plan… …employing modern data replication technology you do not need to stop business processing to back up data or to install the additional disk storage.


Overview
Overview

  • What is Data Replication Technology?

  • Why is it important?

  • How and when did it come about?

  • How can we use it?

  • The Benefits…


What is data replication technology
What Is Data Replication Technology?

  • Software and hardware for making additional copies of existing data…to improve data availability.


Why is data replication important
Why is Data Replication Important?

  • Data Replication is a solution for protection against loss…

  • Data Replication is key to improving data availability for Business Continuance.


How improve data availability
How Improve Data Availability?

  • Development and Testing

    • “Disposable” Copy for experimenting

  • Improve Production Processing

    • “Duplicate” Copy for parallel access

  • Business Protection / Business Continuance

    • “Backup” Copy as insurance against loss


Business continuation more than disaster recovery
Business Continuation…More than Disaster Recovery

  • Apply Basic Principles

  • Consider e-Business Requirements

    • 24x7x365 Availability

    • Non-Stop Operations

  • Employ Instant technology


Where does the pressure come from
Where Does the Pressure Come From?

“e-Business extends direct consumer access to existing real-time business systems”


You don t need a disaster to have a disruption
You Don’t Need A Disaster To Have A Disruption!

  • Natural Disasters

  • Site Destruction/Disruption

    • Fires, Power and Communications Failure

  • Mechanical Equipment Failure

    • Processor, Disk and Network Hardware

  • Software Failure

    • Operating System and Application

  • Human Error

    • One Third of All Data Loss is Caused by Human Error

  • Scheduled downtime…

    • Backup, New Equipment…


How much does disruption cost
How Much Does Disruption Cost?

  • Lost opportunity…

    • Securities Trading $6.5 million per hr

    • Intel Web Site Sales $275,000 per hr

    • Cable Home Shopping $113,000 per hr

    • Airline Reservations $ 89,000 per hr

    • Cellular Service Activation $ 41,000 per hr

  • Fraud Exposure… Credit Cards $2.6 million per hr


Where is the data modern disk storage
WHERE IS THE DATA?Modern disk storage…

Forty-five years old

Thirty-eight years old

Thirty years old

Twenty-five years old


A forty five year old invention
A Forty-Five Year Old Invention?

September 13, 1956, the first RAMAC



Innovation continued
Innovation Continued…! Controller..

  • Disk storage capacity grew through the 1970s and 80s from 10 MBs to 100 MBs to 1000 MBs, gigabytes and terabytes…


A twenty five year old scheme raid structures
A Controller.. Twenty-Five Year Old Scheme Raid Structures

  • 1978 IBM patent for Redundant Arrays of Independent Disks.

  • 1987 University of California at Berkeley “Inexpensive” Disks



Software solutions automated backup and recovery
Software Solutions Automated Controller.. BACKUP AND RECOVERY

  • Three approaches to backup

  • Two reduce time by limiting the amount of data.

  • One automates the solution.


Automated software solutions cut backup time 50 to 80 daily incremental
Automated Software Solutions Controller.. CUT BACKUP TIME 50 TO 80 % (Daily INCREMENTAL)

Weekend Full Volume Backup Image

Daily Incremental Backup Image


10 years ago it began coming together raid storage began replacing sleds

ESS 2105 (SHARK) Controller..

Lighting

RVA-X83

10 Years ago it began coming together RAID Storage began Replacing SLEDS,

SHARED VIRTUAL ARRAY

SVA


Intelligent storage
Intelligent Storage Controller..

  • 1987@ IBM 3990-3 (Dual Copy)

  • 1992/1993@ IBM 3990-6 (Concurrent Copy, PPRC, P/DAS and XRC )

  • 1994@ Symmetrix (Mirror Protection™, , EMCCopy and SRDF)

  • 1995@ StorageTek IceBerg (SnapShot Copy™)

  • 1996/1997/1998@ IBM RVA (SnapShot Copy™) EMC Symmetrix (TimeFinder™) Hitachi (DataPlex™, ShadowImage and NanoCopy)

  • 1999@ IBM Shark (FlashCopy)

    @ Date approximate to depict time-line development


The start of it all local volume mirroring
The Start of it All Controller.. Local Volume Mirroring

1987 Dual Copy


Raid 1 dual copy real time mirroring
Raid 1 (Dual Copy ) Controller.. Real-Time-Mirroring


Introducing point in time copy

Cache Controller.. Side File for Updated Tracks

Introducing Point-in-Time-Copy

1992 Concurrent-Copy


Pprc srdf hrc and p das
PPRC, SRDF, HRC (and P/DAS) Controller..

1993/1994 Remote Dual Copy


Storagetek snapshot point in time copy
StorageTek SnapShot Controller.. ™ Point-in-Time Copy

Raid 5

1995 IceBerg Raid 5 & SnapShot Copy


Iceberg snapshot copy technology
ICEBerg Controller.. SnapShot Copy Technology

FTT for 01AC

FDT

TNT

Addr Type Size

01AC 3390 3339

01AD 3390 3339

0248 3380 2655

CCHH Pointer

002F0E

002F0F

Use count Ptr

2

1

...

FTT for 01AD

CCHH Pointer

002F0E

002F0F


Emc timefinder point in time copy
EMC TimeFinder Controller.. ™Point-in-Time Copy

1997 Symmetrix BCV & TimeFinder


Emc timefinder point in time copy1
EMC TimeFinder Controller.. ™Point-in-Time Copy


Hitachi point in time copy
Hitachi Point-in-Time Copy Controller..

HS-DataPlex

ShadowImage

1998 ShadowImage & HMRCF


Ibm flash point in time copy
IBM Flash Controller.. Point-in-Time Copy

1999 ESS 2105 SHARK & FlashCopy


How can data replication be useful
How Can Data Replication Controller.. be Useful?

Data Replication is a strategic technology, to eliminate…

  • Long interruptions for backup...

  • Unacceptable recovery times…

  • Production delays to copy data…

  • Hard downtime to install new disks…


Impediments to data replication being useful
Impediments to Controller.. Data Replication Being Useful

  • Backup not on removable media

  • Point-in-time hardware produce exact duplicates

  • MVS does not allow duplicates online

  • Conventional backup can not read offline volumes

  • Re-labeling to bring volumes online destroys catalog access to data and means special restore procedures


Hardware and software working together
Hardware and Software Controller.. Working Together

  • Non-Disruptive e-Business Backup

  • Instant e-Business Recovery

  • Backup/Restore Data Reduction

  • Outboard/Host-Less Data Movement

  • Install Disk Storage w/ no downtime

  • Non-Disruptive Disk Load Balancing

It's not magic,

we do it with

mirrors !


Automate e business protection instant technology software

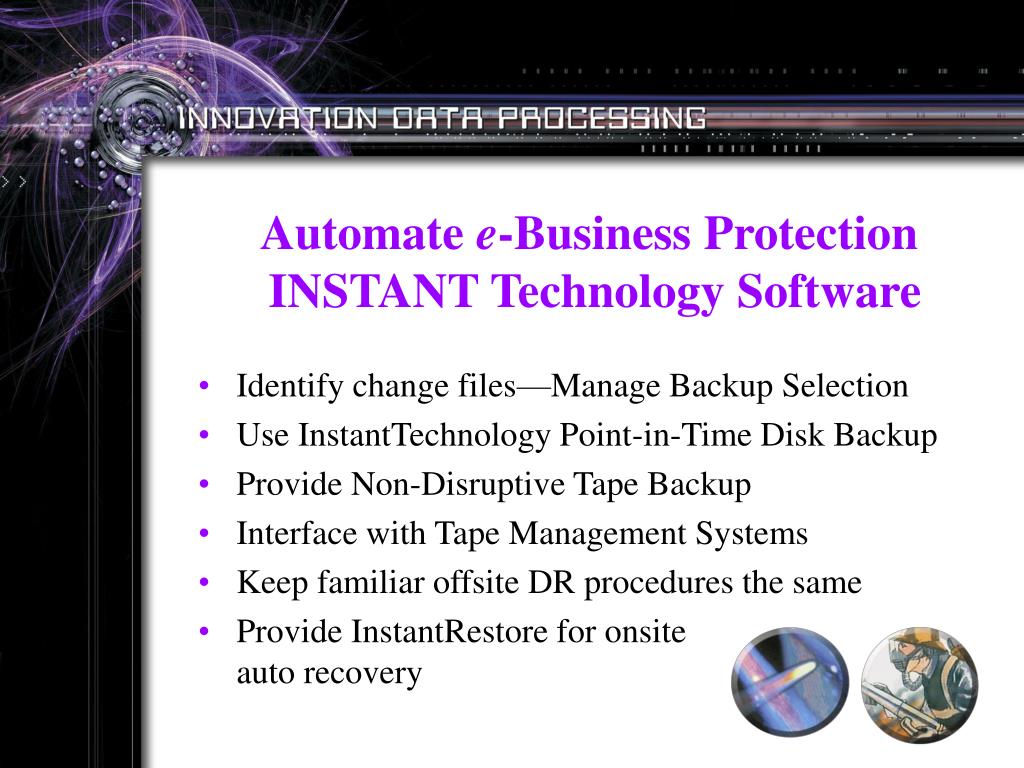

Automate Controller.. e-Business Protection INSTANT Technology Software

  • Identify change files—Manage Backup Selection

  • Use InstantTechnology Point-in-Time Disk Backup

  • Provide Non-Disruptive Tape Backup

  • Interface with Tape Management Systems

  • Keep familiar offsite DR procedures the same

  • Provide InstantRestore for onsite auto recovery


Instant incremental a backup solution with greater savings
INSTANT INCREMENTAL Controller.. A Backup Solution with Greater Savings

  • Reduce Business Disruption with SnapShot, TimeFinder, ShadowImage or FlashCopy

  • INSTANT Incremental is non-disruptive

  • Non-Disruptive incremental cut tape usage half to 75%… Only backup what is changed


Instant incremental is easy
INSTANT INCREMENTAL Controller.. is Easy!

  • Use InstantTechnology point-in-time disk backup

  • Record location of the InstantTechnology Backup- Restores are then immediately available

  • Non-Disruptively dump to tape from the InstantTechnology point-in-time disk backup

    …after the non-disruptive tape backup keep the InstantTechnology Backup disk for InstantRestore


Instanttechnology backup snapshot timefinder shadowimage flashcopy
InstantTechnology Backup Controller.. SnapShot/TimeFinder ShadowImage/FlashCopy


Instantrecovery

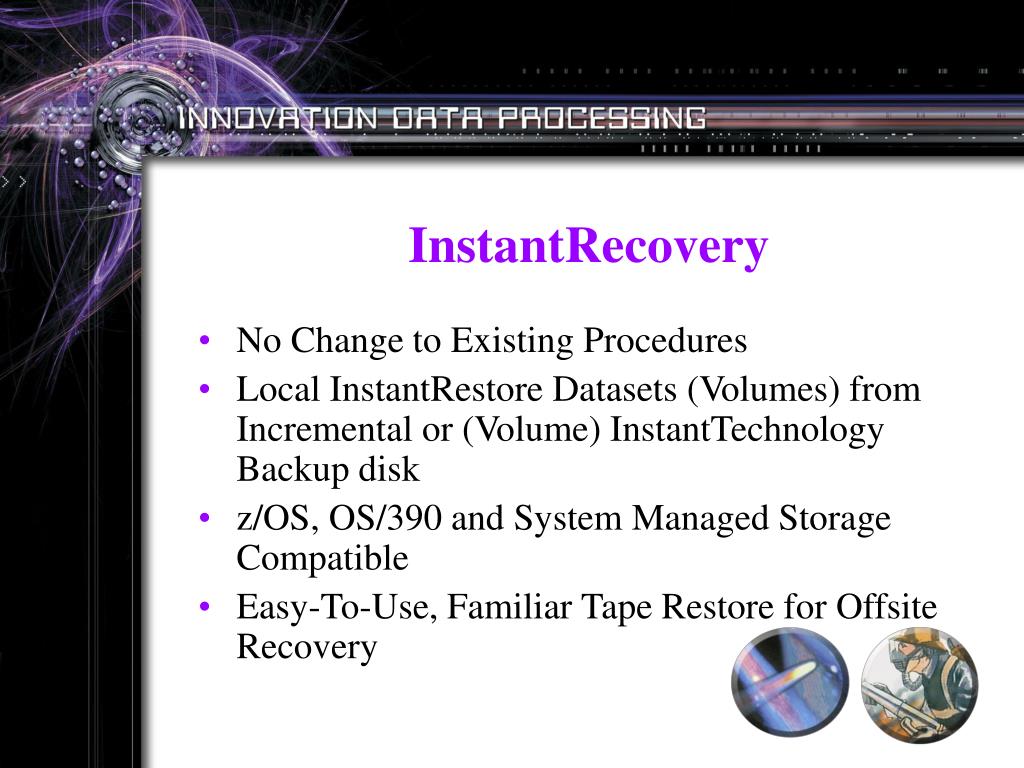

InstantRecovery Controller..

  • No Change to Existing Procedures

  • Local InstantRestore Datasets (Volumes) from Incremental or (Volume) InstantTechnology Backup disk

  • z/OS, OS/390 and System Managed Storage Compatible

  • Easy-To-Use, Familiar Tape Restore for Offsite Recovery


Comprehensive business protection local business continuation remote disaster recovery

M-vol(S) Controller..

R-vol(S)

M-vol(T)

R-vol(T)

Local

Remote

Real or Virtual

Comprehensive Business Protection Local Business ContinuationRemote Disaster Recovery

  • Local Business Continuation - (Local) Point-in-Time Backup

  • Remote Disaster Recovery - Real-Time Protection

    • (Remote) Secondary Location Point-in-Time Backup


Instant space management for continuous business operations

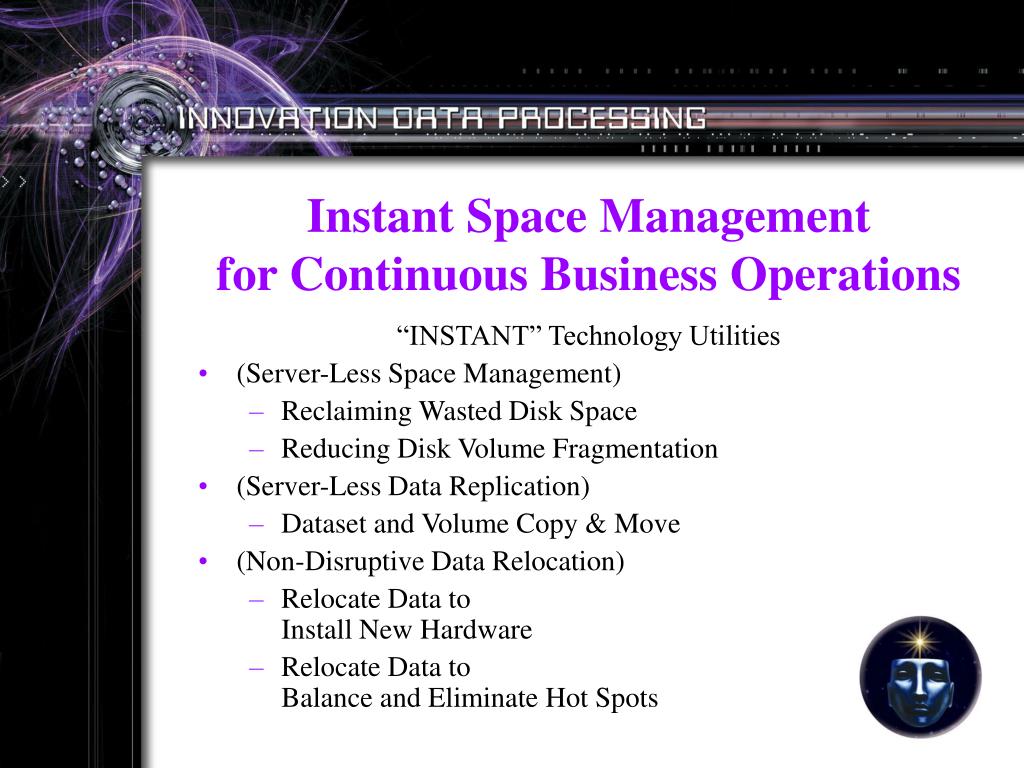

Instant Space Management Controller.. for Continuous Business Operations

“INSTANT” Technology Utilities

  • (Server-Less Space Management)

    • Reclaiming Wasted Disk Space

    • Reducing Disk Volume Fragmentation

  • (Server-Less Data Replication)

    • Dataset and Volume Copy & Move

  • (Non-Disruptive Data Relocation)

    • Relocate Data to Install New Hardware

    • Relocate Data to Balance and Eliminate Hot Spots


Reorganize in seconds data replication diskcompaktion instantcompaktion
Reorganize in Seconds Controller.. Data Replication + DiskCompaktion… InstantCompaktion

  • Disk Reorganization in Seconds

  • Employs SnapShot or EMCCopy

  • Arranging the Disk to Match its VTOCWithout Reading or Writing any Data Tracks

  • Reducing Disk Fragmentation in an Instant

    • Consolidating Free Space

    • Combining Dataset Extents

    • Releasing Unused Tracks


The power of re packaging sva 9500 v960 with virtual power suite hsdm high speed data mover

SVA Compressed Data Controller..

The POWER of RE-PACKAGING:SVA 9500, V960 with Virtual Power Suite(HSDM™ )… High Speed Data Mover


Instanttechnology hsdm backup restore savings
InstantTechnology Controller.. HSDM Backup Restore Savings


I o redirection another aspect of data replication
I/O REDIRECTION Controller.. Another Aspect of Data Replication

  • INNOVATION FDRPAS (2001)

  • EMC CopyCross (2001)

  • StorageTek ExHPDM (1999)

  • Fujitsu Softek (Amdahl) TDMF (1996)


Fujitsu softek amdahl tdmf i o redirection
Fujitsu Softek (Amdahl) TDMF Controller.. I/O REDIRECTION

  • 1996 - Transparent Data Migration Facility Migrate Data Without Interrupting Applications


Storagetek exhpdm i o redirection

ExHPDM Controller.. Physical Tape

FDRTape DUMP

StorageTek ExHPDMI/O REDIRECTION

  • 1999 - Extended High Performance Data Mover

    Redirect multiple data streams to a single tape transport


Fdrinstant hsdm and exhpdm integration
FDRINSTANT Controller.. HSDM and ExHPDM Integration

  • Employing HSDM and ExHPDM, together ABR backups complete in 1/3 the time…

  • Employing SnapShot even that time is non-disruptive

ExHPDMTape Format

FDRDUMP Format

Data in Compressed Hardware Format


Emc copycross i o redirection

FDR Controller.. Tape DUMP

CopyCrossLogical Tape

EMC CopyCross I/O REDIRECTION

  • 2001 - Transparently redirecting tape data to disk


Fdrpas non disruptive plug and swap disk install and load balancing
FDRPAS Controller.. ™Non-Disruptive (Plug and Swap)Disk Install and Load Balancing

  • Add disk storage

  • Eliminate hot spots

  • Interactive, Easy-to-Use, Non-Disruptive

    • Create Point-in-Time Disk Backup

    • Preserve or Reserve Disk Capacity

    • Interactively Manage Data Relocation,Volume Condition and System I/O Activity


Data replication technology will capture your imagination and provide solutions

The Requirement… Controller..

Reduce Backup Time...

Restore Time Reduction…

Copy Time Reduction…

Non-Disruptive Hardware Installation…

The Solution…

Non-disruptive Backup

Instant Recovery

Outboard Data Movement

Non-Disruptive Data Relocation

Data Replication Technology will Capture Your Imagination and Provide Solutions…


Data replication and instant technology means more time for e business

SAVINGS Controller..

Data Replication and Instant TechnologyMeans More Time for e-Business

SO WHAT’S AN HOUR WORTH IN YOUR SITE?
