Lec . 23 - ANOVA

DESCRIPTION

Lec . 23 - ANOVA. Partitioning variance into components attributable to different sources of variation. factors. levels. treatments. replicates. Some Relevant Terminology. Randomization of the experimental material. ANOVA objective: Splitting the overall variation into parts.

1 / 10

Download Presentation

Lec . 23 - ANOVA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lec. 23 - ANOVA Partitioning variance into components attributable to different sources of variation

  2. factors levels treatments replicates Some Relevant Terminology

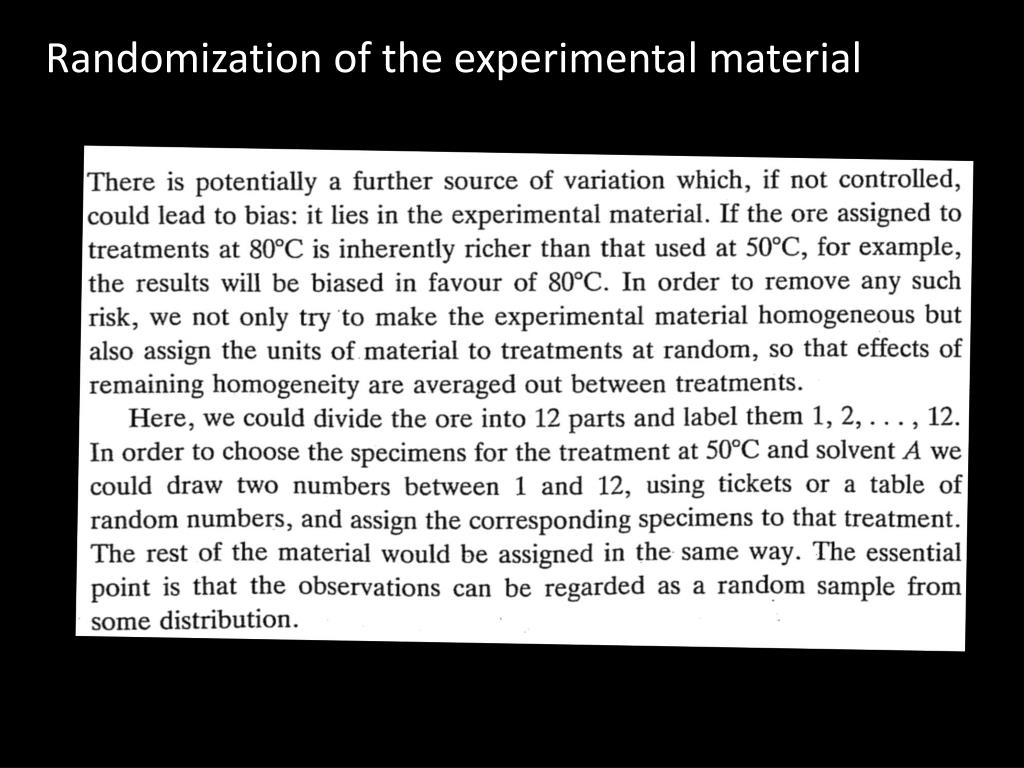

  3. Randomization of the experimental material

  4. ANOVA objective: Splitting the overall variation into parts

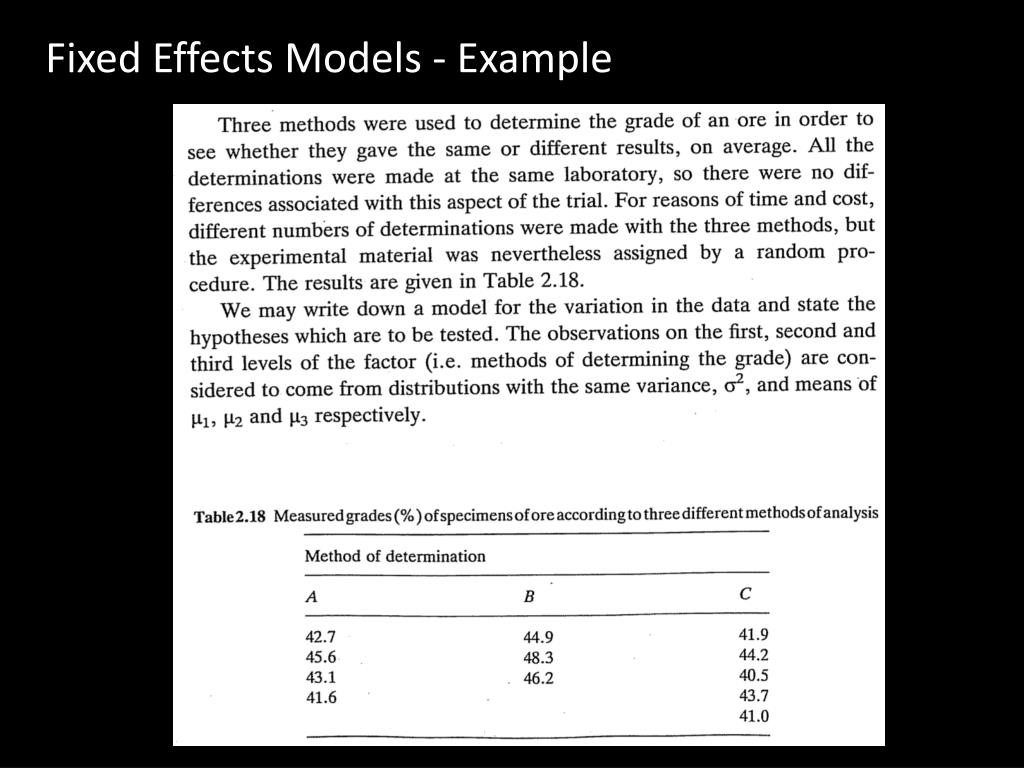

  5. Fixed Effects Models - Example

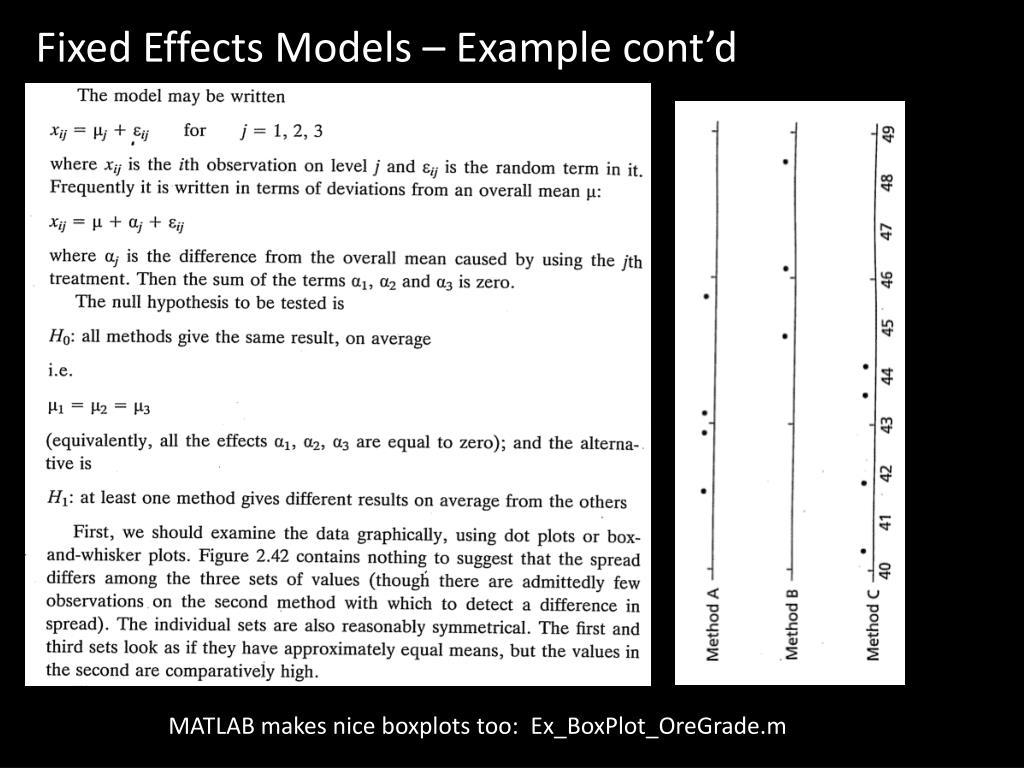

  6. Fixed Effects Models – Example cont’d MATLAB makes nice boxplots too: Ex_BoxPlot_OreGrade.m

  7. Fixed Effects Models – Example cont’d

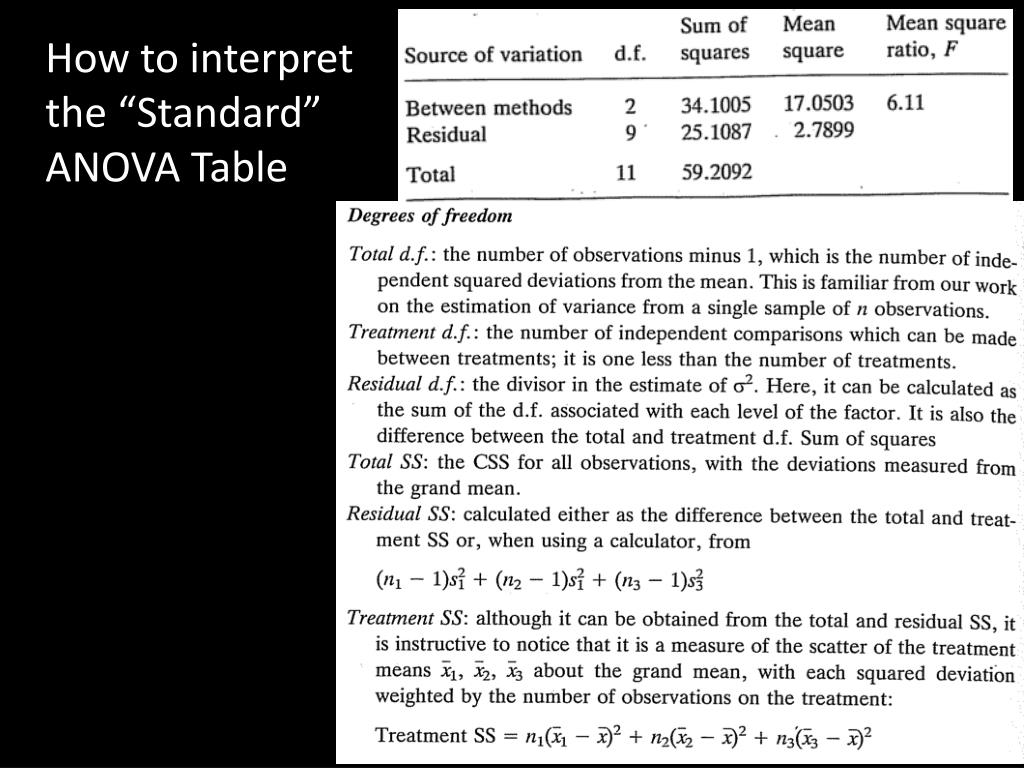

  8. How to interpret the “Standard” ANOVA Table

  9. How to interpret the “Standard” ANOVA Table cont’d

  10. Examination of Residuals
