Presentation Transcript
ivan bercovich radu andrei ivan jeff little felipe vilas boas faculty dr tilman wolf
Ivan Bercovich

Radu-Andrei Ivan

Jeff Little

Felipe Vilas-Boas

Faculty: Dr. Tilman Wolf

Personal Heads-Up Display

Preliminary Design Review

our project
Our Project
  • Orientation Sensing Unit
    • Gather information from orientation sensors
  • Data Processing Unit
    • Process data from the sensors, send information to display
  • Heads-Up Display
    • Virtually label surrounding area
specifications
Specifications
  • Label all buildings within a 150 meter radius
  • Be able to run for 2 hours on the power supply
  • Be accurate in labeling to +/- 3˚
specifications7
Specifications
  • 150 Meters from Knowles
design challenges
Design Challenges
  • Sensing (accelerometer, gyroscope, etc.)
    • System has to respond to user movements in real-time
  • Noise (i.e.: Compass)
    • System has to handle electromagnetic disturbances
  • Size (Embedded Linux)
    • Portable system that will fit on the users head
slide10
GPS
  • Determine lat/long position on the campus
  • Garmin 18 LVC
  • Features

https://buy.garmin.com/shop/shop.do?pID=223#

digital compass
Digital Compass
    • Detect what direction the user is looking in
  • Honeywell, 2 axis digital compass
  • Features:

http://www.sparkfun.com/commerce/images/products/HMC6352-0_i_ma.jpg

gyroscope
Gyroscope
  • Compass compensation
  • Gyroscope – Analog Devices ADXRS401
  • Features:

http://www.robotshop.us/home/suppliers/spark-fun-en/sfe-adxrs401-gyroscope.html

accelerometer
Accelerometer
  • Detect head movements by the user
  • ST Micro – LIS302DL, 3 axis Accelerometer
  • Features:

http://www.sparkfun.com/commerce/images/products/08637-04-L.jpg

microcontroller unit mcu
Microcontroller Unit (MCU)
  • 40 Pin ATMega32
    • µC used for Computer System Lab
  • Features:
  • http://www.sparkfun.com/commerce/images/products/ATMega32.jpg
software
Software
  • Create a 3D environment with Open GL
  • Tag points within the environment corresponding to building layout on the UMass Campus
  • User movements translates to movements in virtual environment
  • Transpose tags from 3D environment onto HUD
central processor unit cpu
Central Processor Unit (CPU)
  • Process the signals from the MCU and drive the HUD

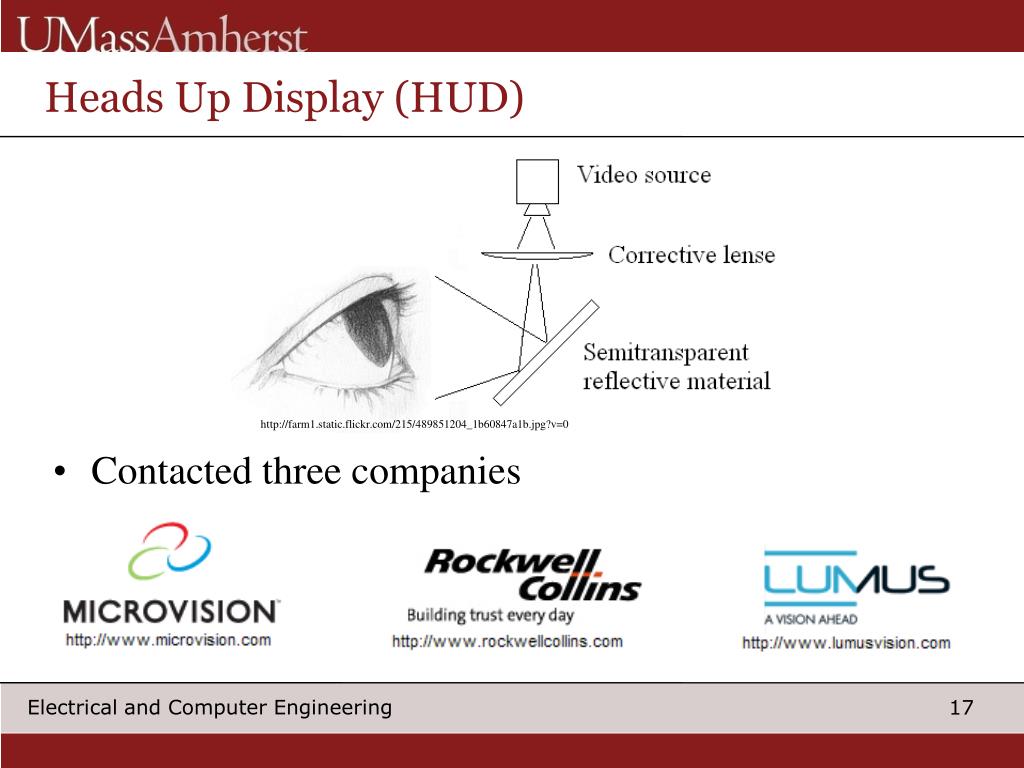

heads up display hud
Heads Up Display (HUD)
  • Contacted three companies

http://farm1.static.flickr.com/215/489851204_1b60847a1b.jpg?v=0

power supply
Power Supply
  • Orientation Sensing Unit (OSU) is battery powered
    • Elements in OSU run between 2V-5V
    • < 100mA peak power across 3.3V and 5V supplies
    • Data Processing Unit (DPU) is battery powered
      • ~500mA peak
  • Voltage regulation
    • 3.3V National Semiconductor , LP38691DT-3.3
    • 5V National Semiconductor , LP38691SD-5.0
  • Battery Pack
    • Ultralife 9V lithium ion rechargable battery, 1700mAh
proposed mdr deliverables
Proposed MDR Deliverables
  • Demonstration of Orientation Sensing Unit
    • Microcontroller
    • Accelerometers
    • Gyroscope
    • Digital Compass
    • GPS
  • Design simple 3D environment with OpenGL
    • PC based
thank you
Thank You

Questions?
