Presentation Transcript
big blue button

Big Blue Button

Web conferencing software

what is the big blue button

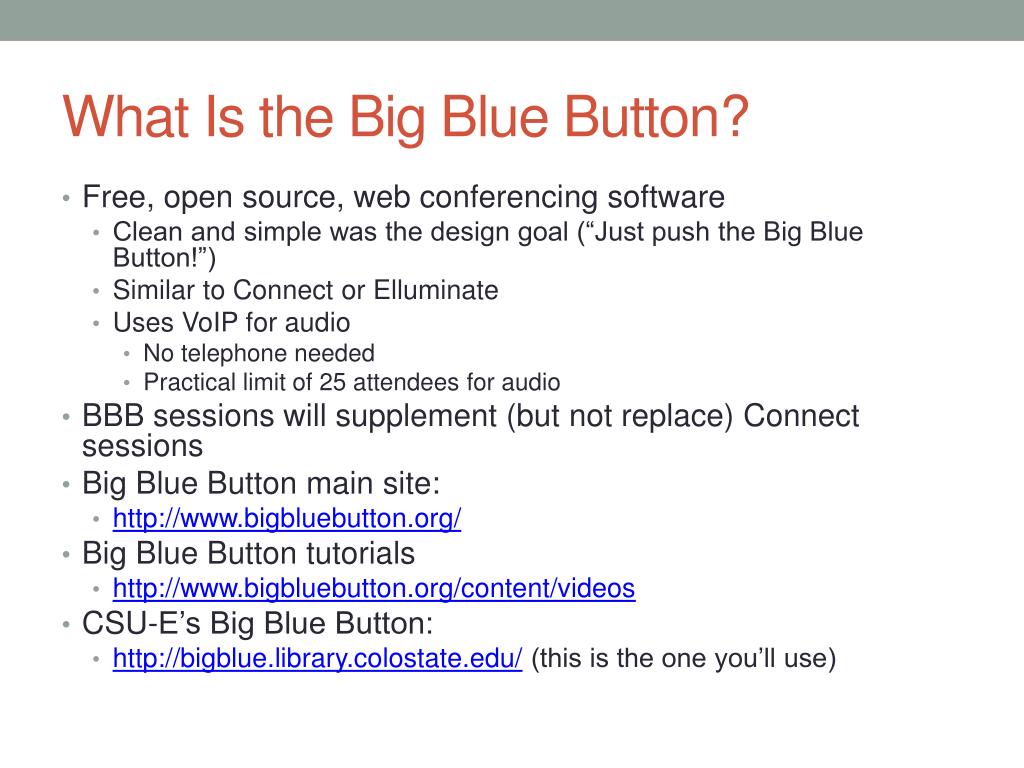

What Is the Big Blue Button?
  • Free, open source, web conferencing software
    • Clean and simple was the design goal (“Just push the Big Blue Button!”)
    • Similar to Connect or Elluminate
    • Uses VoIP for audio
      • No telephone needed
      • Practical limit of 25 attendees for audio
  • BBB sessions will supplement (but not replace) Connect sessions
  • Big Blue Button main site:
    • http://www.bigbluebutton.org/
  • Big Blue Button tutorials
    • http://www.bigbluebutton.org/content/videos
  • CSU-E’s Big Blue Button:
    • http://bigblue.library.colostate.edu/ (this is the one you’ll use)
slide3

presentation

users

chat

video

listeners

differences between bbb and connect
Differences Between BBB and Connect
  • Attendees have much more control over workspace
    • They can resize, move, and hide modules
    • They can talk
      • Might want to establish some ground rules on when attendees should speak
    • They can turn on their webcam (other attendees have the choice to view other webcams)
  • No polling pod
    • There is a Hand Raise option for yes or no questions
  • No recording option
    • Will be one in next version
  • Groovy hold music
    • Stops when 2 listeners or more sign in to VoIP
getting started

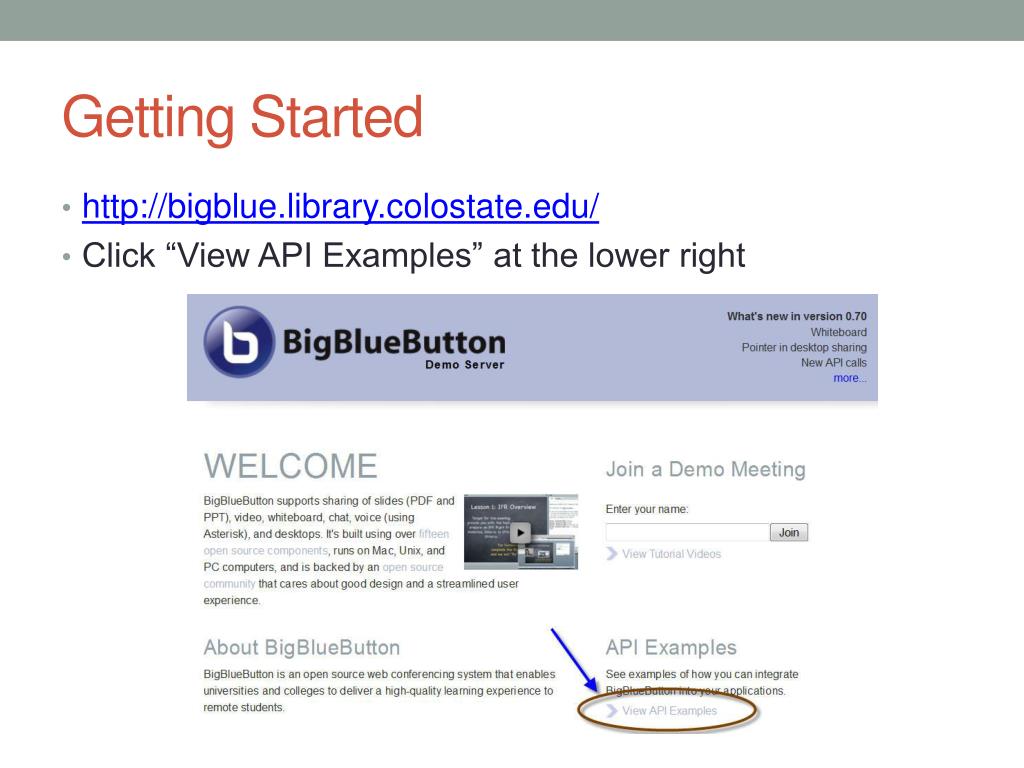

Getting Started
    • http://bigblue.library.colostate.edu/
  • Click “View API Examples” at the lower right
getting started6

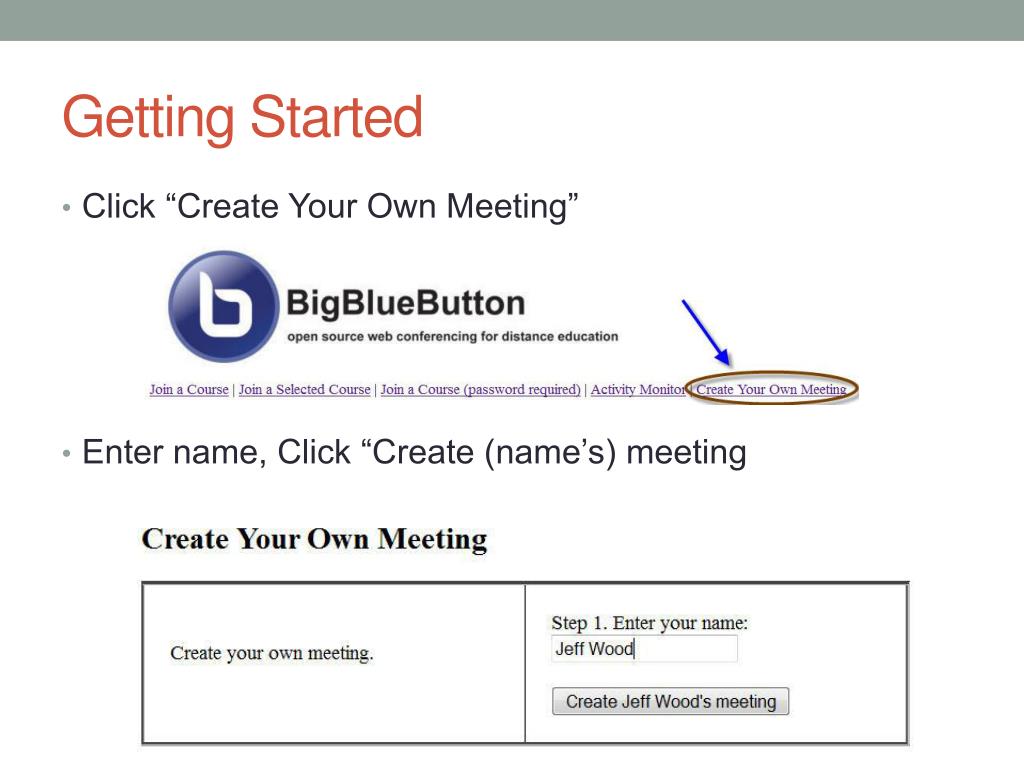

Getting Started
  • Click “Create Your Own Meeting”
  • Enter name, Click “Create (name’s) meeting
getting started7

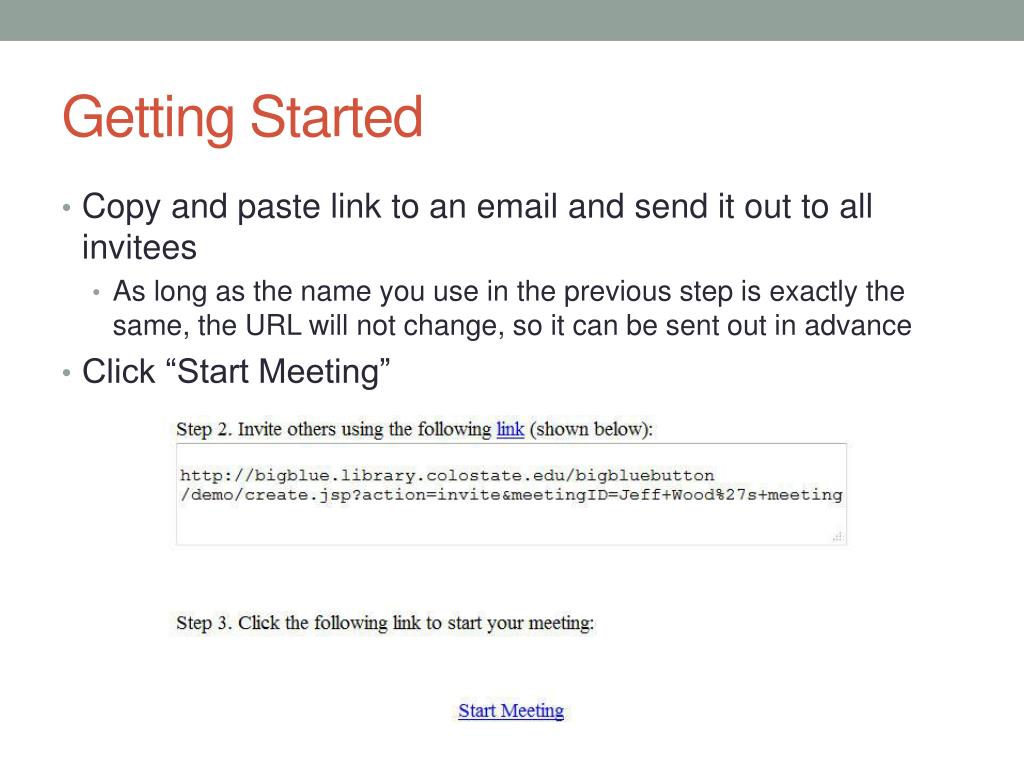

Getting Started
  • Copy and paste link to an email and send it out to all invitees
    • As long as the name you use in the previous step is exactly the same, the URL will not change, so it can be sent out in advance
  • Click “Start Meeting”
audio and video

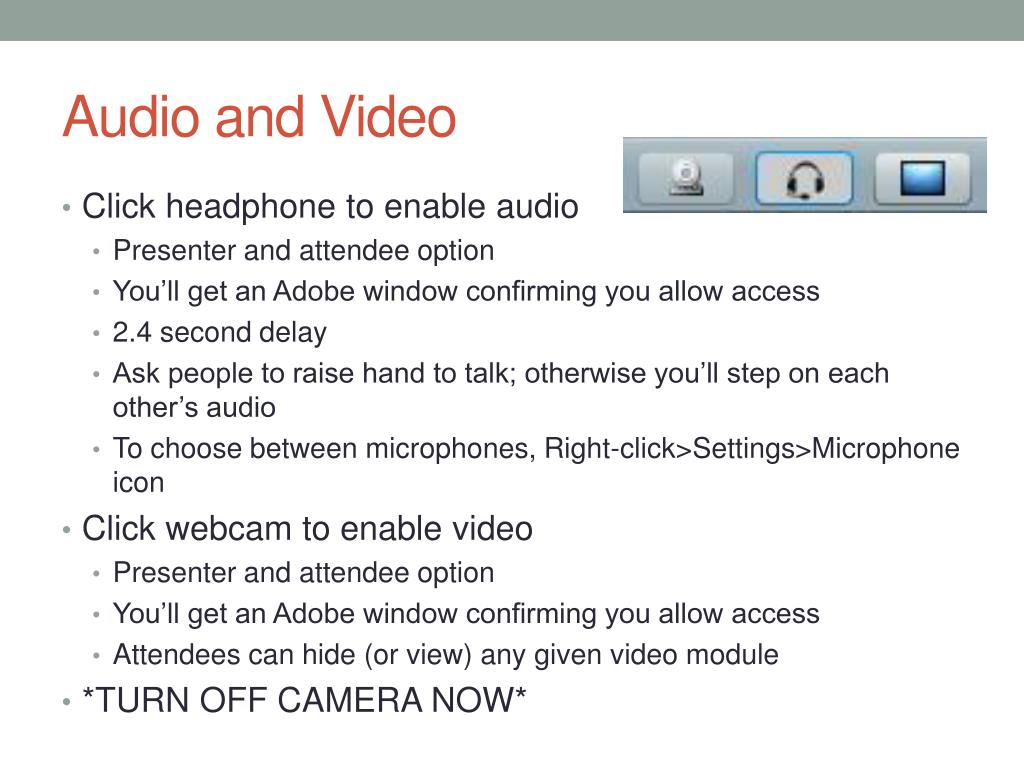

Audio and Video
  • Click headphone to enable audio
    • Presenter and attendee option
    • You’ll get an Adobe window confirming you allow access
    • 2.4 second delay
    • Ask people to raise hand to talk; otherwise you’ll step on each other’s audio
    • To choose between microphones, Right-click>Settings>Microphone icon
  • Click webcam to enable video
    • Presenter and attendee option
    • You’ll get an Adobe window confirming you allow access
    • Attendees can hide (or view) any given video module
  • *TURN OFF CAMERA NOW*
presentation module

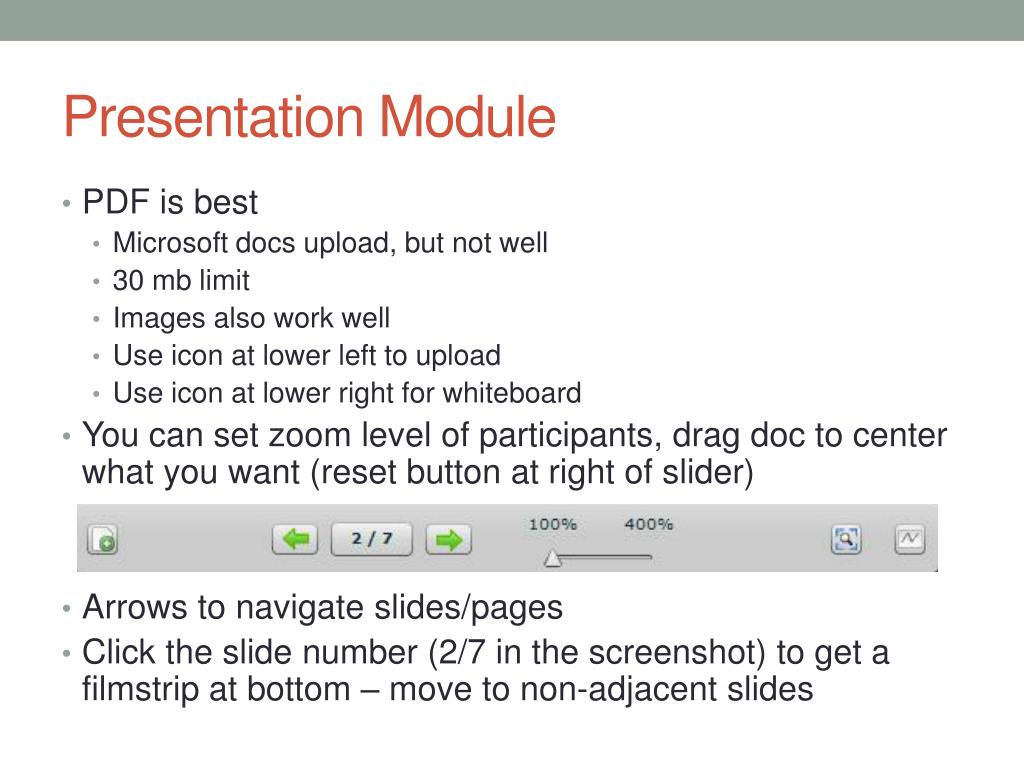

Presentation Module
  • PDF is best
    • Microsoft docs upload, but not well
    • 30 mb limit
    • Images also work well
    • Use icon at lower left to upload
    • Use icon at lower right for whiteboard
  • You can set zoom level of participants, drag doc to center what you want (reset button at right of slider)
  • Arrows to navigate slides/pages
  • Click the slide number (2/7 in the screenshot) to get a filmstrip at bottom – move to non-adjacent slides
user module
User Module
  • Shows everyone in room
  • Three status icons:
    • Hand raise (use icon at lower right to raise your hand)
    • Webcam (click on a user’s webcam to see their feed; minimize the cam module to NOT see them)
    • Presenter (to switch presenter, select who you want to switch to, then click Switch Presenter)
listener module
Listener Module
  • Everyone in on the VoIP connection
  • Speaker icon means they are sharing their microphone
  • Mute a listener using icon to left of their name (presenter only)
  • Mute everyone with icon at lower left (presenter only)
  • Eject a listener using icon at lower right (presenter only)
  • Use lock icon to lock a mute/unmute options (presenter only)
chat module

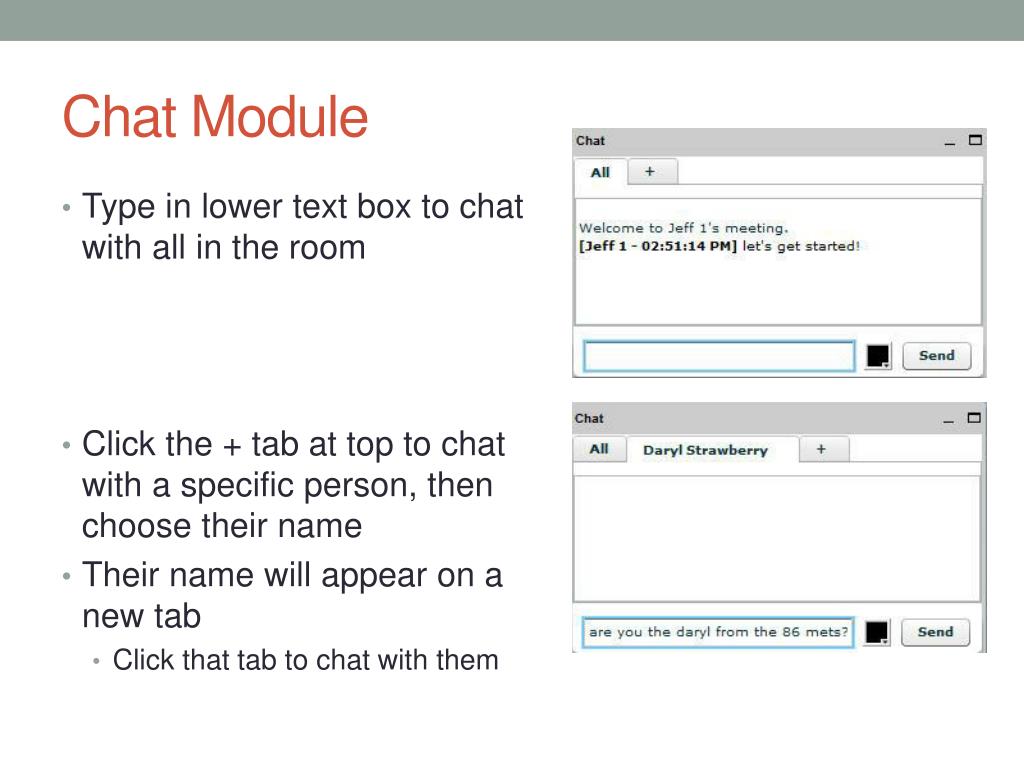

Chat Module
  • Type in lower text box to chat with all in the room
  • Click the + tab at top to chat with a specific person, then choose their name
  • Their name will appear on a new tab
    • Click that tab to chat with them
screen sharing module

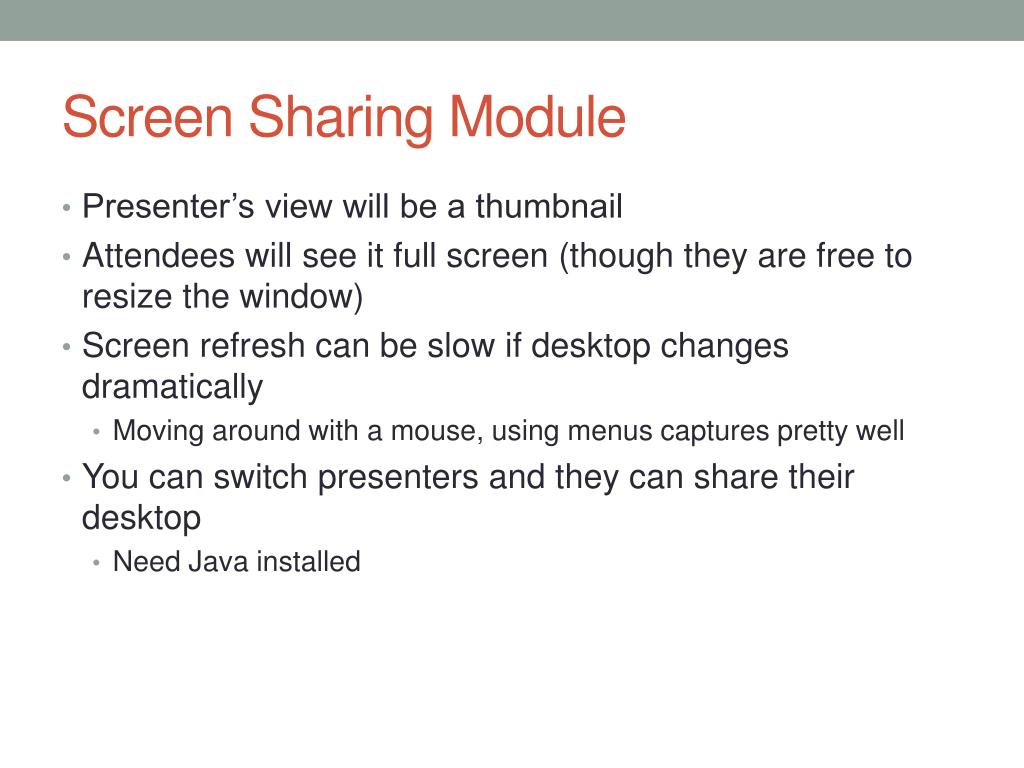

Screen Sharing Module
  • Presenter’s view will be a thumbnail
  • Attendees will see it full screen (though they are free to resize the window)
  • Screen refresh can be slow if desktop changes dramatically
    • Moving around with a mouse, using menus captures pretty well
  • You can switch presenters and they can share their desktop
    • Need Java installed
