  1. COMP541Pipelined MIPS Montek Singh Mar 30, 2010

  2. Topics • Pipelining Can think of as • A way to parallelize, or • A way to make better utilization of the hardware. Goal: use all hardware every cycle • Section 7.5 of text

  3. Parallelism • Two types of parallelism: • Spatial parallelism • duplicate hardware performs multiple tasks at once • Temporal parallelism • task is broken into multiple stages • also called pipelining • for example, an assembly line

  4. Parallelism Definitions • Some definitions: • Token: A group of inputs processed to produce a group of outputs • Latency: Time for one token to pass from start to end • Throughput: The number of tokens that can be produced per unit time • Parallelism increases throughput • Often sacrificing latency

  5. Parallelism Example • Ben is baking cookies • It takes 5 minutes to roll the cookies and 15 minutes to bake them. • After finishing one batch he immediately starts the next batch. What is the latency and throughput if Ben doesn’t use parallelism? Latency = 5 + 15 = 20 minutes = 1/3 hour Throughput = 1 tray/ 1/3 hour = 3 trays/hour

  6. Parallelism Example • What is the latency and throughput if Ben uses parallelism? • Spatial parallelism: Ben asks Allysa to help, using her own oven • Temporal parallelism: Ben breaks the task into two stages: roll and baking. He uses two trays. While the first batch is baking he rolls the second batch, and so on.

  7. Spatial Parallelism Latency = ? Throughput = ?

  8. Spatial Parallelism Latency = 5 + 15 = 20 minutes = 1/3 hour (same) Throughput = 2 trays/ 1/3 hour = 6 trays/hour (doubled)

  9. Temporal Parallelism Latency = ? Throughput = ?

  10. Temporal Parallelism Latency = 5 + 15 = 20 minutes = 1/3 hour Throughput = 1 trays/ 1/4 hour = 4 trays/hour Using both techniques, the throughput would be 8 trays/hour

  11. Pipelined MIPS • Temporal parallelism • Divide single-cycle processor into 5 stages: • Fetch • Decode • Execute • Memory • Writeback • Add pipeline registers between stages

  12. Single-Cycle vs. Pipelined Performance

  13. Pipelining Abstraction

  14. Single-Cycle and Pipelined Datapath

  15. Multi-Cycle and Pipelined Datapath

  16. Corrected Pipelined Datapath • WriteReg must arrive at the same time as Result

  17. Pipelined Control Same control unit as single-cycle processor Control delayed to proper pipeline stage

  18. Pipeline Hazard • Occurs when an instruction depends on results from previous instruction that hasn’t completed. • Types of hazards: • Data hazard: register value not written back to register file yet • Control hazard: next instruction not decided yet (caused by branches)

  19. Data Hazard

  20. Handling Data Hazards • Static • Insert nops in code at compile time • Rearrange code at compile time • Dynamic • Forward data at run time • Stall the processor at run time

  21. Compile-Time Hazard Elimination • Insert enough nops for result to be ready • Or move independent useful instructions forward

  22. Data Forwarding • Also known as bypassing

  23. Data Forwarding

  24. Data Forwarding • Forward to Execute stage from either: • Memory stage or • Writeback stage • Forwarding logic for ForwardAE: if ((rsE != 0) AND (rsE == WriteRegM) AND RegWriteM) then ForwardAE = 10 else if ((rsE != 0) AND (rsE == WriteRegW) AND RegWriteW) then ForwardAE = 01 else ForwardAE = 00 • Forwarding logic for ForwardBE same, but replace rsE with rtE

  25. Data Forwarding if ((rsE != 0) AND (rsE == WriteRegM) AND RegWriteM) then ForwardAE = 10 else if ((rsE != 0) AND (rsE == WriteRegW) AND RegWriteW) then ForwardAE = 01 else ForwardAE = 00

  26. Forwarding can fail… lw has a 2-cycle latency!

  27. Stalling

  28. Stalling Hardware

  29. Stalling Hardware • Stalling logic: lwstall = ((rsD == rtE) OR (rtD == rtE)) AND MemtoRegE StallF = StallD = FlushE = lwstall

  30. Stalling Control lwstall = ((rsD == rtE) OR (rtD == rtE)) AND MemtoRegE StallF = StallD = FlushE = lwstall

  31. Control Hazards • beq: • branch is not determined until the fourth stage of the pipeline • Instructions after the branch are fetched before branch occurs • These instructions must be flushed if the branch happens

  32. Effect & Solutions • Could stall when branch decoded • Expensive: 3 cycles lost per branch! • Could predict and flush if wrong • Branch misprediction penalty • Instructions flushed when branch is taken • May be reduced by determining branch earlier

  33. Control Hazards: Flushing

  34. Control Hazards: Original Pipeline (for comparison)

  35. Control Hazards: Early Branch Resolution Introduced another data hazard in Decode stage (fix a few slides away)

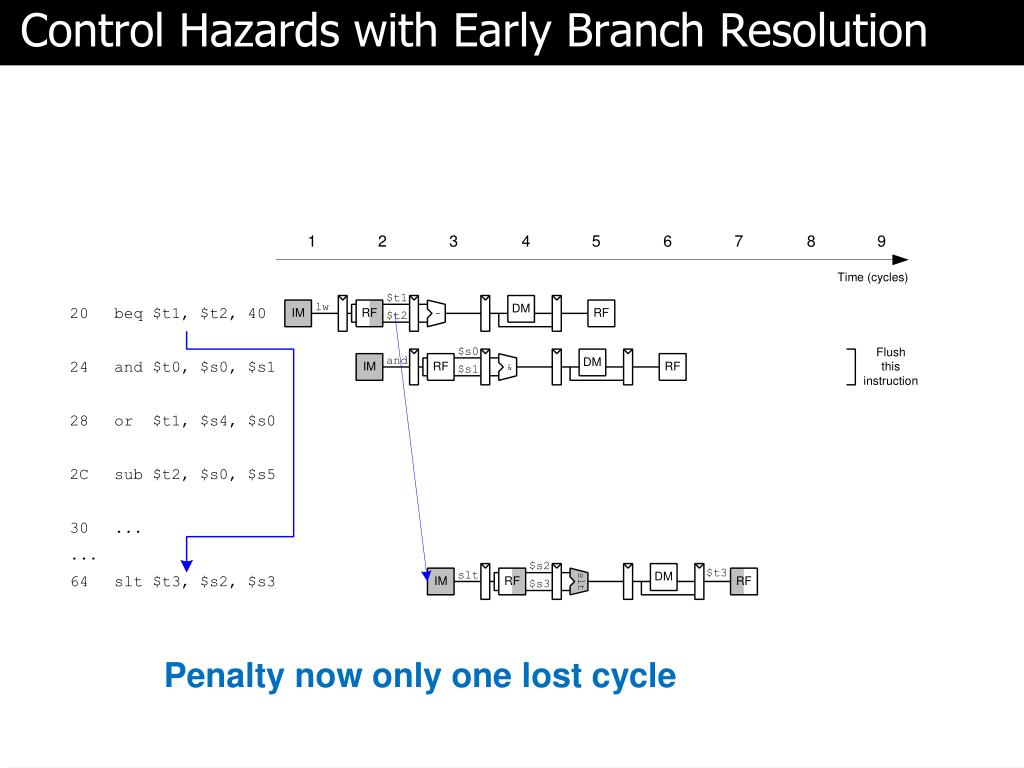

  36. Control Hazards with Early Branch Resolution Penalty now only one lost cycle

  37. Aside: Delayed Branch • MIPS always executes instruction following a branch • So branch delayed • This allows us to avoid killing inst. • Compilers move instruction that has no conflict w/ branch into delay slot

  38. Example • This sequence add $4 $5 $6 beq $1 $2 40 • reordered to this beq $1 $2 40 add $4 $5 $6

  39. Handling the New Hazards

  40. Control Forwarding and Stalling Hardware • Forwarding logic: ForwardAD = (rsD !=0) AND (rsD == WriteRegM) AND RegWriteM ForwardBD = (rtD !=0) AND (rtD == WriteRegM) AND RegWriteM • Stalling logic: branchstall = BranchD AND RegWriteE AND (WriteRegE == rsD OR WriteRegE == rtD) OR BranchD AND MemtoRegM AND (WriteRegM == rsD OR WriteRegM == rtD) StallF = StallD = FlushE = lwstall OR branchstall

  41. Branch Prediction • Especially important if branch penalty > 1 cycle • Guess whether branch will be taken • Backward branches are usually taken (loops) • Perhaps consider history of whether branch was previously taken to improve the guess • Good prediction reduces the fraction of branches requiring a flush

  42. Pipelined Performance Example • Ideally CPI = 1 • But less due to: stalls (caused by loads and branches) • SPECINT2000 benchmark: • 25% loads • 10% stores • 11% branches • 2% jumps • 52% R-type • Suppose: • 40% of loads used by next instruction • 25% of branches mispredicted • All jumps flush next instruction • What is the average CPI?

  43. Pipelined Performance Example • SPECINT2000 benchmark: • 25% loads • 10% stores • 11% branches • 2% jumps • 52% R-type • Suppose: • 40% of loads used by next instruction • 25% of branches mispredicted • All jumps flush next instruction • What is the average CPI? • Load/Branch CPI = 1 when no stalling, 2 when stalling. Thus, • CPIlw = 1(0.6) + 2(0.4) = 1.4 • CPIbeq = 1(0.75) + 2(0.25) = 1.25 • Average CPI = (0.25)(1.4) + (0.1)(1) + (0.11)(1.25) + (0.02)(2) + (0.52)(1) = 1.15

  44. Pipelined Performance • Pipelined processor critical path: Tc = max { tpcq + tmem + tsetup 2(tRFread + tmux + teq + tAND + tmux + tsetup ) tpcq + tmux + tmux + tALU + tsetup tpcq + tmemwrite + tsetup 2(tpcq + tmux + tRFwrite) }

  45. Pipelined Performance Example Tc = 2(tRFread + tmux + teq + tAND + tmux + tsetup ) = 2[150 + 25 + 40 + 15 + 25 + 20] ps= 550 ps

  46. Pipelined Performance Example • For a program with 100 billion instructions executing on a pipelined MIPS processor, • CPI = 1.15 • Tc = 550 ps Execution Time = (# instructions) × CPI × Tc = (100 × 109)(1.15)(550 × 10-12) = 63 seconds

  47. Summary • Pipelining attempts to use hdw more efficiently • Throughput increases at cost of latency • Hazards ensue • Modern processors pipelined

  48. Next Time • I/O • Joysticks • Keyboard (and mouse?)
