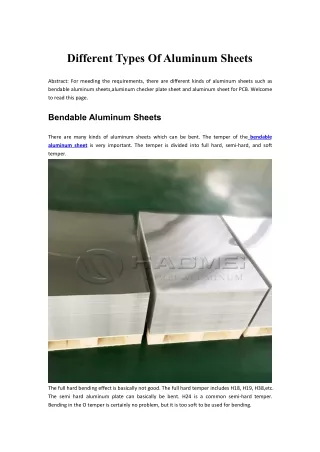

  1. Different Types OfAluminum Sheets Abstract: For meeding the requirements, there are different kinds of aluminum sheets such as bendable aluminum sheets,aluminum checker plate sheet and aluminum sheet for PCB. Welcome to read this page. Bendable Aluminum Sheets There are many kinds of aluminum sheets which can be bent. The temper of the bendable aluminum sheet is very important. The temper is divided into full hard, semi-hard, and soft temper. The full hard bending effect is basically not good. The full hard temper includes H18, H19, H38,etc. The semi hard aluminum plate can basically be bent. H24 is a common semi-hard temper. Bending in the O temper is certainly no problem, but it is too soft to be used for bending.

  2. It also has some relationship with the aluminum alloys. The hardness of pure aluminum is not very good. 1100, 1050, 1060, etc. aluminum alloys can be used. We recommend 1100-H26 aluminum sheet for bending. The hardness of aluminum alloys is better like 3003 aluminum sheet, 3005 and 5052 aluminum sheet. They have good bending performance in the semi-hard temper. 6061, 2024 and 7075 aluminum sheet is two hard, especially in T6 temper. If you like to bend them, you can first heat and then bend. In addition, for the bending of aluminum sheets, there is a bending coefficient. A simple calculation is aluminum plate thickness*1.6. The aluminum plate has rolling lines. It is best that the bending tool and the rolling line intersect at 90 degrees, which is not easy to crack. Aluminium Checker Plate Sheet in Construction In order to meet the needs of the building materials and alleviate the problem of construction resources, the aluminium checker plate sheet has been used in the construction field and become popular in high-rise buildings. The aluminum check sheet is the main structural form of modern industrial buildings. This

  3. structural design is widely used in different buildings. Because of its exquisite design, simple structure and solid function, it is also used in the earthquake-prone areas. The aluminum embossed plate mainly has three features: load-bearing, heat preservation and sound insulation. It can be used as the exterior wall of the building, the household wall and the wall structur of staircase, which can effectively reduces the noise problem caused by many residents. The aluminum tread plate can also be used as the curtain wall of the building. It is a light-weight wall with decorative effect commonly used in modern large and high-rise buildings. The usual thickness is 1.5, 2.0, 2.5 and 3.0 mm. The common allosy are 3003 and 1100. The aluminum tread plates produced by Haomei Aluminum have good forming and processing properties, corrosion resistance and waterproofness. Its perfect appearance and excellent quality make it highly favored by users. Its light weight is only one-fifth of marble and one-third of glass curtain wall, which greatly reduces the load on the building structure and foundation. Its maintenance cost is also very low. The diamond checker plante can also be used as the raw materials of the blinds. 3004, 3005 and 5182 aluminum alloys are the common choice. The advantages of the base material are: light weight, easy to use, high bending strength, durable quality and beautiful appearance. The Orange Peel Aluminum Plate for Fridge Liner The stucco embossed aluminum sheet is the aluminum plate with various patterns after being calendered. It is widely used in packaging and architecural decoration. One of its main pattern is the orange peel aluminum plate. This pattern is usually used as the fridge liner. Why does the fridge adopt this design?

  4. The use of orange peel aluminum pattern for the fridge liner is scientifically based. Firstly, the embossed aluminum sheet is corrosion-resistant and has good thermal conductivity. The internal environment of the refrigerator is relatively humid. If you choose other materials, it will not meet the requirements of the product. ccording to the order of metal thermal conductivity, corrosion resistance and production cost, the choice of the aluminum sheet can reduce the cost as much as possible and has excellent corrosion resistance under the premise of ensuring its good thermal conductivity. Secondly, in order to increase the length and area ofheat exchange between the inside of the inner tank and the outside air, the inner tank of the refrigerator uses orange peel aluminum plate instead of flat aluminum plates. It contributes to increase the contact area between the air and the liner wall, so as to exchange heat more effectively and evenly. The common thickness of orange peel aluminum plate is 0.2, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 1, 1.2, 1.5, 2, 2.5 and 3mm. The flatness of the orange peel aluminum tread plate should be very high, especially the thin aluminum plae. If the flatness is not good, there will be wrinkle deviation or thickness deviation after embossing.

  5. Polished Aluminum Mirror Sheet The polished aluminum mirror sheet is a high-end aluminum alloy product, which is mainly used for interior building decoration, lamp decoration, signage, automobile decoration, solar heat collection and reflective materials, jewelry boxes, kitchen utensils, household appliances panels, electronic product shells, etc. The wide applications promotes the development of mirror aluminum plates. With so many aluminum sheet manufacturers, the aluminum mirror sheet varies. How to judge the quality of polished aluminum mirror sheet? Firstly, after tearing off the protective film, touch the mirror sheet with your fingers. The sweat and dust on your fingers will remain on the surface of the mirror aluminum plate, but you can easily wipe the fingerprints by lightly wiping it with a dry cloth or paper. Secondly, the quality polished aluminum sheet will not easily leave scratches. The surface hardness of the mirror finish aluminum plate after anodizing and photo-oxidation treatment is enhanced. Lightly scratching the surface with a knife will not easily leave scratches. With the permission of the aluminum sheet manufacturer, you can lightly scratch the surface with a knife to judge the quality of the mirror aluminum sheet. Finally, the quality aluminum mirror sheet has a higher reflectivity. The polished aluminum mirror sheet produced by Haomei Aluminum has a reflectivity of over 86%, which can be used as a mirror. The customer can judge the reflectivity by putting different mirror aluminum plates together to determine which mirror aluminum sheet is better. Aluminium Sheet for PCB Ceramic PCB is relatively stable, and it is not easy to deform under high temperature and humidity environment, but the price is relatively expensive and fragile, which is often used in high-end products. But for the common goods such as LED light panels, is there a PCB substrate with cheap material and good heat dissipation?

  6. The answer is aluminum sheet for PCB. As we all know, aluminum is a kind of metal and has conductivity. How can it be used as a PCB material? This is because the aluminum substrate consists of a three-layer structure: copper foil, insulating layer and metal aluminum. Since there is an insulating layer, can the metal layer be made of other materials besides aluminum? Such as copper plate, stainless steel, iron plate, silicon steel plate, etc. In addition to the heat dissipation performance, the thermal expansion coefficient, thermal conductivity, strength, hardness, weight, surface condition and cost of the metal substrate must also be considered. Considering the cost and technical performance, aluminum drilling entry sheet is an ideal choice. Available aluminum plates are 6061, 5052, 1060, etc. The aluminium drilling entry sheet is commmonly used in LED lighting products. It has two sides: the white side is soldered with LED pins, and the other side is in the natural color of aluminum that is coated with the thermal conductive paste. Its other main applications includes:  Lighting products: High-power LED lighting products.  Audio equipment: Preamplifier, power amplifier, etc.  Power equipment: DC/AC converter,solid state relay,etc.  Communication products: High-frequency amplifiers, filter appliances, and transmission

  7. circuits. 3mm Aluminium Sheet Weight Many customers care about how to calculate the aluminum plate weight. As an aluminium sheet supplier, Haomei Aluminum gives you a summary on the calculation method of aluminum sheet. In the formula, the thicknes is in mm, the width and length is coverted into meter. The density of aluminum plates is mostly around 2.7. For example, the density of 1060 aluminum sheet is 2.71 and that of 3003 aluminum sheet is 2.72. 1. Formula for calculating the weight of aluminum sheet Thickness (mm) * Width (m) * Length (m) * 2.71 (1060 aluminum plate density) = weight of single aluminum plate Take the 1060 3mm aluminum sheet for example. Its width is 1.5m and length is 3m. How to calculate the 3mm aluminium sheet weight? It is 3*1.5*3*2.71=36.585 kg 2. How many pieces does 1 ton of aluminum sheets can have Formula: 1000 kg÷single aluminum sheet weight= pieces Take 1060 alumnum sheet for example. The specification is 3mm*1m*1m. From the first formular, we can know the single aluminum sheet weight is 8.13 kg. The number of aluminum sheets per ton is about 123. Here are some tips about the cacluation of aluminum sheet weight: 1. Remember that the unit of thickness and the unit of length and width are different. 2. If you don’t know the density of a certain aluminum alloy, we can set it as 2.68 for 2.68 is an average densit of the aluminum sheet.
