project overview

Project Overview

Reconstruction in Diffracted Ultrasound Tomography

Tali Meiri & Tali Saul

Supervised by:

Dr. Michael Zibulevsky

Dr. Haim Azhari

Alexander & Michael Bronstein

project goals
Project Goals
  • Different methods of image reconstruction for diffraction ultrasound tomography.
  • Computing an image of a slice of an object from projections.

More specifically :

In acoustic imaging, diffraction must be taken into consideration when modeling the interaction of radiation with matter. Diffraction is caused by the wave nature of the radiation.

terminology definition
Terminology & Definition
  • Tomographic Reconstruction:A method of computing a sliced image of an object from data collected from projections.
  • Projection: Data acquired from a single illumination at a specific angle. The illumination is by electromagnetic radiation or acoustic waves, and the intensity of the radiation traversing the object is measured.
  • Sinogram: A picture of a set of projections at different angles placed one on top of the other.
  • Straight-ray tomography:Radiation illuminating the object has the nature of straight rays.
  • Diffraction tomography:Radiation illuminating the object has the nature of waves. In such case, wave phenomena such as diffraction should not be overlooked.
system overview
System Overview

Measured forward scattered field

Input image

Incident plane wave

System overview

Make necessary interpolation

Sample data in frequency domain

Reconstruct the picture by Fourier inversion

straight ray tomography
Straight-Ray tomography

In straight-ray tomography the radiation illuminating the object has the nature of straight rays. As such, the wavelength of the radiation is infinitely small compared to the dimensions of the illuminated object.

  • Radon transform:

The Radon function is the projection of the image intensity along a radial line oriented at a specific angle. The Radon transform of an object represents the image intensity along many radial lines oriented at different angles.

  • Tomographic scan:

It would be fair to define a tomographic scan as a discretization of the Radon transform of an object since the projections are taken at discrete angles around the object.

r is the radial axis oriented at angle

straight ray tomography1

Radon

Straight-Ray Tomography
  • Fourier Slice Theorem:

This theorem connects the Radon transform with the Fourier transform:

1D Fourier transform of the Radon transform equals the 2D Fourier transform of the object.

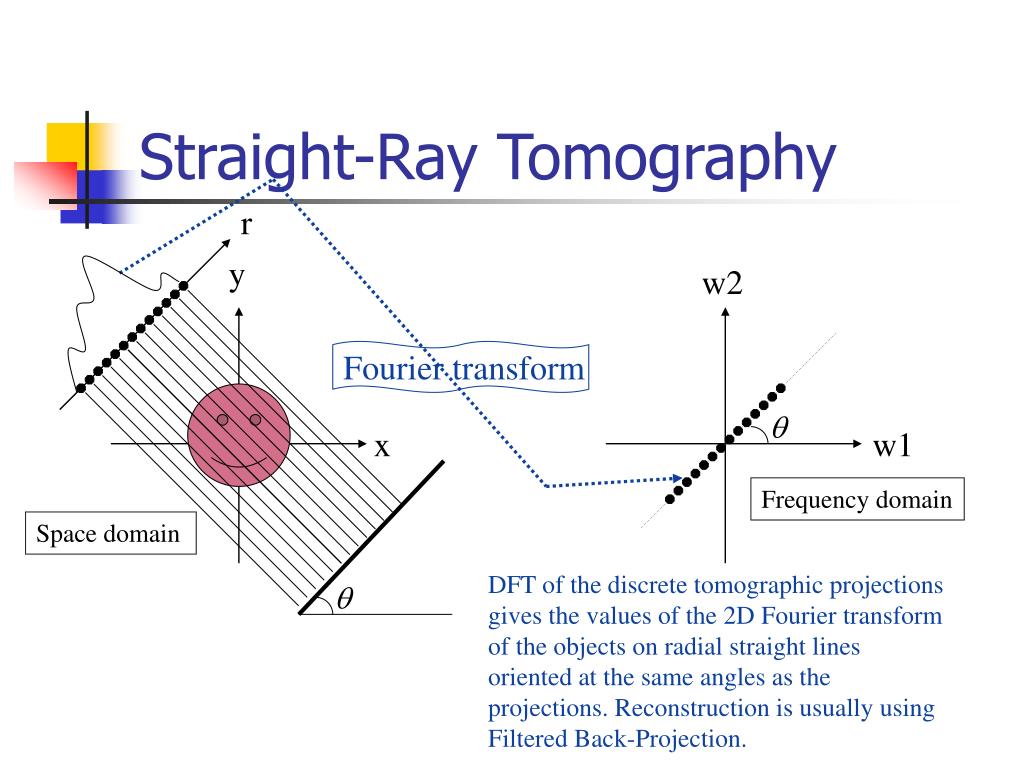

straight ray tomography2

r

y

x

Space domain

Straight-Ray Tomography

w2

Fourier transform

w1

Frequency domain

DFT of the discrete tomographic projections gives the values of the 2D Fourier transform of the objects on radial straight lines oriented at the same angles as the projections. Reconstruction is usually using Filtered Back-Projection.

diffraction tomography

Diffraction tomography

Straight-ray tomography

0

Diffraction Tomography
  • Fourier Diffraction Theorem:

DFT of the discrete tomographic projections gives the values of the 2D Fourier transform of the object along a semi-circular arc in the frequency domain.

The radius of the arc is proportional to the frequency of the incident wave:

diffraction tomography1
Diffraction Tomography
  • Monochromatic Illumination:

The object is rotated and the scattered field for different orientations is measured. For each orientation the object is illuminated with a monochromatic wave. This produces an estimate of the object’s Fourier transform along a circular arc rotated at the same angle as the object.

Each arc contains 32 sampling points.

diffraction tomography2
Diffraction Tomography
  • Broadband Illumination:

Transmitting a superposition of monochromatic waves at different frequencies. This allows obtaining more information from a single projection since the frequency domain is sampled on several arcs simultaneously. Consequently, a smaller amount of projections should suffice for covering the entire frequency domain.

Each arc contains 32 sampling points.

slide11

Methods of reconstruction

  • Methods used in straight-ray tomography are not applicable to tomography with diffractive sources. In this work we introduce and compare the performances between three different methods of reconstruction which will include the following:
  • Reconstruction using inverse NUFT:
  • Straightforward computation of the forward and the inverse NUFT by creating the transform matrix and applying it to the picture in column stack.
  • Reconstruction using frequency domain interpolation:
  • Frequency interpolation of the non-uniform data to a uniform Cartesian grid using bilinear interpolation.
  • Reconstruction using Non-uniform Fast Fourier Transform:
  • A method equivalent to a convolution regridding method on an over sampled grid using an optimal selection of a Gaussian kernel.
slide12

Inverse NUFT (2D)

  • 2D Non Uniform Fourier Transform:
  • Our goal is to move from non uniform frequency samples in frequency domain to uniform samples in space domain.
  • The 2D NUFT matrix will be built in the following way:
  • for every frequency sample which will be represented in frequency domain
  • as , the basis pictures will be built such that:
  • and will represent the columns of . (n,m) are the reconstructed samples in space domain.

Pseudo inverse

slide13

Inverse NUFT (2D)

Since this is the straight forward computation without using any approximations,

it is the most accurate reconstruction technique but is also computationally extensive and requires operations as it is equivalent to matrix multiplication. When the signal is large (typically 64 X 64 = 4096 and above), straightforward inversion is practically impossible.

Example of applying the transformation on a 2D sinc function in Frequency domain to get a 2D step function in space domain. In this example the frequency samples where uniformly spaced.

slide14

Inverse NUFT (2D)

Example of applying the transformation on a 2D sinc function in Frequency domain to get a 2D step function in space domain. In this example the frequency samples where randomly spaced.

slide16

Freq. domain interpolation

  • The algorithm by Kak and Slaney:
  • Start from a Cartezian grid.
  • For each point (w1,w2) find its representation in (w, ) coordinates.
  • Use bilinear interpolation to find the most accurate value of the signal at the new location.
  • where:
  • After computing at each point on the rectangular grid, the object is obtained by a simple 2-D inverse FFT.
  • Complexity:
freq domain interpolation

F(m,n+1)

F(m,n)

F(x,y)

F(m+1,n)

F(m+1,n+1)

Freq. domain interpolation
  • Bilinear interpolation:
slide18

Freq. domain interpolation

  • Shepp-Logan phantom:
  • In order to avoid forward-projection errors, and analytic Shepp-Logan phantom was used. This phantom is a superposition of ellipses representing features of the human brain. The advantage of such a phantom is that its Fourier Transform has an analytical expression. The Fourier Transform of an ellipse is given by:
  • where is the first order Bessel function of the first kind, is the center of the ellipse, its intensity, its orientation and lastly A and B are the lengths of horizontal and vertical semi-axes respectively.
freq domain interpolation1
Freq. domain interpolation

Monochromatic illumination using a 64X64 phantom picture with 64 projections.

slide20

Freq. domain interpolation

Monochromatic illumination using a 64X64 phantom picture with 64 projections and with different addition of Gaussian noise.

freq domain interpolation2
Freq. domain interpolation

Calculated mean squared error and the max error between reconstructed picture and original picture as function of the number of projections.

freq domain interpolation3
Freq. domain interpolation

Less coverage of samples in the high frequency region between 17 projections and 18 projections due to multiple equal samples.

freq domain interpolation4
Freq. domain interpolation

Broadband illumination using a 64X64 phantom picture with 15 different angles and 5 different frequencies.

freq domain interpolation5
Freq. domain interpolation

Calculated mean squared error and the max error between reconstructed picture and original picture as function of the number of different frequencies in each projection

slide25

The NUFFT method (1-D)

  • Definition of the problem:
  • The input parameters is a vector of samples of a signal sampled in non-uniformly distributed frequencies
  • . Our objective is to reconstruct the signal from its non-uniform frequency samples using a method which takes a non-uniformed data in frequency domain and transforms it to a uniform data in space domain.
  • Method:
  • Using the method of Fast Fourier Transform approximation for non-equispaced data suggested by A. Dutt and V. Rokhlin. This method uses interpolation of the data on some over-sampled Cartesian grid using a Gaussian kernel. Once the data is uniformly spaced on the rectangular grid, the signal
  • can be obtained by a simple inverse FFT.
  • Complexity of algorithm:
  • O(NlogN+Nq) where q is a constant.
slide26

The NUFFT method (1-D)

  • The algorithm:
  • For a given signal in frequency domain, the inverse transformation is defined by the formula:
  • where is the non-uniformed frequency. The algorithm approximates this formula by finding a suitable approximation for any expression of the form
  • using a q number of expressions of the form where .
  • It is proven that the error between the reconstructed signal and the original signal obeys the following inequality:
  • where
slide27

q

The NUFFT method (1-D)

DFT of a non-uniformly sampled set of N data points may be computed with an ordinary FFT of length m*N with a precision that depends on the selection of m. Usually a choice of m=2 is sufficient for most practical applications.

w

w

slide28

The NUFFT (1-D) – results

NUFFT using an analytic sinc function.

Red dots: non-uniformed samples of the sinc function.

slide29

The NUFFT (1-D) – results

UFFT using an analytic sinc function.

Red dots: uniformed samples of the sinc function.

slide30

The Sarty NUFFT (2-D)

  • Definition of the problem:
  • The input parameters is a CS vector of samples of a 2_D signal sampled in non-uniformly distributed frequencies on the 2_D range.
  • Method:
  • Voronoi areas.
  • Extension of the 1-D NUFFT algorithm to 2-D.
slide31

The NUFFT method (2-D)

  • Direct computation using Voronoi areas:
  • In this case the equation is:
  • where S(p) is the vector of the samples in CS of the signal, W(p) is the CS vector of the correlated weights derived from the Voronoi areas associated with each sample point and are the non-uniformed frequencies in CS.
  • This straight forward computation requires multiplications and additions. It may take hours of computational time for a typical 256X256 signal picture. The fast algorithm requires only while using the FFT algorithm.
slide32

The NUFFT method (2-D)

  • Data representation using Voronoi area:

The Voronoi areas associated with a k-space point is the area of the set whose points are closer to the given point than all the other k-spaced sample points.

slide33

The NUFFT method (2-D)

  • Efficient implementation using the D-R algorithm:
  • Let and
  • Furthermore we use:
  • The image reconstruction is computed as:
  • where
slide34

The NUFFT (2-D) – results

Monochromatic illumination using a 64X64 phantom picture with 64 projections.

slide35

The NUFFT (2-D) – results

Monochromatic illumination using a 64X64 phantom picture with 64 projections and with different addition of Gaussian noise.

slide36

Conclusion

For 32X32 pictures
