Presentation Transcript
the agile dependency manager

The Agile Dependency Manager

김병곤fharenheit@gmail.com

20100911 v1.0

slide2

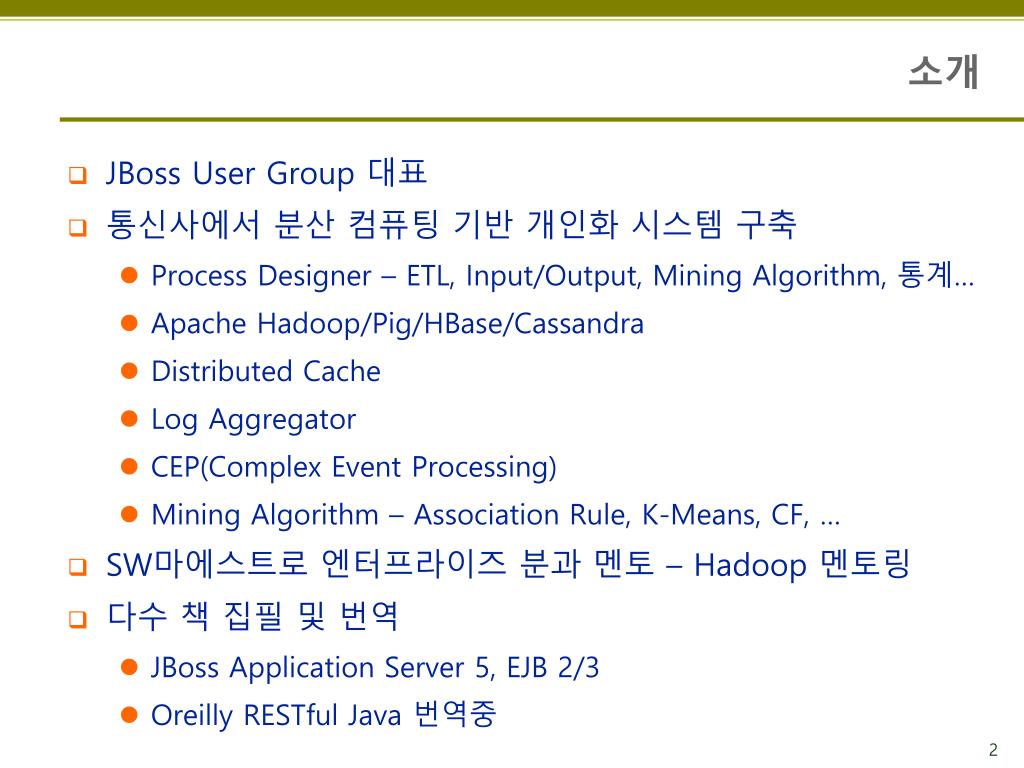

소개
  • JBoss User Group 대표
  • 통신사에서 분산 컴퓨팅 기반 개인화 시스템 구축
    • Process Designer – ETL, Input/Output, Mining Algorithm, 통계…
    • Apache Hadoop/Pig/HBase/Cassandra
    • Distributed Cache
    • Log Aggregator
    • CEP(Complex Event Processing)
    • Mining Algorithm – Association Rule, K-Means, CF, …
  • SW마에스트로엔터프라이즈분과멘토 – Hadoop 멘토링
  • 다수 책 집필 및 번역
    • JBoss Application Server 5, EJB 2/3
    • Oreilly RESTful Java 번역중

2

ant ivy

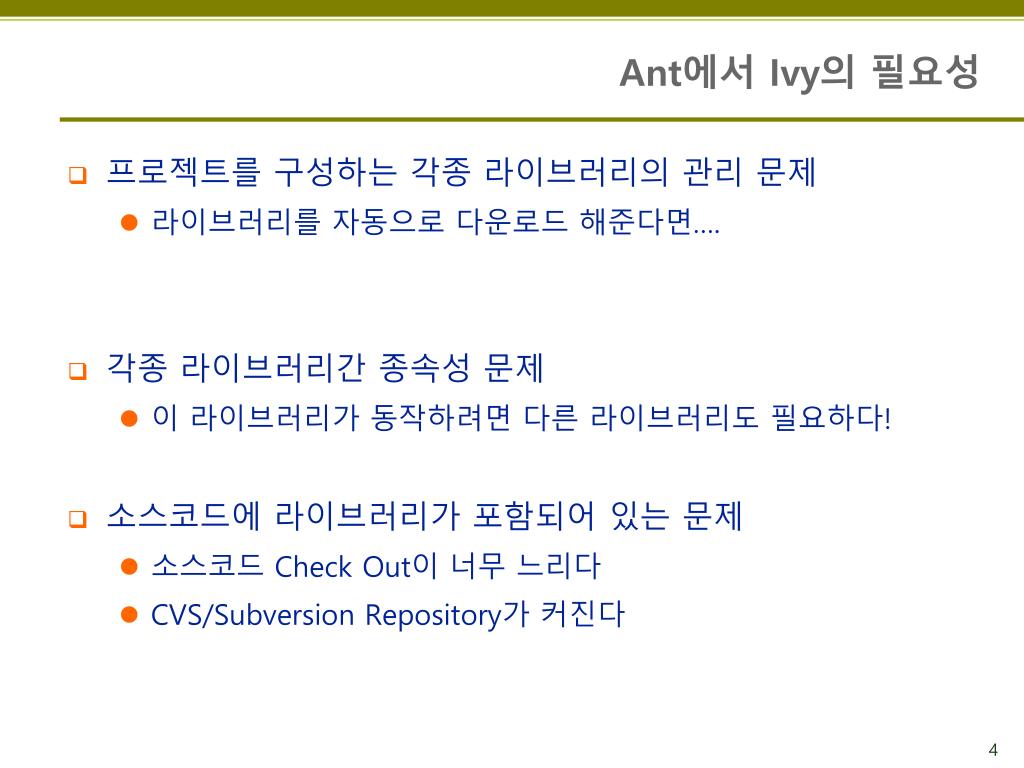

Ant에서 Ivy의 필요성
  • 프로젝트를 구성하는 각종 라이브러리의 관리 문제
    • 라이브러리를 자동으로 다운로드 해준다면….
  • 각종 라이브러리간 종속성 문제
    • 이 라이브러리가 동작하려면 다른 라이브러리도 필요하다!
  • 소스코드에 라이브러리가 포함되어 있는 문제
    • 소스코드 Check Out이 너무 느리다
    • CVS/Subversion Repository가 커진다

4

slide5

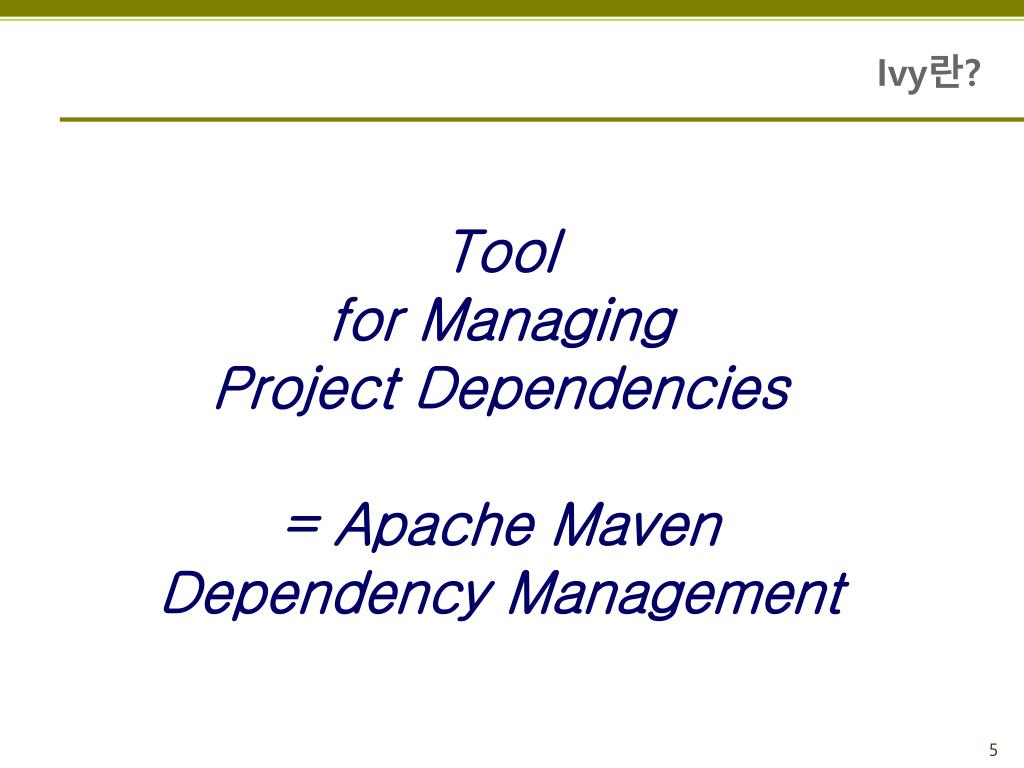

Ivy란?
  • Tool
  • for Managing
  • Project Dependencies
  • = Apache Maven
  • Dependency Management

5

slide7

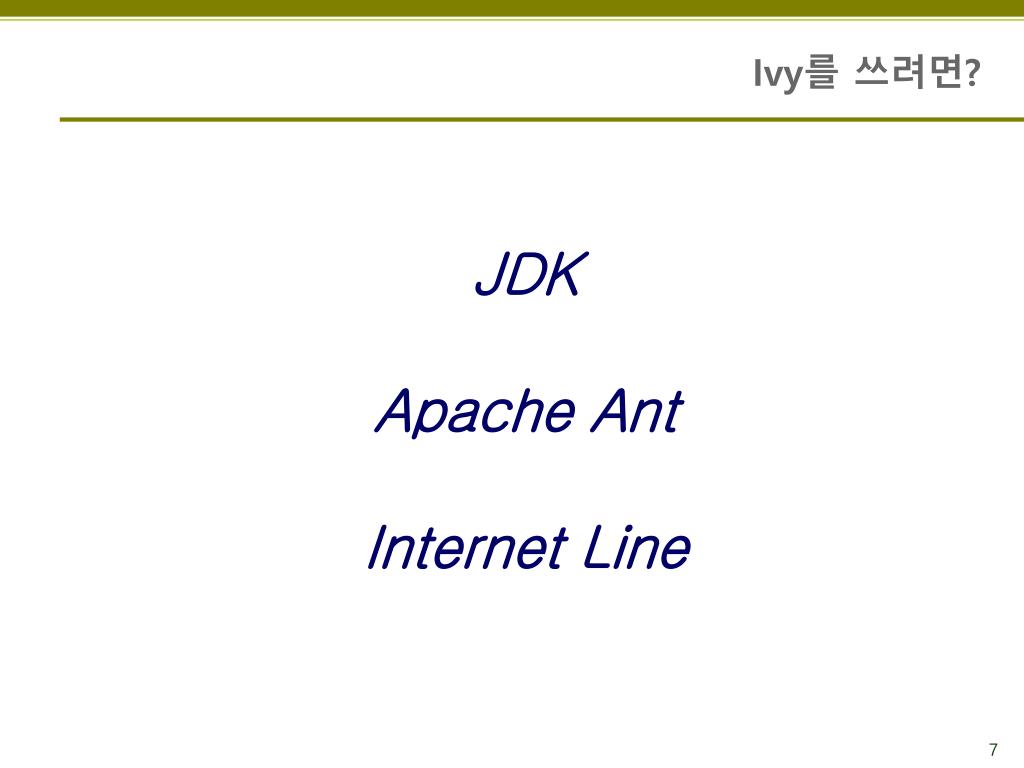

Ivy를 쓰려면?

JDK

Apache Ant

Internet Line

7

slide8

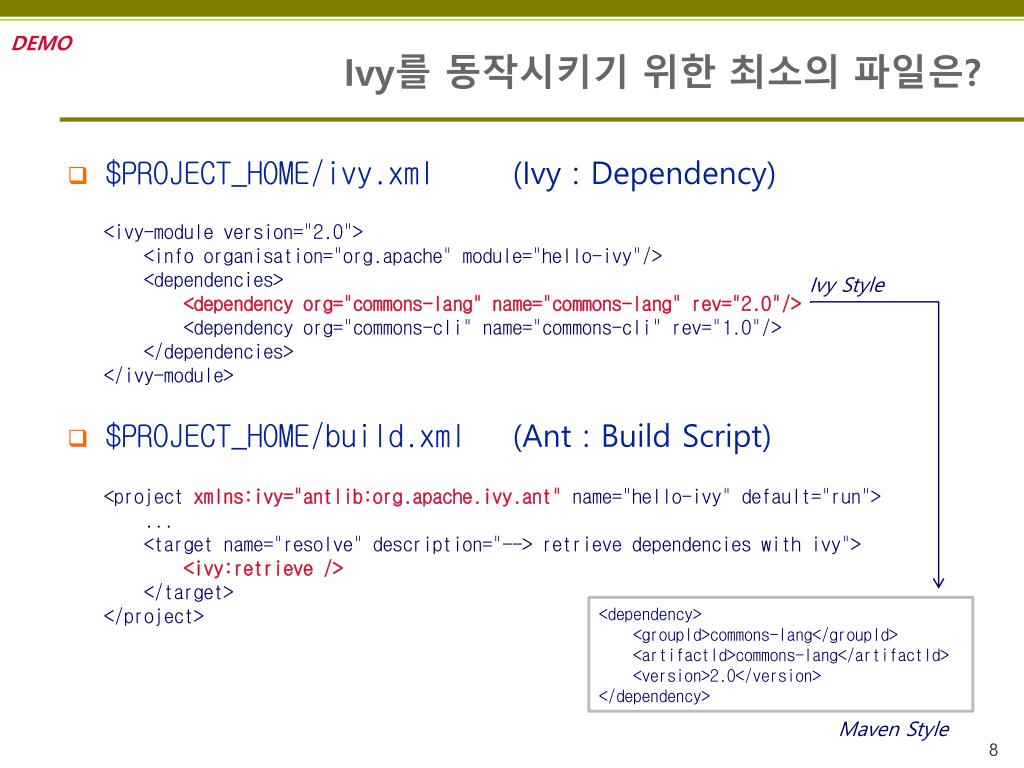

DEMO

Ivy를 동작시키기 위한 최소의 파일은?

<ivy-module version="2.0">

<info organisation="org.apache" module="hello-ivy"/>

<dependencies>

<dependency org="commons-lang" name="commons-lang" rev="2.0"/>

<dependency org="commons-cli" name="commons-cli" rev="1.0"/>

</dependencies>

</ivy-module>

Ivy Style

<project xmlns:ivy="antlib:org.apache.ivy.ant" name="hello-ivy" default="run">

...

<target name="resolve" description="--> retrieve dependencies with ivy">

<ivy:retrieve />

</target>

</project>

<dependency>

<groupId>commons-lang</groupId>

<artifactId>commons-lang</artifactId>

<version>2.0</version>

</dependency>

Maven Style

8

$PROJECT_HOME/ivy.xml (Ivy : Dependency)

$PROJECT_HOME/build.xml (Ant : Build Script)

repository

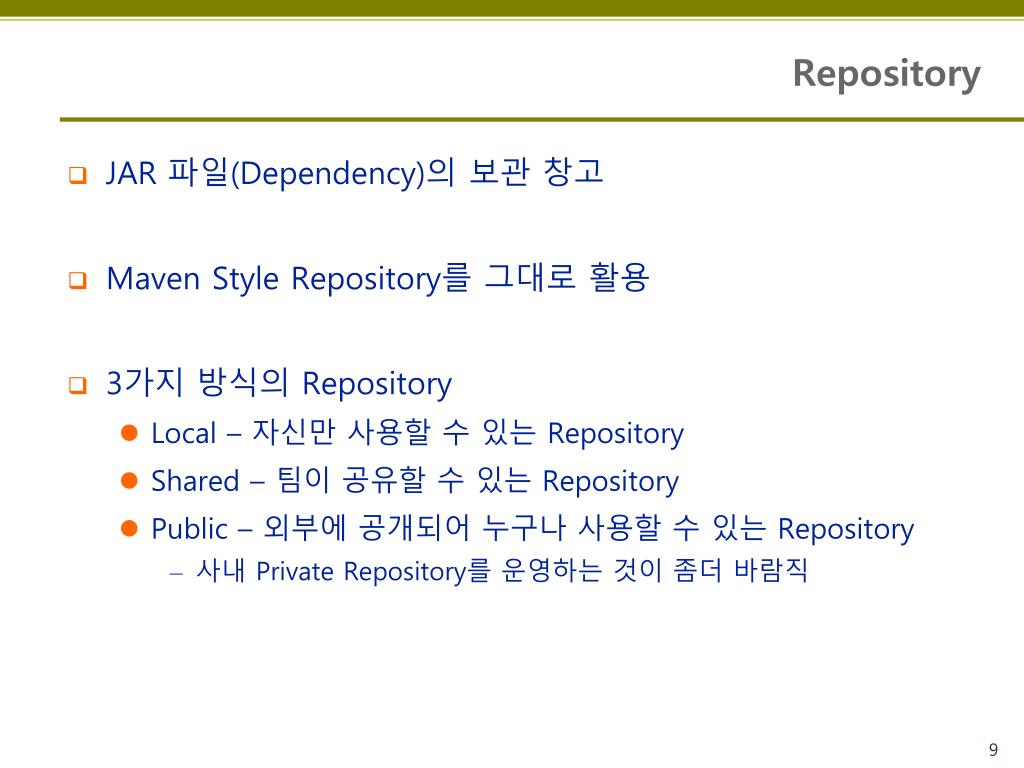

Repository
  • JAR 파일(Dependency)의 보관 창고
  • Maven Style Repository를 그대로 활용
  • 3가지 방식의 Repository
    • Local – 자신만 사용할 수 있는 Repository
    • Shared – 팀이 공유할 수 있는 Repository
    • Public – 외부에 공개되어 누구나 사용할 수 있는 Repository
      • 사내 Private Repository를운영하는것이좀더바람직

9

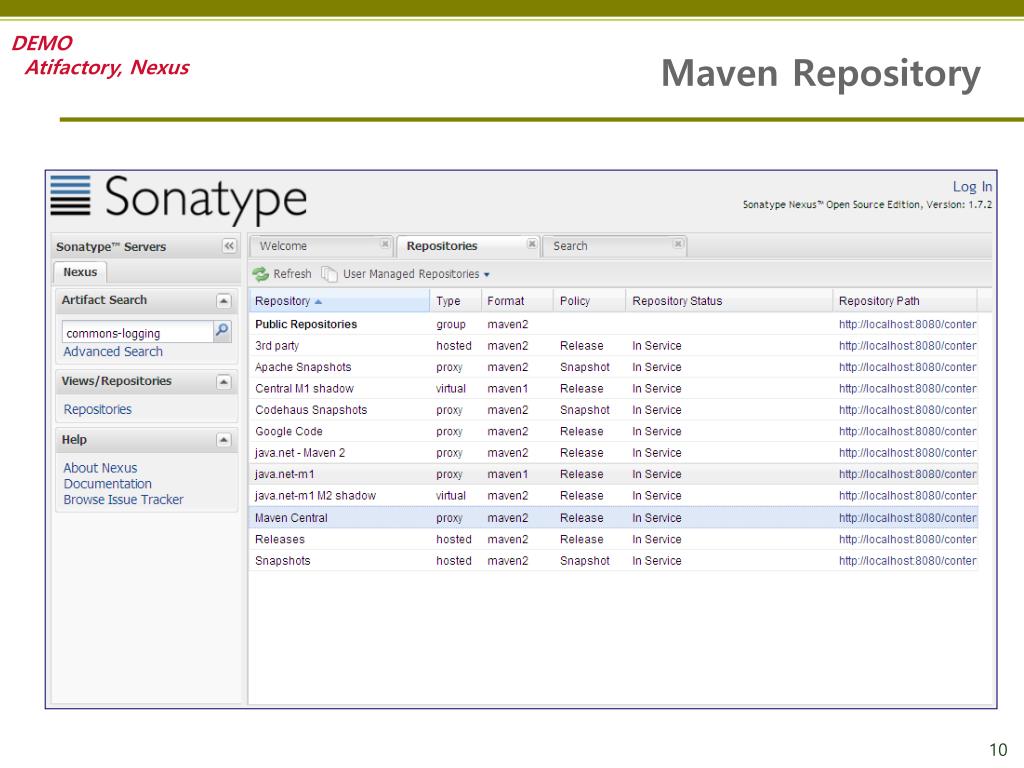

maven repository

DEMO

Atifactory, Nexus

Maven Repository

10

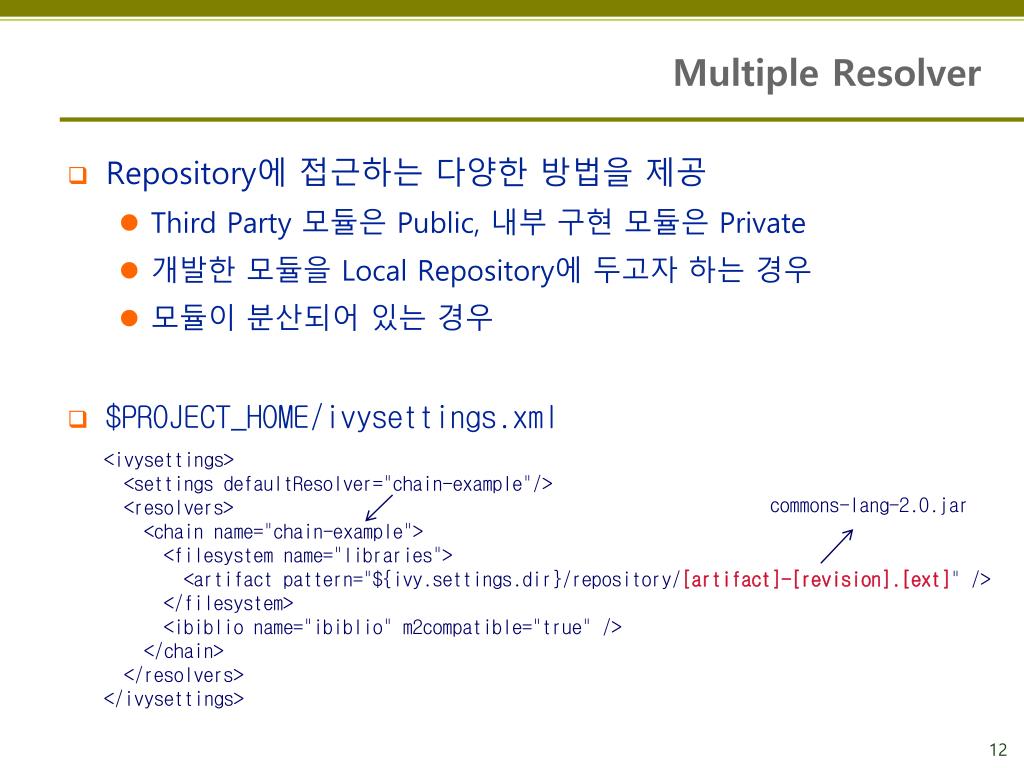

multiple resolver
Multiple Resolver

<ivysettings>

<settings defaultResolver="chain-example"/>

<resolvers>

<chain name="chain-example">

<filesystem name="libraries">

<artifact pattern="${ivy.settings.dir}/repository/[artifact]-[revision].[ext]" />

</filesystem>

<ibiblio name="ibiblio" m2compatible="true" />

</chain>

</resolvers>

</ivysettings>

commons-lang-2.0.jar

  • Repository에 접근하는 다양한 방법을 제공
    • Third Party 모듈은 Public, 내부 구현 모듈은 Private
    • 개발한모듈을 Local Repository에 두고자 하는 경우
    • 모듈이 분산되어 있는 경우
  • $PROJECT_HOME/ivysettings.xml

12

custom repository

DEMO

Repository Configuration

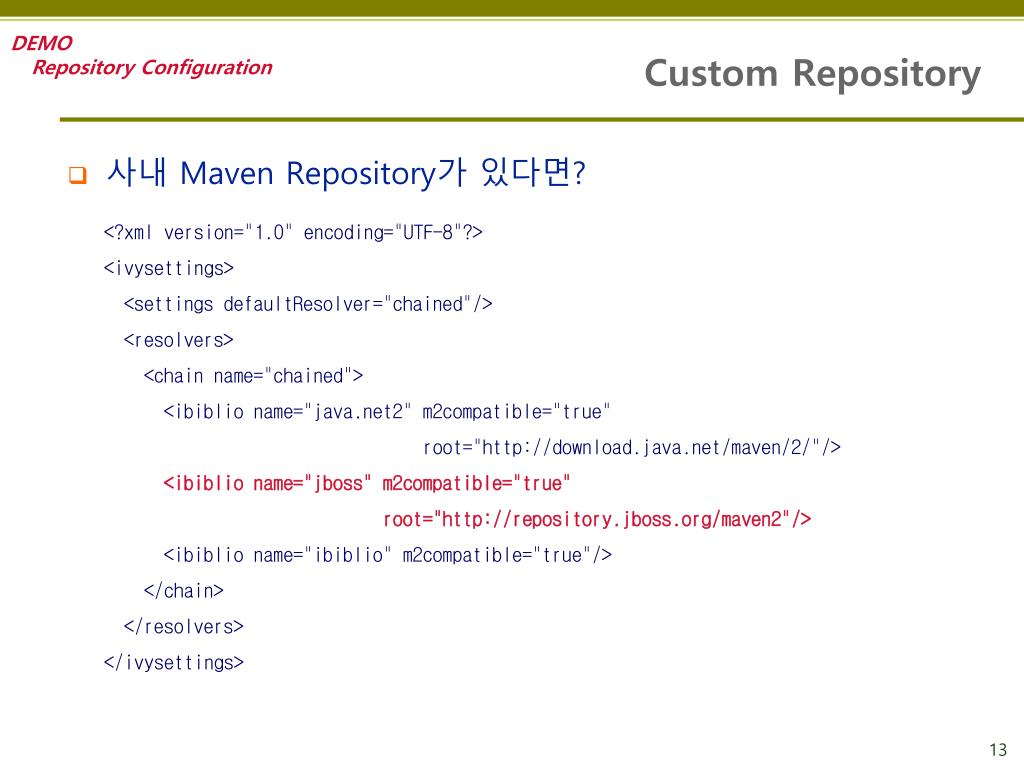

Custom Repository

<?xml version="1.0" encoding="UTF-8"?>

<ivysettings>

<settings defaultResolver="chained"/>

<resolvers>

<chain name="chained">

<ibiblio name="java.net2" m2compatible="true"

root="http://download.java.net/maven/2/"/>

<ibiblio name="jboss" m2compatible="true"

root="http://repository.jboss.org/maven2"/>

<ibiblio name="ibiblio" m2compatible="true"/>

</chain>

</resolvers>

</ivysettings>

사내 Maven Repository가 있다면?

13

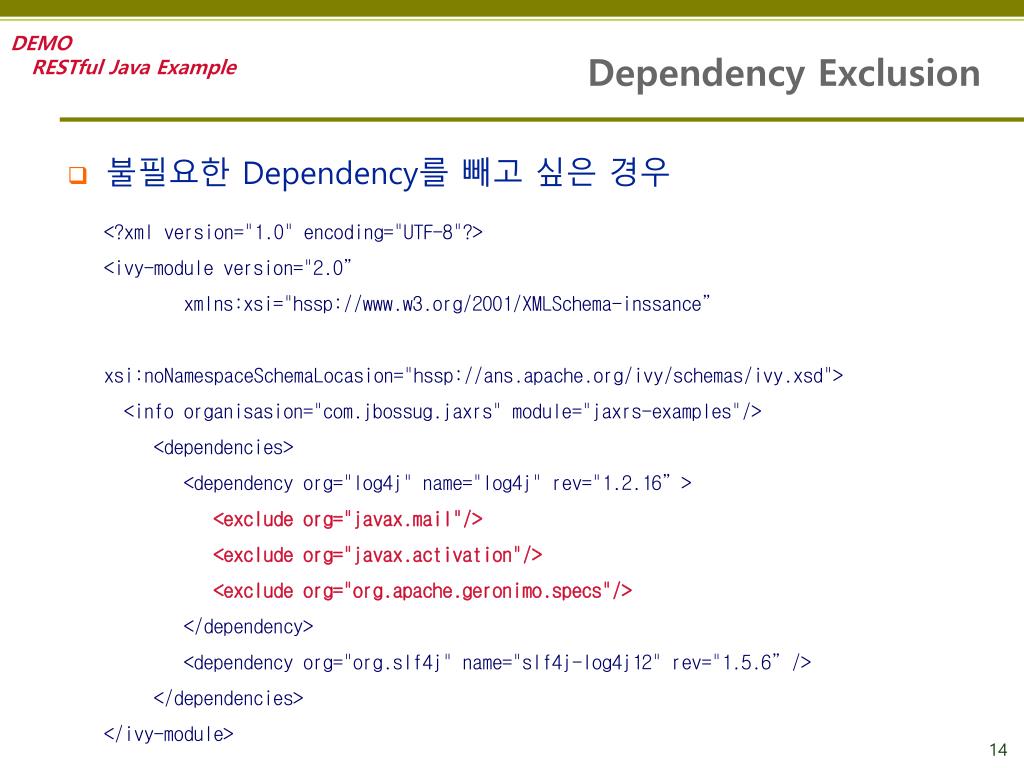

dependency exclusion

DEMO

RESTful Java Example

Dependency Exclusion

<?xml version="1.0" encoding="UTF-8"?>

<ivy-module version="2.0”

xmlns:xsi="hssp://www.w3.org/2001/XMLSchema-inssance”

xsi:noNamespaceSchemaLocasion="hssp://ans.apache.org/ivy/schemas/ivy.xsd">

<info organisasion="com.jbossug.jaxrs" module="jaxrs-examples"/>

<dependencies>

<dependency org="log4j" name="log4j" rev="1.2.16”>

<exclude org="javax.mail"/>

<exclude org="javax.activation"/>

<exclude org="org.apache.geronimo.specs"/>

</dependency>

<dependency org="org.slf4j" name="slf4j-log4j12" rev="1.5.6”/>

</dependencies>

</ivy-module>

불필요한 Dependency를빼고싶은경우

14

ivy integration step 1 ivy download install

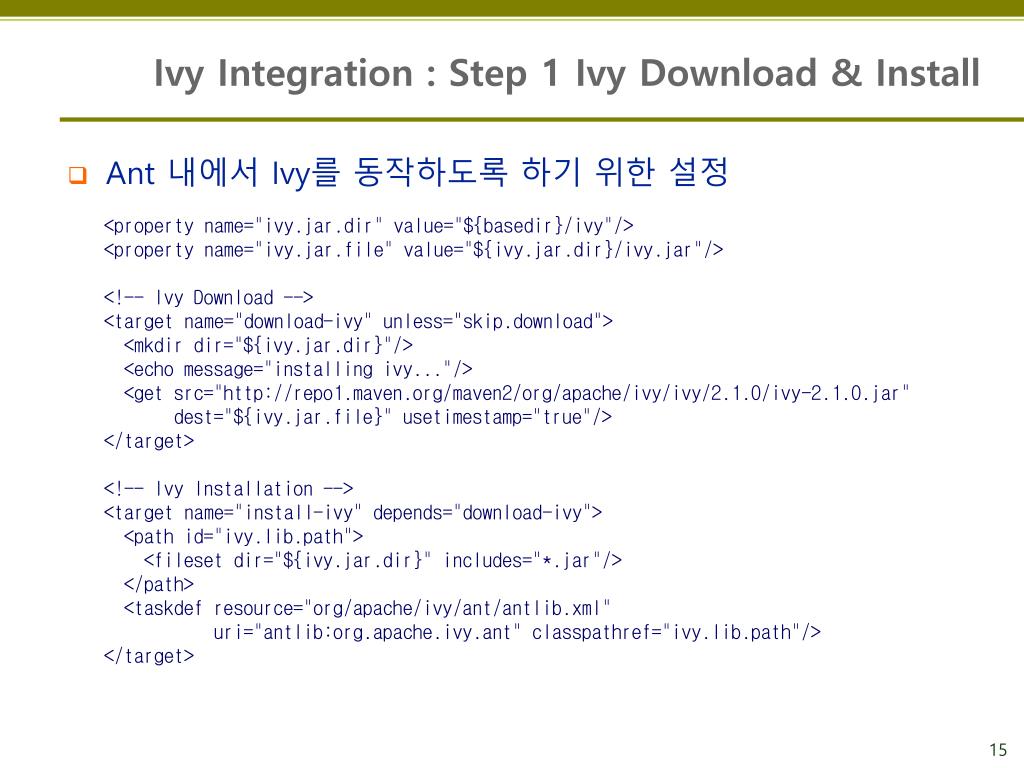

Ivy Integration : Step 1 Ivy Download & Install

<property name="ivy.jar.dir" value="${basedir}/ivy"/>

<property name="ivy.jar.file" value="${ivy.jar.dir}/ivy.jar"/>

<!-- Ivy Download -->

<target name="download-ivy" unless="skip.download">

<mkdir dir="${ivy.jar.dir}"/>

<echo message="installing ivy..."/>

<get src="http://repo1.maven.org/maven2/org/apache/ivy/ivy/2.1.0/ivy-2.1.0.jar"

dest="${ivy.jar.file}" usetimestamp="true"/>

</target>

<!-- Ivy Installation -->

<target name="install-ivy" depends="download-ivy">

<path id="ivy.lib.path">

<fileset dir="${ivy.jar.dir}" includes="*.jar"/>

</path>

<taskdef resource="org/apache/ivy/ant/antlib.xml"

uri="antlib:org.apache.ivy.ant" classpathref="ivy.lib.path"/>

</target>

Ant 내에서 Ivy를 동작하도록 하기 위한 설정

15

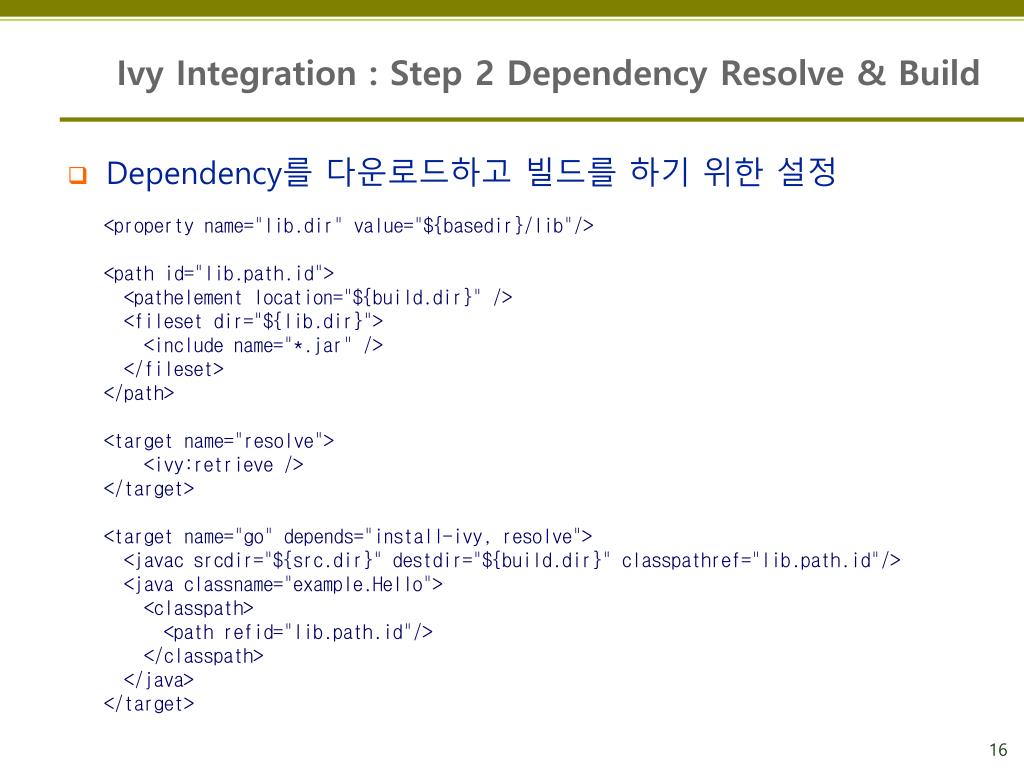

ivy integration step 2 dependency resolve build
Ivy Integration : Step 2 Dependency Resolve & Build

<property name="lib.dir" value="${basedir}/lib"/>

<path id="lib.path.id">

<pathelement location="${build.dir}" />

<fileset dir="${lib.dir}">

<include name="*.jar" />

</fileset>

</path>

<target name="resolve">

<ivy:retrieve />

</target>

<target name="go" depends="install-ivy, resolve">

<javac srcdir="${src.dir}" destdir="${build.dir}" classpathref="lib.path.id"/>

<java classname="example.Hello">

<classpath>

<path refid="lib.path.id"/>

</classpath>

</java>

</target>

Dependency를 다운로드하고 빌드를 하기 위한 설정

16

ivyide

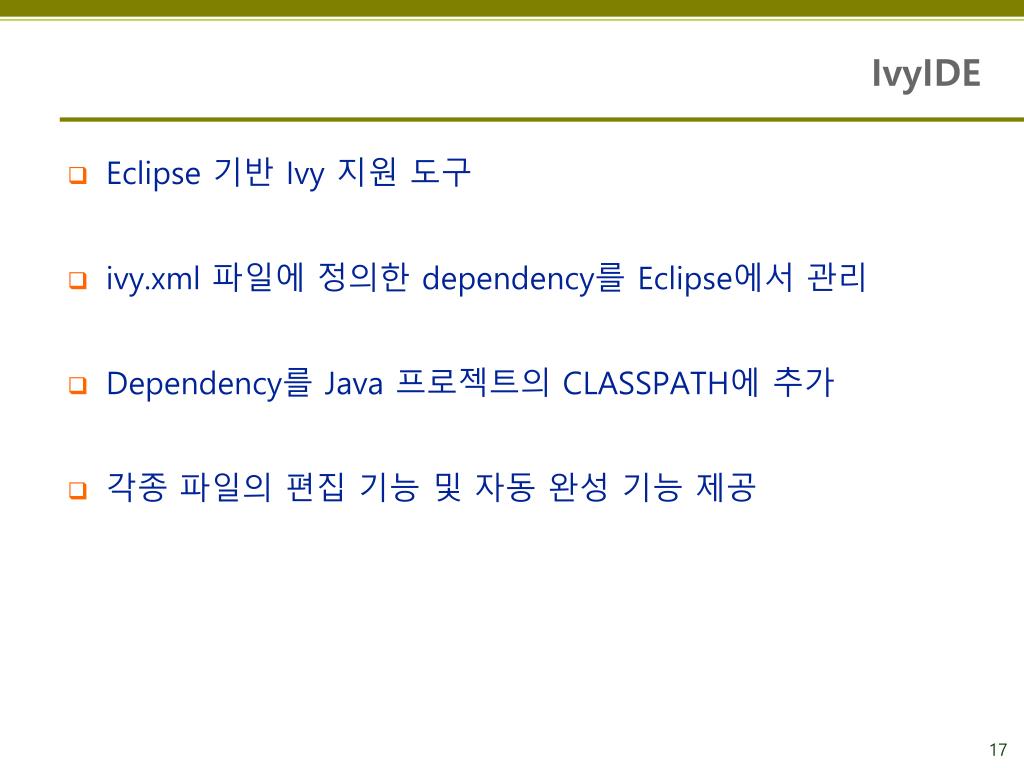

IvyIDE

Eclipse 기반 Ivy 지원 도구

ivy.xml 파일에 정의한 dependency를 Eclipse에서 관리

Dependency를 Java 프로젝트의 CLASSPATH에 추가

각종 파일의 편집 기능 및 자동 완성 기능 제공

17

slide21

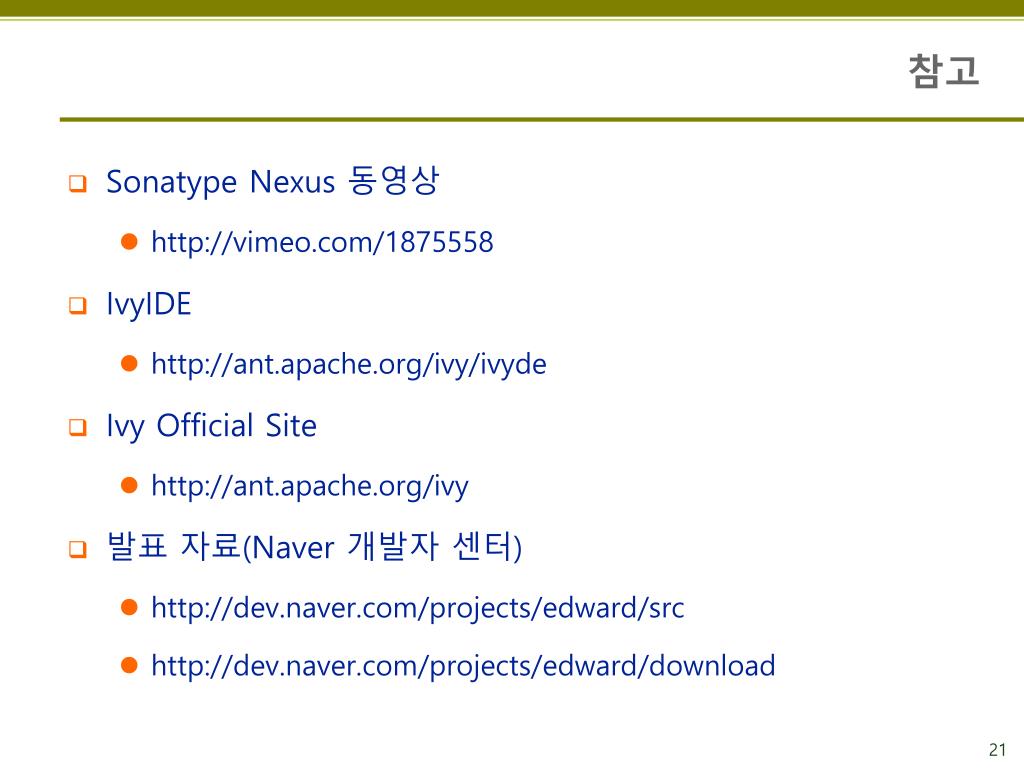

참고
  • Sonatype Nexus 동영상
    • http://vimeo.com/1875558
  • IvyIDE
    • http://ant.apache.org/ivy/ivyde
  • Ivy Official Site
    • http://ant.apache.org/ivy
  • 발표 자료(Naver 개발자 센터)
    • http://dev.naver.com/projects/edward/src
    • http://dev.naver.com/projects/edward/download

21

slide22
Q & A

Q & A

22
