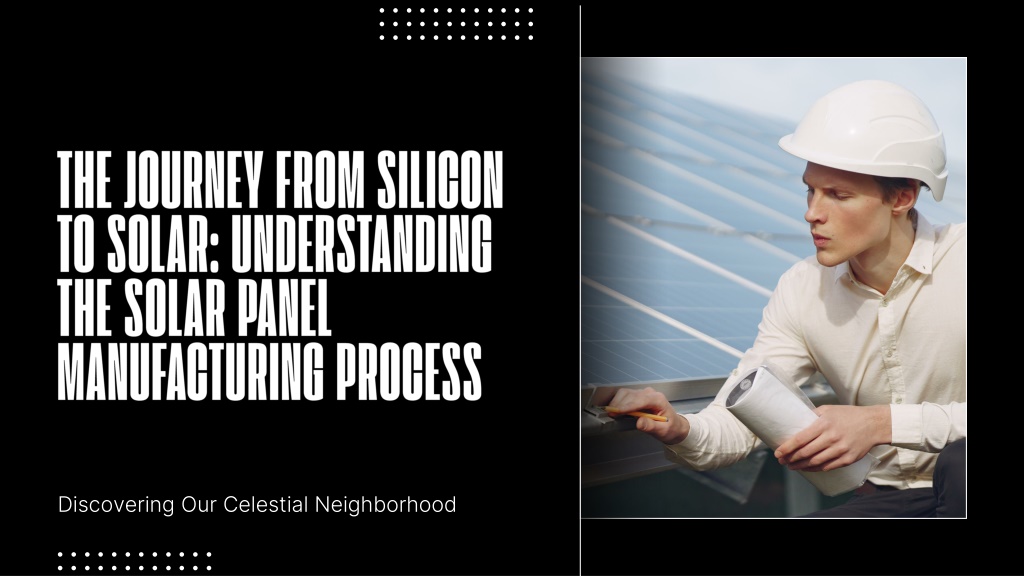

  1. THE JOURNEY FROM SILICON TO SOLAR: UNDERSTANDING THE SOLAR PANEL MANUFACTURING PROCESS Discovering Our Celestial Neighborhood

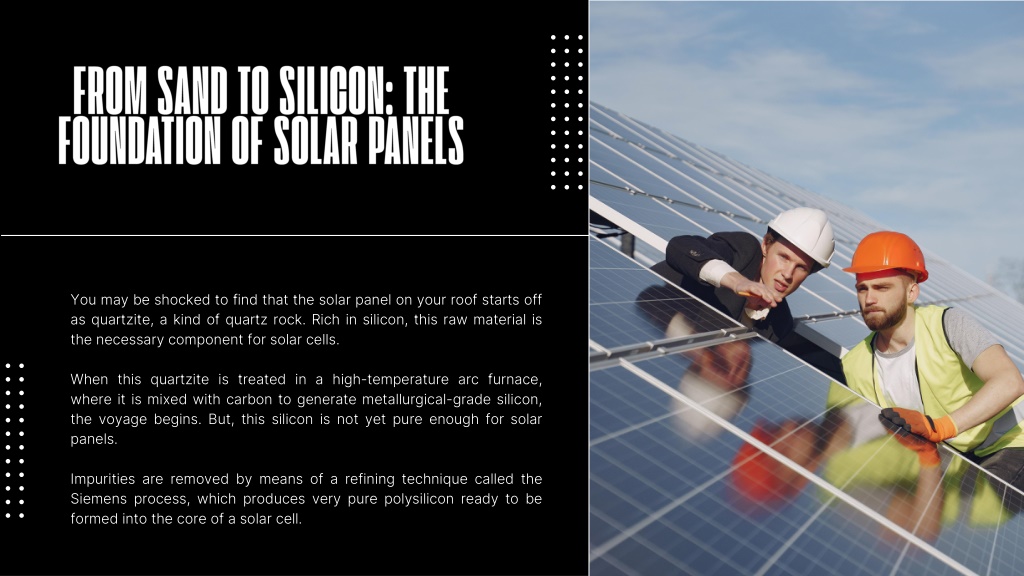

  2. FROM SAND TO SILICON: THE FOUNDATION OF SOLAR PANELS You may be shocked to find that the solar panel on your roof starts off as quartzite, a kind of quartz rock. Rich in silicon, this raw material is the necessary component for solar cells. When this quartzite is treated in a high-temperature arc furnace, where it is mixed with carbon to generate metallurgical-grade silicon, the voyage begins. But, this silicon is not yet pure enough for solar panels. Impurities are removed by means of a refining technique called the Siemens process, which produces very pure polysilicon ready to be formed into the core of a solar cell.

  3. SHAPING THE SILICON: INGOTS AND WAFERS The next phase is to melt pure polysilicon at temperatures over 1,400°C. A little amount of boron is added while it is molten, hence charging the silicon positively (p-type). Careful cooling of the molten silicon causes it to crystallise into big, cylindrical ingots. Using exact wire saws, these ingots are sliced into tiny wafers, each wafer as thin as a sheet of paper. The efficiency of the final solar panel is directly impacted by the quality of the wafer, hence, this stage is vital.

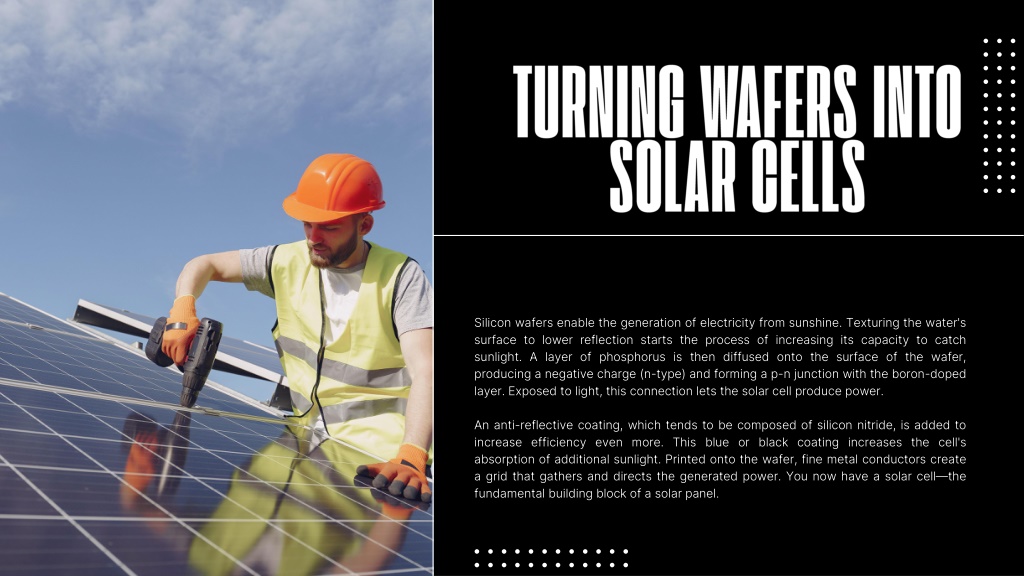

  4. TURNING WAFERS INTO SOLAR CELLS Silicon wafers enable the generation of electricity from sunshine. Texturing the water's surface to lower reflection starts the process of increasing its capacity to catch sunlight. A layer of phosphorus is then diffused onto the surface of the wafer, producing a negative charge (n-type) and forming a p-n junction with the boron-doped layer. Exposed to light, this connection lets the solar cell produce power. An anti-reflective coating, which tends to be composed of silicon nitride, is added to increase efficiency even more. This blue or black coating increases the cell's absorption of additional sunlight. Printed onto the wafer, fine metal conductors create a grid that gathers and directs the generated power. You now have a solar cell—the fundamental building block of a solar panel.

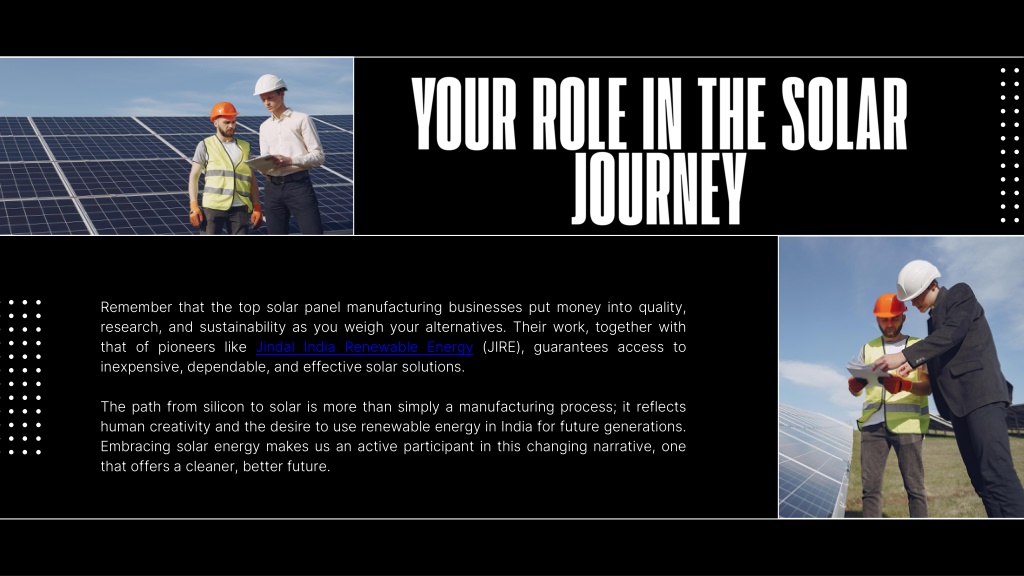

  5. YOUR ROLE IN THE SOLAR JOURNEY Remember that the top solar panel manufacturing businesses put money into quality, research, and sustainability as you weigh your alternatives. Their work, together with that of pioneers like Jindal India Renewable Energy (JIRE), guarantees access to inexpensive, dependable, and effective solar solutions. The path from silicon to solar is more than simply a manufacturing process; it reflects human creativity and the desire to use renewable energy in India for future generations. Embracing solar energy makes us an active participant in this changing narrative, one that offers a cleaner, better future.
