  1. P14042: Una-Crutch 2 Crutches to 1 FinalPresentation

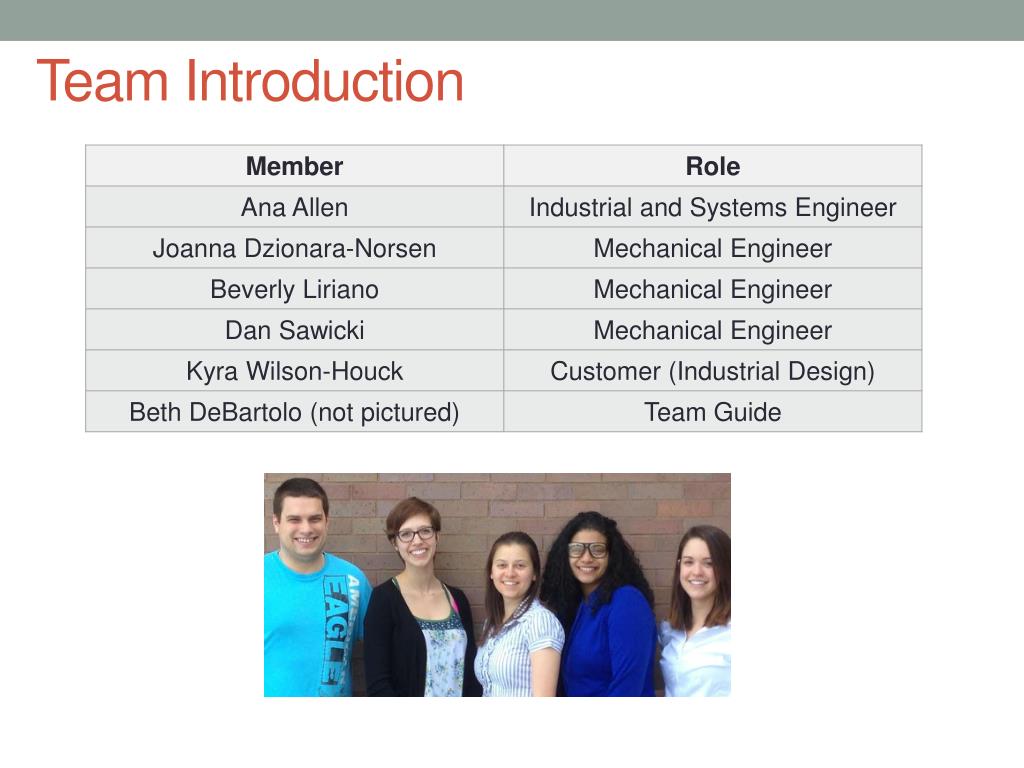

  2. Team Introduction

  3. Agenda

  4. Project Description

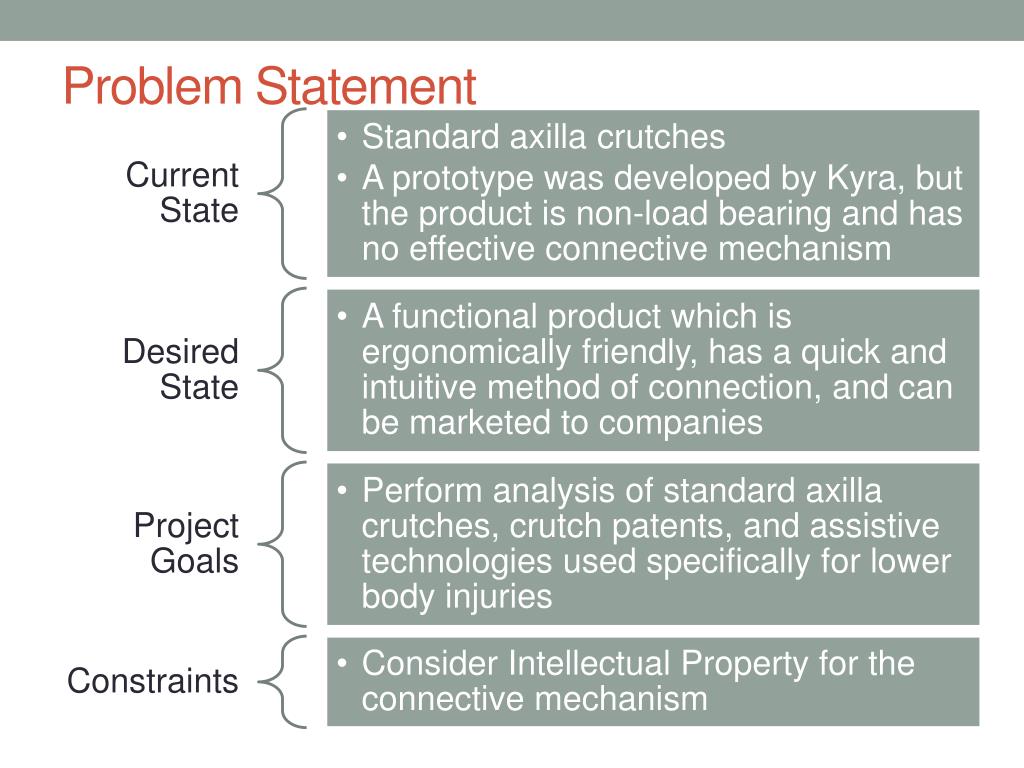

  5. Problem Statement

  6. Stakeholders

  7. Customer Requirements

  8. Engineering Requirements

  9. MSD I Review

  10. MSD I Design Summary

  11. Testing Results

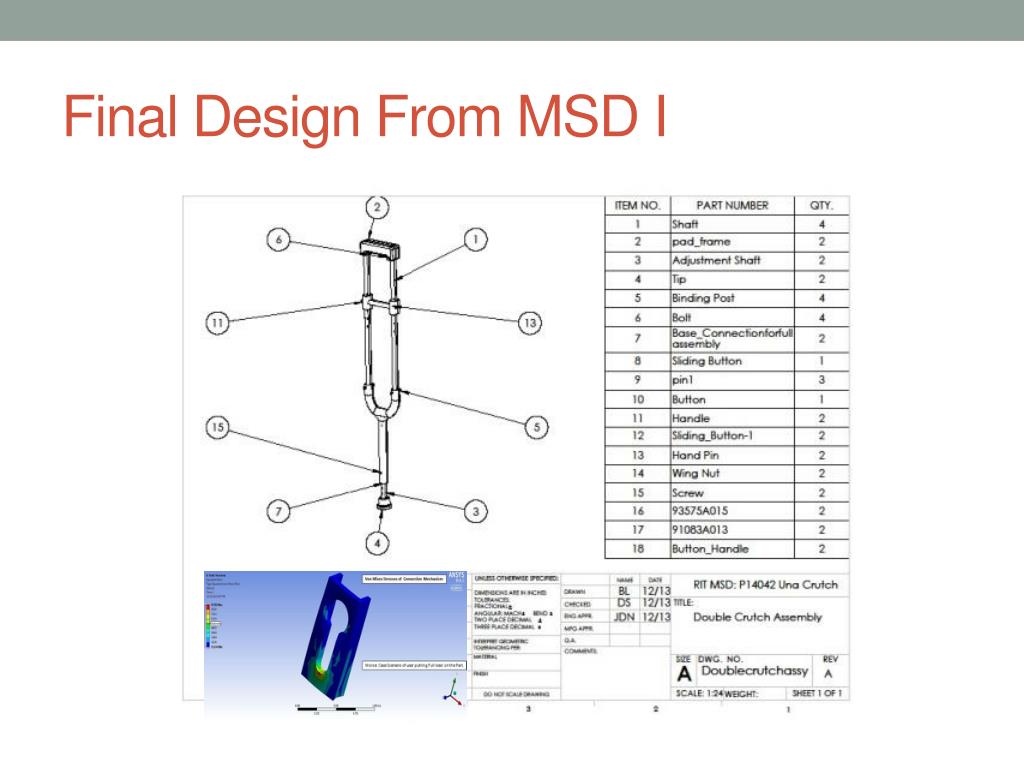

  12. Final Design From MSD I

  13. MSD II Review

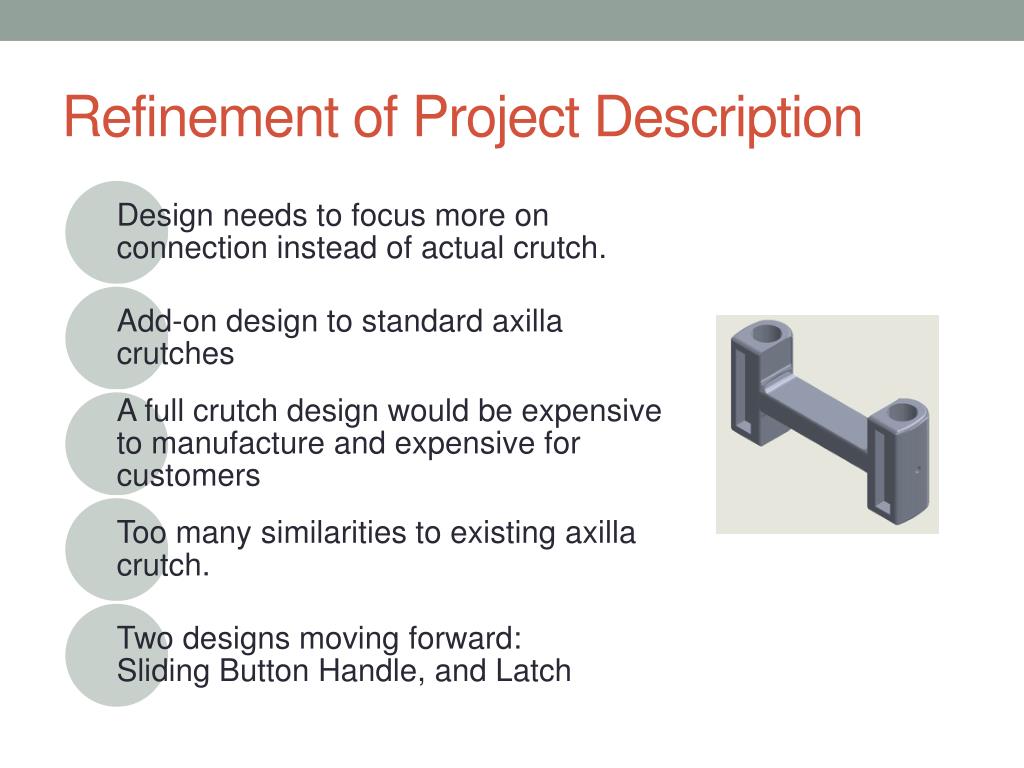

  14. Refinement of Project Description

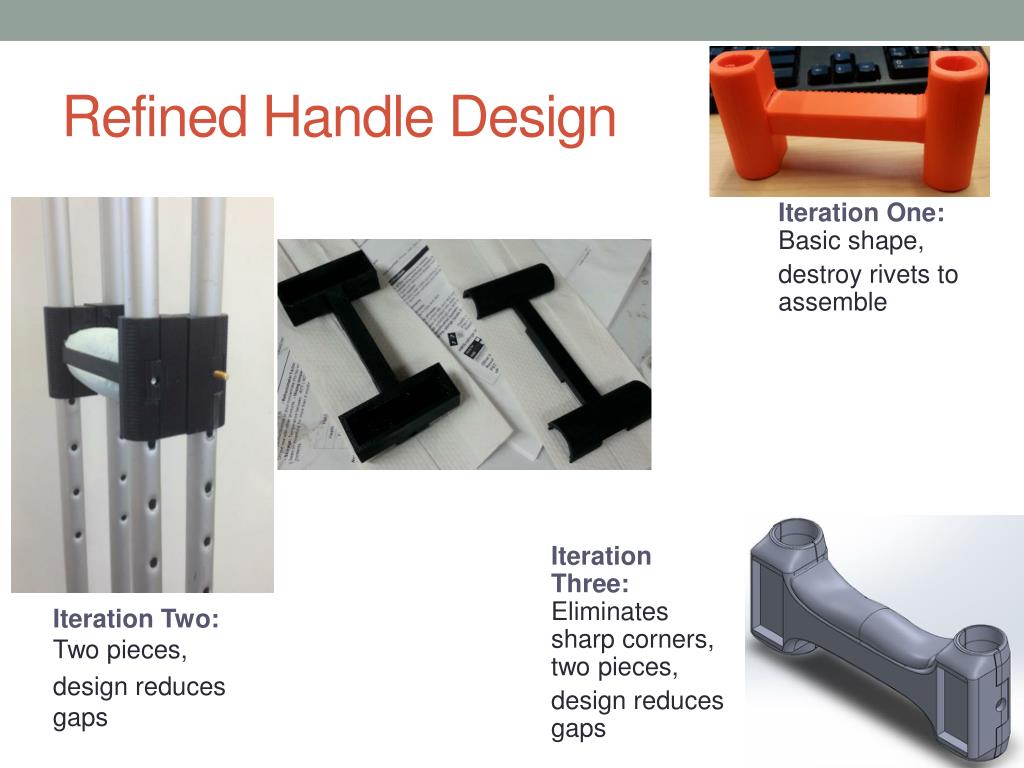

  15. Refined Handle Design Iteration One: Basic shape, destroy rivets to assemble Iteration Three: Eliminates sharp corners, two pieces, design reduces gaps Iteration Two: Two pieces, design reduces gaps

  16. Latch Add-on • Option for users who like the original handles • Only one handle is gripped during connected crutch use • More components needed for assembly than handle design • (Iteration Two pictured)

  17. Testing Results Sliding Button Handle Latch Quick connection time Unsure whether crutches are connected Extended handles for comfort • Quick connection time • More secure connection • Include magnets? • Users prefer this design

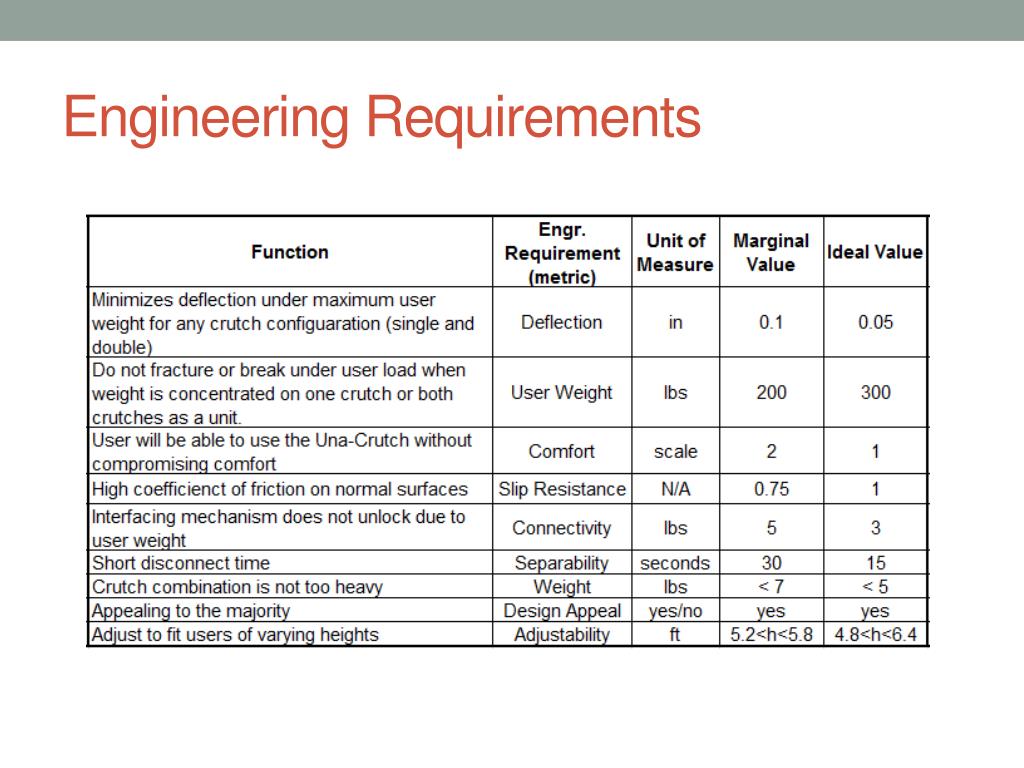

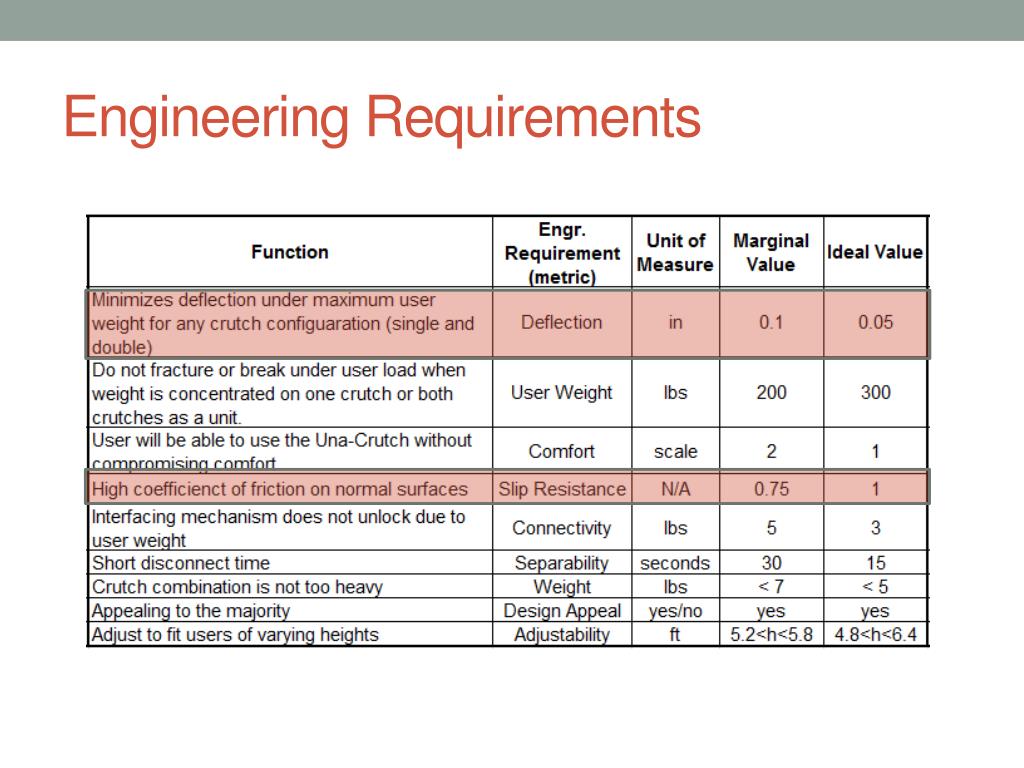

  18. Engineering Requirements

  19. Moving Forward

  20. Design for Manufacturability • Rapid Tooling Molds vs. Metal Molds • Breakeven point: 10,000 Units Source: custompart.net

  21. Project Evaluation Successes Shortfalls

  22. What We’ve Learned • Always consider bottlenecks when prototyping • Iterations with a focus on user input are necessary • Communication with the customer is important • Constant check on design drivers • Keep the solution as simple as possible • Compromise between aesthetic appeal and functionality

  23. Thank you! Our customer, Kyra Wilson-Houck The Simone Center The participants of our user feedback groups Nazareth Clinic The Multidisciplinary Senior Design faculty and staff Dan Harel and the Industrial Design faculty and staff Dr. Denis Cormier, Mike Bufflin, Rob Kraynik, Jan Maneti, and Dave Hathaway, and the Brinkman Lab faculty and staff Our guide, Dr. Beth DeBartolo

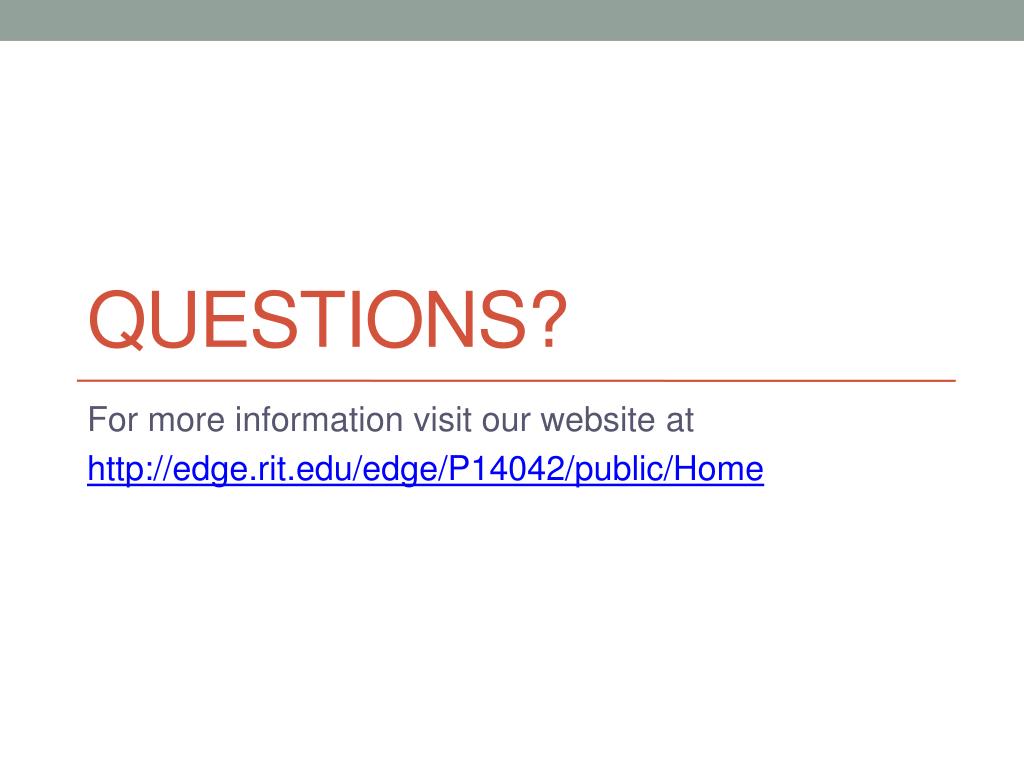

  24. Questions? For more information visit our website at http://edge.rit.edu/edge/P14042/public/Home

  25. BACKUP SLIDES

  26. The Current Situation

  27. The Una-Crutch

  28. AdditionalProject Deliverables
