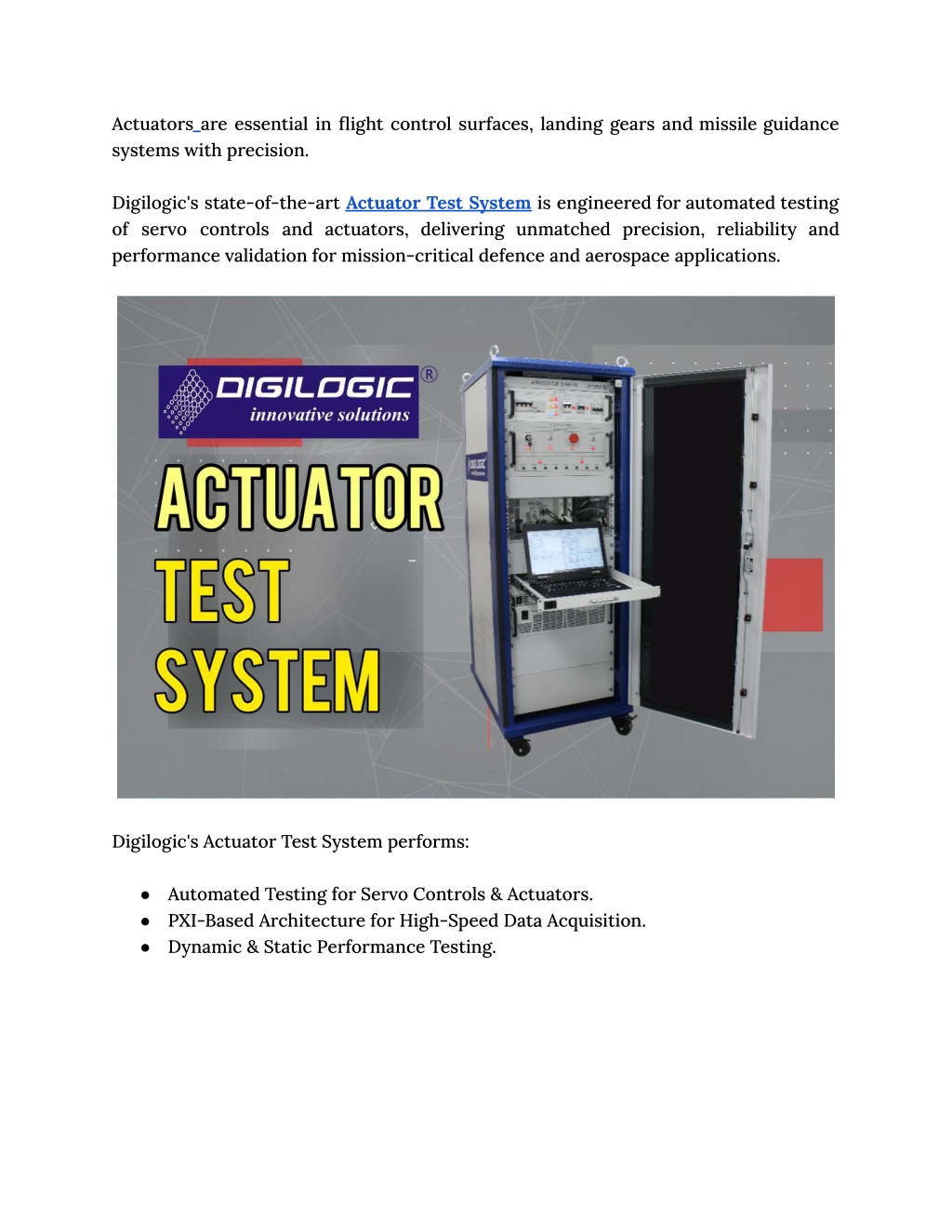

  1. Actuatorsare essential in flight control surfaces, landing gears and missile guidance systems with precision. Digilogic's state-of-the-art Actuator Test System is engineered for automated testing of servo controls and actuators, delivering unmatched precision, reliability and performance validation for mission-critical defence and aerospace applications. Digilogic's Actuator Test System performs: ● Automated Testing for Servo Controls & Actuators. ● PXI-Based Architecture for High-Speed Data Acquisition. ● Dynamic & Static Performance Testing.

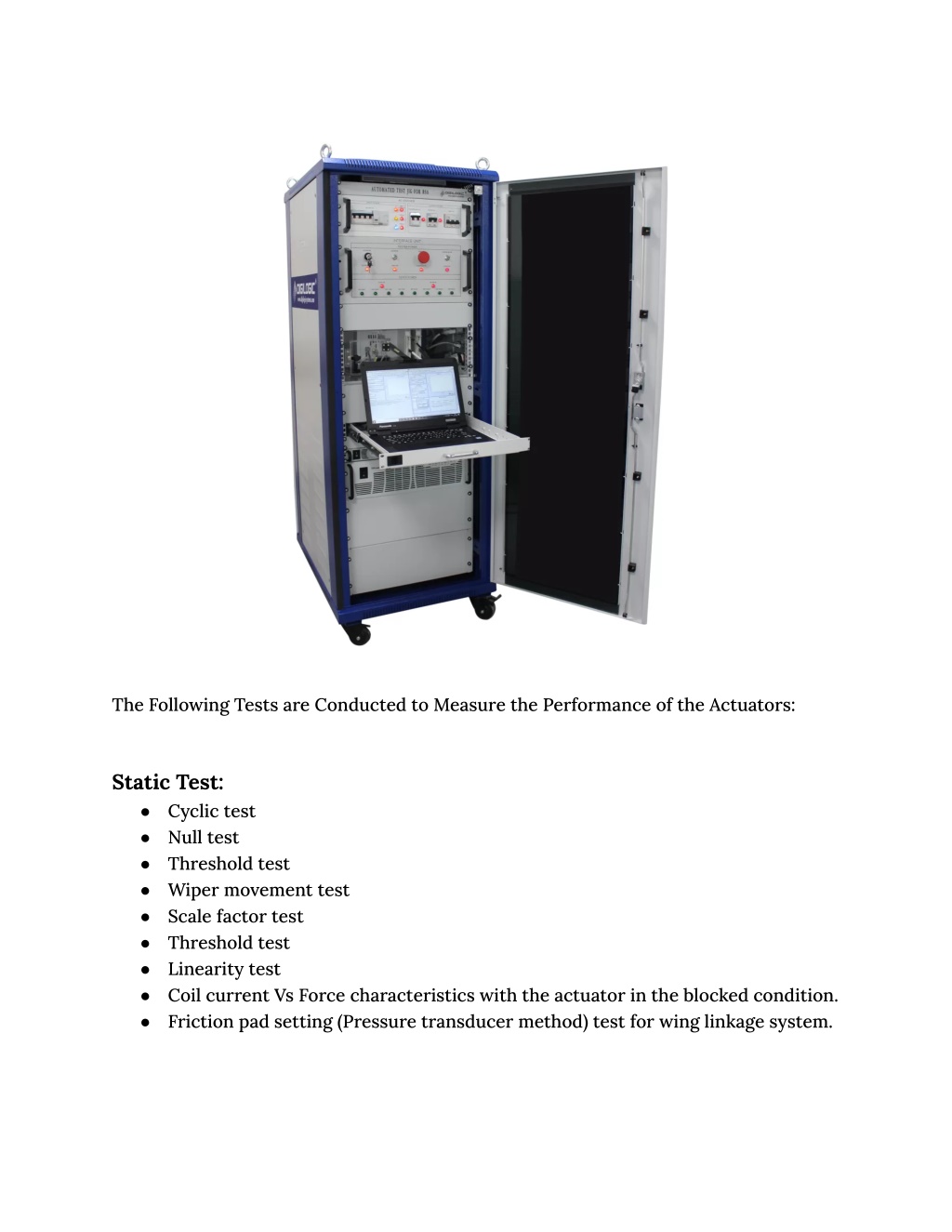

  2. The Following Tests are Conducted to Measure the Performance of the Actuators: Static Test: ● Cyclic test ● Null test ● Threshold test ● Wiper movement test ● Scale factor test ● Threshold test ● Linearity test ● Coil current Vs Force characteristics with the actuator in the blocked condition. ● Friction pad setting (Pressure transducer method) test for wing linkage system.

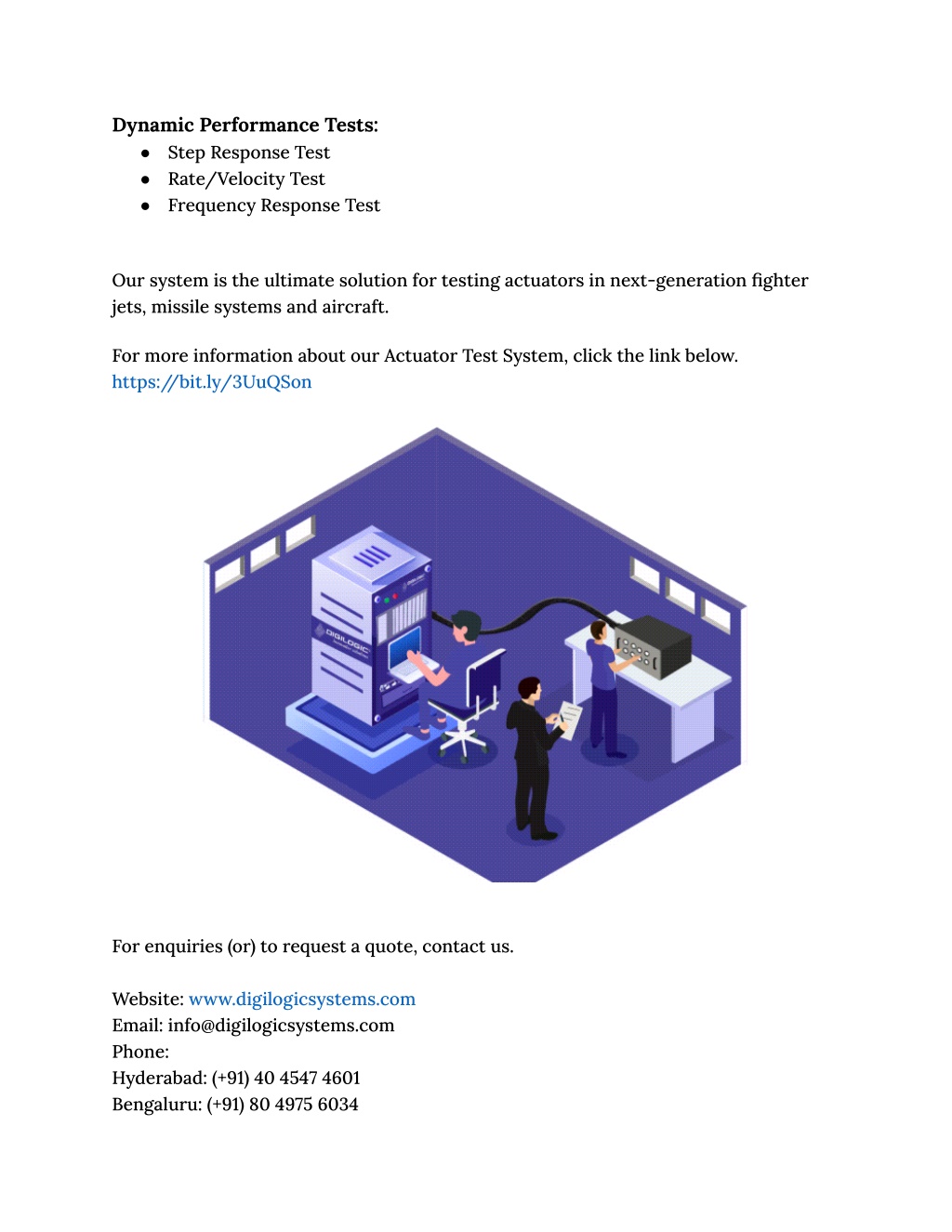

  3. Dynamic Performance Tests: ● Step Response Test ● Rate/Velocity Test ● Frequency Response Test Our system is the ultimate solution for testing actuators in next-generation fighter jets, missile systems and aircraft. For more information about our Actuator Test System, click the link below. https:/ /bit.ly/3UuQSon For enquiries (or) to request a quote, contact us. Website: www.digilogicsystems.com Email: info@digilogicsystems.com Phone: Hyderabad: (+91) 40 4547 4601 Bengaluru: (+91) 80 4975 6034
