Presentation Transcript

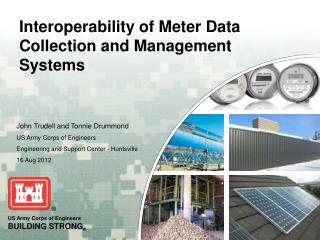

slide1

Interoperability of Meter Data Collection and Management Systems

John Trudell and Tonnie Drummond

US Army Corps of Engineers

Engineering and Support Center - Huntsville

16 Aug 2012

slide2

Advanced Meter Requirement

  • Advanced metering mandated by Energy Policy Act of 2005 (EPAct 2005), the Energy Independence and Security Act of 2007 (EISA 2007), policies, and directives.
  • Deadlines to install advanced meters
    • Electric by 30 Sep 2012 (EPAct 2005)
    • Gas and Steam by 30 Sep 2016 (EISA 2007)
  • Meter buildings with est. $35K/yr utility cost and/or 29,000 sq ft, and reimbursable tenant facilities.
slide3

End State

  • Establish the energy information infrastructure (installation energy footprint) that will enable/provide:
  • Management of smart buildings
  • Energy Managers who are energy smart and more effective to meet energy reduction goals.
  • Building occupants are energy aware and actively participate in energy reduction actions.
  • Reduce energy waste
  • Continuous improvements in energy efficiencies
  • Meet the requirements of NetZero by 2030.
slide4

Define the scope of the action

  • What data do we need to collect and analyze?
  • What is the data flow architecture?
  • What hardware and software is needed to collect and transfer data?
  • What hardware and software is currently installed and needs to be integrated into the system?
  • How will the system security (Information Assurance) be tested, implemented, and maintained?
  • Who will sustain/maintain the systems?
slide5

Installation

Meter data collection

Enterprise

Meter Data Flow

Meter Data Management

3) Transmit

raw meter data

Electric meter

1) Gas pulse counts

2) Collect

raw meter data

Gas Meter

4) Analyze meter data

Gateway server

Front End Server

1) Water pulse counts

5) Report Generation

Energy manager views data via a web portal

Security

Accreditation

Boundary

Water Meter

three challenges
Three Challenges

1) Communication – Army-wide

End State

Data Flow Architecture

  • 2) Communication – System Documentation
    • DIACAP - System Hardware/Software
    • Life Cycle Management
  • 3) Communication – Meter System Install Coordination
    • Meter Install Team (Government and Contractor)
    • Installation – Building power outage
    • IA/IT Community
slide7

Contact information

John Trudell

Program Manager – MDMS

(256) 895-1322 (w)

(256) 690-7196 (c)

john.a.trudelliii@usace.army.mil

Tonnie Drummond

IA/IT Specialist

IAM EEDRS

(256) 895-1730 (w)

(256) 690-1538 (c)

tonnie.f.drummond@usace.army.mil

US Army Corps of Engineers

Engineering and Support Center

4820 University Square

Huntsville, AL 35816-1822
