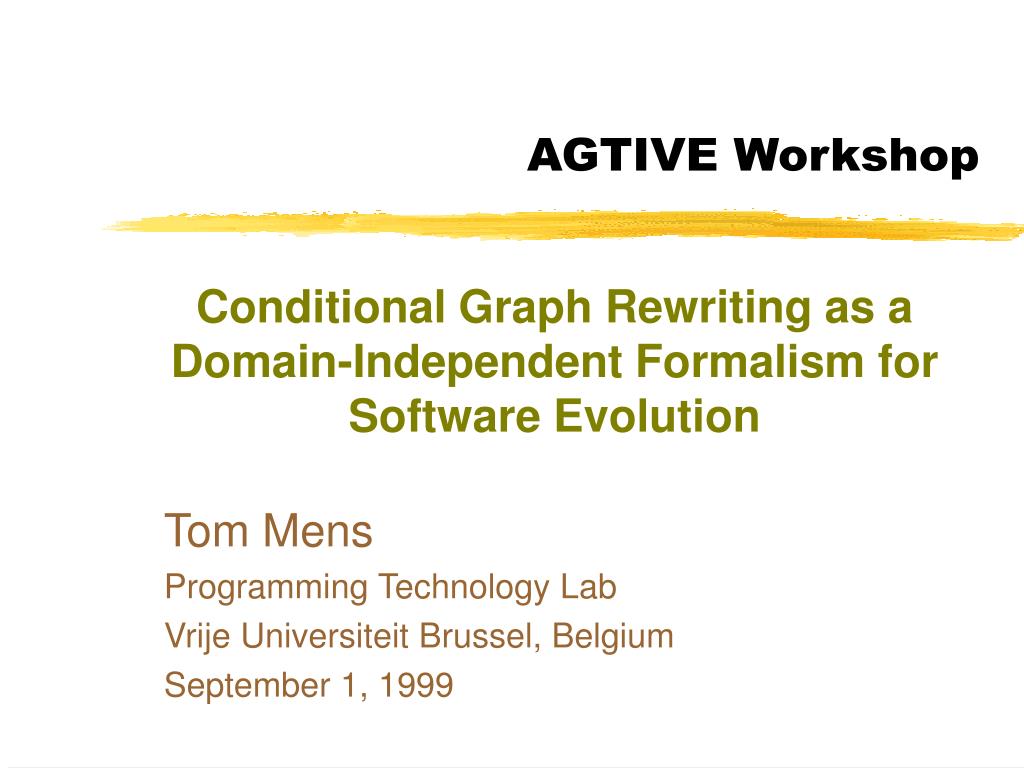

  1. AGTIVE Workshop Conditional Graph Rewriting as a Domain-Independent Formalism for Software Evolution Tom Mens Programming Technology Lab Vrije Universiteit Brussel, Belgium September 1, 1999

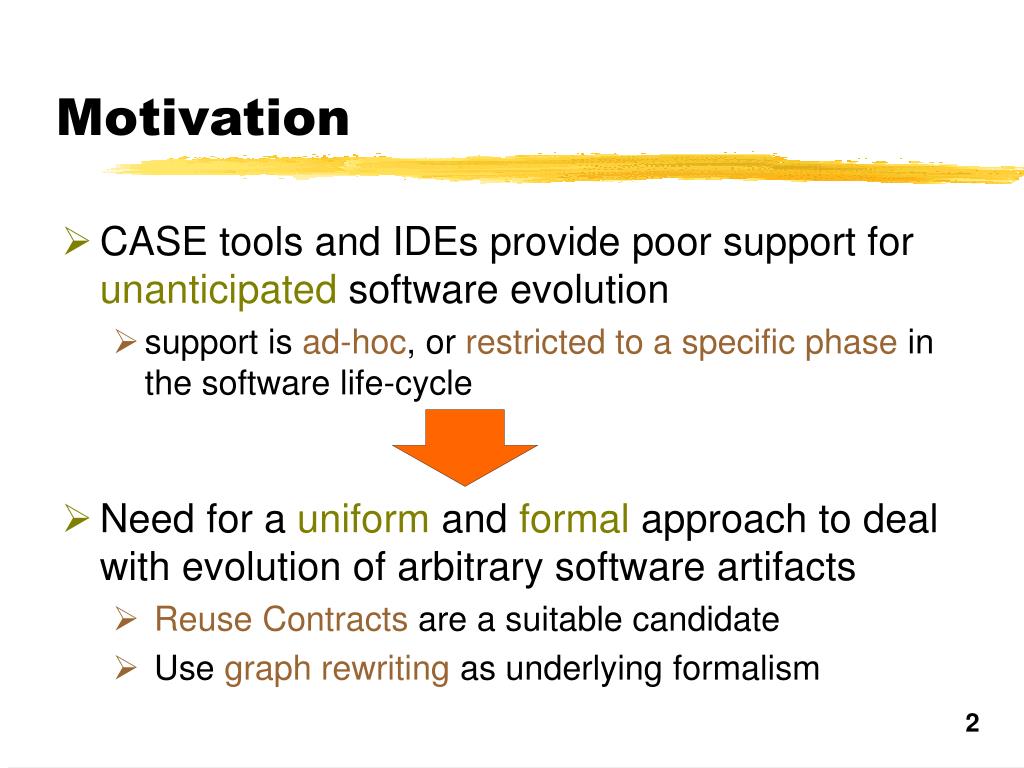

  2. Motivation • CASE tools and IDEs provide poor support for unanticipated software evolution • support is ad-hoc, or restricted to a specific phase in the software life-cycle • Need for a uniform and formal approach to deal with evolution of arbitrary software artifacts • Reuse Contracts are a suitable candidate • Use graph rewriting as underlying formalism

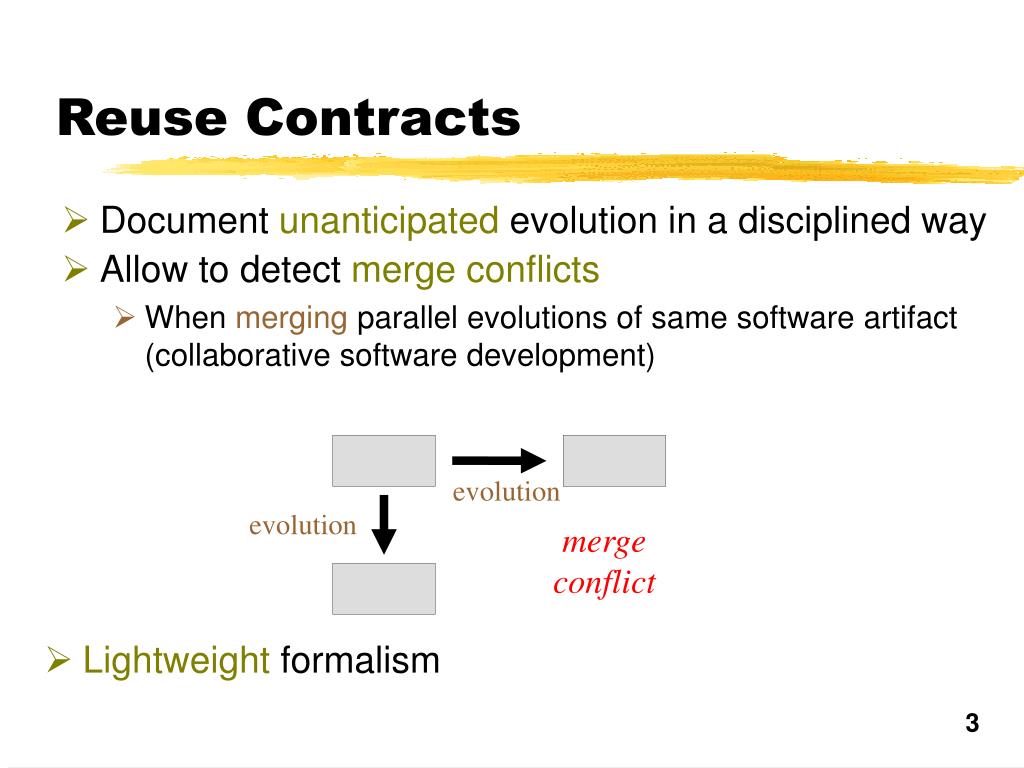

  3. evolution evolution merge conflict Reuse Contracts • Document unanticipatedevolution in a disciplined way • Allow to detect merge conflicts • When mergingparallel evolutions of same software artifact (collaborative software development) • Lightweight formalism

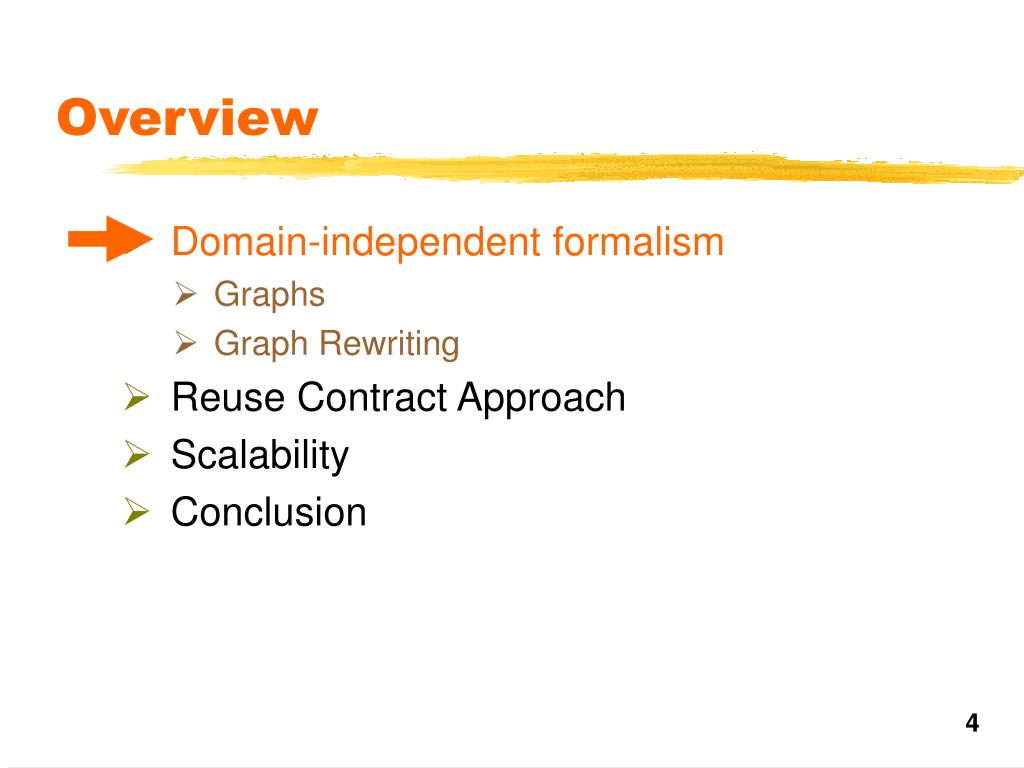

  4. Overview • Domain-independent formalism • Graphs • Graph Rewriting • Reuse Contract Approach • Scalability • Conclusion

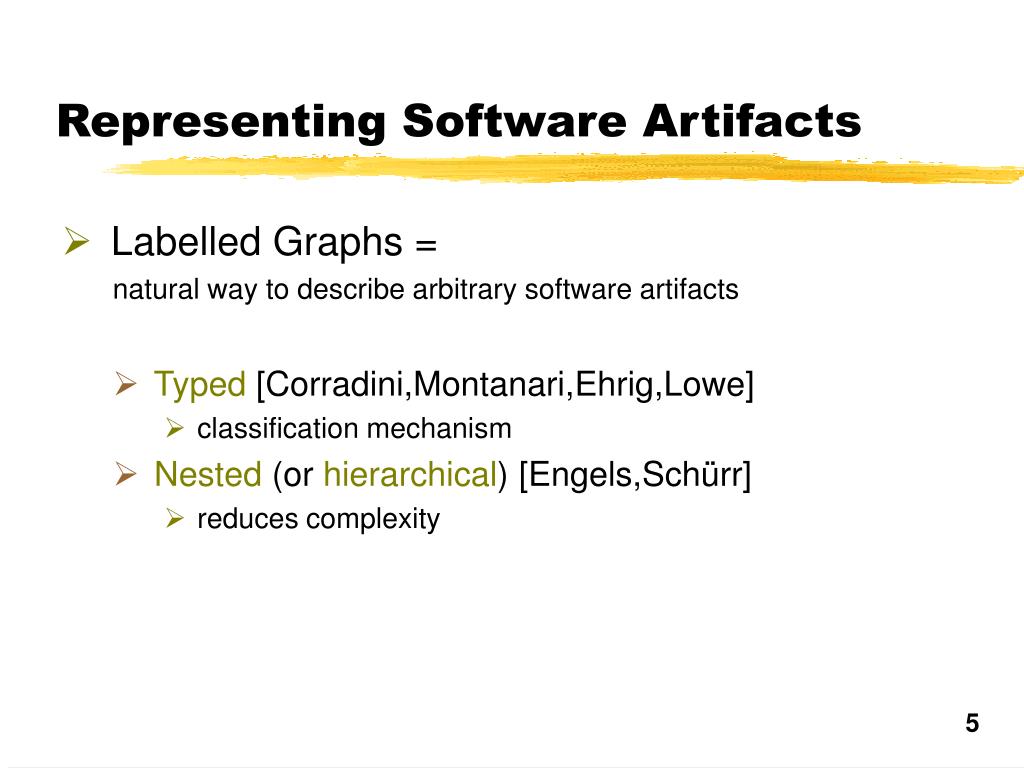

  5. Representing Software Artifacts • Labelled Graphs = natural way to describe arbitrary software artifacts • Typed[Corradini,Montanari,Ehrig,Lowe] • classification mechanism • Nested (or hierarchical) [Engels,Schürr] • reduces complexity

  6. Internal Graph Representation • Example: UML class diagram G Geo«class» Point «class» area «operation» «assoc» x«attribute» center circumference«operation» y«attribute» Geo Point center -x distanceTo«operation» -y +area() «isa» «isa» +distanceTo(p: Point) +circumference() «hasa» {3} vertices 3 Circle «class» Triangle «class» radius «attribute» vertices Circle intersects«operation» -radius +intersects(c: Circle) Triangle Graphs • Node types: • «class» • «attribute» • «operation» • «interface» • Edge types: • «assoc» • «hasa» (aggregation) • «isa» (generalisation) • «implements»

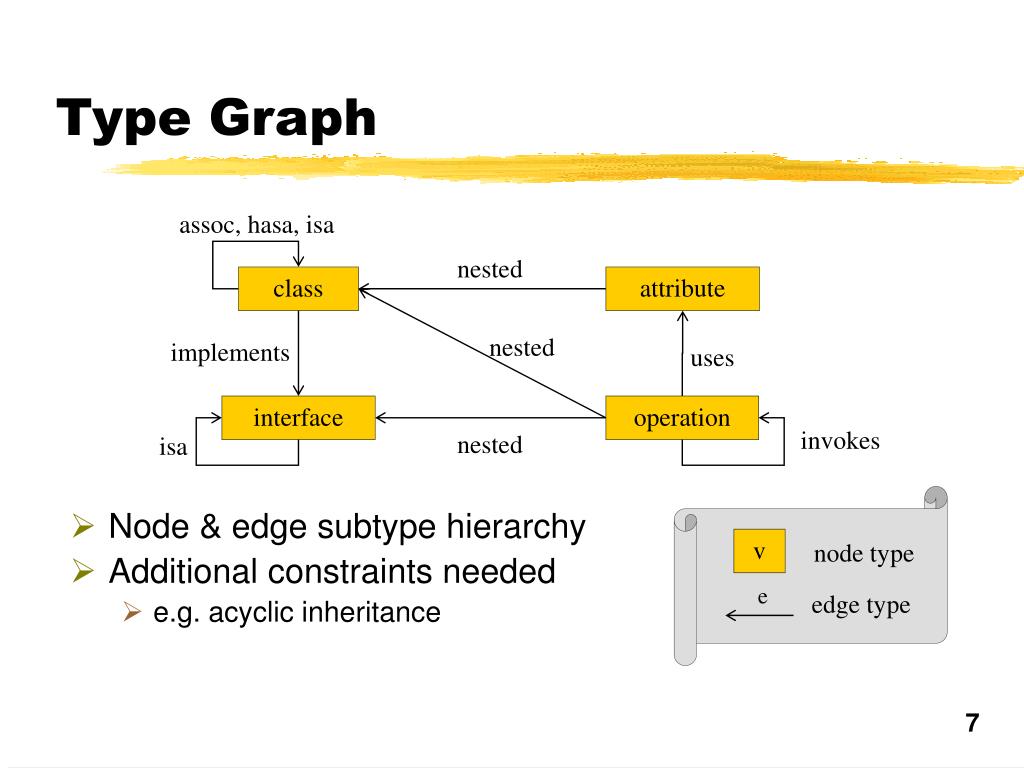

  7. assoc, hasa, isa nested class attribute nested implements uses interface operation invokes nested isa v node type e edge type Type Graph • Node & edge subtype hierarchy • Additional constraints needed • e.g. acyclic inheritance

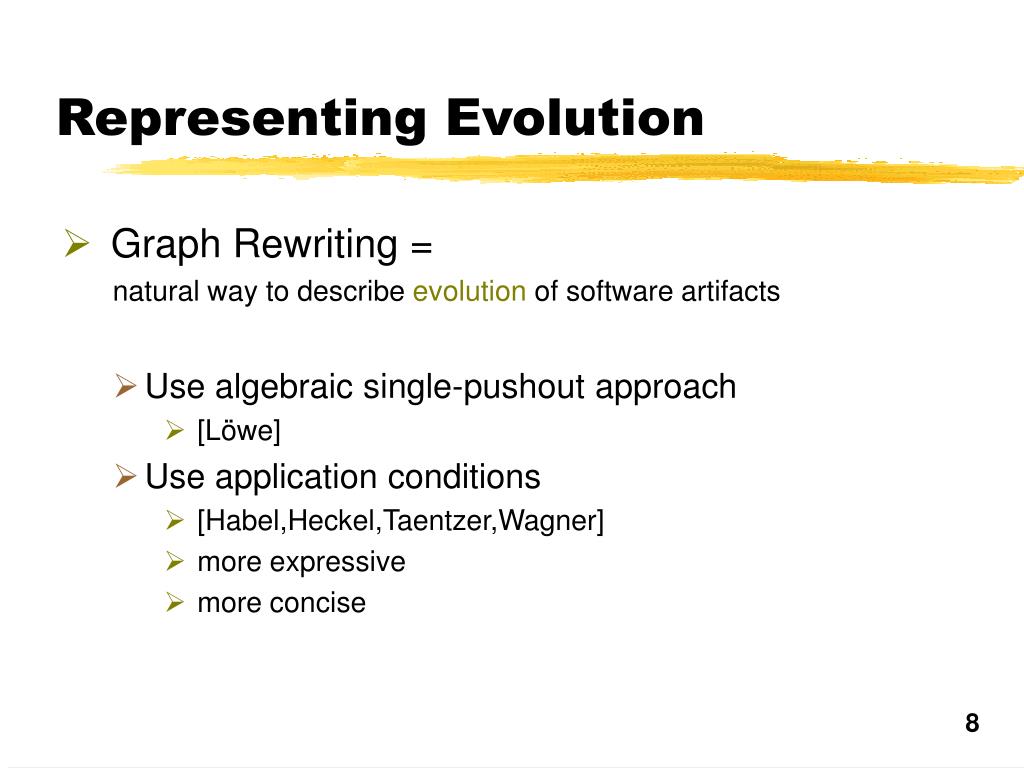

  8. Representing Evolution • Graph Rewriting = natural way to describe evolution of software artifacts • Use algebraic single-pushout approach • [Löwe] • Use application conditions • [Habel,Heckel,Taentzer,Wagner] • more expressive • more concise

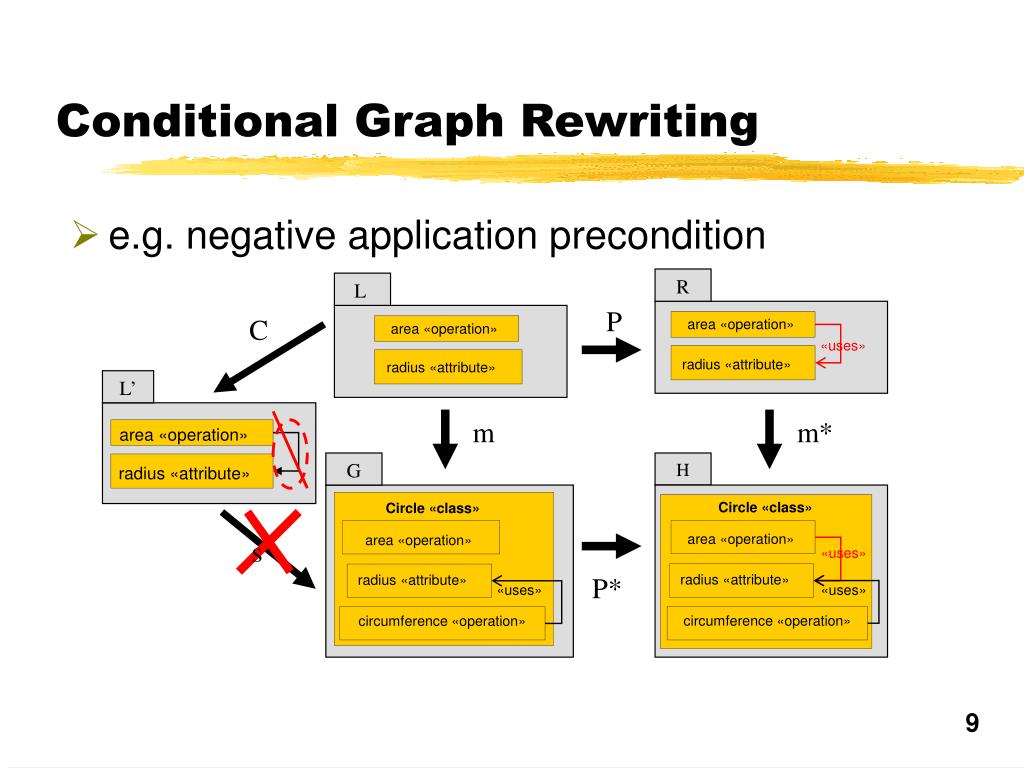

  9. e.g. negative application precondition C R L P area «operation» area «operation» «uses» radius «attribute» radius «attribute» m m* L’ G H area «operation» s Circle «class» Circle «class» radius «attribute» area «operation» area «operation» «uses» P* radius «attribute» radius «attribute» «uses» «uses» circumference«operation» circumference«operation» Conditional Graph Rewriting

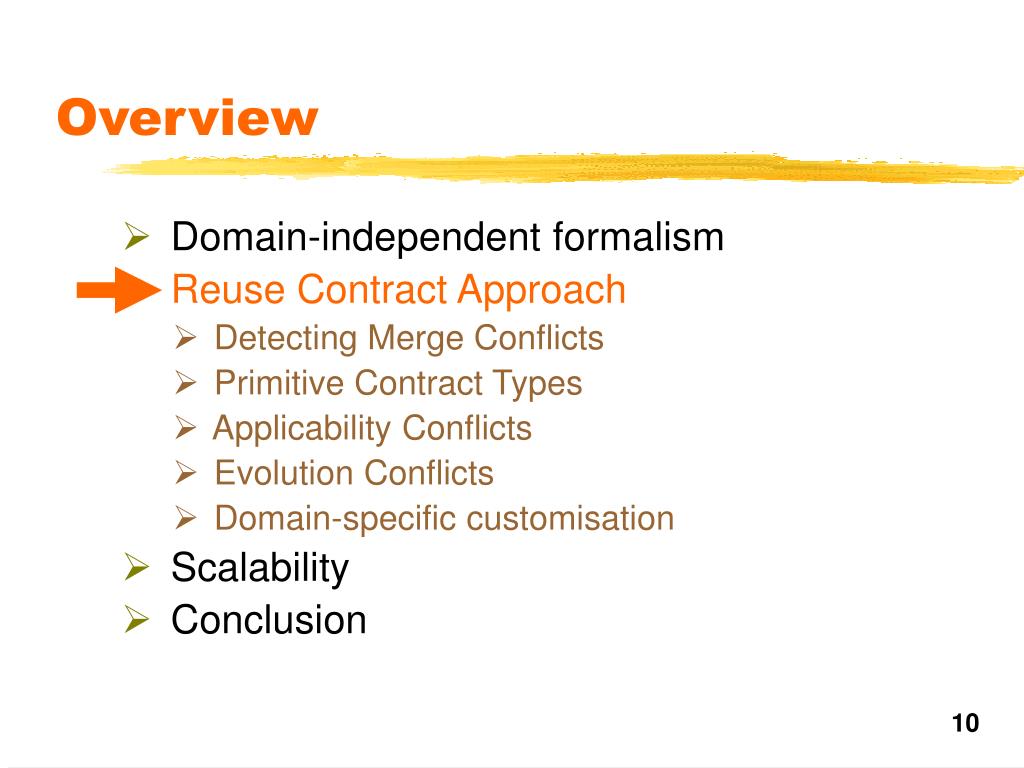

  10. Overview • Domain-independent formalism • Reuse Contract Approach • Detecting Merge Conflicts • Primitive Contract Types • Applicability Conflicts • Evolution Conflicts • Domain-specific customisation • Scalability • Conclusion

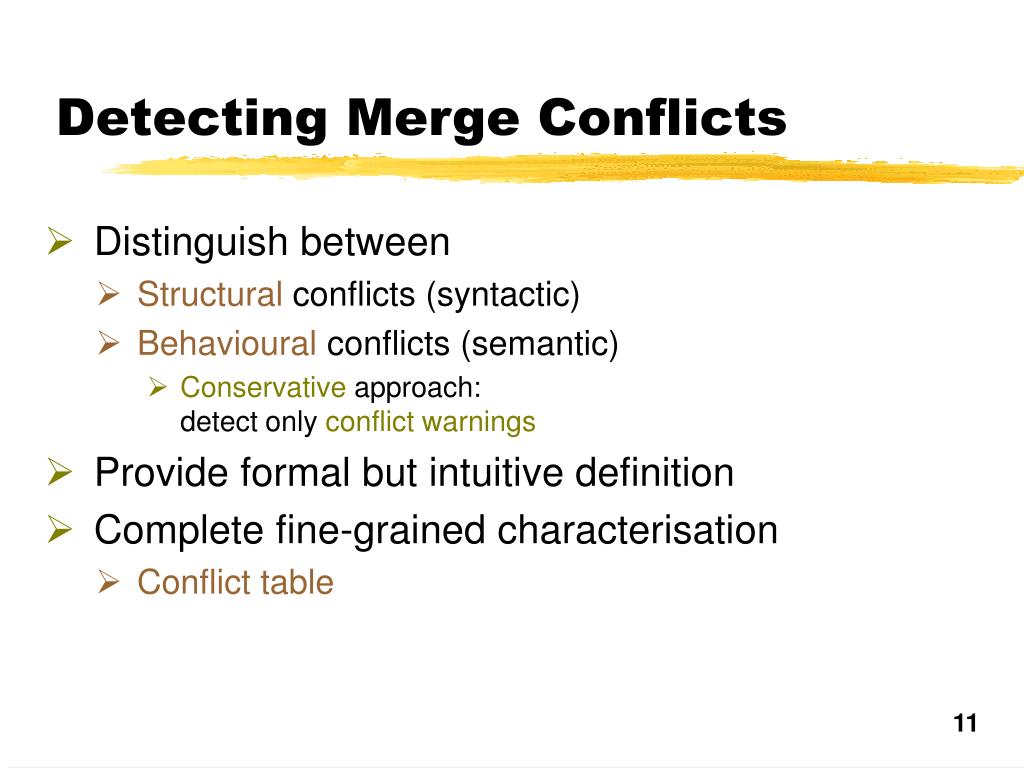

  11. Detecting Merge Conflicts • Distinguish between • Structural conflicts (syntactic) • Behavioural conflicts (semantic) • Conservative approach: detect only conflict warnings • Provide formal but intuitive definition • Complete fine-grained characterisation • Conflict table

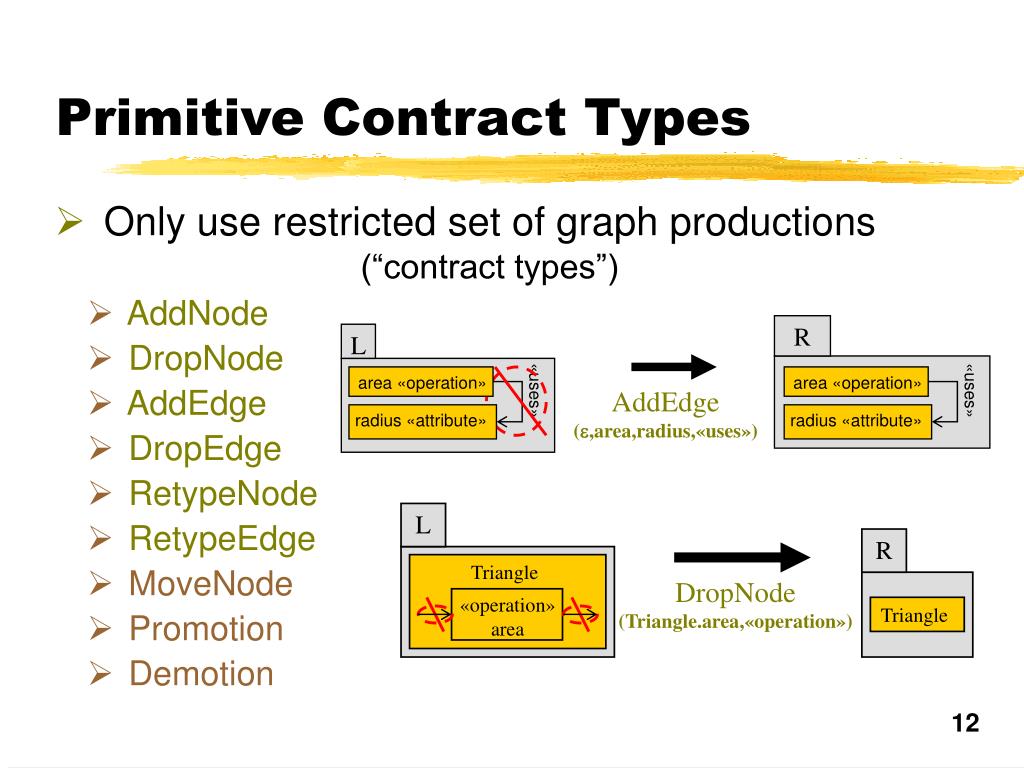

  12. R R L Triangle area «operation» area «operation» «uses» «uses» AddEdge (e,area,radius,«uses») radius «attribute» radius «attribute» L Triangle DropNode (Triangle.area,«operation») «operation» area Primitive Contract Types • Only use restricted set of graph productions(“contract types”) • AddNode • DropNode • AddEdge • DropEdge • RetypeNode • RetypeEdge • MoveNode • Promotion • Demotion

  13. G G1 Circle «class» Circle «class» area «operation» area «operation» «uses» radius «attribute» radius «attribute» «uses» «uses» circumference«operation» circumference«operation» P2 G2 P1 = AddEdge(e,area,radius,«uses») <<uses>> Circle «class» P1 P2 = DropNode(Circle.area, «operation») Undefined source conflict radius «attribute» «uses» circumference«operation» Structural Conflicts • Def.: “Applicability” conflict if P1 and P2 not parallel independent • P1 and P2 cannot be sequentialised because of application conditions P1 P2

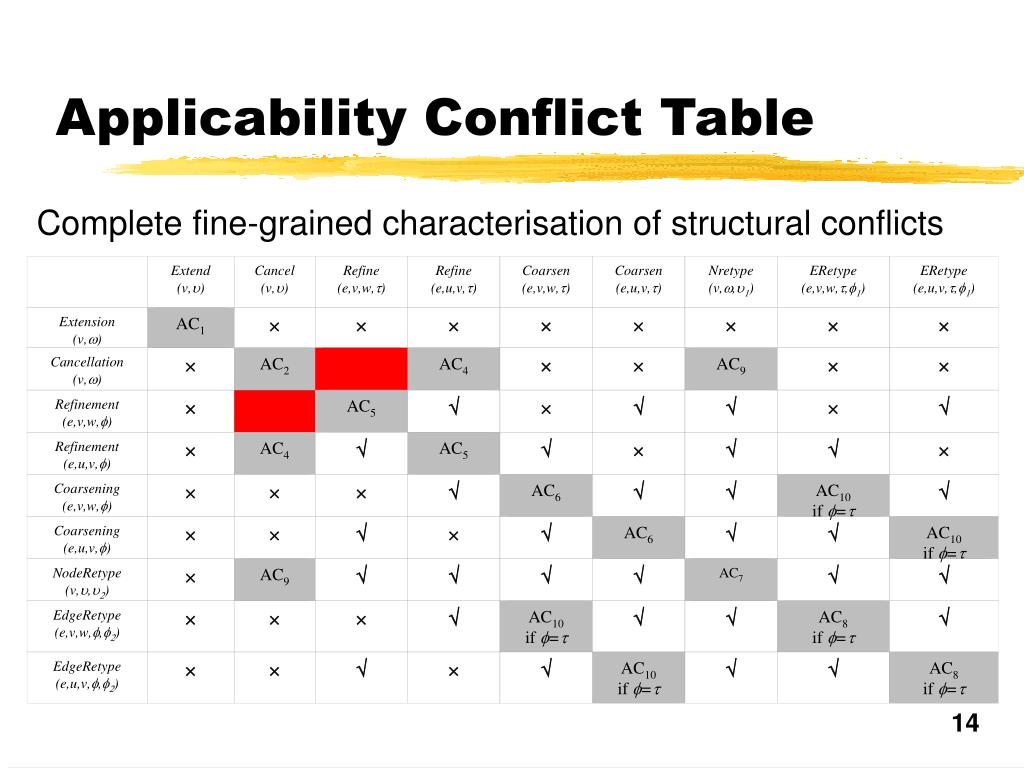

  14. Extend(v,) Cancel(v,) Refine(e,v,w,) Refine(e,u,v,) Coarsen(e,v,w,) Coarsen(e,u,v,) Nretype(v,,1) ERetype(e,v,w,,1) ERetype(e,u,v,,1) Extension(v,) AC1         Cancellation(v,)  AC2 AC3 AC4   AC9   Refinement(e,v,w,)  AC3 AC5       Refinement(e,u,v,)  AC4  AC5      Coarsening(e,v,w,)     AC6   AC10if =  Coarsening(e,u,v,)      AC6   AC10if = NodeRetype(v,,2)  AC9     AC7   EdgeRetype(e,v,w,,2)     AC10if =   AC8if =  EdgeRetype(e,u,v,,2)      AC10if =   AC8if = Applicability Conflict Table Complete fine-grained characterisation of structural conflicts

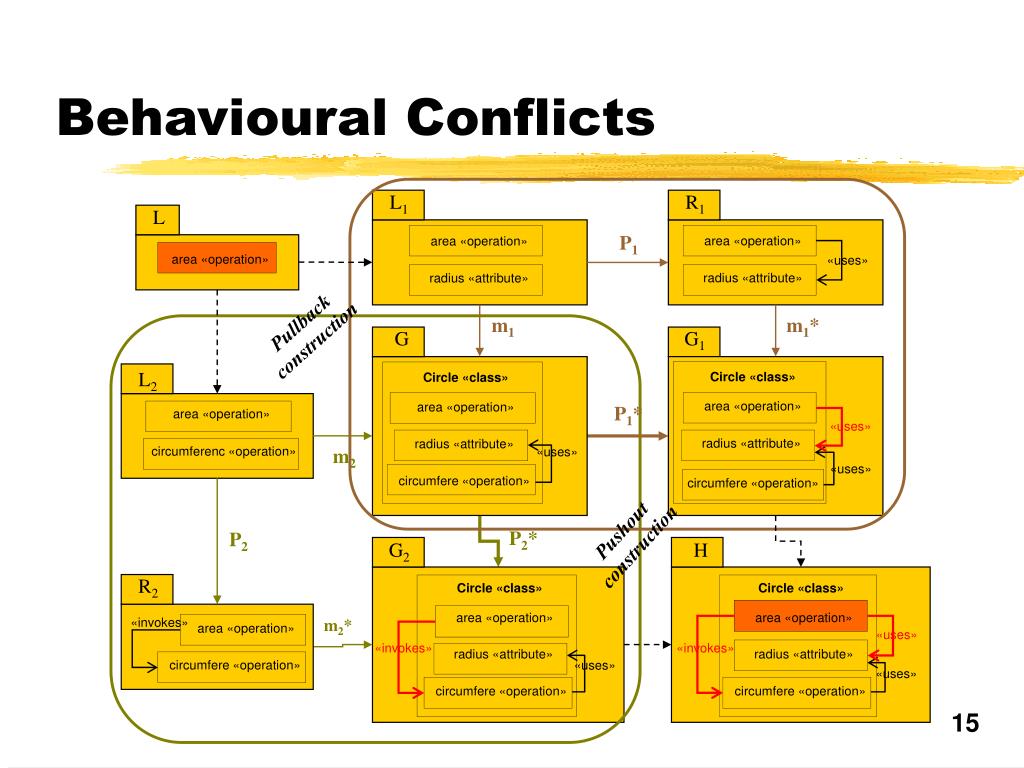

  15. L1 R1 L P1 area «operation» area «operation» area «operation» «uses» radius «attribute» radius «attribute» Pullback construction m1 m1* G G1 L2 Circle «class» Circle «class» area «operation» area «operation» P1* area «operation» «uses» radius «attribute» radius «attribute» circumferenc «operation» m2 «uses» «uses» circumfere «operation» circumfere «operation» Pushout construction P2* P2 G2 H R2 Circle «class» Circle «class» area «operation» area «operation» «invokes» m2* area «operation» «uses» «invokes» «invokes» radius «attribute» radius «attribute» circumfere «operation» «uses» «uses» circumfere «operation» circumfere «operation» Behavioural Conflicts

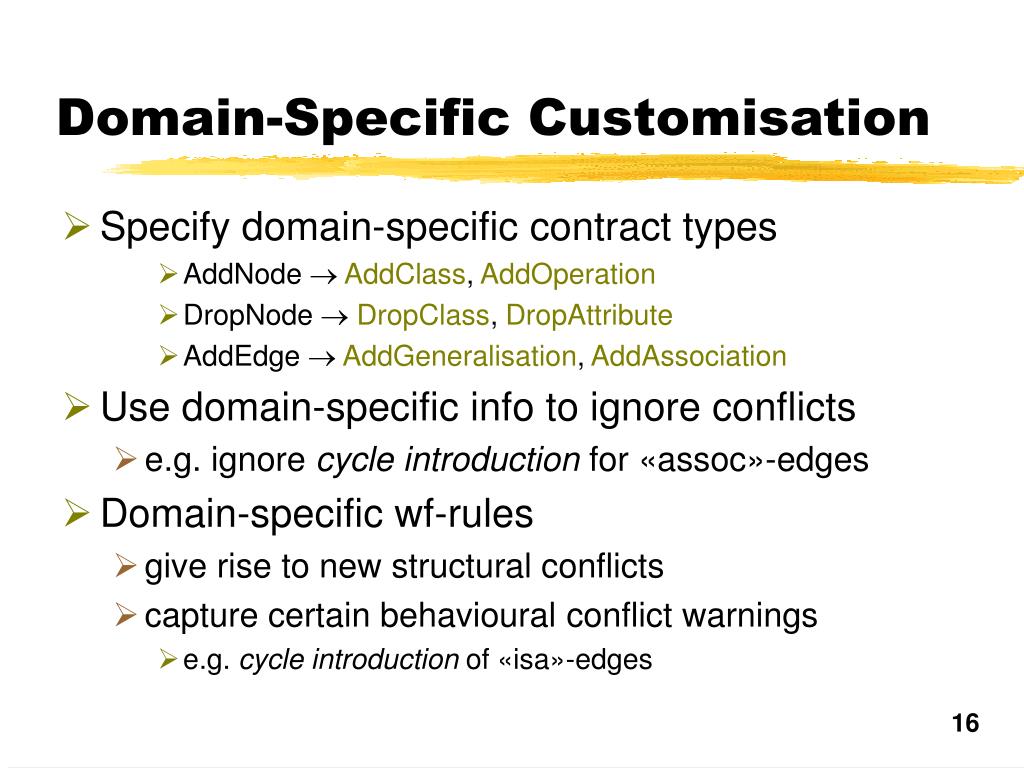

  16. Domain-Specific Customisation • Specify domain-specific contract types • AddNode AddClass, AddOperation • DropNode DropClass, DropAttribute • AddEdge AddGeneralisation, AddAssociation • Use domain-specific info to ignore conflicts • e.g. ignore cycle introduction for «assoc»-edges • Domain-specific wf-rules • give rise to new structural conflicts • capture certain behavioural conflict warnings • e.g. cycle introduction of «isa»-edges

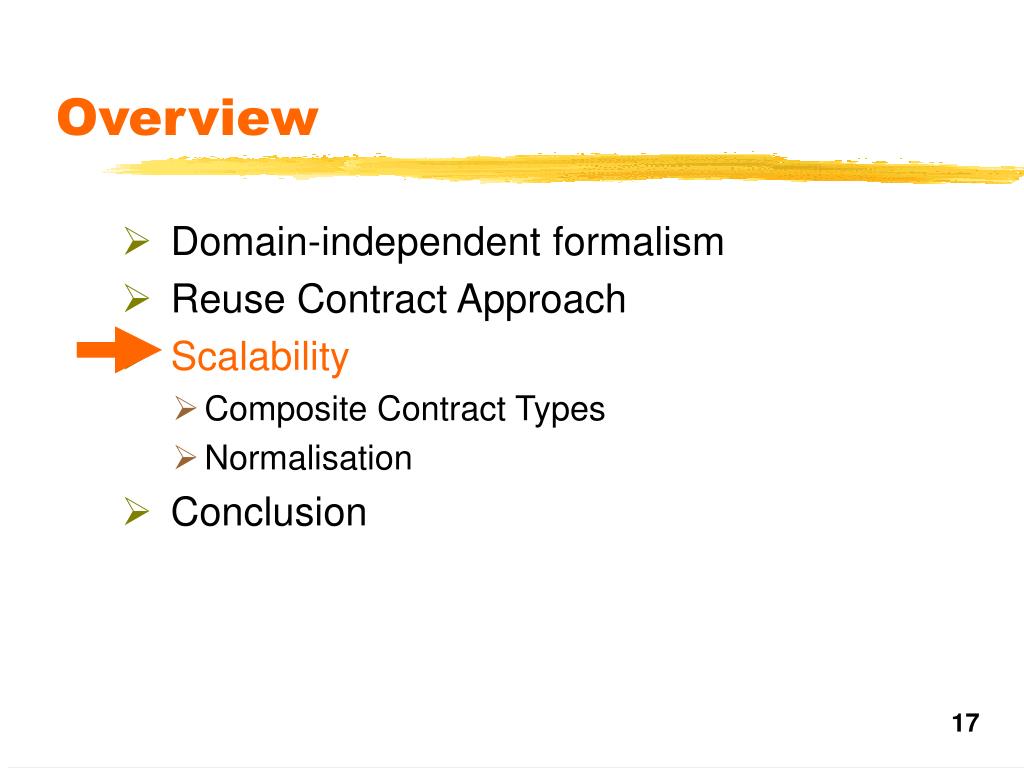

  17. Overview • Domain-independent formalism • Reuse Contract Approach • Scalability • Composite Contract Types • Normalisation • Conclusion

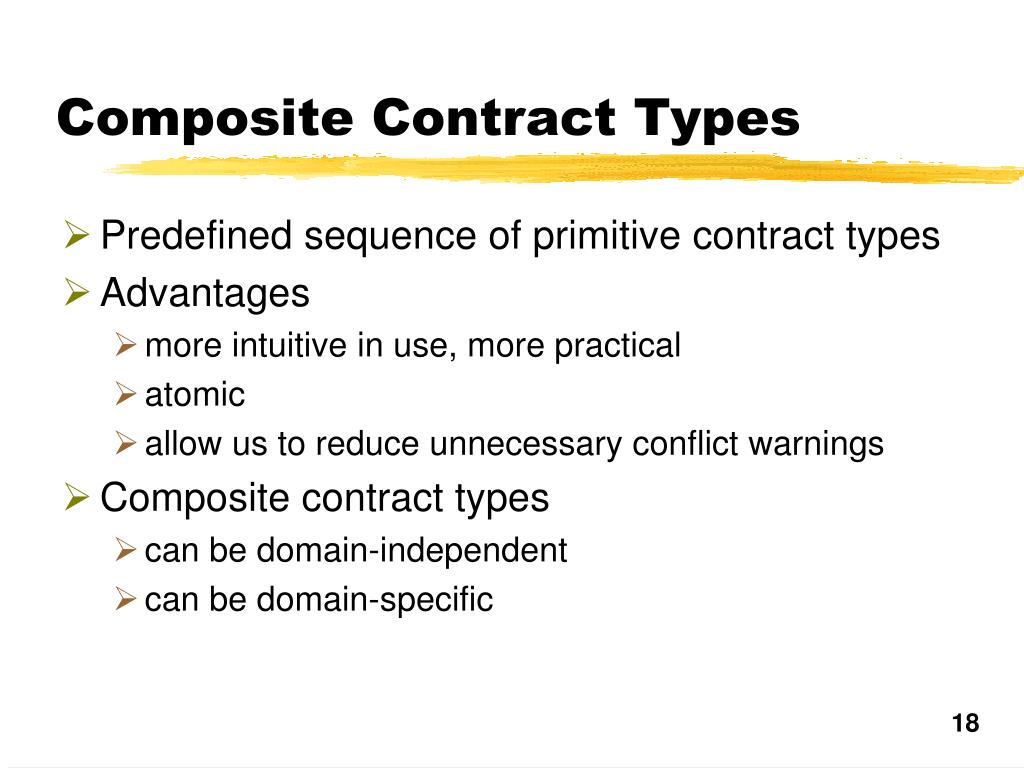

  18. Composite Contract Types • Predefined sequence of primitive contract types • Advantages • more intuitive in use, more practical • atomic • allow us to reduce unnecessary conflict warnings • Composite contract types • can be domain-independent • can be domain-specific

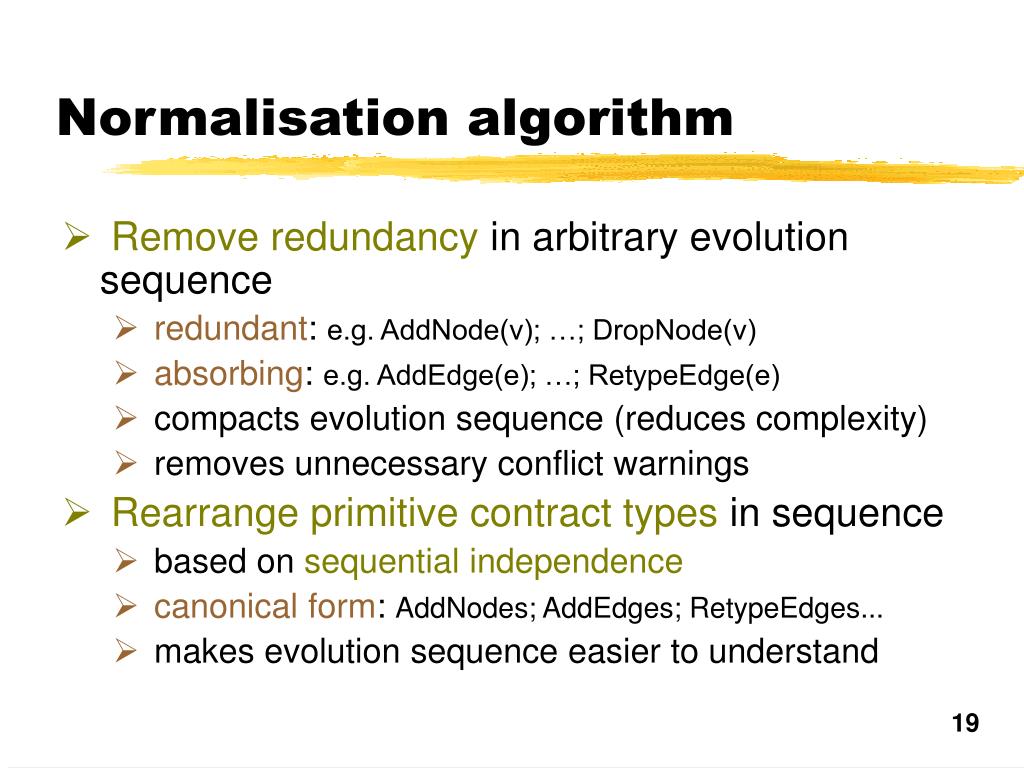

  19. Normalisation algorithm • Remove redundancy in arbitrary evolution sequence • redundant: e.g. AddNode(v); …; DropNode(v) • absorbing: e.g. AddEdge(e); …; RetypeEdge(e) • compacts evolution sequence (reduces complexity) • removes unnecessary conflict warnings • Rearrange primitive contract types in sequence • based on sequential independence • canonical form: AddNodes; AddEdges; RetypeEdges... • makes evolution sequence easier to understand

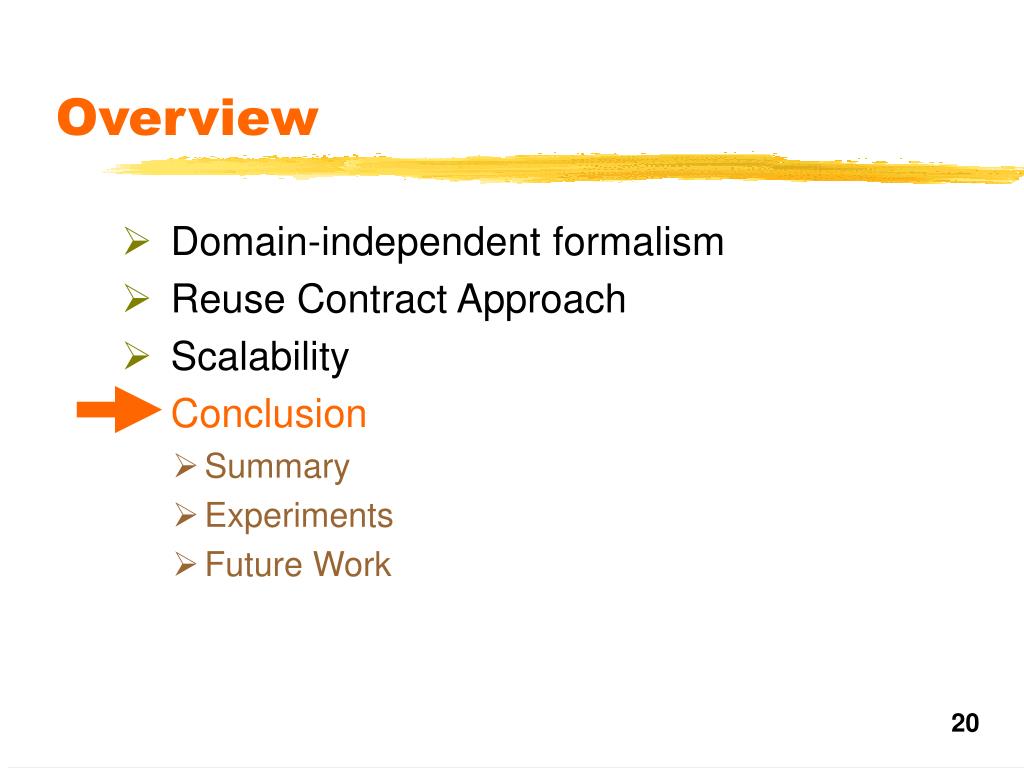

  20. Overview • Domain-independent formalism • Reuse Contract Approach • Scalability • Conclusion • Summary • Experiments • Future Work

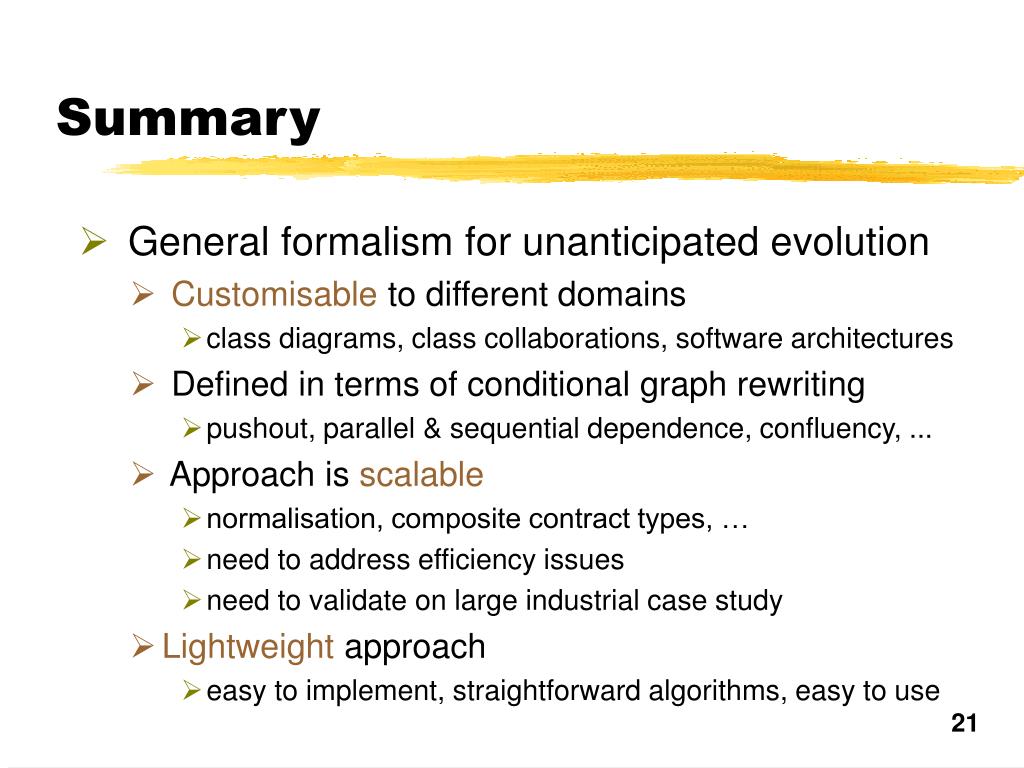

  21. Summary • General formalism for unanticipated evolution • Customisable to different domains • class diagrams, class collaborations, software architectures • Defined in terms of conditional graph rewriting • pushout, parallel & sequential dependence, confluency, ... • Approach is scalable • normalisation, composite contract types, … • need to address efficiency issues • need to validate on large industrial case study • Lightweight approach • easy to implement, straightforward algorithms, easy to use

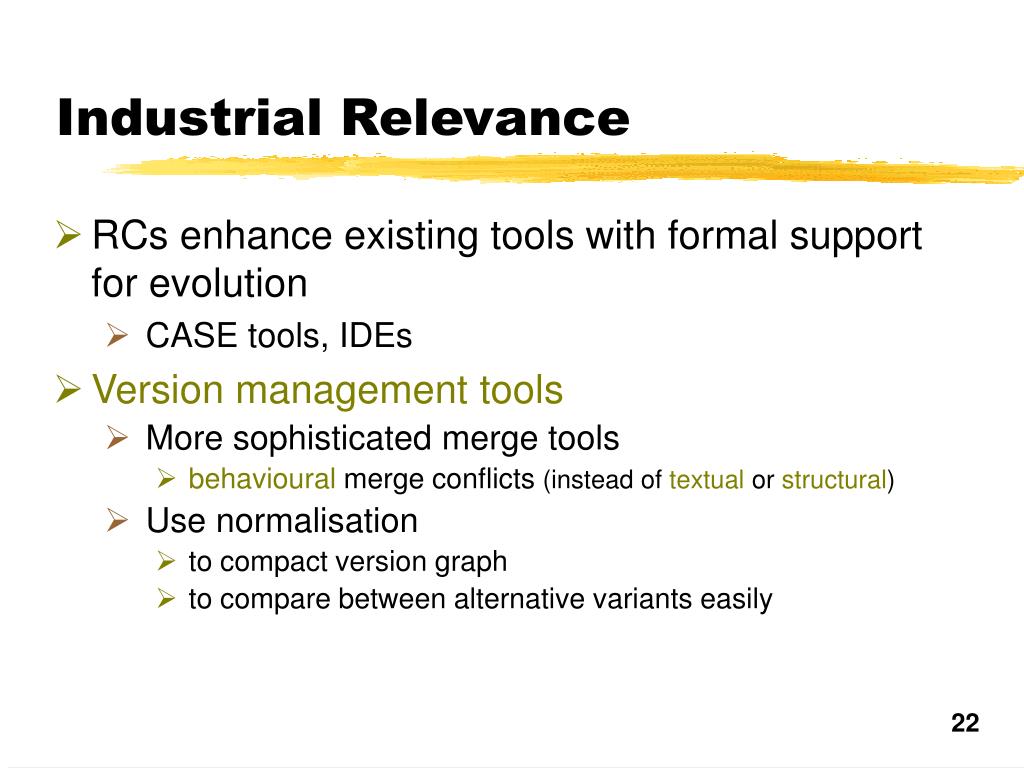

  22. Industrial Relevance • RCs enhance existing tools with formal support for evolution • CASE tools, IDEs • Version management tools • More sophisticated merge tools • behavioural merge conflicts (instead of textual or structural) • Use normalisation • to compact version graph • to compare between alternative variants easily

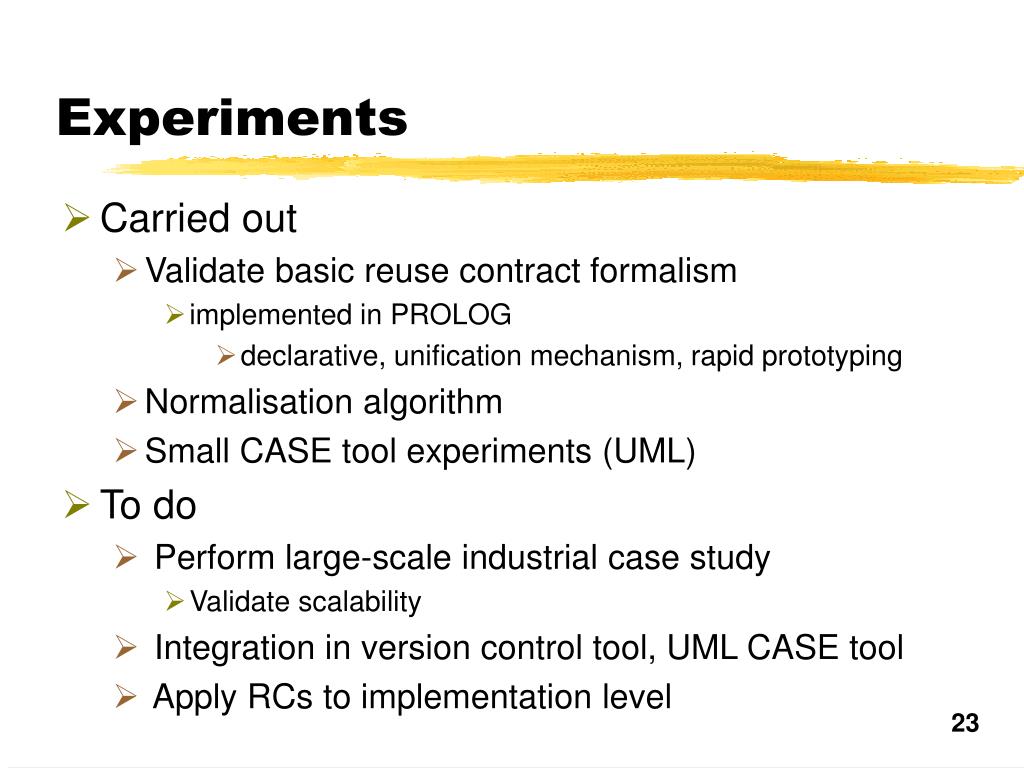

  23. Experiments • Carried out • Validate basic reuse contract formalism • implemented in PROLOG • declarative, unification mechanism, rapid prototyping • Normalisation algorithm • Small CASE tool experiments (UML) • To do • Perform large-scale industrial case study • Validate scalability • Integration in version control tool, UML CASE tool • Apply RCs to implementation level

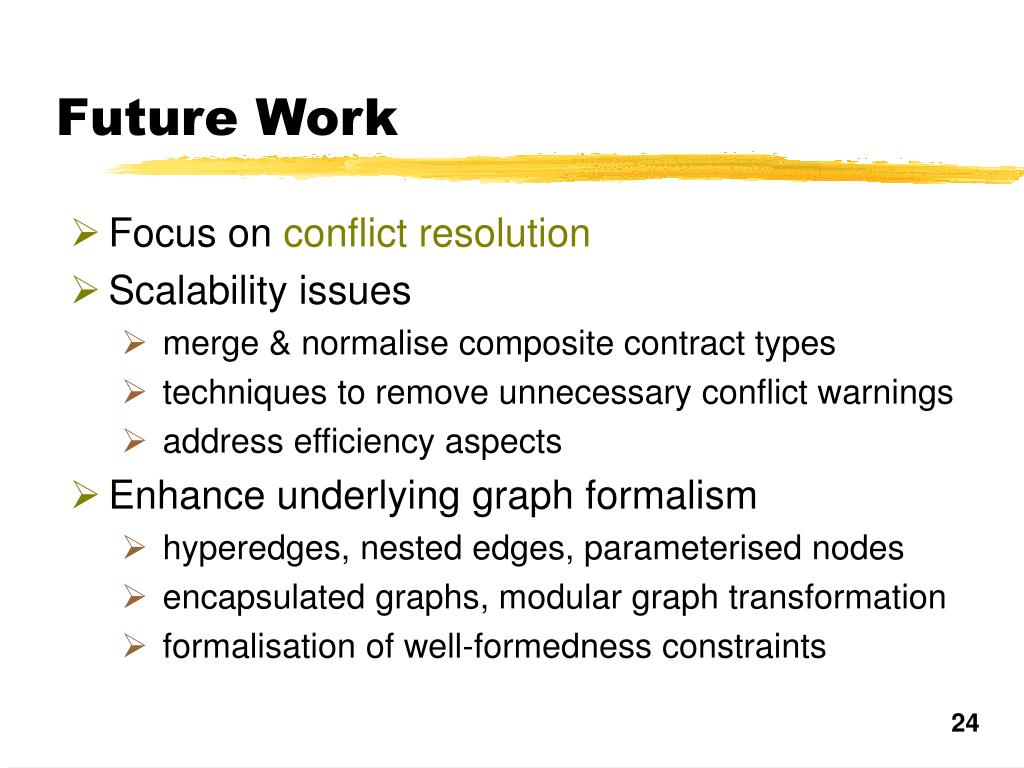

  24. Future Work • Focus on conflict resolution • Scalability issues • merge & normalise composite contract types • techniques to remove unnecessary conflict warnings • address efficiency aspects • Enhance underlying graph formalism • hyperedges, nested edges, parameterised nodes • encapsulated graphs, modular graph transformation • formalisation of well-formedness constraints
