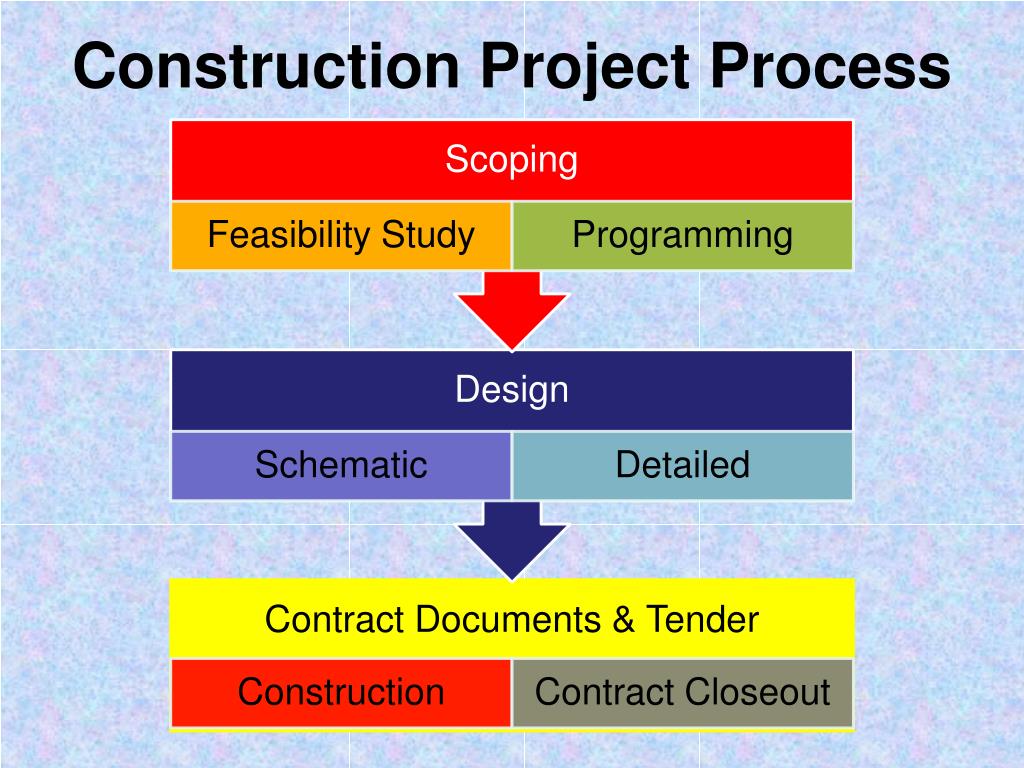

CONSTRUCTION DOCUMENTS. By Witoon Keoma B.Eng. Civil Engineering ( K.U. ) M.Sc. Construction Engineering ( U. of Leeds U.K. ). Construction Project Process. Composition of Project Construction Documents. Project Initiation Documents Detailed Design Documents Tendering Process Documents

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'CONSTRUCTION DOCUMENTS' - dexter-kennedy


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
construction documents

CONSTRUCTION DOCUMENTS

By

Witoon Keoma

B.Eng. Civil Engineering ( K.U. )

M.Sc. Construction Engineering ( U. of Leeds U.K. )

composition of project construction documents

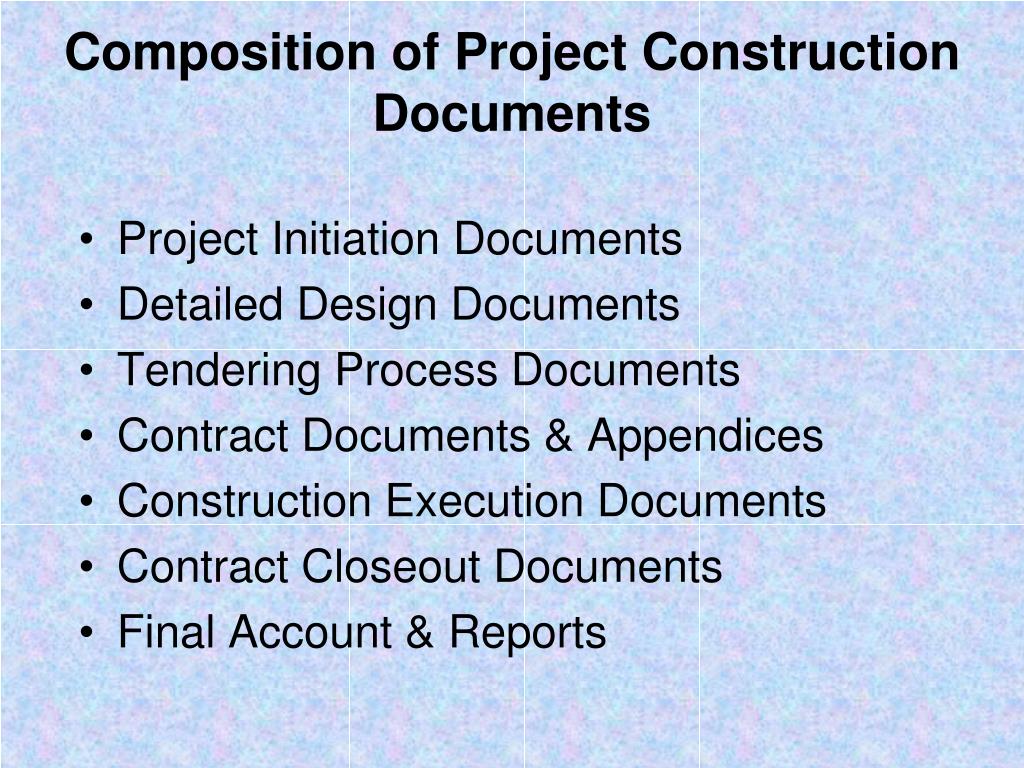

Composition of Project Construction Documents
  • Project Initiation Documents
  • Detailed Design Documents
  • Tendering Process Documents
  • Contract Documents & Appendices
  • Construction Execution Documents
  • Contract Closeout Documents
  • Final Account & Reports
project initiation documents
Project Initiation Documents
  • Project Initiation & Feasibility Studies
  • Conceptual , Budgeting & Detailed Design

Pre-Qualification Invitation Issuance

  • Term of References ( TOR )
  • Technical Proposal
  • Evaluation Criteria for Technical Proposal
  • Tender Documents
  • Evaluation Criteria for Tender
  • Project Financial Obligation Documents
detailed design documents
Detailed Design Documents
  • Design Scope and Concept Requirements
  • Design Standards and Specification
  • Sequential Diagrams
  • Calculation Sheets
  • Cost Estimates
  • Drawings and Associated Documents
  • Construction Specification and Standards
  • Professional Registrations and Permits
  • User Interfacing Design Reports
tendering process documents
Tendering Process Documents
  • Consultants & Contractors PQ Documents
  • Terms of Reference & Technical Proposal
  • Tender Invitation & Bid Clarification
  • Technical & Financial Tender Documents
  • Evaluation for Technical & Financial Offers
  • Prices Negotiation & Contract Documents Preparation
  • Awarded The Contract & N.T.P
contract documents appendices
Contract Documents & Appendices
  • Form of Contract Agreement
  • General Conditions of Contract
  • Particular Conditions of Contract
  • Drawings
  • Specifications
  • Bill of Quantity and Contract Prices
  • Technical Proposal and Attachments
  • Organization Registration and Requested Papers
construction execution documents

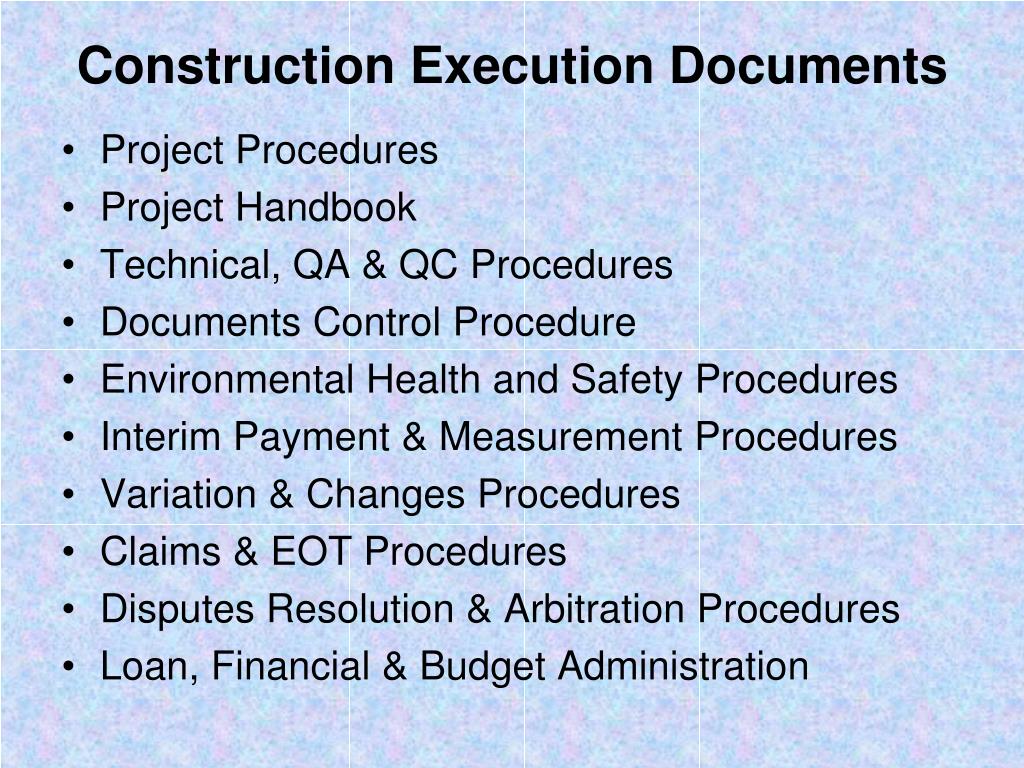

Construction Execution Documents
  • Project Procedures
  • Project Handbook
  • Technical, QA & QC Procedures
  • Documents Control Procedure
  • Environmental Health and Safety Procedures
  • Interim Payment & Measurement Procedures
  • Variation & Changes Procedures
  • Claims & EOT Procedures
  • Disputes Resolution & Arbitration Procedures
  • Loan, Financial & Budget Administration
contract closeout documents
Contract Closeout Documents
  • Instructions & Variation Orders Procedure
  • Substantial Completion Certificates
  • Completion Reports of Outstanding Works
  • Taking Over Procedures
  • Test & Commissioning Certificates
  • O & M Manuals Submission
  • As-Built Drawings
  • Defect & Liability Settlement Reports
final account reports
Final Account & Reports
  • Defect & Liability Certificates
  • Releasing of Bonds & Guarantees
  • Releasing of Retention Money
  • Balance Account with Breakdown Final Statement Details
  • Provision of Contract Warranties
  • Project Records & Conclusion Reports
  • Extra Stock Material & Parts with Lists
causes of construction disputes
Causes of Construction Disputes
  • Ambiguous Owner’s Requirements
  • Inappropriate Procurement Practices
  • Insufficient Preparatory Planning & Design
  • Poor Project & Commercial Management Procedures
  • Ineffective Communication Procedures
  • Inappropriate Risk Allocation Contracts
  • Inadequate Experiences Human Resource
classification of construction disputes
Classification of Construction Disputes
  • Time Related Disputes
  • Financial Related Disputes
  • Inappropriate Contract Disputes
  • Technical Related Disputes
  • Ambiguous Owner Requirements
  • Human Related Disputes
  • Third Parties & Society Related Disputes
time related disputes
Time Related Disputes
  • Hand over construction premises and its access
  • Issuance of contractual documents
  • Untimely submission and approval
  • Availability of utilities during construction
  • Recompense and time extension allowed when uncalculated hindrances occur
  • Poor Interface Management Among Project Packages
financial related disputes
Financial Related Disputes
  • Ambiguous conditions of payment & Measurement
  • New Rates to be Negotiated
  • Hidden Work Items
  • Valuation and payment based on remeasurement of quantities
  • Daily damages to be recovered by the

contractor when the owner causes delays in the project

inappropriate contracts disputes

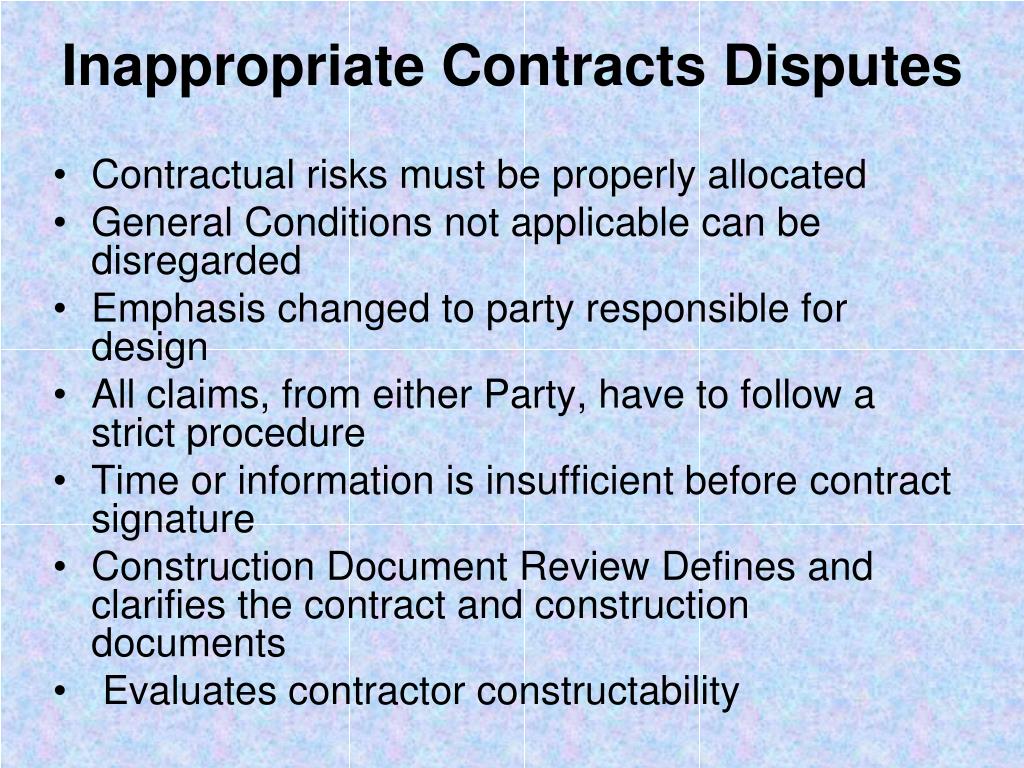

Inappropriate Contracts Disputes
  • Contractual risks must be properly allocated
  • General Conditions not applicable can be disregarded
  • Emphasis changed to party responsible for design
  • All claims, from either Party, have to follow a strict procedure
  • Time or information is insufficient before contract signature
  • Construction Document ReviewDefines and clarifies the contract and constructiondocuments
  • Evaluates contractor constructability
technical related disputes
Technical Related Disputes
  • Plans and specifications errors
  • Professional negligence standard.
  • Constraints on fee as they relate to ability to produce high-quality documents
  • Level of completeness required for design &pre-bid

documentation

  • Review the construction documents before submitting the bids to identifypatent, or obvious errors, in the contract documents
  • Effect of failure to catch errors with no additional compensation and liability to owner
  • Allocation of risk for unexpected site conditions
ambiguous owner requirements

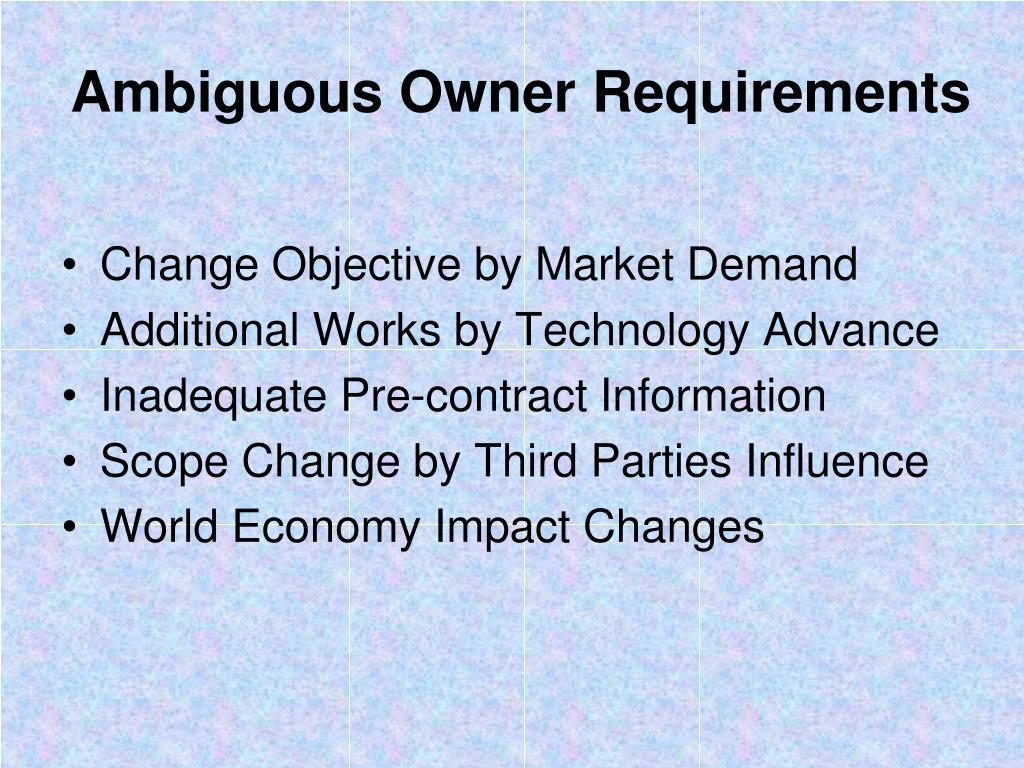

Ambiguous Owner Requirements
  • Change Objective by Market Demand
  • Additional Works by Technology Advance
  • Inadequate Pre-contract Information
  • Scope Change by Third Parties Influence
  • World Economy Impact Changes
human related disputes
Human Related Disputes
  • Inadequate Experience Professional
  • Inappropriate Skilled Workers
  • CSC, whose job is principally to supervise and monitor the work
  • Consultant is no longer stated to be ‘impartial’: he ‘shall be deemed to act for the Employer, except when fair determinations are required
  • Untimely Submittals & Approvals
third parties society disputes
Third Parties & Society Disputes
  • Site Access and Routing Maintenance
  • Construction Pollution Impacts
  • Construction Site Environmental Protection and Its Impact
  • Surrounding Societies Mutual Interests
  • Local Authorities and Governing Bodies
  • Underground Protected Properties at Site
disputes prevention
Disputes Prevention
  • Hire experienced design professionals.
  • Provide the designers sufficient time and budget.
  • Early negotiation to creating a cooperative team approach

Pre-contract reviews to properly assess and allocation risks

  • Risk audits, Improper risk allocation frequently leads to disputes
  • Training to provide competent, experienced field personnel
  • Compliance audits to contract clauses that outline a flexible framework for dispute resolution
  • Realistic allocation of risks
  • Open communication & incentives for cooperation
  • Partnering
dispute resolution board
Dispute Resolution Board
  • An impartial third party at the onset of any potential dispute can bring real benefits, support relationships and bring a collaborative and creative problem-solving attitude to the project.
  • The third party can be used to facilitate negotiations, discussions, consensus-building and relationship-building, or to manage existing or potential difficulties in a wide variety of situations
  • The dispute board members are appointed at the outset of a project by the parties as individuals whose views and decisions will be respected.
  • Dispute Resolution Boards (DRBs) are typically a panel of three neutrals appointed by the parties that become part of the project team.
  • They attend periodic meetings, review essential project documents and assist in the identification and resolution of issues and potential problems.
  • DRBs are usually, but not always, established in the contract documents. A dispute is presented to a DRB at a hearing, and the DRB’s determination is generally presented as a recommendation or a non-binding decision.
  • The readily available dispute resolution system to handle those disputes not only will allow the project to continue with little loss of time and money, but it will also allow the Parties to continue to work together on the project after an understanding is reached or a neutral ADR Specialist renders a decision
the partnering process

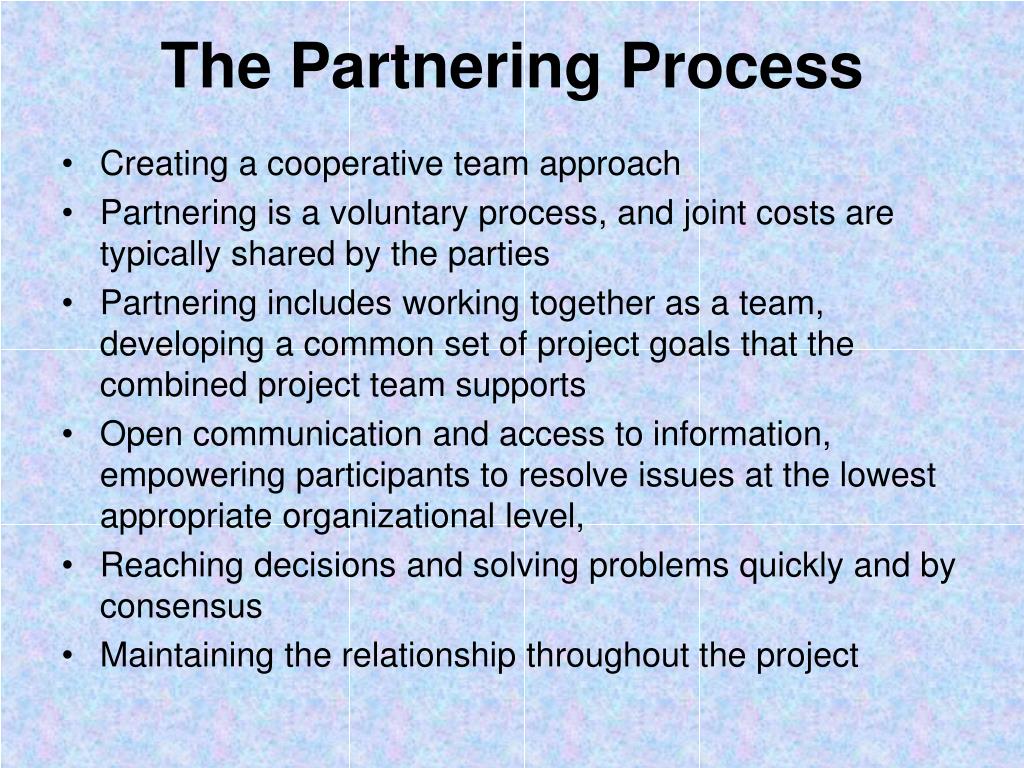

The Partnering Process
  • Creating a cooperative team approach
  • Partnering is a voluntary process, and joint costs are typically shared by the parties
  • Partnering includes working together as a team, developing a common set of project goals that the combined project team supports
  • Open communication and access to information, empowering participants to resolve issues at the lowest appropriate organizational level,
  • Reaching decisions and solving problems quickly and by consensus
  • Maintaining the relationship throughout the project
design bid build project coordination communication
Design-Bid-Build Project Coordination & Communication

Owner as Employer

.

Employer’s Representative

Design Consultant

Project Management Consultant ( PMC )

Construction Supervision Consultants

Main Construction Contractors

design build project coordination communication
Design Build ProjectCoordination & Communication

Owner

and

Employer’s Representative

Project Management Consultant

Main Contractor

Designers – Construction Manager

QA & QC

design build contract
Design Build Contract
  • Most suitable for too many packages project
  • Better for time constrained project
  • Project completion time is a must
  • Limited budget with minimal allowance
  • Best suit to rehabilitation & expansion project with sensitive working environment
