  1. MCML Project Report Shahnam Khabiri 95.575 April, 2002

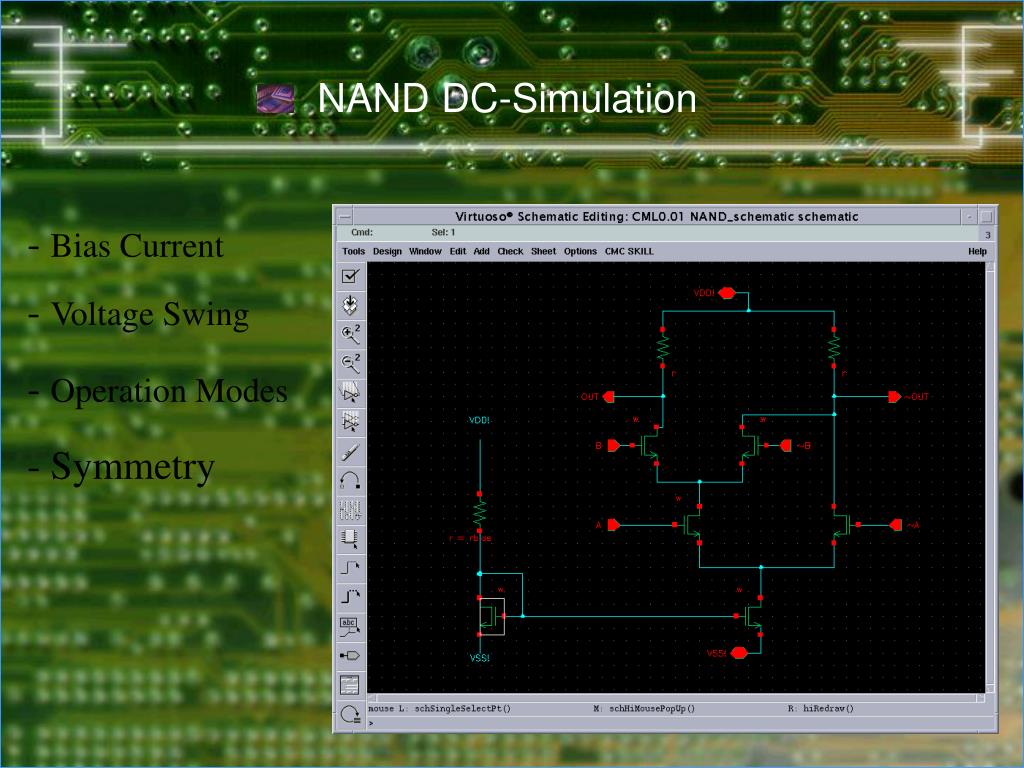

  2. NAND DC-Simulation - Bias Current - Voltage Swing - Operation Modes - Symmetry

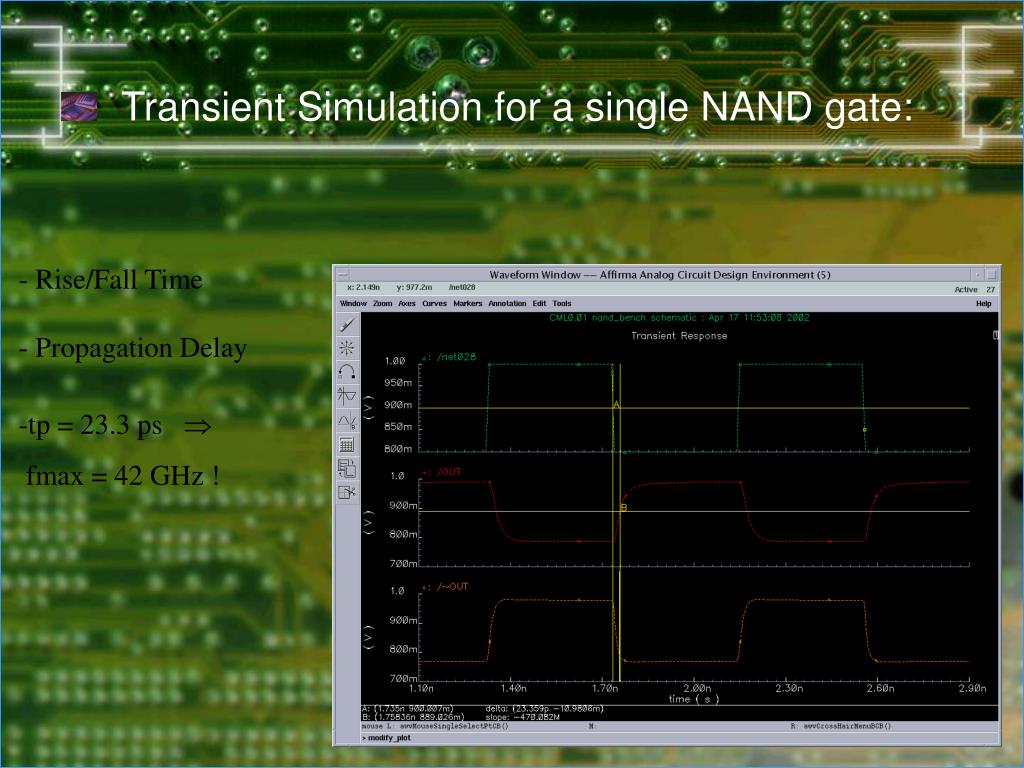

  3. Transient Simulation for a single NAND gate: - Rise/Fall Time - Propagation Delay • tp = 23.3 ps Þ • fmax = 42 GHz !

  4. Test Bench

  5. CMOS Results • tp = 54 ps • F = 470 MHZ

  6. MCML Results • tp = 31 ps • F = 470 MHZ

  7. MCML Results … • Sweep Rbias

  8. MCML Results … • Sweep r

  9. CMOS Results • P = 117uW • F = 2.4 GHZ

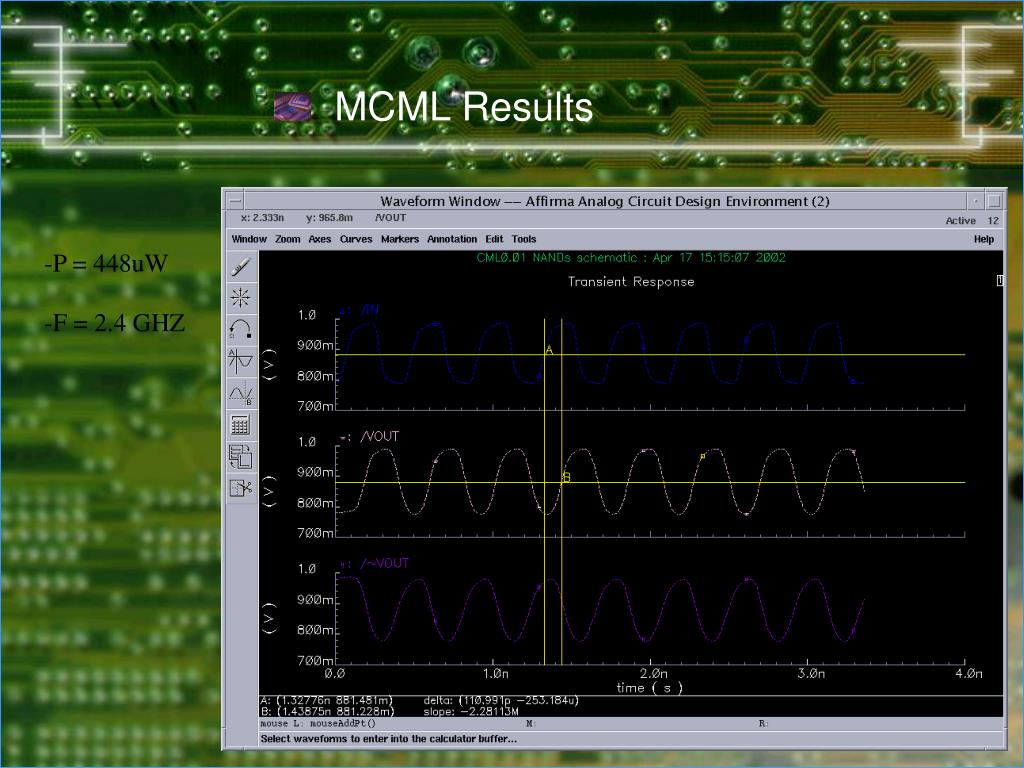

  10. MCML Results • P = 448uW • F = 2.4 GHZ
