Lecture 4 Regression Analysis

1. NUMERICAL ANALYSIS OF BIOLOGICAL AND ENVIRONMENTAL DATA Lecture 4 Regression Analysis John Birks

2. REGRESSION ANALYSIS Introduction, Aims, and Main Uses Response model Types of response variables y Types of predictor variables x Types of response curves Transformations Types of regression Null hypothesis, alternative hypothesis, type I and II errors,  and  Quantitative response variable Nominal explanatory (predictor) variables Quantitative explanatory (predictor) variables General linear model

3. REGRESSION ANALYSIS continued • Presence/absence response variable • Nominal explanatory (predictor) variables • Quantitative explanatory (predictor) variables • Generalised linear model (GLM) • Multiple linear regression • Multiple logit regression • Selecting explanatory variables • Nominal or nominal and quantitative explanatory variables • Assessing assumptions of regression model • Simple weighted average regression • Model II regression • Software for basic regression analysis

4. INTRODUCTION Explore relationships between variables and their environment  +/– or abundances for species (responses)  Individual species, one or more environmental variable (predictors) Species abundance or presence/absence - response variable Y Environmental variables - explanatory or predictor variables X AIMS • To describe response variable as a function of one or more explanatory variables. This RESPONSE FUNCTION usually cannot be chosen so that the function will predict responses without error. Try to make these errors as small as possible and to average them to zero. • To predict the response variable under some new value of an explanatory variable. The value predicted by the response function is the expected response, the response with the error averaged out. cf. CALIBRATION • To express a functional relationship between two variables thought, a priori, to be related by a simple mathematical relationship, but where only one of the variables is known exactly. cf. MODEL II REGRESSION

5. MAIN USES (1) Estimate ecological parameters for species, e.g. optimum, amplitude (tolerance) - ESTIMATION AND DESCRIPTION (2) Assess which explanatory variables contribute most to a species response and which explanatory variables appear to be unimportant. Statistical testing - MODELLING (3) Predict species responses (+/–, abundance) from sites with observed values of explanatory variables - PREDICTION (4) Predict environmental variables from species data - CALIBRATION or ‘INVERSE REGRESSION’ Fox (2002) Sokal & Rohlf (1995) Draper & Smith (1981) Montgomery & Peck (1992) Crawley (2002, 2005)

6. RESPONSE MODEL Systematic part - regression equation Error part - statistical distribution of error error Y = b0 + b1x +  b0, b1fixed but unknown coefficients b0 = intercept b1 = slope response variable explanatory variable Ey = b0 + b1x SYSTEMATIC PART Error part is distribution of , the random variation of the observed response around the expected response. Aim is to estimate systematic part from data while taking account of error part of model. In fitting a straight line, systematic part simply estimated by estimating b0 and b1. Least squares estimation – error part assumed to be normally distributed.

7. TYPES OF RESPONSE VARIABLES- y Quantitative (log transformation) % quantitative Nominal including +/– TYPES OF EXPLANATORY or PREDICTOR VARIABLES- x Quantitative Nominal Ordinal (ranks) - treat as nominal 1/0 if few classes, quantitative if many classes TYPES OF RESPONSE CURVES If one explanatory variable x, consists of fitting curves through data. What type of curve? (i) EDA scatter plots of y and x. (ii) Underlying theory and available knowledge.

8. TYPES OF RESPONSE CURVES Shapes of response curves. The expected response (Ey) is plotted against the environmental variable (x). The curves can be constant (a: horizontal line), monotonic (b: sigmoid curve, c: straight line), monotonic decreasing (d: sigmoid curve), unimodal (e: parabola, f: symmetric, Gaussian curve, g: asymmetric curve and a block function) or bimodal (h).

9. Response curves derived from a bimodal curve by restricting the sampling interval. The curve is bimodal in the interval a-f, unimodal in a-c and in d-f, monotonic in b-c and c-e and almost constant in c-d. Ey = expected response; x = environmental variable.

10. TRANSFORMATIONS Usually needed TRANSFOR TYPES OF REGRESSION (LR = Linear Regression) Also weighted averaging regression and model II regressions

11. NULL HYPOTHESIS, ALTERNATIVE HYPOTHESIS, TYPE I ERROR, TYPE II ERROR, , AND  Null hypothesis H0 ‘y not correlated with x’ No difference, no association, no correlation. Hypothesis to be tested, usually by some type of significance test. Alternative hypothesis H1 Postulates non-zero difference, association, correlation. Hypothesis against which null hypothesis is tested. Tests of statistical hypotheses are probabilistic Can just as well estimate the degree to which an effect is felt as judge whether the effect exists or not. As a result, can compute probabilities of two types of error. Type I error () probability that we have mistakenly rejected a true null hypothesis Type II error () probability that we have mistakenly failed to reject a false null hypothesis

12. Power of a test is simply the probability of not making type II error, namely 1-. The higher the power, the more likely it is to show, statistically, an effect that really exists.

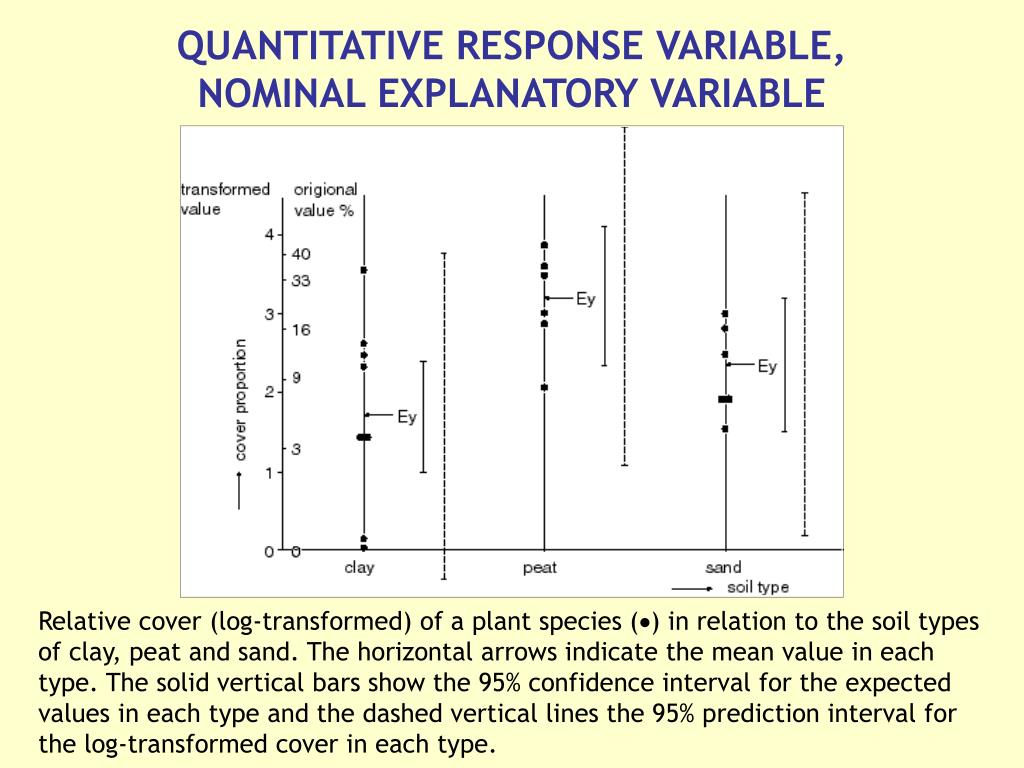

13. QUANTITATIVE RESPONSE VARIABLE, NOMINAL EXPLANATORY VARIABLE Relative cover (log-transformed) of a plant species () in relation to the soil types of clay, peat and sand. The horizontal arrows indicate the mean value in each type. The solid vertical bars show the 95% confidence interval for the expected values in each type and the dashed vertical lines the 95% prediction interval for the log-transformed cover in each type.

14. QUANTITATIVE RESPONSE VARIABLE, NOMINAL EXPLANATORY VARIABLE Plant cover 3 soil types yx Response model - Systematic part. 3 expected responses, one for each soil type. Error part – observed responses vary around expected responses in each soil type. Normally distributed, and variance within each soil type is same. Assume responses are independent. ANALYSIS OF VARIANCE (ANOVA) Estimate: Expected responses in 3 soil types. Least squares. Sum over all sites of squared differences between observed and expected response to be minimal. Parameter that minimises this SS is the mean. Difference between Ey and observed response is residual. Least squares minimises sum of squared vertical distances. Residual SS. Ey, standard error, and 95% confidence interval = Estimate  t(0.95) x s.e 5% critical value in 2-tailed test. Degrees of freedom (v) = n-q parameters

15. ANOVA table Estimate ± t(0.05)(v)  s.e. Value of t0.05(v) depends on number of degrees of freedom (v) of the residual with v = 17, t0.05(17) = 2.11 = ms regression df = 2 ms residual (n - q df = 17) Critical value of F at 5% level is 3.59 q = parameters = 3, n = number of objects = 20 ms =ss/df Total ss = Regression ss (q - 1 = 2 df) + Residual ss (n - q = 17 df) (n - 1 = 19 df) R2adj = 1 – (residual variance / total variance) = 1 - (0.872/1.17) = 0.25 R2 = 1 – (residual sum of squares / total sum of squares) = 1 - (14.826/22.235) = 0.333 R

16. QUANTITATIVE RESPONSE VARIABLE, QUANTITATIVE EXPLANATORY VARIABLE Straight line fitted by least-squares regression of log-transformed relative cover on mean water-table. The vertical bar on the far right has length equal to twice the sample standard deviationT, the other two smaller vertical bars are twice the length of the residual standard deviation (R). The dashed line is a parabola fitted to the same data (●) Error part – responses independent and normally distributed around expected values zy

17. Straight line fitted by least-squares: parameter estimates and ANOVA table for the transformed relative cover of the figure above R

18. QUANTITATIVE RESPONSE VARIABLE, QUANTITATIVE EXPLANATORY VARIABLE Does expected response depend on water table? F = 27.56 >> 4.4 (critical value 5%) df (1, 18) (F = MS regression (df = parameters – 1, MS residual ) n – parameters ) • Does slope b1 = 0? • absolute value of critical value of two- tailed t-test at 5% • t0.05,18 = 2.10 • b1 not equal to 0 [exactly equivalent to F test ] Construct 95% confidence interval for b1 estimate t0.05, v  se = 0.052 / 0.022 Does not include 0 0 is unlikely value for b1 Check assumptions of response model Plot residuals against x and Ey

19. Could we fit a curve to these data better than a straight line? Parabola Ey = b0 + b1x + b2x2 Straight line fitted by least-squares regression of log-transformed relative cover on mean water table. The vertical bar on the far right has a length equal to twice the sample standard deviationT, the other two smaller vertical bars are twice the length of the residual standard deviation (R). The dashed line is a parabola fitted to the same data (). Polynomial regression R

20. Parabola fitted by least-squares regression: parameter estimates and ANOVA table for the transformed relative cover of above figure. Not different from 0 1 extra parameter 1 less d.f. R

21. GENERAL LINEAR MODEL Regression Analysis Summary Response variable Y = EY + e where EY is the expected value of Y for particular values of the predictors and e is the variability ("error") of the true values around the expected values EY. The expected value of the response variable is a function of the predictor variables EY = f(X1, ..., Xm) EY = systematic component, e = stochastic or error component. Simple linear regression EY = f(X) = b0 + b1X Polynomial regression EY = b0 + b1X + b2X2 Null model EY = b0

22. EY = Ŷ = b0 + • Fitted values allow you to estimate the error component, the regression residuals • ei = Yi – Ŷi • Total sum of squares (variability of response variable) • TSS =where = mean of Y • This can be partitioned into • The variability of Y explained by the fitted model, the regression or model sum of squares • MSS= • The residual sum of squares • RSS== • Under the null hypothesis that the response variable is independent of the predictor variables MSS = RSS if both are divided by their respective number of degrees of freedom.

23. PARABOLA FITTED TO LOG-ABUNDANCE DATA, fitting a Gaussian unimodal response curve to original abundance data z = c exp[-0.5(x-u)2/t2] (y) z (y) Gaussian response curve with its three ecologically important parameters: maximum (c), optimum (u) and tolerance (t). Vertical axis: species abundance. Horizontal axis: environmental variable. The range of occurrence of the species is seen to be about 4t.

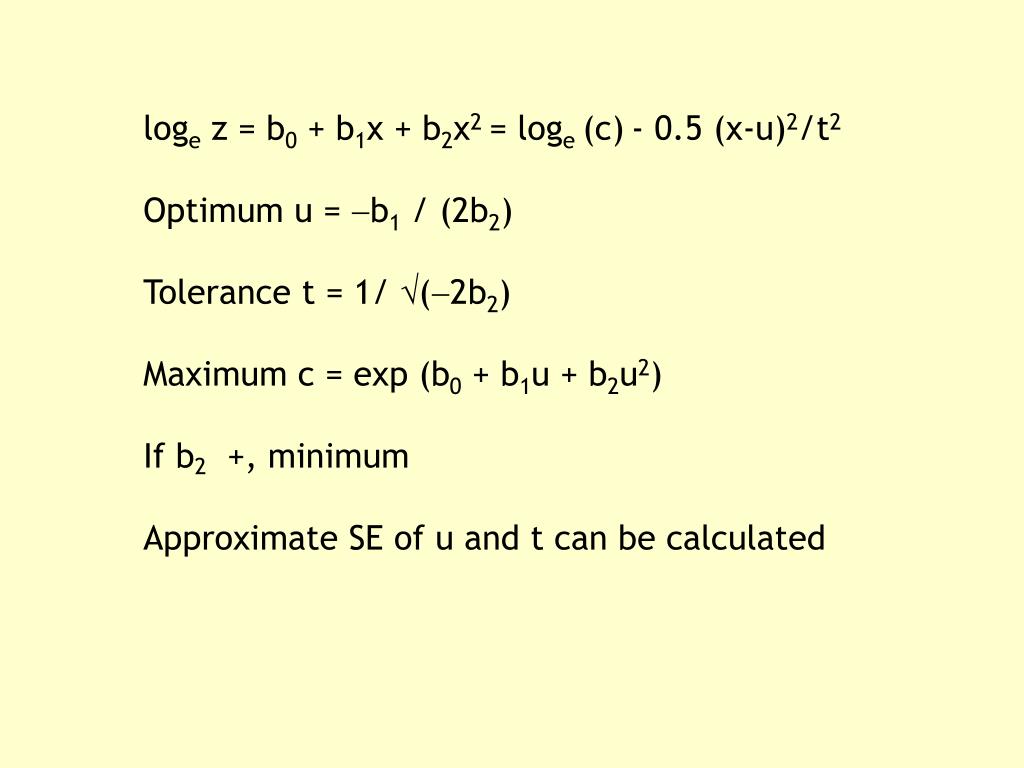

24. loge z = b0 + b1x + b2x2 = loge(c)- 0.5 (x-u)2/t2 Optimum u = b1 / (2b2) Tolerance t = 1/ (2b2) Maximum c = exp (b0 + b1u + b2u2) If b2 +, minimum Approximate SE of u and t can be calculated

25. PRESENCE-ABSENCE RESPONSE VARIABLE, NOMINAL EXPLANATORY VARIABLE Numbers of fields in which Achillea ptarmica is present and absent in meadows with different types of agricultural use and frequency of occurrence of each type (unpublished data from Kruijne et al., 1967). The types are pure hayfield (ph), hay pastures (hp), alternate pasture (ap) and pure pasture (pp). χ2 =   o = observed frequency e = expected frequency (r-1) (c-1) degrees of freedom Relative frequency of occurrence is 113/1538 = 0.073 Under null hypothesis, the expected number of fields with Achillea ptarmica present is, pure hayfield (ph) 0.073 x 146 = 10.7, haypasture (hp) 0.073 x 396, etc. Calculated x2 = 102.1 compared with critical value of 7.81 at 0.05 level with 3 df. Conclude that occurrence of A. ptarmica depends on field type.

26. PRESENCE-ABSENCE RESPONSE VARIABLE, QUANTITATIVE EXPLANATORY VARIABLE Sigmoid curve fitted by logit regression of the presences (● at p = 1) and absences (● at p = 0) of a species on acidity (pH). In the display, the sigmoid curve looks like a straight line but it is not. The curve expresses the probability (p) of occurrence of the species in relation to pH.

27. Straight line (a), exponential curve (b) and sigmoid curve (c) representing equations 1,2, and 3, respectively. Systematic part – defined as shown Error part – response can only have two values therefore binomial error distribution Cannot estimate parameters by least-squares regression as errors not normally distributed and have no constant variance LOGIT REGRESSION – special case of GLM GENERALISED LINEAR MODEL 1: Ey = bo+b1x Can be negative 2: Ey = exp(bo+b1x) Can be >1 3: Ey = p = [exp(bo+b1x)] [1 + exp (bo+b1x)] (bo + b1x) linear predictor

28. GENERALISED LINEAR MODEL (GLM) Not the same as General Linear Model, more generalised Logit linear predictor or p = [exp (linear predictor)] / [1 + exp (linear predictor)] Estimation in GLM by maximum likelihood. Likelihood is defined for a set of parameter values as the probability of responses actually observed when that set of values is the true set of parameter values. ML chooses the set of parameter values for which likelihood is maximum. Measure deviation of observed responses to fitted responses, not by residual SS as in least-squares, but by RESIDUAL DEVIANCE. [Least-squares principle equivalent to ML if errors are independent and follow normal distribution]. Least-squares regression is one type of GLM. Solved iteratively. GLIM GENSTAT R or S-PLUS

29. Sigmoid curve fitted by logit regression of the presences (● at p = 1) and absences (● at p = 0) of a species on acidity (pH). In the display, the sigmoid curve looks like a straight line but is not. The curve expresses the probability (p) of occurrence of the species in relation to pH. Sigmoid curve fitted by logit regression parameter estimates and deviance table for the presence-absence data of the above figure. Term Parameter Estimate s.e. t Constant b0 2.03 1.98 1.03 pH b1 -0.484 0.357 -1.36 (not >|2.111|) d.f. Deviance Mean deviance Residual 33 43.02 1.304 Not different from a horizontal line, as t-test of b1 = 0 not rejected

30. Parabola (a), Gaussian curve (b) and Gaussian logit curve (c) representing the equations, respectively. If we take for linear predictor the logit transformation of p loge [p/(1-p)] = linear predictor p = [exp (linear predictor) ]/[ 1 + exp (linear predictor)] For a parabola (b0 + b1x + b2x2) we get p = [exp (b0 + b1x + b2x2) ]/[1 + exp (b0 + b1x + b2x2)] or log = b0 + b1x + b2x2 GAUSSIAN LOGIT CURVE

31. Gaussian logit curve fitted by logit regression of the presences (● at p = 1) and absences (● at p = 0) of a species on acidity (pH). u = optimum; t = tolerance; pmax = maximum probability of occurrence. Gaussian logit curve fitted by logit regression: parameter estimates and deviance table for presence-absence data > t of 1.96

32. u = -b1 / (2b2) t = 1 / (√(-2b2) pmax = {1 + exp (-b0 – b1u – b2u2)} t – tests of b2, b1 and b0 Deviance tests - Gaussian logit curve → linear – logit (sigmoidal) → null model Drop in deviance > χ2 3.84 Residual deviance of a model is compared with that of an extended model. The additional parameters in the extended model (e.g. Gaussian logit) are significant when the drop in residual deviance is larger than the critical value of a χ2distribution with k degrees of freedom (k=number of additional parameters) Example: Gaussian logit model – residual deviance = 23.17 Sigmoidal model – residual deviance = 43.02 43.02 - 23.17=19.85 which is >>χ20.05(1)=3.84

33. RESPONSE VARIABLE WITH MANY ZERO VALUES Counts 0,1,2,3... Log-linear or Poisson regression Log Ey = linear predictor Can be (b0 + b1x) exponential curve (b0 + b1x + b2x2) Gaussian curve (if b2 < 0) [Poisson error distribution, link function log] Can transform to PSEUDOSPECIES (as in TWINSPAN) and use as +/– response variables in logit regression. R

34. QUANTITATIVE RESPONSE VARIABLE, MANY QUANTITATIVEEXPLANATORY VARIABLES Response variable expressed as a function of two or more explanatory variables. Not the same as separate analyses because of correlations between explanatory variables and interaction effects. MULTIPLE LEAST-SQUARES LINEAR REGRESSION Planes Ey = b0 + b1x1 + b2x2 explanatoryvariables b0 – expected response when x1 and x2 = 0 b1 – rate of change in expected response along x1 axis b2 – rate of change in expected response along x2 axis b1 measures change of Ey with x1 for a fixed value of x2 b2 measures change of Ey with x2 for a fixed value of x1 R

35. A straight line displays the linear relationship between the abundance value (y) of a species and an environmental variable (x), fitted to artificial data (). (a = intercept; b = slope or regression coefficient). A plane displays the linear relation between the abundance value (y) of a species and two environmental variables (x1 and x2) fitted to artificial data ().

36. Three-dimensional view of a plane fitted by least-squares regression of responses (●) on two explanatory variables x1 and x2. The residuals, i.e. the vertical distances between the responses and the fitted plane are shown. Least-squares regression determines the plane by minimization of the sum of these squared vertical distances. Estimates of b0, b1, b2and standard errors and t (estimate / se) ANOVA total SS, residual SS, regression SS R2=R2adj = Ey = b0 + b1x1 + b2x2 + b3x3 + b4x4 + ……..bmxm MULTICOLLINEARITY Selection of explanatory variables: Forward selection Backward selection ‘Best-set’ selection R

37. REGRESSION AND ANOVA REF REF In multiple regression, where yi are n independent variables (response), the familiar linear model is: yi = 0 + 1xi1 + 2xi2 + ….+ kxik + i(A1) where xij’s (kpredictor variables) are known constants, 0, 1,…,kare unknown parameters and i’s are independent normal random variables. In matrix notation, the model is written as y = X + , with matrices: where nT = total number of replicates. The least squares estimates b of the parameters  are obtained by the normal equations: X’Xb = X’y (A2) And taking the inverse of X’X, we have: b = [X’X]-1 [X’y](A3) REF REF

38. REF REF In a similar fashion, consider the linear model for a one-way ANOVA: Yij =  + i + ij (A4) where yij is the value of the jth replicate in the ith treatment,  is the overall parametric mean, i is the effect of the ith treatment and ij is the random normal error associated with that replicate. The model for the expectation of y in any particular treatment is: E(yi) = + ti (A5) withti the ith treatment effect. If there were, for example, three treatments, the model could be written as: E(y) = X0 + t1X1 + t2X2 + t3X3 (A6) The values of Xi required to reproduce the model E(yi) =  + ti for a given yi, using equation A6 are: X0 = 1 and REF REF

39. REF REF This can be expressed by the following matrices: where the columns of the matrixXcorrespondtoX0, X1, X2 andX3, respectively. A least-squares solution may again be obtained by the equation: X’Xb=X’y (A7) REF REF

40. RESPONSE SURFACES Can also test if x2 influences abundance of y in addition to x1, i.e. do b3 and b4 = 0? MORE COMPLEX MODELS Ey = b0 + b1x1 + b2x12 + b3x2 + b4x22 + b5x3 + b6x32 + ... btxm2 Hence need for selecting explanatory variables R

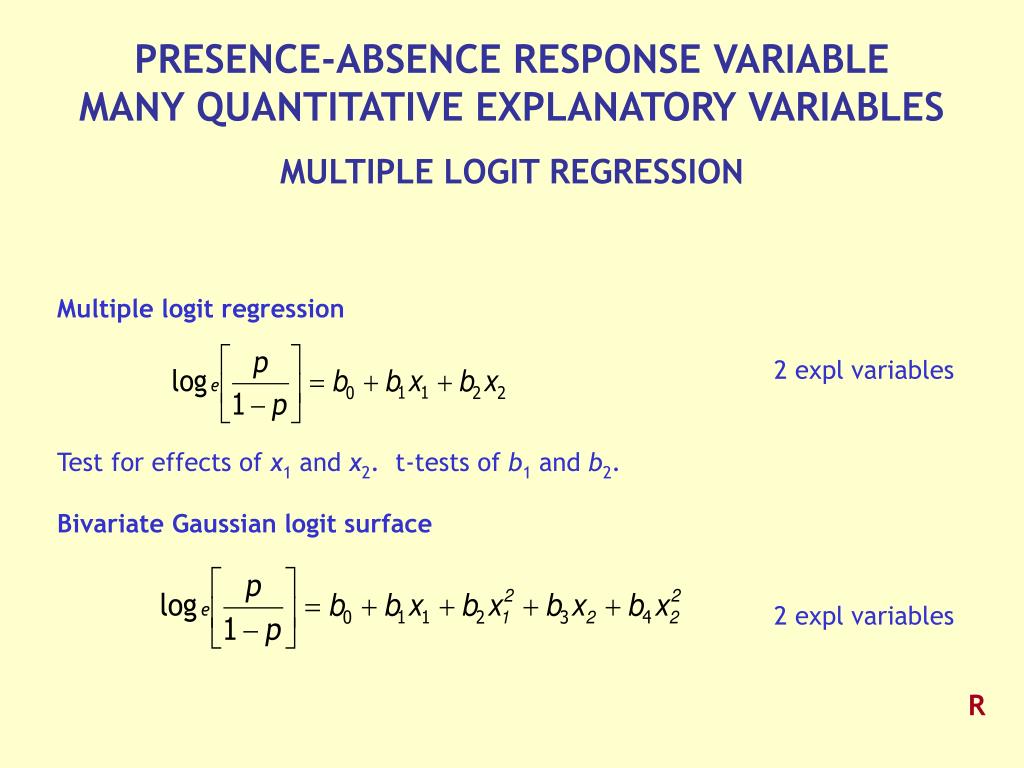

41. PRESENCE-ABSENCE RESPONSE VARIABLE MANY QUANTITATIVE EXPLANATORY VARIABLES MULTIPLE LOGIT REGRESSION Multiple logit regression 2 expl variables Test for effects of x1 and x2. t-tests of b1 and b2. Bivariate Gaussian logit surface 2 expl variables R

42. Three-dimensional view of a bivariate Gaussian logit surface with the probability of occurrence (p) plotted vertically and the two explanatory variables x1and x2plotted in the horizontal plane. Elliptical contours of the probability of occurrence p plotted in the plane of the explanatory variables x1and x2. One main axis of the ellipses is parallel to the x1axis and the other to the x2axis. R Gaussian logit surface

43. INTERACTION EFFECTS OF X1 AND X2 Product termsx1x2 Ey = b0 + b1x1+ b2x2+ b3x1x2 = (b0 + b2x2) + (b1 + b3x2) x1 Intercept and slope and hence values ofx1depend onx2 Effect ofx2also depends onx1 Ifb3 = 0, NO INTERACTION betweenx1andx2 Quadratic surface Ey = b0 + b1x1+ b2x12+ b3x2 + b4x22+ b5x1x2 Ifb2 + b4 < 0 and 4b2b4 – b52 > 0, have unimodal surface with ellipsoidal contours but axes not necessarily orthogonal Can calculate overall optimum u1 = (b5b3 – 2b1b4) / d d = 4b2b4 – b52 u2 = (b5b1 – 2b3b2) / d Gaussian logit surface If b5≠ 0, optimum with respect to x1does depend on value ofx2. Ifb5 = 0, optimum with respect to x1does not depend on valuesofx2, i.e. NO INTERACTION R

44. SELECTING EXPLANATORY VARIABLES • If model is balanced, parameters can be entered or removed in any order • Adequate model: Non-significantly different from the best model  • Best subset method for selecting variables Try all possible combinations, select the best Look at the others as well • Automatic selection of variables does not necessarily give the best subset Backward elimination: Start with all variables, then remove variables starting with the worst, and continue until all remaining are significant Forward selection: Start with nothing, add best, as long as the new variables are significant Stepwise: Start with forward selection, but try backward elimination after every step J.D. Olden & D.A. Jackson (2000) Ecoscience 7, 501-510. Torturing data for the sake of generality: how valid are our regression models?

45. AKIAKE INFORMATION CRITERION (AIC) Index of fit that takes account of the parsimony of the model by penalising for the number of parameters. The more parameters in a model, the better the fit. You get a perfect fit if you have a parameter for every data point but the model has no explanatory power. Trade-off between goodness of fit and the number of parameters required by parsimony. AIC useful as it explicitly penalises any superfluous parameters in the model by adding 2p to the variance or deviance. AIC = -2 x (maximised log-likelihood) + 2 x (number of parameters)

46. Small values are indicative of a good fit to the data. In multiple regression, AIC is just the residual variance plus twice the number of regression coefficients (including the intercept). Used to compare the fit of alternative models with different numbers of parameters, and thus useful in model selection. Smaller the AIC, better the fit. Given the alternative models involving different numbers of parameters, select the model with the lowest AIC. R

47. MANY EXPLANATORY NOMINAL OR NOMINAL AND QUANTITATIVE VARIABLES Three soil types - clay, peat, sand Clay - reference class Peat - dummy variablex2 Sand - dummy variablex3 x2 = 1 when peat, 0 when clay or sand x3 = 1 when sand, 0 when clay or peat kclasses, k – 1 dummy variables Systematic part Ey = b1 + b2x2 + b3x3 b1 = expected response in reference class (clay) b2 = difference in expected response between peat and clay b3 = difference in response between sand and clay Multiple logit regression - +/– response variable, one continuous variable (x1) and one nominal variable (3 classes (x2, x3)) R

48. Response curves for Equisetum fluviatile fitted by multiple logit regression of the occurrence of E. fluviatile in freshwater ditches on the logarithm of electrical conductivity (EC) and soil type surrounding the ditch (clay, peat, sand). Data from de Lange (1972). Residual deviance tests to test if maxima are different by dropping x2 and x3.

49. ASSESSING ASSUMPTIONS OF REGRESSION MODEL • Regression diagnostics – Faraway (2005) chapter 4 • Linear least-squares regression • relationship between Y and X is linear, perhaps after transformation • variance of random error is constant for all observations • errors are normally distributed • errors for n observations are independently distributed • Assumption (2) required to justify choosing estimates of b parameters so as to minimise residual SS and needed in tests of t and F values. Clearly in minimising SS residuals, essential that no residuals should be larger than others. • Assumption (3) needed to justify significance tests and confidence intervals. • RESIDUAL PLOTS • Plot (Y – EŶ) against EŶ or X R

50. RESIDUAL PLOTS • Residual plots from the multiple regression of gene frequencies on environmental variables for Euphydryas editha: • standardised residuals plotted against Y values from the regression equation, • (b) standardised residuals against X1, • (c) standardised residuals against X2, • (d) standardised residuals against X3, • (e) standardised residuals against X4, and • (f) normal probability plot. • Normal probability plot –plot ordered standardised residuals against expected values assuming standard normal distribution. • If (Y – ŶI) is standard residual for I, expected value is value for standardised normal distribution that exceeds proportion {i – (⅜)} / (n + (¼)) of values in full population • Standardised residual = R
