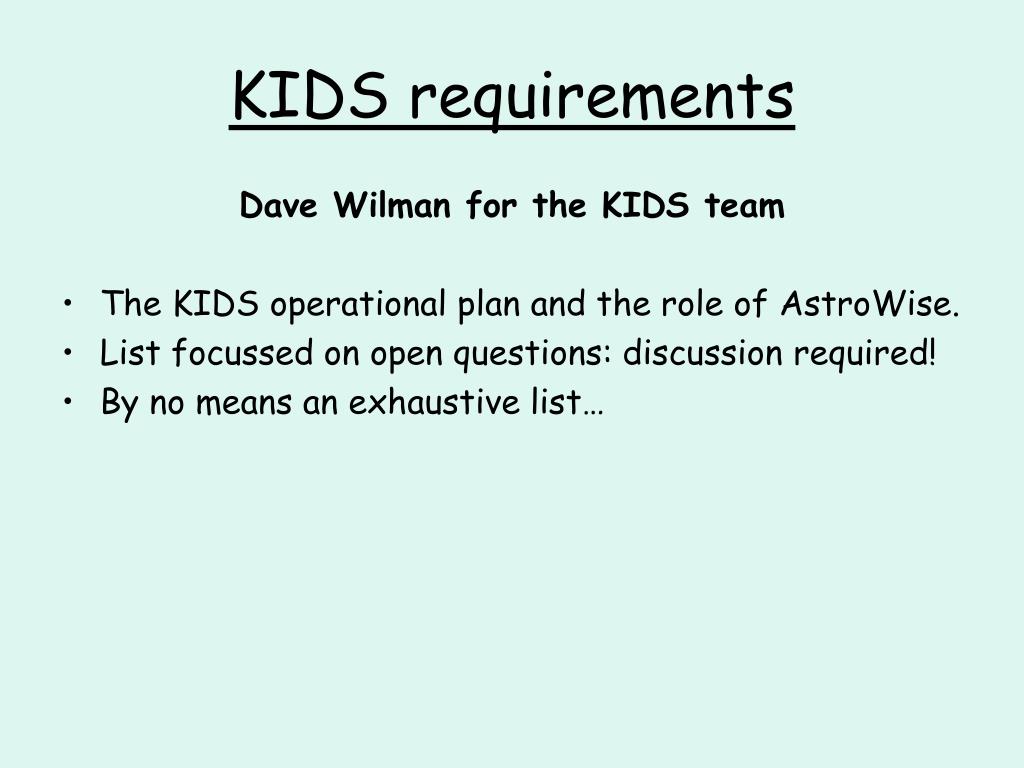

  1. KIDS requirements • Dave Wilman for the KIDS team • The KIDS operational plan and the role of AstroWise. • List focussed on open questions: discussion required! • By no means an exhaustive list…

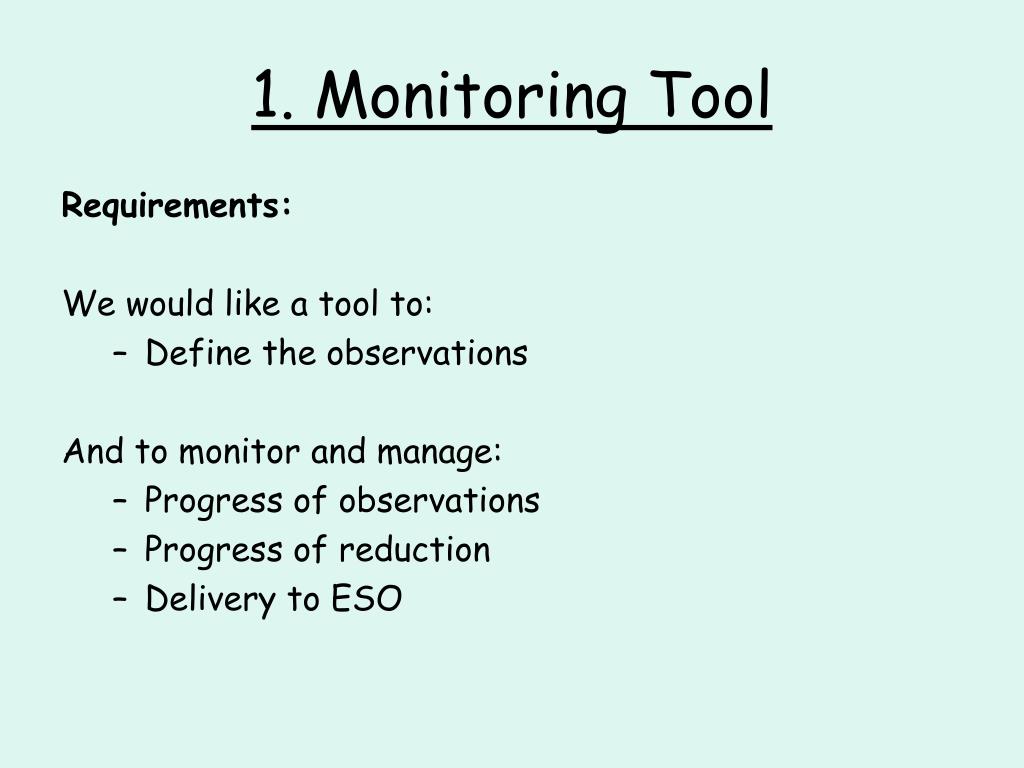

  2. 1. Monitoring Tool • Requirements: • We would like a tool to: • Define the observations • And to monitor and manage: • Progress of observations • Progress of reduction • Delivery to ESO

  3. 1. Monitoring Tool • Current Implementation: • The VISTA consortium is developing the Survey Area Definition Tool (SADT) which will interface with P2PP to automatically generate OBs and guide stars. Availability: early 2007. • P2PP will be upgraded to allow timelink, concatonation and grouping of OBs so that survey strategy can be optimized. • VISTA consortium developing a tool to monitor survey progress: The EST will look at this and see if a version of this tool can be made available to ESO and other survey teams.

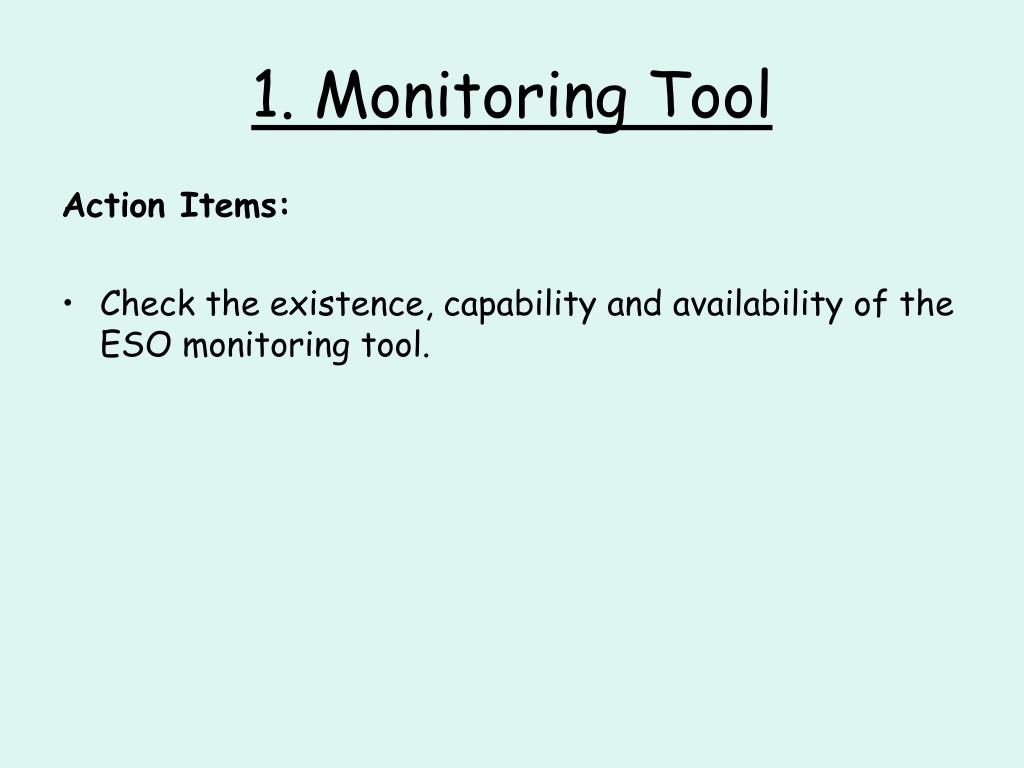

  4. 1. Monitoring Tool • Action Items: • Check the existence, capability and availability of the ESO monitoring tool.

  5. 2. Strategic Organisation and Distribution of Data Reduction • Management Tool (item 1) • Uniform plan for data reduction: • Consistent scripts / use of web-interface • Distribution of data for actual reduction. • Distribution of responsibilities for recipes and testing.

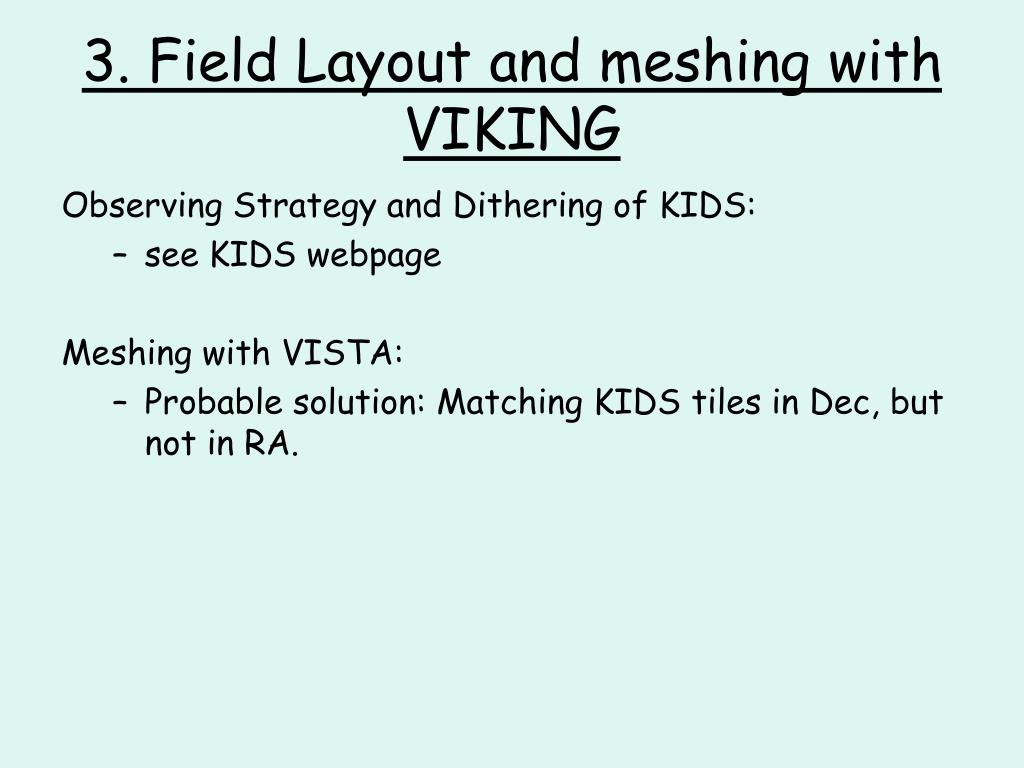

  6. 3. Field Layout and meshing with VIKING • Observing Strategy and Dithering of KIDS: • see KIDS webpage • Meshing with VISTA: • Probable solution: Matching KIDS tiles in Dec, but not in RA.

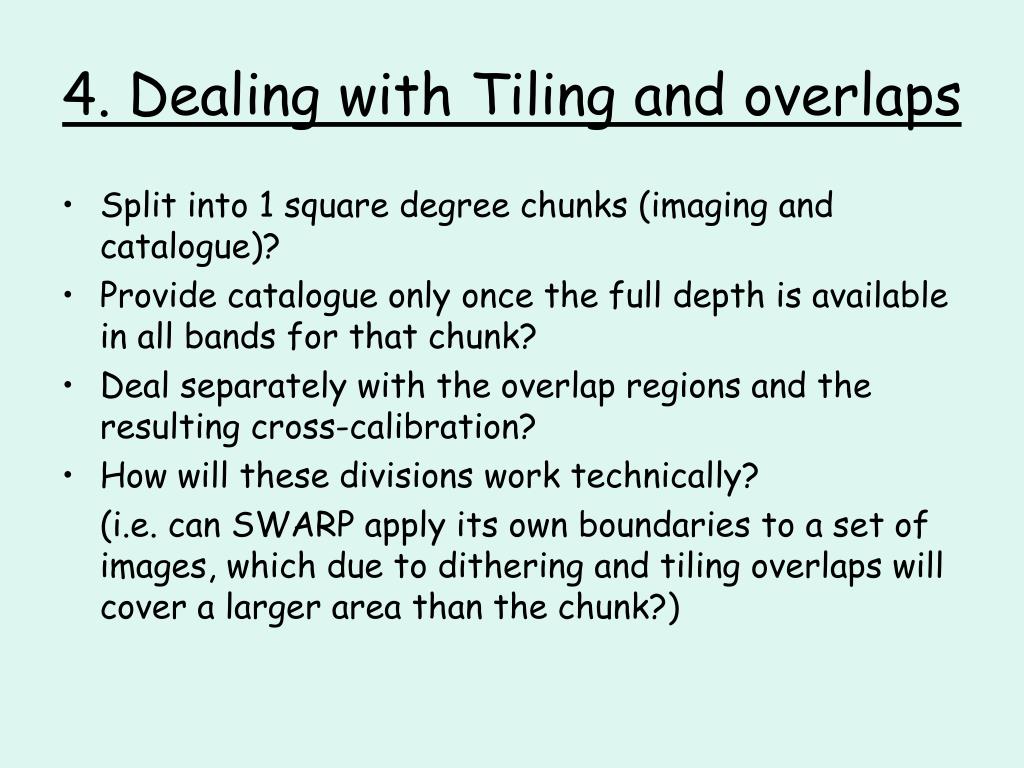

  7. 4. Dealing with Tiling and overlaps • Split into 1 square degree chunks (imaging and catalogue)? • Provide catalogue only once the full depth is available in all bands for that chunk? • Deal separately with the overlap regions and the resulting cross-calibration? • How will these divisions work technically? • (i.e. can SWARP apply its own boundaries to a set of images, which due to dithering and tiling overlaps will cover a larger area than the chunk?)

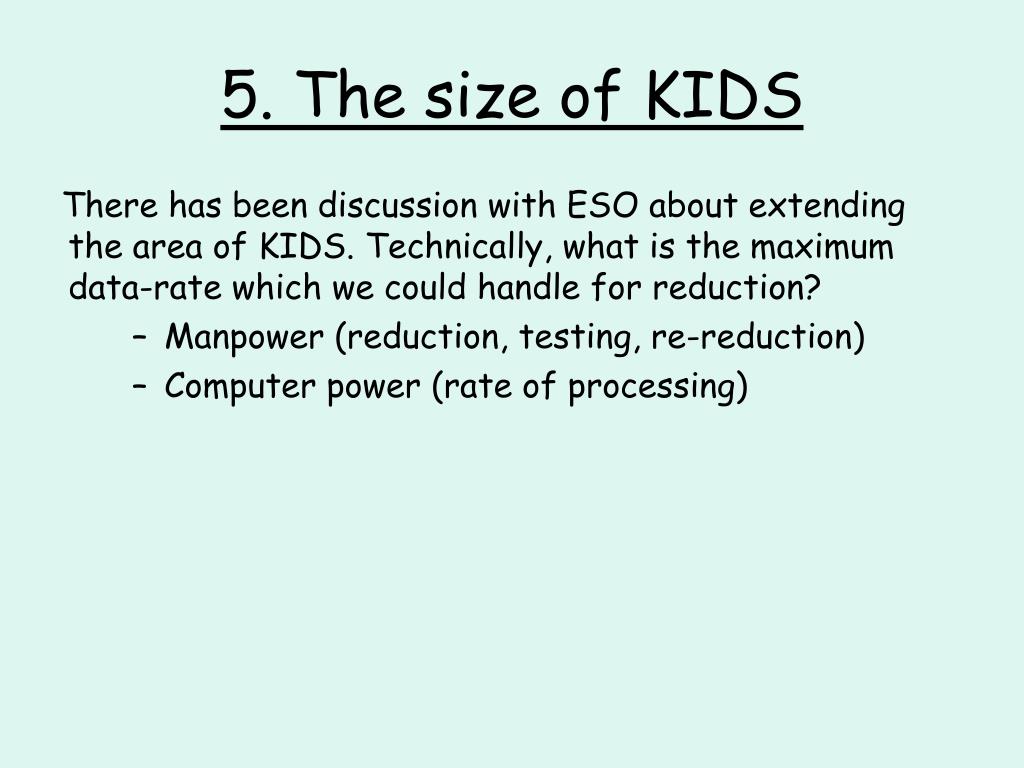

  8. 5. The size of KIDS • There has been discussion with ESO about extending the area of KIDS. Technically, what is the maximum data-rate which we could handle for reduction? • Manpower (reduction, testing, re-reduction) • Computer power (rate of processing)

  9. 6. Absolute Photometric Calibration • Calibration of the absolute photometric zeropoint: • North: Calibrate using SDSS sources: • SDSS accuracy not good enough for our relative photometry (~0.02mags) but OK for the absolute photometry? • Well understood calibration in worse seeing SDSS data • SDSS photometry already exists. • South: Calibrate using our own photometric pass: • Easier to calibrate, with reduced systematics • No reliance on external source of data • Possible synergy with ATLAS • May help improve absolute astrometry • Alternatives (e.g. SSS) rely on data which does not yet exist, and with unknown systematics.

  10. 7. Quality Control • Local / Short-term: • during data processing; • Simple checks of data products: plots and QC parameters (see next slide); • Global / Long-term: • Photometric accuracy using multi-band catalogues; • Colour-colour diagrams (and photo-z); • Number counts; • Delegated responsibility by expertise? (e.g. Munich has expertise in fine-tuning photometry using a multi-band catalogue)

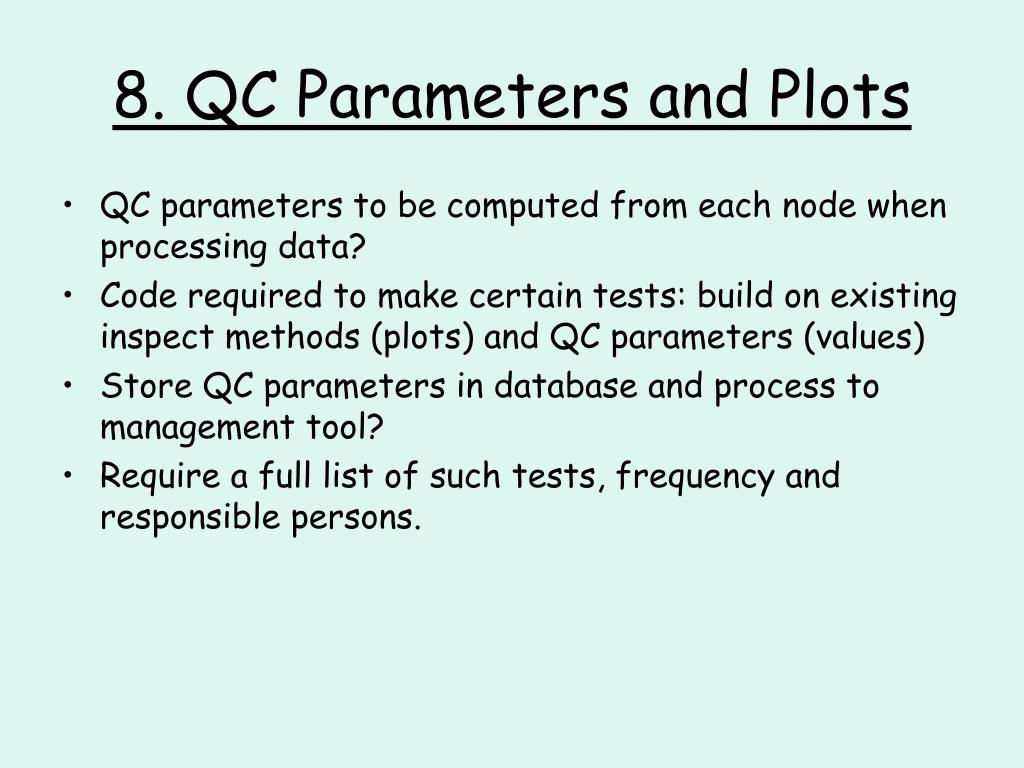

  11. 8. QC Parameters and Plots • QC parameters to be computed from each node when processing data? • Code required to make certain tests: build on existing inspect methods (plots) and QC parameters (values) • Store QC parameters in database and process to management tool? • Require a full list of such tests, frequency and responsible persons.

  12. 8. QC Parameters and Plots • Example QC Plots and Parameters: • Astrometry: • Local: plots of residuals (dx,dy,dra,ddec) vs (x,y,ra,dec) • Global: cross-checks (and a long-term check might be to look for systematic and random offsets between bands) • Values: rms, Npairs, coefficients and errors on linear fits of residuals?.... • Photometry: • Images: • Background level variation in subwindows? • PSF(time, chip, position, colour, mag) • Manual(?) check for fringe-patterns, ghosts, satellite tracks, cosmic rays etc • Catalogues: • STD: plots: raw ZP (time, chip, position, colour, mag) • STD: values: raw ZP rms, Nobj etc • SCI: in overlap regions: ZP residuals (time, chip, position, colour, mag) • etc etc…..

  13. QC Params: KIDS page 1

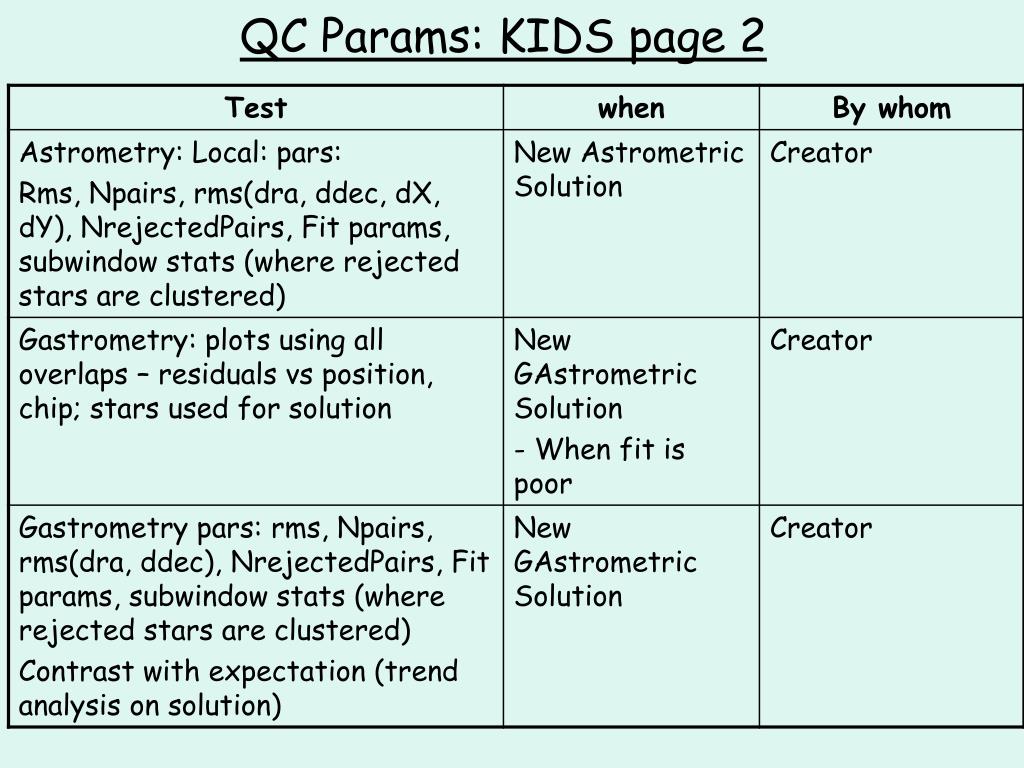

  14. QC Params: KIDS page 2

  15. QC Params: KIDS page 3

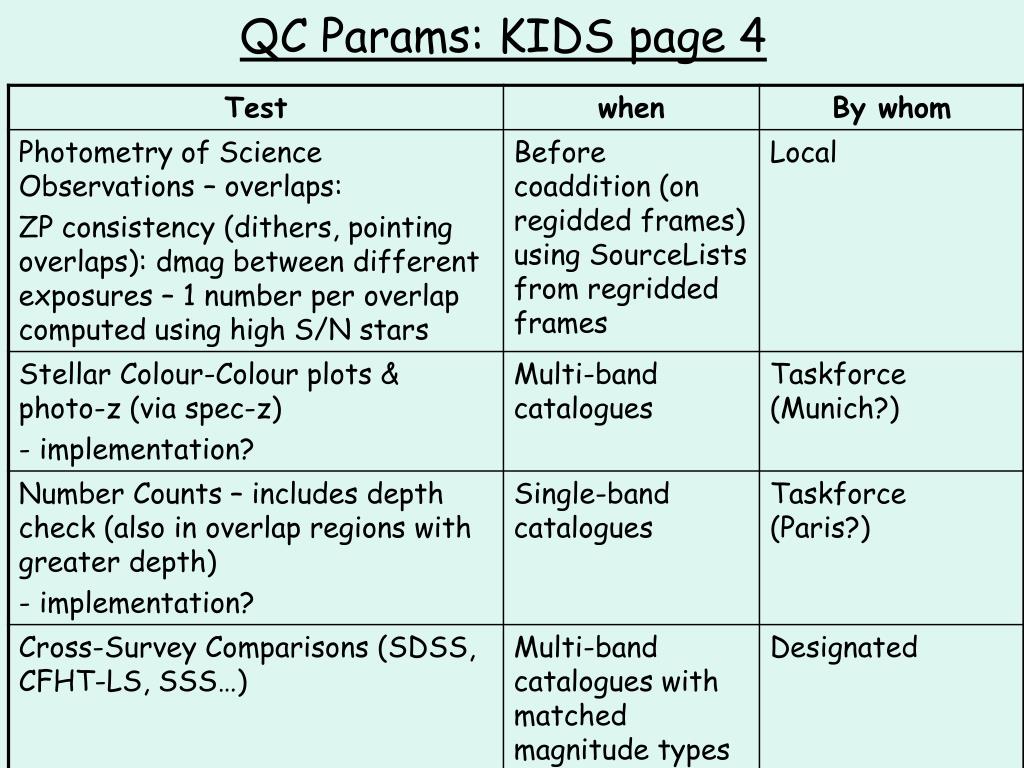

  16. QC Params: KIDS page 4

  17. QC Params: KIDS page 5

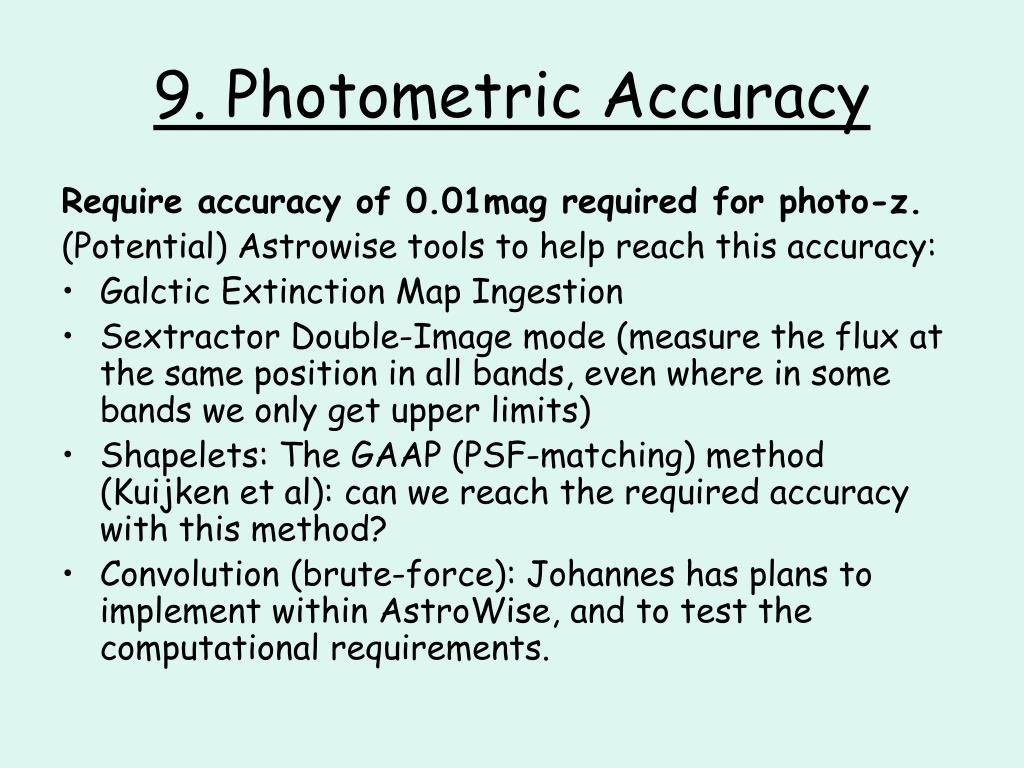

  18. 9. Photometric Accuracy • Require accuracy of 0.01mag required for photo-z. • (Potential) Astrowise tools to help reach this accuracy: • Galctic Extinction Map Ingestion • Sextractor Double-Image mode (measure the flux at the same position in all bands, even where in some bands we only get upper limits) • Shapelets: The GAAP (PSF-matching) method (Kuijken et al): can we reach the required accuracy with this method? • Convolution (brute-force): Johannes has plans to implement within AstroWise, and to test the computational requirements.

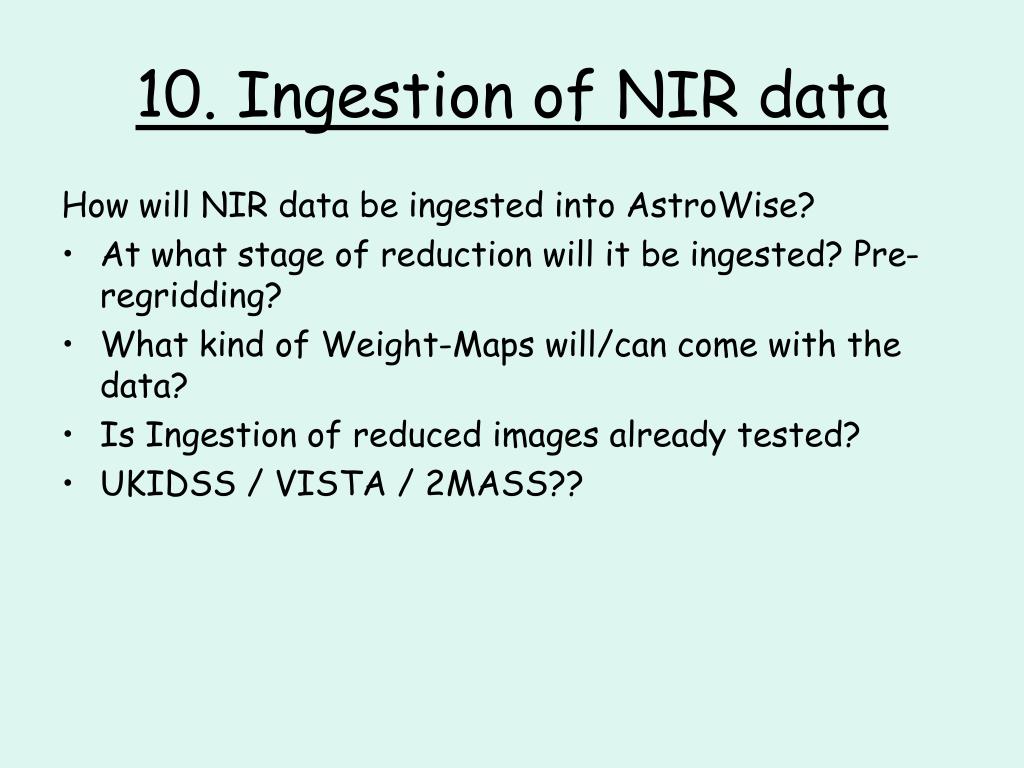

  19. 10. Ingestion of NIR data • How will NIR data be ingested into AstroWise? • At what stage of reduction will it be ingested? Pre-regridding? • What kind of Weight-Maps will/can come with the data? • Is Ingestion of reduced images already tested? • UKIDSS / VISTA / 2MASS??

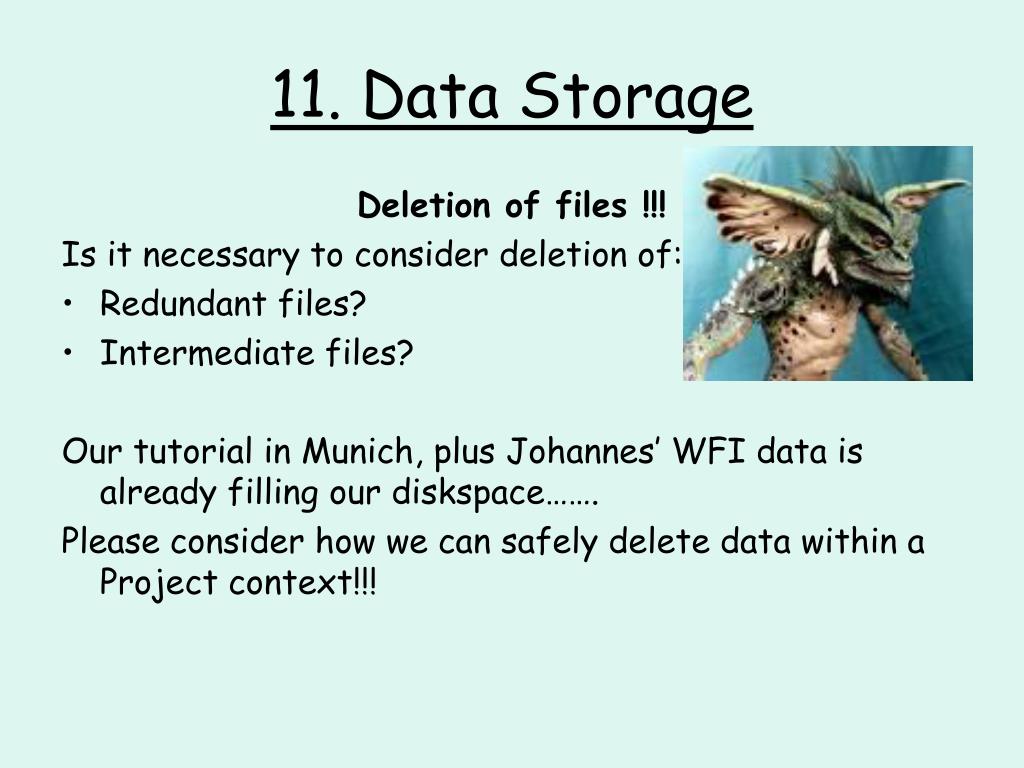

  20. 11. Data Storage • Deletion of files !!! • Is it necessary to consider deletion of: • Redundant files? • Intermediate files? • Our tutorial in Munich, plus Johannes’ WFI data is already filling our diskspace……. • Please consider how we can safely delete data within a Project context!!!

  21. 12. Visual Inspection of Data • PanoraPix: Will it be ready in time for KIDS? • What is the status of the cut-out server? • It would be nice to view each ‘chunk’ of KIDS data separately: if PanoraPix is not ready, will this be possible?

  22. 13. Tracking of artifacts • We will want to know automatically which sources in the catalogue are real. • How do we treat: • Ghosts? • Bright-star artifacts?

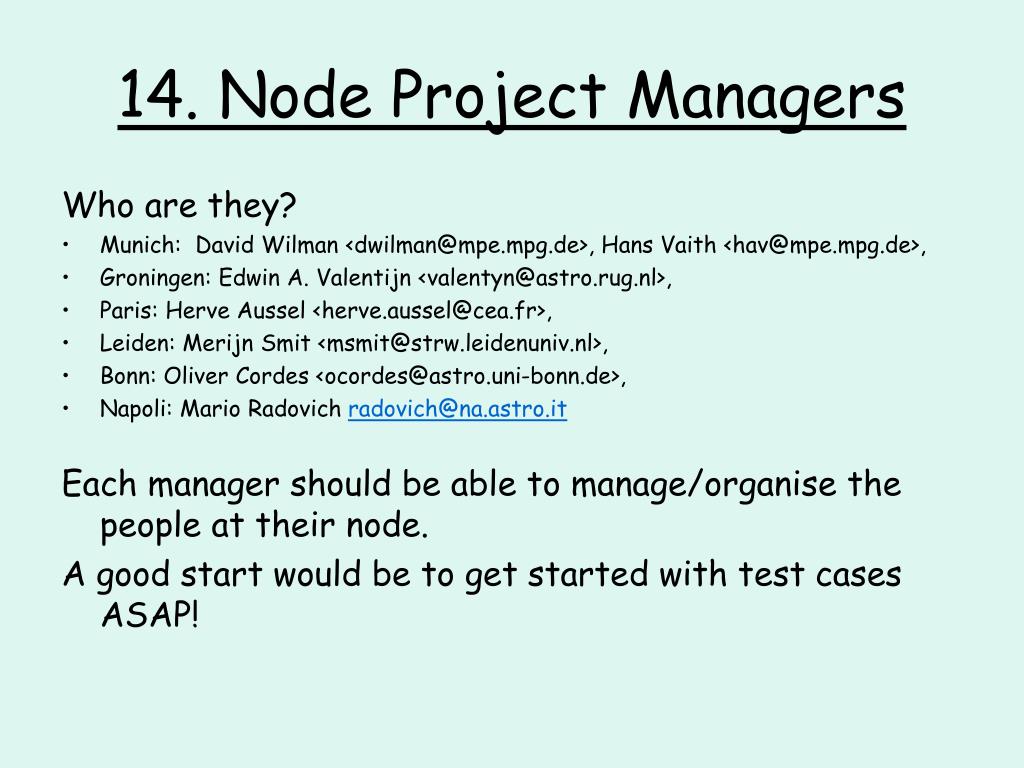

  23. 14. Node Project Managers • Who are they? • Munich: David Wilman <dwilman@mpe.mpg.de>, Hans Vaith <hav@mpe.mpg.de>, • Groningen: Edwin A. Valentijn <valentyn@astro.rug.nl>, • Paris: Herve Aussel <herve.aussel@cea.fr>, • Leiden: Merijn Smit <msmit@strw.leidenuniv.nl>, • Bonn: Oliver Cordes <ocordes@astro.uni-bonn.de>, • Napoli: Mario Radovich radovich@na.astro.it • Each manager should be able to manage/organise the people at their node. • A good start would be to get started with test cases ASAP!

  24. 15. KIDS Daily Operations • Contact between nodes / people. • Frequency / method: • A forum / mailing list? • Regular telecons? • On a longer timescale, regular meetings?

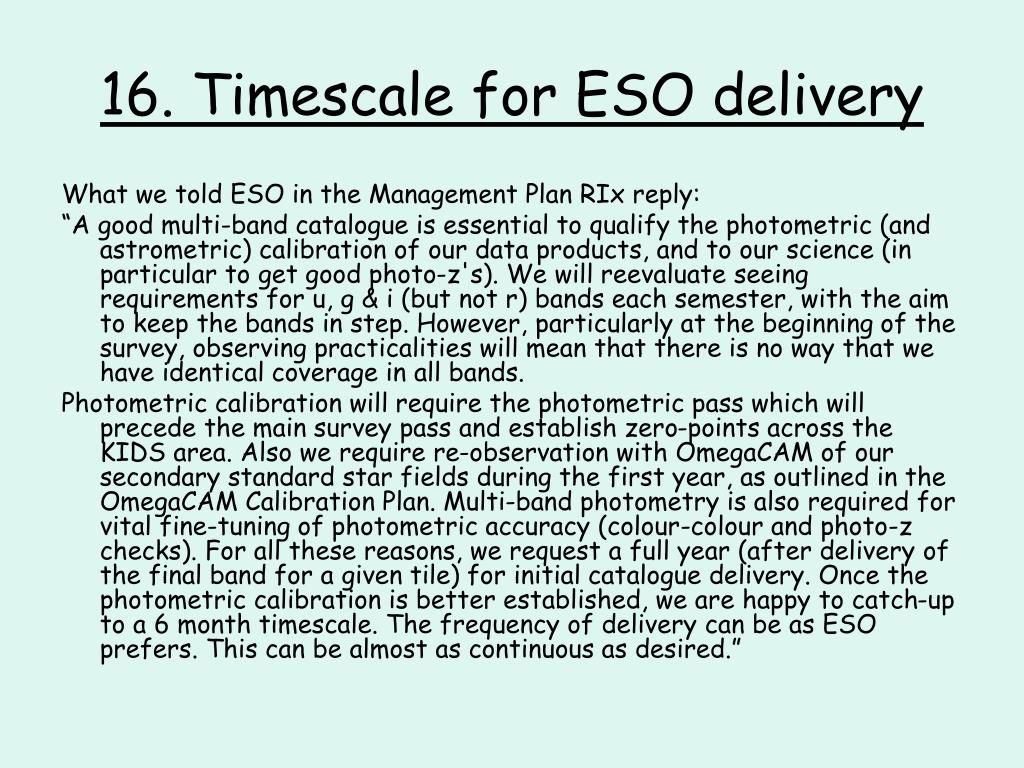

  25. 16. Timescale for ESO delivery • What we told ESO in the Management Plan RIx reply: • “A good multi-band catalogue is essential to qualify the photometric (and astrometric) calibration of our data products, and to our science (in particular to get good photo-z's). We will reevaluate seeing requirements for u, g & i (but not r) bands each semester, with the aim to keep the bands in step. However, particularly at the beginning of the survey, observing practicalities will mean that there is no way that we have identical coverage in all bands. • Photometric calibration will require the photometric pass which will precede the main survey pass and establish zero-points across the KIDS area. Also we require re-observation with OmegaCAM of our secondary standard star fields during the first year, as outlined in the OmegaCAM Calibration Plan. Multi-band photometry is also required for vital fine-tuning of photometric accuracy (colour-colour and photo-z checks). For all these reasons, we request a full year (after delivery of the final band for a given tile) for initial catalogue delivery. Once the photometric calibration is better established, we are happy to catch-up to a 6 month timescale. The frequency of delivery can be as ESO prefers. This can be almost as continuous as desired.”

  26. 17. WFI test program • There is a need for a ‘federated’ test program which ‘simulates’ the reduction of KIDS data (i.e. managing the distribution of reduction and testing amongst ourselves). • Pre-requirements: • Federation of AstroWise - required • Nodes ready with the AstroWise system installed working on the clusters – required • Stable and relatively bug-free installation of AstroWise – required • Consistent plan for reduction on an appropriate dataset – required • All software elements in place (e.g. aperture-matched photometry etc) - preferable

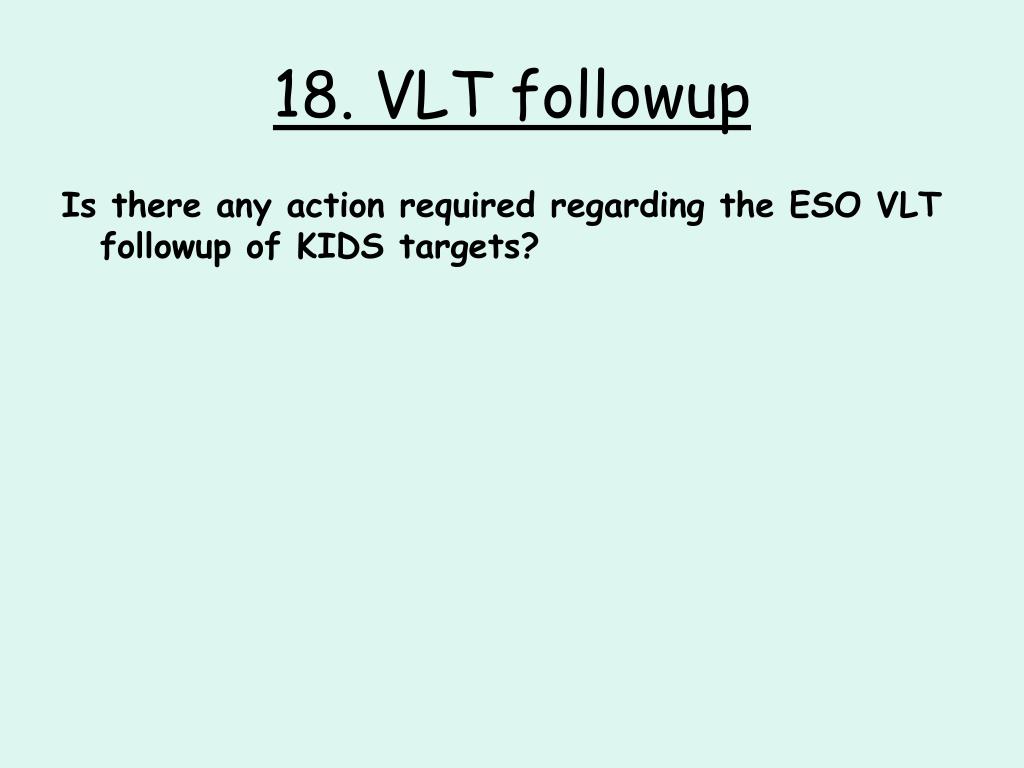

  27. 18. VLT followup • Is there any action required regarding the ESO VLT followup of KIDS targets?
