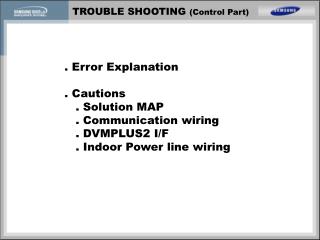

slide1

. Error Explanation

. Cautions

. Solution MAP

. Communication wiring

. DVMPLUS2 I/F

. Indoor Power line wiring

slide2

1. Error Display

   1) The Meaning of the First Alphabet

  2) Error Display sequence

 ○ In case several errors occurred at the same time, seven segment on the outdoor PBA

displays only one error whose priority is higher.

( Refer to the errorr code table about priority order )

 ○ When the same error occurred in several indoor units, seven segment displays one main

address of indoor unit whose address number is lowest.

slide6

Operation flow of

Outdoor unit

E201

E425

slide7

2. Initial tracking(communicaton check) – E201 indicated if abnormal

1) When the power is on, the micom of outdoor unit check the indoor units,

and transmitters Installed in the same system, which is called as tracking.

2) The left 2 sides of displays shows the address of indoor unit which the outdoor unit

is trying to communicate.(0,1,2,~,47)

3) The right 2 sides of displays shows the address of indoor unit which the outdoor unit

succeed in communicating.

4) Using outdoor 2 rotary switches to check the numbers of indoor unit

connected with outdoor unit

5) If the total numbers of indoor unit don't match with the outdoor switches setting,

the 4 segments display E201..

▶ Main unit displays indoor unit main address in sequence

from 0 to 47

▶ Sub unit displays only outdoor unit address connected to

each other like C9,CA,CB,CC,CD,CE,DF

slide8

6) Letters on the 7 segment display means as the follows.

2. Reverse phase/missing phase detection - E425 indicated if abnormal

3. Compressor preheating – Ch displays

(DISCHARGE ≤ COND_Out + 2℃ ) and ( out air temp) ≤ 30 ℃, for 2 minutes

-> CCH ON for 2 and half hours only at first.

(DISCHARGE > COND_Out + 5℃ ) and ( out air temp) ≥ 32 ℃, for 2 minutes

-> CCH OFF

slide9

E201:

E202:

E203:

slide10

E425:

E452:

E162:

slide13

INDOOR

ERROR

LED

DISPLAY

Status

slide14

INDOOR

ERROR

LED

DISPLAY

Status

slide15

Cautions in Solution Map

* Blue to be released , * Red to be sterilized

* MWR-WS00 : 7-day schedule function included. * MWR-WH00 : daily schedule function. Will be released on '06.04

* When using the DMS, MCM-A202 and MIM-B13 or MIM-B04A must be used

* MIM-B07 will be provided by R&D till '06.03. Order may be placed starting from '06.03.

* The power meter must be purchased from Korea separately. (Not provided by Samsung HQ)

MWR-WS00 is not compatible with the DVM, HR and FJM models at this time. (Compatibility date will be announced later on)

MWR-WS00 is not compatible with the BAC models at this time. (Compatibility date will be announced later on)

*Remote controller model for BAC will be listed by model separately

slide18

Cautions in Indoor power line wiring

, Coef = 1.55

< Instrallation condition >

total wire Length = 100[m], total input current i = 10[A], each indoor current 1[A],

total indoor number 10[EA]

slide21

Cautions in Indoor power line wiring

3.5[mm2]

2[mm2]

5.5[mm2]
