Presentation Transcript

  1. Display Energy CertificatesLes Yeats

  2. Confusion?

  3. EPCs v DECs DEC

  4. Where do I start?

  5. Process – Do I fall within the applicable criteria?

  6. DECs and Advisory Report Penalty £500 Penalty £1,000

  7. Process – Find Buildings over 1,000sqm • Example - 109 Buildings over 5 Campus sites • 49 over 1,000 sq. m. Buildings

  8. Process – Produce DEC & Adv Rep

  9. Process – Submission Central Register (CR) Landmark Information Group Central Information Point (CIP) Landmark Information Group Accreditation Bodies (AB) Up to 12 have intimated their intention to do this Software for DEC & Advisory Report 4 x XML files 2 x PDF

  10. How am I going to do them? • DIY • Software - DCLG software or M&T software • Recruit or Train Staff? • DEC Accredited Assessor - qualification and software training • TEAM have courses run in conjunction with CIBSIE • Outsource • 3rd party do everything • Shared workload based on what you have available and your level of knowledge

  11. Self read M&T Software Data loggers Radio Modem GSM & SMS Mains borne Signalling Paper Bills EDI Electronic Bills What data do I have ?

  12. Can I use M&T software ? Help create multiple DECs efficiently, simply and cost effectively Search M&T database for sites over 1000 sq m Simple step based process “mine” database for energy usage information and checks Automatically calculates Operational Ratings using approved CO2 emissions, benchmarks and weather corrections Allow selection of building types and benchmark categories Use stored site and administrative data to avoid duplication Helpful checks and prompts Create DEC and Advisory Report Automatically generates Certificate number Generate XML and PDF formats for despatch to Central Register Manages DEC and Advisory Report for easy access

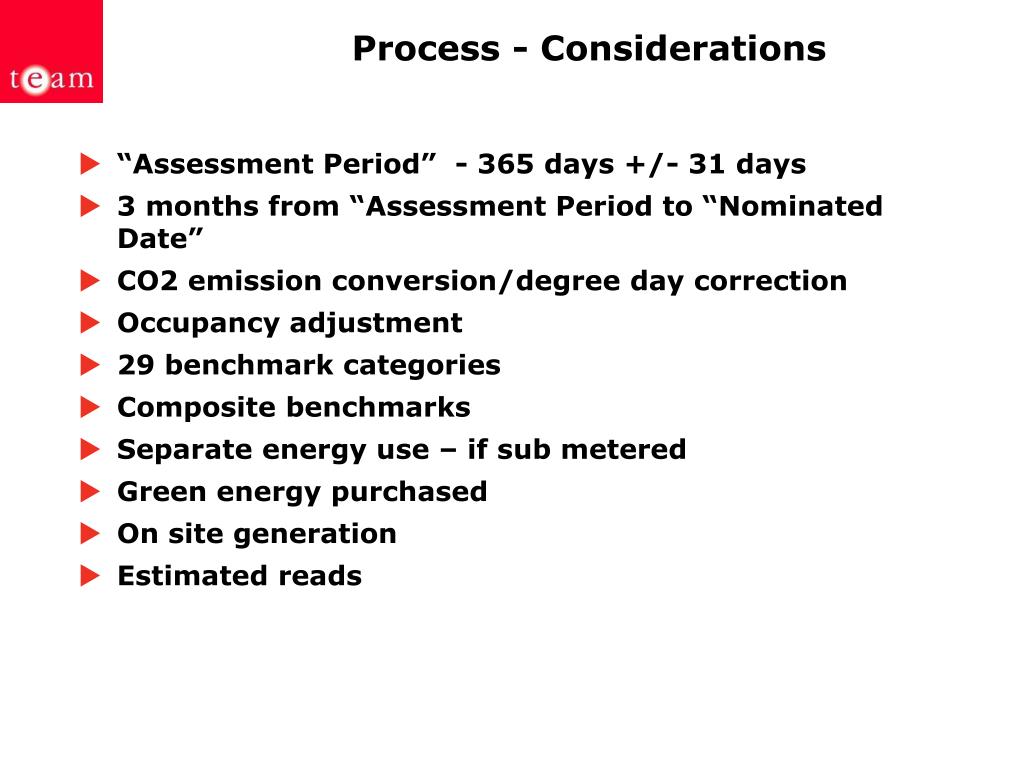

  13. Process - Considerations • “Assessment Period” - 365 days +/- 31 days • 3 months from “Assessment Period to “Nominated Date” • CO2 emission conversion/degree day correction • Occupancy adjustment • 29 benchmark categories • Composite benchmarks • Separate energy use – if sub metered • Green energy purchased • On site generation • Estimated reads

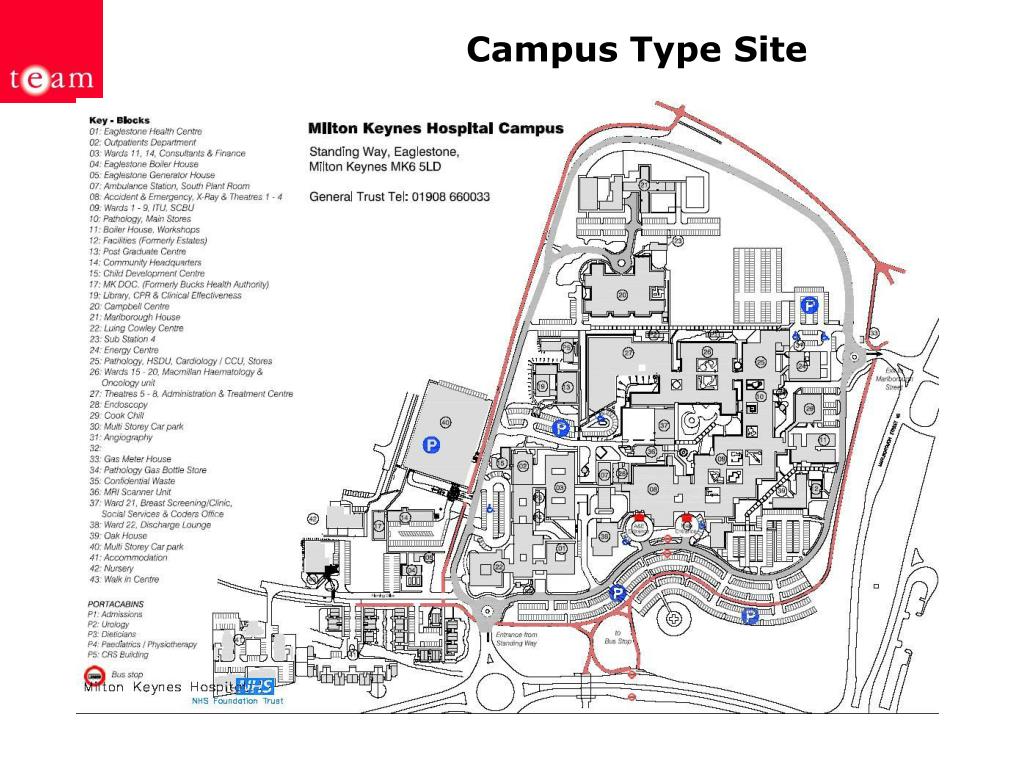

  14. Campus Type Site

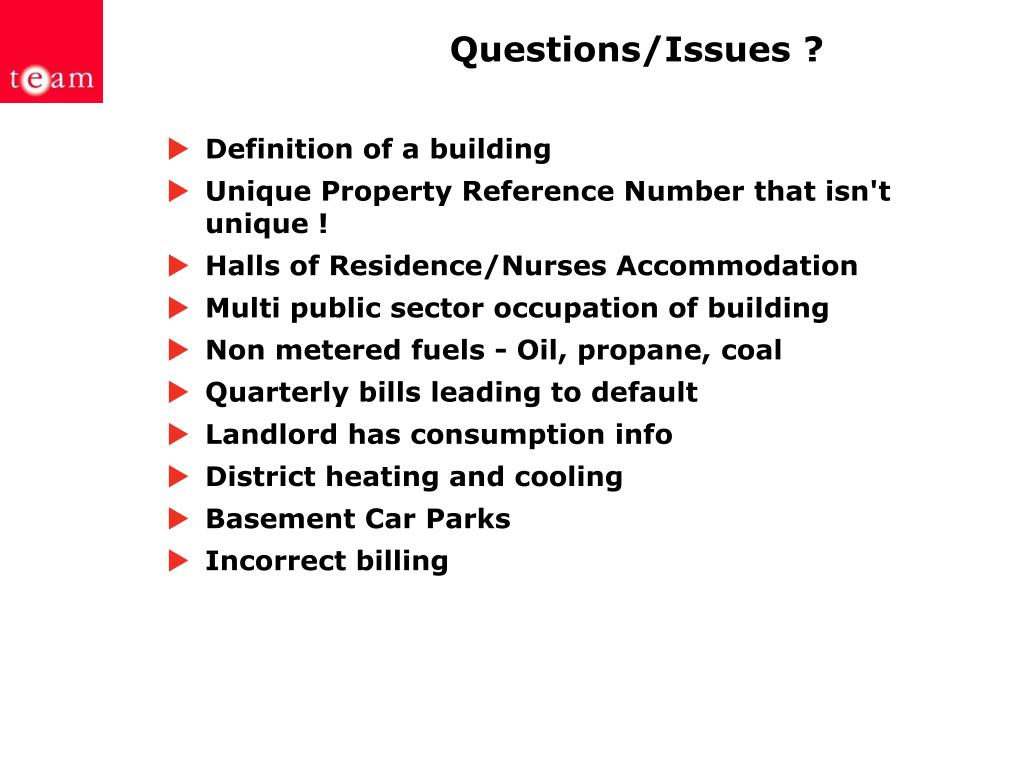

  15. Questions/Issues ? • Definition of a building • Unique Property Reference Number that isn't unique ! • Halls of Residence/Nurses Accommodation • Multi public sector occupation of building • Non metered fuels - Oil, propane, coal • Quarterly bills leading to default • Landlord has consumption info • District heating and cooling • Basement Car Parks • Incorrect billing

  16. Advisory Reports • List of cost effective energy saving measures • Provided through Q/A based downloadable software system and embedded in Sigma software module • Does not need to be displayed • Valid for 7 years • Do I have to survey all my sites? • When do these need to be submitted? • Who can do these? • What qualifications are needed?

  17. Advisory Report

  18. Check List Advisory Report Checklist

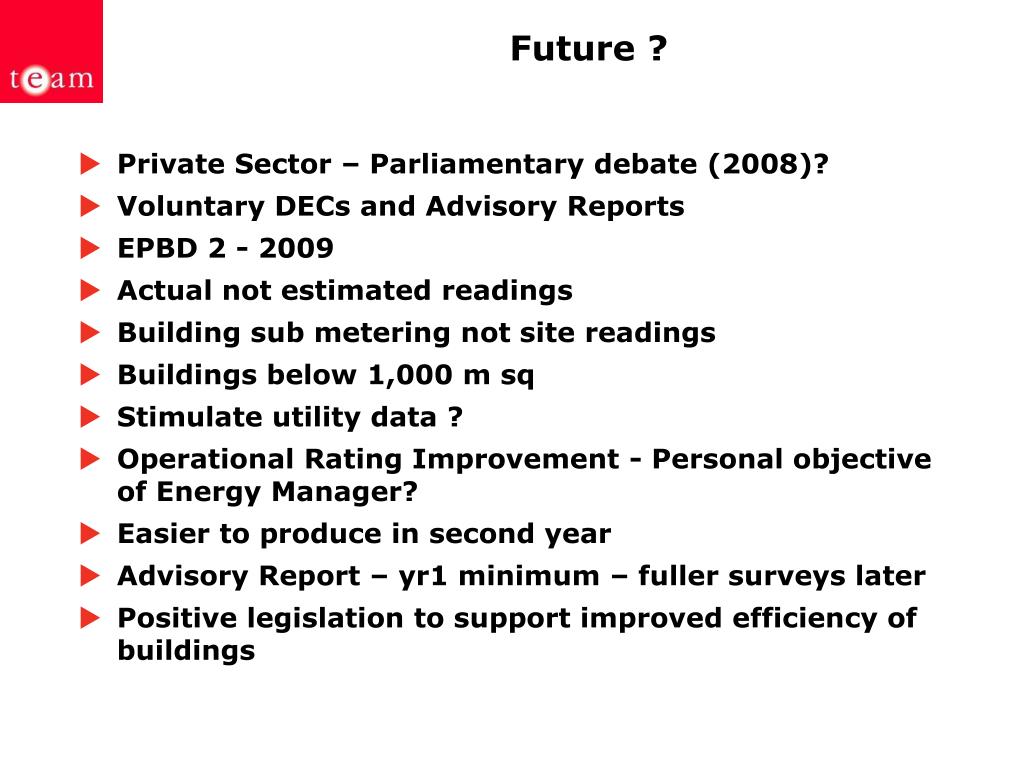

  19. Future ? • Private Sector – Parliamentary debate (2008)? • Voluntary DECs and Advisory Reports • EPBD 2 - 2009 • Actual not estimated readings • Building sub metering not site readings • Buildings below 1,000 m sq • Stimulate utility data ? • Operational Rating Improvement - Personal objective of Energy Manager? • Easier to produce in second year • Advisory Report – yr1 minimum – fuller surveys later • Positive legislation to support improved efficiency of buildings

  20. Thank youLes YeatsTEAM01908 690018 lyeats@teamenergy.com
