emc clariion fc4700

EMC CLARiiON FC4700

The Next Generation Storage Infrastructure for Distributed Computing Environments

business challenge

YES

YES

YES

YES

YES

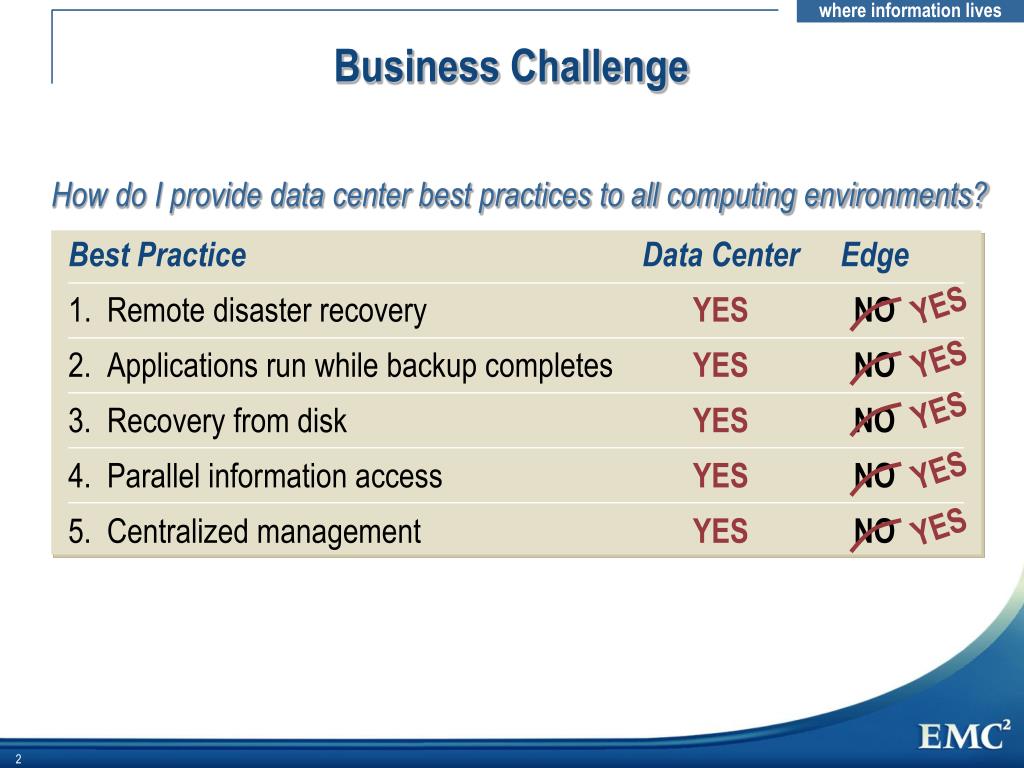

Business Challenge

How do I provide data center best practices to all computing environments?

Best Practice Data Center Edge

1. Remote disaster recovery YES NO

2. Applications run while backup completes YES NO

3. Recovery from disk YES NO

4. Parallel information access YES NO

5. Centralized management YES NO

emc provides best practices
EMC Provides Best Practices
  • EMC provides best practices to every computing environment
  • Protect distributed computing environments with data center best practices
    • Remote disaster recovery
    • Parallel access to production information
    • Backup during production periods
    • Restore from tape or disk
    • Centralized management
clariion fc4700 next generation storage for distributed computing environments
CLARiiON FC4700NEXT GENERATION STORAGE FOR Distributed Computing ENVIRONMENTS
  • Enhanced capabilities
    • More horsepower—Four processors (two per storage processor)
    • More connectivity—Four Fibre Channel ports
    • More throughput—Double the cache
    • More availability—Dual redundant Fibre Channel back end
  • Advanced storage-based information management
    • MirrorView—Storage-based remote disaster recovery
    • SnapView—Point-in-time view for parallel information access
  • Proven CLARiiON architecture
    • EMC testing and support
    • Part of the EMC Offering

CLARiiON FC4700

Powerful, intelligent, rock solid

emc clariion storage subsystems
EMC CLARiiON Storage Subsystems
  • Modular highly scalable, full Fibre Channel architecture
  • Proven high-availability architecture
    • Full internal redundancy
    • Over 120,000 installations
  • CLARiiON host / cluster support
    • IBM AIX, Sun, HP-UX, Windows 2000, Windows NT, NetWare, Linux (not supported for clusters)
    • CLARiiON FC4700: Windows NT, Windows 2000, and Sun Solaris
  • Centralized management through EMC Navisphere
    • Familiar Microsoft Windows Explorer interface runs on Windows NT and Windows 2000
    • Automated, proactive fault notification via e-mail, FAX, or pager
emc clariion models

FC4700

  • Four Intel 733MHz PIII processors
  • Four Fibre Channel ports
  • 2GB RAMBUS cache
  • Multi-host FC-SW attach
  • Scalable to 7.3TB, 100 drives
  • Typically 50–70 drives
  • Direct or cluster attach
  • Access Logix—access control
  • SnapView—parallel access
  • MirrorView—disaster recovery

FC4500

  • Two processors
  • Two Fibre Channel ports
  • 1GB cache
  • Multi-host FC-SW attach
  • Scalable to 7.3TB, 100 drives
  • Typically 40–50 drives
  • Direct or cluster attach
  • Access Logix—access control

FC5300

  • Two processors
  • Two Fibre Channel ports
  • Scalable to 2.1TB, 30 drives
  • Typically 10–15 drives
  • Direct or cluster attach
EMC CLARiiON Models
clariion fc4700 system hardware the clariion architecture is based on dual storage processors

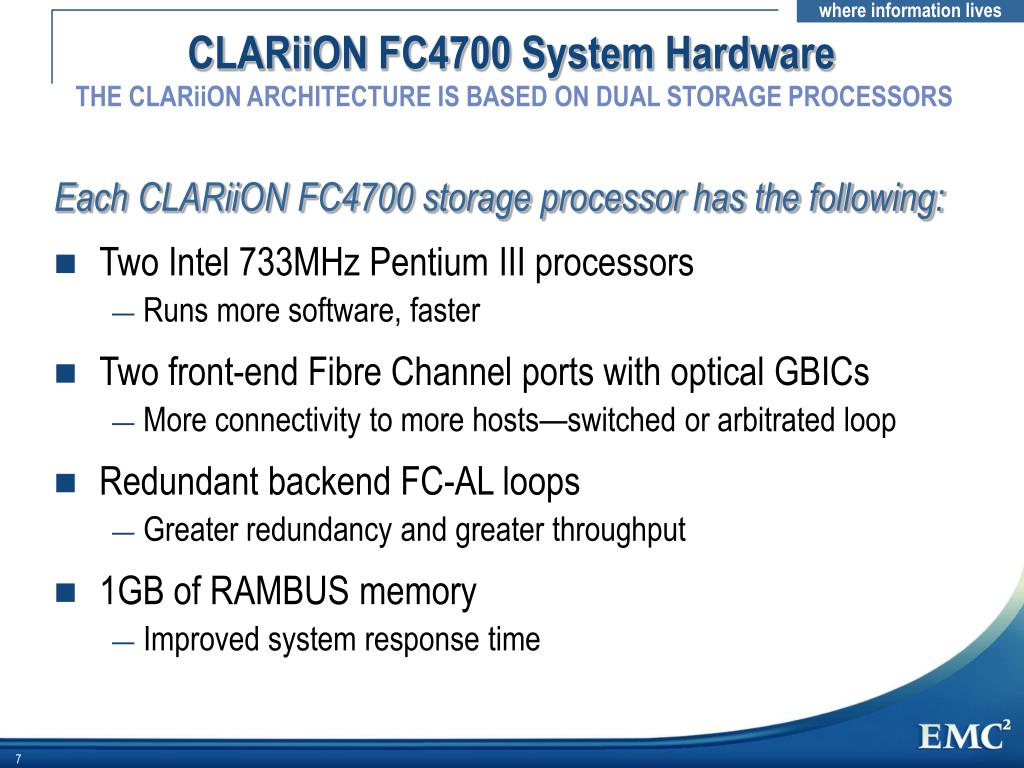

CLARiiON FC4700 System Hardware THE CLARiiON ARCHITECTURE IS BASED ON DUAL STORAGE PROCESSORS

Each CLARiiON FC4700 storage processor has the following:

  • Two Intel 733MHz Pentium III processors
    • Runs more software, faster
  • Two front-end Fibre Channel ports with optical GBICs
    • More connectivity to more hosts—switched or arbitrated loop
  • Redundant backend FC-AL loops
    • Greater redundancy and greater throughput
  • 1GB of RAMBUS memory
    • Improved system response time
clariion fc4700 direct san or cluster attachable

Direct attached

Managementconsole

Managementconsole

(multiple hosts and / or

multiple arrays)

CLARiiON

FC4700

Servers

NETWORK

NETWORK

SAN attached

Server

Client

Client

Switch

Network

CLARiiON

FC4700

Server

Server

Cluster attached

MSCS

First Watch

VERITAS Cluster Server

CLARiiON

FC4700

Server

CLARiiON FC4700—Direct, SAN, or Cluster Attachable
multi personality fc4700 and ip4700

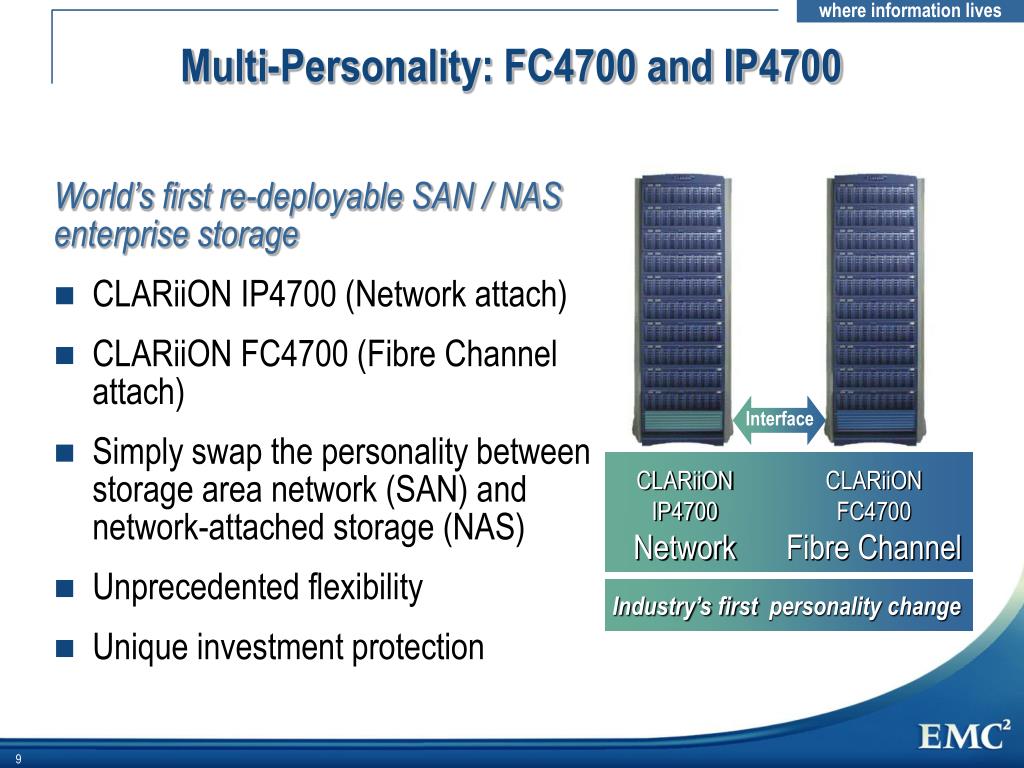

Multi-Personality: FC4700 and IP4700

World’s first re-deployable SAN / NAS

enterprise storage

  • CLARiiON IP4700 (Network attach)
  • CLARiiON FC4700 (Fibre Channel attach)
  • Simply swap the personality between storage area network (SAN) and network-attached storage (NAS)
  • Unprecedented flexibility
  • Unique investment protection

Interface

CLARiiON

IP4700

Network

CLARiiON

FC4700

Fibre Channel

Industry’s first personality change

emc navisphere management software
EMC Navisphere Management Software
  • Centralized management for CLARiiON storage throughout the enterprise
    • Information protection
    • Information management
    • Configuration management
    • Array status and health monitoring
    • Information access control
    • Performance analysis tools
  • Multiple server support
  • EMC ControlCenter integration
  • Management framework integration

Navisphere Suite

  • Agent / CLI
  • Event Monitor
  • Integrator
  • Analyzer
  • Access Logix
  • SnapView
  • MirrorView
  • ControlCenter integration
clariion fc4700 non disruptive upgrades
CLARiiON FC4700NON-DISRUPTIVE UPGRADES
  • A new level of information availability for continued operation
  • Both the CLARiiON FC4700 and all host-attached servers remain fully operational during system level or maintenance upgrade procedures
    • Application software
    • FC4700 core code
  • Totally transparent to all array-attached hosts
access logix volume access control
Access LogixVOLUME ACCESS CONTROL

Servers

  • EMC Access Logix is a software product for CLARiiON storage arrays
  • Access Logix ensures only authorized servers have access to specific volumes (LUNs)
    • Storage-based product uses no host cycles
    • Transparent to server, operating system, and applications
    • Centralized, simplified management via EMC Navisphere
  • Access Logix protects data from unauthorized access
    • Servers can access only authorized volumes
    • Access control is maintained once on the CLARiiON array rather than on every attached server
    • Volumes can be shared by server cluster pairs

Switches

CLARiiON

emc snapview parallel information access

Production

information

SNAP

Snapshot

Logical point-in-time view

CLARiiON FC4700

EMC SnapViewPARALLEL INFORMATION ACCESS
  • SnapView is a software product for the CLARiiON FC4700
  • SnapView creates logical point-in-time views of production information
    • Storage-based product uses no host cycles
    • Takes only seconds to create a complete snapshot
    • Snapshots can be created requiring only a fraction of the original file system space
  • Snapshot allows parallel access to production data
    • Are read/write mountable by a secondary host for increased productivity
    • Minimizes time that production data is unavailable to users
    • Eliminates scheduled downtime for backups
    • Enables more frequent data warehouse refreshes
using snapview for parallel operations
Using SnapView for Parallel Operations
  • Concurrent backups
  • Decision support systems
  • Management reports
  • Data warehouse loads or updates
  • Application testing against logical view of production data
  • Complete daily batch routines during production periods
  • File maintenance and other housekeeping tasks
example using snapview for backups

Production

Host

Backup

Host

Backup

Unit

Production

information

SNAP

Snapshot

CLARiiON FC4700

Example: Using SnapView for Backups
  • Quiesce application if required
  • Establish SnapView instance containing the backup image
    • Created within seconds
  • Production application continues
  • Execute backups from the snapshot while production processing continues
  • Once backup is complete, retire the snapshot
emc mirrorview remote disaster recovery

Synchronous, bi-directional remote mirroring

Production

A

Mirror

A

Mirror B

Production

B

Remote

CLARiiON

FC4700

Local

CLARiiON

FC4700

EMC MirrorViewREMOTE DISASTER RECOVERY
  • EMC MirrorView is a software product for the CLARiiON FC4700
  • MirrorView maintains synchronous remote mirroring between two CLARiiON FC4700 arrays
    • Storage-based product uses no host cycles
    • Transparent to server, operating system, and applications
    • Centralized, simplified management via EMC Navisphere
  • MirrorView protects production information from unavailability and loss
    • Protection from environmental, mechanical, or technical threats
    • Continuous, bi-directional information integrity
    • Failover production environment to remote site
    • Enables concurrent information access at remote site
mirrorview synchronous mirror to remote site

Site A

Site B

Production Host

Standby Host

Synchronous,

bi-directional mirror

SP-A DIRECT CONNECT FIBRE CHANNEL TOPOLOGY

SP-B DIRECT CONNECT FIBRE CHANNEL TOPOLOGY

Mirror

A

Production

B

Production

A

Mirror B

Secondary array

Separation

~500 meters short-wave Fibre Channel

~10 km with extenders

Primary array

MirrorViewSYNCHRONOUS MIRROR TO REMOTE SITE
mirrorview and snapview
MirrorView and SnapView

Production Host (Site A)

Secondary Host (Site B)

Tape Backup

Report Generation

Decision Support Tools

MirrorView mirror

  • Production site is protected from disaster
  • Secondary site has standby failover server
  • Secondary site offloads information processing

Production

information

Production

information

SNAP

Snapshot

Primary

CLARiiON FC4700

Remote

CLARiiON FC4700

clariion fc4700 the emc effect

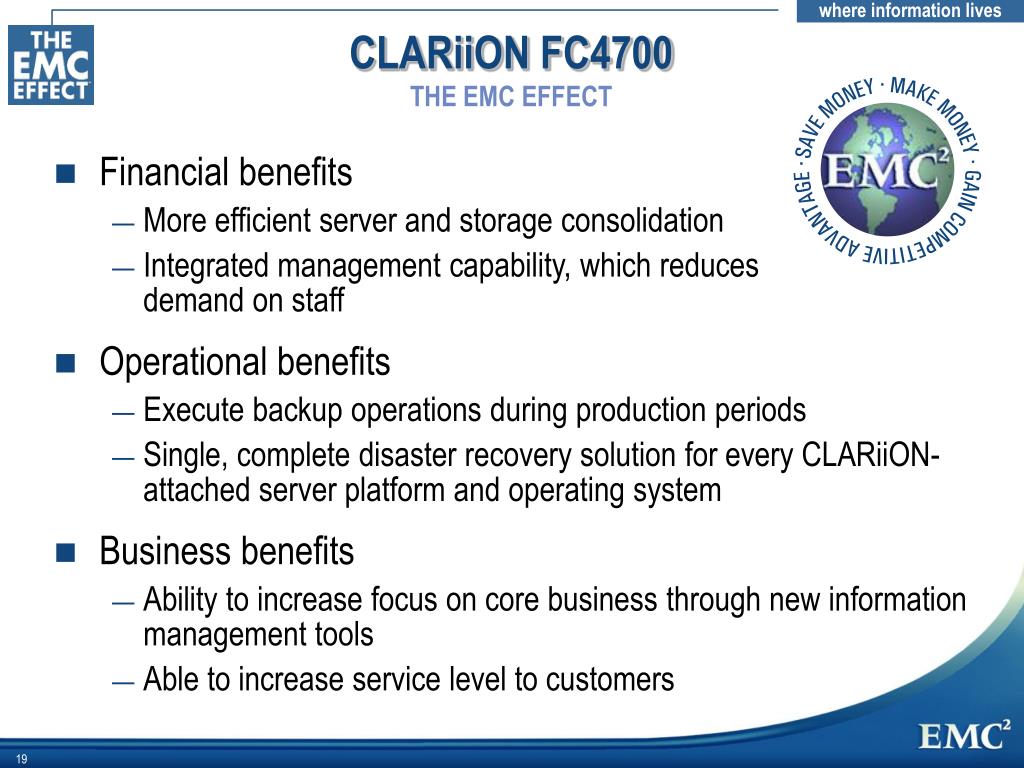

CLARiiON FC4700THE EMC EFFECT
  • Financial benefits
    • More efficient server and storage consolidation
    • Integrated management capability, which reduces demand on staff
  • Operational benefits
    • Execute backup operations during production periods
    • Single, complete disaster recovery solution for every CLARiiON-attached server platform and operating system
  • Business benefits
    • Ability to increase focus on core business through new information management tools
    • Able to increase service level to customers
the emc offering everything you get when you do business with emc
The EMC OfferingEVERYTHING YOU GET WHEN YOU DO BUSINESS WITH EMC

Alliances and partnershipsto connect and enable technologies, and speed implementation

Cross-industry expertise in accelerating time to market, change management, software development, and risk management

Flexible Financial Services to satisfy your budget requirements

Professional Services to provide assessment and implementation management

EMC Proven—The recognized brand customers look for

Customer Service—The world’s best

clariion fc4700 hardware block diagram

Fan

Fan

Fan

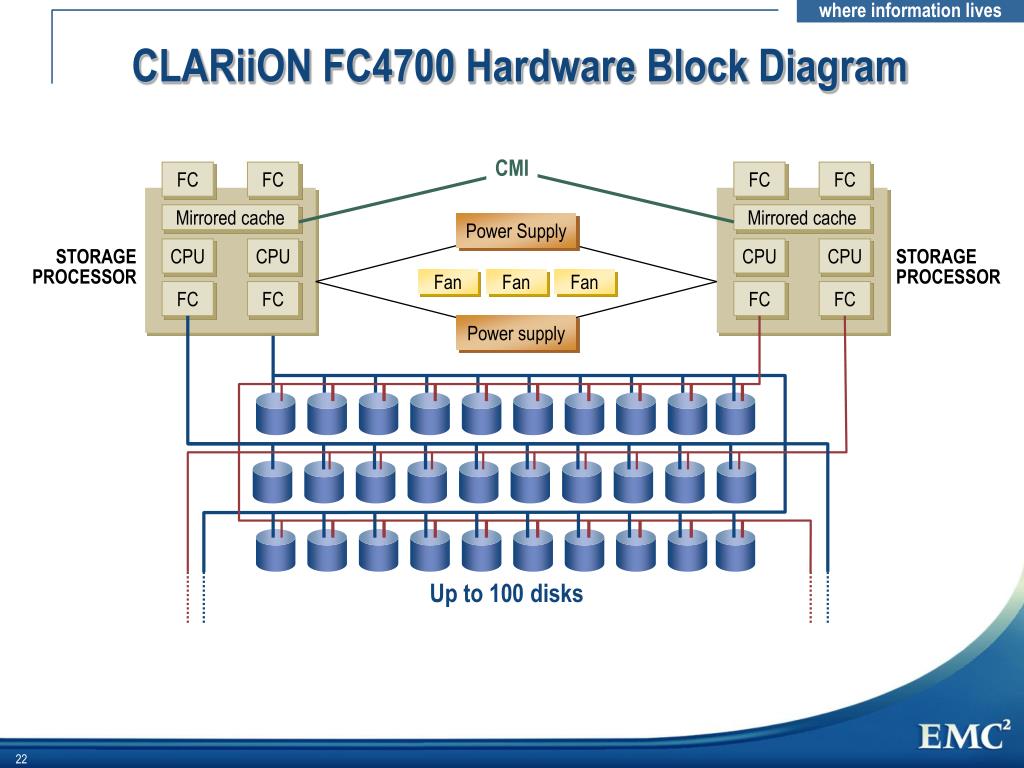

CLARiiON FC4700 Hardware Block Diagram

CMI

FC

FC

FC

FC

Mirrored cache

Mirrored cache

Mirrored Cache

Mirrored Cache

Power Supply

CPU

CPU

CPU

CPU

STORAGE

PROCESSOR

STORAGE

PROCESSOR

FC

FC

FC

FC

Power supply

Up to 100 disks
