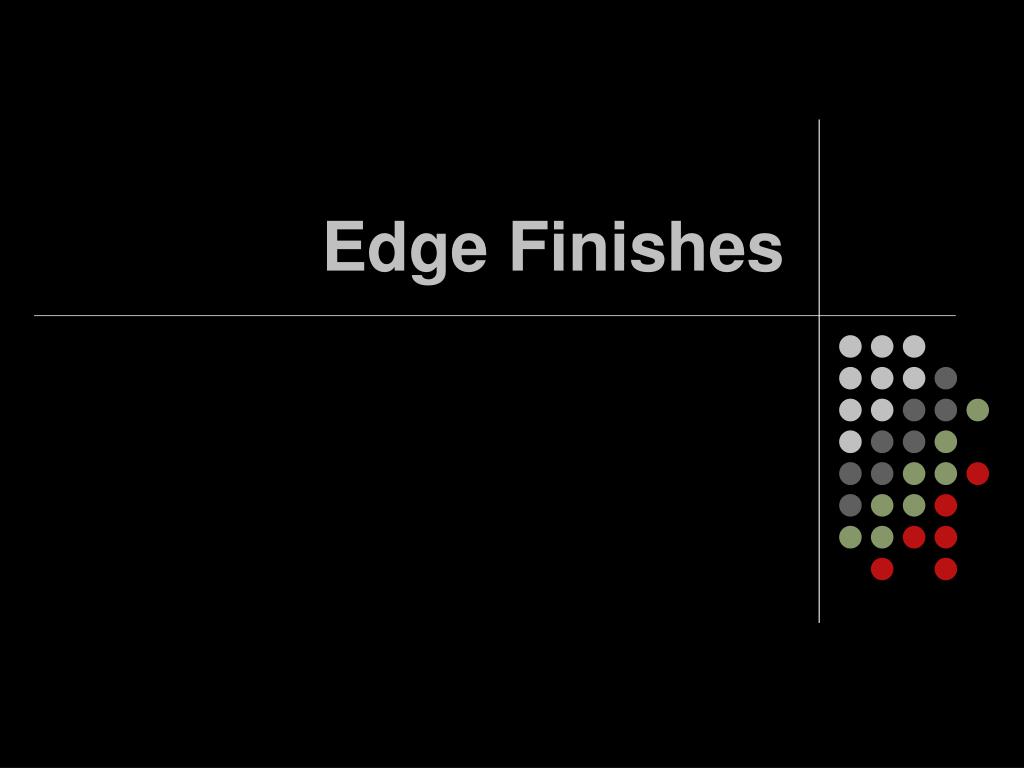

Edge Finishes

Loading in 2 Seconds...

play fullscreen
1 / 12

Edge Finishes - PowerPoint PPT Presentation


  • 185 Views
  • Uploaded on

Edge Finishes. Hem. Any finish at the edge of a garment Stitching-(EF) Edge Finishing Hem tape Secures hem and increases quality and price. Types:Folded, Blind, Glued, Shirtail, Rolled, Clean finish, Booked. . Folded hem. Simple: the raw edges are turned under and stitched to the garment.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Edge Finishes' - deo


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

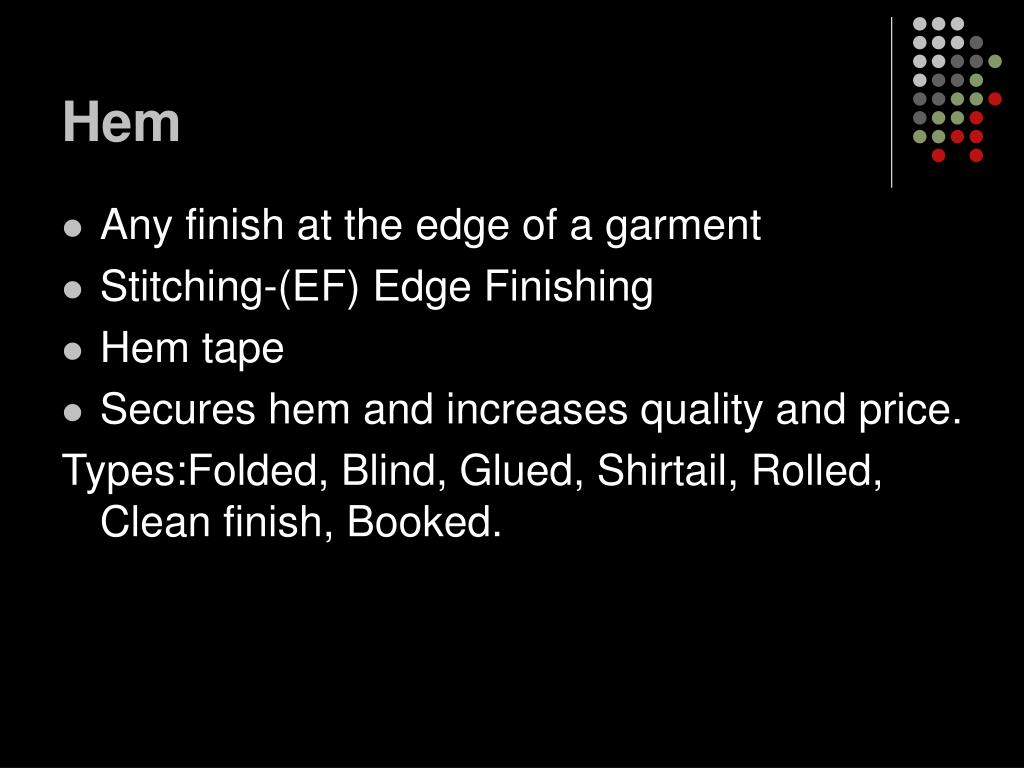

Hem
  • Any finish at the edge of a garment
  • Stitching-(EF) Edge Finishing
  • Hem tape
  • Secures hem and increases quality and price.

Types:Folded, Blind, Glued, Shirtail, Rolled, Clean finish, Booked.

folded hem
Folded hem
  • Simple: the raw edges are turned under and stitched to the garment.
  • Uses: Lower edge of garments, pockets, ruffles, sleeves with no cuffs.
blind hem

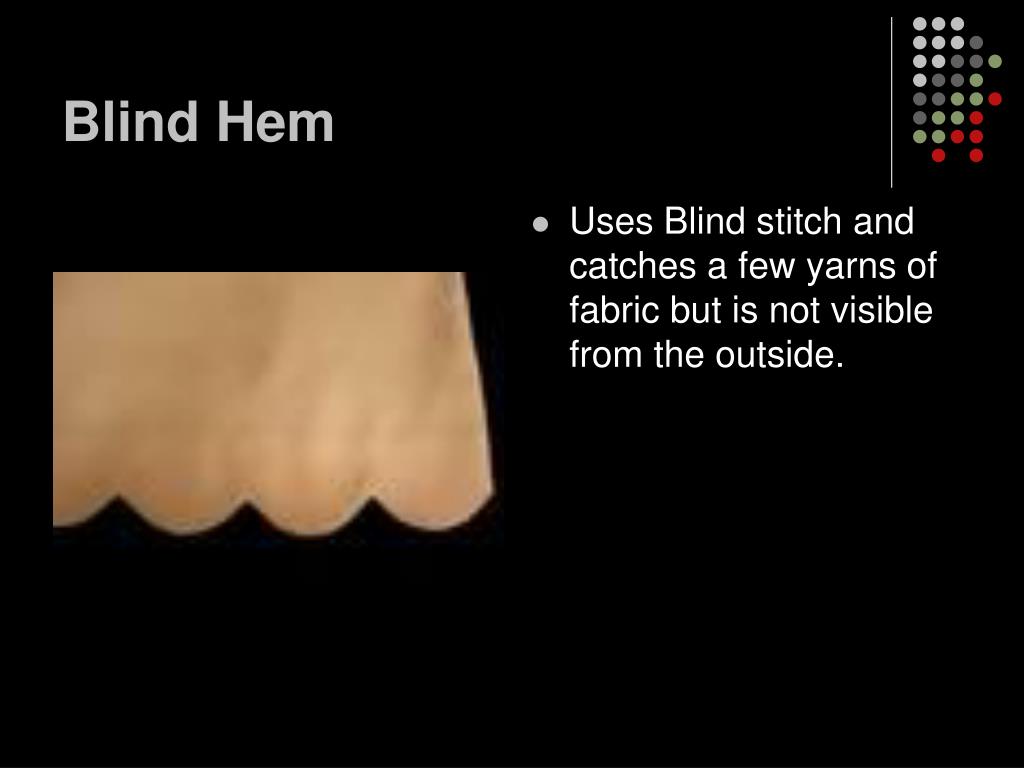

Blind Hem
  • Uses Blind stitch and catches a few yarns of fabric but is not visible from the outside.
glued hem
Glued Hem
  • Used in leather and leather like fabrics. Increases quality, no needle punches.
  • Seen as poor quality in other fabrics.
shrittail hem

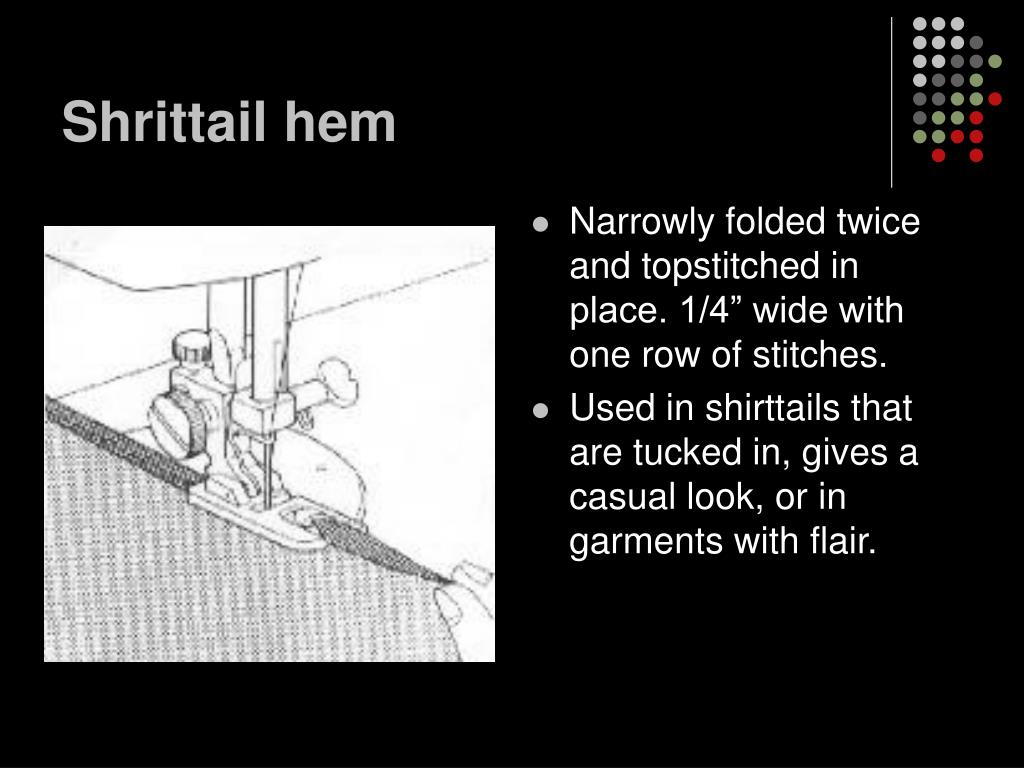

Shrittail hem
  • Narrowly folded twice and topstitched in place. 1/4” wide with one row of stitches.
  • Used in shirttails that are tucked in, gives a casual look, or in garments with flair.
rolled hem
Rolled Hem
  • Very narrowly rolled up to enclose a raw edge of a hem. May be topstitched, blind stitched, or over edge stitch.
clean finish

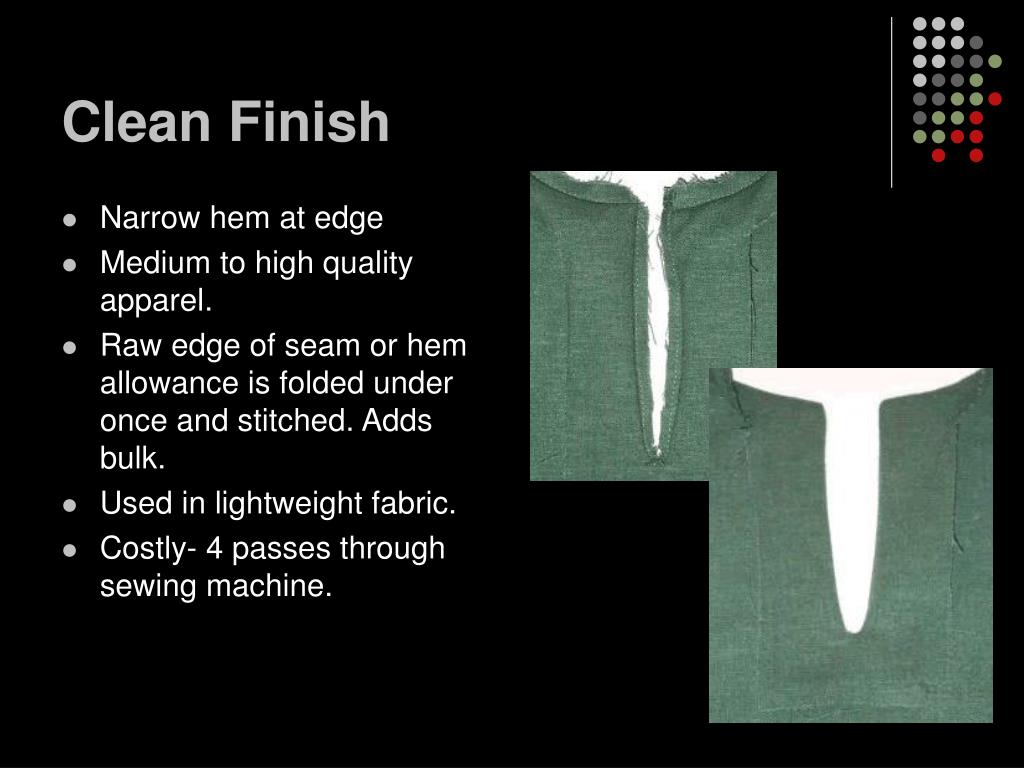

Clean Finish
  • Narrow hem at edge
  • Medium to high quality apparel.
  • Raw edge of seam or hem allowance is folded under once and stitched. Adds bulk.
  • Used in lightweight fabric.
  • Costly- 4 passes through sewing machine.
decorative finishes
Decorative Finishes
  • Scalloped, shell or lettuce Edge of hem.
unfinished finish
Unfinished Finish
  • Pinking- Cut fabric with serrated blade or scissors. Used on Opaque fabric, retards raveling but doesn’t stop it.
facing
Facing
  • Any Fabric used to finish a raw edge of a garment.
  • Used in necklines, armscye, back of garments.
  • Example: Button Band, French Front that covers buttons.
bands
Bands
  • Decorative
  • Finish garment opening, Doesn’t stretch.
  • Used: necklines, waistline, Sleeves, Inseams, ect.
