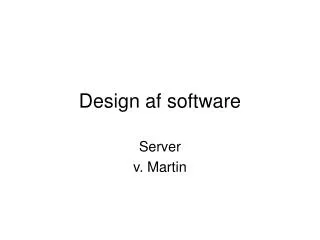

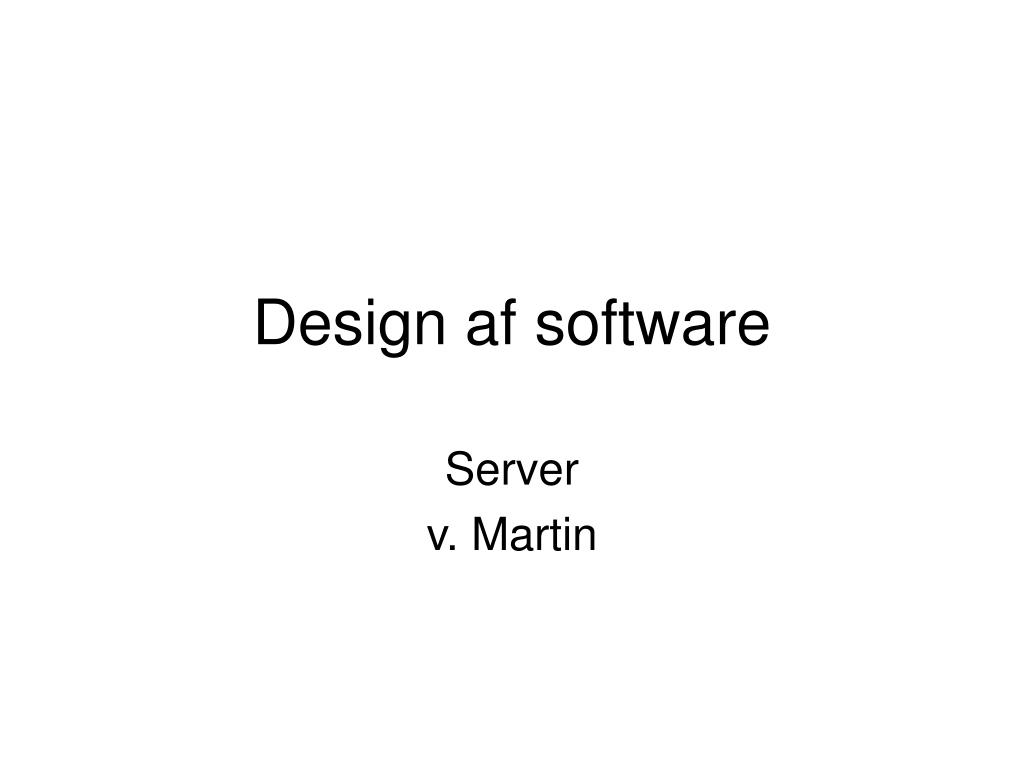

  1. Design af software Server v. Martin

  2. Server • Klasseopdeling udfra use-cases • Klassediagram • Udvidelse af ServerMap • Gennemgang af ServerRobot

  3. ServerComm Kommunikation til Client ServerRobot Repræsentere robotten ServerRobot Repræsentere robotten Auth Autorisere bruger CommPort Kommunikation til Robot Funktionelle krav

  4. ServerHandler VisualMap Auth CommPort ServerMap ServerComm ServerRobot Klassediagram

  5. ServerMap NavMap MapNode Udvidelse af ServerMap • Gemme kortdata • Beslutte hvor der skal afsøges • Generere VisualMap • Koordinere indsatsen matematisk model

  6. ServerRobot Handling i ServerMap Seaching Tilføj kort-data Søgeinstruktioner Driving Opdatere position Rute planlægges Evacuating Opdatere position Rute planlægges
