    Presentation Transcript
    1. Design of aDiversified Router:Dedicated CRFfor IPv4 Metarouter John DeHart, Brandon Heller jdd@arl.wustl.edu, bdh4@cec.wustl.edu http://arl.wustl.edu/projects/techX/

    2. Revision History • 5/22/06 (JDD): • Created • Buffer descriptor stuff probably needs updating. • 6/1/06 (JDD): • Updating data going between blocks, still in progress. • 6/2/06 (JDD): • More cleanup of data going between blocks. • Buffer descriptor details still need updating. • 6/5/06 (JDD): • Slight change to format for Lookup Key and defining what goes in each word in the NN ring. • Add IP Pkt Length to data Demux passes to Parse • 6/6/06 (JDD): • Reorganized the Lookup Result given to Hdr Format to distinguish between MR portion and Substrate portion. • Clean up labeling of data to Parse (MN vs. IP Pkt) • Output from Parse is still IP Pkt Offset and Length. • Data from Parse to Lookup needs update to reflect case where lookup is just for Substrate mapping of MI to LC. • 6/7/06 (JDD): • Updated notes about Parse block’s input/output and functionality • 6/15/06 (JDD): • Removed CRC from Rx to Demux data. • MSF does not pass us a CRC like we thought so we will skip the CRC checking. • Updated data going from Demux to Parse, Parse to Lookup and Lookup to Hdr Format

    3. Revision History • 6/19/06 (BDH): • Split Header Format into MR Header Format and Substrate Encap • Demux is now Substrate Decap • Reorganization of all slides into logical and physical formats, coloring scheme • IPv4 MR now has own section, integrated JL’s internal format slides • 6/21/06 (BDH): • H Flags nuked • MN Pkt Length into Lookup is now substrate-defined • Logical communication added from Lookup to Substrate Encap • Port fields are all 4 bits now • 6/26/06 (BDH): • Substrate Decap to Parse format changed • Changed block diagram to better show that substrate encloses the MR-specific portions • Added details on Substrate Decap • Moved IPv4 slides to techX\bdh4\techx\IPv4_MR_shared. These slides should be done by mid-July. • 6/29/06 (BDH): • Updated format of Tx input • 6/30/06 (BDH): • Updated format of Hdr Format to Substrate Encap data, only handles IPv4 NH_MN_ADDRs now

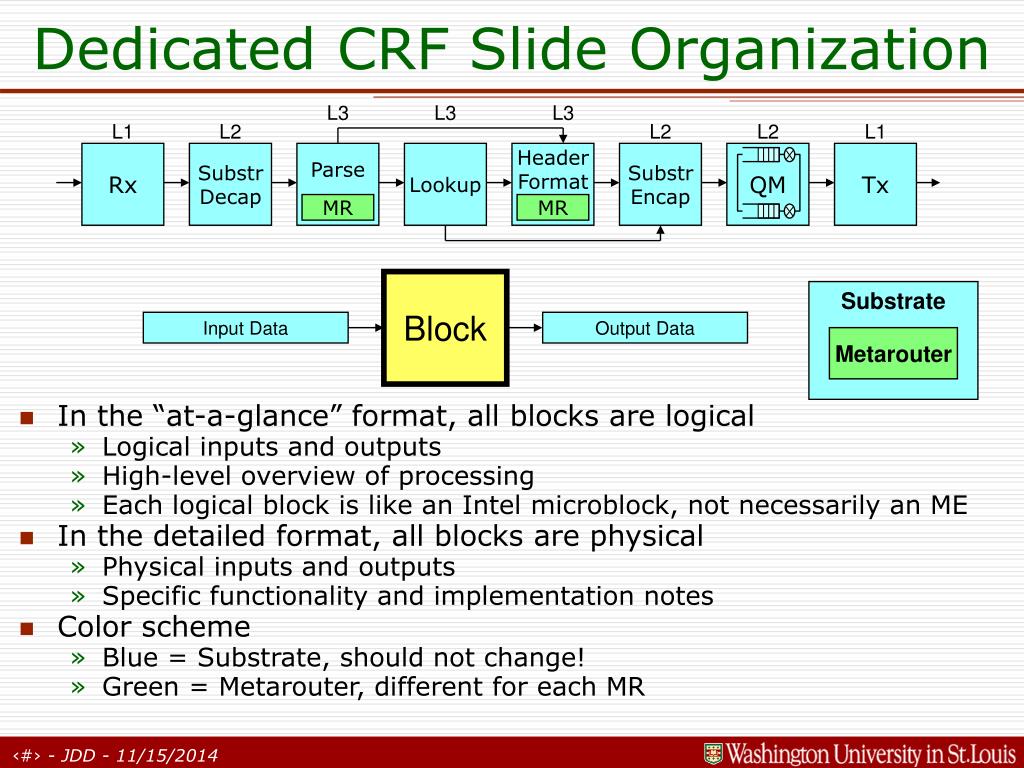

    4. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Dedicated CRF Slide Organization Block Substrate Input Data Output Data Metarouter • In the “at-a-glance” format, all blocks are logical • Logical inputs and outputs • High-level overview of processing • Each logical block is like an Intel microblock, not necessarily an ME • In the detailed format, all blocks are physical • Physical inputs and outputs • Specific functionality and implementation notes • Color scheme • Blue = Substrate, should not change! • Green = Metarouter, different for each MR

    5. Logical Formats

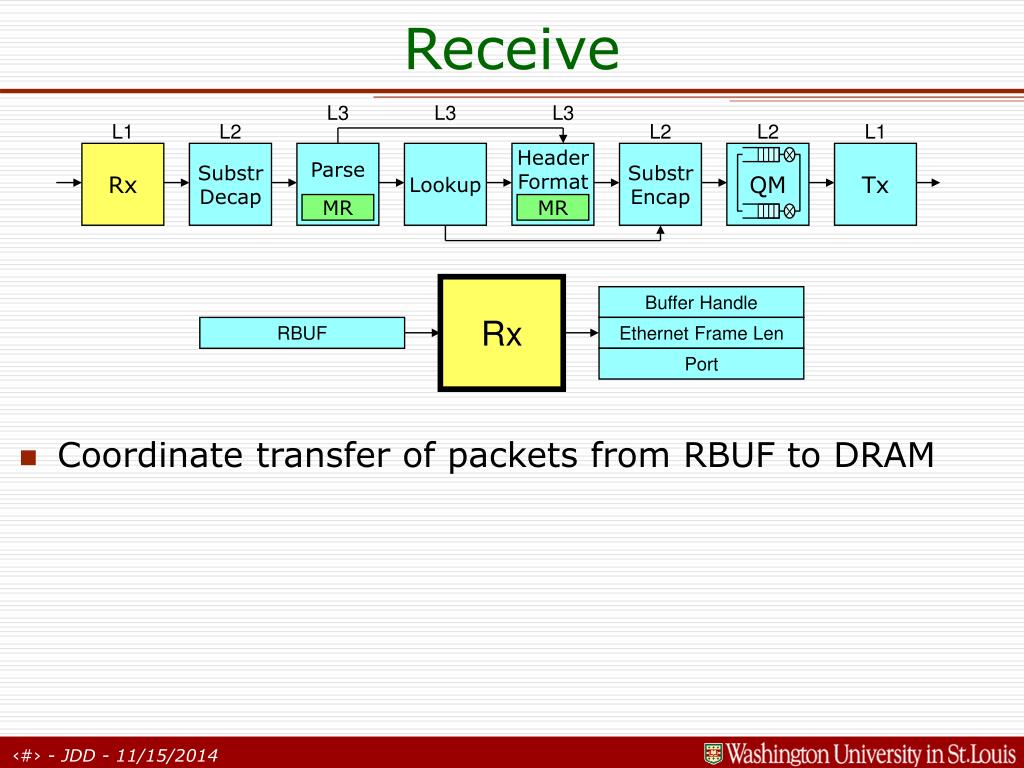

    6. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Receive Rx Buffer Handle RBUF Ethernet Frame Len Port • Coordinate transfer of packets from RBUF to DRAM

    7. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Substrate Decap Buffer Handle Substr Decap Destination MPE Buffer Handle Source ID Ethernet Frame Len MN Frame Length Port MN Frame Offset • Read and validate Ethernet header from DRAM • Read and validate substrate header from DRAM • Extract Source ID • Calculate MN frame length and offset

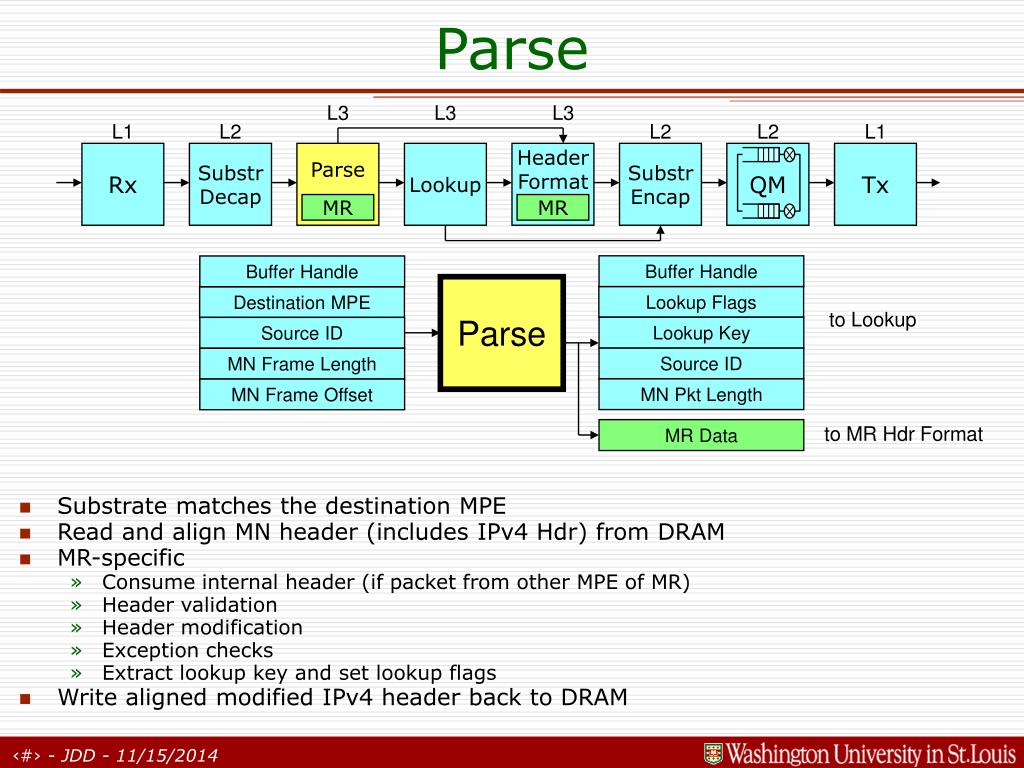

    8. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Parse Buffer Handle Buffer Handle Parse Lookup Flags Destination MPE to Lookup Lookup Key Source ID Source ID MN Frame Length MN Pkt Length MN Frame Offset to MR Hdr Format • Substrate matches the destination MPE • Read and align MN header (includes IPv4 Hdr) from DRAM • MR-specific • Consume internal header (if packet from other MPE of MR) • Header validation • Header modification • Exception checks • Extract lookup key and set lookup flags • Write aligned modified IPv4 header back to DRAM MR Data

    9. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Lookup Buffer Handle Lookup Buffer Handle to MR Header Format Lookup Input Flags Lookup Result Flags Lookup Key MR Lookup Result Source ID MN Pkt Length Dest Addr to Substrate Encap • Perform lookup in TCAM • Increment counters based on Stats Index • Priority resolution of results from multiple databases, if needed Output Port QID

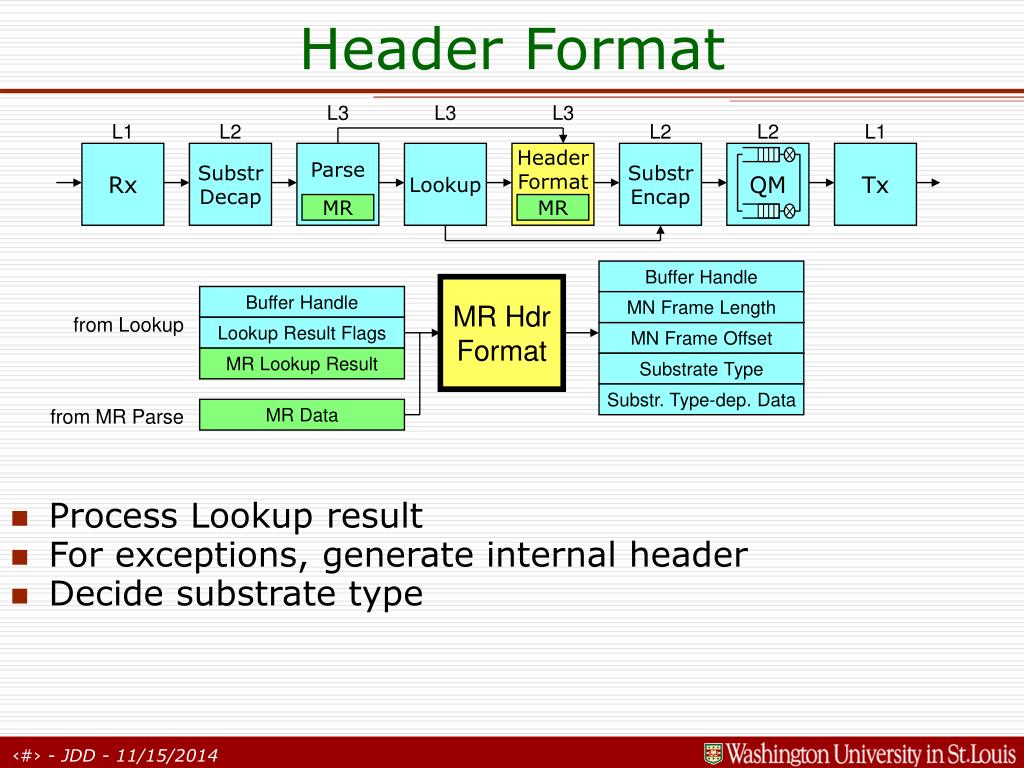

    10. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Header Format Buffer Handle MR Hdr Format Buffer Handle MN Frame Length from Lookup Lookup Result Flags MN Frame Offset MR Lookup Result Substrate Type Substr. Type-dep. Data from MR Parse MR Data • Process Lookup result • For exceptions, generate internal header • Decide substrate type

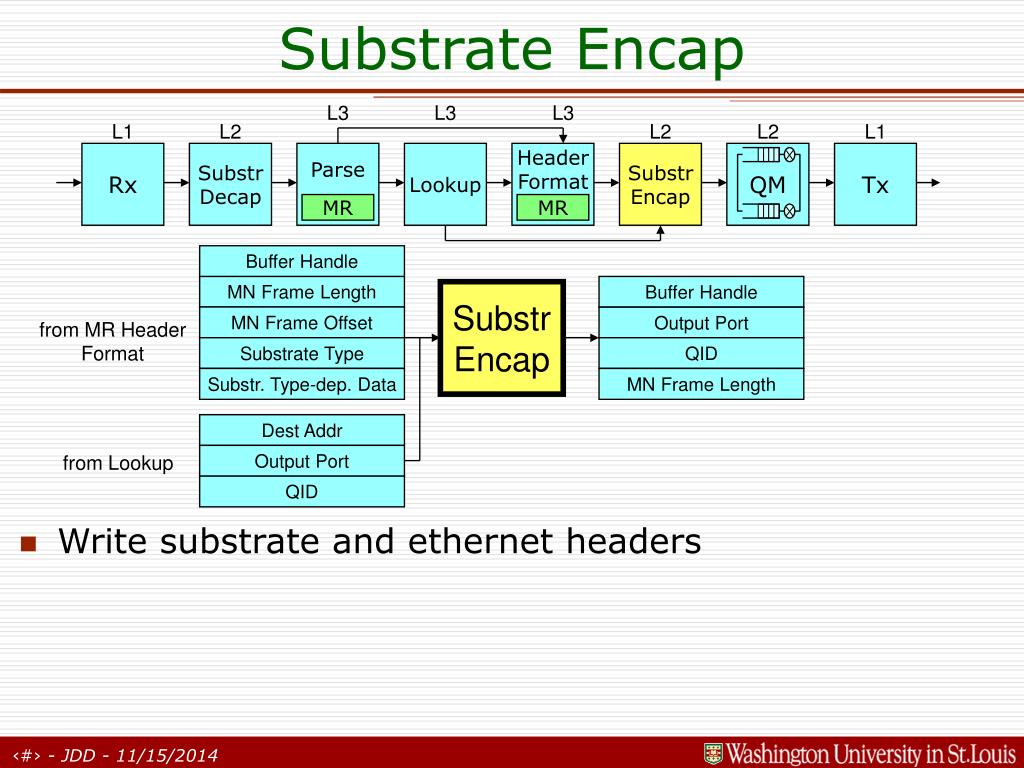

    11. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR QM Substrate Encap Buffer Handle MN Frame Length Buffer Handle Substr Encap MN Frame Offset Output Port from MR Header Format Substrate Type QID Substr. Type-dep. Data MN Frame Length Dest Addr • Write substrate and ethernet headers from Lookup Output Port QID

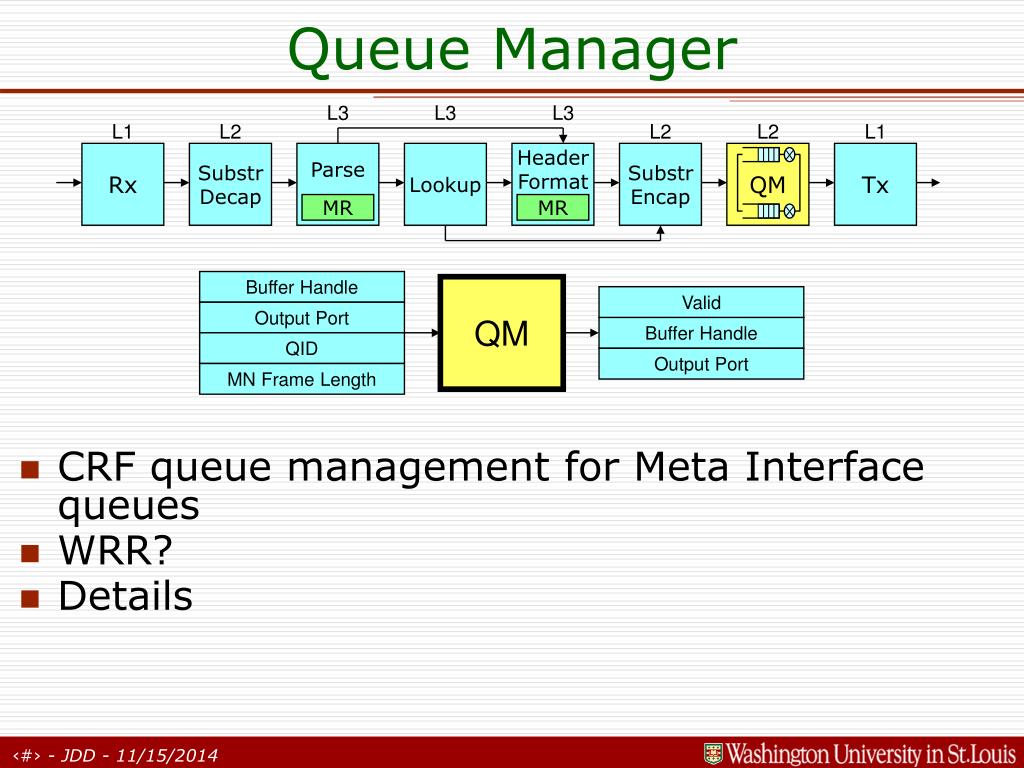

    12. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR Valid Buffer Handle Output Port QM Queue Manager Buffer Handle QM Output Port QID MN Frame Length • CRF queue management for Meta Interface queues • WRR? • Details

    13. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap Lookup Substr Encap Tx Parse Header Format MR MR Valid Buffer Handle Output Port QM Transmit Tx TBUF • Coordinate transfer of packets from DRAM to TBUFs • Recycle buffer handle

    14. Physical Formats

    15. Buf Handle(32b) Eth. Frame Len (16b) Reserved (8b) Port (8b) Buf Handle(32b) Buffer Descriptor Port (16b) Free list (4b) Rx status (4b) Hdr Type (8b) Buffer_Next Size (16b) Offset (16b) Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Receive RBUF will be: currently: • RBUF format details here • Buf Handle details here • Notes: • We’ll pass the Buffer Handle which contains the SRAM address of the buffer descriptor. • From the SRAM address of the descriptor we can calculate the DRAM address of the buffer data.

    16. Buf Handle(32b) Buf Handle(32b) Dest MPE (16b) Source ID(16b) Eth. Frame Len (16b) Reserved (8b) Port (8b) MN Frm Length(16b) MN Frm Offset (16b) Buf Handle(32b) Buffer Descriptor Port (16b) Free list (4b) Rx status (4b) Hdr Type (8b) Buffer_Next Size (16b) Offset (16b) Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Substrate Decap will be: currently: • SourceID: • specifies RxMI or MPE (each 15-bit)

    17. Substrate Decap Functions • Read Ethernet VLAN and Substrate header from DRAM • Validate Ethernet VLAN packet • Valid Length? • Known protocol (VLAN)? • Broadcast/Multicast source? • Multicast destination? • Broadcast destination? • Local Dest? • Validate Substrate header • Known substrate header type (Internal or Ingress)? • Substrate-reported MN frm len == Enet-deduced MN frm len? • Fill NN ring fields

    18. Substrate Decap Implementation • 8 threads, ordered thread execution • 121 cycles per thread per packet, common case • ~670 cycles of latency, within 1360 cycle limit for 8 threads • Resource use: • SRAM refs: • 1 per counter to increment (disabled currently) • DRAM refs: • 3 8B reads: Enet and Substrate header • 2 8B reads: Enet checksum • Optimizations could reduce cycle count further • projected: 80-100 cycles • combined initial error-check to remove branch mispredicts • remove/combine DRAM read signals • remove volatile keywords • single-critical-section ordered threading

    19. Buf Handle(32b) Dest MPE (16b) Source ID (16b) MN Frm Length(16b) MN Frm Offset (16b) Buffer Descriptor Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Parse Buf Handle(32b) L Flags (4b) MR Data (28b) MN Pkt Len (16b) MR Data (16b) Lookup Key[143-112] MR/MI (32b) Lookup Key[111-80] (32b) Lookup Key[ 79-48] (32b) Lookup Key[ 47-16] (32b) Lookup Key [15- 0] (16b) Reserved (16b) • Can Parse adjust the buffer/packet size and offset? • Can Parse do something like, terminate a tunnel and strip off an outer header?

    20. Buffer Descriptor Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Lookup Buf Handle(32b) Buf Handle(32b) L Flags (4b) MR Data (28b) Rsv (4b) MR Data (28b) MN Pkt Len (16b) MR Data (16b) MN Pkt Len (16b) MR Data (16b) Lookup Key[143-112] MR/MI (32b) MR Lookup Result (32b) Lookup Key[111-80] (32b) MR Lookup Result (32b) Lookup Key[ 79-48] (32b) DA(8b) Port (4b) QID(20b) Lookup Key[ 47-16] (32b) Lookup Key [15- 0] (16b) Reserved (16b) • L Flags: • bit 0: 0: Normal, 1: Substrate Lookup • bit 1: 0: Normal, 1: NH MN Address present in Key Word[1] • Key Word[0] = MR/MI • Bit 1 should never be set without bit 0 also being set.

    21. Buffer Handle(32b) DA(8b) Port (4b) QID(20b) MN Pkt Offset (16b) MN Pkt Length (16b) Dest ID(16b) Source ID(16b) SH Type (8b) Rsv (8b) MAC Hi (16b) Buffer Descriptor NH MN IPv4 Addr / MAC Lo (32b) Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Header Format Buf Handle(32b) Rsv (4b) MR Data (28b) MN Pkt Len (16b) MR Data (16b) MR Lookup Result (32b) MR Lookup Result (32b) DA(8b) Port (4b) QID(20b) • Egress Simple and Internal formats use just the dest ID, source ID, ad SH type • MAC fields used for MAC_ADDR Egress format • NH MN Addr field used for NH_MN_Addr format

    22. Buffer Handle(32b) DA(8b) Port (4b) QID(20b) MN Pkt Offset (16b) MN Pkt Length (16b) Dest ID(16b) Source ID(16b) SH Type (8b) Rsv (8b) MAC Hi (16b) Buffer Descriptor NH MN IPv4 Addr / MAC Lo (32b) Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Substrate Encapsulation Buffer Handle(32b) DA(8b) Port (4b) QID(20b) Reserved (16b) MN Pkt Length (16b) • Substrate header types/formats here?

    23. V (1b) Rsv (3b) Port (4b) Buffer Handle (24b) Buffer Descriptor Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Queue Manager Buffer Handle(32b) DA(8b) Port (4b) QID(20b) Reserved (16b) MN Pkt Length (16b) • Text

    24. V (1b) Rsv (3b) Port (4b) Buffer Handle (24b) Buffer Descriptor Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Transmit TBUF • Text

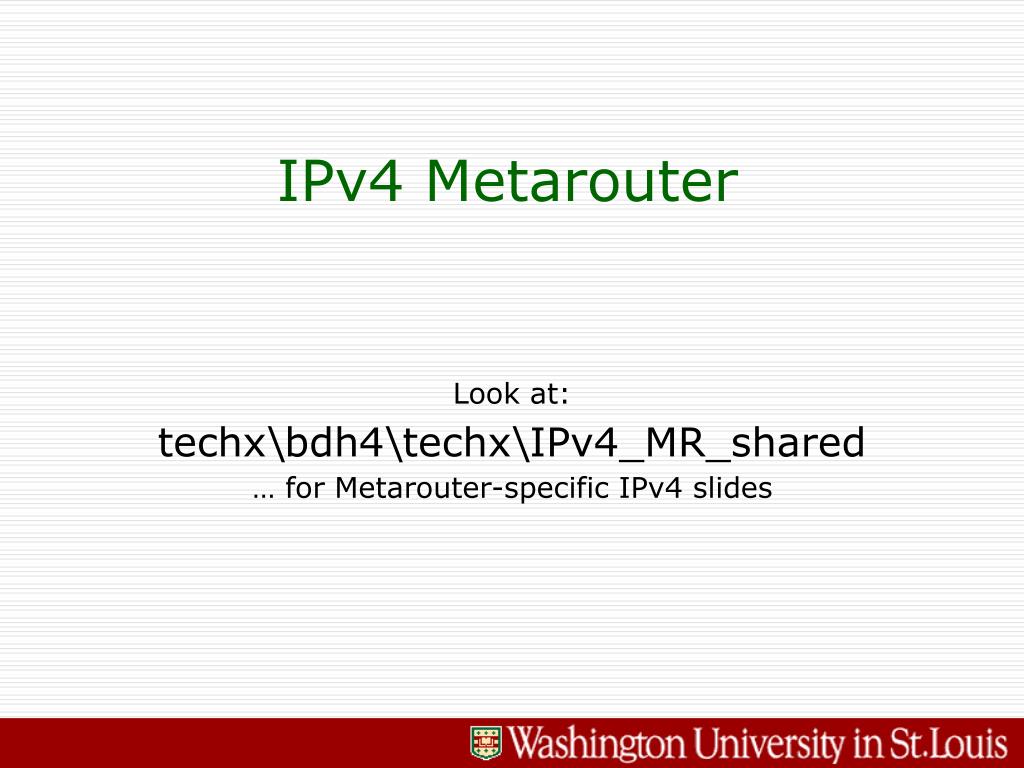

    25. IPv4 Metarouter Look at: techx\bdh4\techx\IPv4_MR_shared … for Metarouter-specific IPv4 slides

    26. Extra • The next set of slides are for templates or extra information if needed

    27. Text Slide Template

    28. Image Slide Template

    29. L3 L3 L3 L1 L2 L2 L2 L1 Rx Substr Decap MR Parse Lookup MR Hdr Format Substr Encap Tx QM At-a-glance Block Template Block Buffer Handle RBUF Ethernet Frame Len Port • Text

    30. Buffer Descriptor Buf Handle(32b) Buffer_Next Eth. Frame Len (16b) Reserved (8b) Port (8b) Buffer_Size Offset Free_List Packet_Size MR_ID TxMI VLAN Packet_Next Detailed Block Template RBUF • Text

    31. Buffer Handle(32b) Buffer Handle(32b) MR-1 . . . QID(20b) Port(8b) Rsv (4b) Reserved (24b) Port(8b) MR-n Reserved (16b) IP Pkt Length (16b) QM/Scheduler on Multiple MEs Input Hlpr (1 ME) QM/Schd (1 ME) HeaderFormat Tx QM/Schd (1 ME) Tx NN/Scratch Rings NN Ring • QID(32b): • Reserved (8b) • QM ID (3b) • QID(17b): 1M queues per QM • Input Hlpr would use QM ID to select Scratch ring on which to put request. • QM/Sched then sends on its output NN/scratch ring to its associated Tx • With 64 entries in Q-Array and 16 entries in CAM, max number of QM/Schds is probably 4 (2 bits). • We’ll set aside 3 bits to give us flexibility in the future.

    32. Packet Buffer Descriptor Tradeoffs • Why use a Buffer Descriptor at all? • QM needs something to link packets/buffers in queues • ME-to-ME communications costs vs. SRAM access costs

    33. Packet Buffer Descriptor def • Meta Data structure of Packet Buffers (LSB to MSB) • buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • offset 16 bits Offset to start of data in bytes • BufferSize 16 bits Length of data in the current buffer in bytes • header_type 8 bits type of header at offset bytes in to the buffer • rx_stat 4 bits Receive status flags • free_list 4 bits Freelist ID • packet_size 16 bits (Total packet size across multiple buffers) • output_port 16 bits Output Port on the egress processor • input_port 16 bits Input Port on the ingress processor • nhid_type 4 bits Nexthop ID type. • reserved 4 bits Reserved • fabric_port 8 bits Output port for fabric indicating blade ID. • nexthop_id 16 bits NextHop IP ID • color 8 bits Qos Color • flow_id 24 bits QOS flow ID or MPLS label/flow id • reserved 16 bits Reserved • class_id 16 bits Class ID • packet_next 32 bits pointer to next packet (unused in cell mode)

    34. Packet Buffer Descriptor Gets • buffer_next: tx • Offset: rx, tx, fwd • BufferSize: tx, fwd • header_type: tx, fwd • rx_stat: NONE • free_listpacket_size: NONE • output_port: qm(?), tx • input_port: rx, fwd • nhid_type: NONE • fabric_port: qm(?), tx • nexthop_id • color • flow_id • class_id • packet_next

    35. Meta Data Caching • Meta Data can be cached in one of three places: • SRAM Xfer Registers • DRAM Xfer Registers • GPR Registers • Size of Meta Data Cache is controlled by #define META_CACHE_SIZE • Macro dl_meta_load_cache[] loads meta data cache • buffer_handle: buffer handle for which meta data is to be fetched • dl_meta: read transfer register prefix • Xbuf_alloc[] should be used to allocate the needed registers • signal_number: • START_LW: starting long word for fetch • NUM_LW: number of long words to fetch • Each microengine (microblock?) can use Meta Data Caching differently.

    36. Meta Data Caching • In the ipv4_v6_forwarder sample app, • dl_meta_load_cache() used in: • Egress • ethernet_arp.uc • pkt_tx_16p.uc • statistics_util.uc • tx_helper.uc • Ingress • ethernet_arp.uc • pkt_tx_16p.uc • statistics_util.uc • tx_helper.uc • dl_meta_get_*[] used in: • Egress • ethernet_arp.uc • pkt_tx_16p.uc • tx_helper.uc • Ingress • Ether.uc • Ipv4_fwder.uc • Ipv4_fwder_util.uc • Ipv6_fwder.uc • V6v4_tunnel_decap.uc • V6v4_tunnel_encap.uc • pkt_tx_16p.uc • tx_helper.uc • dl_meta_set_*[] used in: • Egress • ethernet_arp.uc • pkt_rx_init.uc • pkt_rx_two_me_util.uc • Ingress • pkt_rx_init.uc • pkt_rx_two_me_util.uc • Ether.uc • Ipv4_fwder_util.uc • Ipv6_fwder.uc • V6v4_tunnel_decap.uc • V6v4_tunnel_encap.uc • pkt_tx_16p.uc • tx_helper.uc

    37. Buffer Handle

    38. Buffer Descriptor Usage • Is there a different Buffer Descriptor defn for LC and PE? • Will we support Multi-Buffer Packets? • If not, we do not need buffer_next(32b) or buffer_size(16b) • QM uses packet_next for its packet chaining in qarray. • Output Port and Input Port probably translate to TxMI and RxMI • Next Hop fields (nhid_type(4b) and nexthop_id(16b)) probably can go away. • QOS fields (color(8b) and flow_id(24b)) probably can go away. • Two reserved fields 4b and 16b can go away. • class_id(16b) (virtual queue id?) can probably go away. • fabric_port can probably go away.

    39. Buffer Descriptor Usage • PE Buffer Descriptor: • MR_ID (16b) • TxMI (16b) • VLAN (16b) • buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • offset 16 bits Offset to start of data in bytes • BufferSize 16 bits Length of data in the current buffer in bytes • header_type 8 bits type of header at offset bytes in to the buffer • rx_stat 4 bits Receive status flags • free_list 4 bits Freelist ID • packet_size 16 bits (Total packet size across multiple buffers) • output_port 16 bits Output Port on the egress processor • input_port 16 bits Input Port on the ingress processor • nhid_type 4 bits Nexthop ID type. • reserved 4 bits Reserved • fabric_port 8 bits Output port for fabric indicating blade ID. • nexthop_id 16 bits NextHop IP ID • color 8 bits Qos Color • flow_id 24 bits QOS flow ID or MPLS label/flow id • reserved 16 bits Reserved • class_id 16 bits Class ID • packet_next 32 bits pointer to next packet (unused in cell mode)

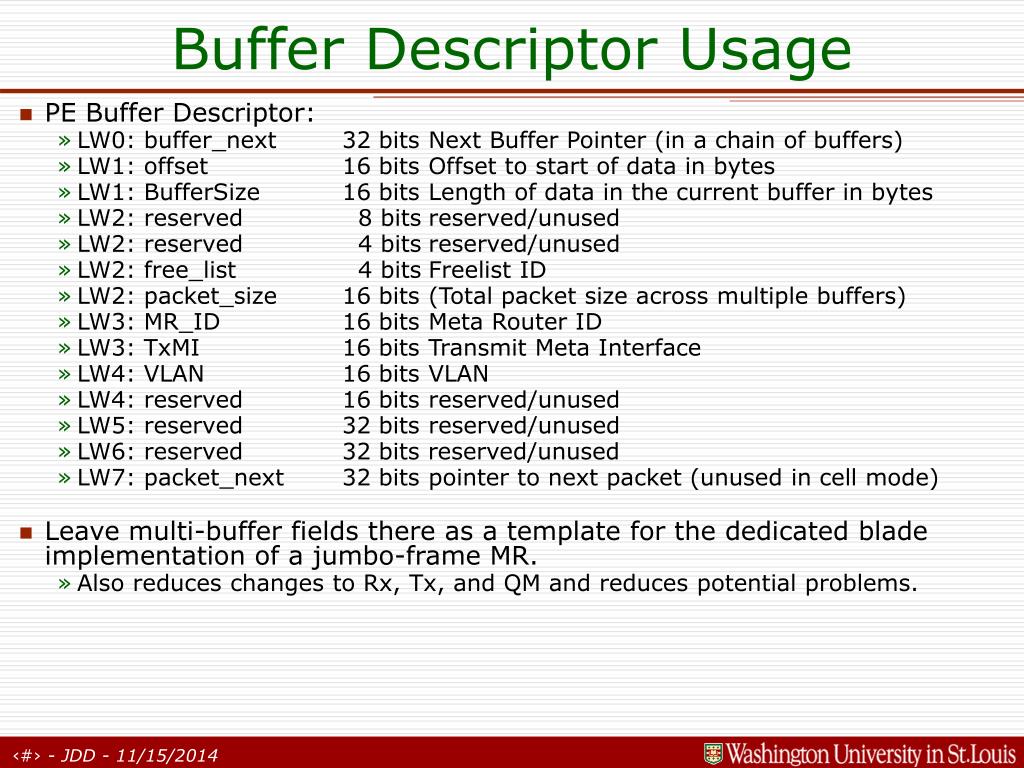

    40. Buffer Descriptor Usage • PE Buffer Descriptor: • LW0: buffer_next 32 bits Next Buffer Pointer (in a chain of buffers) • LW1: offset 16 bits Offset to start of data in bytes • LW1: BufferSize 16 bits Length of data in the current buffer in bytes • LW2: reserved 8 bits reserved/unused • LW2: reserved 4 bits reserved/unused • LW2: free_list 4 bits Freelist ID • LW2: packet_size 16 bits (Total packet size across multiple buffers) • LW3: MR_ID 16 bits Meta Router ID • LW3: TxMI 16 bits Transmit Meta Interface • LW4: VLAN 16 bits VLAN • LW4: reserved 16 bits reserved/unused • LW5: reserved 32 bits reserved/unused • LW6: reserved 32 bits reserved/unused • LW7: packet_next 32 bits pointer to next packet (unused in cell mode) • Leave multi-buffer fields there as a template for the dedicated blade implementation of a jumbo-frame MR. • Also reduces changes to Rx, Tx, and QM and reduces potential problems.

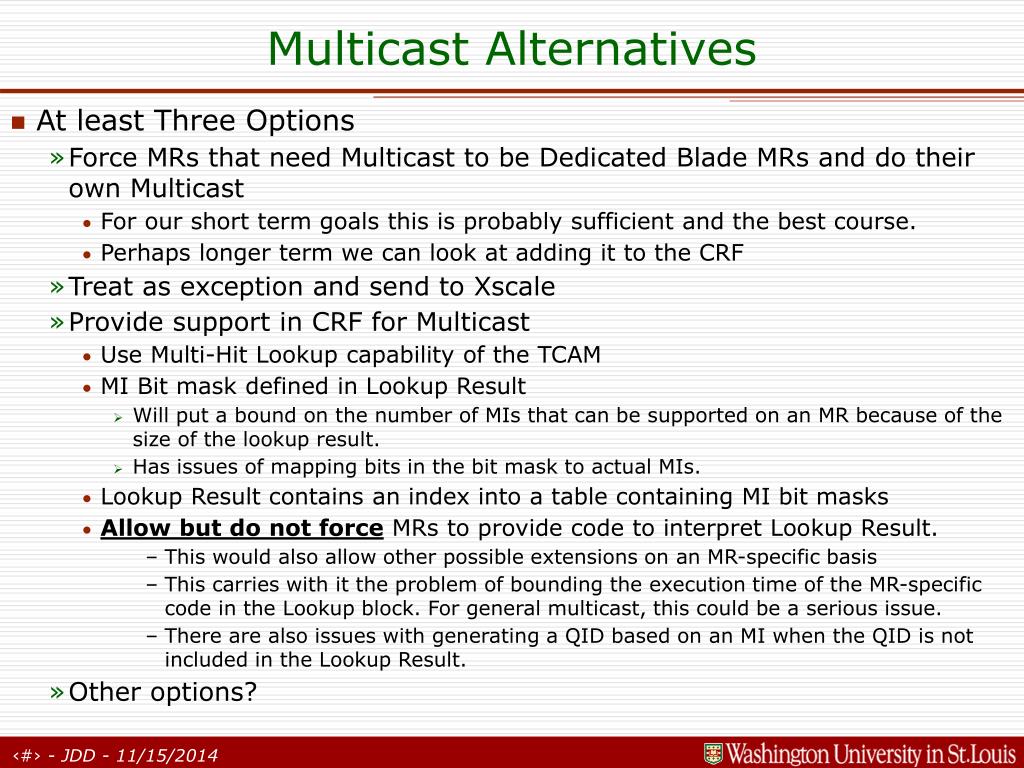

    41. Multicast Alternatives • At least Three Options • Force MRs that need Multicast to be Dedicated Blade MRs and do their own Multicast • For our short term goals this is probably sufficient and the best course. • Perhaps longer term we can look at adding it to the CRF • Treat as exception and send to Xscale • Provide support in CRF for Multicast • Use Multi-Hit Lookup capability of the TCAM • MI Bit mask defined in Lookup Result • Will put a bound on the number of MIs that can be supported on an MR because of the size of the lookup result. • Has issues of mapping bits in the bit mask to actual MIs. • Lookup Result contains an index into a table containing MI bit masks • Allow but do not force MRs to provide code to interpret Lookup Result. • This would also allow other possible extensions on an MR-specific basis • This carries with it the problem of bounding the execution time of the MR-specific code in the Lookup block. For general multicast, this could be a serious issue. • There are also issues with generating a QID based on an MI when the QID is not included in the Lookup Result. • Other options?

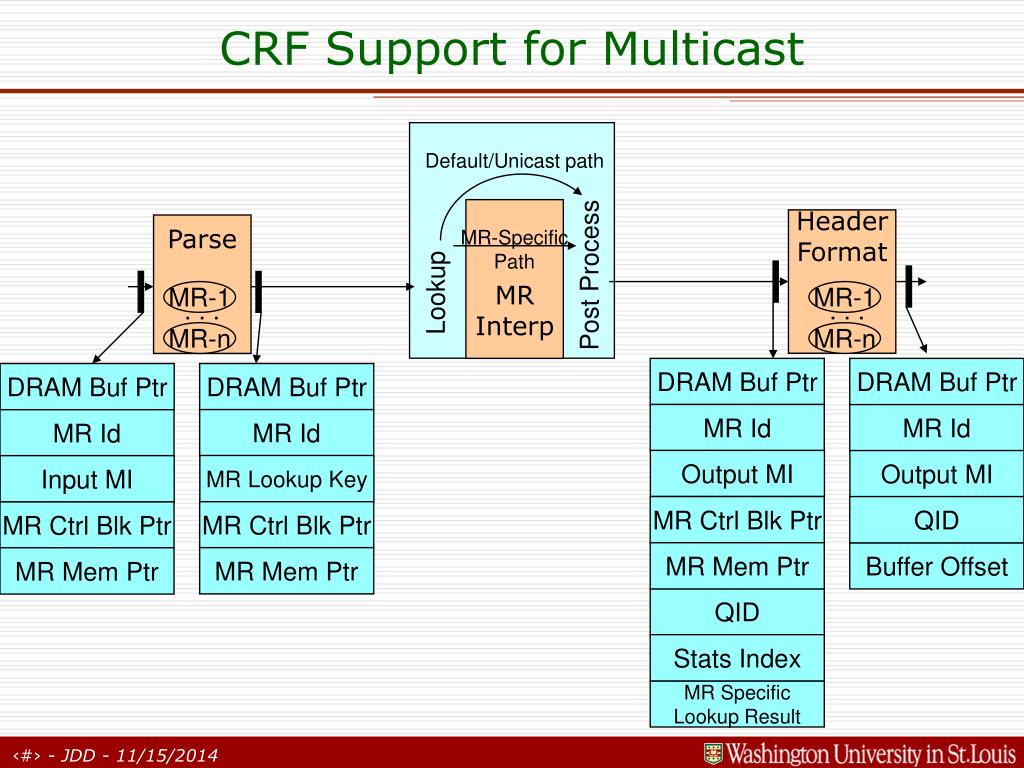

    42. MR-1 . . . MR-n DRAM Buf Ptr DRAM Buf Ptr DRAM Buf Ptr MR Id DRAM Buf Ptr MR Id MR Id Output MI MR Id Input MI Output MI MR Lookup Key MR Ctrl Blk Ptr MR Ctrl Blk Ptr QID MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr Buffer Offset QID MR Mem Ptr Stats Index MR Specific Lookup Result CRF Support for Multicast Default/Unicast path MR Interp HeaderFormat Parse MR-Specific Path Post Process Lookup MR-1 . . . MR-n

    43. DRAM Buf Ptr DRAM Buf Ptr MR Id MR Id Output MI Output MI Copy Cnt=1 Copy Cnt MR Ctrl Blk Ptr MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr QID QID Stats Index Stats Index MR Specific Lookup Result MR Specific Lookup Result CRF Support for Multicast Default path MR Interp MR-Specific Path Post Process Lookup DRAM Buf Ptr MR Id MR Lookup Key • We will need some kind of copy count or multicast bit and last copy bit to let TX know when it can release the DRAM buffer that holds the packet. MR Ctrl Blk Ptr MR Mem Ptr

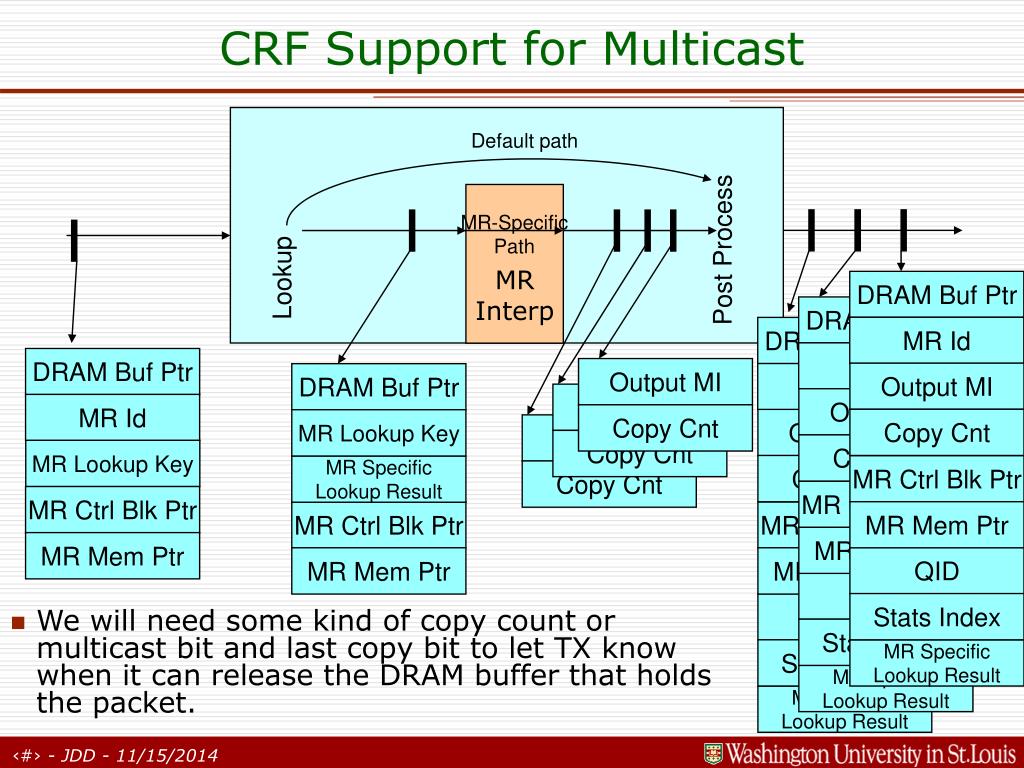

    44. DRAM Buf Ptr DRAM Buf Ptr DRAM Buf Ptr MR Id MR Id MR Id Output MI Output MI Output MI Output MI Output MI Copy Cnt Output MI Copy Cnt Copy Cnt Copy Cnt Copy Cnt Copy Cnt MR Ctrl Blk Ptr MR Ctrl Blk Ptr MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr MR Mem Ptr QID QID QID Stats Index Stats Index Stats Index MR Specific Lookup Result MR Specific Lookup Result MR Specific Lookup Result CRF Support for Multicast Default path MR Interp MR-Specific Path Post Process Lookup DRAM Buf Ptr DRAM Buf Ptr MR Id MR Lookup Key • We will need some kind of copy count or multicast bit and last copy bit to let TX know when it can release the DRAM buffer that holds the packet. MR Lookup Key MR Specific Lookup Result MR Ctrl Blk Ptr MR Ctrl Blk Ptr MR Mem Ptr MR Mem Ptr

    45. OLD • The rest of these are old slides that should be deleted at some point.

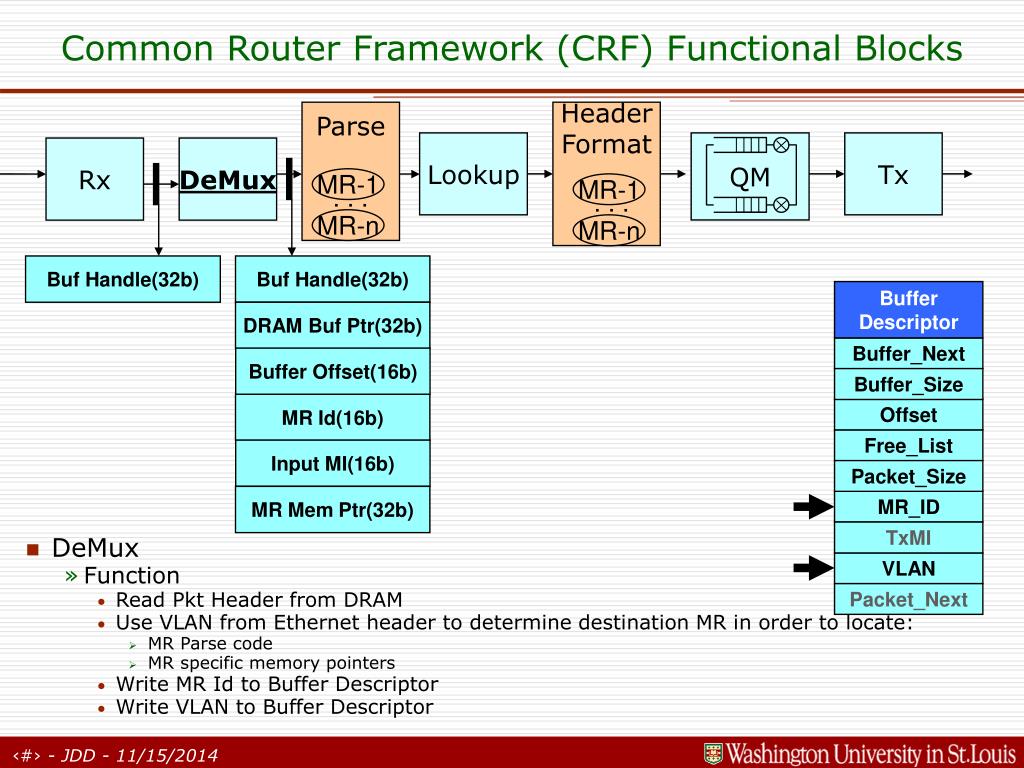

    46. Buffer Descriptor MR-1 . . . MR-n Buffer_Next Buffer_Size Offset Free_List Packet_Size MR_ID TxMI QM VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n RBUF Buf Handle(32b) • Rx: • Function • Coordinate transfer of packets from RBUF to DRAM • Notes: • We’ll pass the Buffer Handle which contains the SRAM address of the buffer descriptor. • From the SRAM address of the descriptor we can calculate the DRAM address of the buffer data.

    47. Buf Handle(32b) MR-1 . . . Buffer Descriptor DRAM Buf Ptr(32b) MR-n Buffer_Next Buffer Offset(16b) Buffer_Size MR Id(16b) Offset Free_List Input MI(16b) Packet_Size MR Mem Ptr(32b) MR_ID TxMI QM VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buf Handle(32b) • DeMux • Function • Read Pkt Header from DRAM • Use VLAN from Ethernet header to determine destination MR in order to locate: • MR Parse code • MR specific memory pointers • Write MR Id to Buffer Descriptor • Write VLAN to Buffer Descriptor

    48. Buf Handle(32b) MR-1 . . . DRAM Buf Ptr(32b) Buffer Descriptor MR-n Buffer Offset(16b) Buffer_Next MR Id(16b) Buffer_Size Offset Input MI(16b) Free_List MR Mem Ptr(32b) Packet_Size MR_ID QM TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n Buf Handle(32b) DRAM Buf Ptr(32b) Buffer Offset(16b) MR Id(16b) • Parse • Function • MR-specific header processing • Generate MR-specific lookup key (16 Bytes) from packet • Need CRF functionality to managed multiple MRs in shared PE. • Notes: • Can Parse adjust the buffer/packet size and offset? • Can Parse do something like, terminate a tunnel and strip off an outer header? Input MI(16b) MR Mem Ptr(32b) MR Lookup Key(16B)

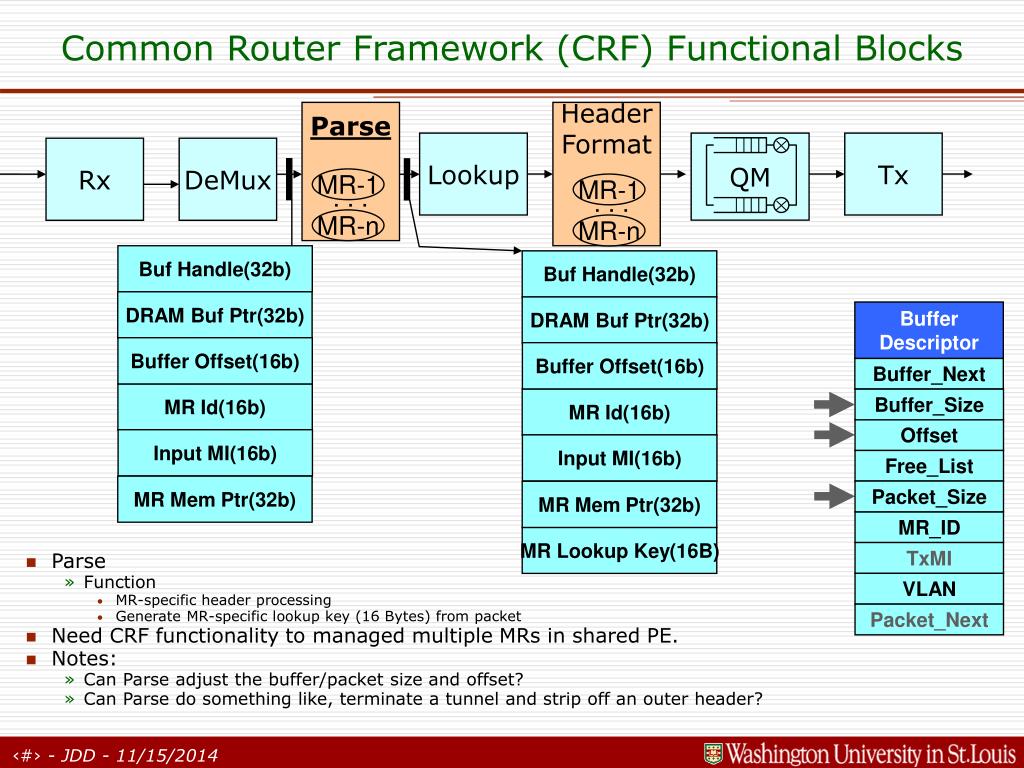

    49. Parse MR-1 . . . MR-n Buf Handle(32b) Buf Handle(32b) DRAM Buf Ptr DRAM Buf Ptr Buffer Offset Buffer Offset MR Id MR Id DRAM Buf Ptr MR Lookup Key Input MI Input MI Buffer Offset Buffer Offset MR Mem Ptr MR Mem Ptr Input MI MR Lookup Key MR Mem Ptr CRF Wrapper Around Parse MR Selector

    50. Buf Handle(32b) Buffer Handle(32b) MR-1 . . . Buffer Descriptor MR-n DRAM Buf Ptr(32b) DRAM Buf Ptr(32b) Buffer Offset(16b) Buffer Offset(16b) Buffer_Next Buffer_Size MR Id(16b) MR Id(16b) Offset Input MI(16b) MR Mem Ptr(32b) Free_List Packet_Size Lookup Result(Nb) MR Mem Ptr(32b) MR_ID QM MR Lookup Key(16B) TxMI VLAN Packet_Next Common Router Framework (CRF) Functional Blocks Parse HeaderFormat Lookup Tx Rx DeMux MR-1 . . . MR-n • Lookup • Function • Perform lookup in TCAM based on MR Id and lookup key • Result: • Output MI • QID • Stats index • MR-specific Lookup Result (flags, etc. ?) • How wide can/should this be?
