  1. Motif Discovery in Heterogeneous Sequence Data Mathieu Blanchette McGill U. Montreal Saurabh Sinha Rockefeller U. New York Amol Prakash U. Washington Seattle Martin Tompa U. Washington Seattle

  2. Outline • What is a motif? • Homogeneous vs. Heterogeneous • What makes our approach unique • Algorithm description • Results • Conclusion

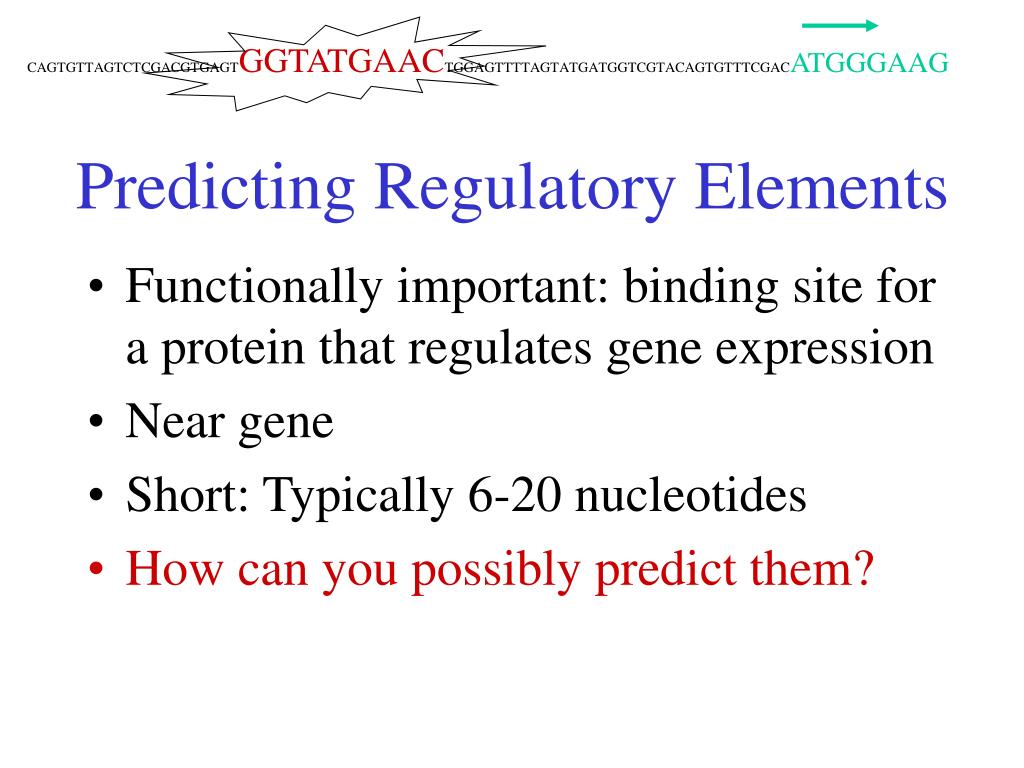

  3. CAGTGTTAGTCTCGACGTGAGTGGTATGAACTGGAGTTTTAGTATGATGGTCGTACAGTGTTTCGACATGGGAAGCAGTGTTAGTCTCGACGTGAGTGGTATGAACTGGAGTTTTAGTATGATGGTCGTACAGTGTTTCGACATGGGAAG Predicting Regulatory Elements • Functionally important: binding site for a protein that regulates gene expression • Near gene • Short: Typically 6-20 nucleotides • How can you possibly predict them?

  4. Homogeneous Sequence Data I • Input: DNA sequences near co-regulated genes from a single organism • Tools : MEME, Consensus, Gibbs sampler, Projection, YMF, and many others. CAR2 AGTCTCGACGTGAGTTTGCCTTAGGTGGTAGTTTTAAACAGTCTCGACTAGTCTCGATCGTACAGTGTTTAGTCTTTCGACATG ARG5,6 TTTTTTCCATTAGGTGGAGTTTTTTAGGTCTCGACAGTCTCGACTCGTTAGTCTCGAATACAGTTTAGTCTCGAGTTTCGACATG CAR1TCTCGACAGTTTTCACTTAGCGTTTTATCTCGAGACGTGAGTATGCCATTAGCTGGACATG

  5. Homogeneous Sequence Data II • DNA sequences near orthologous genes • Tools: • Multiple alignment (ClustalW, etc.), then find highly conserved aligned regions • FootPrinter CCTTGGACCAAGTCCAGCACCCTCGGGGTCGAGGAAAACAGGTAGGGTATAAAAAGGGCATGCAAGGACCTGCAGCCAAGCTTGCAGGTAGGGTATAAAAAGGGCACGCAAGGGACCCCAAAAAAAGAAACTGCTCAGAGTCCTGTGGACAGATCACTGCTTGGCAAGAAGTGATAGATGGGGCCAGGGTATAAAAAGGGCCCAACTCCCCGAACCACTCAGGGTCCTGTGGACAGCTCACCTAGCTGCAAGAGGGCCCCAAAGCGCTCAGGGTCCTGTGGACAAGGGACCAGGGTATAAAGAGGGCCCGCACAGCTGGCTCACCCCGGCTGCG

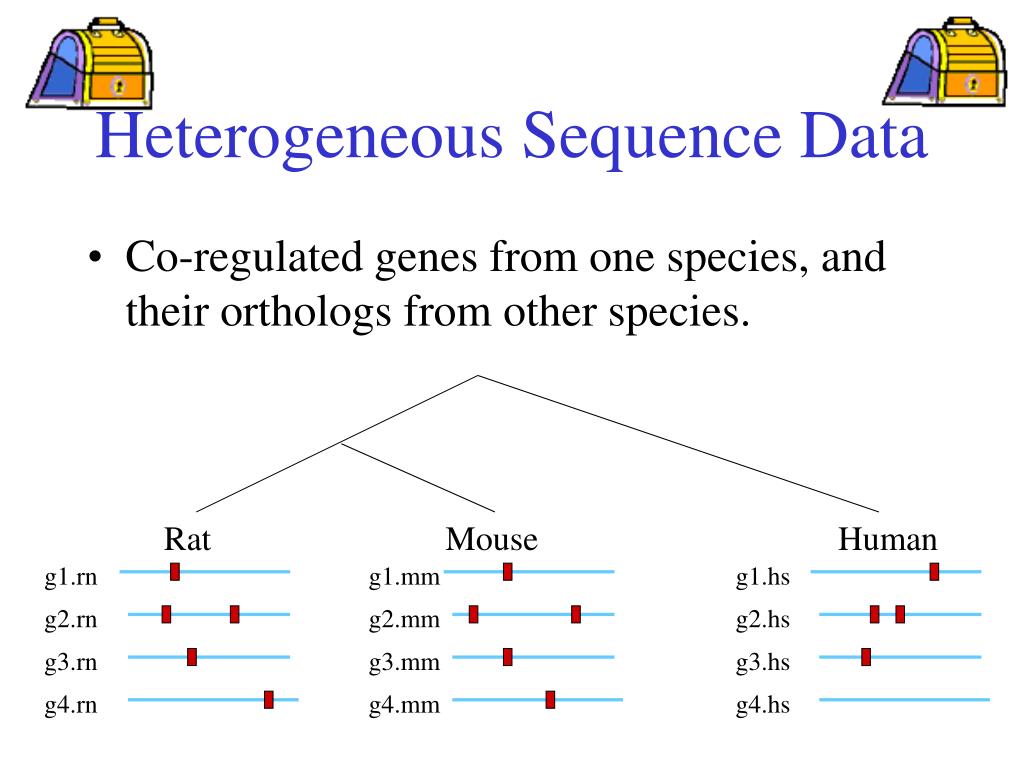

  6. Heterogeneous Sequence Data • Co-regulated genes from one species, and their orthologs from other species. Rat Mouse Human g1.rn g1.mm g1.hs g2.rn g2.mm g2.hs g3.rn g3.mm g3.hs g4.rn g4.mm g4.hs

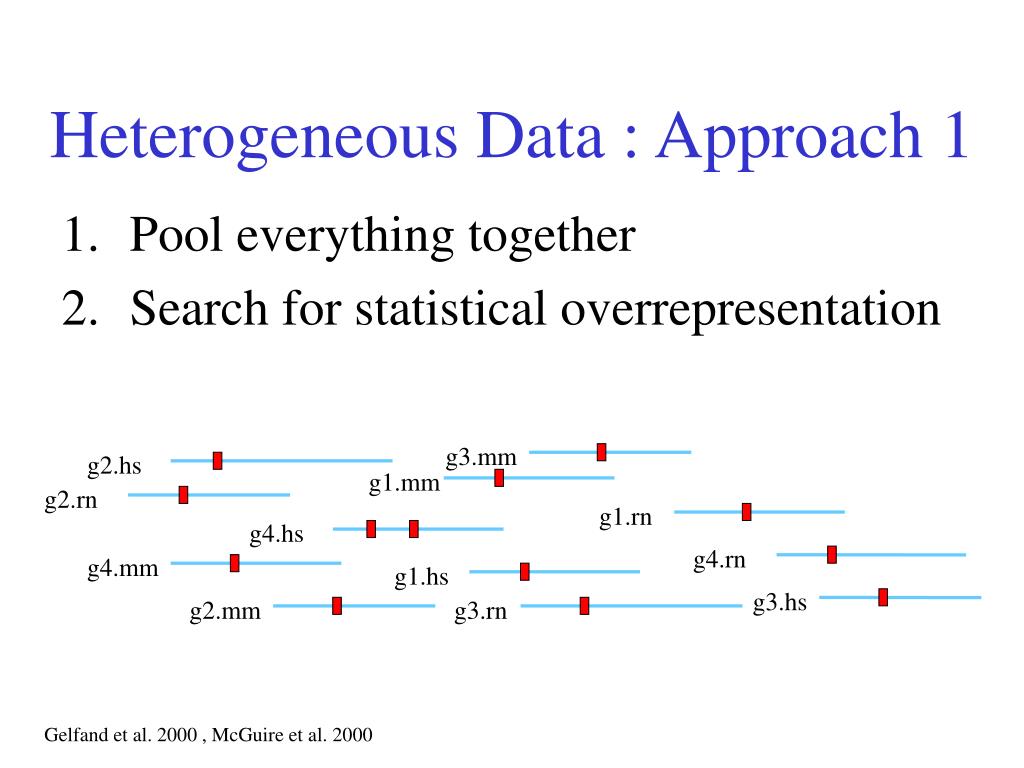

  7. Heterogeneous Data : Approach 1 • Pool everything together • Search for statistical overrepresentation g3.mm g2.hs g1.mm g2.rn g1.rn g4.hs g4.rn g4.mm g1.hs g3.hs g2.mm g3.rn Gelfand et al. 2000 , McGuire et al. 2000

  8. Rat Mouse Human Heterogeneous Data : Approach 2 • Filter well conserved orthologous regions • Search for overrepresentation in one species g1.rn g1.mm g1.hs g2.rn g2.mm g2.hs g3.rn g3.mm g3.hs g4.rn g4.mm g4.hs Wasserman et al. 2000 , Kellis et al. 2003, Cliften et al. 2003, Wang & Stormo 2003

  9. Human Rat Mouse Heterogeneous Data : Approach 3 • Filter overrepresentation in co-regulated regions. • Search for well conserved orthologous regions g1.mm g1.rn g1.hs g2.mm g2.rn g2.hs g3.mm g3.rn g3.hs g4.mm g4.rn g4.hs GuhaThakurta et al. 2002

  10. OrthoMEME : Our Approach • An integrated approach: no “filtering” step • Treats orthology and co-regulation differently. • Based on Expected-Maximization • Does not use global alignment, which can fail on diverged sequences. • Focus on two-species case

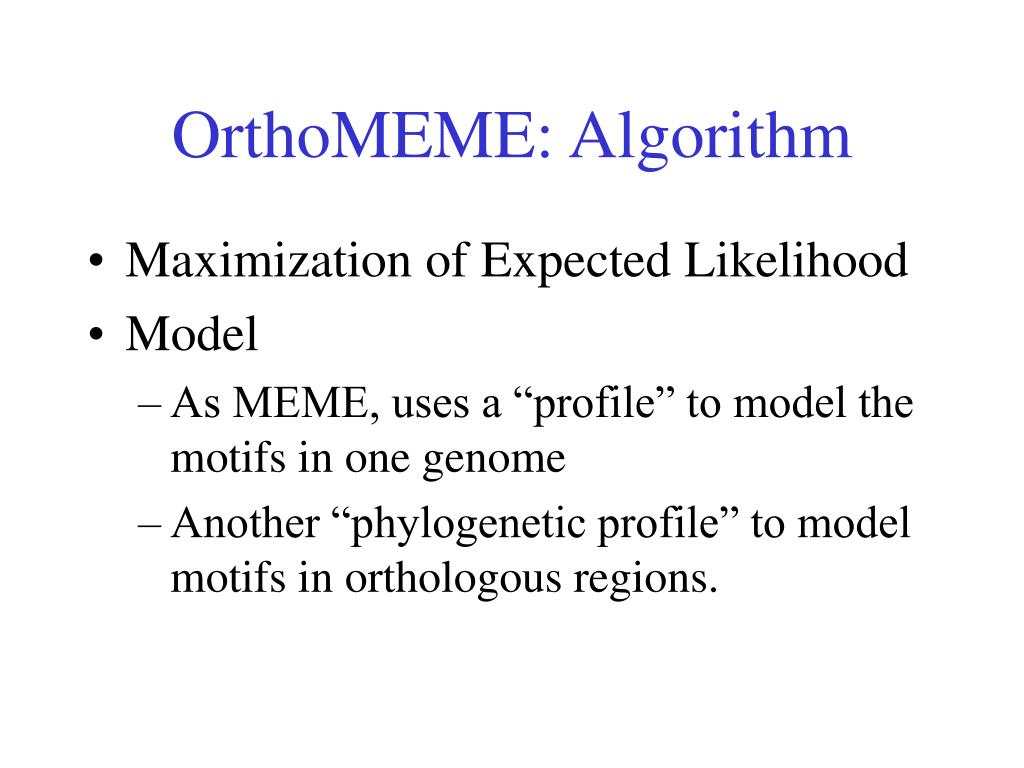

  11. OrthoMEME: Algorithm • Maximization of Expected Likelihood • Model • As MEME, uses a “profile” to model the motifs in one genome • Another “phylogenetic profile” to model motifs in orthologous regions.

  12. OrthoMEME : Profile Profile [ ] 0.75 … 0.25 … 0 … 0 … Rat Human A... g1.rn g1.hs C… g2.rn g2.hs A… g3.rn g3.hs A… g4.rn g4.hs

  13. Phylogenetic Profile [ ] Profile [ ] A C G T A 0.67 0.33 0 0 … C 0 1 0 0 … G 0 0 0 0 … T 0 0 0 0 … [ ] 0.75 … 0.25 … 0 … 0 … Rat Human A... A... g1.rn g1.hs C… C… g2.rn g2.hs C… A… g3.rn g3.hs A… A… g4.rn g4.hs

  14. Experimental Results • Implemented and tested on various pairs of species • Compared to MEME • on single species data • same parameters • Results from top 3 motifs are reported.

  15. Result 1 : Mammals • SRF motif • OrthoMEME missed 2 occurrences • MEME found none

  16. Result 2 : Yeast • HAP2;HAP3;HAP4 motif • OrthoMEME missed 2 occurrences • MEME missed 4 occurrences

  17. Result 3 : Worm • DAF-19 motif • OrthoMEME missed no occurrences • MEME missed no occurrences

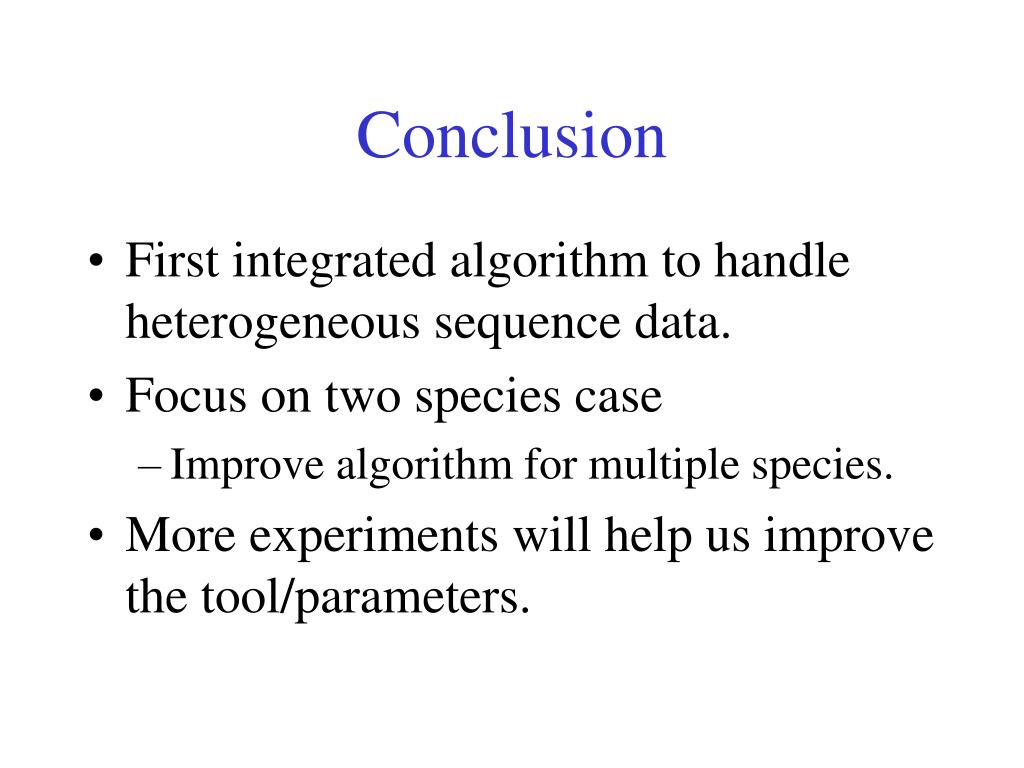

  18. Conclusion • First integrated algorithm to handle heterogeneous sequence data. • Focus on two species case • Improve algorithm for multiple species. • More experiments will help us improve the tool/parameters.
