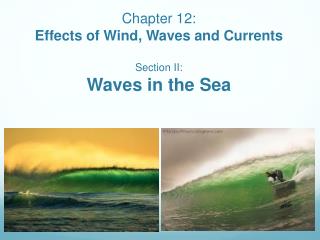

Chapter 12: Effects of Wind, Waves and Currents Section II: Waves in the Sea PowerPoint Presentation
Download Presentation
Chapter 12: Effects of Wind, Waves and Currents Section II: Waves in the Sea

Loading in 2 Seconds...

play fullscreen
1 / 11

Chapter 12: Effects of Wind, Waves and Currents Section II: Waves in the Sea - PowerPoint PPT Presentation


  • 157 Views
  • Uploaded on

Chapter 12: Effects of Wind, Waves and Currents Section II: Waves in the Sea. On average the wavelength is 20-30 times its height . Features of Water Waves. The period of a wave is the time it takes one wavelength to pass a given point.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Chapter 12: Effects of Wind, Waves and Currents Section II: Waves in the Sea' - denise


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide3

The period of a wave is the time it takes one wavelength to pass a given point.

  • Most ocean waves have a period that ranges from 2s to 10s.
  • Speed=wavelength/period
  • Find the speed of a wave 30m long with a period of 5 sec.
  • 6 m/s
refraction
Refraction:
  • Waves approach shoreline at an angle, when they reach shallow water they swing around and approach relatively head on = refraction
slide6

Water is not carried along with the motion of a wave.

  • Each water particle moves in place in a circular motion.
  • Water particles bump into the next one and passes the energy along, passing the energy through the water.
  • Wave motion also takes place below the surface, moving water molecules in smaller and smaller circles.
origin of breakers
Origin of Breakers

Video

  • Waves approach the shoreline smoothly until they reach water so shallow that they touch the bottom.
  • Water depth is usually about half the wavelength
  • The lower part of the wave slows down
  • The upper part of the wave moves ahead, until there is not enough water to support the wave
  • The crest falls over and breaks into surf.
  • The line of breakers is where the crests break
  • Surf is a powerful agent of erosion.
shoreline currents
Shoreline Currents
  • Waves may come from any direction, most strike the shore at an angle.
  • The motion of water up the beach is swash, it moves sand up the beach at an angle.
  • Most water runs back down the beach in a backwash current, which drags sand straight back to the sea.
  • A very strong backwash is an undertow.
shoreline currents1
Shoreline Currents

A longshore current forms beyond the breakers and runs almost parallel to shore.

Rip currents are strong surface currents that flows away from the beach.
