  1. Automatic Technology for Detecting Fatal SW Errors Before Testing 이광근 교수 Programming Research Lab.Seoul National University 12/19/2006 @ Samsung-SNU Workshop

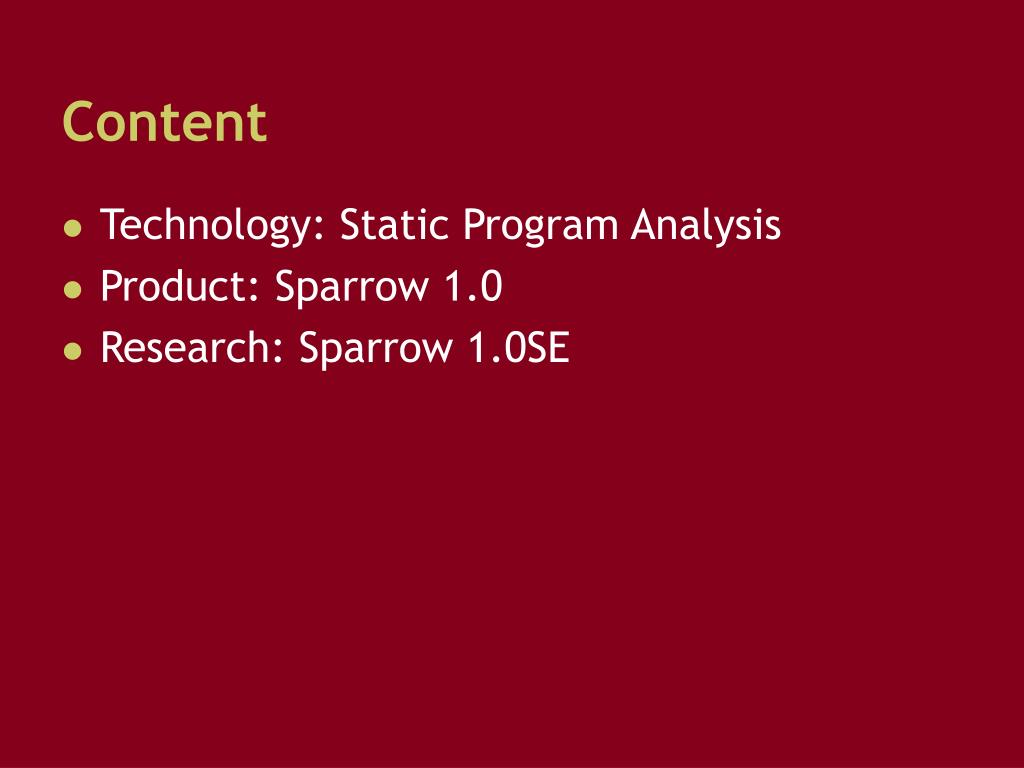

  2. Content • Technology: Static Program Analysis • Product: Sparrow 1.0 • Research: Sparrow 1.0SE

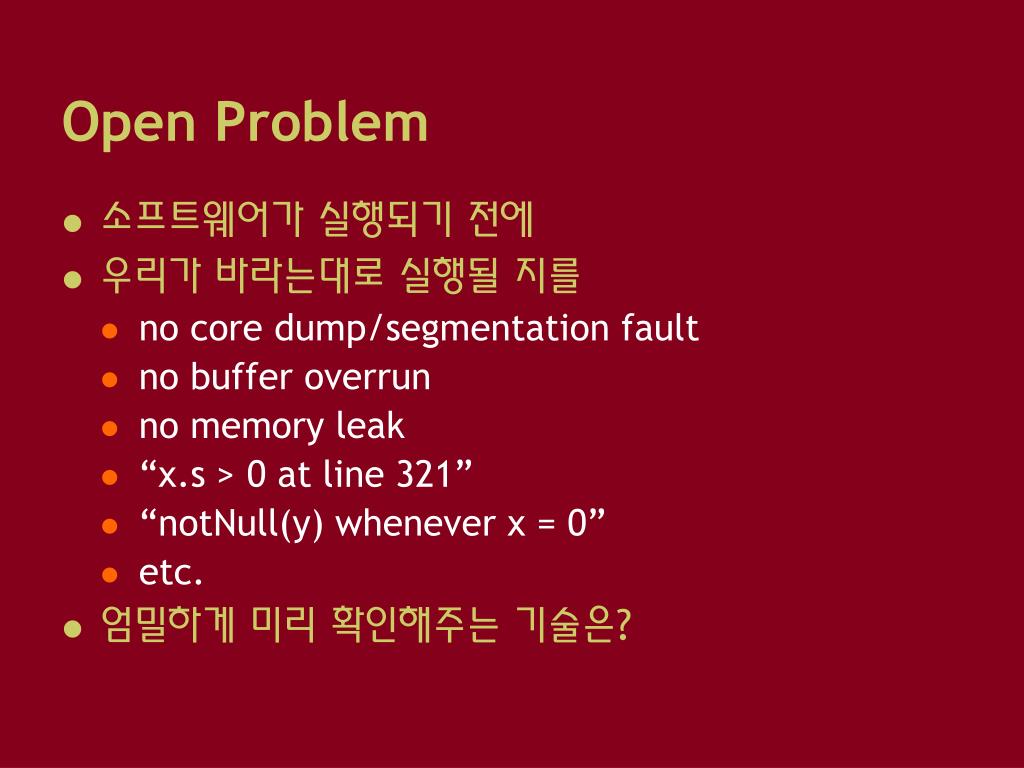

  3. Open Problem • 소프트웨어가 실행되기 전에 • 우리가 바라는대로 실행될 지를 • no core dump/segmentation fault • no buffer overrun • no memory leak • “x.s > 0 at line 321” • “notNull(y) whenever x = 0” • etc. • 엄밀하게 미리 확인해주는 기술은?

  4. Static Program Analysis 프로그램의 실행 내용을 실행전에 자동으로 안전하게 어림잡는 일반적인 기술 “static analysis” “정적분석” “프로그램분석”

  5. “실행전”: 프로그램을 실행시키지 않고 • “자동으로”: 프로그램이 프로그램을 분석 • “안전하게”: 모든 가능성을 포섭 • “어림잡는”: 실제 이외의 것들이 포함됨 • 어림잡지 않으면 불가능 • “일반적”: 소스 언어와 분석가능한 성질이 무제한 • C, C++, C#, Java, ML, UML, JVM, x86, bits, etc. • buffer overrun? memory leak? x=y at line 2? notNull(x) whenever y.s=0?

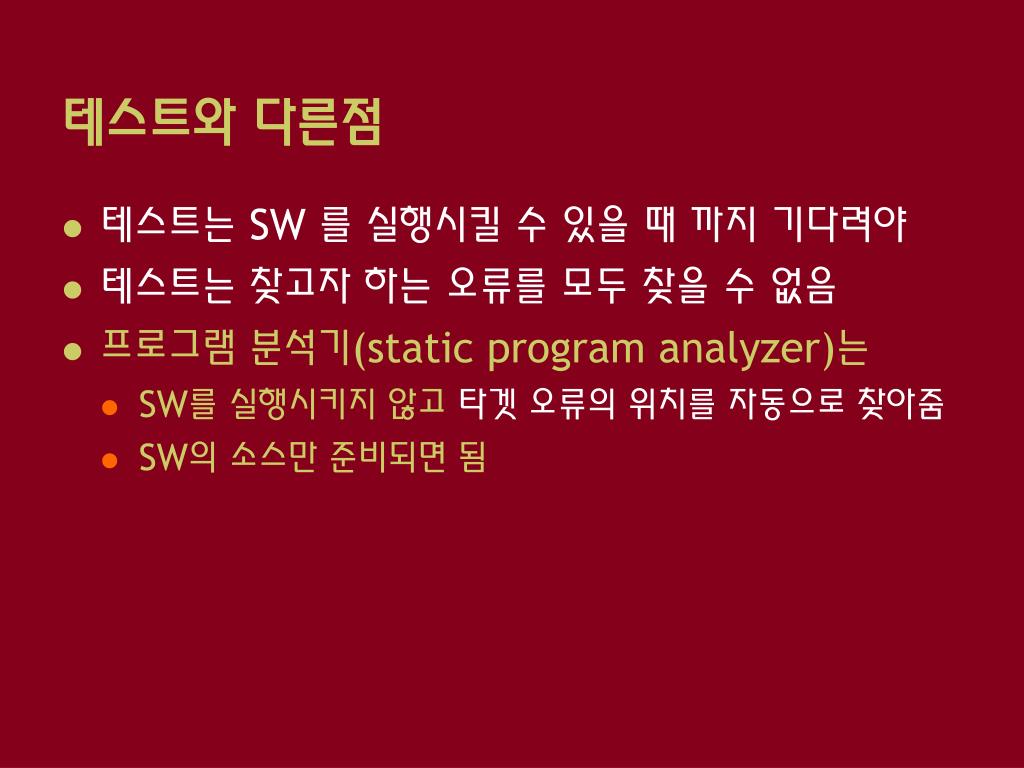

  6. 테스트와 다른점 • 테스트는 SW 를 실행시킬 수 있을 때 까지 기다려야 • 테스트는 찾고자 하는 오류를 모두 찾을 수 없음 • 프로그램 분석기(static program analyzer)는 • SW를 실행시키지 않고 타겟 오류의 위치를 자동으로 찾아줌 • SW의 소스만 준비되면 됨

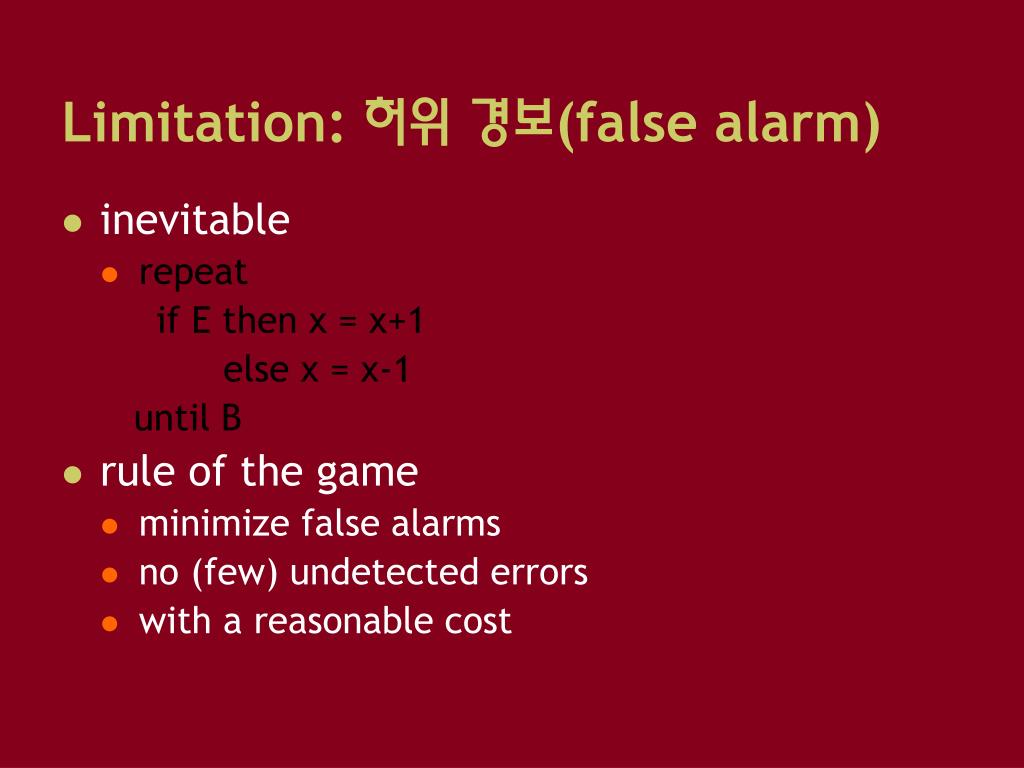

  7. Limitation: 허위 경보(false alarm) • inevitable • repeat if E then x = x+1 else x = x-1 until B • rule of the game • minimize false alarms • no (few) undetected errors • with a reasonable cost

  8. Sparrow 1.0

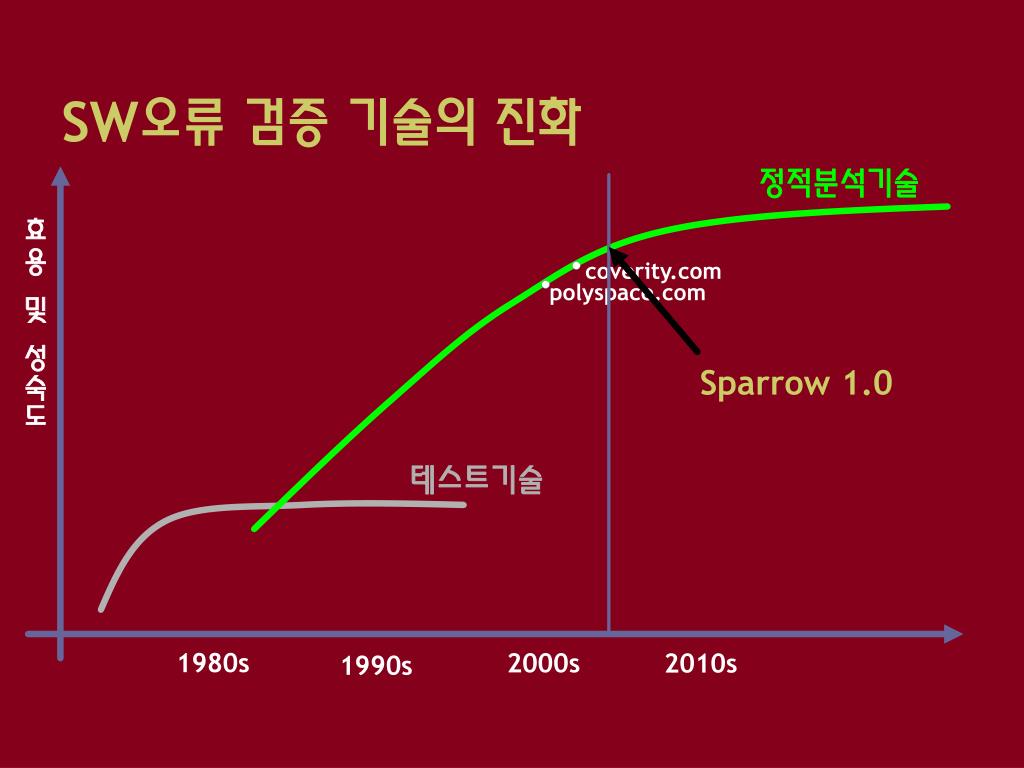

  9. SW오류 검증 기술의 진화 정적분석기술 효용 및 성숙도 coverity.com polyspace.com Sparrow 1.0 테스트기술 1980s 2000s 2010s 1990s

  10. Sparrow 1.0 • 타겟 소스언어 • C, C++ • ANSI, GNU, MS, ARM, etc. • 타겟 오류 • buffer overrun • memory leak • uninitialized access

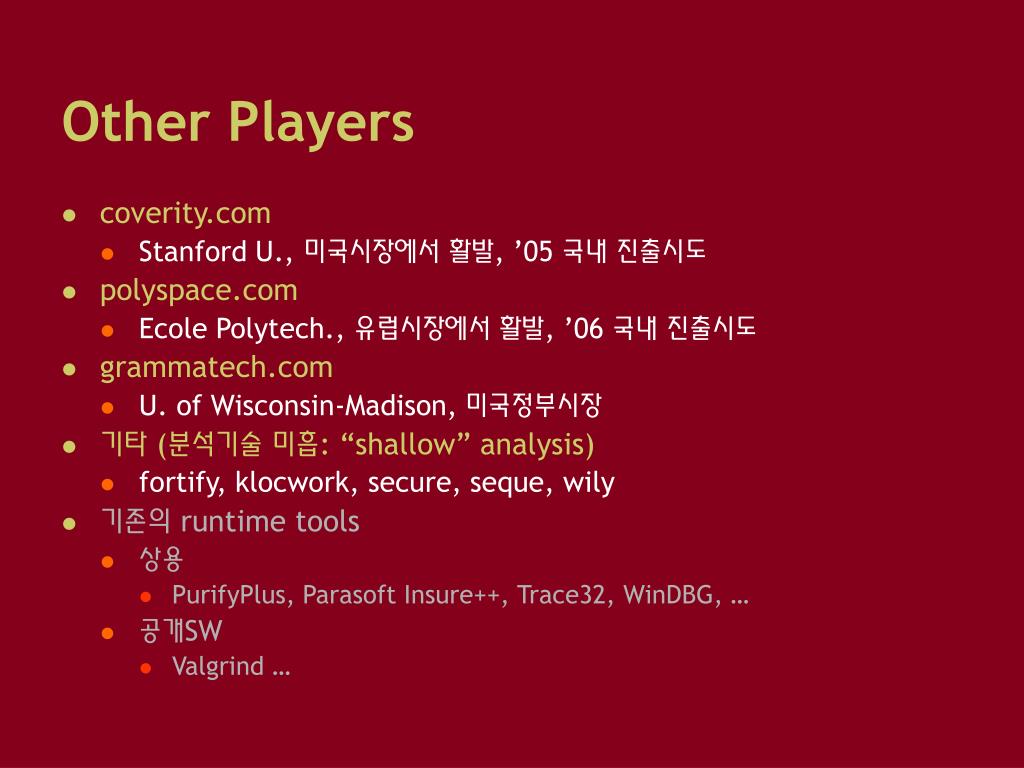

  11. Other Players • coverity.com • Stanford U., 미국시장에서 활발, ’05 국내 진출시도 • polyspace.com • Ecole Polytech., 유럽시장에서 활발, ’06 국내 진출시도 • grammatech.com • U. of Wisconsin-Madison, 미국정부시장 • 기타 (분석기술 미흡: “shallow” analysis) • fortify, klocwork, secure, seque, wily • 기존의 runtime tools • 상용 • PurifyPlus, Parasoft Insure++, Trace32, WinDBG, … • 공개SW • Valgrind …

  12. BMT Results • Sparrow vs Prevent (coverity.com) • buffer overrun • 최대 30% 더 많이 오류 검출 • Sparrow vs Prevent(coverity.com) • memory leak • 최대 200% 더 많이 오류 검출 errors errors

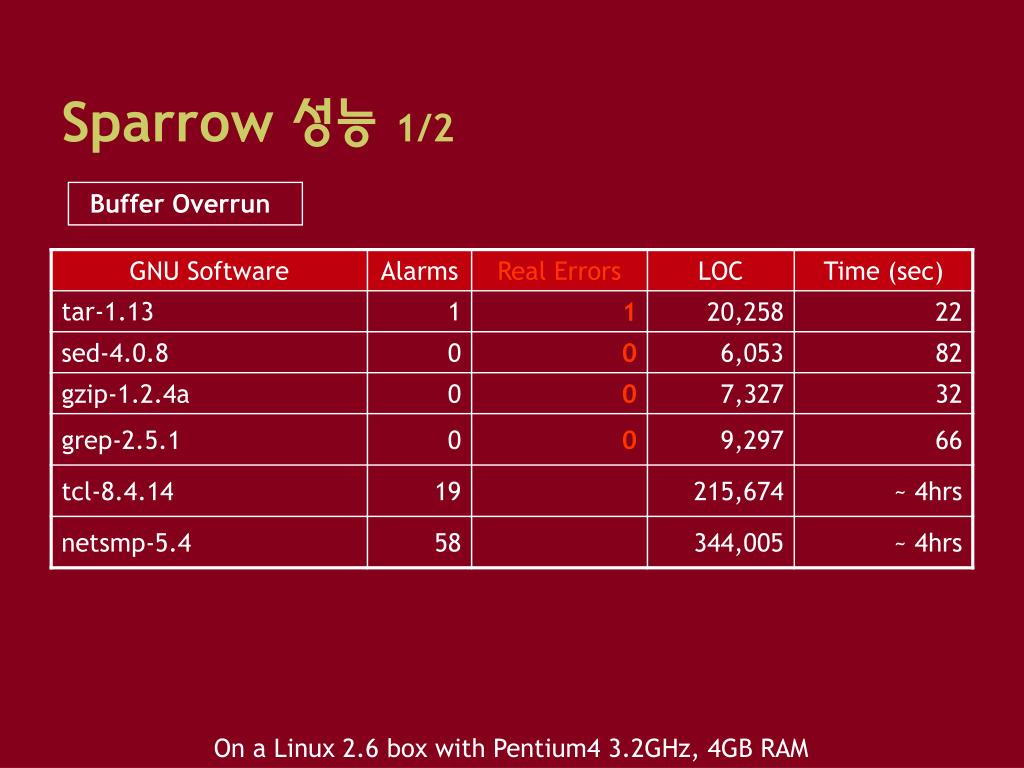

  13. Sparrow 성능 1/2 Buffer Overrun On a Linux 2.6 box with Pentium4 3.2GHz, 4GB RAM

  14. Sparrow 성능 2/2 Memory Leaks On a Linux 2.6 box with Pentium4 3.2GHz, 4GB RAM

  15. Sparrow beats Prevent for 1/4 True Buffer Overrun 11 • deep call chain • function pointers • function argument • loop induction variables • C standard library – memcpy, memset, … 20 False 36

  16. Sparrow beats Prevent for 1/5 Memory Leaks • arbitrary pointer aliasing • alloc/free complex data structure • linking argument pointers • infinite loop • recursion 12 True 3 7 2 16 False

  17. Sparrow 1.0

  18. Sparrow 1.0SE for Verified System SWs maybe interesting to Samsung Electronics SW Labs.

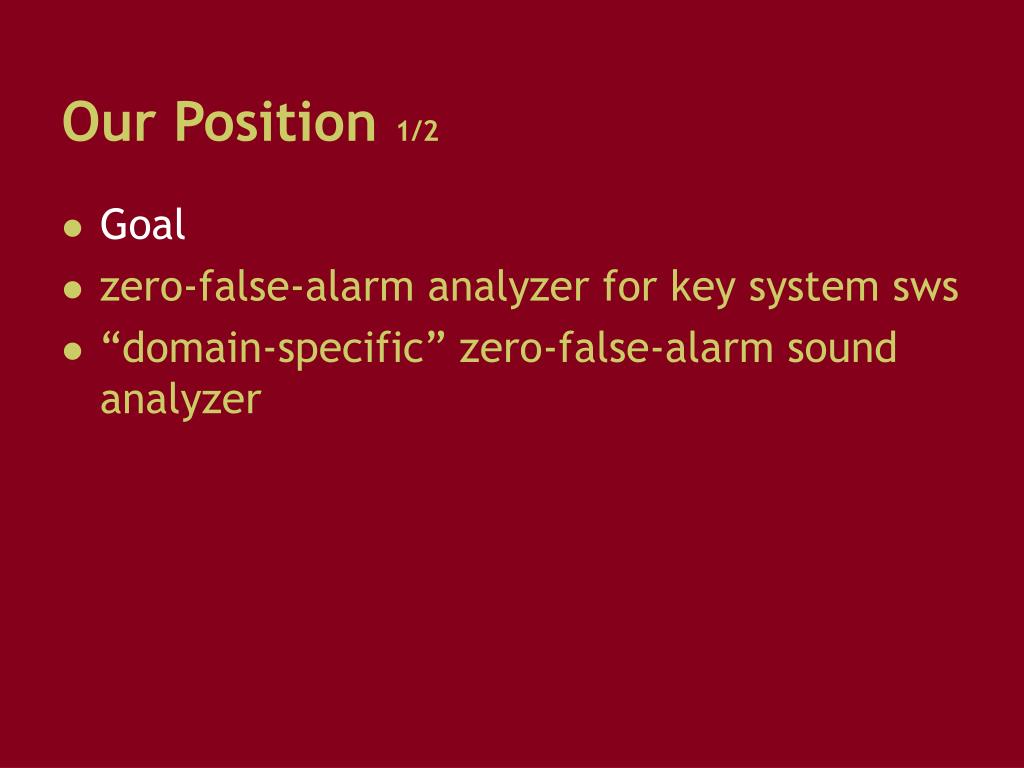

  19. Our Position 1/2 • Goal • zero-false-alarm analyzer for key system sws • “domain-specific” zero-false-alarm sound analyzer

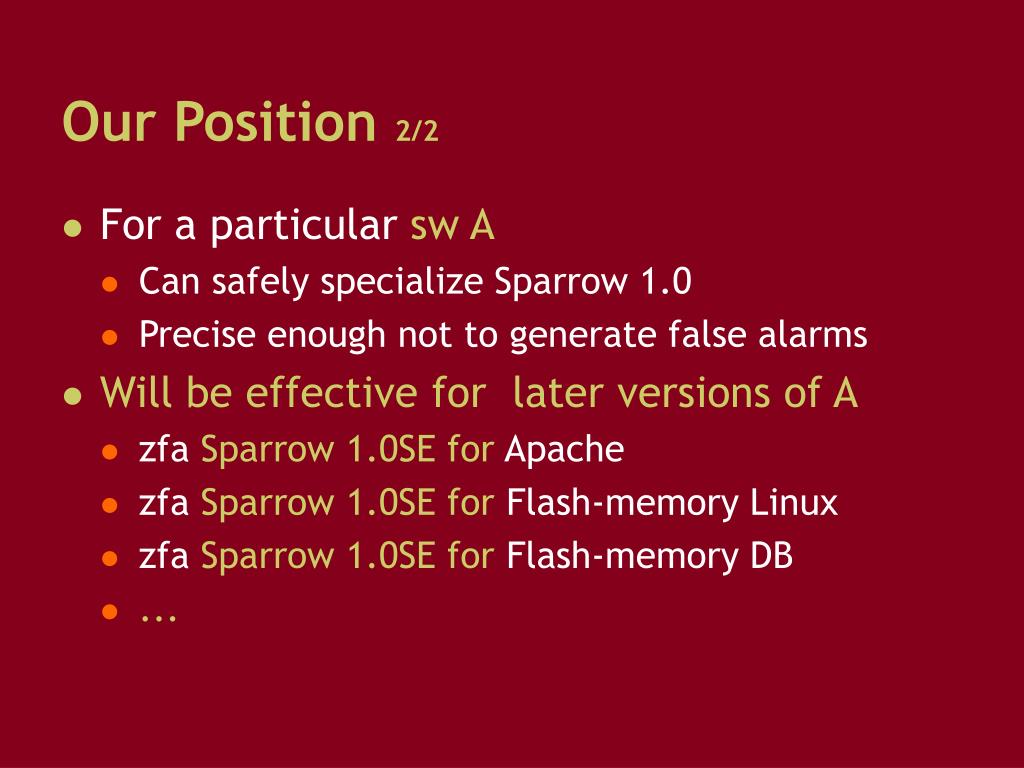

  20. Our Position 2/2 • For a particular sw A • Can safely specialize Sparrow 1.0 • Precise enough not to generate false alarms • Will be effective for later versions of A • zfa Sparrow 1.0SE for Apache • zfa Sparrow 1.0SE for Flash-memory Linux • zfa Sparrow 1.0SE for Flash-memory DB • ...

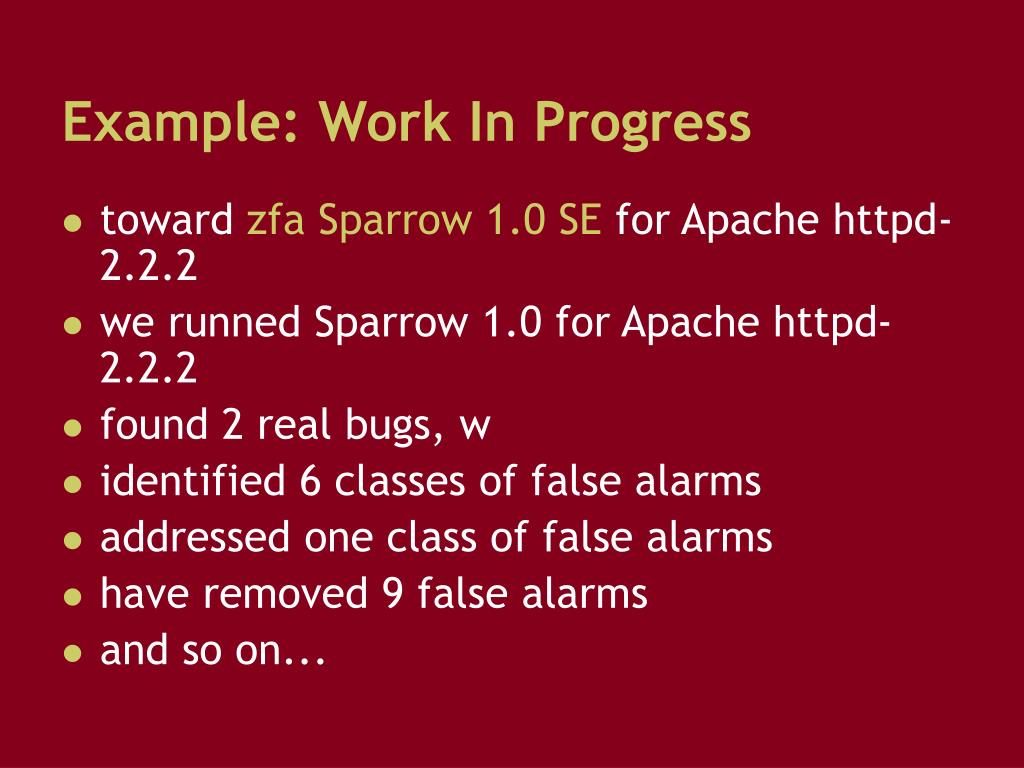

  21. Example: Work In Progress • toward zfa Sparrow 1.0 SE for Apache httpd-2.2.2 • we runned Sparrow 1.0 for Apache httpd-2.2.2 • found 2 real bugs, w • identified 6 classes of false alarms • addressed one class of false alarms • have removed 9 false alarms • and so on...

  22. Conclusion • Technology: Static Program Analysis • Product: Sparrow 1.0 • Research: Sparrow 1.0SE Thank you.

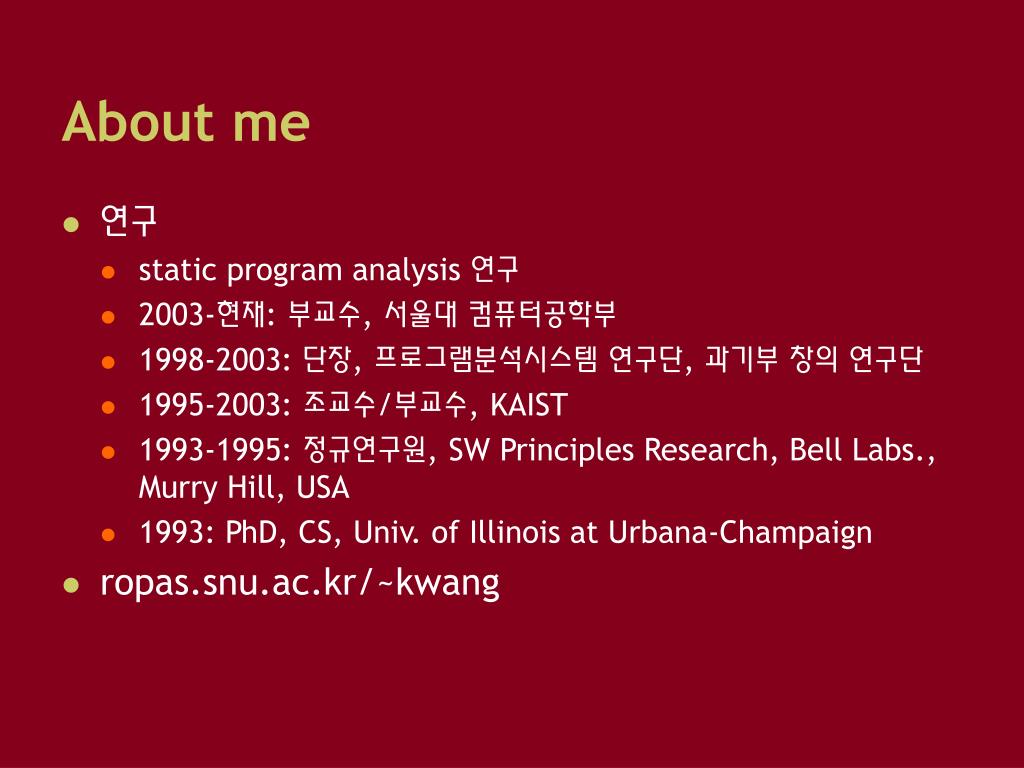

  23. About me • 연구 • static program analysis 연구 • 2003-현재: 부교수, 서울대 컴퓨터공학부 • 1998-2003: 단장, 프로그램분석시스템 연구단, 과기부 창의 연구단 • 1995-2003: 조교수/부교수, KAIST • 1993-1995: 정규연구원, SW Principles Research, Bell Labs., Murry Hill, USA • 1993: PhD, CS, Univ. of Illinois at Urbana-Champaign • ropas.snu.ac.kr/~kwang

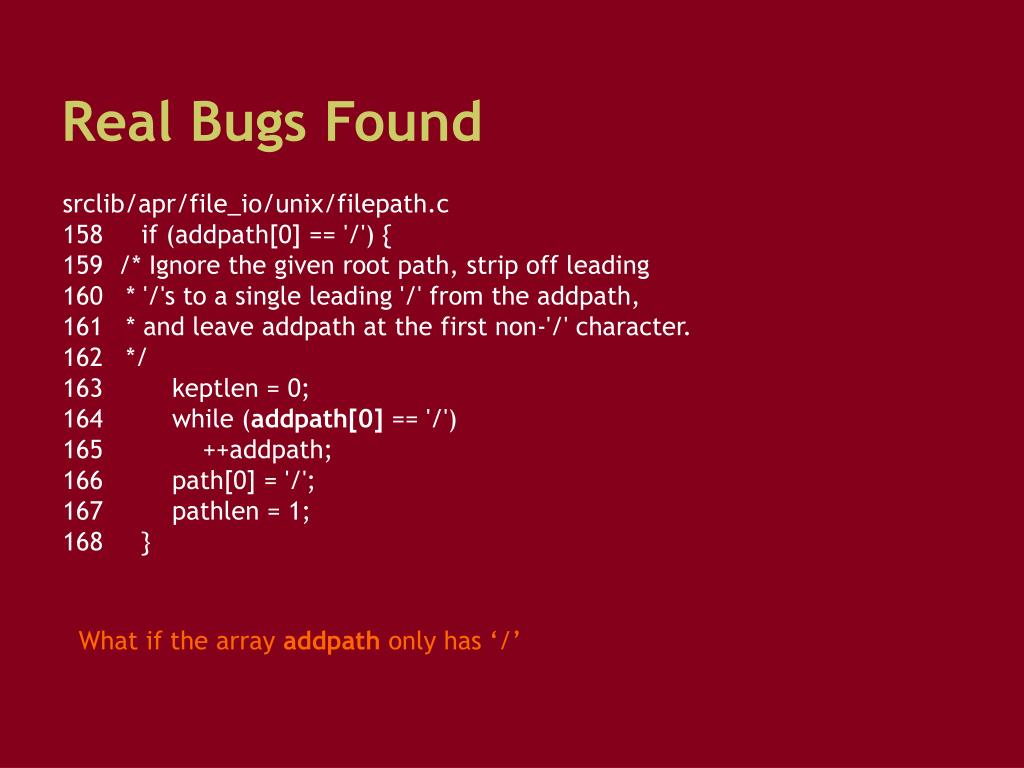

  24. Real Bugs Found srclib/apr/file_io/unix/filepath.c 158 if (addpath[0] == '/') { 159 /* Ignore the given root path, strip off leading 160 * '/'s to a single leading '/' from the addpath, 161 * and leave addpath at the first non-'/' character. 162 */ 163 keptlen = 0; 164 while (addpath[0] == '/') 165 ++addpath; 166 path[0] = '/'; 167 pathlen = 1; 168 } What if the array addpath onlyhas ‘/’
