4BZR Regulator Performance Optimization for Constant Pressure Output

In this project led by Chris Vandegrift, V.P. of Engineering at Selas Heat Technology, the objective is to launch the ½” 4BZR regulator. Various tests are conducted to ensure it meets or exceeds current standards for constant pressure output. Walter A. Shewhart's concept of minimum variance in operational performance is a guiding principle. Utilizing Design of Experiments (DOE), factors such as main nut setting, seal washer diameter, and more are evaluated for optimal regulator performance. The 4BZR test rig is utilized to assess the regulator's performance against quality standards and to conduct marketing claim tests. For any queries, feel free to reach out.

denis
Download Presentation

4BZR Regulator Performance Optimization for Constant Pressure Output

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

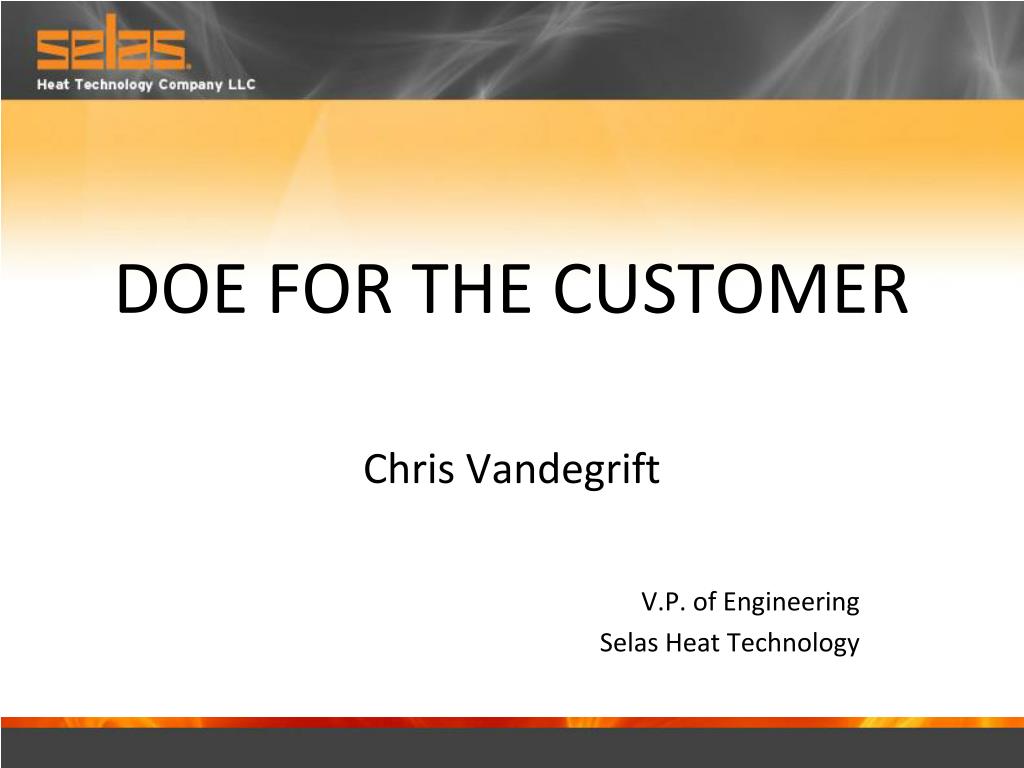

  1. DOE FOR THE CUSTOMER Chris Vandegrift V.P. of Engineering Selas Heat Technology

  2. 4BZR Regulator Objective: • Launch the 4BZR – ½” regulator • Conduct performance tests with various conditions: flow rate, pressure variation, washer weights, spring properties and diaphragms. • Meet or exceed the current standard for constant pressure output from the regulator

  3. 4BZR Before Summer 2013 ½” Balanced Zero Regulator Erratic performance on shut-off

  4. “On-Target with minimum variance.”“Operating with minimum variance is achieved only when a process displays a reasonable degree of statistical control.”-Walter A. Shewhart Variation

  5. Virtual Fishbone

  6. Design of Experiments (DOE) • Design of experiments is a branch of applied statistics that deals with… • Planning • Conducting • Analyzing • Interpreting …controlled tests to evaluate the factors that impact the output of the regulator.

  7. 4BZR DOE – Main Effects Main Nut Setting Seal Nut Setting Seal Washer Diameter

  8. 4BZR After DOE

  9. 4BZR Response Optimizer Optimal Settings

  10. 4BZR Test Rig Objective: To test Balanced Zero Regulators performance against quality standards. The ability to digitally record and display test data.

  11. 4BZR Marketing Claim Tests

  12. Thank you!

  13. Questions?
