### Hardware Status and Testing Results of TulipPad Project as of December 2011 ###

The TulipPad project team has completed extensive hardware testing and validation as of December 2011. Key hardware components such as the PCB mockup have been made available, and performance tests indicate that the core system, dual SIM, display, and multimedia functionalities are all operating correctly. Power consumption is within acceptable limits, and support for major connectivity options like Wi-Fi and Bluetooth has been confirmed. Risks and testing data have also been documented, with certification efforts ongoing for compliance. ###

demetrius
Download Presentation

### Hardware Status and Testing Results of TulipPad Project as of December 2011 ###

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TulipPad DR1 TulipPad project team 07-12-2011

  2. Hardware • Hardware status • Hardware risks

  3. Hardware Status • Mockup PCB available and test&tune started • Digital test result: • Clock is ok • Dual SIM card is ok • Keypad is ok • Power consumption is ok • WIFI are OK • TP/LCD are OK ( New driver LCD is not available yet) • Audio Loop is OK • ESD with CNC plastics • Test samples are available on 21th.Sep • Test 10K is ok

  4. Hardware Status • RF conductive test

  5. Hardware Status • Core system is performed in 900MHz. • DDR3 is running in 800MHz. • LCD pixel 1024x600 is going to be performed with support from Truly (schedule TBD). • TP with full five touch muti-touch is OK. • Power consume is OK in each status. • WIFI/BLUETOOTH • WIFI supported in mode b g and n is OK. • BLUETOOTH is OK. • Battery Charge is OK in full charge mode(much than 1A). • UTC time is OK. • EBOOK support • Main publish format is support include in (Epub ,PDF ,txt,fb2)

  6. Hardware Status • Multimedia • MP3 is OK. • H.264 decode is OK. • Full format video player is OK support with RMVB, mp4, mpg and mkv. • Accessory • Charger,USB cable are STD components. • Headset common uses Alcatel STD . • Battery common uses C7S. BYD is applying for CE,UL certificate. • Antenna evaluation from CNC (TCL) • 点测数据

  7. Hardware Status • Multimedia • MP3 is OK. • H.264 decode is OK. • Full format video player is OK support with RMVB, mp4, mpg and mkv. • Accessory • Charger,USB cable are STD components. • Headset common uses Alcatel STD . • Battery common uses C7S. BYD is applying for CE,UL certificate. • Antenna evaluation from CNC (TCL) • 点测数据

  8. 硬件功耗数据表（1）

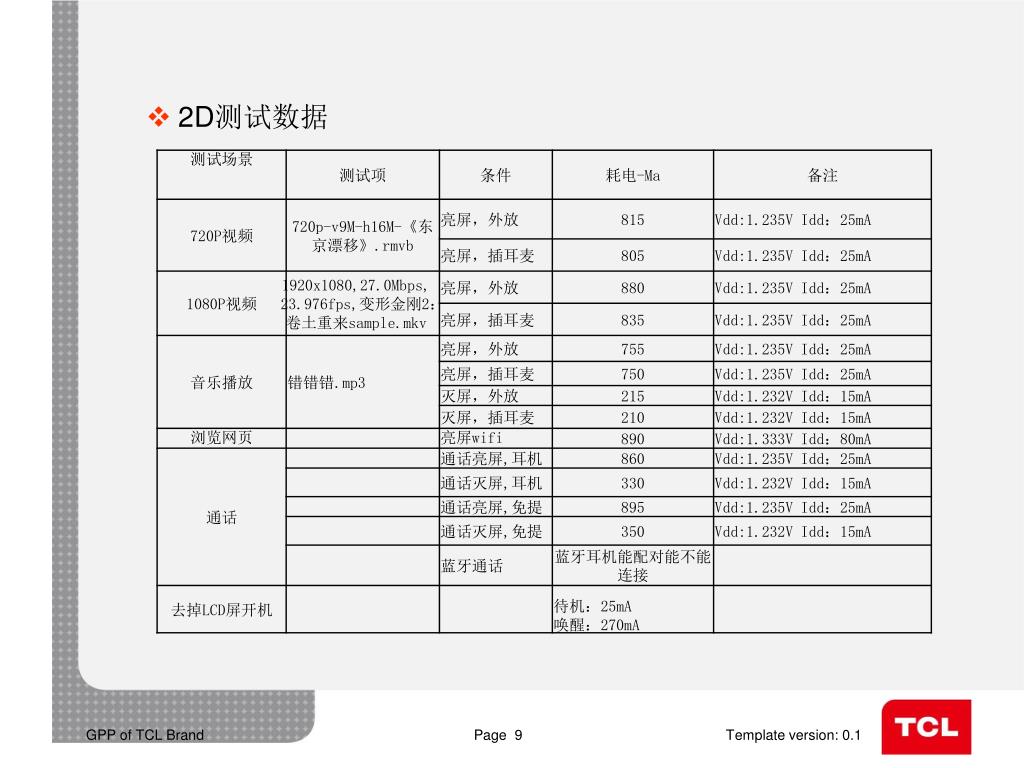

  9. 2D测试数据

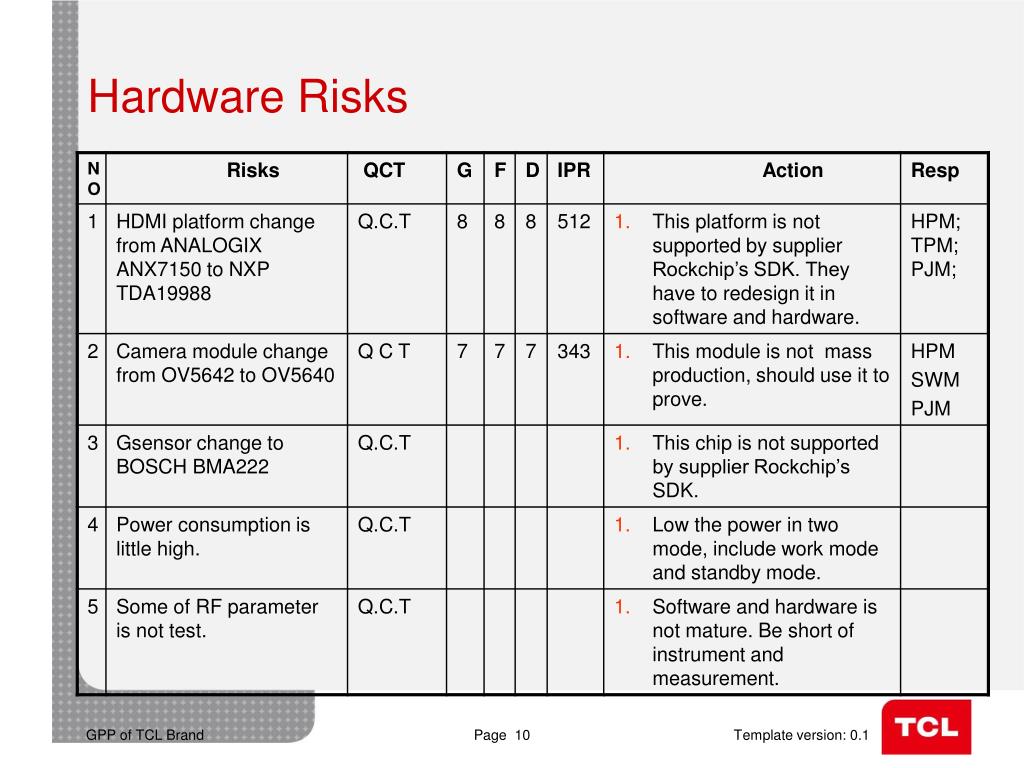

  10. Hardware Risks
