  1. Functional Testingwith theJava Stack Test Runner

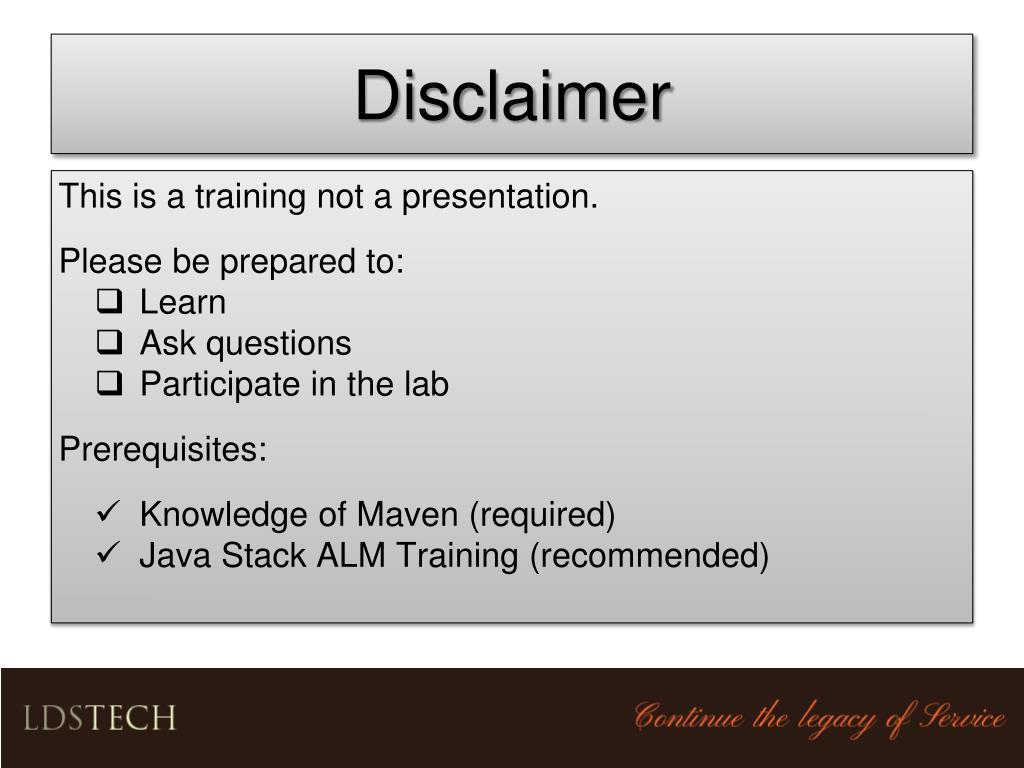

  2. Disclaimer This is a training not a presentation. Please be prepared to: • Learn • Ask questions • Participate in the lab Prerequisites: • Knowledge of Maven (required) • Java Stack ALM Training (recommended)

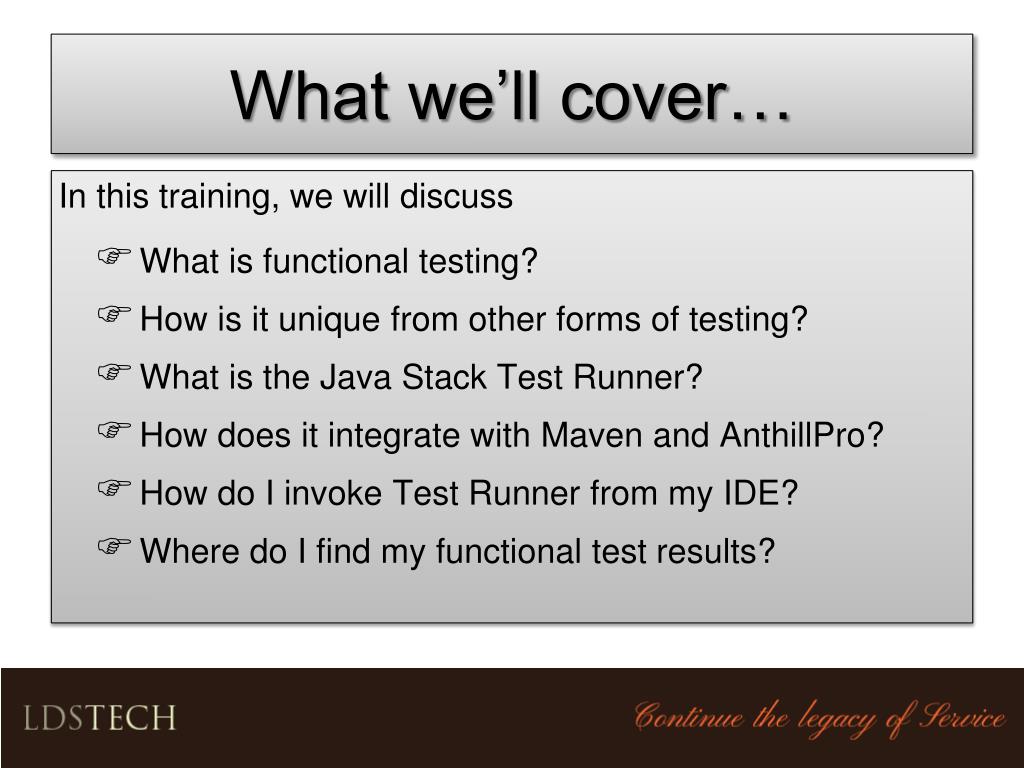

  3. What we’ll cover… In this training, we will discuss • What is functional testing? • How is it unique from other forms of testing? • What is the Java Stack Test Runner? • How does it integrate with Maven and AnthillPro? • How do I invoke Test Runner from my IDE? • Where do I find my functional test results?

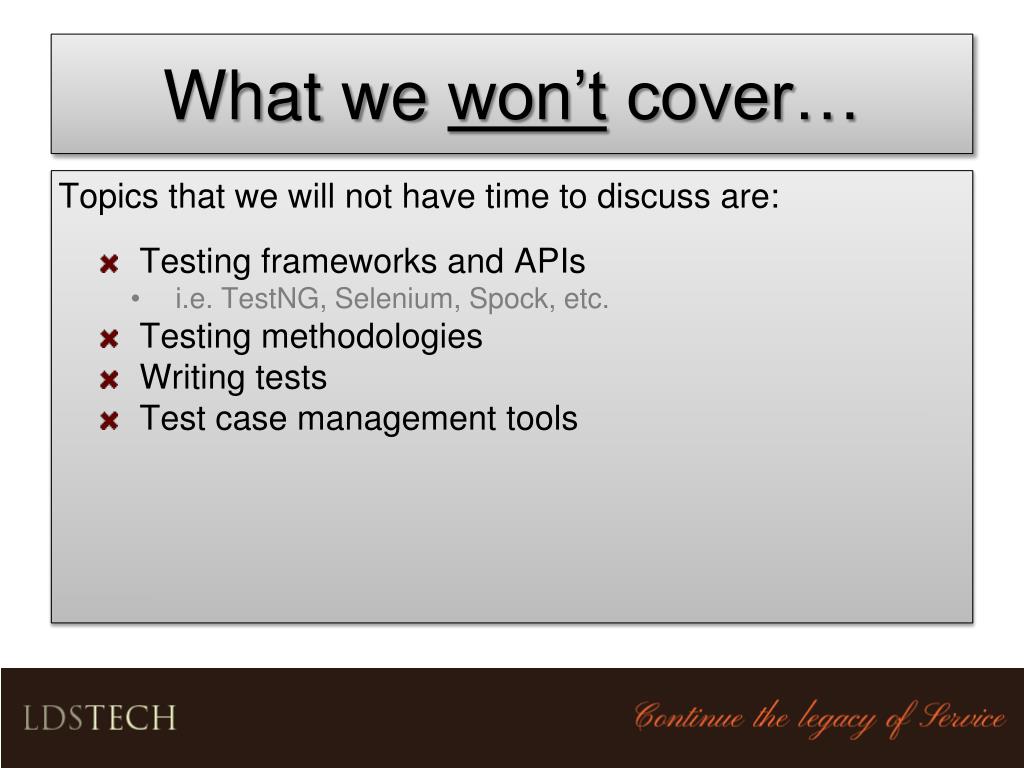

  4. What we won’t cover… Topics that we will not have time to discuss are: • Testing frameworks and APIs • i.e. TestNG, Selenium, Spock, etc. • Testing methodologies • Writing tests • Test case management tools

  5. First, some background…

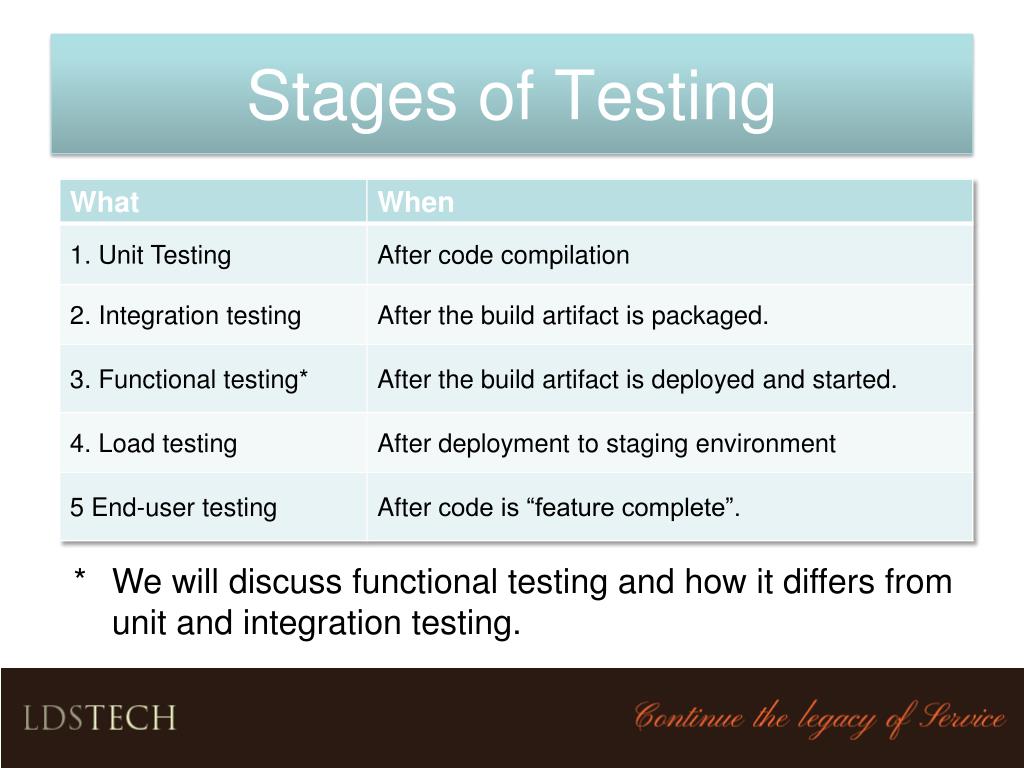

  6. Stages of Testing • We will discuss functional testing and how it differs from unit and integration testing.

  7. Unit Testing • Scope • Narrow (single class or method) • Purpose • Validates small units of code • Responsible Party • Code developer • Failure: • Indicates code is broken • Typically fails the build * Has direct dependencies on application code

  8. Integration Testing • Scope • Medium (spans two integrated systems) • Purpose • Validate code that integrates with another system. (e.g. a database or web service) • Responsible Party • Code developer. • Failure: • Indicates failure of systems to communicate as expected. • Does not typically fail the build. * Has direct dependencies on application code.

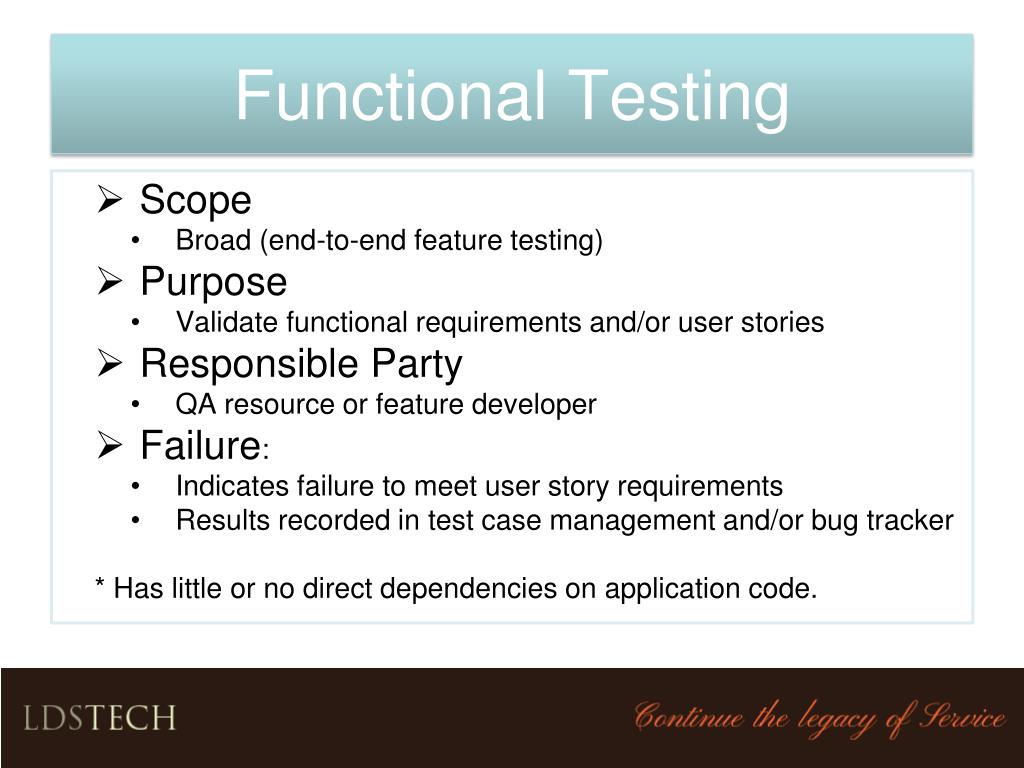

  9. Functional Testing • Scope • Broad (end-to-end feature testing) • Purpose • Validate functional requirements and/or user stories • Responsible Party • QA resource or feature developer • Failure: • Indicates failure to meet user story requirements • Results recorded in test case management and/or bug tracker * Has little or no direct dependencies on application code.

  10. Functional TestingandApplication Life-cycle Management(ALM)

  11. ALM Build Tools Maven • Project definition • Dependency management • Plug-in configuration and management • Build profiles AnthillPro • Manages build processes • Creation of build artifact(s) • Deployment to server environment • Functional test execution • Maintains build life history • Provides ability to re-execute a process on any build life

  12. ALM Tools: Maven Life-cycles The default Maven build life-cycle (simplified): • compile • test (unit tests) • package • integration-test (integration tests) • install (to local Maven repository) • deploy (to remote Maven repository) Where do we plug in functional testing?

  13. ALM Tools: Maven Life-cycles The woes of having “one build to rule them all”: • Functional Testing ≠ Integration Testing • Confuses build with server deployment • Must re-build to re-deploy or re-test • Complicates build management • Less productive use of build agents

  14. ALM Tools: Maven Life-cycles The Java Stack ALM build life-cycle (simplified): • alm-db(run database scripts) • alm-deploy (deploy application to server) • alm-test (run functional tests) • alm-promote (run all previous phases) This life-cycle is available to the artifact produced by the “alm” module of a Java Stack project.

  15. ALM Tools: Maven Life-cycle Advantages of a second build life-cycle: • Clean separation of configuration: • One configuration for build • One configuration for deployment and/or functional testing • Separate processes: • One process for building artifact • One process for deployment and/or functional testing • Simplified build management • More productive use of build agents

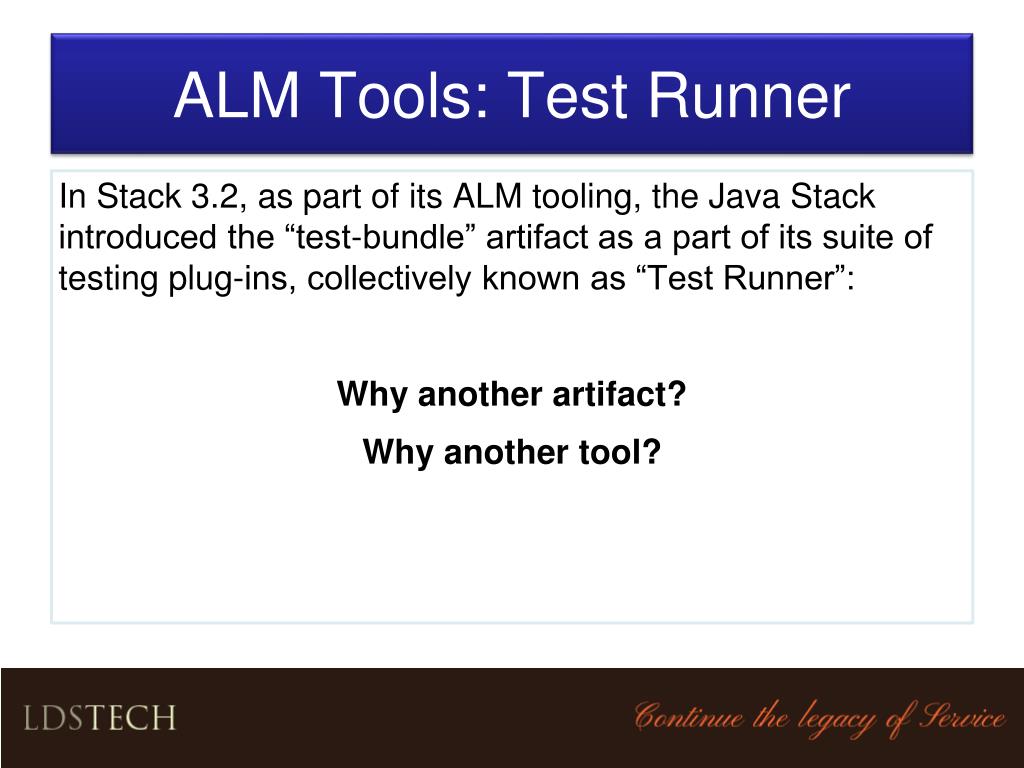

  16. ALM Tools: Test Runner In Stack 3.2, as part of its ALM tooling, the Java Stack introduced the “test-bundle” artifact as a part of its suite of testing plug-ins, collectively known as “Test Runner”: Why another artifact? Why another tool?

  17. ALM Tools: The Test Bundle The “test” jar • Not an executable jar • Difficult to execute without help from Maven. • Relied on maven to supply its dependencies. • Difficult to execute tests from past code revisions. The “test-bundle” jar • An executable jar • Can be executed with or without Maven. • Comes packaged with all its dependencies. • Each test artifact represents a snapshot of the current code revision.

  18. ALM Tools: Test Runner The “failsafe:test” goal • Supports TestNG • Supports test suites • Supports environment configuration • Produces JUnit and TestNG reports. • Executes tests from the target/classes folder The “stack-test:functional-test” goal • Supports TestNG • Supports test suites • Supports environment configuration • Produces JUnit and TestNG reports. • Executes “test-bundle” artifact.

  19. ALM Tools: Functional Test Goal Common configuration for stack-test:functional-test: • testBundle – groupId and artifactId of QA test bundle • testEnv – the test environment properties to load • skipFTs – whether to skip functional tests • suiteXmlResources – TestNG suites to load • includes – test class patterns (e.g. **/*FT.class) • systemPropertyVariables – custom system properties • argLine – JVM arguments (e.g. memory options, debugger, etc.) For the additional options, see: • http://code.lds.org/maven-sites/stack/modules/test/

  20. ALM Tools: The Test Bundle Simple to upgrade existing QA projects. 1. Upgrade the project to Stack 3.2 Then change the QA pom’s packaging type from to 2. Add QA module as a dependency to the ALM module. <packaging>jar</packaging> <packaging>test-bundle</packaging> <dependency> <groupId>${project.groupId}</groupId> <artifactId>example-qa</artifactId> <version>${project.version}</version> <type>test-bundle</type> </dependency>

  21. ALM Tools: The Test Bundle 3. Bind the functional-test goal to the alm-test phase: <plugin> <groupId>org.lds.stack.test</groupId> <artifactId>stack-test-maven-plugin</artifactId> <executions> <execution> <id>test</id> <goals><goal>functional-test</goal></goals> <phase>alm-test</phase> <configuration> <testBundle> <groupId>org.lds.training.testrunner.lab1</groupId> <artifactId>testrunner-lab1-qa</artifactId> </testBundle> </configuration> </execution> </executions> </plugin>

  22. ALM Tools: The Test Bundle 4. Modify build profiles to fit your needs <profile> <id>test</id> <properties> <skipFTs>false</skipFTs> <testEnv>test</testEnv> </properties> </profile>

  23. Lab #1A Simple QA Test Bundle Projecthttps://tech.lds.org/wiki/Functional_Testing_with_the_Java_Stack_Test_Runner

  24. Lab #2Running Functional Testswith Maven and your IDEhttps://tech.lds.org/wiki/Functional_Testing_with_the_Java_Stack_Test_Runner

  25. Lab #3Running Functional Testsin AnthillProhttps://tech.lds.org/wiki/Functional_Testing_with_the_Java_Stack_Test_Runner

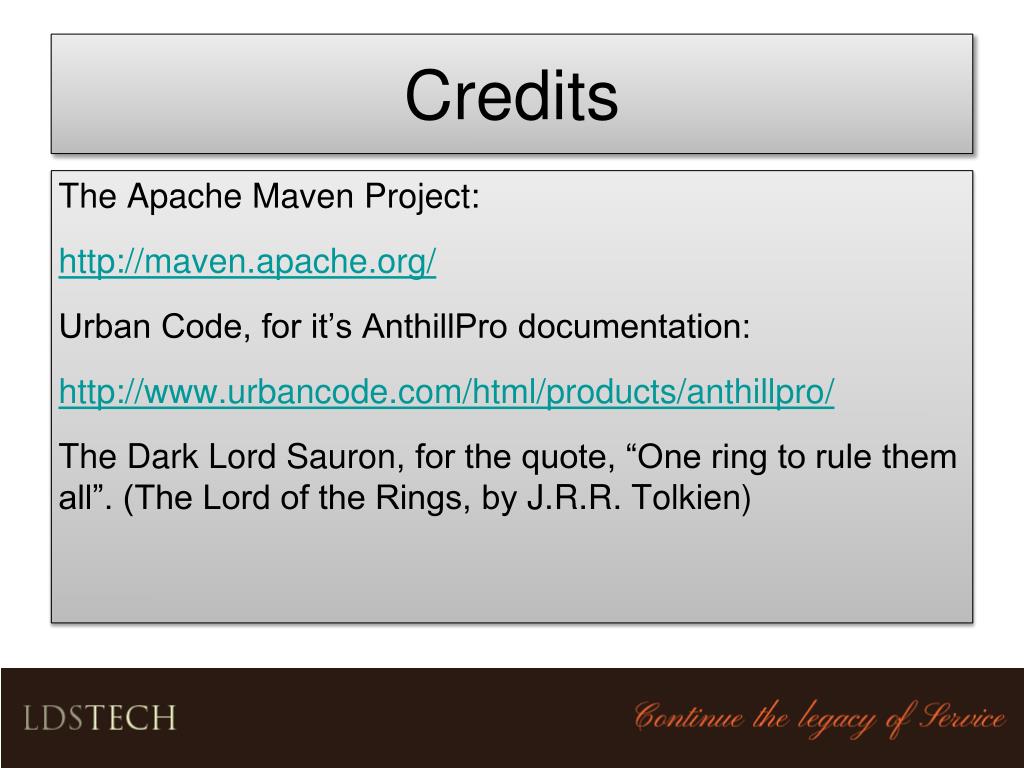

  26. Credits The Apache Maven Project: http://maven.apache.org/ Urban Code, for it’s AnthillPro documentation: http://www.urbancode.com/html/products/anthillpro/ The Dark Lord Sauron, for the quote, “One ring to rule them all”. (The Lord of the Rings, by J.R.R. Tolkien)

  27. <code snippet block>
