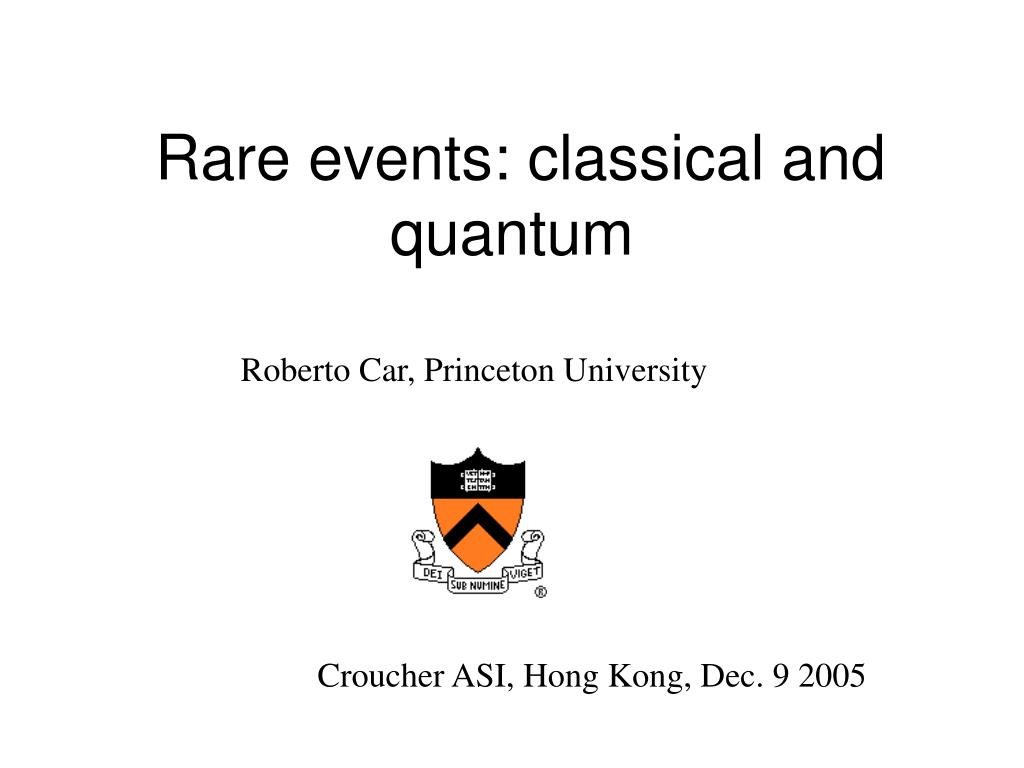

Rare events: classical and quantum

Roberto Car, Princeton University

Croucher ASI, Hong Kong, Dec. 9 2005

reaction pathways

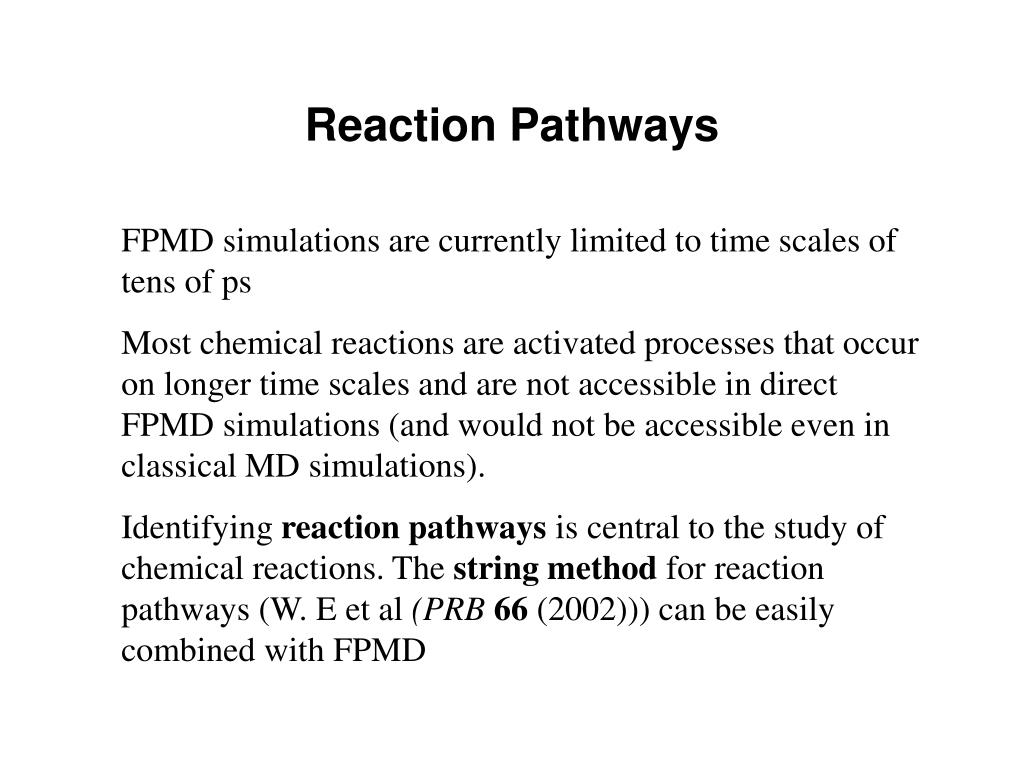

Reaction Pathways

FPMD simulations are currently limited to time scales of tens of ps

Most chemical reactions are activated processes that occur on longer time scales and are not accessible in direct FPMD simulations (and would not be accessible even in classical MD simulations).

Identifying reaction pathways is central to the study of chemical reactions. The string method for reaction pathways (W. E et al (PRB 66 (2002))) can be easily combined with FPMD

string method at t 0

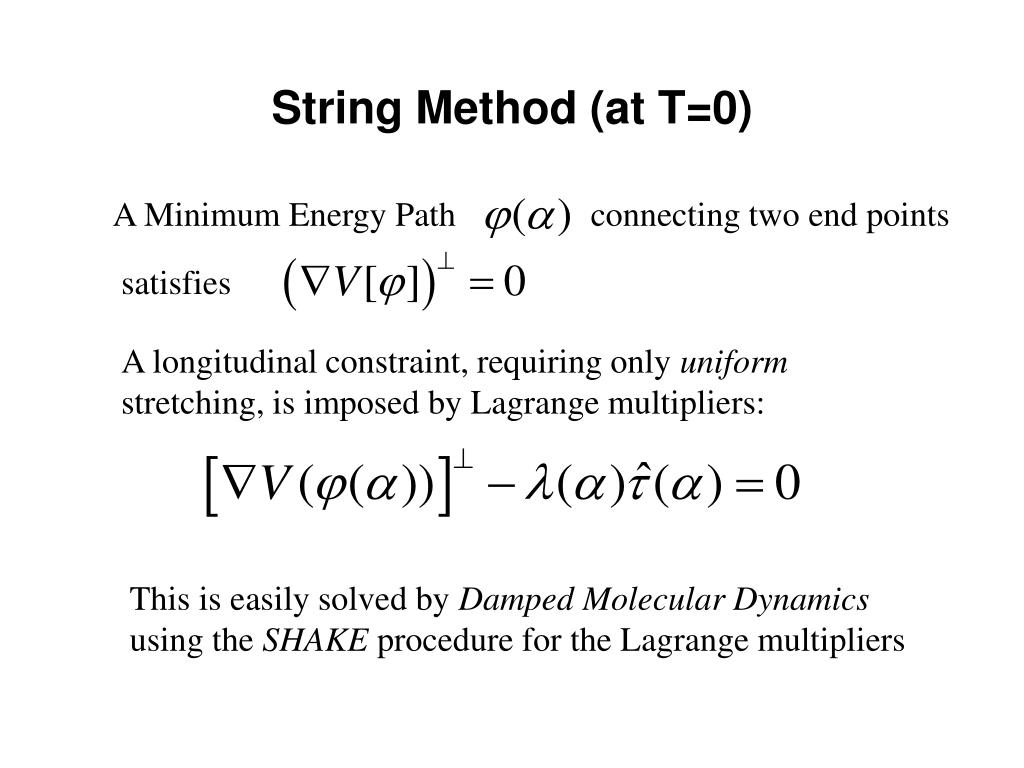

String Method (at T=0)

A Minimum Energy Path

connecting two end points


A longitudinal constraint, requiring only uniform stretching, is imposed by Lagrange multipliers:

This is easily solved by Damped Molecular Dynamics using the SHAKE procedure for the Lagrange multipliers

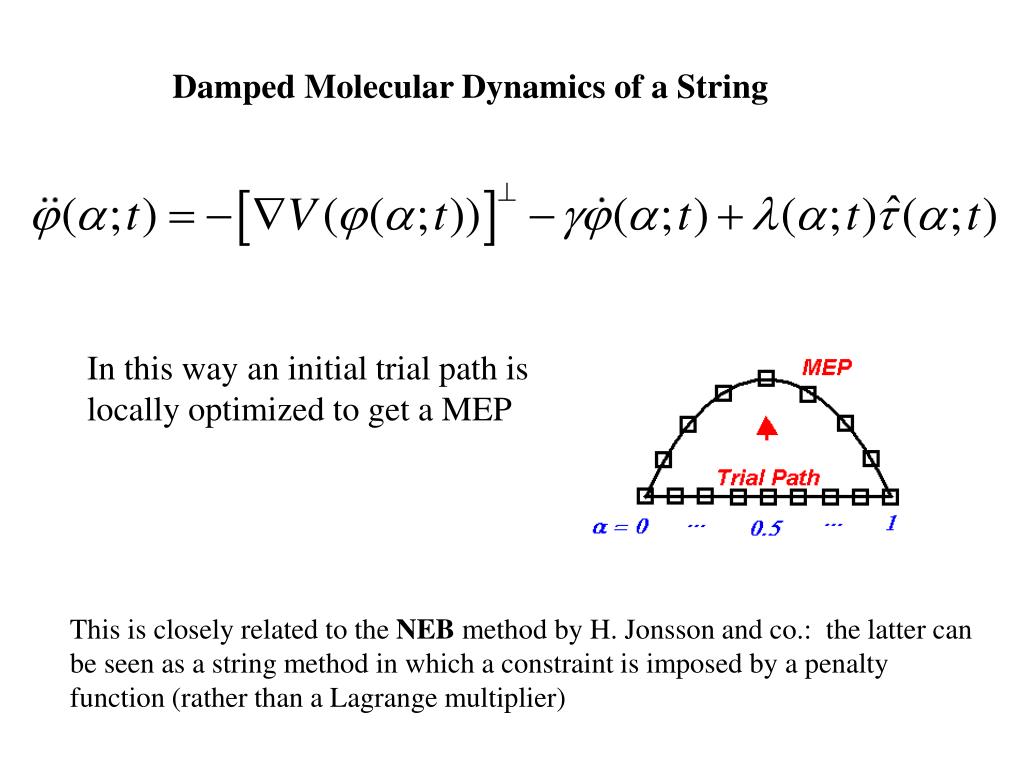

Damped Molecular Dynamics of a String

In this way an initial trial path is locally optimized to get a MEP

This is closely related to the NEB method by H. Jonsson and co.: the latter can be seen as a string method in which a constraint is imposed by a penalty function (rather than a Lagrange multiplier)

first principles string molecular dynamics

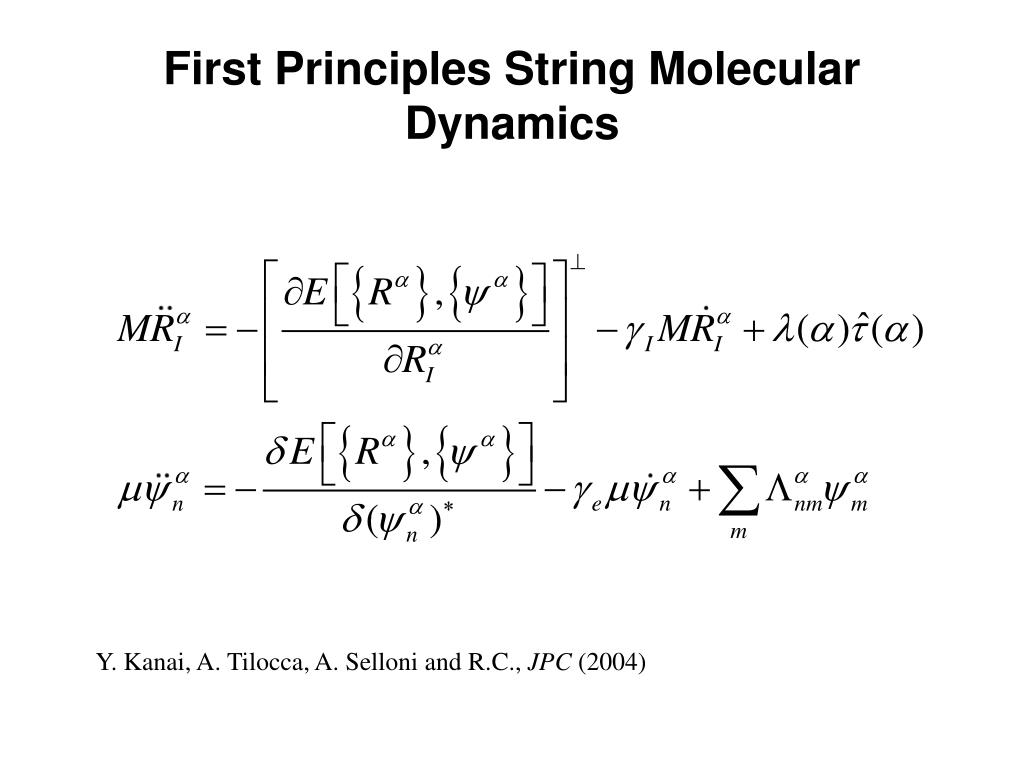

First Principles String Molecular Dynamics

Y. Kanai, A. Tilocca, A. Selloni and R.C., JPC (2004)

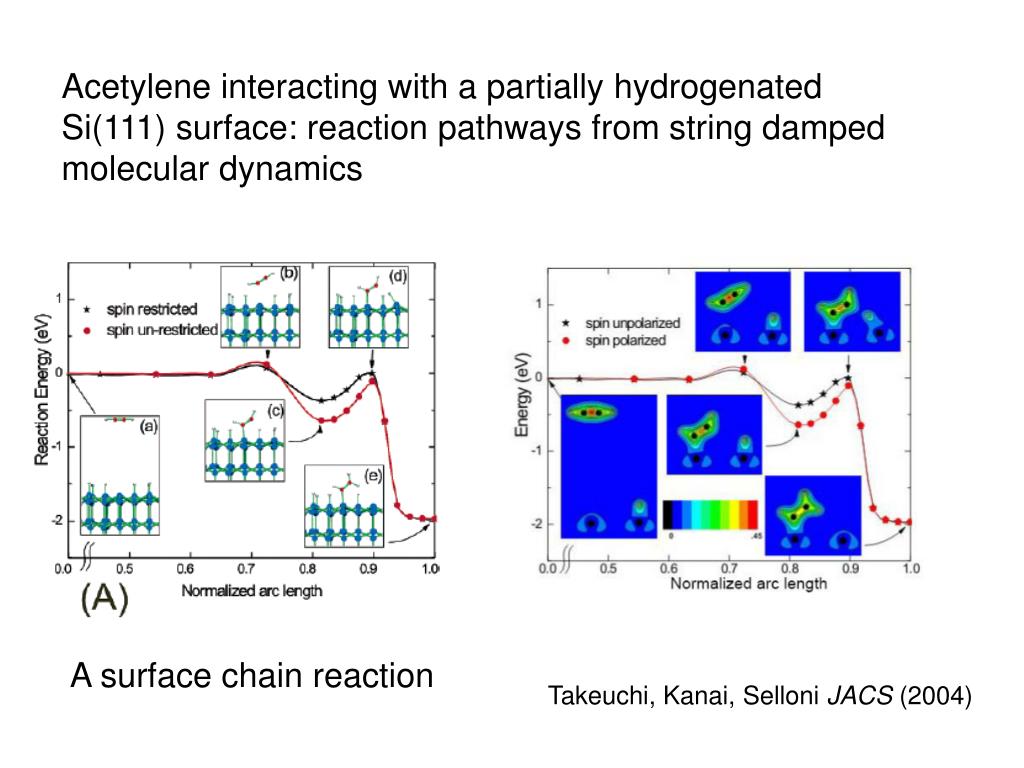

Acetylene interacting with a partially hydrogenated Si(111) surface: reaction pathways from string damped molecular dynamics

A surface chain reaction

Takeuchi, Kanai, Selloni JACS (2004)

influence of xc functional pbe gga vs tpss 2 meta gga

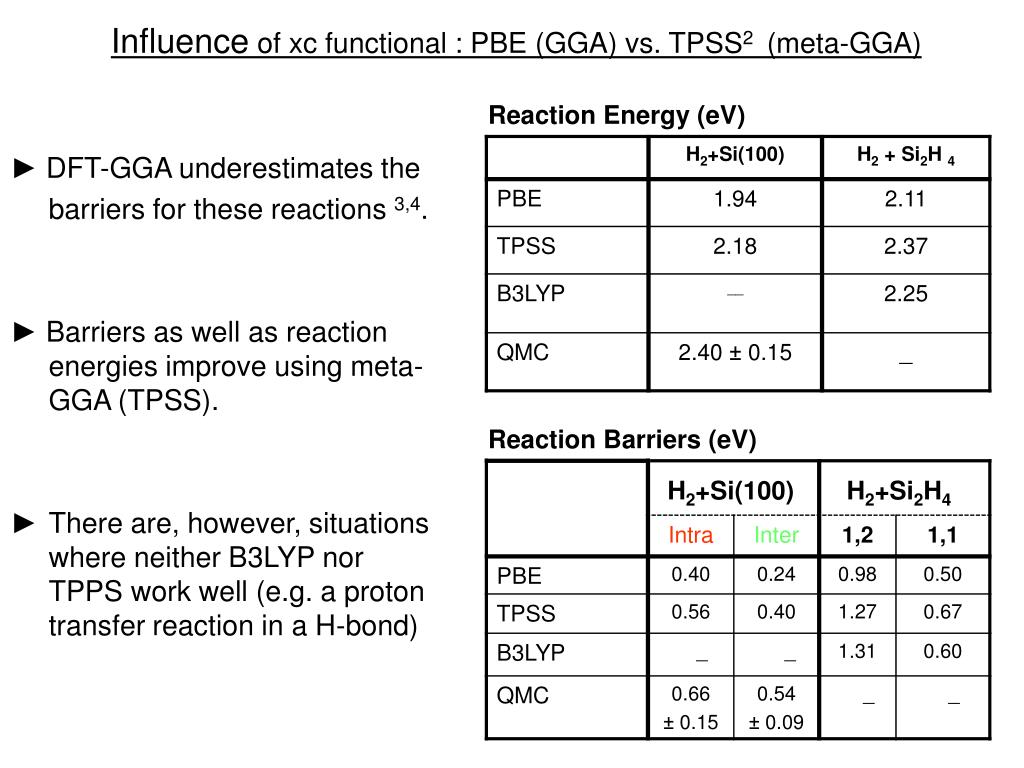

Influence of xc functional : PBE (GGA) vs. TPSS2 (meta-GGA)

Reaction Energy (eV)

► DFT-GGA underestimates the

barriers for these reactions 3,4.

► Barriers as well as reaction energies improve using meta-GGA (TPSS).

► There are, however, situations where neither B3LYP nor TPPS work well (e.g. a proton transfer reaction in a H-bond)

Reaction Barriers (eV)



long time evolution due to activated processes coarse grained dynamics by kmc

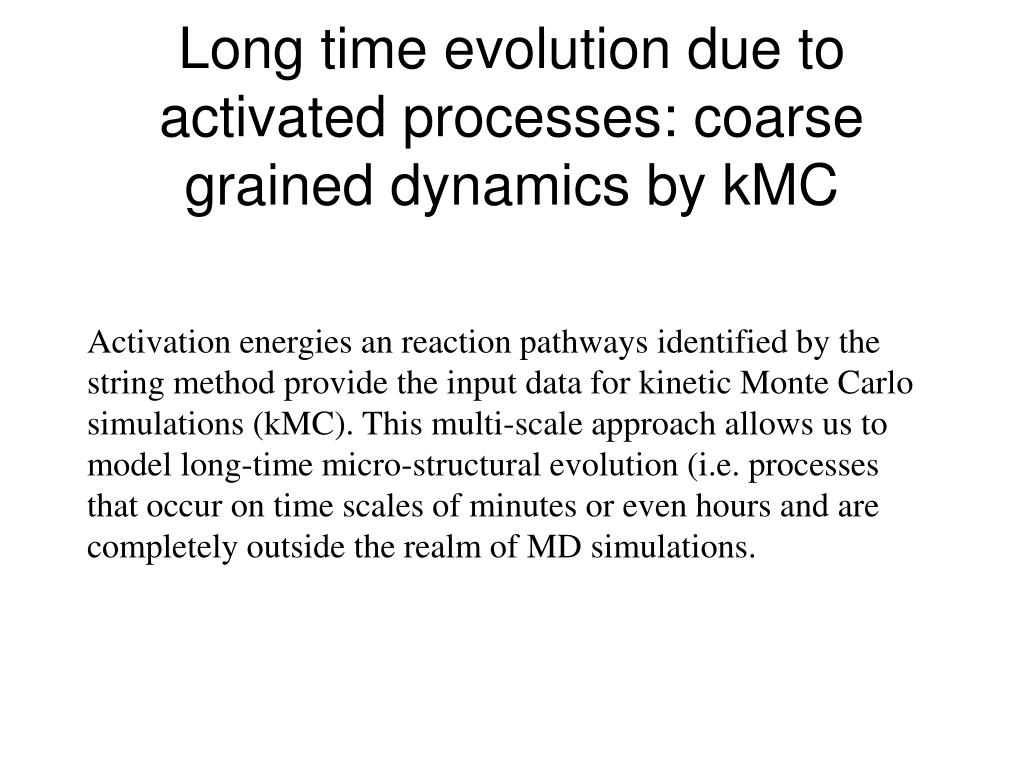

Long time evolution due to activated processes: coarse grained dynamics by kMC

Activation energies an reaction pathways identified by the string method provide the input data for kinetic Monte Carlo simulations (kMC). This multi-scale approach allows us to model long-time micro-structural evolution (i.e. processes that occur on time scales of minutes or even hours and are completely outside the realm of MD simulations.


kinetic Monte Carlo

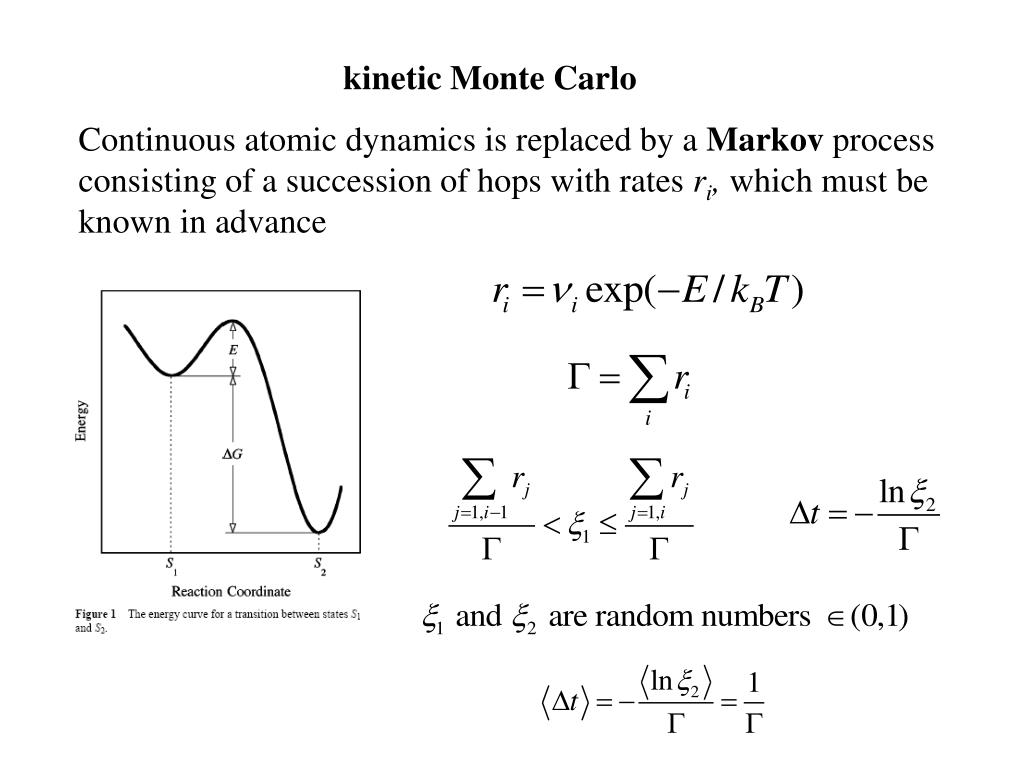

Continuous atomic dynamics is replaced by a Markov process consisting of a succession of hops with rates ri, which must be known in advance



yttrium or zirconium

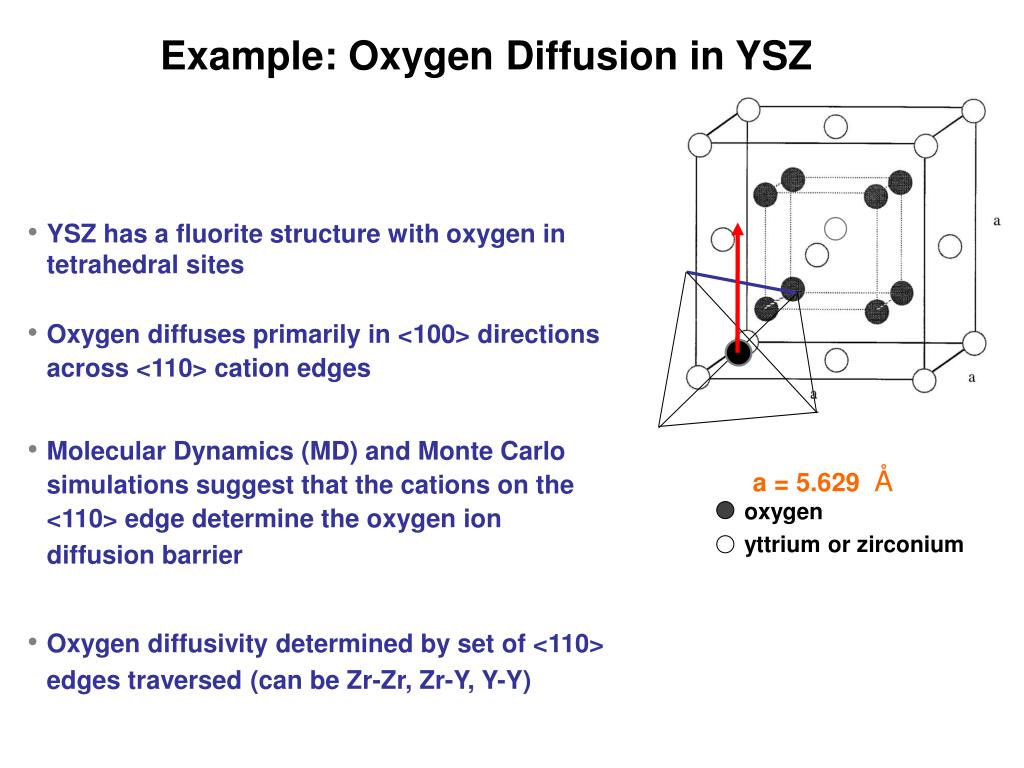

Example: Oxygen Diffusion in YSZ

  • YSZ has a fluorite structure with oxygen in tetrahedral sites
  • Oxygen diffuses primarily in <100> directions across <110> cation edges
  • Molecular Dynamics (MD) and Monte Carlo simulations suggest that the cations on the <110> edge determine the oxygen ion diffusion barrier
  • Oxygen diffusivity determined by set of <110> edges traversed (can be Zr-Zr, Zr-Y, Y-Y)

a = 5.629 Å

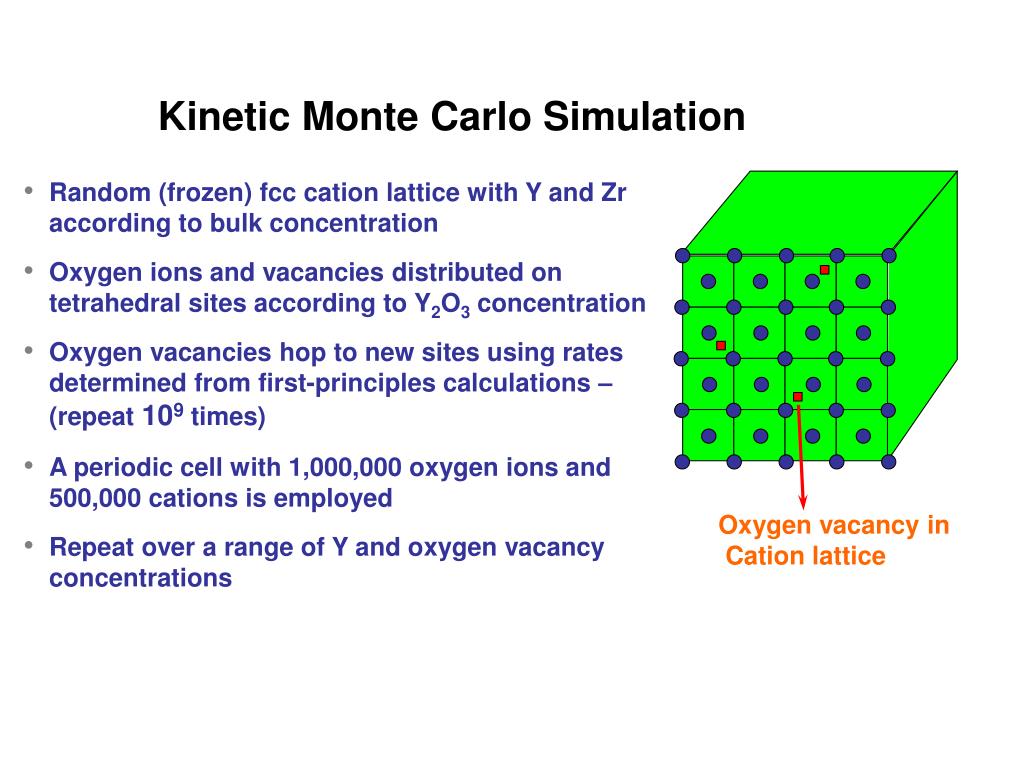

Kinetic Monte Carlo Simulation

  • Random (frozen) fcc cation lattice with Y and Zr according to bulk concentration
  • Oxygen ions and vacancies distributed on tetrahedral sites according to Y2O3 concentration
  • Oxygen vacancies hop to new sites using rates determined from first-principles calculations – (repeat 109 times)
  • A periodic cell with 1,000,000 oxygen ions and 500,000 cationsis employed
  • Repeat over a range of Y and oxygen vacancy concentrations

Oxygen vacancy in

Cation lattice


Activation Energy

Conductivity (W-1cm-1)



(Oishi and Ando, 1985)

Y2O3 (mole %)

(Strickler and

Carlson, 1964)

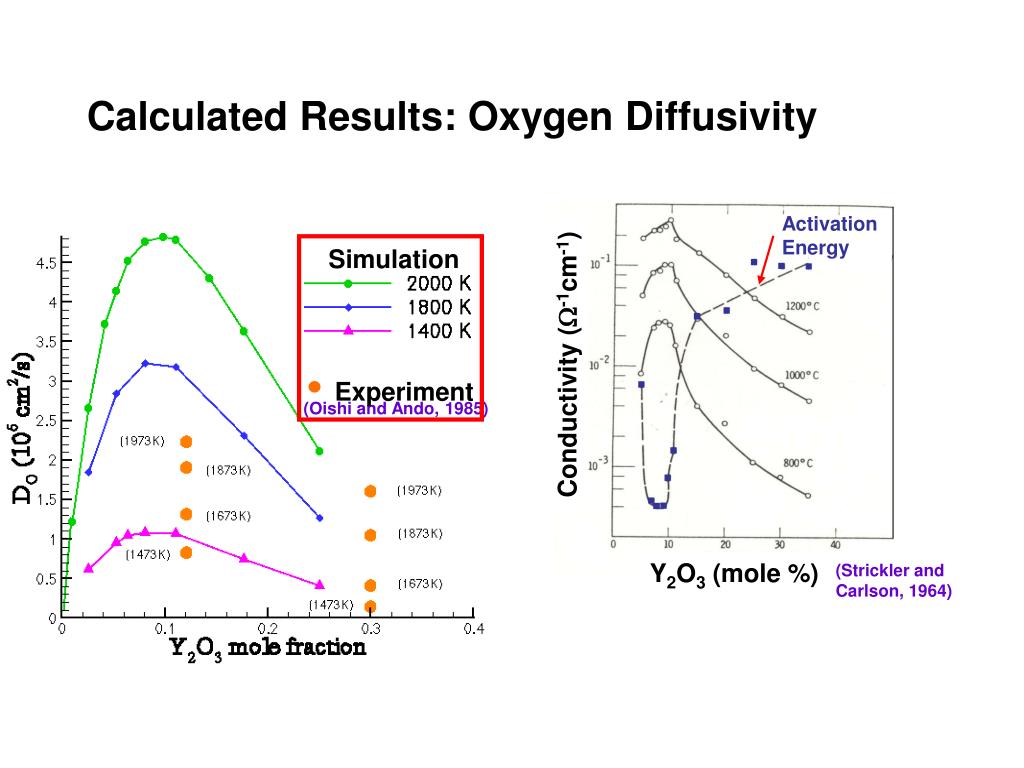

Calculated Results: Oxygen Diffusivity

what can we do if we only know the starting point but not the end point of a reaction
What can we do if we only know the starting point but not the end point of a reaction?
  • Metadynamics (Laio and Parrinello (2002)) gives a viable strategy, provided we know the important reaction coordinates (collective variables)
  • In this approach the microscopic dynamics is biased by a coarse grained (in the space of the order parameters) history dependent dynamics

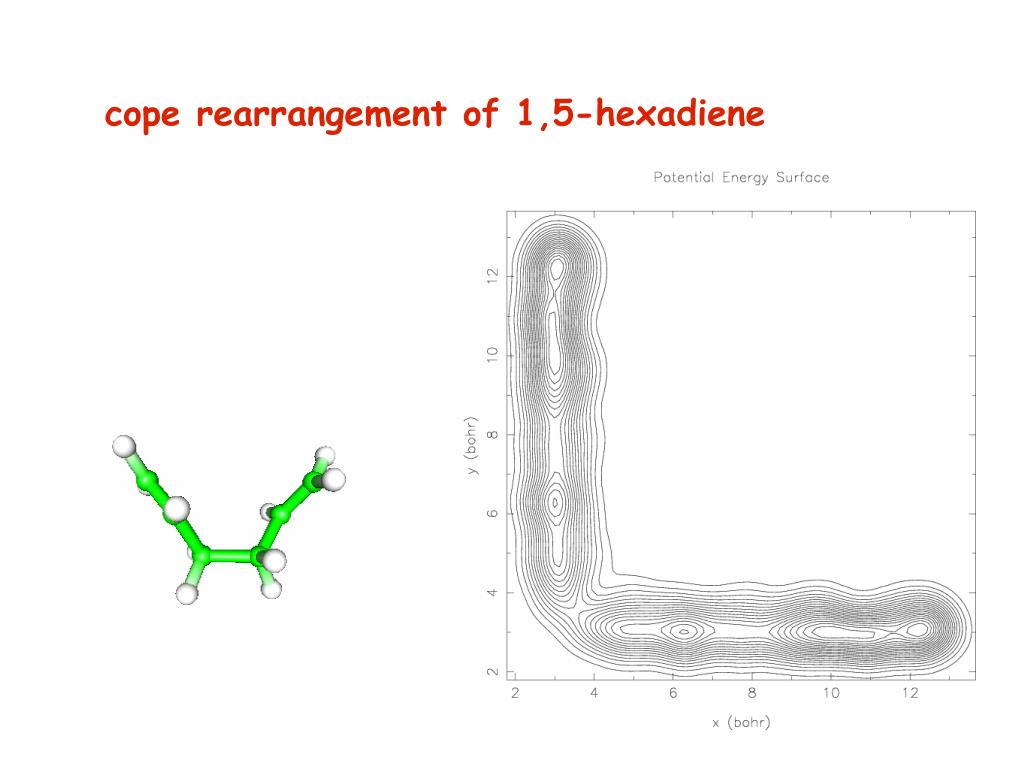

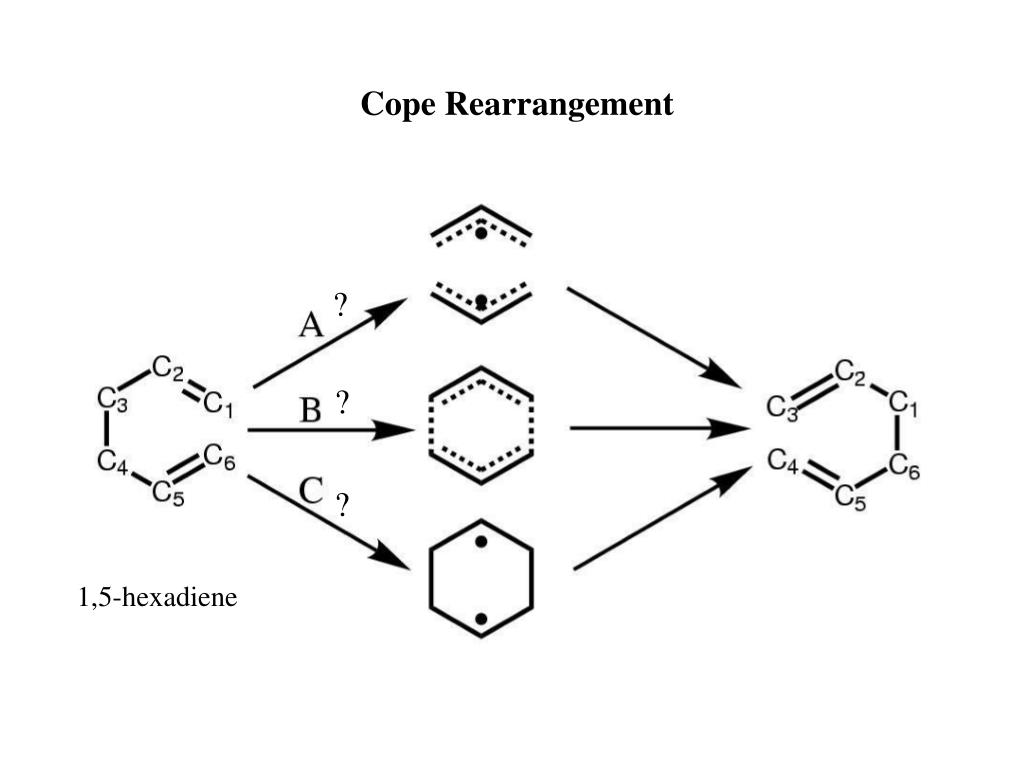

Cope Rearrangement





modeling quantum systems in non equilibrium situations molecular electronics

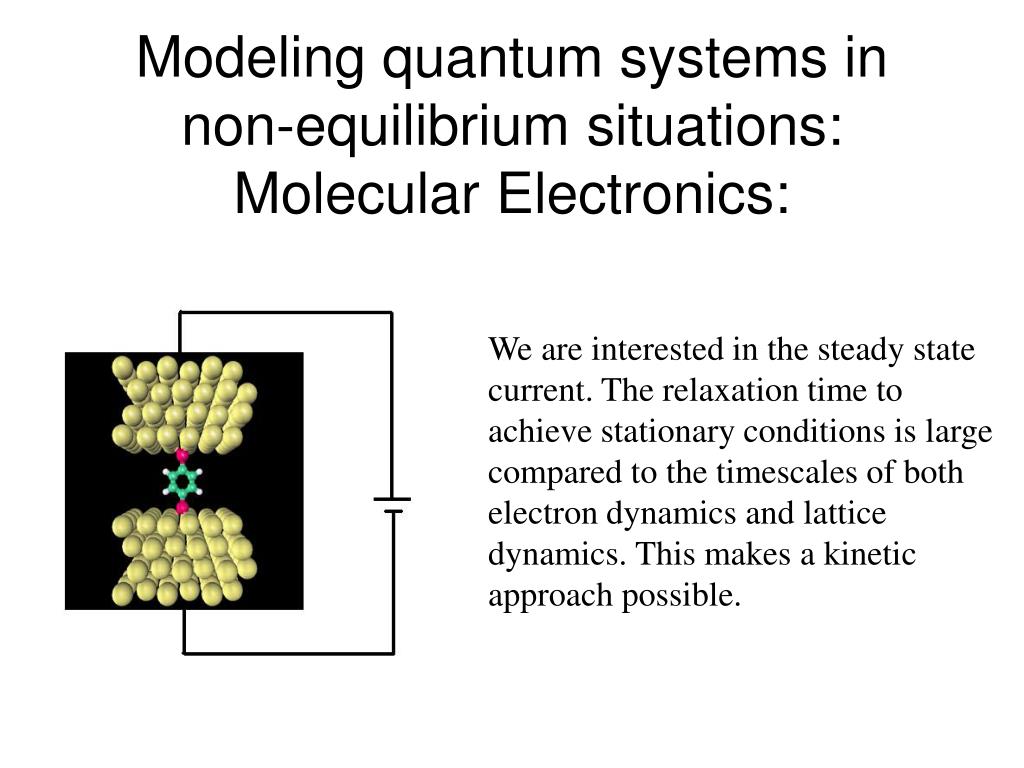

Modeling quantum systems in non-equilibrium situations: Molecular Electronics:

We are interested in the steady state current. The relaxation time to achieve stationary conditions is large compared to the timescales of both electron dynamics and lattice dynamics. This makes a kinetic approach possible.

boltzmann s equation the standard approach for bulk transport includes kinetics and dissipation

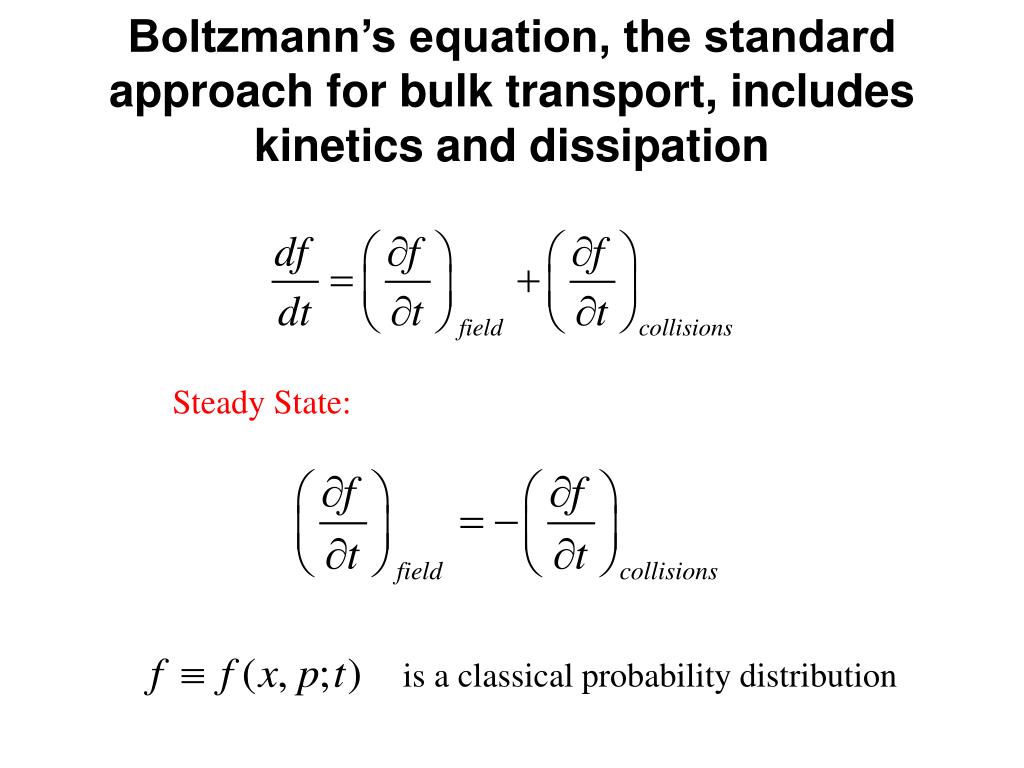

Boltzmann’s equation, the standard approach for bulk transport, includes kinetics and dissipation

Steady State:

is a classical probability distribution

quantum formulation

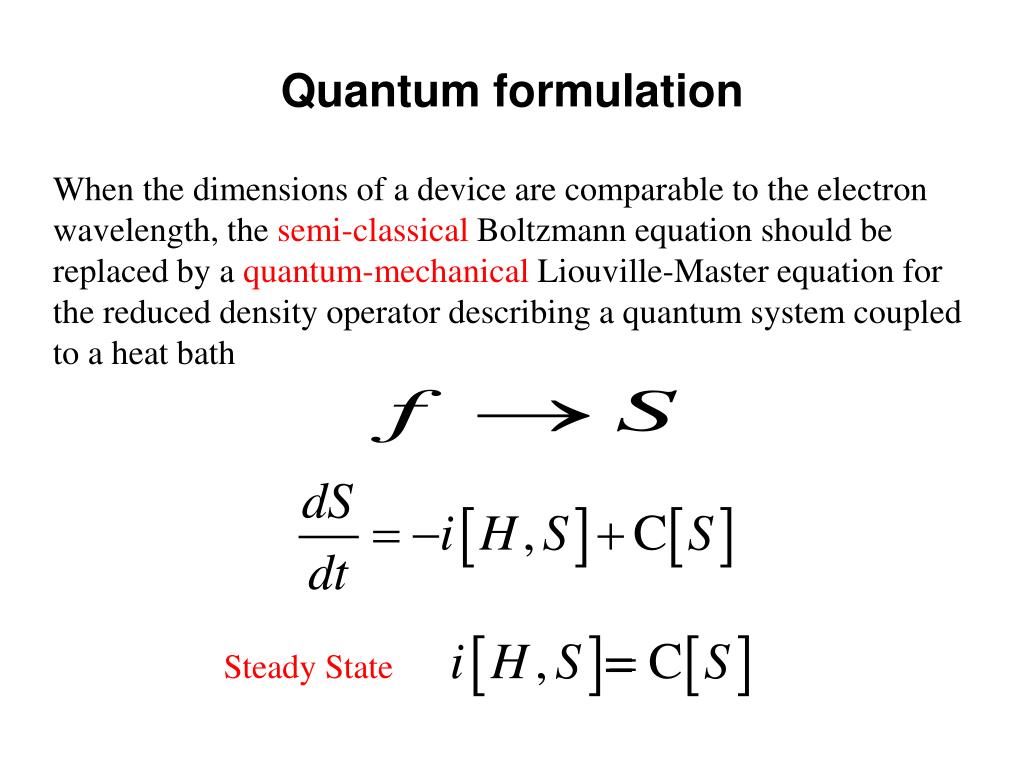

Quantum formulation

When the dimensions of a device are comparable to the electron wavelength, the semi-classical Boltzmann equation should be replaced by a quantum-mechanical Liouville-Master equation for the reduced density operator describing a quantum system coupled to a heat bath

Steady State

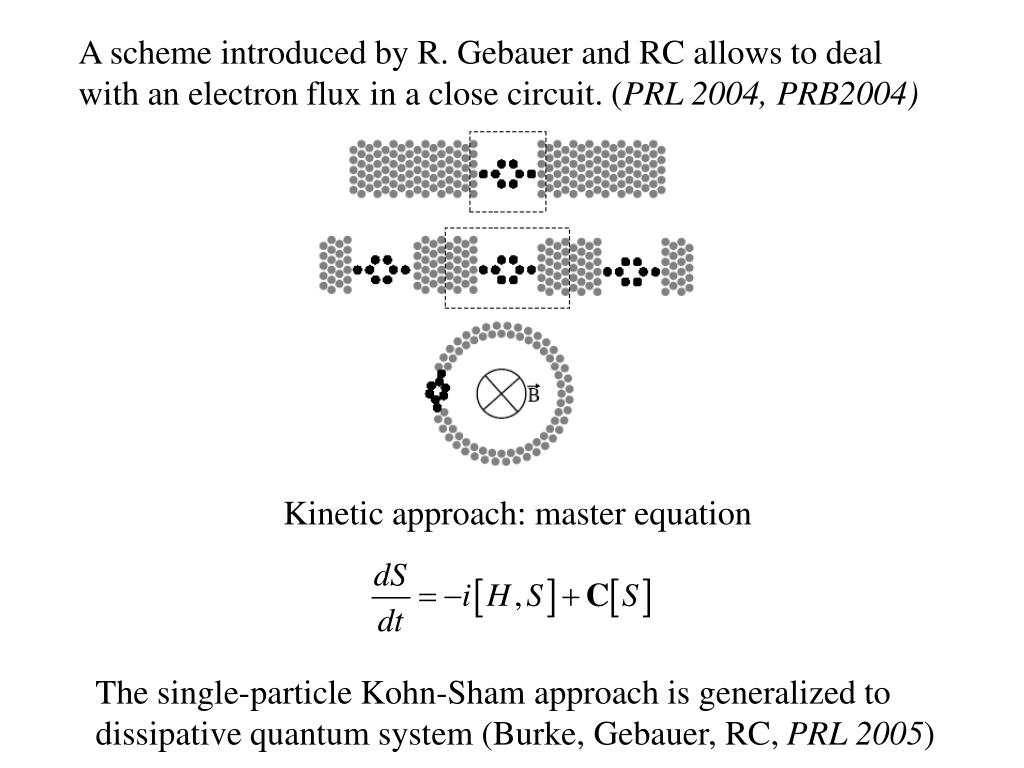

A scheme introduced by R. Gebauer and RC allows to deal with an electron flux in a close circuit. (PRL 2004, PRB2004)

Kinetic approach: master equation

The single-particle Kohn-Sham approach is generalized to dissipative quantum system (Burke, Gebauer, RC, PRL 2005)

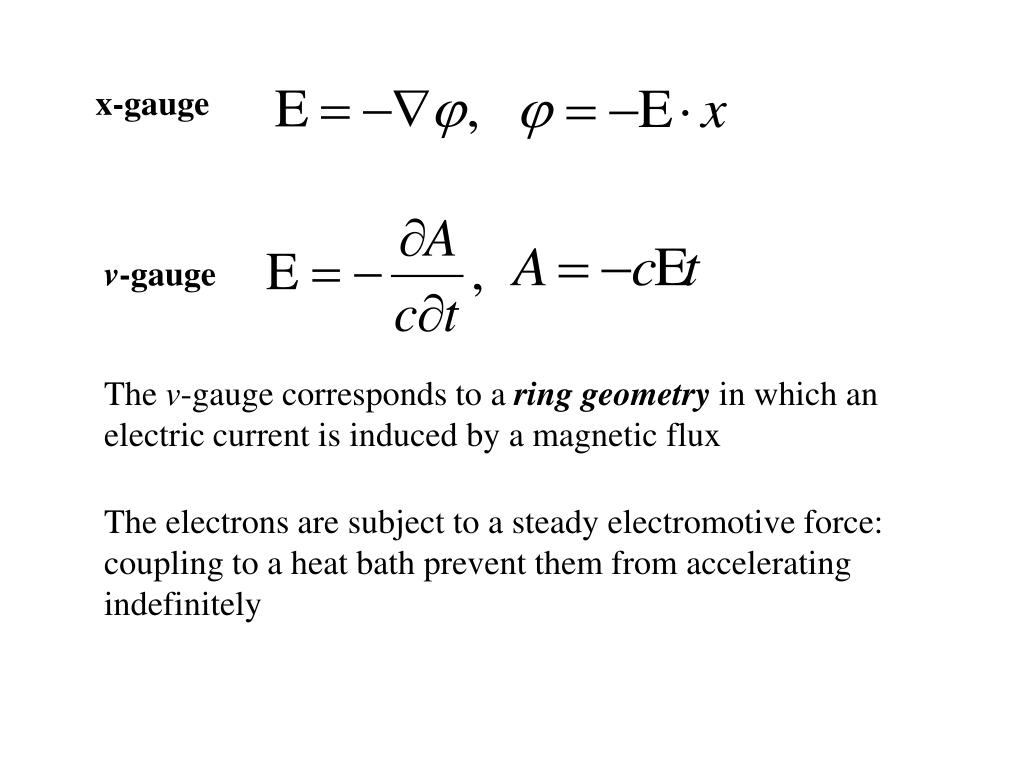

The v-gauge corresponds to a ring geometry in which an electric current is induced by a magnetic flux

The electrons are subject to a steady electromotive force: coupling to a heat bath prevent them from accelerating indefinitely

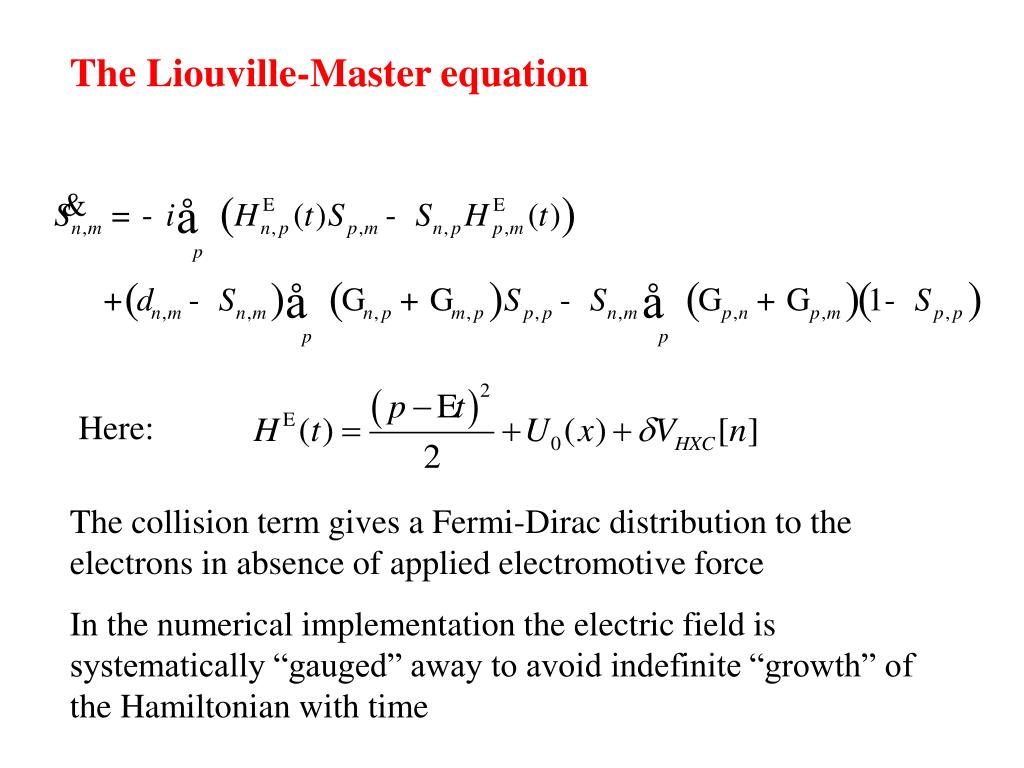

The Liouville-Master equation


The collision term gives a Fermi-Dirac distribution to the electrons in absence of applied electromotive force

In the numerical implementation the electric field is systematically “gauged” away to avoid indefinite “growth” of the Hamiltonian with time

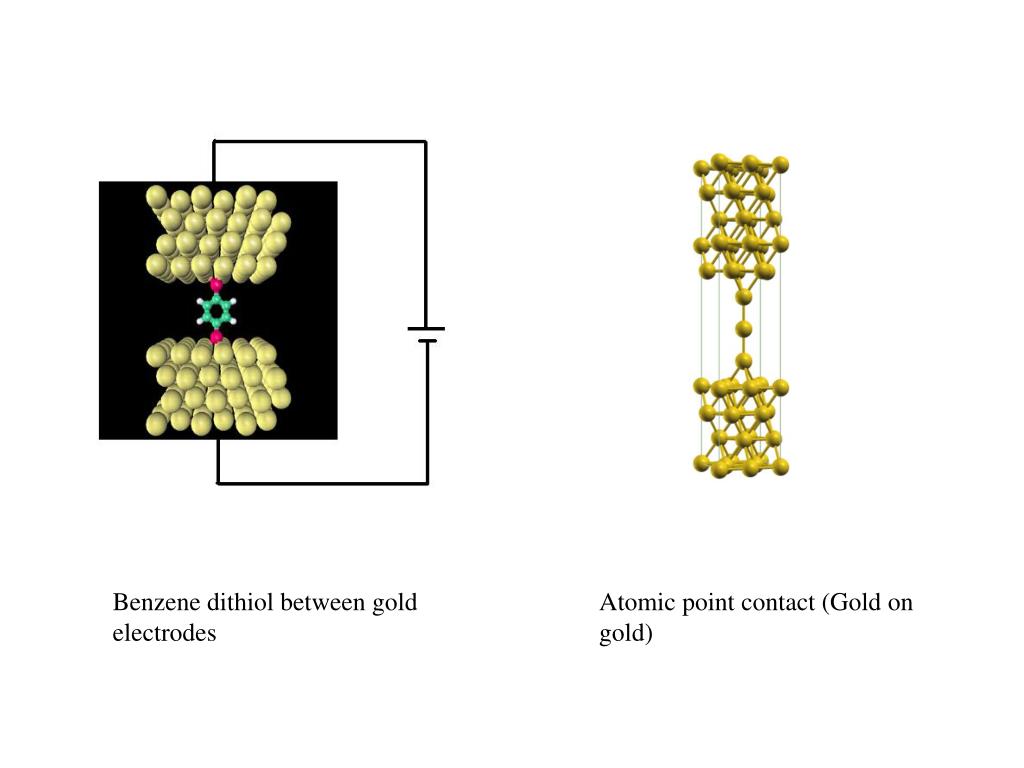

Benzene dithiol between gold electrodes

Atomic point contact (Gold on gold)

results for an applied bias of 1ev
Results for an applied bias of 1eV

Gebauer, Piccinin, RC ChemPhysChem 2005

i v characteristics

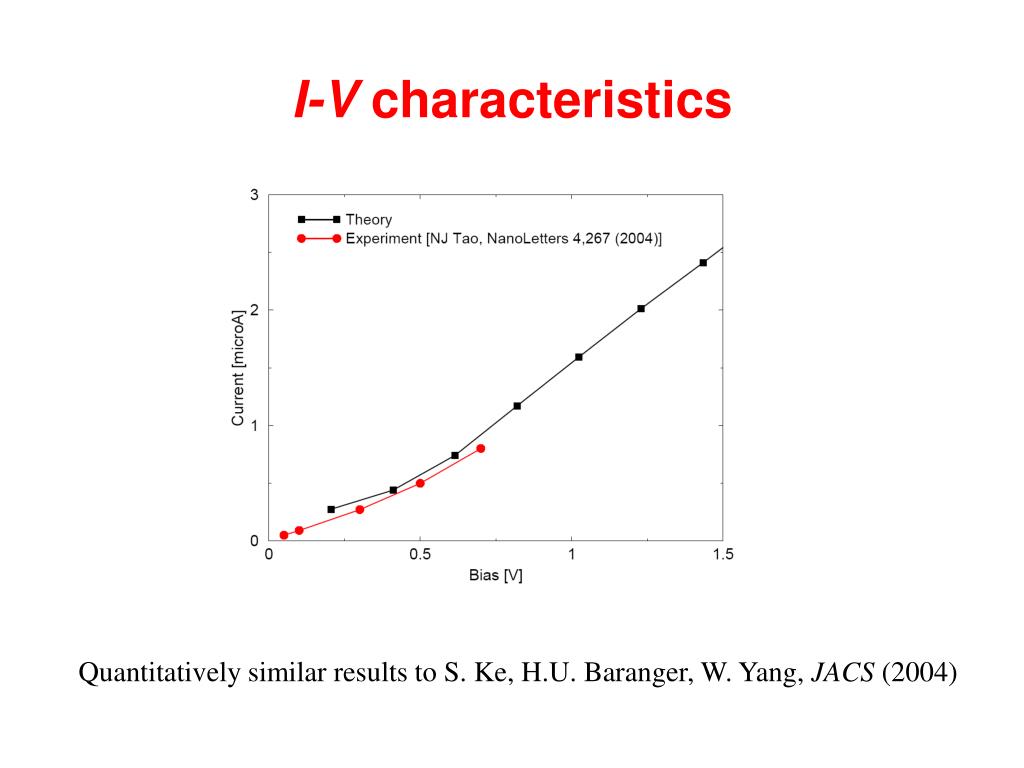

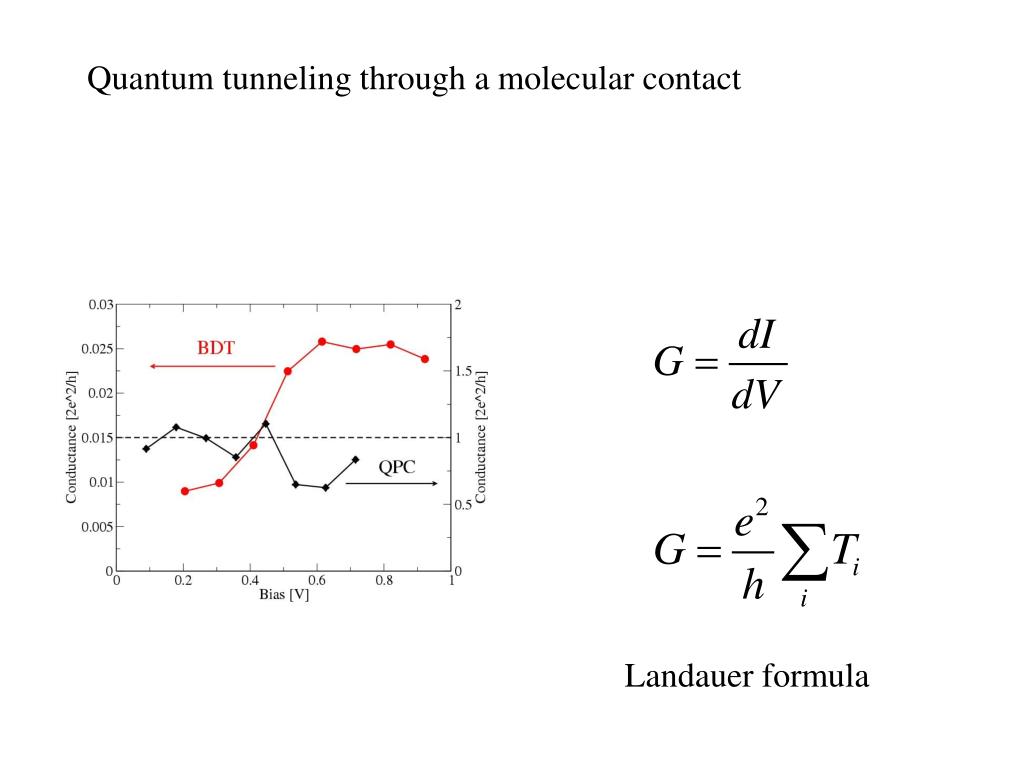

I-V characteristics

Quantitatively similar results to S. Ke, H.U. Baranger, W. Yang, JACS (2004)

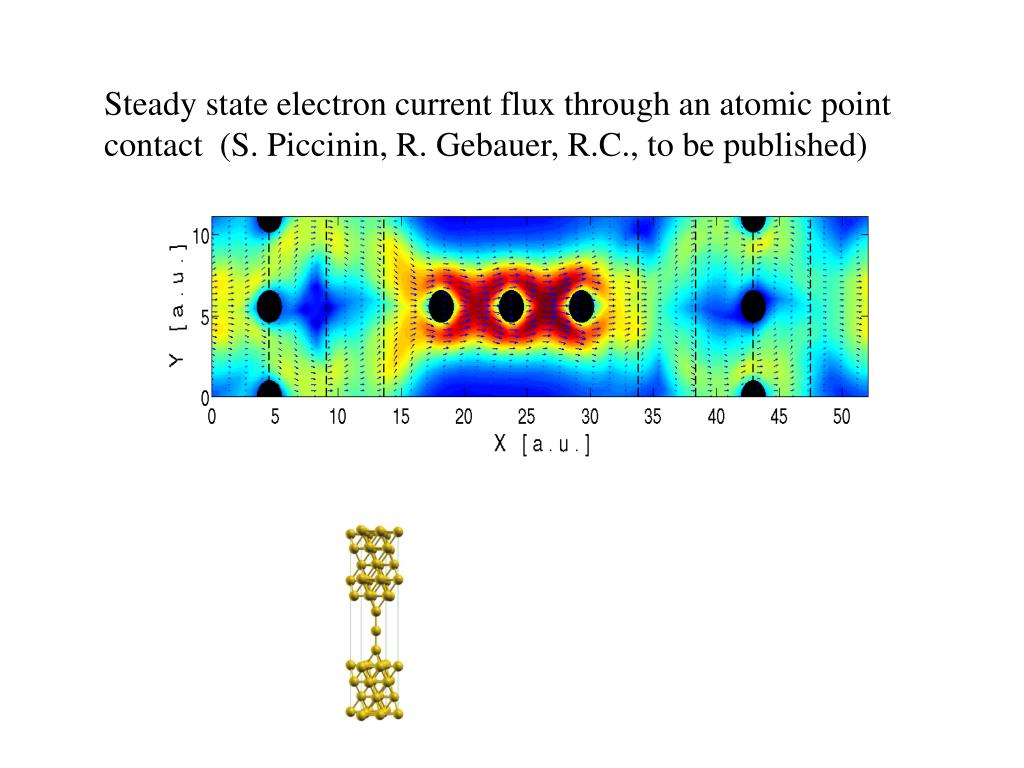

Steady state electron current flux through an atomic point contact (S. Piccinin, R. Gebauer, R.C., to be published)

carbon nanotube suspended between two gold electrodes

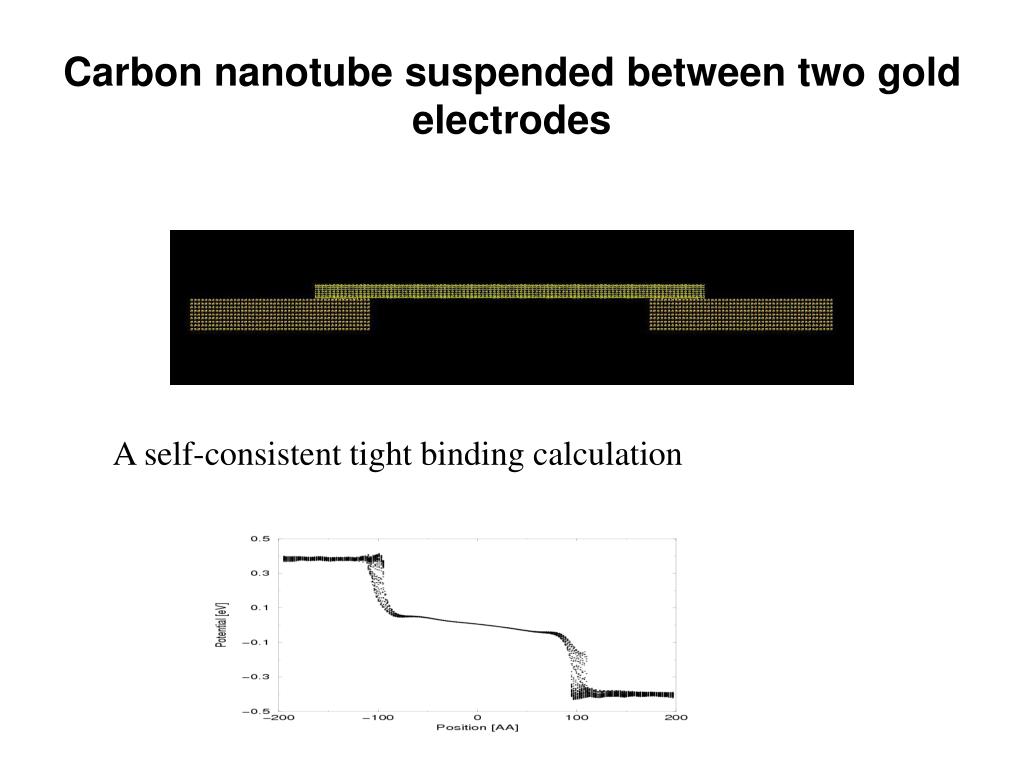

Carbon nanotube suspended between two gold electrodes

A self-consistent tight binding calculation

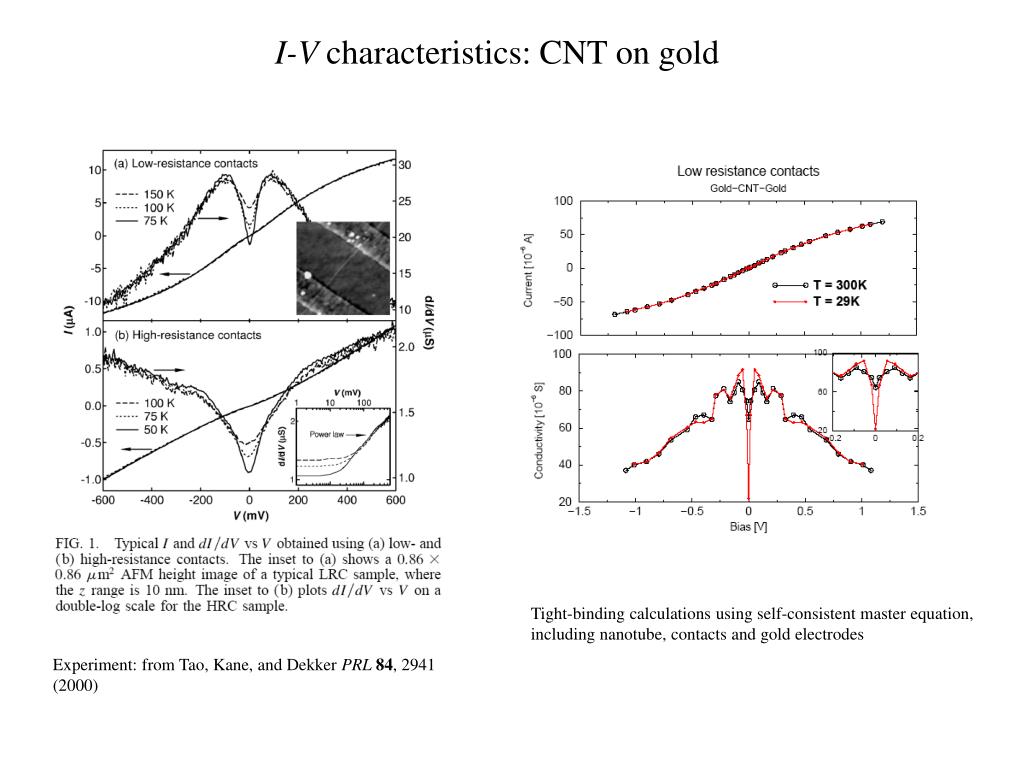

I-V characteristics: CNT on gold

Tight-binding calculations using self-consistent master equation, including nanotube, contacts and gold electrodes

Experiment: from Tao, Kane, and Dekker PRL 84, 2941 (2000)
