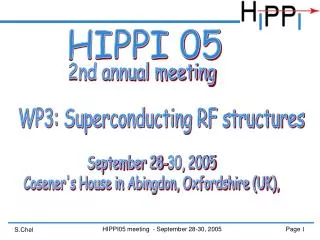

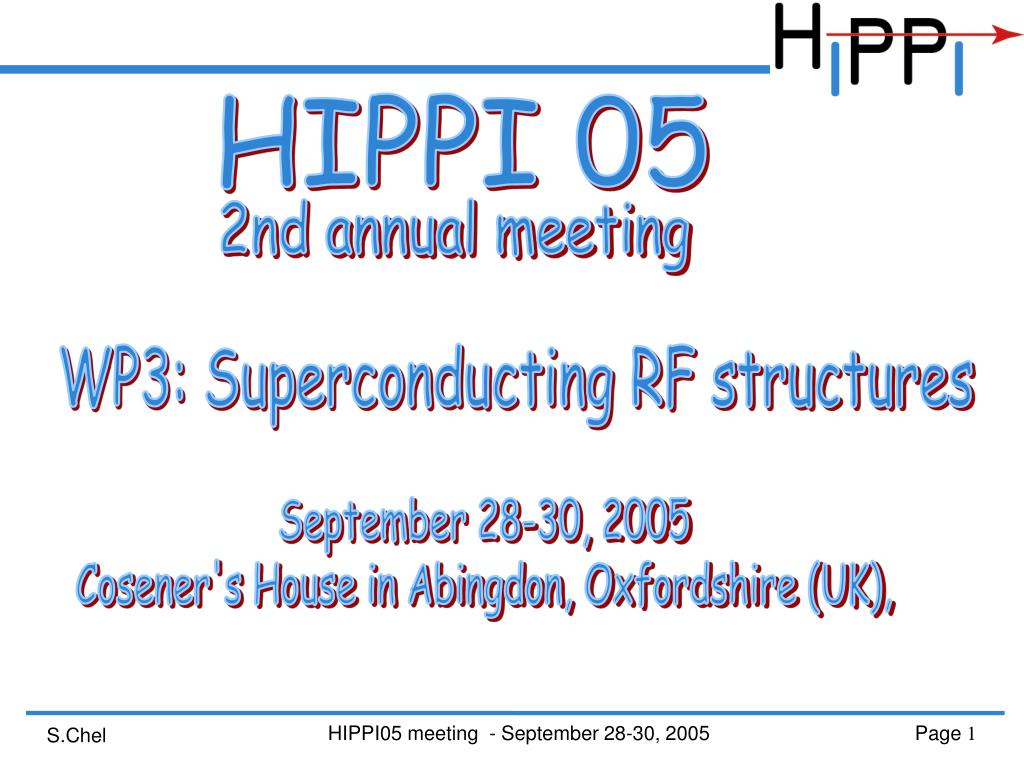

  1. HIPPI 05 2nd annual meeting WP3: Superconducting RF structures September 28-30, 2005 Cosener's House in Abingdon, Oxfordshire (UK), HIPPI05 meeting - September 28-30, 2005

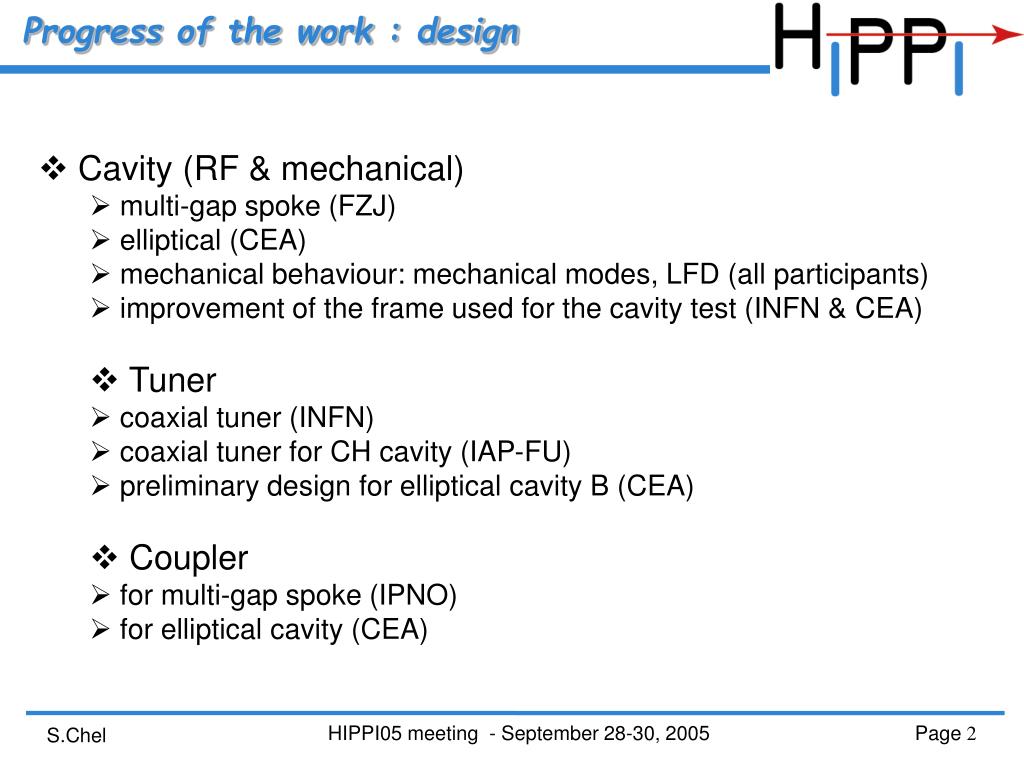

  2. Progress of the work : design • Cavity (RF & mechanical) • multi-gap spoke (FZJ) • elliptical (CEA) • mechanical behaviour: mechanical modes, LFD (all participants) • improvement of the frame used for the cavity test (INFN & CEA) • Tuner • coaxial tuner (INFN) • coaxial tuner for CH cavity (IAP-FU) • preliminary design for elliptical cavity B (CEA) • Coupler • for multi-gap spoke (IPNO) • for elliptical cavity (CEA) HIPPI05 meeting - September 28-30, 2005

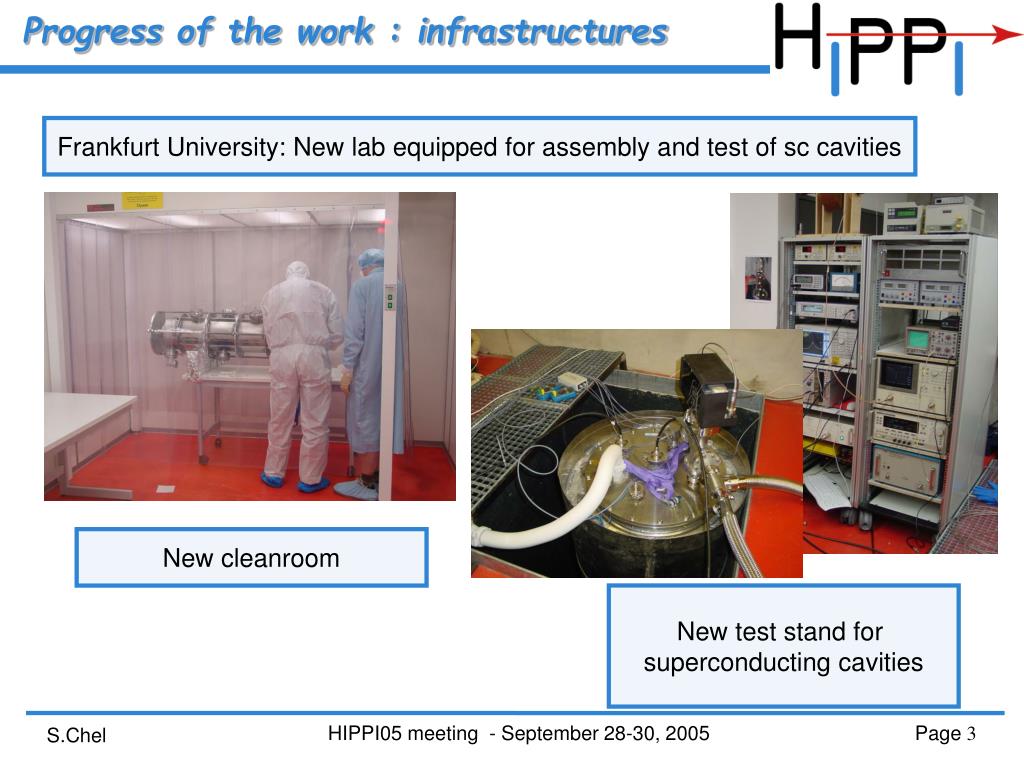

  3. Progress of the work : infrastructures Frankfurt University: New lab equipped for assembly and test of sc cavities New cleanroom New test stand for superconducting cavities HIPPI05 meeting - September 28-30, 2005

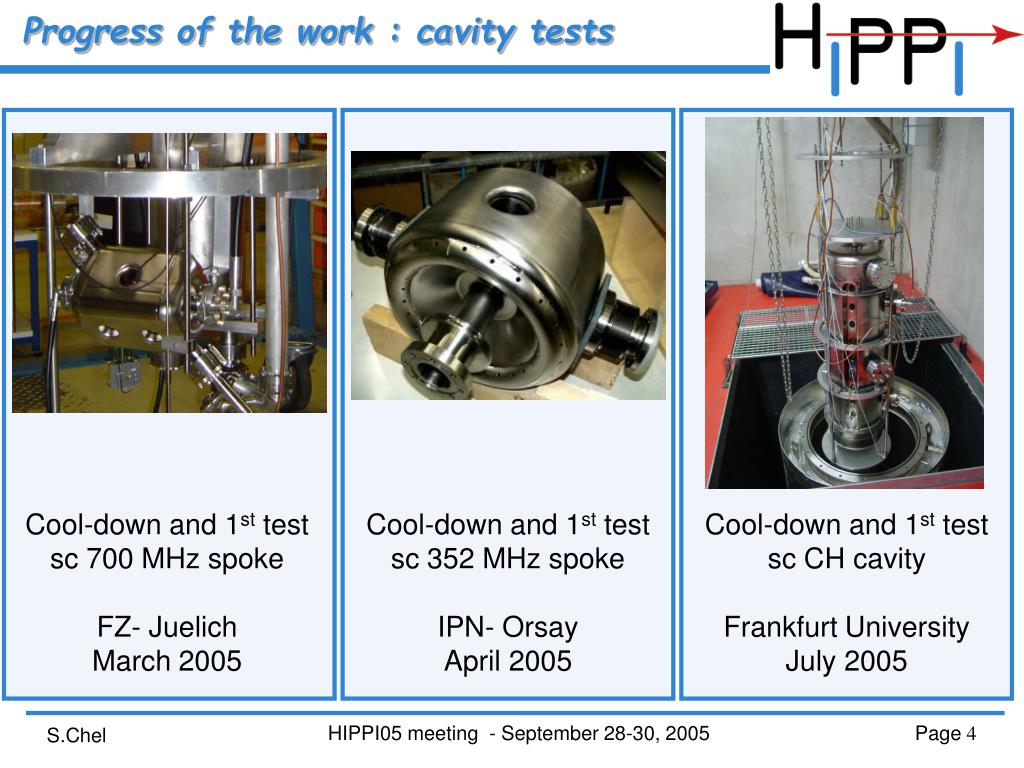

  4. Progress of the work : cavity tests Cool-down and 1st test sc 700 MHz spoke FZ- Juelich March 2005 Cool-down and 1st test sc 352 MHz spoke IPN- Orsay April 2005 Cool-down and 1st test sc CH cavity Frankfurt University July 2005 HIPPI05 meeting - September 28-30, 2005

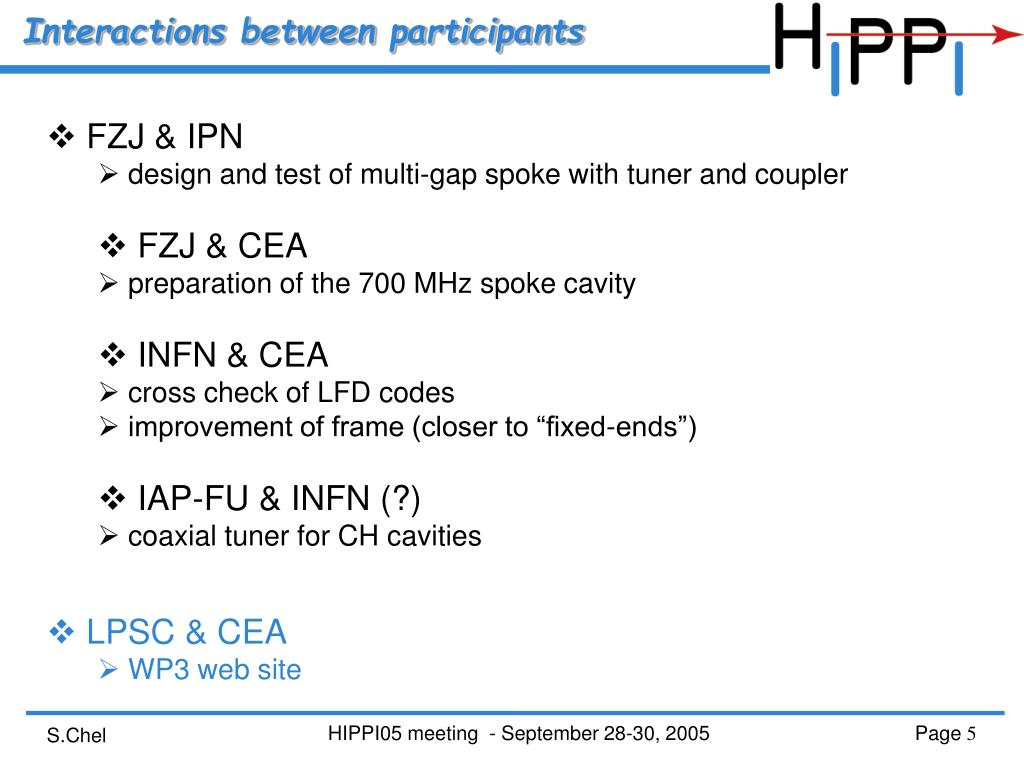

  5. Interactions between participants • FZJ & IPN • design and test of multi-gap spoke with tuner and coupler • FZJ & CEA • preparation of the 700 MHz spoke cavity • INFN & CEA • cross check of LFD codes • improvement of frame (closer to “fixed-ends”) • IAP-FU & INFN (?) • coaxial tuner for CH cavities • LPSC & CEA • WP3 web site HIPPI05 meeting - September 28-30, 2005

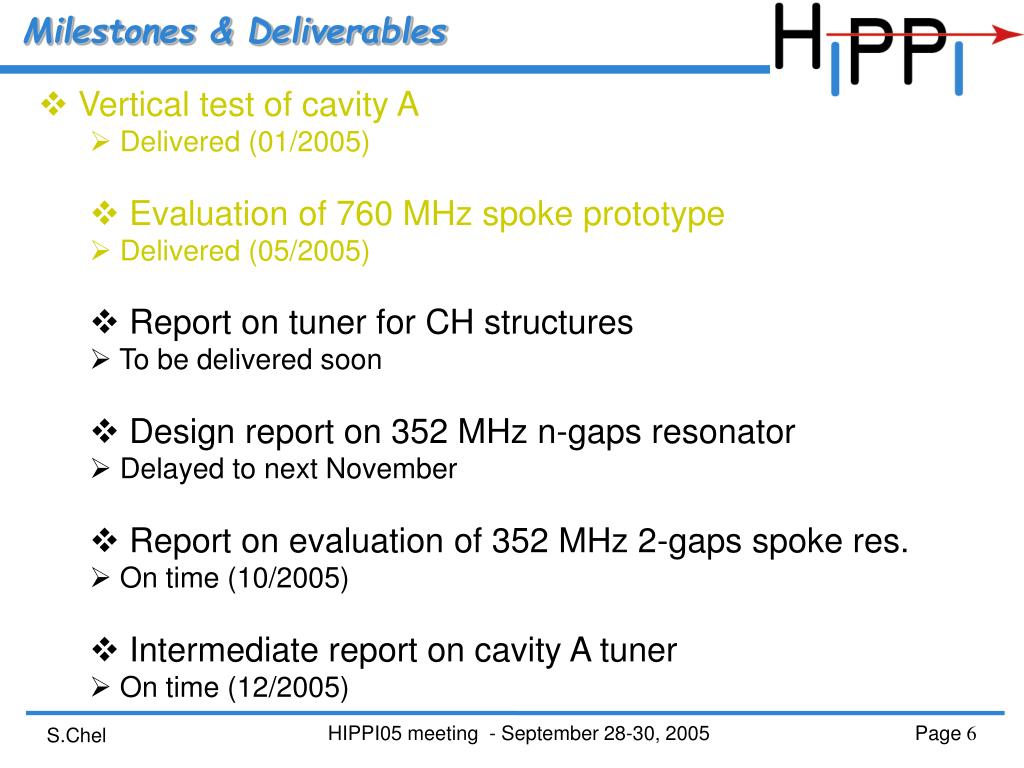

  6. Milestones & Deliverables • Vertical test of cavity A • Delivered (01/2005) • Evaluation of 760 MHz spoke prototype • Delivered (05/2005) • Report on tuner for CH structures • To be delivered soon • Design report on 352 MHz n-gaps resonator • Delayed to next November • Report on evaluation of 352 MHz 2-gaps spoke res. • On time (10/2005) • Intermediate report on cavity A tuner • On time (12/2005) HIPPI05 meeting - September 28-30, 2005

  7. 3.2.7 Final mechanical design of resonator FZJ-IPNO 05 / 2005 06 / 2005 3.2.8 Integration of coupler. Tuning options FZJ-IPNO 07 / 2005 08 / 2005 3.2.9 Preparations for electron beam welding FZJ-IPNO 07 / 2005 03 / 2006 3.2.10 Manufacturing of 352 MHz n-gaps res. FZJ-IPNO 04 / 2006 09 / 2007 3.2.11 Evaluation of 352 MHz n-gaps res. FZJ-IPNO 10 / 2007 09 / 2008 Task schedule HIPPI05 meeting - September 28-30, 2005

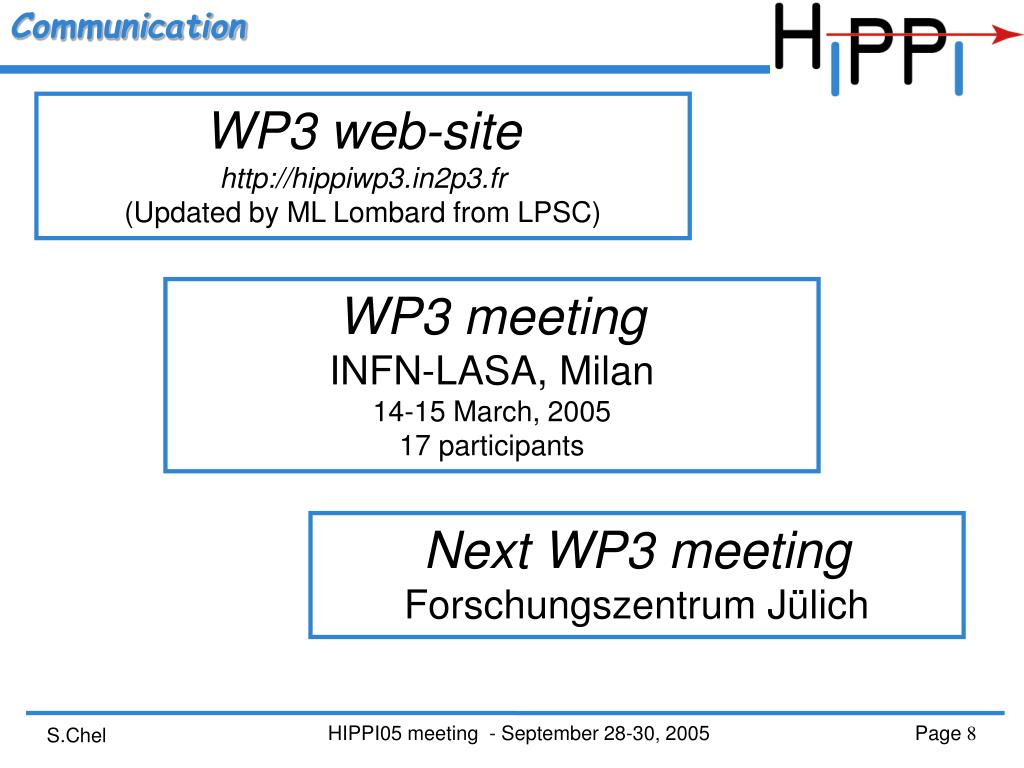

  8. Communication WP3 web-site http://hippiwp3.in2p3.fr (Updated by ML Lombard from LPSC) WP3 meeting INFN-LASA, Milan 14-15 March, 2005 17 participants Next WP3 meeting Forschungszentrum Jülich HIPPI05 meeting - September 28-30, 2005

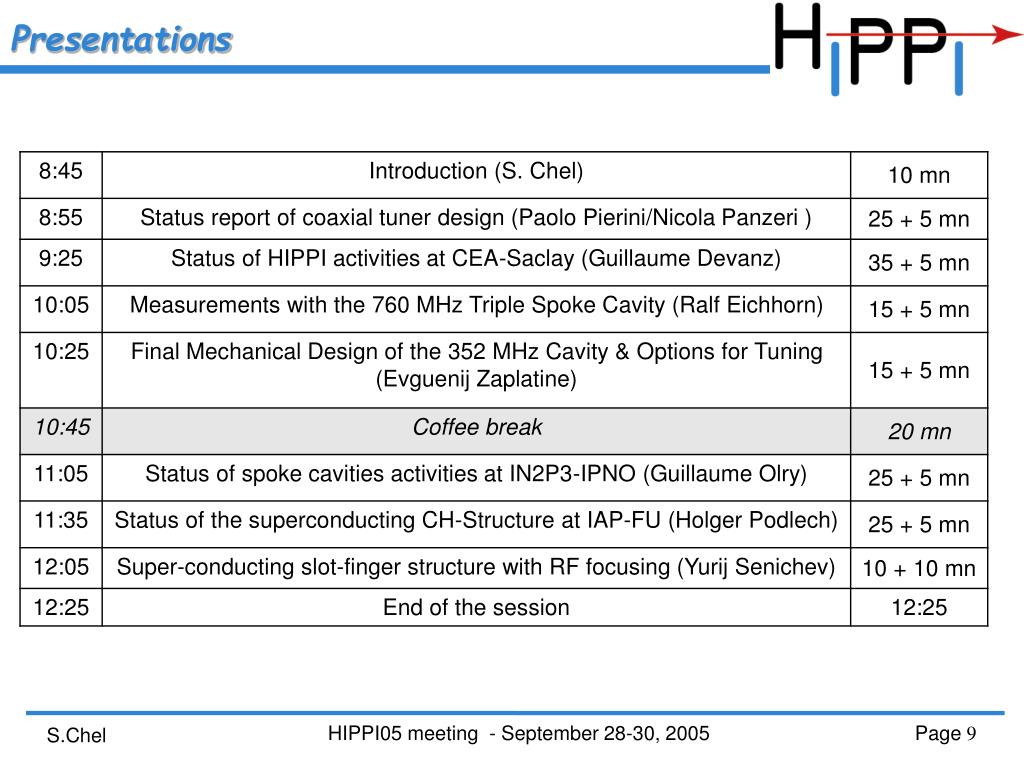

  9. Presentations HIPPI05 meeting - September 28-30, 2005
