deciding when to forget in the elephant file system douglas s santry et al

Deciding When to Forget in the Elephant File SystemDouglas S. Santry et. al

Presented by

Kristen Carlson Accardi

agenda
Agenda
  • Motivation for Elephant FS
  • Previous Works
  • Design Principles
  • Implementation Details
  • Performance
  • Summary

CS533 - Concepts of Operating Systems

motivation for elephant file system
Motivation for Elephant File System
  • Data Protection from System crashes taken care of
  • Users need protection from themselves
  • Disks are cheap, why not implement a type of revision control in the file system

CS533 - Concepts of Operating Systems

previous work
Previous Work

CS533 - Concepts of Operating Systems

efs design principles
EFS Design Principles
  • Separate Storage reclamation from file operations
    • File deletes do not release storage
    • file updates do not overwrite previous content (cow)
  • User controls file retention policy
    • cause you can't keep every user modified version
      • not every version is worth of keeping
    • you don't want to protect every file
      • read-only, cached, derived, temporary
  • two types of protection
    • undo (short term)
      • complete history is maintained
      • limited storage == limited period of time
      • can undo any change within this period of time
      • once the period of time has passed, changes are permanent
    • history of versions (long term)
      • "landmark" versions are selected by user & fs
      • intermediate changes are not saved

CS533 - Concepts of Operating Systems

how to chose landmark versions
How to chose Landmark versions
  • File system should assist user
  • it's hard for people to identify landmarks
  • fs can guess at landmarks (long delta between edits)
  • Users can still explicitly identify landmarks

CS533 - Concepts of Operating Systems

elephant file system file retention policies
Elephant File System File Retention Policies
  • Keep One
    • Standard FS behavior
    • Users directly control storage reclamation
    • Suitable for temp files, derived files, cached
  • Keep All
    • Keep every version of file
    • Not generally necessary
  • Keep Safe
    • described for "undo"
    • No long term history
  • Keep Landmarks
    • retain only landmark versions
    • users can specify
    • fs tries to guess which are landmark versions
    • use of cleaner is required to periodically tag versions as possible landmarks, and free non-landmark versions
    • User can group interdependent files for the fs

CS533 - Concepts of Operating Systems

implementation
Implementation
  • only most recent version can be modified
  • protect versioned files by copy on write
  • Duplicate the original inode
  • update new inode with new physical disk location
  • for appends, you just modify in place, but keep inode log
  • name logs are used in addition to inode logs for namespace changes

CS533 - Concepts of Operating Systems

implementation imap

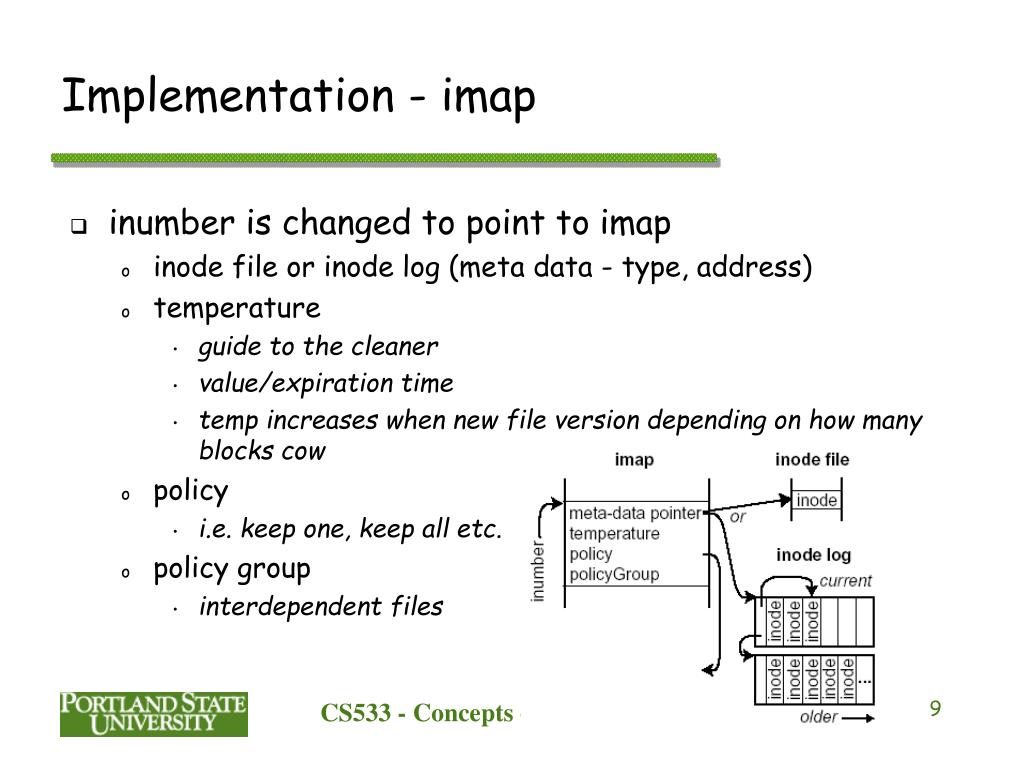

Implementation - imap
  • inumber is changed to point to imap
    • inode file or inode log (meta data - type, address)
    • temperature
      • guide to the cleaner
      • value/expiration time
      • temp increases when new file version depending on how many blocks cow
    • policy
      • i.e. keep one, keep all etc.
    • policy group
      • interdependent files

CS533 - Concepts of Operating Systems

implementation inode logs

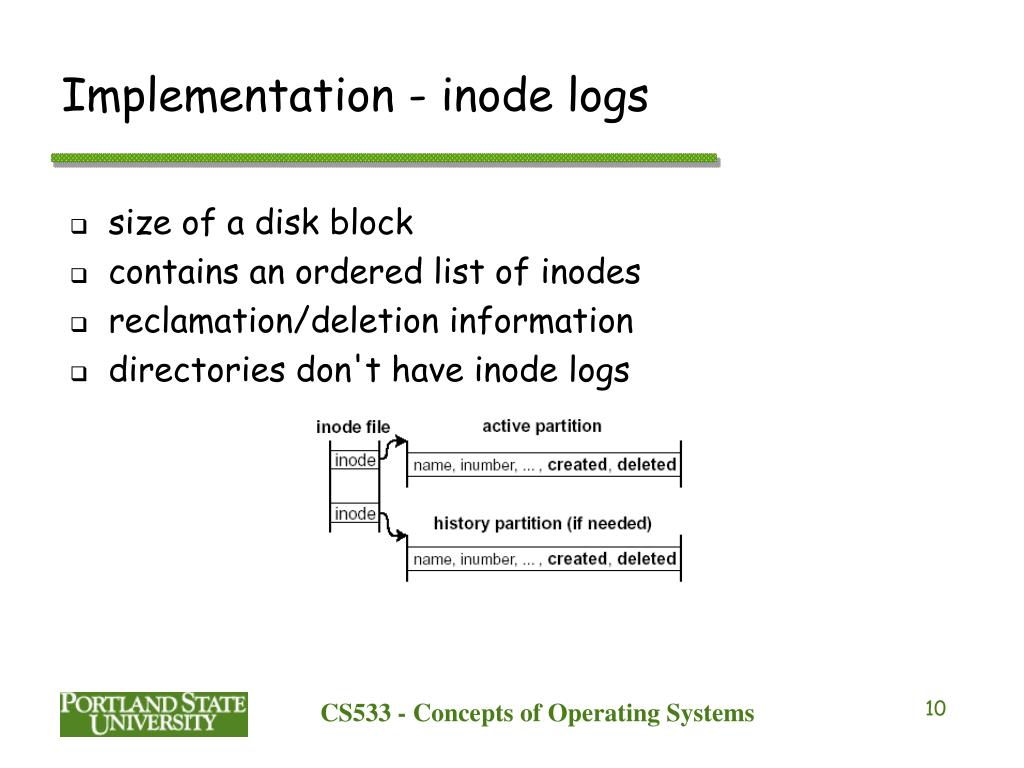

Implementation - inode logs
  • size of a disk block
  • contains an ordered list of inodes
  • reclamation/deletion information
  • directories don't have inode logs

CS533 - Concepts of Operating Systems

implementation user interface
Implementation - User Interface
  • cd file@date:hr:min
  • applications can set their own policy as well

CS533 - Concepts of Operating Systems

performance
Performance
  • Degrades with more versions
  • increases disk writes due to not being able to use buffer cache

CS533 - Concepts of Operating Systems

summary
Summary
  • Users can be protected from their own mistakes via a combination of system controlled and user defined versioning policies
  • Most files wouldn’t need versioning anyway
  • Increased overhead would be small because of small number of impacted files
  • Needs long term study to see how it scales
  • Needs more study to see how user’s react to it, and what kinds of workloads they place on it
    • i.e. will people actually use it

CS533 - Concepts of Operating Systems
