  1. Access Control Intro, DAC and MAC System Security

  2. System Security • It is concerned with regulating how entities use resources in a system • It consists of two main phases: • Authentication: uniquely identifying entities • Authorisation: assigning access rights to entities

  3. Authentication Phase • It is only concerned with identifying an entity against a known set • Assigning a unique identifier to the entity (i.e., user name) • Using a secret (supposedly) known only to the specific entity • Alternatively, using a unique feature that characterizes the entity

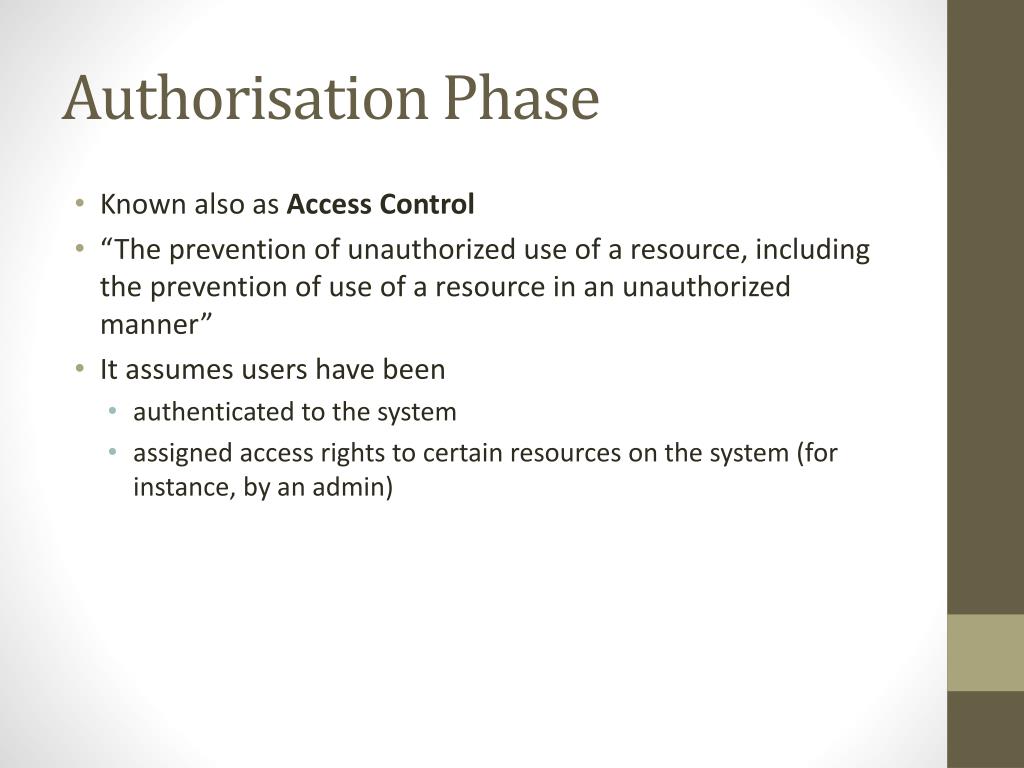

  4. Authorisation Phase • Known also as Access Control • “The prevention of unauthorized use of a resource, including the prevention of use of a resource in an unauthorized manner” • It assumes users have been • authenticated to the system • assigned access rights to certain resources on the system (for instance, by an admin)

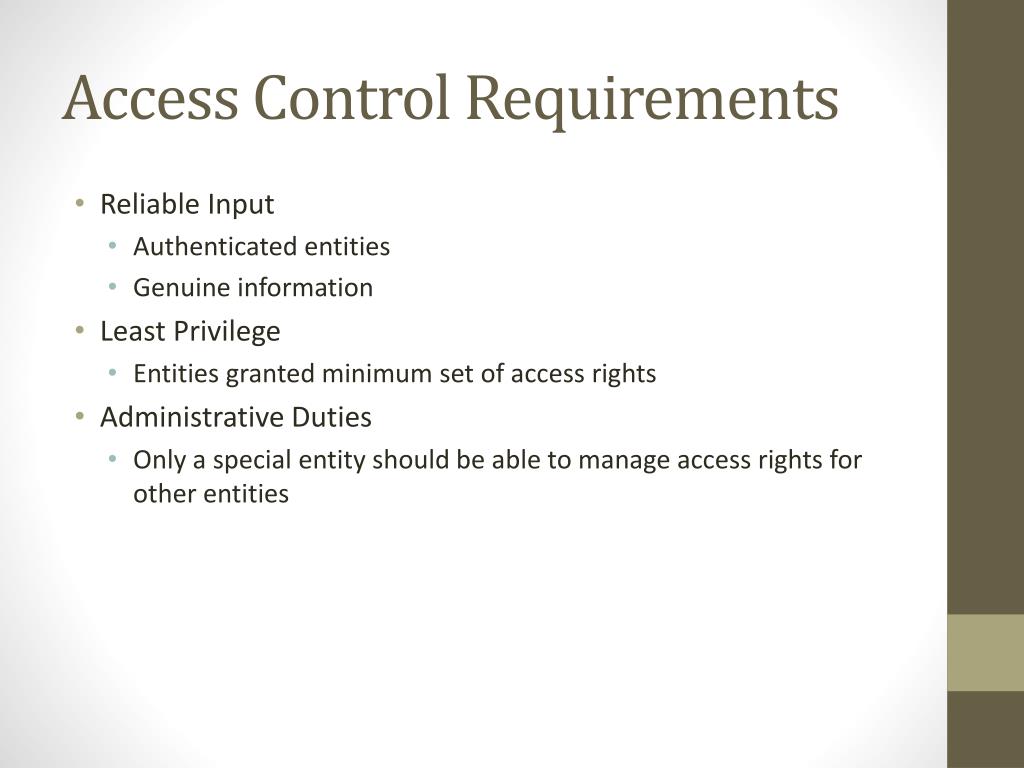

  5. Access Control Requirements • Reliable Input • Authenticated entities • Genuine information • Least Privilege • Entities granted minimum set of access rights • Administrative Duties • Only a special entity should be able to manage access rights for other entities

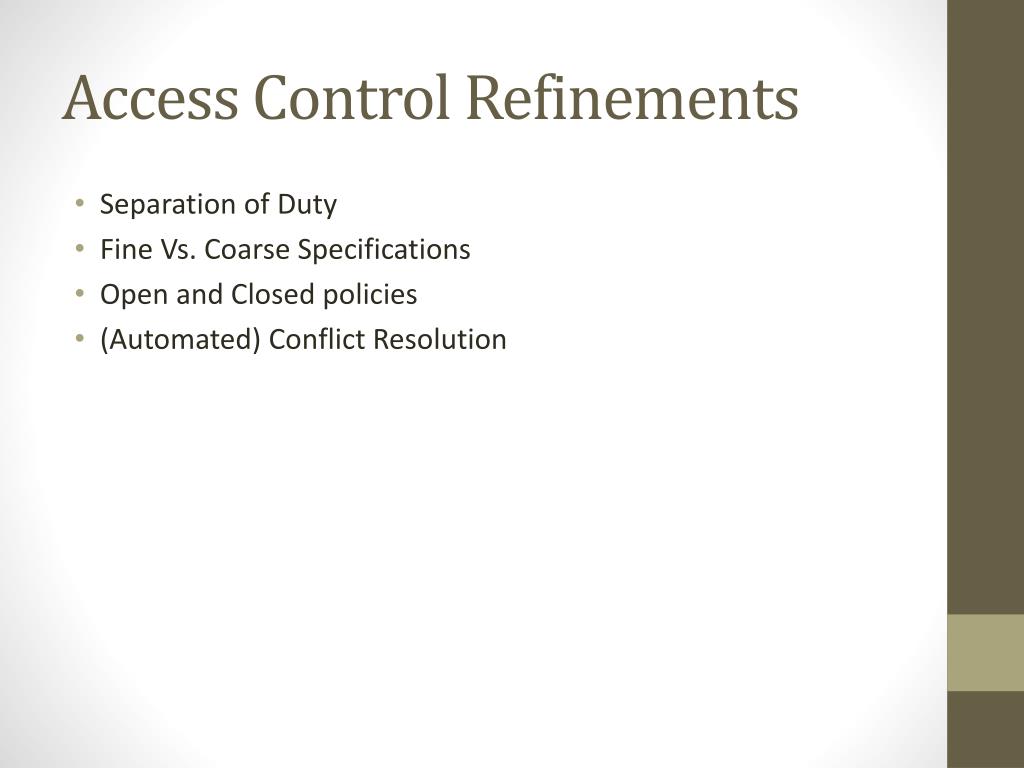

  6. Access Control Refinements • Separation of Duty • Fine Vs. Coarse Specifications • Open and Closed policies • (Automated) Conflict Resolution

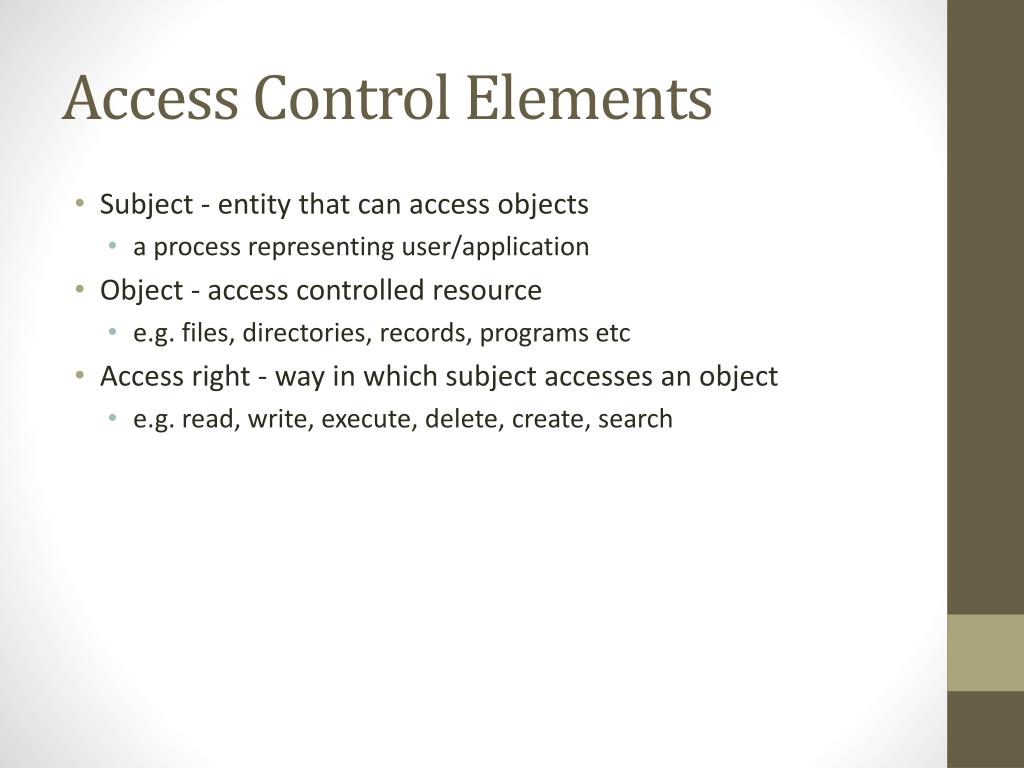

  7. Access Control Elements • Subject - entity that can access objects • a process representing user/application • Object - access controlled resource • e.g. files, directories, records, programs etc • Access right - way in which subject accesses an object • e.g. read, write, execute, delete, create, search

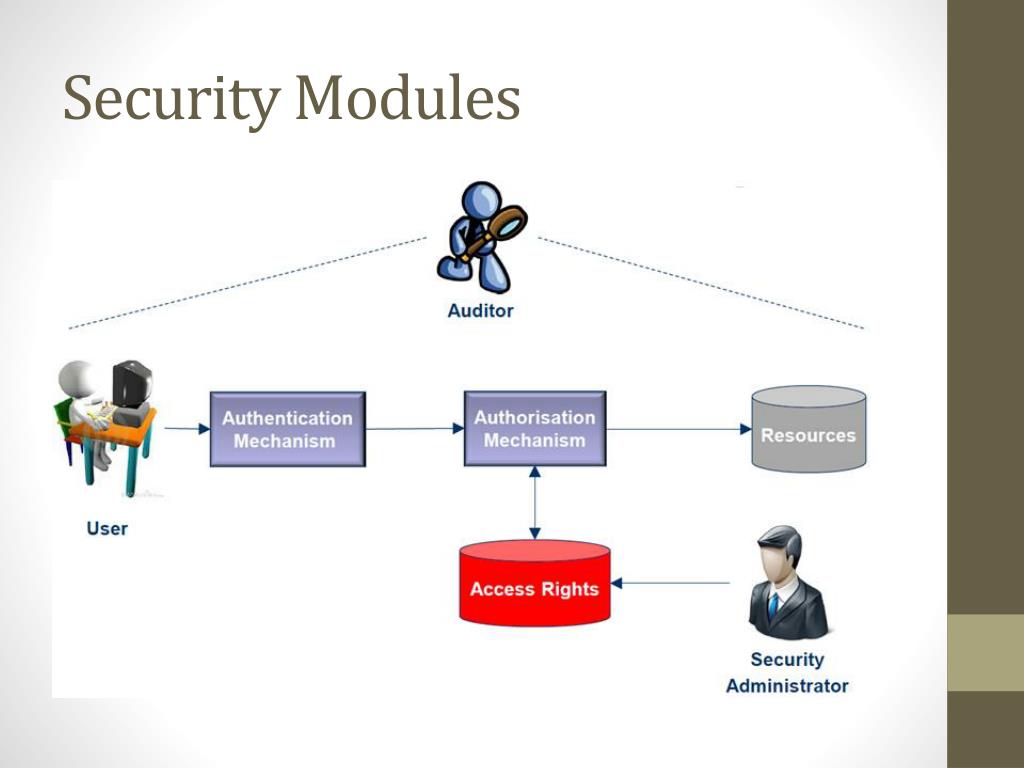

  8. Security Modules

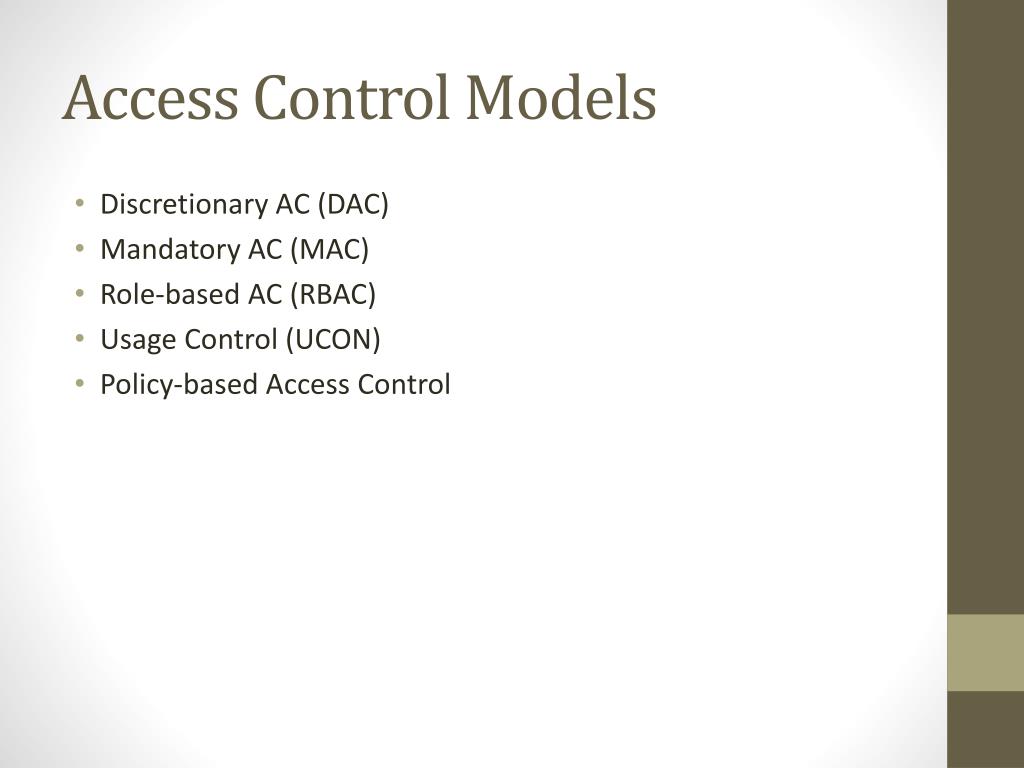

  9. Access Control Models • Discretionary AC (DAC) • Mandatory AC (MAC) • Role-based AC (RBAC) • Usage Control (UCON) • Policy-based Access Control

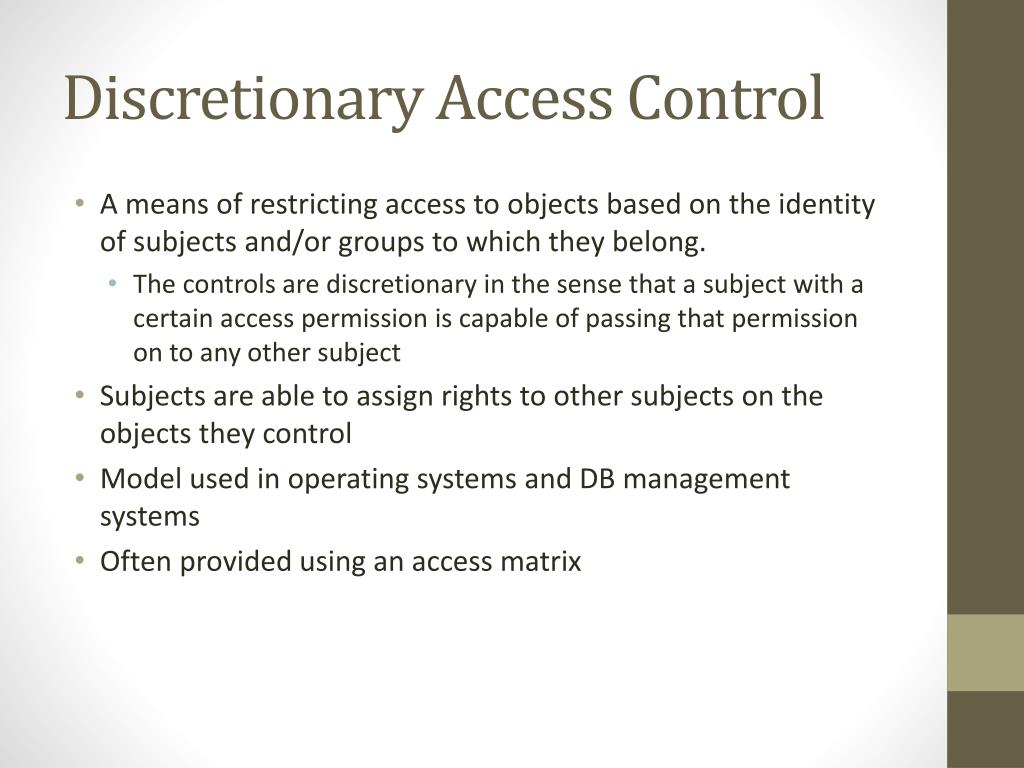

  10. Discretionary Access Control • A means of restricting access to objects based on the identity of subjects and/or groups to which they belong. • The controls are discretionary in the sense that a subject with a certain access permission is capable of passing that permission on to any other subject • Subjects are able to assign rights to other subjects on the objects they control • Model used in operating systems and DB management systems • Often provided using an access matrix

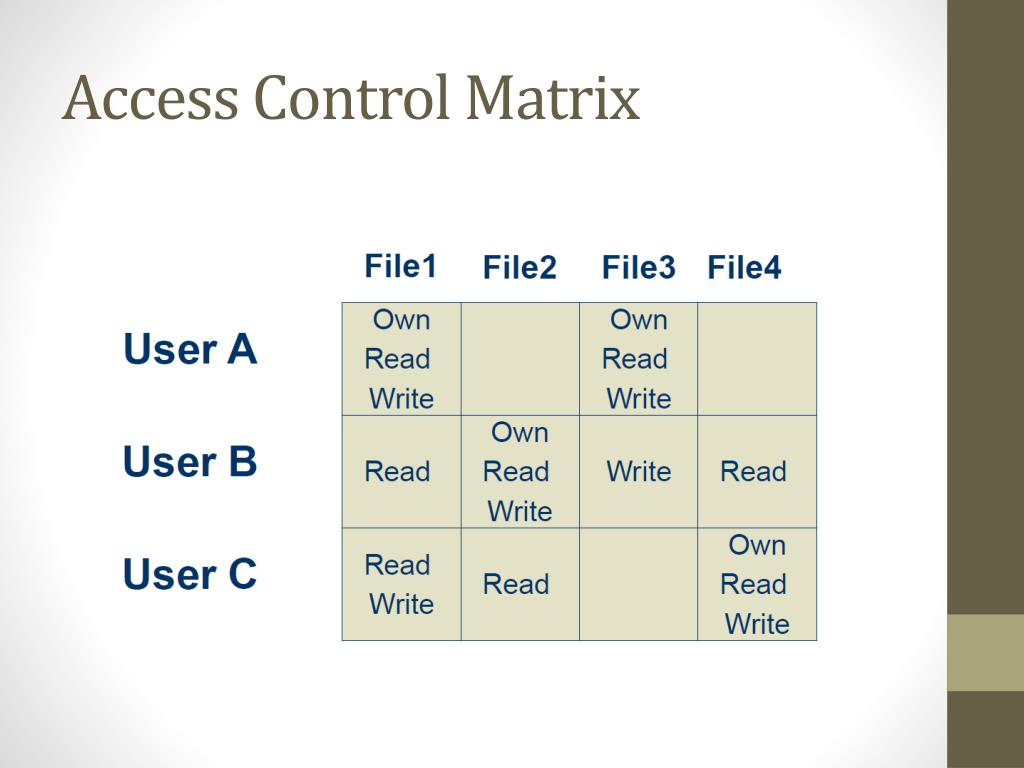

  11. Access Control Matrix

  12. Access Control List

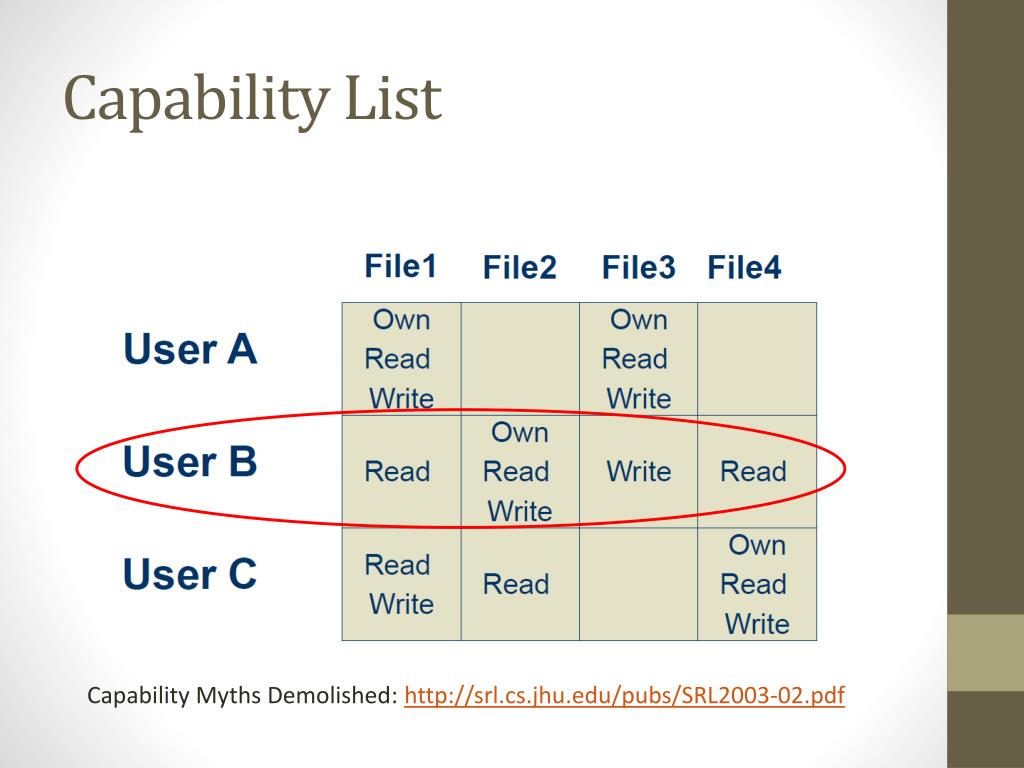

  13. Capability List Capability Myths Demolished: http://srl.cs.jhu.edu/pubs/SRL2003-02.pdf

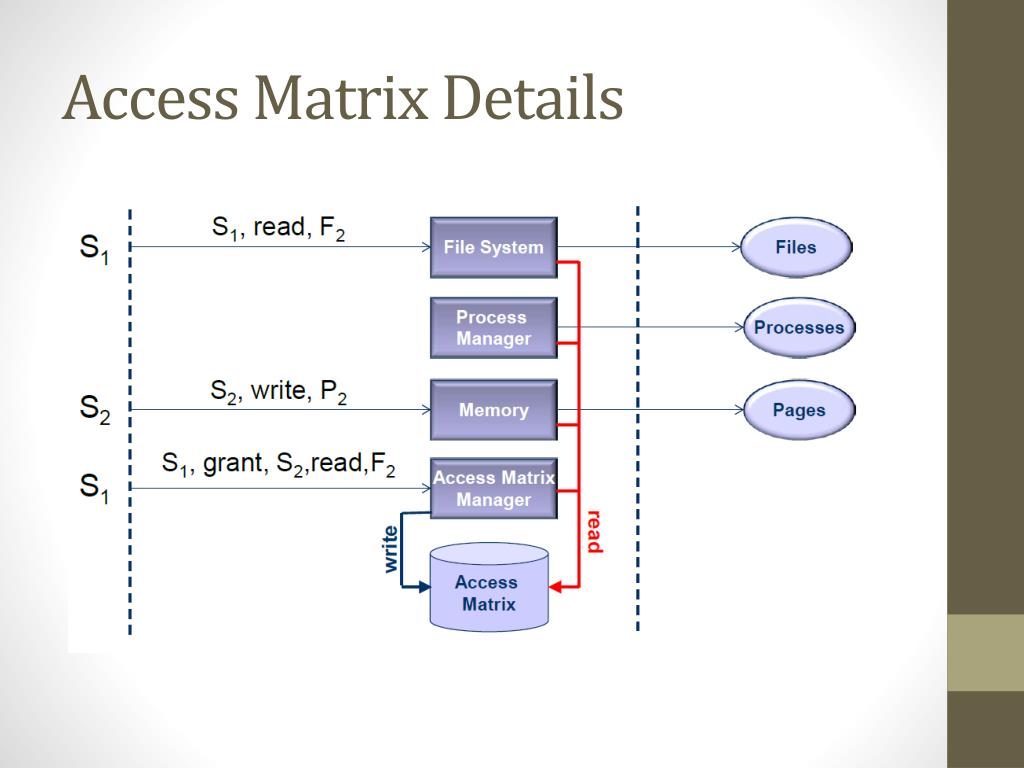

  14. Access Matrix Details

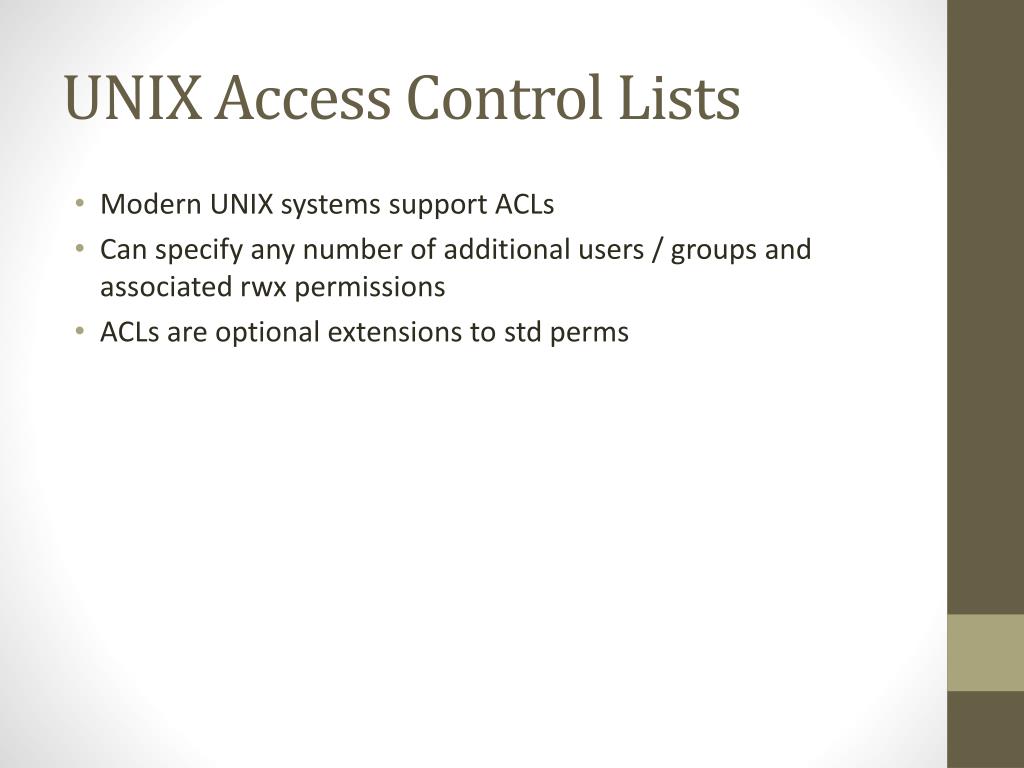

  15. UNIX Access Control Lists • Modern UNIX systems support ACLs • Can specify any number of additional users / groups and associated rwx permissions • ACLs are optional extensions to std perms

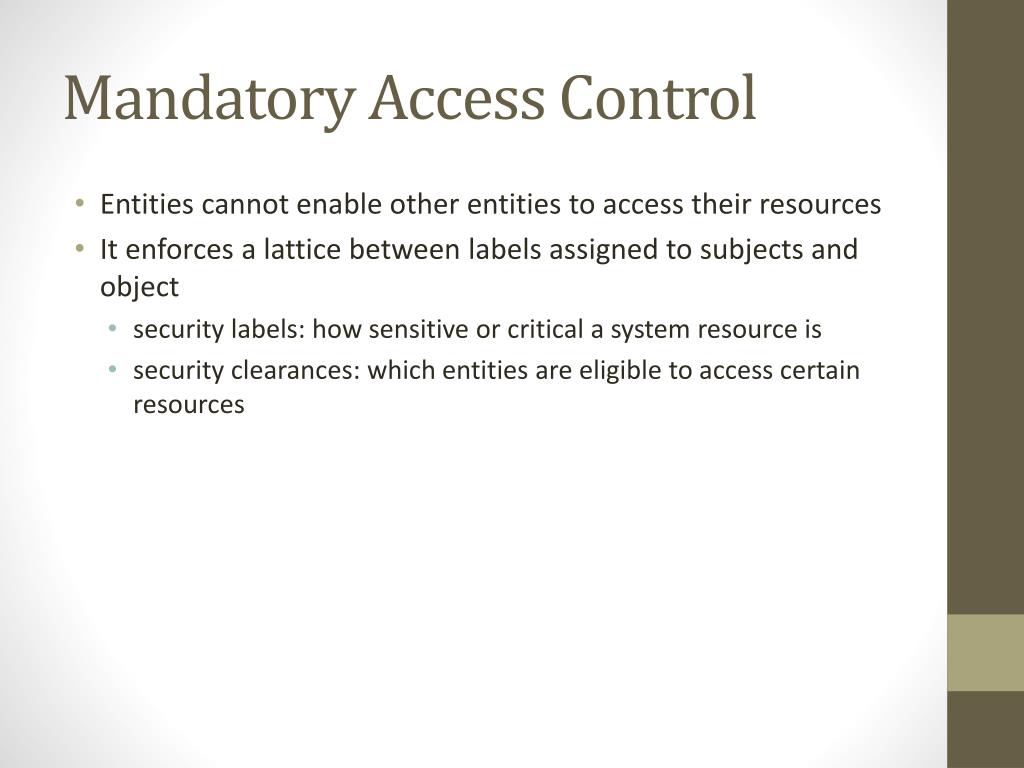

  16. Mandatory Access Control • Entities cannot enable other entities to access their resources • It enforces a lattice between labels assigned to subjects and object • security labels: how sensitive or critical a system resource is • security clearances: which entities are eligible to access certain resources

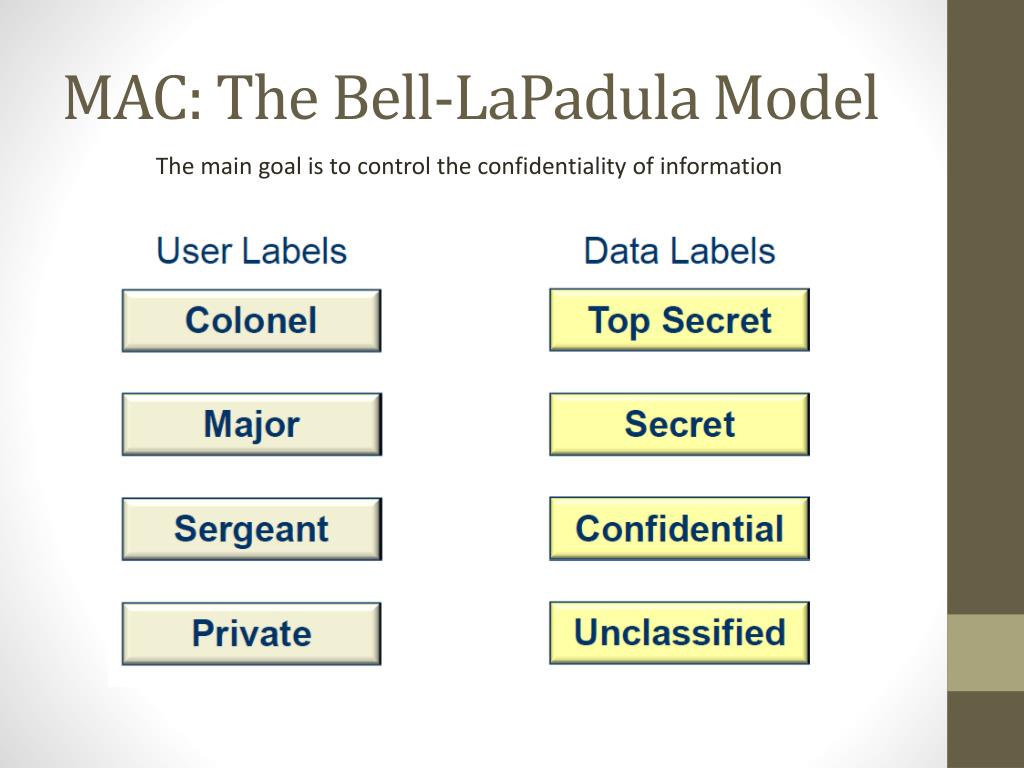

  17. MAC: The Bell-LaPadulaModel The main goal is to control the confidentiality of information

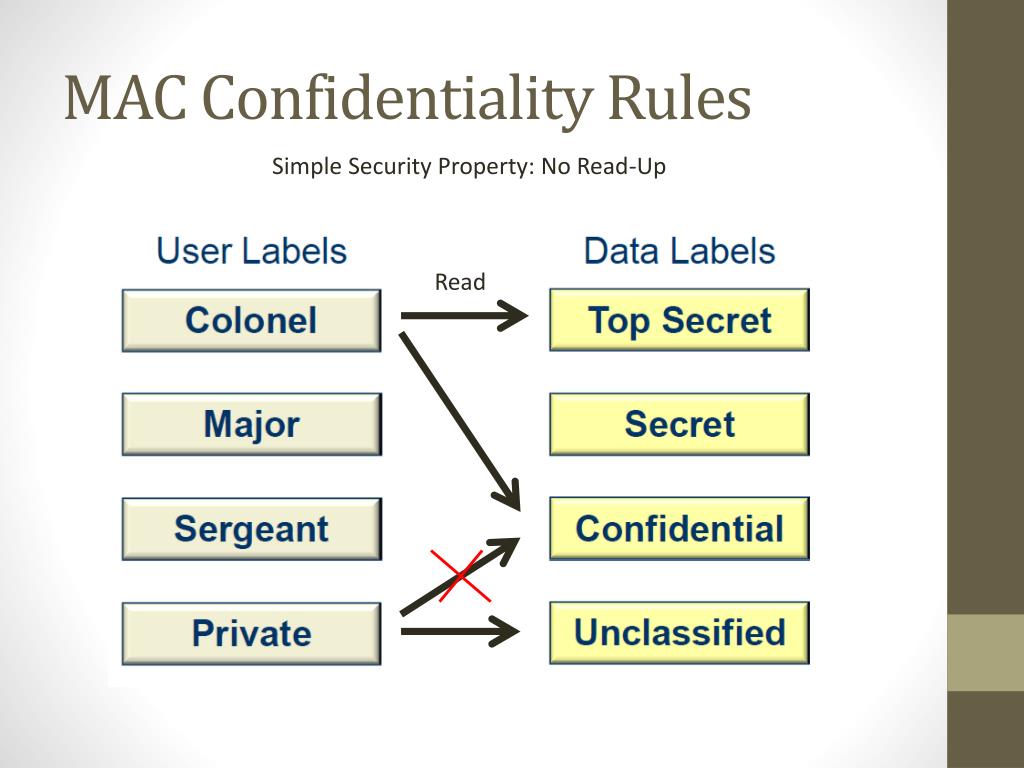

  18. MAC Confidentiality Rules Simple Security Property: No Read-Up Read

  19. MAC Confidentiality Rules *(Star)property: No Write-Down Write

  20. MAC Confidentiality Rules Strong *(Star)-property: No Write-Down & No Write-up Write

  21. MAC: Biba Integrity Model The main goal is to control the integrity of information

  22. MAC Integrity Rules Simple Integrity Axiom: No Read Down Read

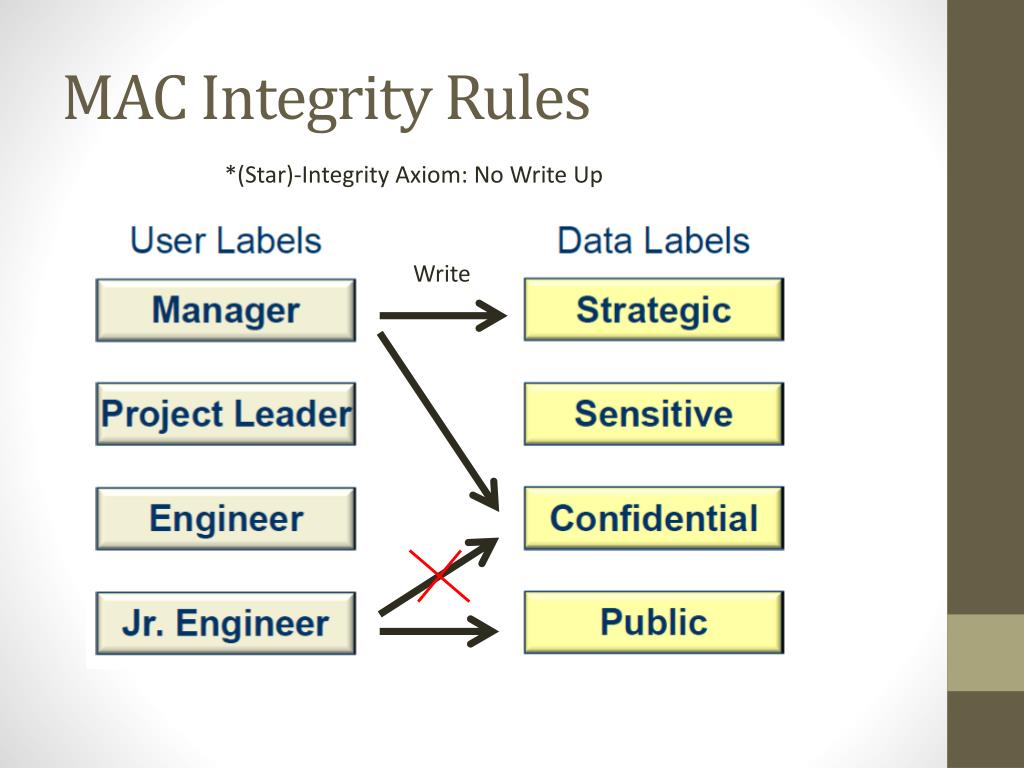

  23. MAC Integrity Rules *(Star)-Integrity Axiom: No Write Up Write

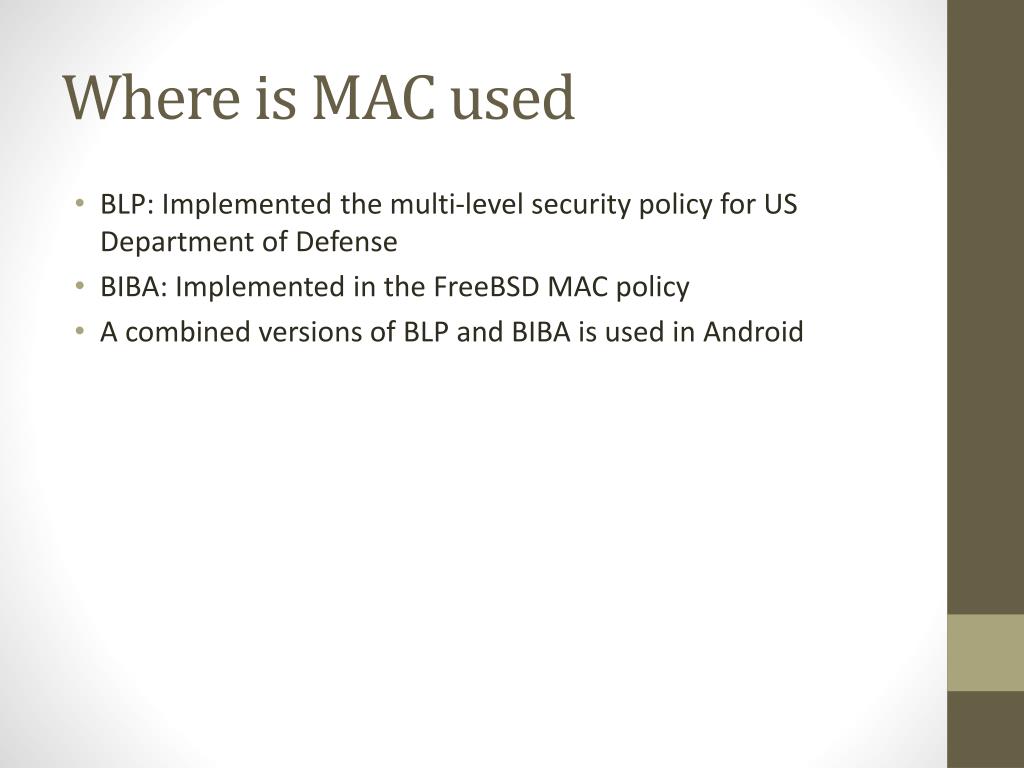

  24. Where is MAC used • BLP: Implemented the multi-level security policy for US Department of Defense • BIBA: Implemented in the FreeBSD MAC policy • A combined versions of BLP and BIBA is used in Android

  25. Summary • Introduced access control principles • subjects, objects, access rights • Discretionary Access Control • access matrix, access control lists (ACLs), capability tickets • UNIX traditional and ACL mechanisms • Mandatory Access Control • Bell-Lapadula • Biba

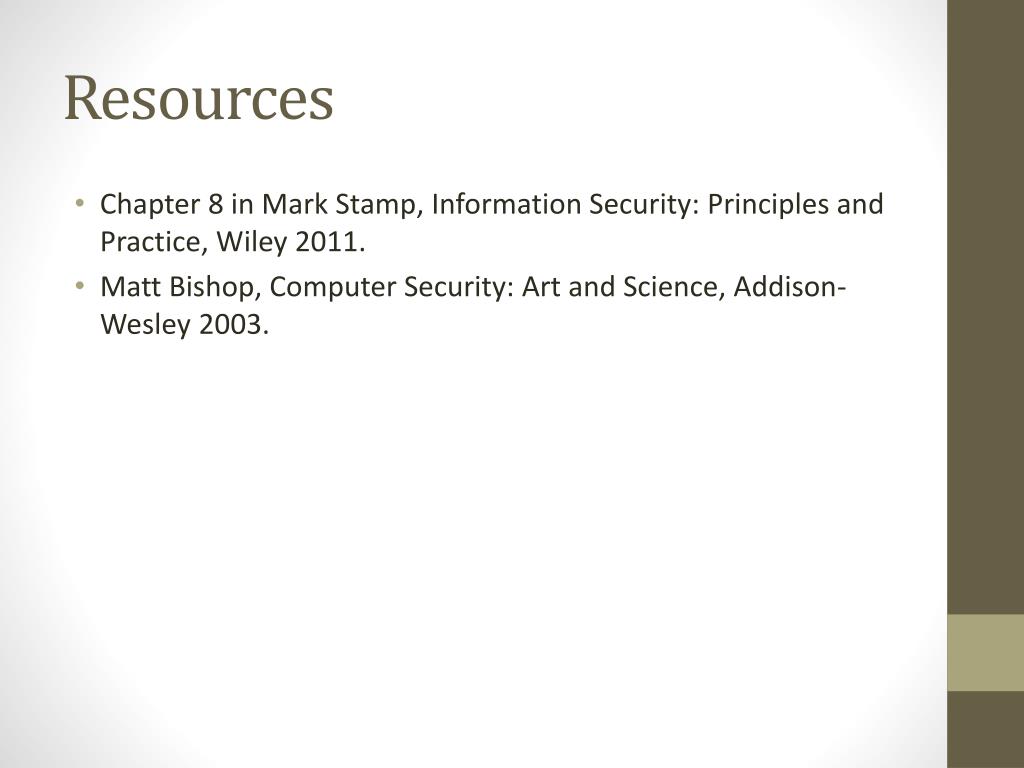

  26. Resources • Chapter 8 in Mark Stamp, Information Security: Principles and Practice, Wiley 2011. • Matt Bishop, Computer Security: Art and Science, Addison-Wesley 2003.

  27. Questions?
