Epri guideline for implementing a groundwater protection program at nuclear power plants l.jpg

EPRI Guideline for Implementing a Groundwater Protection Program at Nuclear Power Plants

RETS REMP 2007

Philadelphia, PAJune 25 – 27, 2007

Eric L. Darois, CHP


Implementing schedule l.jpg
Implementing Schedule Program at Nuclear Power Plants

  • Draft Issued March 2007 for Industry Comments

  • Review and Disposition Comments – June 2007

  • Issue Final Document – November 2007

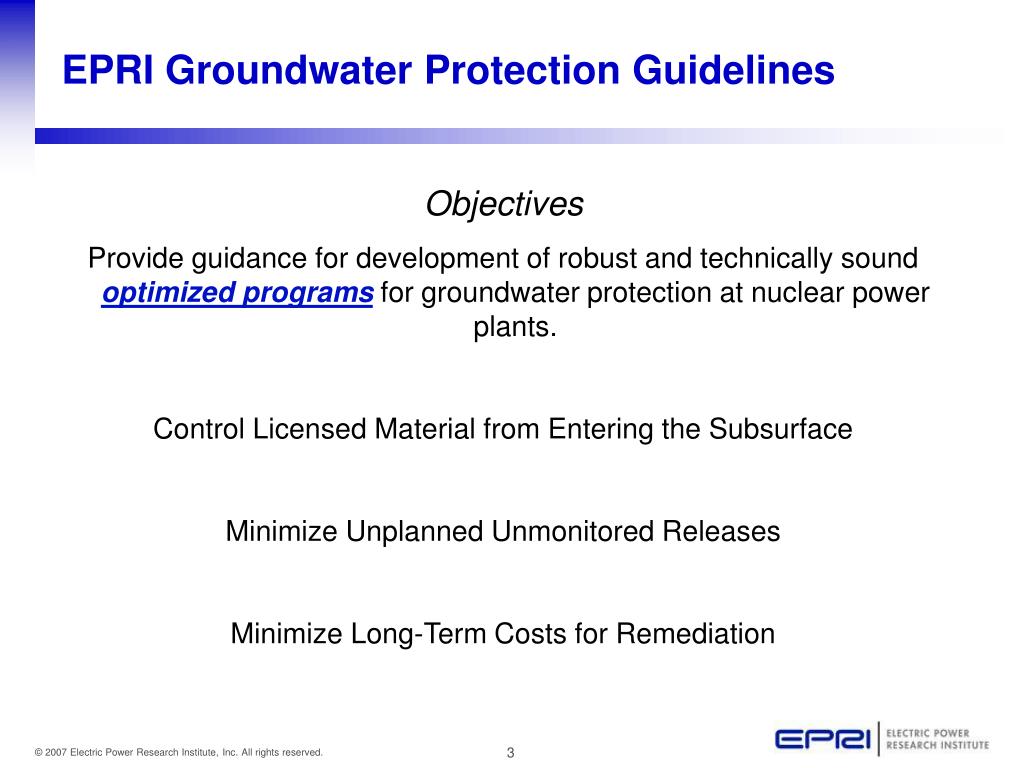

Slide3 l.jpg

EPRI Groundwater Protection Guidelines Program at Nuclear Power Plants

Objectives

Provide guidance for development of robust and technically sound optimized programs for groundwater protection at nuclear power plants.

Control Licensed Material from Entering the Subsurface

Minimize Unplanned Unmonitored Releases

Minimize Long-Term Costs for Remediation

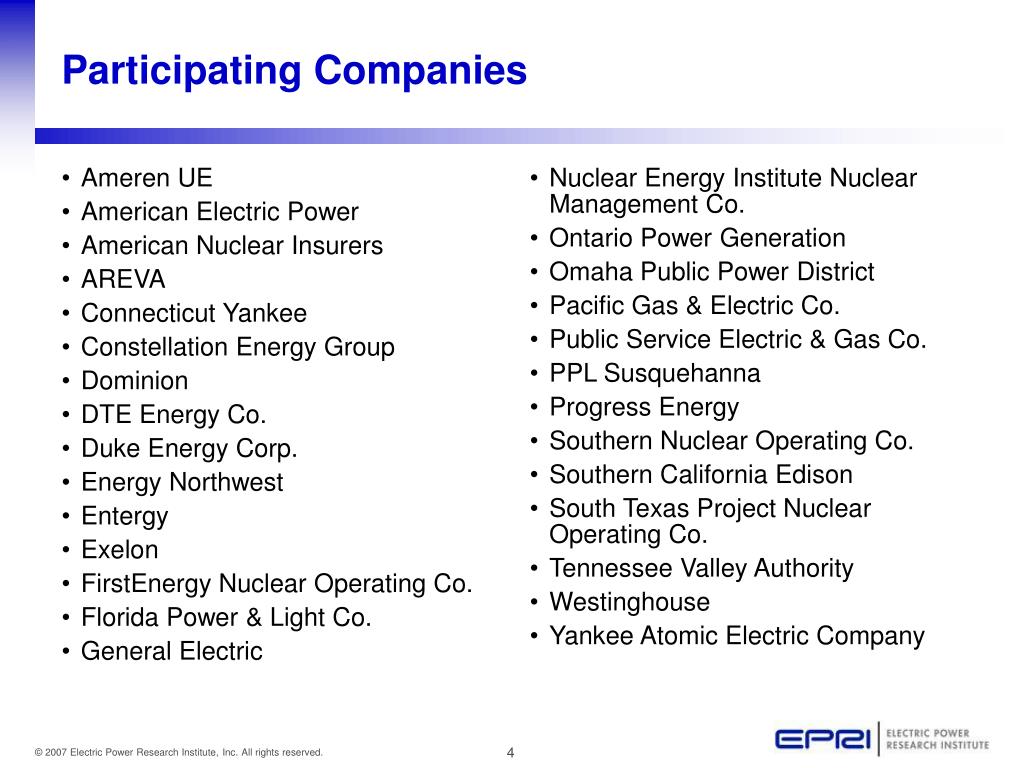

Participating companies l.jpg

Ameren UE Program at Nuclear Power Plants

American Electric Power

American Nuclear Insurers

AREVA

Connecticut Yankee

Constellation Energy Group

Dominion

DTE Energy Co.

Duke Energy Corp.

Energy Northwest

Entergy

Exelon

FirstEnergy Nuclear Operating Co.

Florida Power & Light Co.

General Electric

Nuclear Energy Institute Nuclear Management Co.

Ontario Power Generation

Omaha Public Power District

Pacific Gas & Electric Co.

Public Service Electric & Gas Co.

PPL Susquehanna

Progress Energy

Southern Nuclear Operating Co.

Southern California Edison

South Texas Project Nuclear Operating Co.

Tennessee Valley Authority

Westinghouse

Yankee Atomic Electric Company

Participating Companies

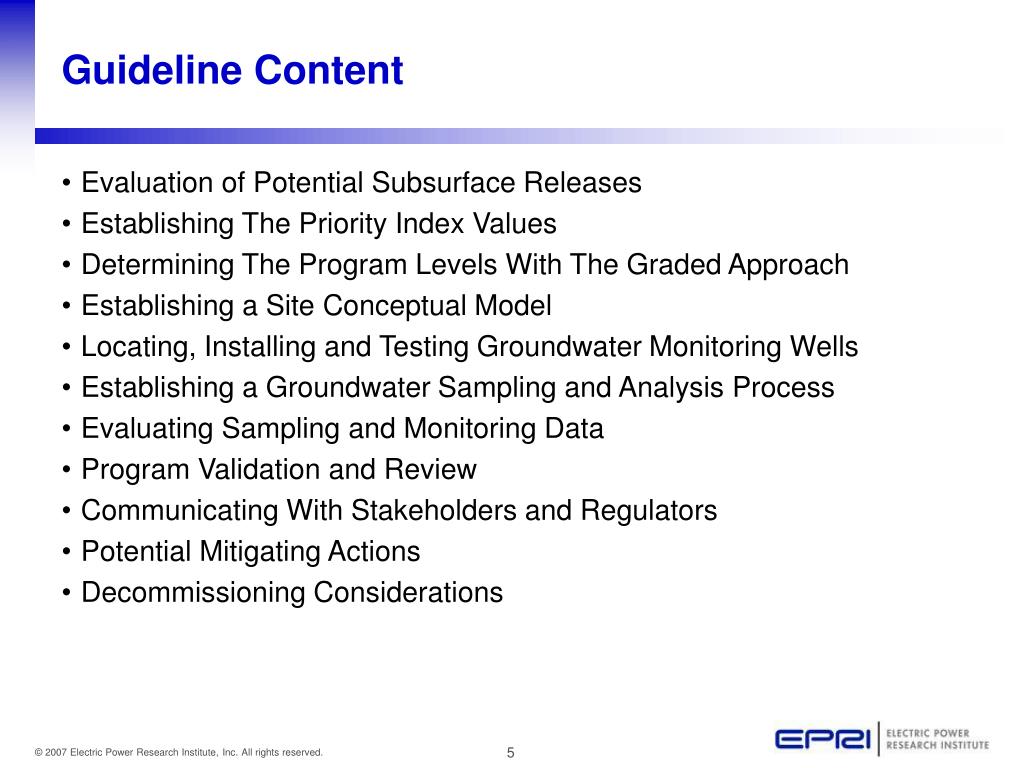

Guideline content l.jpg
Guideline Content Program at Nuclear Power Plants

  • Evaluation of Potential Subsurface Releases

  • Establishing The Priority Index Values

  • Determining The Program Levels With The Graded Approach

  • Establishing a Site Conceptual Model

  • Locating, Installing and Testing Groundwater Monitoring Wells

  • Establishing a Groundwater Sampling and Analysis Process

  • Evaluating Sampling and Monitoring Data

  • Program Validation and Review

  • Communicating With Stakeholders and Regulators

  • Potential Mitigating Actions

  • Decommissioning Considerations

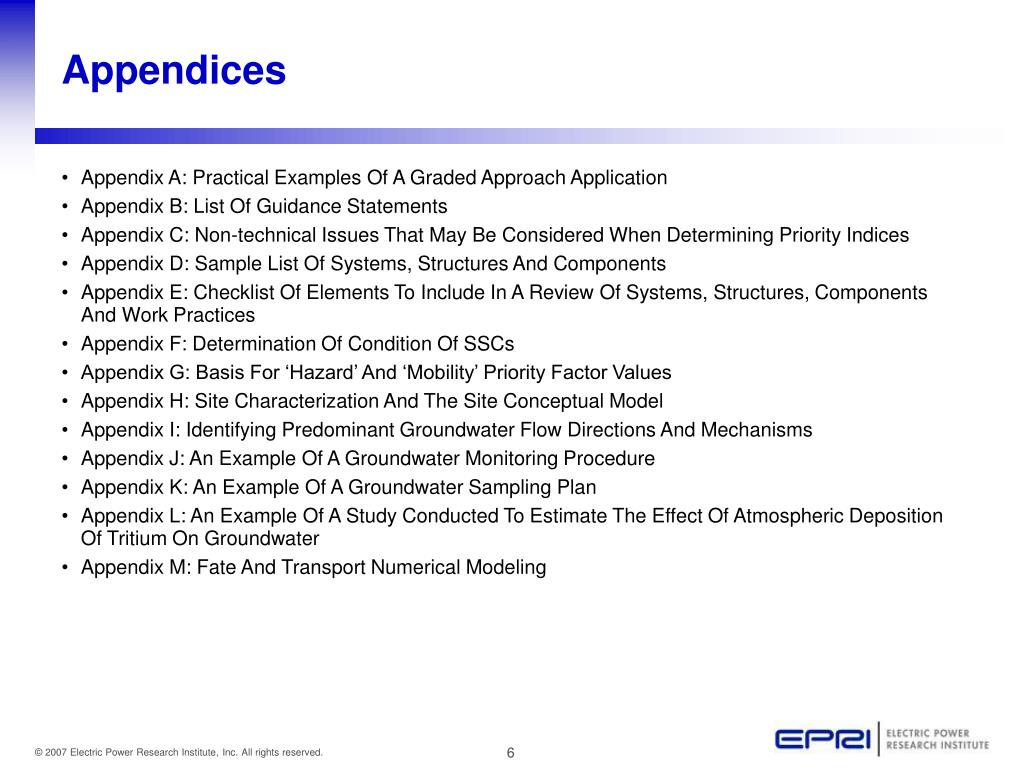

Appendices l.jpg
Appendices Program at Nuclear Power Plants

  • Appendix A: Practical Examples Of A Graded Approach Application

  • Appendix B: List Of Guidance Statements

  • Appendix C: Non-technical Issues That May Be Considered When Determining Priority Indices

  • Appendix D: Sample List Of Systems, Structures And Components

  • Appendix E: Checklist Of Elements To Include In A Review Of Systems, Structures, Components And Work Practices

  • Appendix F: Determination Of Condition Of SSCs

  • Appendix G: Basis For ‘Hazard’ And ‘Mobility’ Priority Factor Values

  • Appendix H: Site Characterization And The Site Conceptual Model

  • Appendix I: Identifying Predominant Groundwater Flow Directions And Mechanisms

  • Appendix J: An Example Of A Groundwater Monitoring Procedure

  • Appendix K: An Example Of A Groundwater Sampling Plan

  • Appendix L: An Example Of A Study Conducted To Estimate The Effect Of Atmospheric Deposition Of Tritium On Groundwater

  • Appendix M: Fate And Transport Numerical Modeling


Evaluation of potential subsurface releases l.jpg
Evaluation of Potential Subsurface Releases Program at Nuclear Power Plants

  • Historical Spills

  • Evaluate SSCs Containing Liquid Radioactivity

  • Identify Preventive Maintenance and Inspection Programs

  • Evaluate Work Practices

  • Evaluate Potential Ongoing Releases


Establishing priority index pi values l.jpg
Establishing Priority Index (PI) Values Program at Nuclear Power Plants

  • Performed for:

    • Selected SSCs and Work Practices

    • Major Changes in SSCs/Work Practices

  • Maximum PI Score among All SSCs/Work Practices Determines Site Score

    • Mitigating Actions Are Allowed to Lower Score

  • PI Factors

    • Likelihood – 4 Factors

    • Consequence – 4 Factors


Determination of contamination risk priority index methodology l.jpg
Determination of Contamination Risk Program at Nuclear Power Plants Priority Index Methodology

Priority Index (PI)= Likelihood x Consequence x N

HL = History (0-3)

CL = Condition (0-3)

DL = Design (0-3)

PL = Pre-release Detection (1-3)

IC = Inventory (1-3)

HC = Hazard (1-3)

MC = Mobility (1-3)

PC = Post-release Detection (1-3)

N – Normalizing Factor. Resulting Scores 1 to 100


Slide10 l.jpg

EPRI Groundwater Protection Guidelines: Program at Nuclear Power Plants Step 1-Priority Index Determination


Priority index 76 likelihood priority factors l.jpg
Priority Index = 76 Program at Nuclear Power Plants Likelihood Priority Factors

  • For Site 1, The Containment Sump Re-Circ Line has a calculated PI of 76.

  • Likelihood Priority Factors:

    • History (3):

      • A containment sump re-circulation line has been identified as having leaked to the subsurface

    • Condition (2):

      • A pressure test of the system has did not reveal a substantial volumetric leak. However, some uncertainty over the possibility of a small leak (< 1 gpd) remains.

    • Design (3):

      • This is a single-walled subsurface pipe.

    • Pre-Release Detection (3):

      • A non-catastrophic release would not be detected until radioactive material had been detected external to the pipe.


Priority index 76 likelihood calculation l.jpg
Priority Index = 76 Program at Nuclear Power Plants Likelihood Calculation

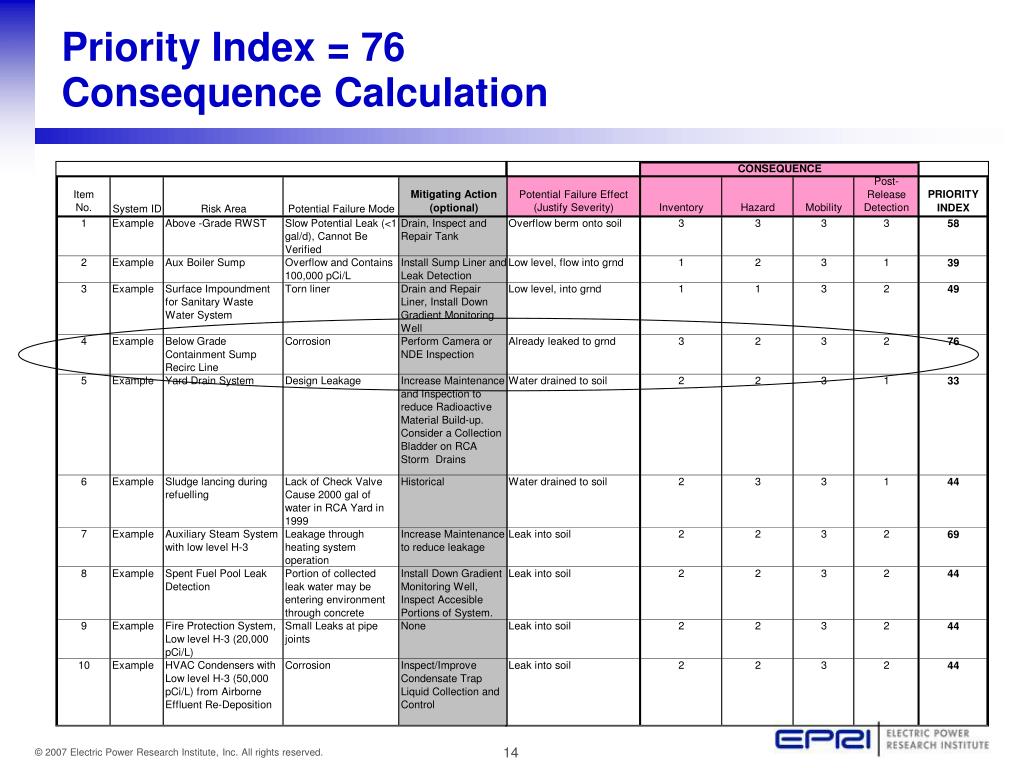

Priority index 76 consequence priority factors l.jpg
Priority Index = 76 Program at Nuclear Power Plants Consequence Priority Factors

  • For Site 1, The Containment Sump Re-Circ Line has a the max calculated PI value.

  • Consequence Priority Factors:

    • Inventory (3):

      • Low volume of liquid but high concentration (~2E7 pCi/L) of tritium

    • Hazard (3):

      • This pipe likely contains Cs-137 and Sr-90 (from prior fuel defects).

    • Mobility (3):

      • Potential contamination from this source could enter a fractured bedrock system.

    • Post-Release Detection (2):

      • An onsite monitoring well is located approximately 300 feet from this pipe in the down-gradient flow path.


Priority index 76 consequence calculation l.jpg
Priority Index = 76 Program at Nuclear Power Plants Consequence Calculation

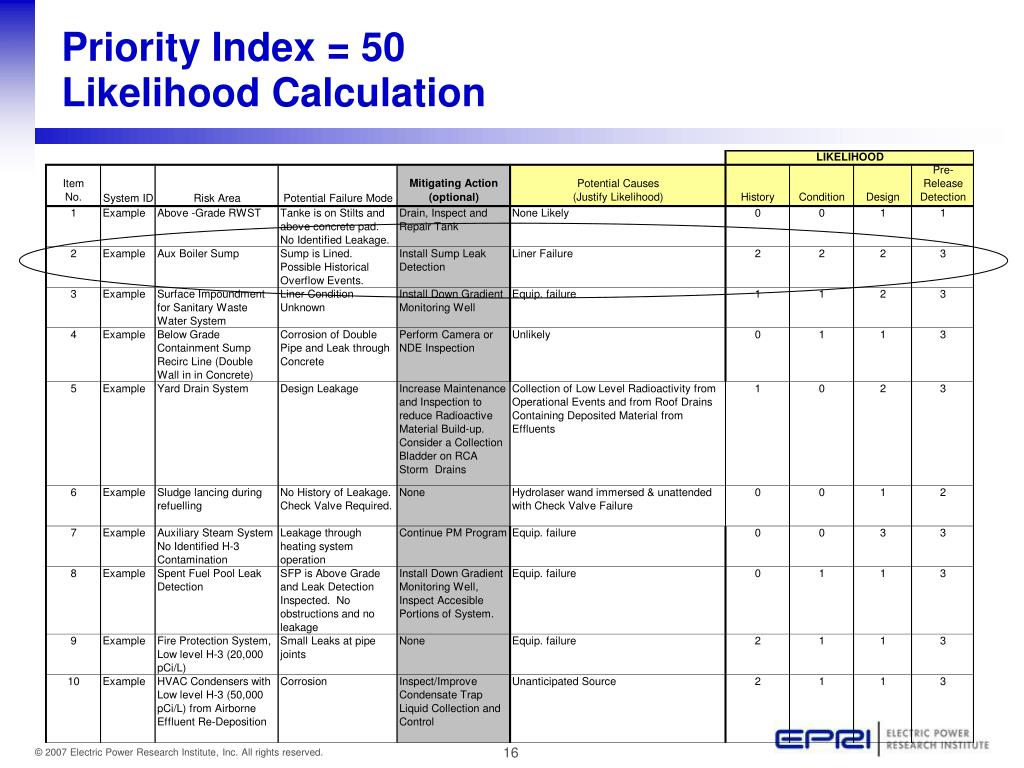

Priority index 50 likelihood priority factors l.jpg
Priority Index = 50 Program at Nuclear Power Plants Likelihood Priority Factors

  • For Site 3, the Aux Boiler Sump is unlined and may have leaked water to the environment.

  • Likelihood Priority Factors:

    • History (2):

      • The sump’s water inventory has been observed to vary, indicating that some of this water was lost to the environment.

    • Condition (2):

      • Various attempts in sealing the sump have not corrected the above condition.

    • Design (2):

      • The sump was sealed with a coating (which may not be functioning properly) during its original construction.

    • Pre-Release Detection (3):

      • Leakage through this sump is not detected until its entry into the environment


Priority index 50 likelihood calculation l.jpg
Priority Index = 50 Program at Nuclear Power Plants Likelihood Calculation

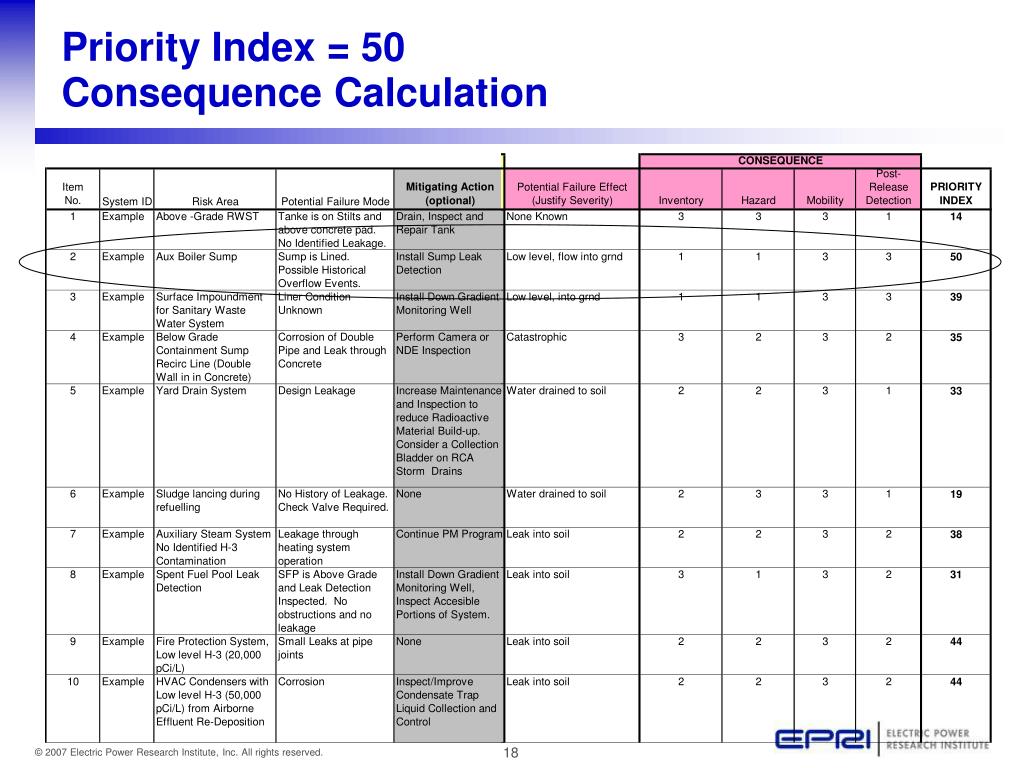

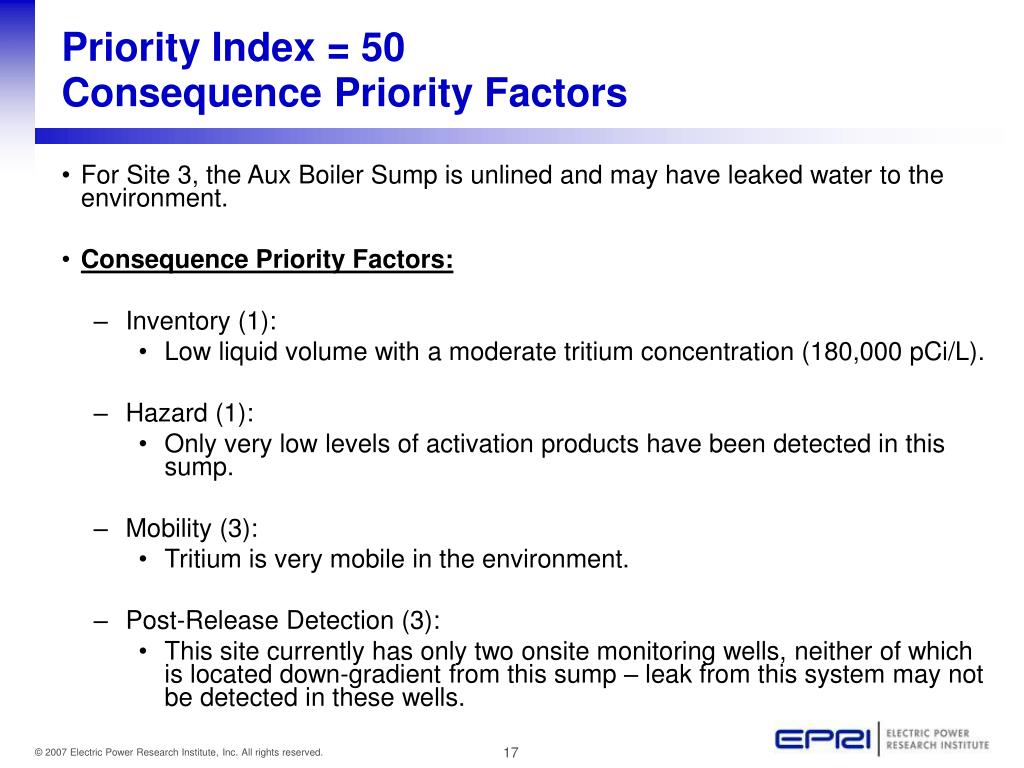

Priority index 50 consequence priority factors l.jpg
Priority Index = 50 Program at Nuclear Power Plants Consequence Priority Factors

  • For Site 3, the Aux Boiler Sump is unlined and may have leaked water to the environment.

  • Consequence Priority Factors:

    • Inventory (1):

      • Low liquid volume with a moderate tritium concentration (180,000 pCi/L).

    • Hazard (1):

      • Only very low levels of activation products have been detected in this sump.

    • Mobility (3):

      • Tritium is very mobile in the environment.

    • Post-Release Detection (3):

      • This site currently has only two onsite monitoring wells, neither of which is located down-gradient from this sump – leak from this system may not be detected in these wells.


Priority index 50 consequence calculation l.jpg
Priority Index = 50 Program at Nuclear Power Plants Consequence Calculation

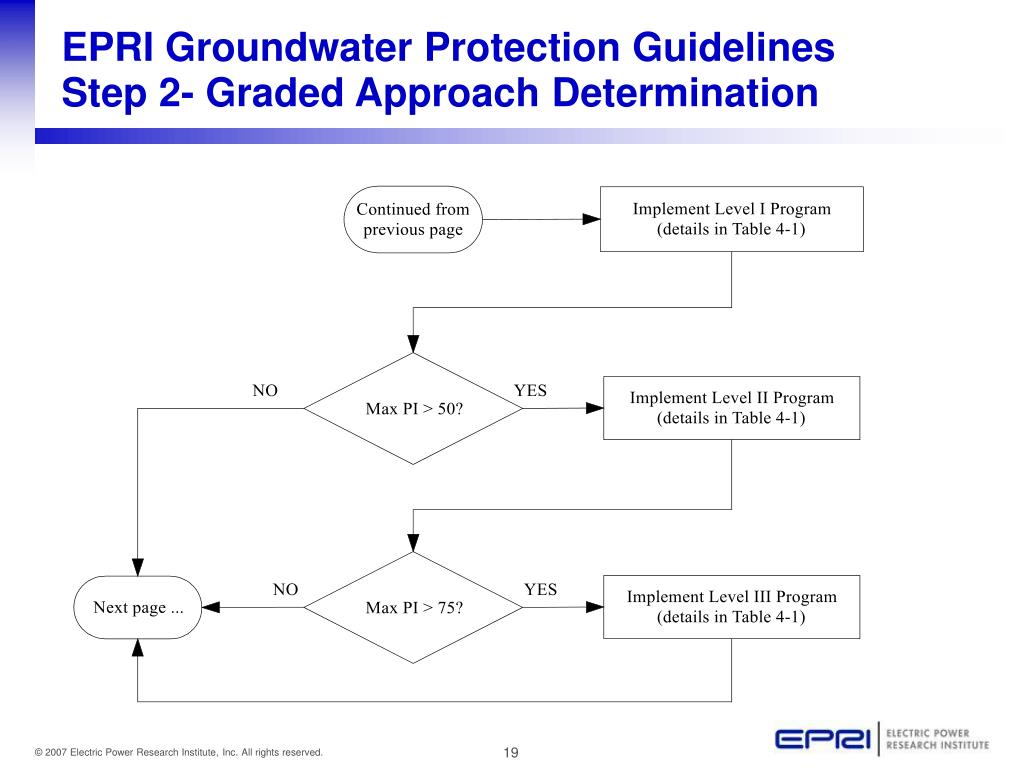

Epri groundwater protection guidelines step 2 graded approach determination l.jpg
EPRI Groundwater Protection Guidelines Program at Nuclear Power Plants Step 2- Graded Approach Determination


Recommended groundwater protection program level i baseline design and installation requirements l.jpg
Recommended Groundwater Protection Program (Level I “Baseline”) Design and Installation Requirements

  • Develop The Site Conceptual Model (5.1)

  • Review Aerial Photos And Engineering Drawings (5.2)

  • Review Previous Hydrogeologic Reports (5.3)

  • Evaluate Potential Receptors Of Groundwater Contamination (5.4)

  • Review State And Local Regulations (5.5)

  • Determine Groundwater Elevation (5.6.1)

  • Evaluate Pre-operational Groundwater And Geologic Data (5.6.2)

  • Determine Regional Hydrogeologic Characteristics (5.6.3)

  • Install Wells (5.7.1)

  • Determine Horizontal Distribution And Movement (5.7.2)

  • Establish And Document DQOs For Well Drilling (6.1)

  • Institute Configuration Management For Well Drilling (6.2.1)

  • Review Permitting Requirements For Well Drilling (6.2.2)

  • Ensure Sampling Accessibility (6.2.3)

  • Construct Monitoring Wells (6.3)

  • Develop And Implement A Maintenance Program For Monitoring Wells (6.4)

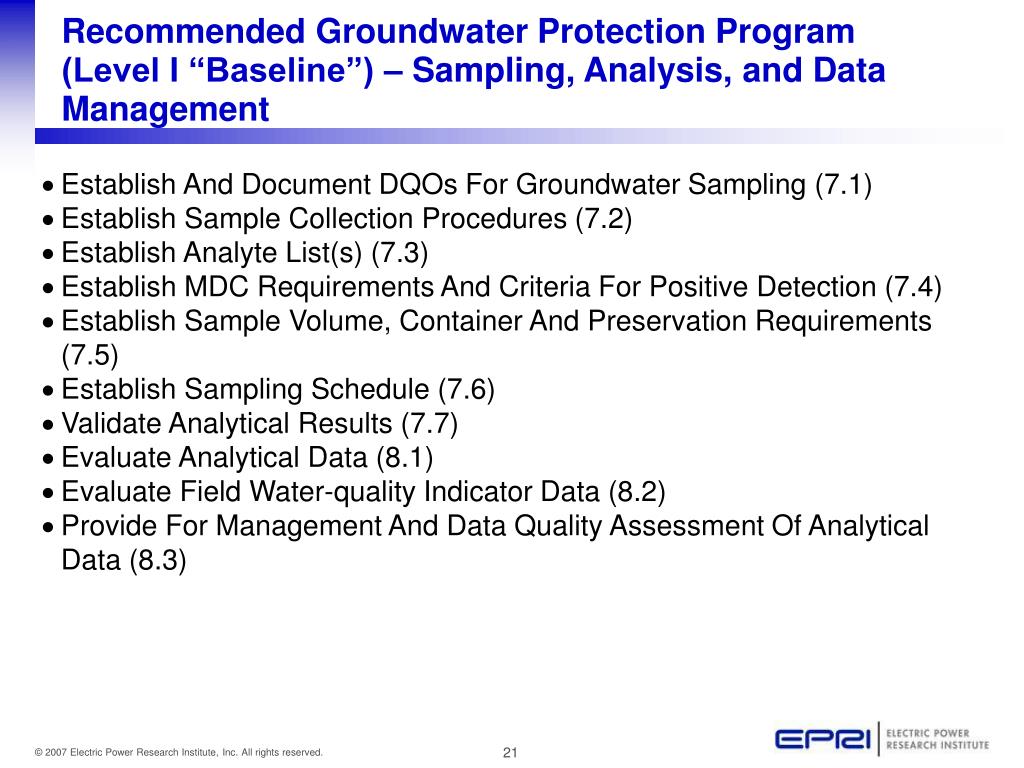

Recommended groundwater protection program level i baseline sampling analysis and data management l.jpg
Recommended Groundwater Protection Program (Level I “Baseline”) – Sampling, Analysis, and Data Management

  • Establish And Document DQOs For Groundwater Sampling (7.1)

  • Establish Sample Collection Procedures (7.2)

  • Establish Analyte List(s) (7.3)

  • Establish MDC Requirements And Criteria For Positive Detection (7.4)

  • Establish Sample Volume, Container And Preservation Requirements (7.5)

  • Establish Sampling Schedule (7.6)

  • Validate Analytical Results (7.7)

  • Evaluate Analytical Data (8.1)

  • Evaluate Field Water-quality Indicator Data (8.2)

  • Provide For Management And Data Quality Assessment Of Analytical Data (8.3)

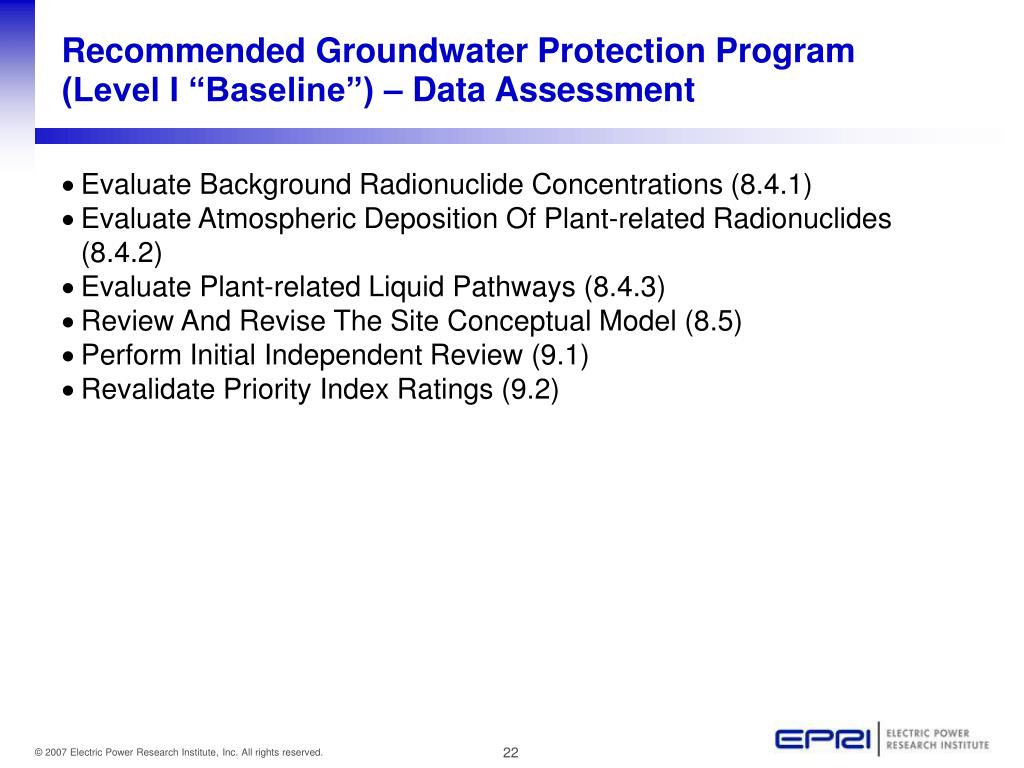

Recommended groundwater protection program level i baseline data assessment l.jpg
Recommended Groundwater Protection Program (Level I “Baseline”) – Data Assessment

  • Evaluate Background Radionuclide Concentrations (8.4.1)

  • Evaluate Atmospheric Deposition Of Plant-related Radionuclides (8.4.2)

  • Evaluate Plant-related Liquid Pathways (8.4.3)

  • Review And Revise The Site Conceptual Model (8.5)

  • Perform Initial Independent Review (9.1)

  • Revalidate Priority Index Ratings (9.2)


Recommended groundwater protection program level ii iii l.jpg
Recommended Groundwater Protection Program (Level II & III) “Baseline”) – Data Assessment

  • Level II (50 < PI ≤ 75)

    • Implement All Program Elements From Program Level I

    • Determine Vertical Distribution And Movement (5.7.3)

    • Consider Use Of Water-level Transducers (6.5.1)

  • Level III (75 < PI)

    • Implement All Program Elements From Program Levels I And II

    • Aquifer Test For Flow Regimes, Connectivity, Hydraulic Conductivity (5.7.4)

    • Conduct Geophysical Testing (6.5.2)

    • Consider Use Of Hydraulic Conductivity Testing (6.5.3)

    • Consider Use Of Hydrophysical Testing (6.5.4)

    • Consider Use Of Fate And Transport Numerical Modeling (8.6)


Establishing a site conceptual model l.jpg
Establishing a Site Conceptual Model “Baseline”) – Data Assessment

  • Initial Data Input

    • Aerial Photos, Engineering Drawings, Construction Photos

    • Prior Hydrogeologic Reports

    • Regional Groundwater Flow Information

  • Ongoing Development of a CSM

    • Well Installations and Monitoring

      • Water Elevations

      • Groundwater Quality Data (Temp, pH, Conductivity, Concentrations, Oxygen etc..)

    • Flow Regimes, Connectivity and Conductivity

    • Horizontal/Vertical Distribution and Movement


Well installation l.jpg
Well Installation “Baseline”) – Data Assessment

  • Data Quality Objectives Process – Document Process

    • Purpose

    • Depth and Well Design

  • Measurement of Field Water Quality Parameters During Drilling/Construction

  • Document Final “as-built” and Include in Configuration Management Process


Sampling and analysis and assessment l.jpg
Sampling and Analysis and Assessment “Baseline”) – Data Assessment

  • DQO Process Required

  • Written Sample Collection Procedures

  • Justify Analyte List

  • Specify Required Minimum Detectable Concentrations

  • Specify Container Types and Sample Preservation Requirements

  • Establish Sampling Schedule and Rationale

  • Establish Procedure for Data Validation

  • Data Base Management


Program validation and review l.jpg
Program Validation and Review “Baseline”) – Data Assessment

  • Periodic Independent Review

    • < 5 years

  • Revalidation of Priority Index


Additional sections l.jpg
Additional Sections “Baseline”) – Data Assessment

  • Communicating with Stakeholders

  • Potential Mitigating Actions

  • Decommissioning Considerations

  • References

  • Additional Technical References

  • Glossary

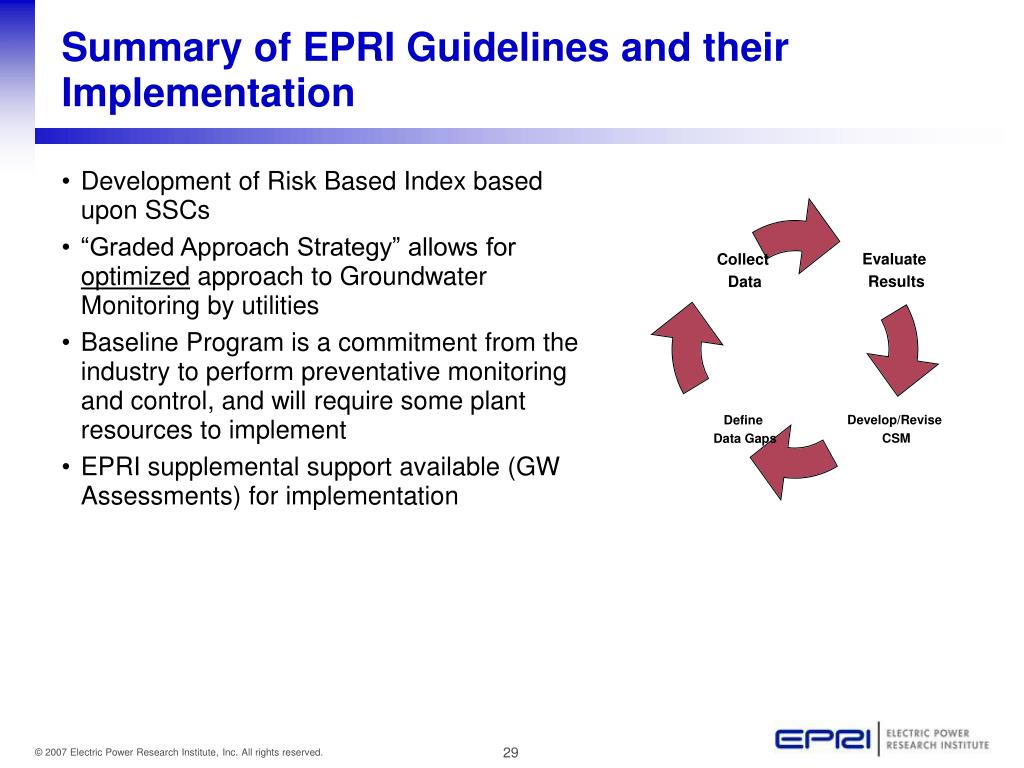

Summary of epri guidelines and their implementation l.jpg
Summary of EPRI Guidelines and their Implementation “Baseline”) – Data Assessment

  • Development of Risk Based Index based upon SSCs

  • “Graded Approach Strategy” allows for optimized approach to Groundwater Monitoring by utilities

  • Baseline Program is a commitment from the industry to perform preventative monitoring and control, and will require some plant resources to implement

  • EPRI supplemental support available (GW Assessments) for implementation
