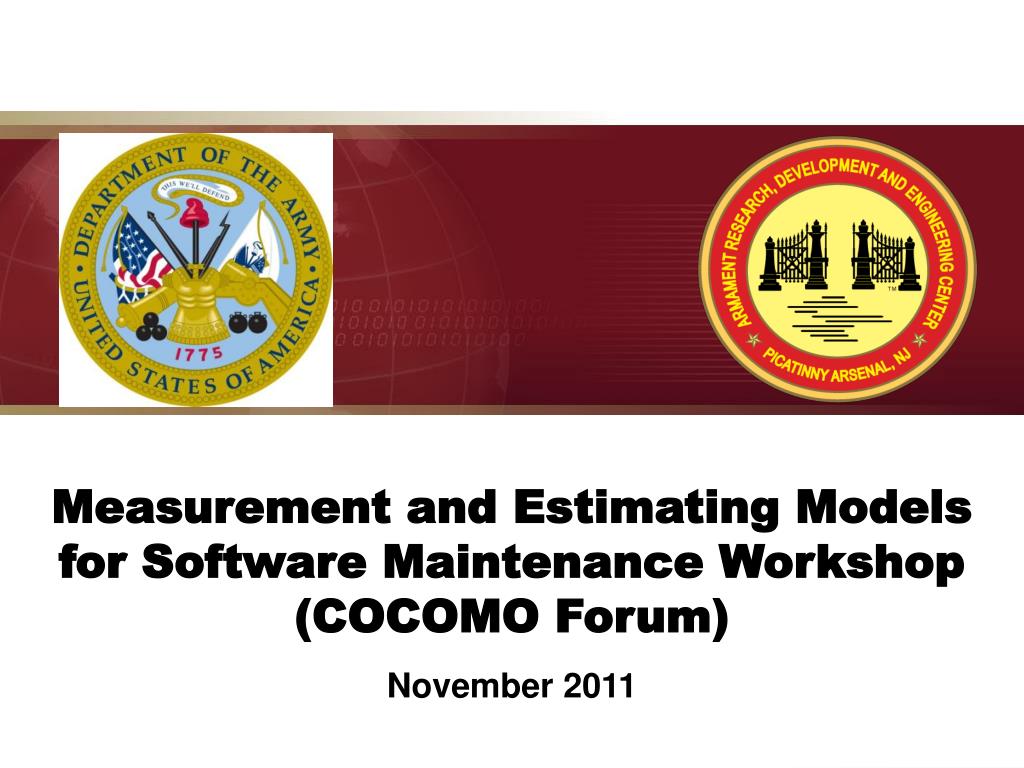

Measurement and Estimating Models

for Software Maintenance Workshop (COCOMO Forum)

November 2011

workshop goals

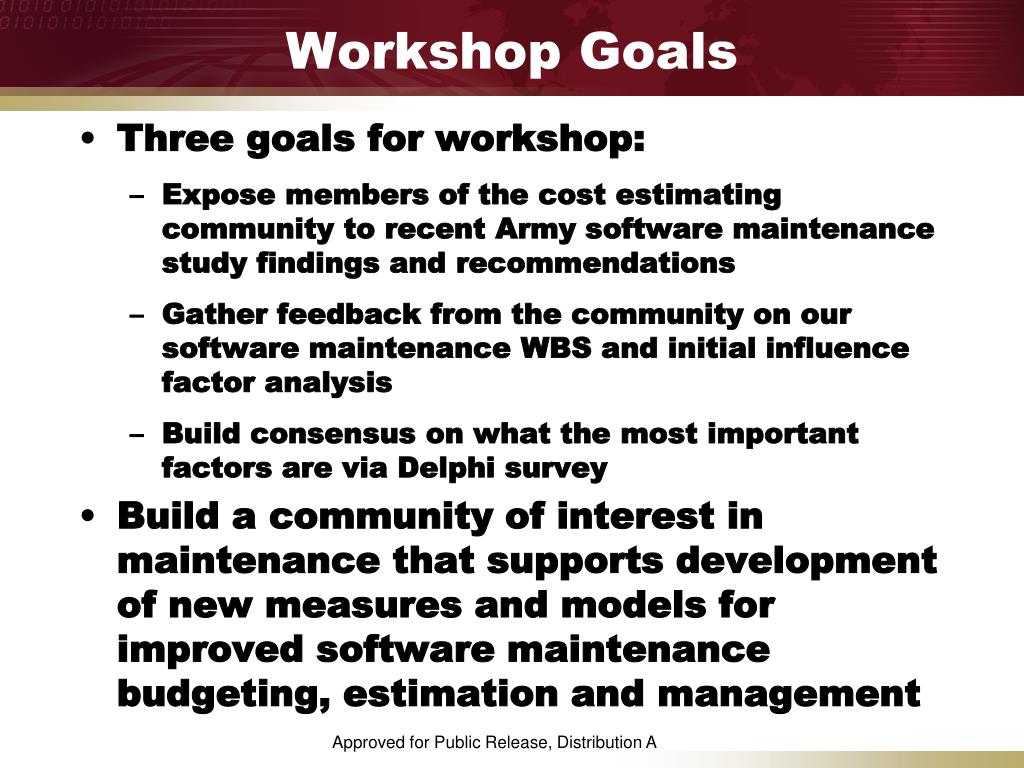

Workshop Goals
  • Three goals for workshop:
    • Expose members of the cost estimating community to recent Army software maintenance study findings and recommendations
    • Gather feedback from the community on our software maintenance WBS and initial influence factor analysis
    • Build consensus on what the most important factors are via Delphi survey
  • Build a community of interest in maintenance that supports development of new measures and models for improved software maintenance budgeting, estimation and management
workshop agenda

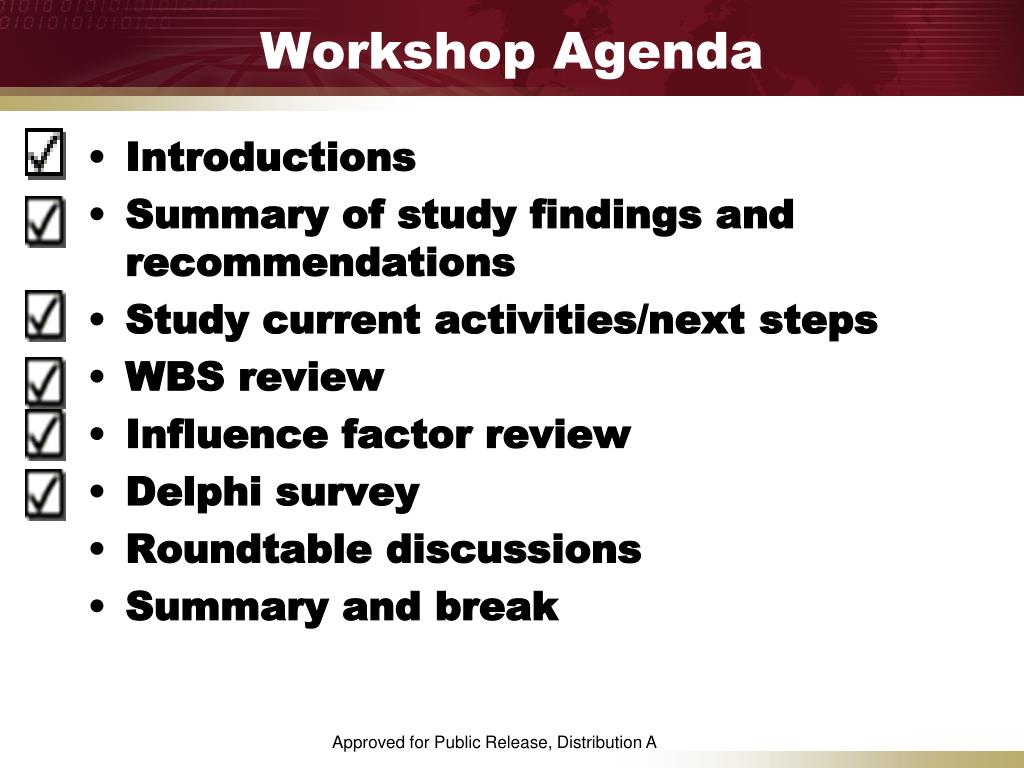

Workshop Agenda
  • Introductions
  • Summary of study findings and recommendations
  • Study current activities/next steps
  • WBS review
  • Influence factor review
  • Delphi survey
  • Roundtable discussions
  • Summary and break
background
Background
  • The changing defense environment has placed a renewed emphasis on the performance of U.S. Army software maintenance, sustaining engineering, and operational support efforts
  • Accurate and objective cost estimates are required to ensure that sufficient resources are available to execute the work required to keep systems operational and mission capable
  • To develop accurate estimates, the Army has been working collaboratively with the Air Force and the Navy to collect and analyze past cost performance data and build a software maintenance cost database
goals of army maintenance study
Goals of Army Maintenance Study
  • Goal - provide the Army with objective decision information to accurately estimate, budget, and allocate the software maintenance, sustaining engineering, and operational support resources (collectively referred to as software maintenance resources) required to meet evolving mission and service affordability requirements
    • Three years of effort to date focusing on the work done and issues experienced by Army and Air Force life cycle support centers
  • Findings to-date seem universal across the service weapons systems community
information requirements

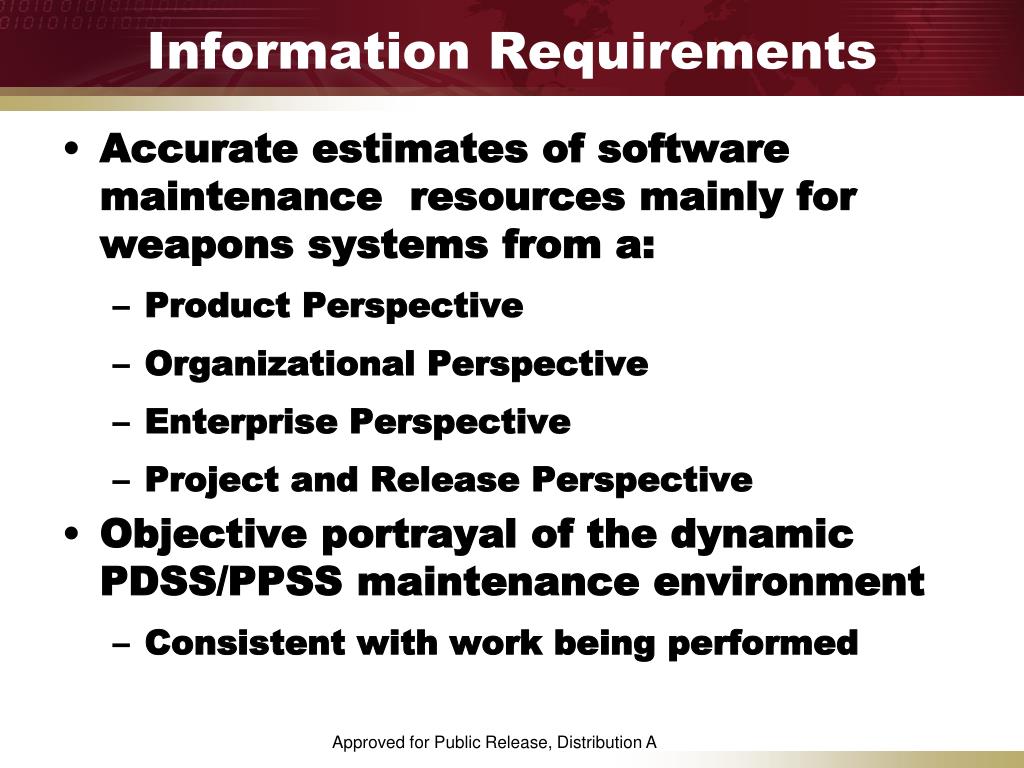

Information Requirements
  • Accurate estimates of software maintenance resources mainly for weapons systems from a:
    • Product Perspective
    • Organizational Perspective
    • Enterprise Perspective
    • Project and Release Perspective
  • Objective portrayal of the dynamic PDSS/PPSS maintenance environment
    • Consistent with work being performed
information requirements1

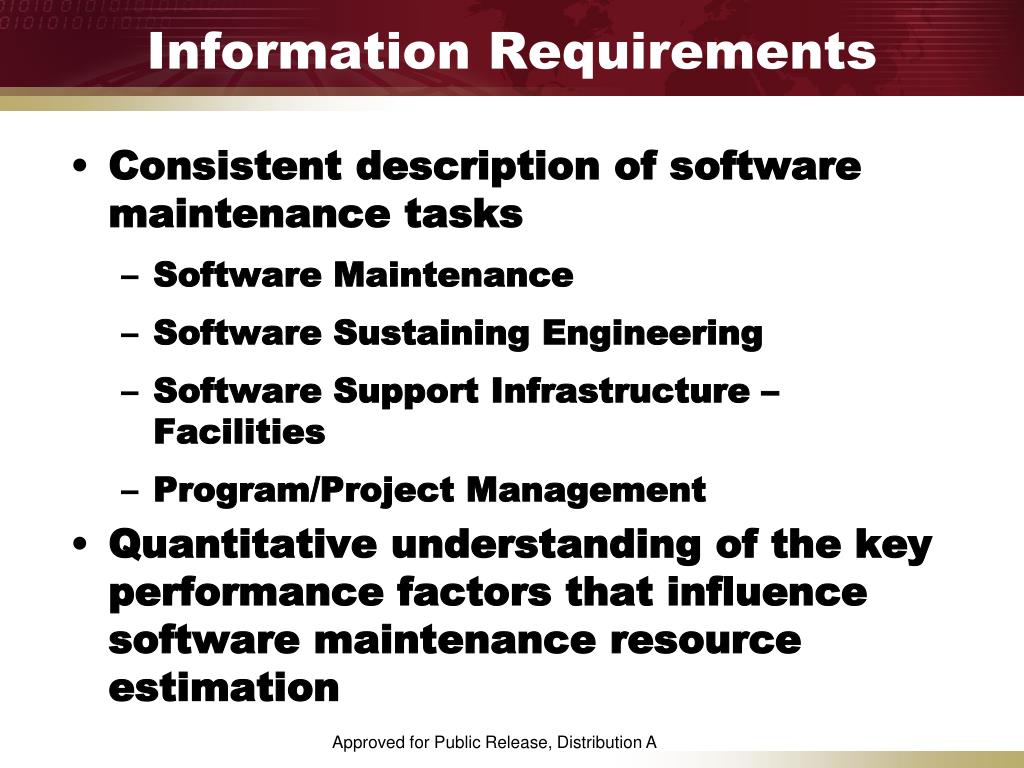

Information Requirements
  • Consistent description of software maintenance tasks
    • Software Maintenance
    • Software Sustaining Engineering
    • Software Support Infrastructure – Facilities
    • Program/Project Management
  • Quantitative understanding of the key performance factors that influence software maintenance resource estimation
study approach
Study Approach
  • Direct interface with DoD and Industry software support organizations performing software maintenance tasks under contract and at DOD Life Cycle Support Centers:
    • Task identification - definition - allocations
    • Historical cost data collection - budget submissions and actuals
    • Organizational context data - performance factors
  • Stakeholder collaboration - protected sharing of data, information, findings:
    • Air Force, Army, Navy, DoD Agencies and potentially allies
    • Industry, Academia and Professional Groups
study approach1

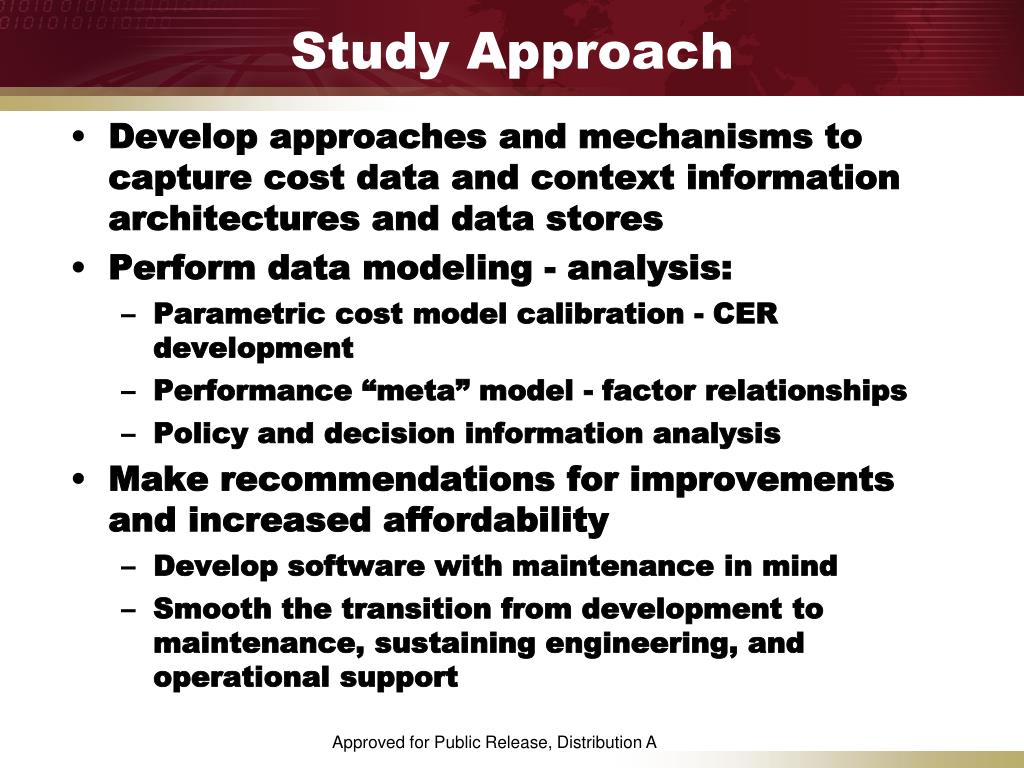

Study Approach
  • Develop approaches and mechanisms to capture cost data and context information architectures and data stores
  • Perform data modeling - analysis:
    • Parametric cost model calibration - CER development
    • Performance “meta” model - factor relationships
    • Policy and decision information analysis
  • Make recommendations for improvements and increased affordability
    • Develop software with maintenance in mind
    • Smooth the transition from development to maintenance, sustaining engineering, and operational support
army study approach
Army Study Approach
  • Investigate maintenance
    • What are the tasks?
    • Who does them?
    • What are the costs?
    • How they are estimated?
    • What impacts future costs?
  • Understand
    • Current costs and risks
    • Current estimating practice
    • Current budgeting approach
    • What changes are needed
expected outputs
Expected Outputs
  • Context-driven software maintenance performance model - configurable to product, organization, and enterprise activities and scope
  • Calibrated cost models for maintenance and cost estimating relationships for ACAT 1A systems
    • Multiple task categories
    • Domain specific with validated cost relationships
  • Software maintenance information architecture - common service database
  • Changes to policy and budgetary guidance needed to support systems transitions and workload growth
  • Software maintenance reporting requirements like the SRDR
  • More accurate estimates for the POM
performance meta modeling

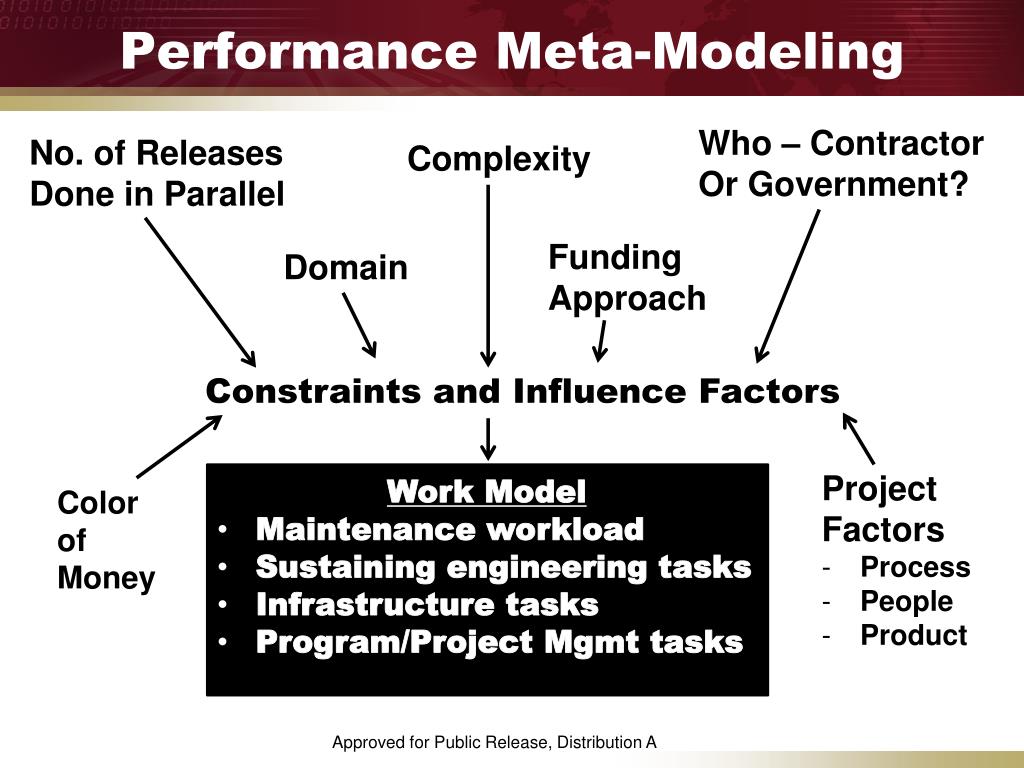

Performance Meta-Modeling

Who – Contractor

Or Government?

Complexity

No. of Releases

Done in Parallel

Funding

Approach

Domain

Constraints and Influence Factors

  • Project
  • Factors
  • Process
  • People
  • Product
  • Work Model
  • Maintenance workload
  • Sustaining engineering tasks
  • Infrastructure tasks
  • Program/Project Mgmt tasks

Color

of

Money

summary of study findings
Summary of Study Findings
  • Distribution of work much different than expected
  • Testing is the major maintenance activity
  • Transition and transfer is done poorly
  • Estimates and budgets don’t cover all the work
    • Sustaining engineering
    • Product field & user support
    • Regression testing
  • Efficiencies are needed to cope with workload
  • Over 250 projects surveyed
    • Eight Army and AF Centers visited
    • Over 100 interviews
    • Industry consulted
  • Findings
    • Maintenance centers do more than just updates and repairs
  • Products
    • Reports, papers, briefings, etc.
    • Web site
    • Initial maintenance cost and quality database
army study findings
Army Study Findings
  • Maintenance is done differently by contractors than government shops
    • Contractors develop to requirements, government supports testing and field support
  • As a minimum, four software releases are being prepared by maintenance shops in parallel during the calendar year
    • Development release - Fielded release
    • To be fielded release - Requirements release
  • Work for software maintenance differs from development – more test-directed and constrained by environment
current work distribution
Current Work Distribution

Notes

  • About seventy percent of their work involves:
    • Maintenance
    • Sustaining Engineering
    • Independent V&V
  • The other thirty percent is devoted to other tasks:
    • Acquisition management
    • Software development
  • Maintenance staff includes both government and in-house contractor personnel
testing is primary maintenance activity

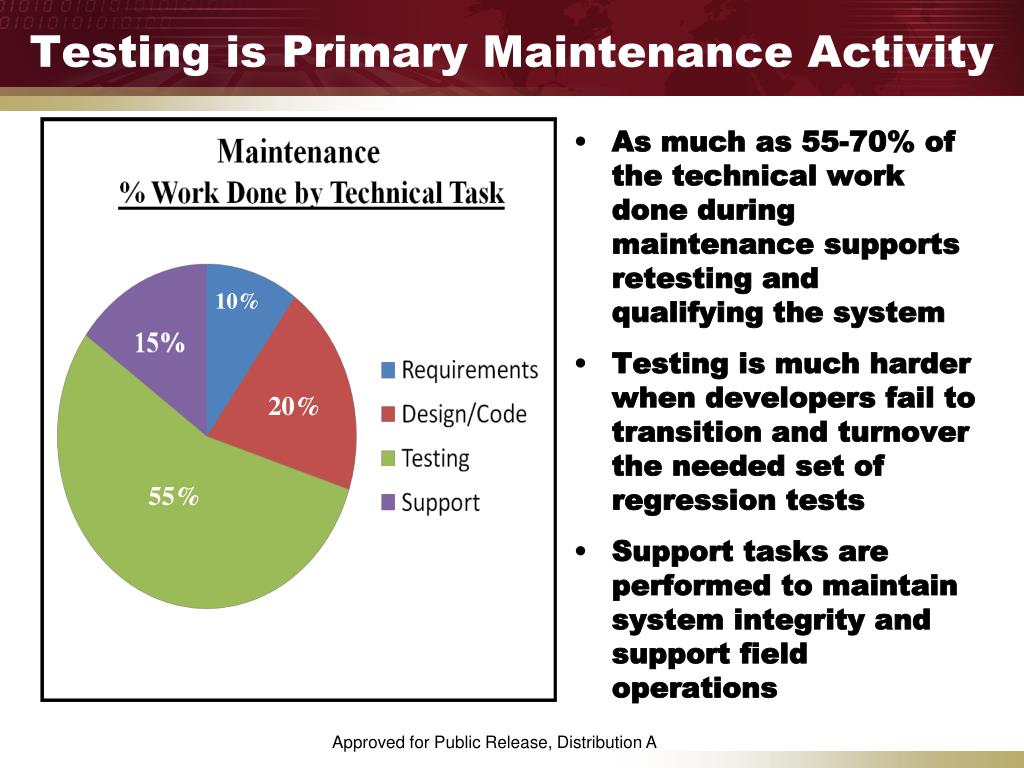

Testing is Primary Maintenance Activity
  • As much as 55-70% of the technical work done during maintenance supports retesting and qualifying the system
  • Testing is much harder when developers fail to transition and turnover the needed set of regression tests
  • Support tasks are performed to maintain system integrity and support field operations

10%

20%

55%

not all of the work is funded

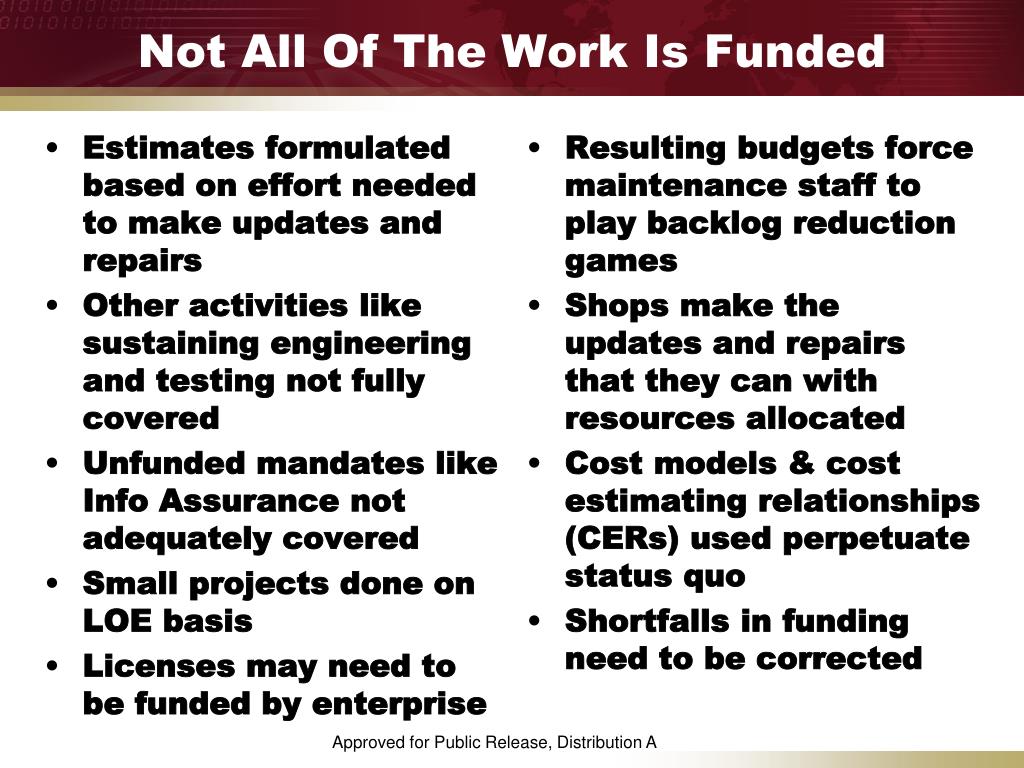

Not All Of The Work Is Funded
  • Estimates formulated based on effort needed to make updates and repairs
  • Other activities like sustaining engineering and testing not fully covered
  • Unfunded mandates like Info Assurance not adequately covered
  • Small projects done on LOE basis
  • Licenses may need to be funded by enterprise
  • Resulting budgets force maintenance staff to play backlog reduction games
  • Shops make the updates and repairs that they can with resources allocated
  • Cost models & cost estimating relationships (CERs) used perpetuate status quo
  • Shortfalls in funding need to be corrected
development system not ready for maintenance
Development System Not Ready for Maintenance
  • Transition requirements often waived, avoided or delayed
    • Facilities, tactical equipment and tools often not available when needed
    • Ownership rights to tools and special test equipment often an issue
    • Development SIL seldom transitioned for maintenance
  • Many aspects of “technical debt” are not addressed
  • Contractor often the only resource available to maintain system
on going tasks

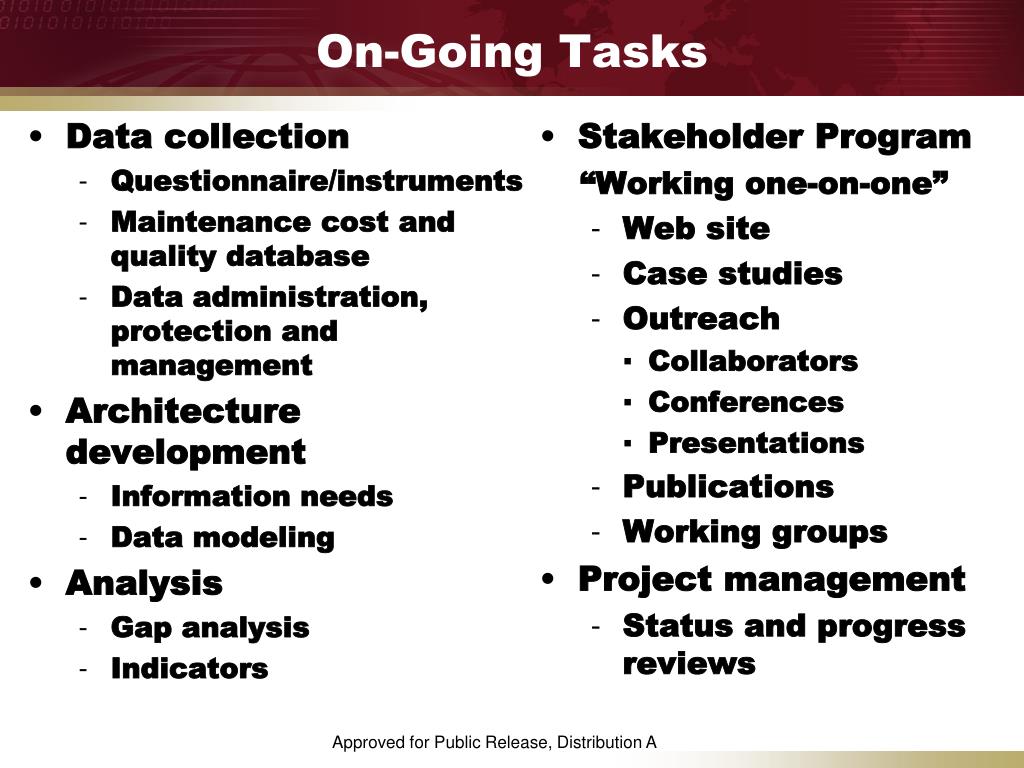

On-Going Tasks
  • Data collection
    • Questionnaire/instruments
    • Maintenance cost and quality database
    • Data administration, protection and management
  • Architecture development
    • Information needs
    • Data modeling
  • Analysis
    • Gap analysis
    • Indicators
  • Stakeholder Program
    • “Working one-on-one”
    • Web site
    • Case studies
    • Outreach
      • Collaborators
      • Conferences
      • Presentations
    • Publications
    • Working groups
  • Project management
    • Status and progress reviews
going forward
Going Forward
  • Characterize software maintenance, sustaining engineering, and operational support
    • Understand commonalities and differences among services, domains, programs, and maintenance organizations
    • Clarify the differences between perceptions and realities
  • Coordinate the efforts of the Services and industry to collect relevant information
    • Understand the characteristics of post deployment software activities
collaborative working group
Collaborative Working Group
  • Develop working group with government and industry to explore the identified issues and provide recommendations
    • Requires collecting data to support the findings
    • Data collection must be done hands-on to reduce noise and increase confidence in results
  • Develop viable software maintenance cost estimation methods, models, and practices
  • Work with academia and the DAU to improve the education of the workforce on the realities of software maintenance, sustainment, and operational support
in summary

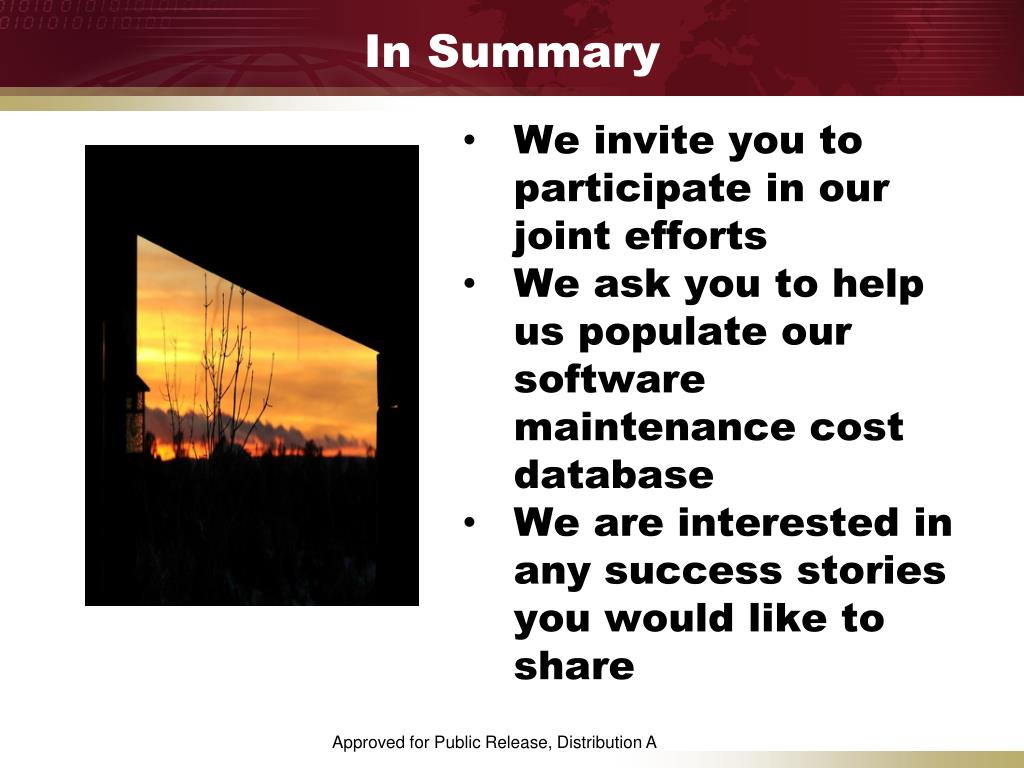

In Summary
  • We invite you to participate in our joint efforts
  • We ask you to help us populate our software maintenance cost database
  • We are interested in any success stories you would like to share
workshop agenda1
Workshop Agenda
  • Introductions
  • Summary of study findings and recommendations
  • Study current activities/next steps
  • WBS review
  • Influence factor review
  • Delphi survey
  • Roundtable discussions
  • Summary and break
wbs revision

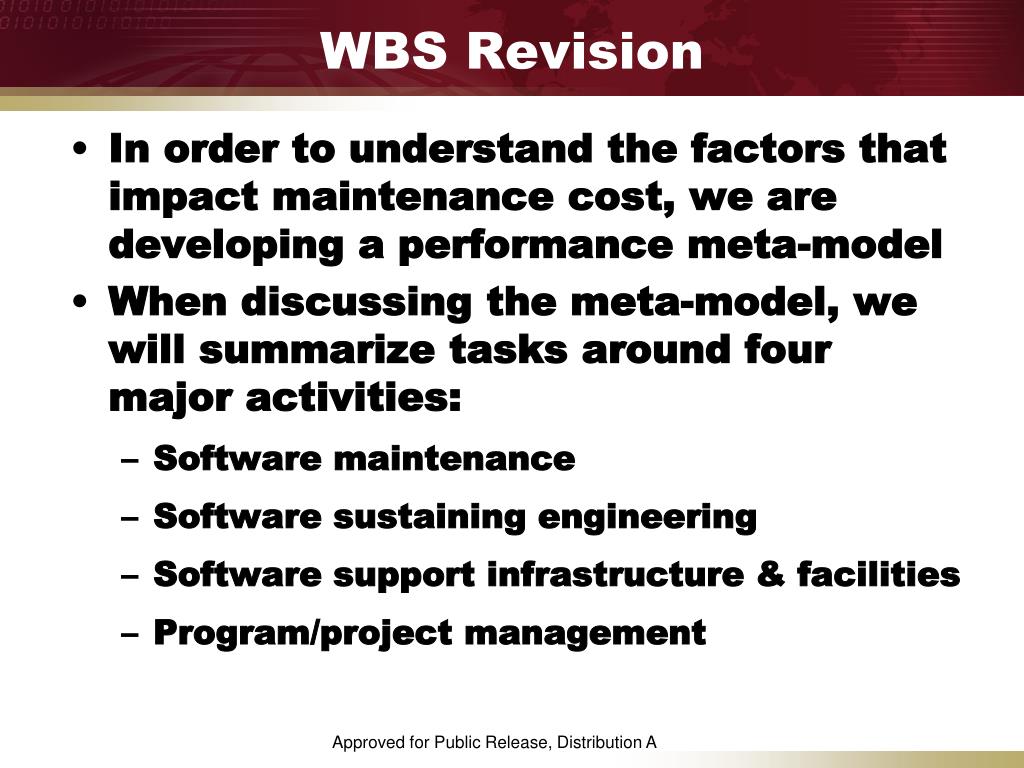

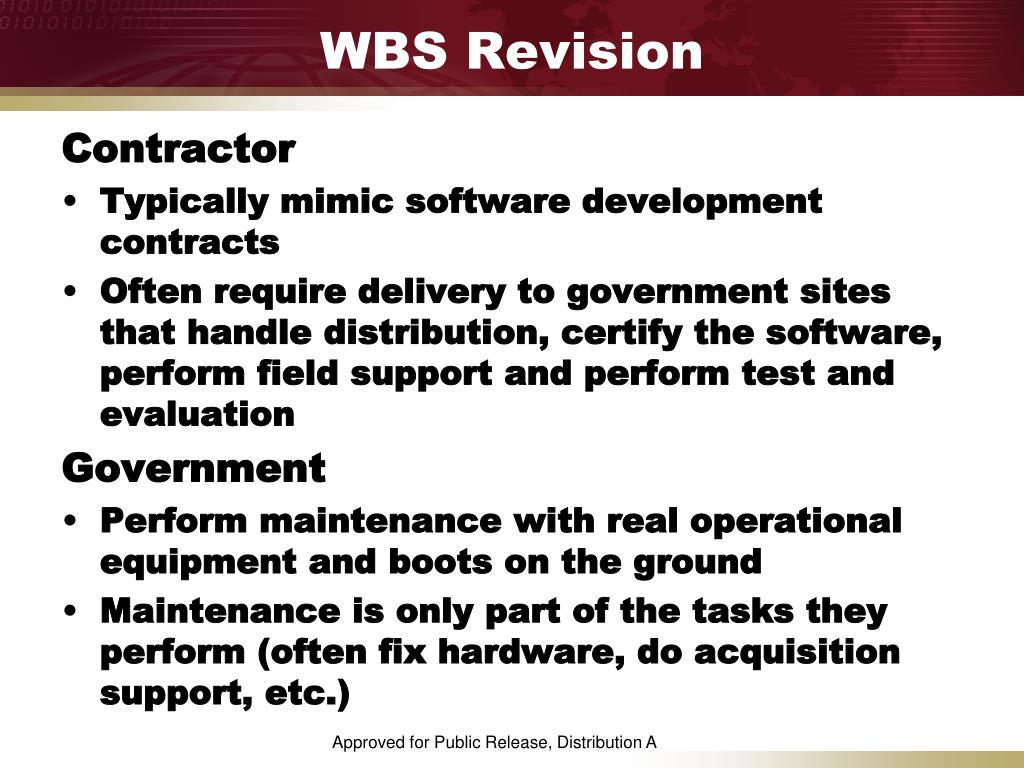

WBS Revision
  • In order to understand the factors that impact maintenance cost, we are developing a performance meta-model
  • When discussing the meta-model, we will summarize tasks around four major activities:
    • Software maintenance
    • Software sustaining engineering
    • Software support infrastructure & facilities
    • Program/project management
wbs revision1
WBS Revision

Contractor

  • Typically mimic software development contracts
  • Often require delivery to government sites that handle distribution, certify the software, perform field support and perform test and evaluation

Government

  • Perform maintenance with real operational equipment and boots on the ground
  • Maintenance is only part of the tasks they perform (often fix hardware, do acquisition support, etc.)
wbs revision2
WBS Revision

Software Maintenance:

1.1 Software maintenance

1.1.1 Release requirements

1.1.2 Release planning

1.1.3 Architecture analysis

1.1.4 Hardware defect repair

1.1.5 Software defect repair

1.1.6 Hardware enhancements

1.1.7 Software enhancements

1.1.8 Release integration & test

1.1.9 Release qualification & delivery

wbs revision3
WBS Revision

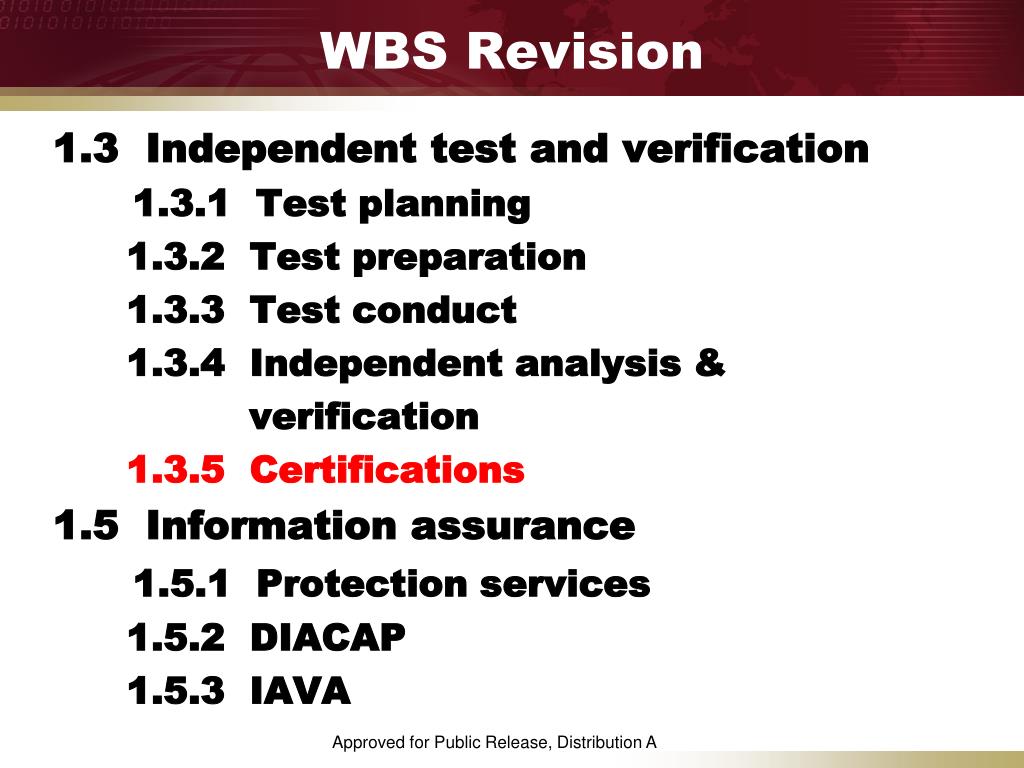

1.3 Independent test and verification

1.3.1 Test planning

1.3.2 Test preparation

1.3.3 Test conduct

1.3.4 Independent analysis &

verification

1.3.5 Certifications

1.5 Information assurance

1.5.1 Protection services

1.5.2 DIACAP

1.5.3 IAVA

wbs revision4
WBS Revision

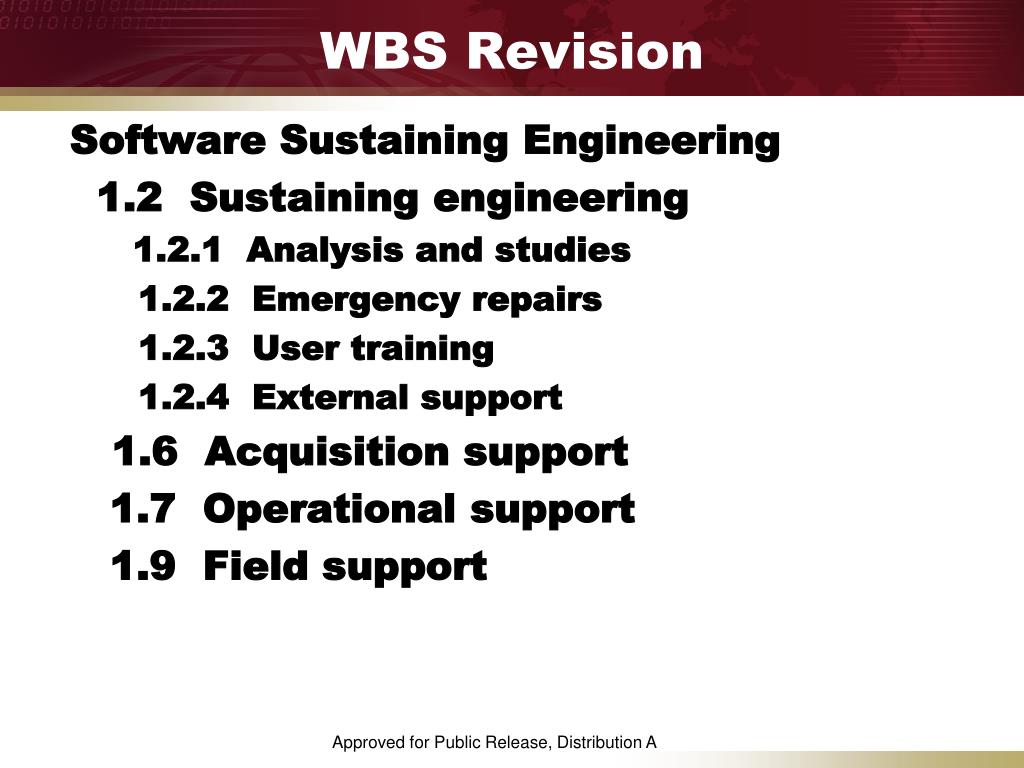

Software Sustaining Engineering

1.2 Sustaining engineering

1.2.1 Analysis and studies

1.2.2 Emergency repairs

1.2.3 User training

1.2.4 External support

1.6 Acquisition support

1.7 Operational support

1.9 Field support

wbs revision5

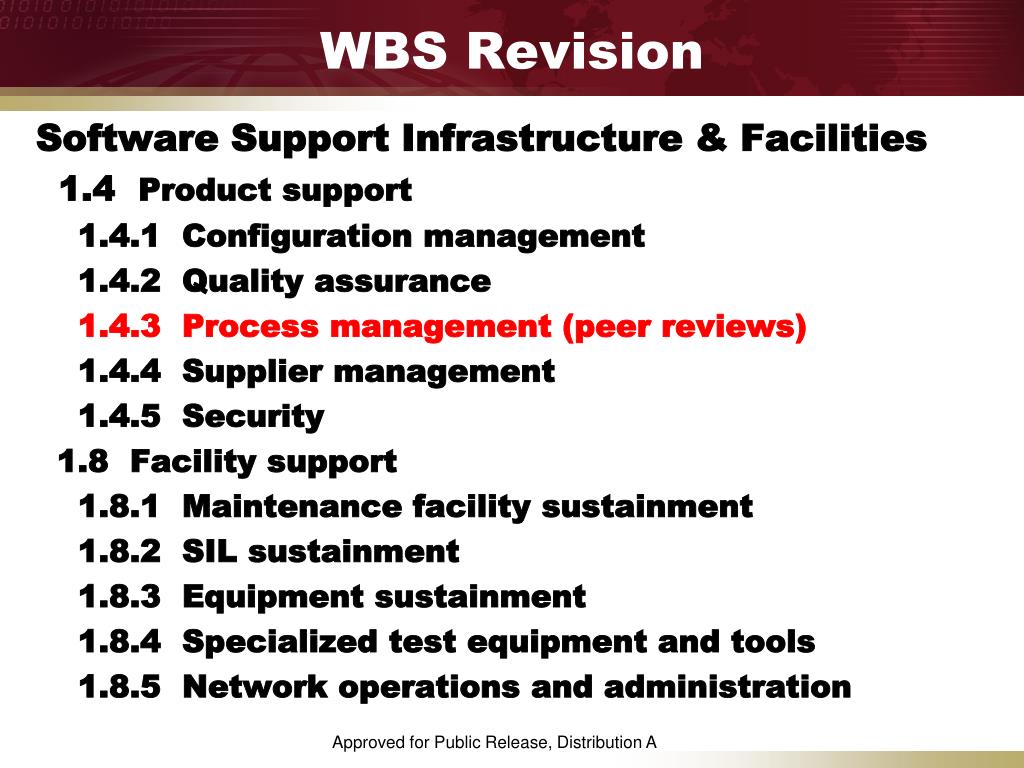

WBS Revision

Software Support Infrastructure & Facilities

1.4 Product support

1.4.1 Configuration management

1.4.2 Quality assurance

1.4.3 Process management (peer reviews)

1.4.4 Supplier management

1.4.5 Security

1.8 Facility support

1.8.1 Maintenance facility sustainment

1.8.2 SIL sustainment

1.8.3 Equipment sustainment

1.8.4 Specialized test equipment and tools

1.8.5 Network operations and administration

wbs revision6
WBS Revision

1.11 Parts

1.12 Spares

1.13 Licenses

Program/Project Management

1.10 Management

1.10.1 Release management

1.10.2 Sustaining engineering management

1.10.3 Risk management

1.10.4 Measurement analysis

1.14 Contractual capabilities set FY (XX/XX)

1.15 Contractual system mission capability

1.16 Cost item general

workshop agenda2
Workshop Agenda
  • Introductions
  • Summary of study findings and recommendations
  • Study current activities/next steps
  • WBS review
  • Influence factor review
  • Delphi survey
  • Roundtable discussions
  • Summary and break
influence factors
Influence Factors
  • Business Factors
    • Extent of policy coverage - governance
    • Low level technical & business decision autonomy
    • Diverse organizational task and activity portfolios
    • Program and domain characteristics
    • Product and data rights
    • Source and color of money
    • Resourcing business models
    • Estimation/budgeting approaches
    • Information system capabilities
influence factors1
Influence Factors
  • Complexity factors
    • Legacy software architectures
    • Legacy software technologies
    • Backfit security requirements
    • Backfit safety and other certification requirements
    • System of system integration requirements
influence factors2
Influence Factors
  • Resource and task alignment factors
    • Policies, budgets, resources, tasks and outputs
    • Autonomous personnel and funding decisions
    • Plan versus execution
    • Alignment of task and funding models
    • Management reserves (reduced allocations)
    • Top-level expectations versus realities
    • Overhead versus direct funded functions
    • Amount of “technical debt”
influence factors3
Influence Factors
  • Execution factors
    • Event-driven requirements and reprioritizations
    • Short-term mission driven execution schedules
    • Multiple customers – direct user involvement
    • Multiple funding streams
    • No. of releases being done in parallel (using same resources)
    • Backlog at start of release
    • Uncertainty of planning parameters
    • Organizational capability – flexibility - stability

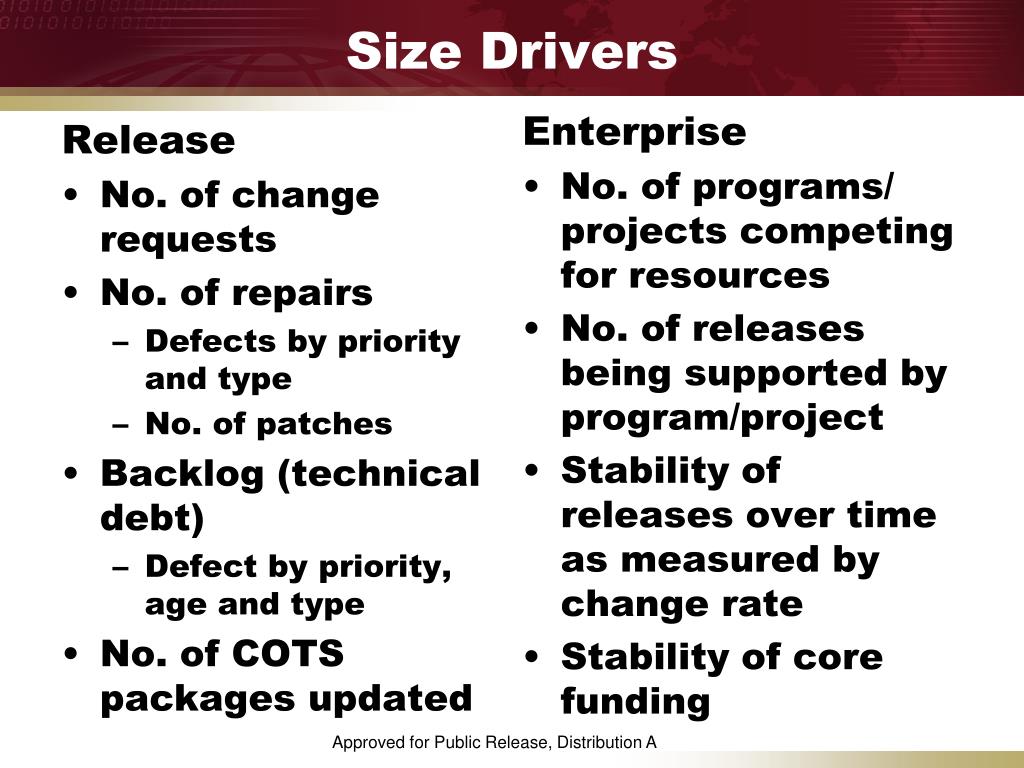

size drivers
Size Drivers

Release

  • No. of change requests
  • No. of repairs
    • Defects by priority and type
    • No. of patches
  • Backlog (technical debt)
    • Defect by priority, age and type
  • No. of COTS packages updated

Enterprise

  • No. of programs/ projects competing for resources
  • No. of releases being supported by program/project
  • Stability of releases over time as measured by change rate
  • Stability of core funding
maintenance effort multipliers
Maintenance Effort Multipliers
  • People
    • Analyst capability
    • Programmer capability
    • Personnel continuity
    • Applications experience
    • Platform experience
    • Language and tool experience
  • Product
    • Platform/domain type
    • Application type
  • Language type
  • Requirements volatility (change)
  • Product complexity
  • Data base size
  • Required reliability
  • Degree of reuse
  • Documentation match to needs
  • Execution time constrain
  • Main storage constrain
  • Platform volatility
effort multiplers
Effort Multiplers
  • Project
    • Degree of precedentedness
    • Development flexibility
    • Architecture/risk resolution
    • Team cohesion
    • Use of software tools
    • Multi-site capability
    • Required development schedule
    • Resource dedication
  • Process
    • Acquisition method
    • Development method
    • Development standard
    • Use of modern programming practices
    • Process maturity
    • Process volatility (change)
  • Other

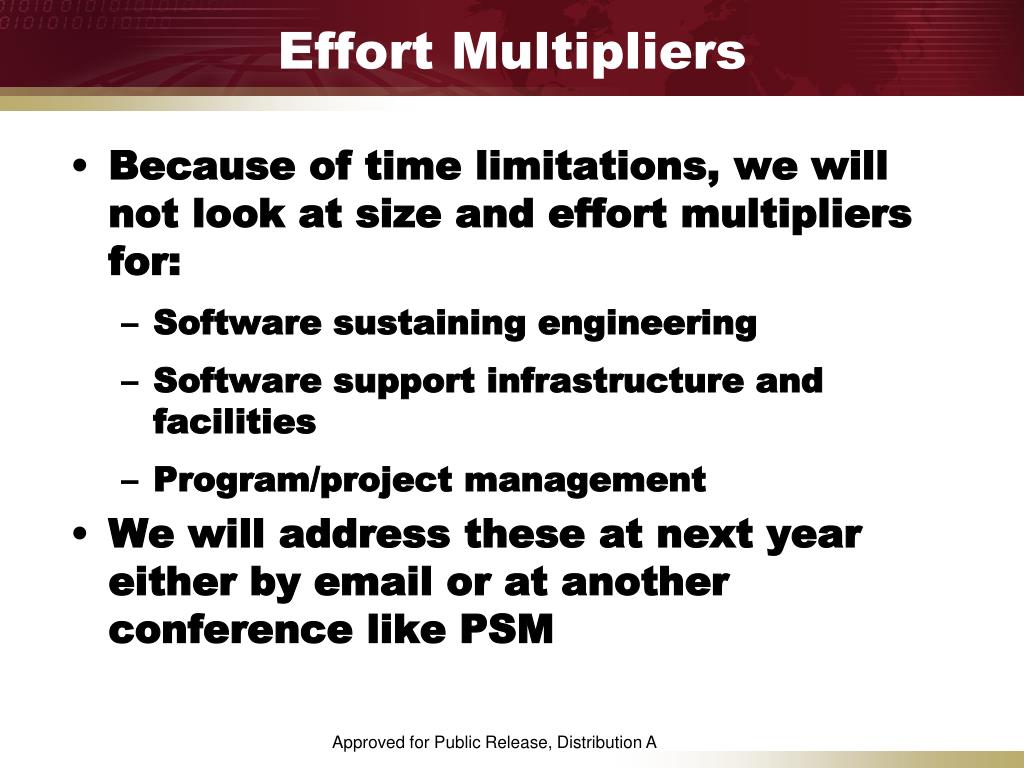

effort multipliers
Effort Multipliers
  • Because of time limitations, we will not look at size and effort multipliers for:
    • Software sustaining engineering
    • Software support infrastructure and facilities
    • Program/project management
  • We will address these at next year either by email or at another conference like PSM

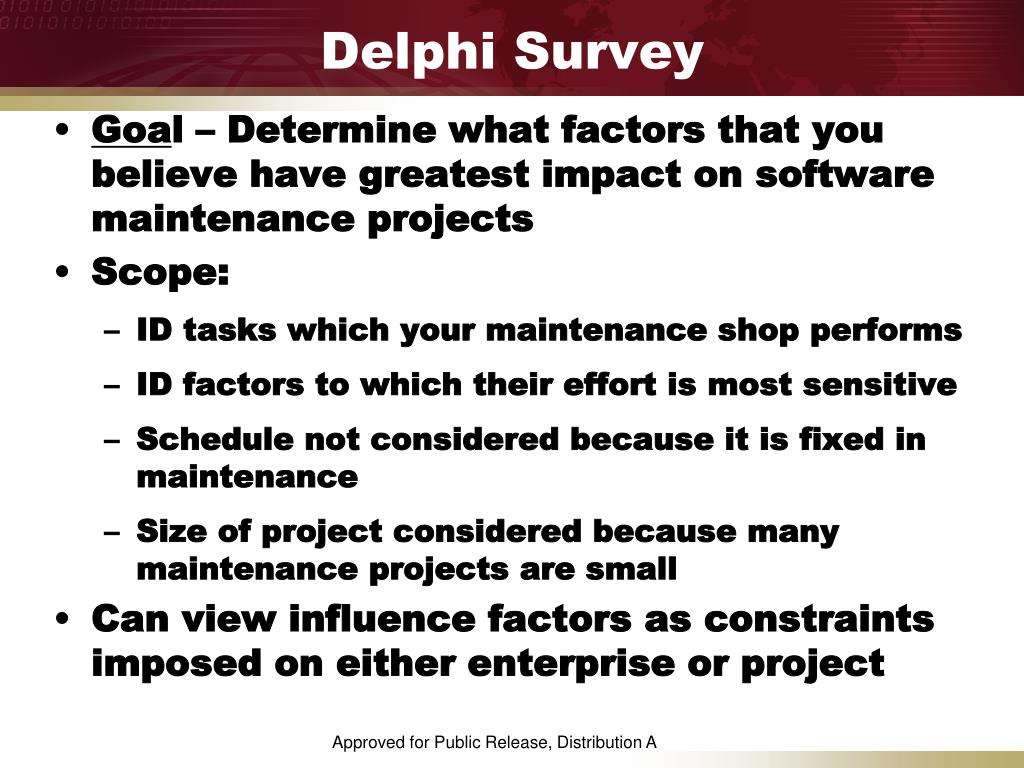

delphi survey
Delphi Survey
  • Goal – Determine what factors that you believe have greatest impact on software maintenance projects
  • Scope:
    • ID tasks which your maintenance shop performs
    • ID factors to which their effort is most sensitive
    • Schedule not considered because it is fixed in maintenance
    • Size of project considered because many maintenance projects are small
  • Can view influence factors as constraints imposed on either enterprise or project
workshop agenda3
Workshop Agenda
  • Introductions
  • Summary of study findings and recommendations
  • Study current activities/next steps
  • WBS review
  • Influence factor review
  • Delphi survey
  • Roundtable discussions
  • Summary and break

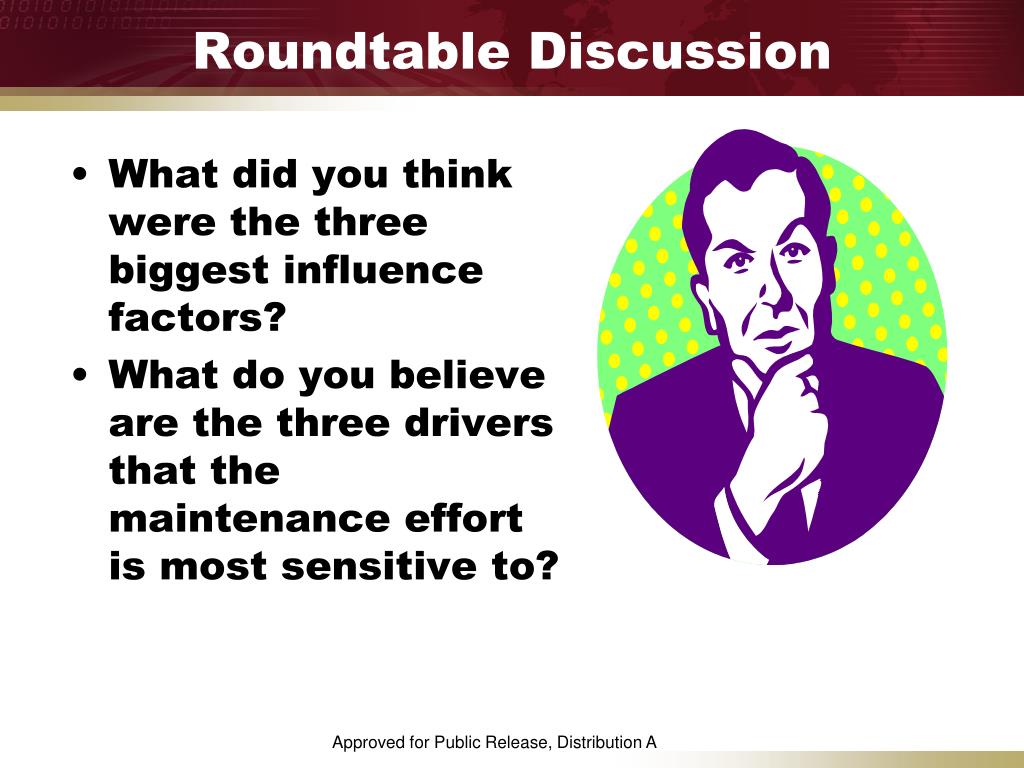

roundtable discussion
Roundtable Discussion
  • What did you think were the three biggest influence factors?
  • What do you believe are the three drivers that the maintenance effort is most sensitive to?
workshop agenda4
Workshop Agenda
  • Introductions
  • Summary of study findings and recommendations
  • Study current activities/next steps
  • WBS review
  • Influence factor review
  • Delphi survey
  • Roundtable discussions
  • Summary and break
in summary1
In Summary
  • We have summarized the results of our study
  • We have reviewed the maintenance WBS that we have developed
  • We have conducted a Delphi to identify the influence factors and cost drivers important to estimating
  • We will summarize findings and present them on Friday
  • If you wish to be on our distribution, let us know

This is why Don lives

in Prescott, AZ

In

ad
