  1. Computational Issues when Modeling Neural Coding Schemes Albert E. Parker Center for Computational Biology Department of Mathematical Sciences Montana State University Collaborators: Alexander Dimitrov John P. Miller Zane Aldworth Thomas Gedeon Brendan Mumey

  2. Neural Coding and Decoding. Goal: Determine a coding scheme: How does neural ensemble activity represent information about sensory stimuli? Demands: • An animal needs to recognize the same object on repeated exposures. Coding has to be deterministic at this level. • The code must deal with uncertainties introduced by the environment and neural architecture. Coding is by necessity stochastic at this finer scale. Major Problem: The search for a coding scheme requires large amounts of data

  3. How to determine a coding scheme? Idea: Model a part of a neural system as a communication channel using Information Theory. This model enables us to: • Meet the demands of a coding scheme: • Define a coding scheme as a relation between stimulus and neural response classes. • Construct a coding scheme that is stochastic on the finer scale yet almost deterministic on the classes. • Deal with the major problem: • Use whatever quantity of data is available to construct coarse but optimally informative approximations of the coding scheme. • Refine the coding scheme as more data becomes available. • Investigate the cricket cercal sensory system.

  4. Information Theoretic Quantities A quantizer or encoder, Q, relates the environmental stimulus, X, to the neural response, Y, through a process called quantization. In general, Q is a stochastic map The Reproduction space Y is a quantization of X. This can be repeated: Let Yf be a reproduction of Y. So there is a quantizer Use Mutual information to measure the degree of dependence between X and Yf. Use Conditional Entropy to measure the self-information of Yfgiven Y

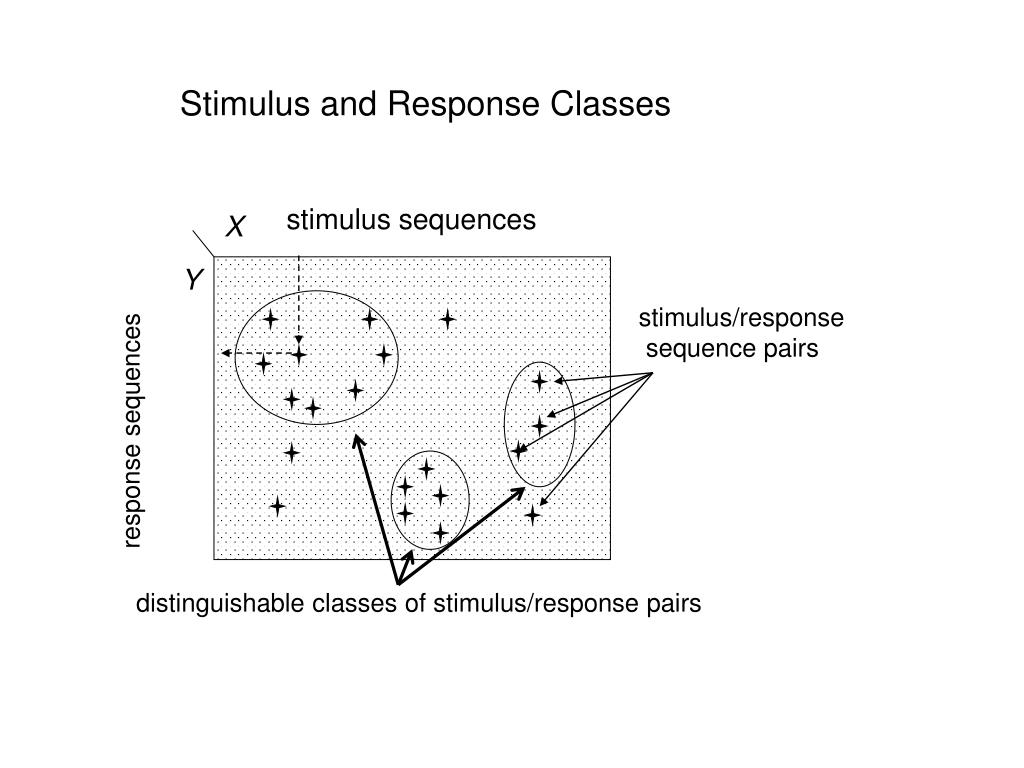

  5. stimulus sequences X Y stimulus/response sequence pairs response sequences distinguishable classes of stimulus/response pairs Stimulus and Response Classes

  6. The Model Problem: To determine a coding scheme between X and Y requires large amounts of data Idea: Determine the coding scheme between X and Yf, a squashing (reproduction) of Y, such that: Yf preserves as much information (mutual information) with X as possible and the self-information (entropy) of Yf |Y is maximized. That is, we are searching for an optimal mapping (quantizer): that satisfies these conditions. Justification: Jayne's maximum entropy principle, which states that of all the quantizers that satisfy a given set of constraints, choose the one that maximizes the entropy.

  7. Equivalent Optimization Problems • Maximum entropy: maximizeF(q(yf|y)) = H(Yf|Y)constrainedbyI(X;Yf )  Io Iodetermines the informativeness of the reproduction. • Deterministic annealing (Rose, ’98): maximizeF(q(yf|y)) = H(Yf|Y) -  DI(Y,Yf ).Small favor maximum entropy, large  - minimum DI. • Simplex Algorithm: maximize I(X,Yf ) over vertices of constraint space • Implicit solution:

  8. ? ?

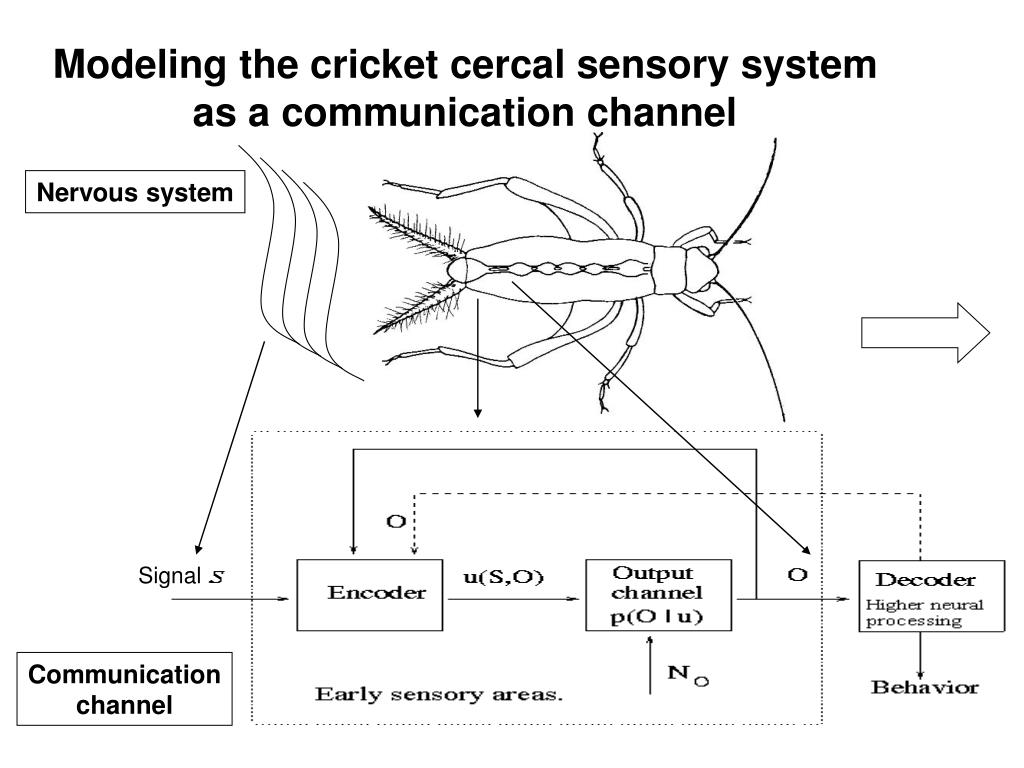

  9. Modeling the cricket cercal sensory system as a communication channel Nervous system Signal Communicationchannel

  10. Wind Stimulus and Neural Response in the cricket cercal systemNeural Responses (over a 30 minute recording) caused by white noise wind stimulus. X Y Time in ms. A t T=0, the first spike occurs Some of the air current stimuli preceding one of the neural responses Neural Responses (these are all doublets) for a 12 ms window T, ms

  11. probabilistic refined Y Quantization:A quantizer is any map f: Y -> Yf from Y to a reproduction space Yf with finitely many elements. Quantizers can be deterministic or Yf Y

  12. Applying the algorithm to cricket sensory data. Yf 1 2 1 2 3 Yf Y

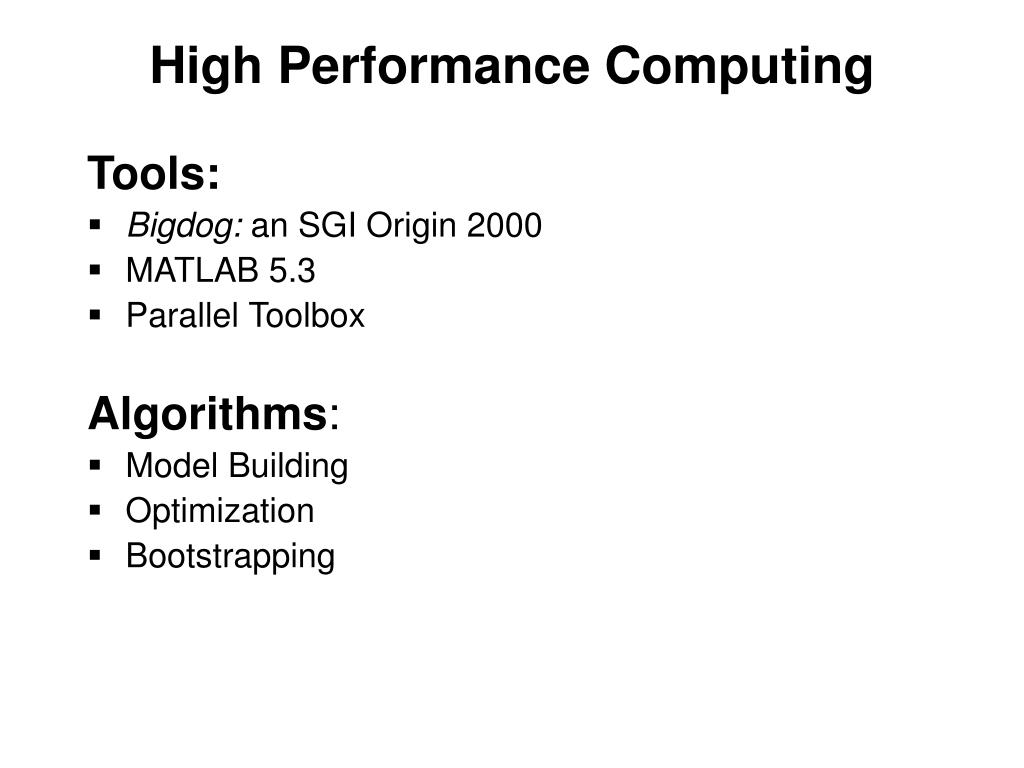

  13. High Performance Computing Tools: • Bigdog: an SGI Origin 2000 • MATLAB 5.3 • Parallel Toolbox Algorithms: • Model Building • Optimization • Bootstrapping

  14. Conclusions We • model a part of the neural system as a communication channel. • define a coding scheme through relations between classes of stimulus/response pairs. • Coding is probabilistic on the individual elements of X and Y. • Coding is almost deterministic on the stimulus/response classes. To recover such a coding scheme, we • propose a new method to quantify neural spike trains. • Quantize the response patterns to a small finite space (Yf). • Use information theoretic measures to determine optimal quantizer for a fixed reproduction size. • Refine the coding scheme by increasing the reproduction size. • present preliminary results with cricket sensory data.
