  1. Foam Flow Projects Mohan Kelkar and Cem Sarica The University of Tulsa

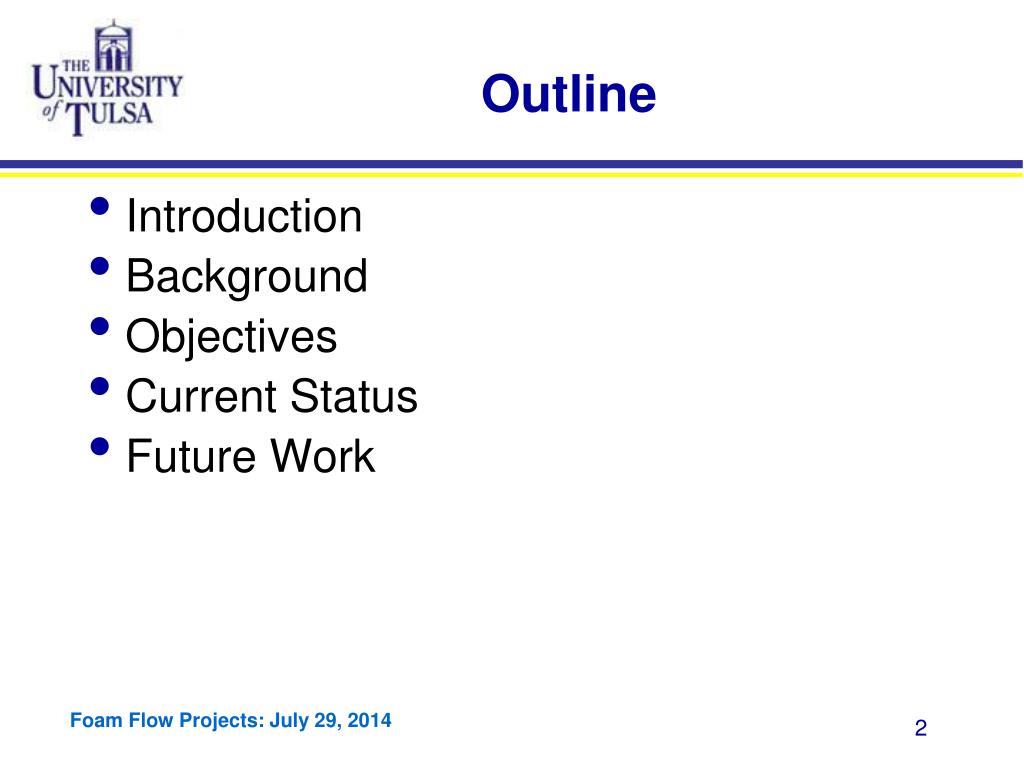

  2. Outline • Introduction • Background • Objectives • Current Status • Future Work

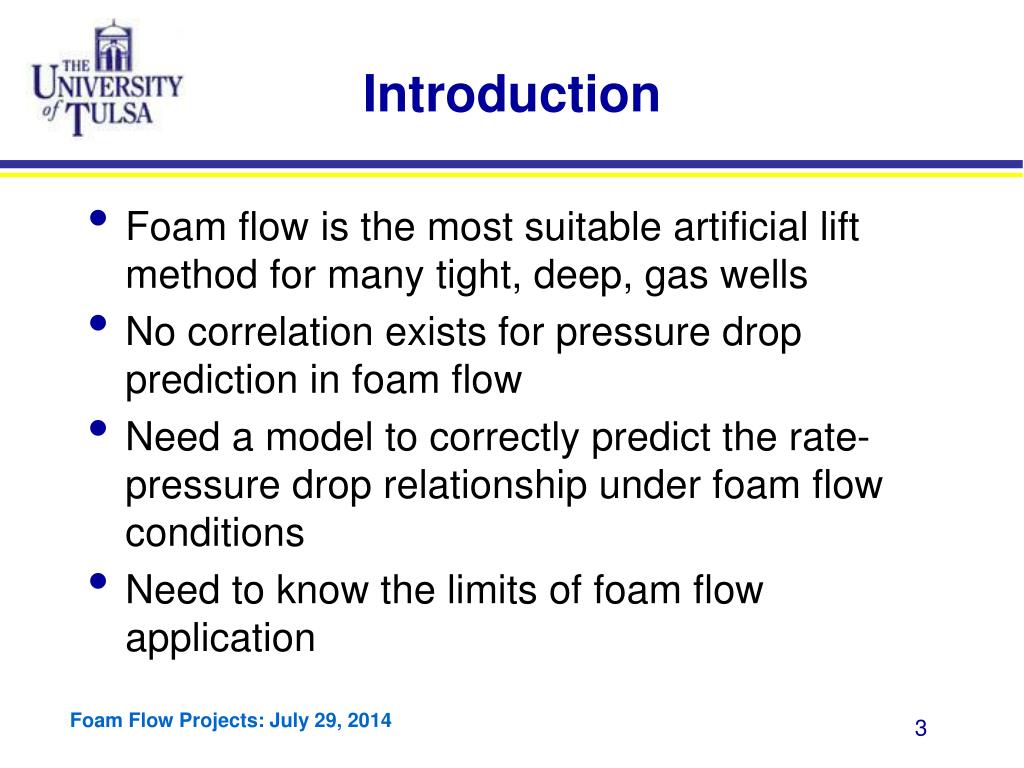

  3. Introduction Foam flow is the most suitable artificial lift method for many tight, deep, gas wells No correlation exists for pressure drop prediction in foam flow Need a model to correctly predict the rate-pressure drop relationship under foam flow conditions Need to know the limits of foam flow application

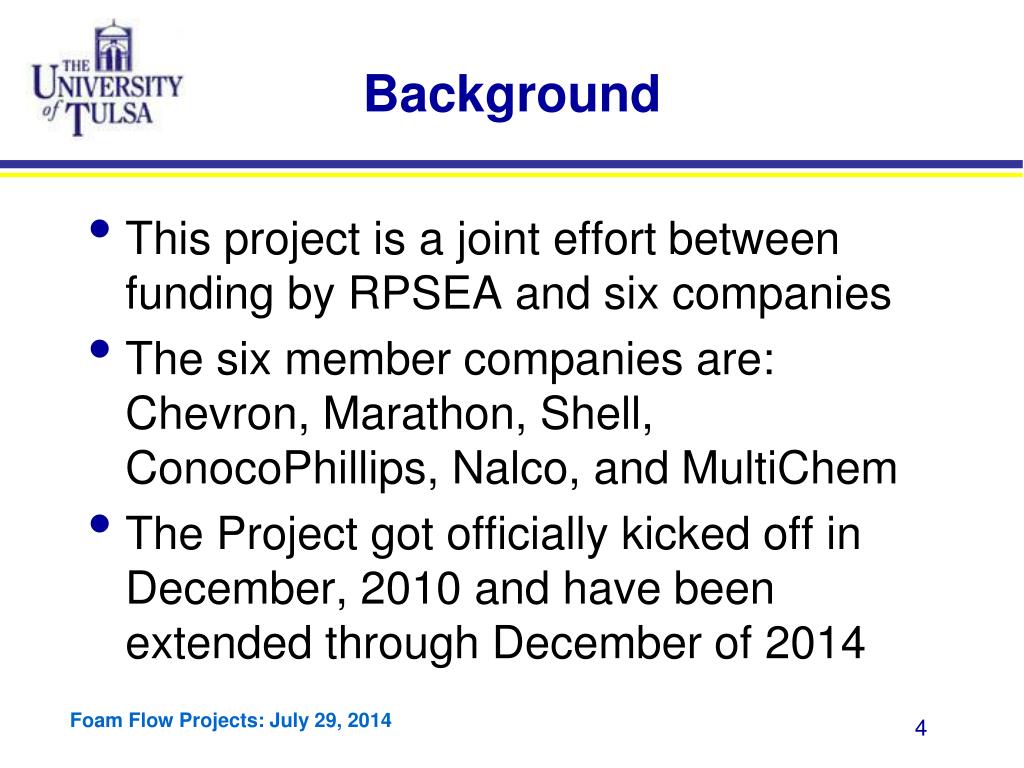

  4. Background This project is a joint effort between funding by RPSEA and six companies The six member companies are: Chevron, Marathon, Shell, ConocoPhillips, Nalco, and MultiChem The Project got officially kicked off in December, 2010 and have been extended through December of 2014

  5. Objectives of the Project • Collect experimental foam flow data under controlled conditions for two different tubing sizes and five different foams • Measure surface tension, viscosity and foam stability • Develop comprehensive correlation to predict pressure drop under foam flow conditions • Develop guidelines for using appropriate concentration of surfactant as well as minimum gas-liquid ratios • Validate the model by comparing the results with field data provided by participating companies

  6. Current Status • One graduate student and two undergraduate students working on the project • Ayantayo Ajani – PhD Student • Chance Brashears • DhiyaShukri

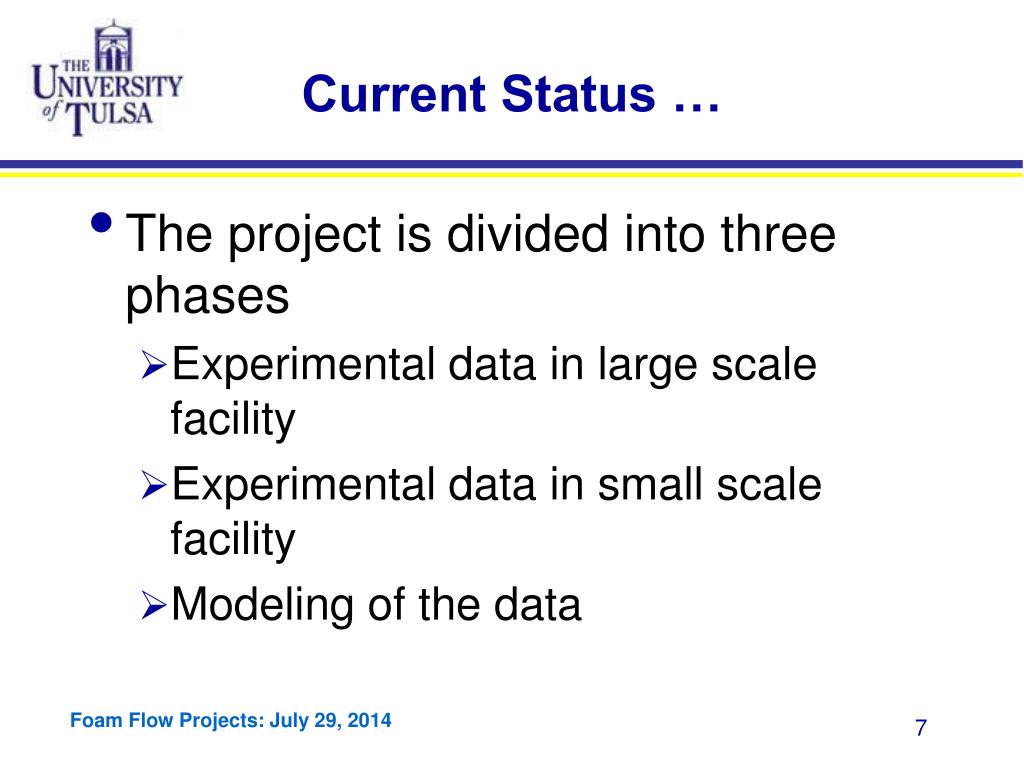

  7. Current Status … • The project is divided into three phases • Experimental data in large scale facility • Experimental data in small scale facility • Modeling of the data

  8. Current Status … • We have collected data in large scale facility for five different surfactants • We have collected data in small scale facility for five different surfactants • We have examined the effect of brine and temperature on some representative samples • We have just started the modeling process

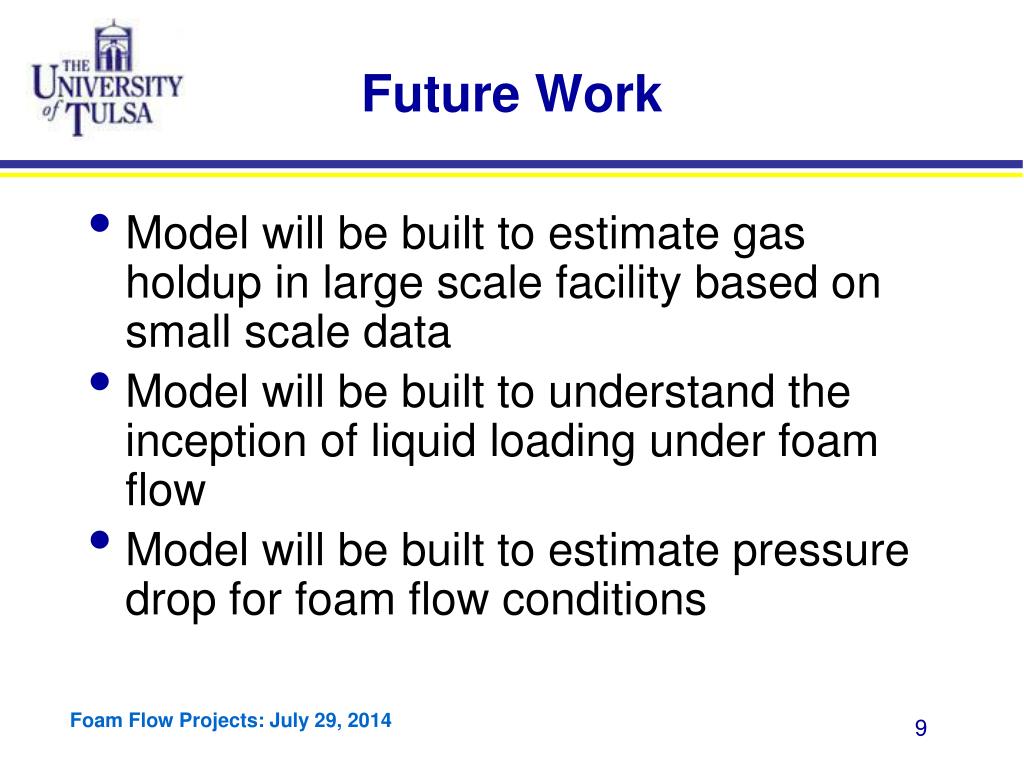

  9. Future Work • Model will be built to estimate gas holdup in large scale facility based on small scale data • Model will be built to understand the inception of liquid loading under foam flow • Model will be built to estimate pressure drop for foam flow conditions
