BESIII dE/dx package: status and algorithm studies

BESIII dE/dx package: status and algorithm studies. WANG Dayong June 1,2005. Outline. dE/dx package:OO design and software development Calibration and systematic corrections Reconstruction algorithm studies: Different estimation of most prob Eloss Curve studies based on BESII data

dawn-bennett
Download Presentation

BESIII dE/dx package: status and algorithm studies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BESIII dE/dx package: status and algorithm studies WANG Dayong June 1,2005

  2. Outline • dE/dx package:OO design and software development • Calibration and systematic corrections • Reconstruction algorithm studies: • Different estimation of most prob Eloss • Curve studies based on BESII data • Resolution and residual bias correction

  3. dE/dx :Particle ID with energy loss measurements dE/dx~f(v) • Principle: P = · m Particle type info • Components: calibration and reconstruction • Implementation: C++ programming under BOSS framework • Design goal: Resolution 6—7%, good seperation MDC tracking

  4. Requirements and data flow MDC digits • AIM: to give the partID information from the list of pulse heights of hits on the MDC track, and store them into TDS • some corrections are performed to get unbiased dE/dx information. • Some proper dE/dx estimators are constructed MDC digits Transient Data Store (TDS) MDC Tracking Tracks Tracks MDC digits Tracks dE/dx Reconstruction Recon dE/dx Recon dE/dx Recon dE/dx Global Particle Identification partId info Apparent dataflow 。。。 Real dataflow physics analysis

  5. finally selected UML Class diagrams

  6. UML Sequence Diagram for dE/dx Reconstruction

  7. Some implementation features • Uniform interface: Alternative algorithms with the same interface • Uniform data I/O format: MDC recon data model: MdcRecEvent • Input from MC : MdcFakeData package

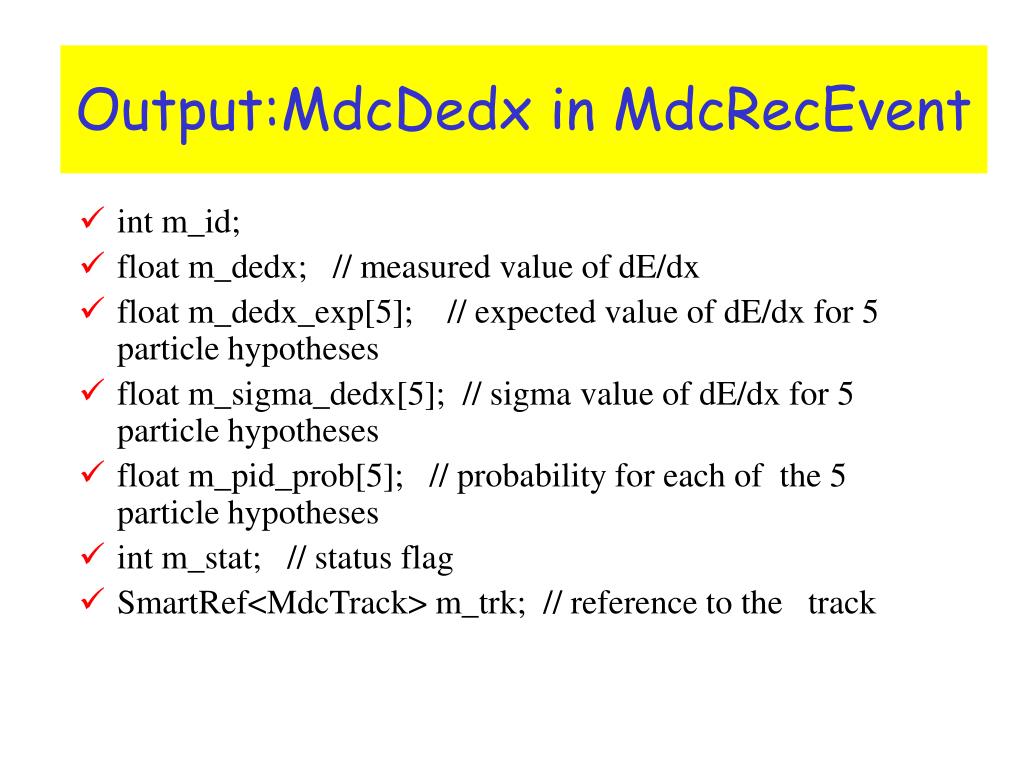

  8. Output:MdcDedx in MdcRecEvent • int m_id; • float m_dedx; // measured value of dE/dx • float m_dedx_exp[5]; // expected value of dE/dx for 5 particle hypotheses • float m_sigma_dedx[5]; // sigma value of dE/dx for 5 particle hypotheses • float m_pid_prob[5]; // probability for each of the 5 particle hypotheses • int m_stat; // status flag • SmartRef<MdcTrack> m_trk; // reference to the track

  9. Calibration issues • Systematic and run-by-run calibrations is important for dE/dx correction • Calibration consts ~7200 are designed • Calib consts stored in DataBase. They can be retrieved from DB in reconstruction now • In future, calib consts in ROOT format and DB only contains meta data

  10. dE/dx calibration and corrections • Gain variations among cells • Gas Gain variation within one cell • Sampling length corrections • Drift distance dependence • Longitude position(z) dependence • Dependence of the sense wire voltage • Space charge effect • Gas gain saturation : from electronics • Temperature,pressure and environmental effects • Corrections related to particle type • Variations of the pulse height run by run

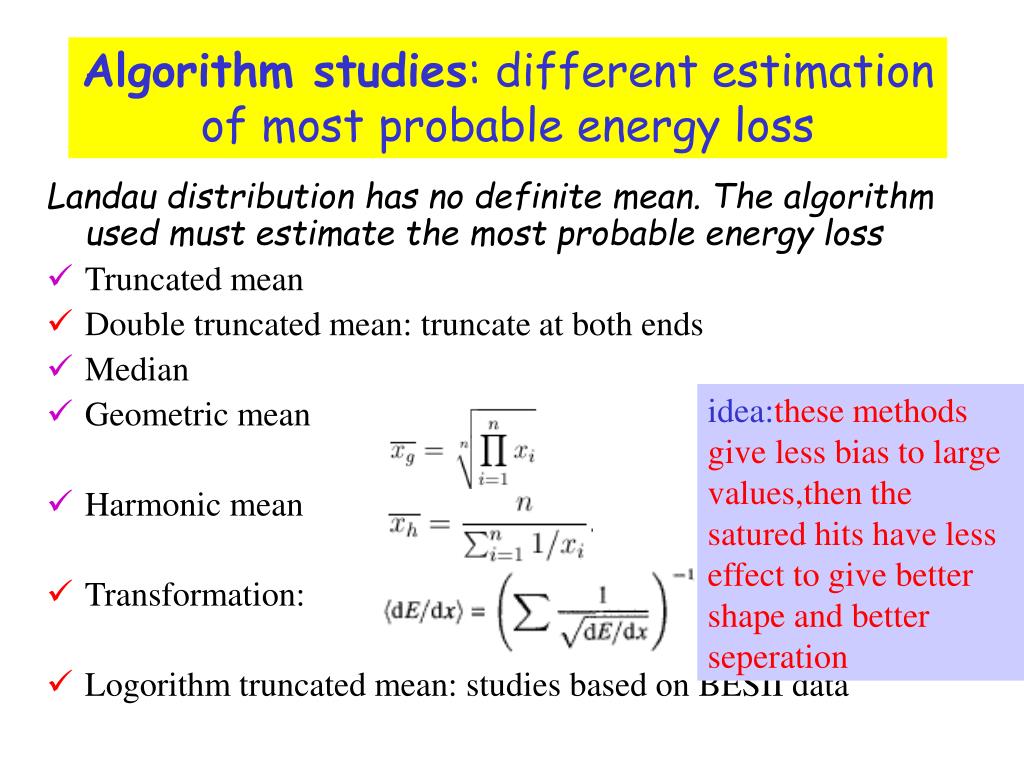

  11. Algorithm studies: different estimation of most probable energy loss Landau distribution has no definite mean. The algorithm used must estimate the most probable energy loss • Truncated mean • Double truncated mean: truncate at both ends • Median • Geometric mean • Harmonic mean • Transformation: • Logorithm truncated mean: studies based on BESII data idea:these methods give less bias to large values,then the satured hits have less effect to give better shape and better seperation

  12. Different estimation of most probable energy loss: resolution(1) 5.51% 5.34% 0.05~0.75 truncation Truncation rate 0.7 6.06% 5.09% BOOST MC, MIP muon

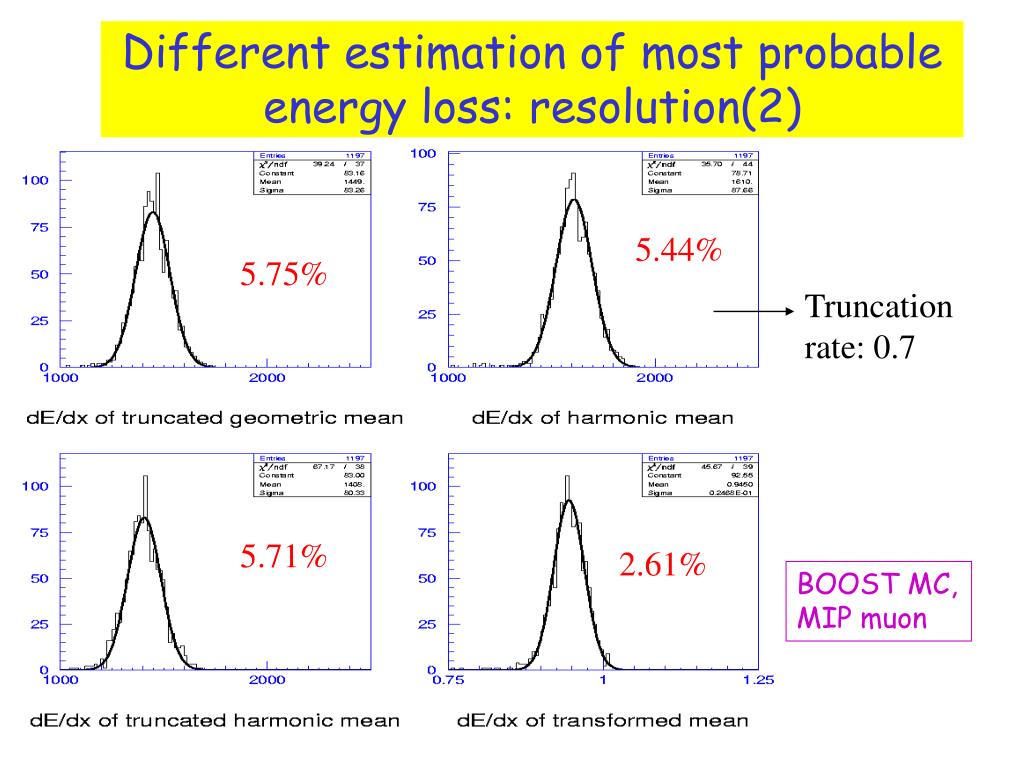

  13. Different estimation of most probable energy loss: resolution(2) 5.44% 5.75% Truncation rate: 0.7 5.71% 2.61% BOOST MC, MIP muon

  14. Different estimation of most probable energy loss: seperation power(1) Pi/K Pi/P 0.7GeV 1.2GeV Pi/K Pi/P 0.7GeV 1.2GeV Pi/K Pi/P 0.6GeV 1.1GeV Pi/K Pi/P 0.75GeV 1.3GeV

  15. Different estimation of most probable energy loss: seperation power(2) Pi/K Pi/P 0.7GeV 1.2GeV Pi/K Pi/P 0.7GeV 1.3GeV Pi/K Pi/P 0.7GeV 1.3GeV Pi/K Pi/P 0.75GeV 1.3GeV

  16. Comparison of linear&logorithm TM • Logorithm TM(right figure),compared to plain TM(left figure): • Suppress high-end residual Landau tail • The distribution more Gaussian like BESII DATA, J/Psi hadrons shape is more Gaussian-like shape is more Gaussian-like Pull width: 1.020 0.9995 Pull width: 0.8477 0.9304 Cosmic rays Radiative Bhabha

  17. Study of truncated mean method • Well established method of dE/dx estimation • Simple and robust • Rejection of lower end hits to remove contributions from noise and background fluctuation • Truncation of higher tail to remove Landau tail due to hard collisions Just cooresponding to ~5% lower cut Landau tail After truncation, distribution just Gaussian-like BOOST MC, 1GeV electrons

  18. Resolution curve with different truncation rates • 70% truncation ratio is adopted for the algorthm • Number of good hits is required to no less than 10 for each track • Resolution from perfect MC consistent with empirical formula BOOST MC, 1GeV electrons

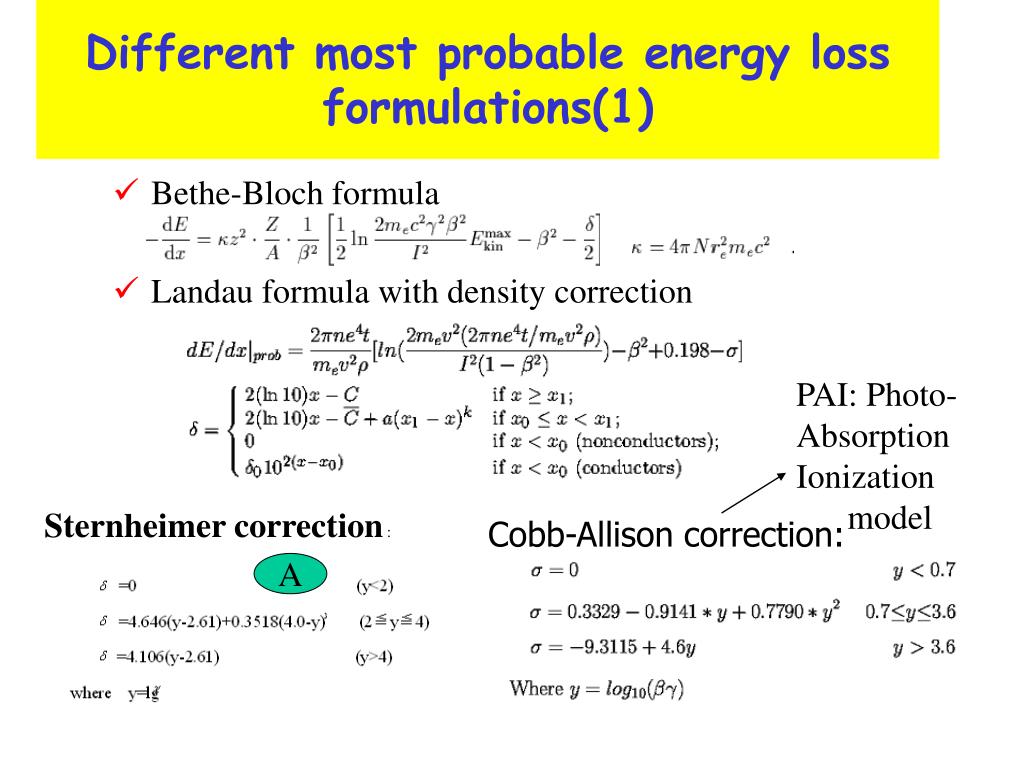

  19. Different most probable energy loss formulations(1) • Bethe-Bloch formula • Landau formula with density correction PAI: Photo-Absorption Ionization model Sternheimer correction : Cobb-Allison correction: A

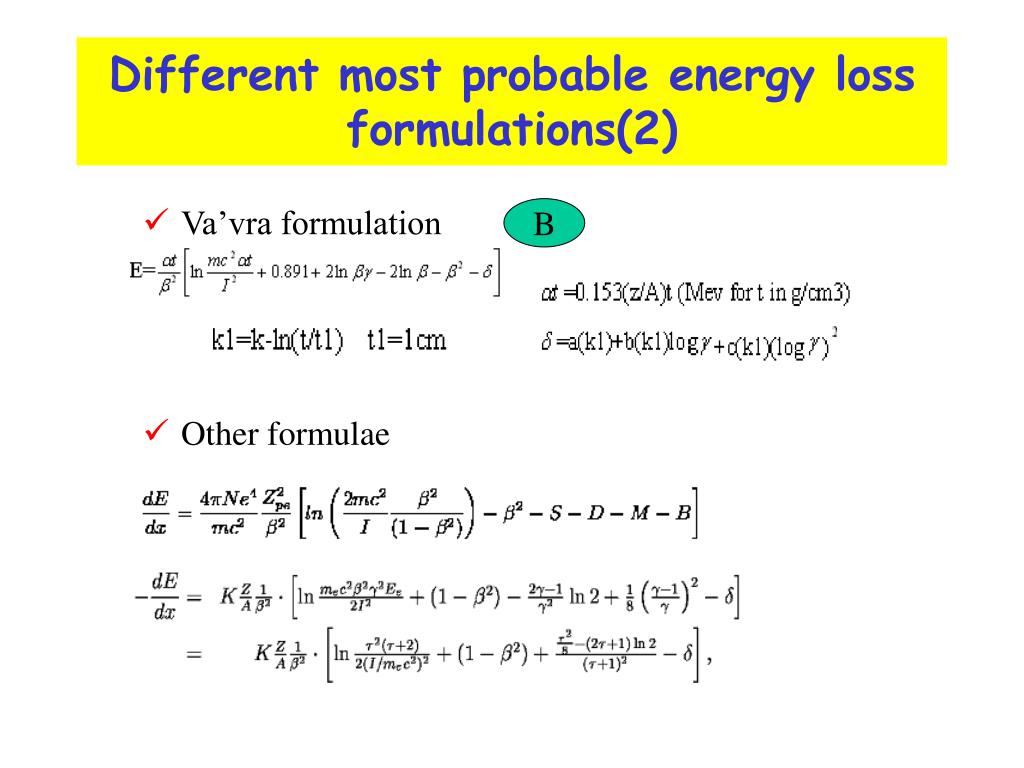

  20. Different most probable energy loss formulations(2) B • Va’vra formulation • Other formulae

  21. dE/dx curve studies with BesII data • Purpose: • Comparison of different formula to find the best curve to calculate expectation in reconstruction • A test-bed for BESIII reconstruction • data samples used: Pion:J/Psirho+pi & J/PsiKKPiPi Kaon:J/PsiK*(892)+K(1430)KKPiPi Proton:J/psiPPbarPi0&J/PsiPPbarEta electron: (radiative) Bhabha muon: dimu +cosmic rays “Garbage” events: beam-gas protons, cosmic-rays, rad. Bhabha Example:Cuts for Bhabha • To get pure samples: • Use Tof and BSC information ONLY to identify particles • use relative probability only • Strict kinetic and invariant mass cut • The cuts are checked with GENBES

  22. Comparison between data and dE/dx curve • Sternheimer(A) is better at high momentum end • Va’vra(B) is relative better at low momentum end • Data need careful calibration • Practical global parameterization of curve is prefered Sternheimer B A Comparison of Sternheimer and Va’vra formula: A B

  23. Global 5-parameter fit for phmp_nml vs • binning with nearly the same statisticsat each point to reduce the error • Using garbage events in order to fastly calibrate this curve for BESIII in future • A uniform formula to avoid discrete expression for density effect • The curve fit the BESII data OK Beam-gas proton Radiative bb Cosmic rays

  24. Residual theta dependence before correction (Hadron events) After correction The correction is then parameterized and used in mass data process

  25. σdE/dx~hits number relationship Empirical formula : resolution resolution J/Psi dimuon events data of different momenta bins J/Psi radiative Bhabha events number of hits number of hits

  26. summary • OO designed BESIII dE/dx package now runs smothly under BOSS • Calibration algorithm are designed and many corrections considered • Different reconstruction algorithms are explored to get best performance • To reach design goals, there are still a long way to go

  27. Thank you谢谢！ Backed -up slides…
